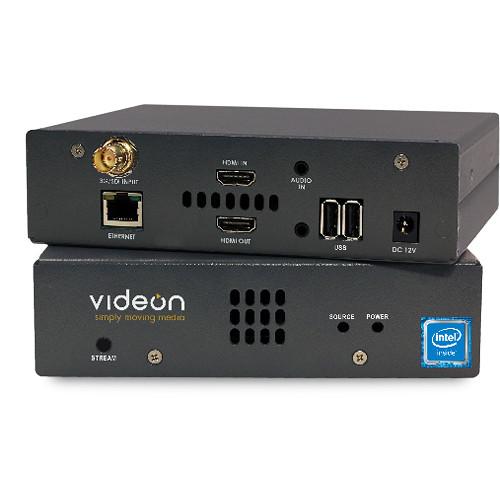

User Manual for Videon Greylock HDMI & 3G HD SD-SDI to HDMI H.264 Encoder Decoder Click to enlarge the picture
Contents of the user manual for the Videon Greylock HDMI & 3G HD
- Product category: Streaming Media Solutions Videon
- Brand: Videon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Videon Streaming Media Solutions
|
User manual for the Videon Greylock HDMI & 3G HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Videon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Videon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Videon product will considerably shorten its lifespan!
|
Product description The Greylock H.264 Encoder/Decoder from Videon is a Full HD video-over-IP encoder/decoder designed for AV installations including houses of worship, live events, sports, and education. It features an HDMI input and output as well as a 3G/HD/SD-SDI (BNC) input for connecting to your source devices. Audio embedded in HDMI and 3G/HD/SD-SDI sources is processed, and a 3.5mm analog audio input jack enables a separate audio source to be embedded with the video stream. Use the Greylock for unicasting or multicasting your content over platforms such as Wowza, UStream, YouTube Live, EvoStream, and DaCast. The compact Greylock uses its Intel Atom CE5300 Processor for H.264 compression, offering Baseline, Main, and High profiles. Audio features include MPEG-4 AAC-LC encoding, 48 kHz sampling, and MPEG-1 Layer II and MPEG-2/MPEG-4 AAC audio decoding. The Greylock can encode video at rates up to 1080p60, with video bit rates going as high as 20 Mbps, or as low as 250 kbps for delivery over bandwidth-constrained networks. Link this encoder/decoder to your network via its RJ45 10/100/1000 Ethernet port. Network and control features of the Greylock include a web-based UI (user interface), integration with third-party controllers and applications, HTTP command and control, and auto-detection of other Videon units on your subnet. - Key Features
-
- Uses H.264 compression to stream AV over IP
- 1 x HDMI and 1 x 3G/HD/SD-SDI input; 1 x HDMI output
- Designed for live events, lecture capture, sports, and house-of-worship use
- Provides flexible options for moving content from source to screen
- Integrated Intel Atom CE5300 processor
- Supports resolutions up to 1080p60
- Web-based UI (user interface)
- Streaming
-
- RTP over UDP, raw UDP protocols
- 1 x RJ45 10/100/1000 Ethernet port
- Up to two unicast, and one multicast simultaneous channel output
- Streaming protocols: Wowza, UStream, YouTube Live, EvoStream, DaCast
- Network and Control
-
- REST API integrates with third-party controllers and applications
- Full-featured web browser–based UI is designed for tablets and desktops
- Configured for unicasting, multicasting and RTMP
- Default DHCP, or static IP address
- HTTP command and control
- Auto-detects other Videon H.264 encoder/decoder units on your subnet
UPC: 850690007045 In the Box Videon Greylock HDMI & 3G/HD/SD-SDI to HDMI H.264 Encoder/Decoder Power Supply (12 V) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Videon Greylock HDMI & 3G HD SD-SDI to HDMI H.264 Encoder Decoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVideon Greylock HD Specs | | | Processor | 1 x dual-core 1.2 GHz Intel Atom | | Input Resolutions | 1080p: 60 converted to 30, 59.94 converted to 29.97; 30/29.97/25
1080i: 60/59.94/50
720p: 60/59.94/50 | | Output Resolutions | 1080p: 60/59.94/50/30/29.97/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 59.94
480i: 59.94 | | Compression | H.264 (baseline, main, high) | | Bit Rates | 250 kbps - 20 Mbps
Rate Control: VBR, CBR | | Transcoding Management | Limit: 30 fps
(e.g. 1080p60 input to 720p60 scaled output) | | Latency | Encode: ~1 second
Decode: ~250 ms | | | | Audio Encoding / Decoding | Encode: MPEG-4 AAC-LC in ADTS 64-320 kbps
Decode: MPEG-1 Layer II, MPEG-2/MPEG-4 AAC in ADTS/LOAS | | Sampling Frequencies | Encode: 32, 44.1, 48 kHz
Decode: 48 kHz | | | | Video | Input:
1 x HDMI 1.4a
1 x 3G/HD/SD-SDI
Output:
1 x HDMI 1.4a | | USB | 2 x USB 2.0 | | Ethernet | 1 x 10/100/1000 (RJ-45) | | Audio | Input/Output:
Embedded in HDMI and 3G/HD/SD-SDI
Analog Input:
1 x 3.5 mm jack | | | | Power Requirements | 12 VDC | | Power Consumption | <15 W total | | Dimensions (HxWxD) | 1.75 x 6.54 x 6.2" (4.5 x 16.6 x 15.8 cm) | | Weight | 3 lb (1.4 kg) | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 11.417 x 9.291 x 3.78" |
