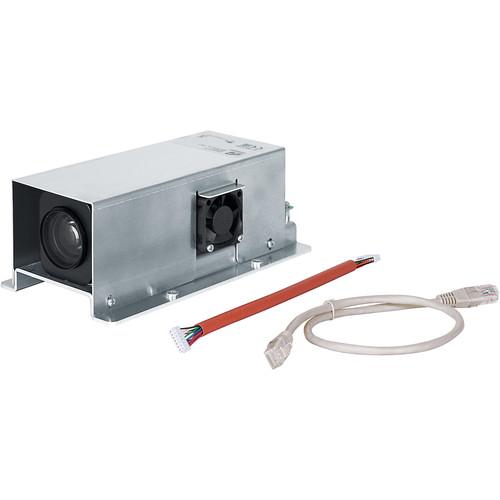

User Manual for Videotec CAMHD30X 1080p 30x Network Camera for ULISSE2 with 4.3-129mm Lens Click to enlarge the picture
Contents of the user manual for the Videotec CAMHD30X 1080p 30x Network Camera
- Product category: Wired IP Cameras Videotec
- Brand: Videotec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Videotec Wired IP Cameras
|
User manual for the Videotec CAMHD30X 1080p 30x Network Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Videotec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Videotec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Videotec product will considerably shorten its lifespan!
|
Product description - ULISSE2 Camera installation
The CAMHD30X 1080p 30x Network Camera for ULISSE2 from Videotec is designed to be used with the ULISSE2 enclosure. It utilizes a 1/2.8" Exmor CMOS sensor to capture images in 1080p resolution. This camera features 30x optical zoom and 360x digital zoom as well as an electronic stabilizer and an auto, manual, and PTZ trigger focus system. - Features zone masking (pan angle or pan/tilt angles)
- EAC-certified and UL-listed
In the Box Videotec CAMHD30X 1080p 30x Network Camera for ULISSE2 with 4.3-129mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Videotec CAMHD30X 1080p 30x Network Camera for ULISSE2 with 4.3-129mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVideotec CAMHD30X Specs | Image Sensor | 1/2.8" Exmor CMOS sensor | | Effective Pixels | 2.38 MP approximately | | Minimum Illumination | Color (ICR-OFF):
1.4 lux, 1/30 sec, 50 IRE (normal mode)
0.35 lux, 1/30 sec, 50 IRE (high-sensitivity mode)
0.19 lux, 1/3 sec, 50 IRE (normal mode)
0.05 lux, 1/3 sec, 50 IRE (high-sensitivity mode)
B&W (ICR-ON):
0.05 lux, 1/30 sec, 50 IRE (normal mode)
0.013 lux, 1/30 sec, 50 IRE (high-sensitivity mode)
0.002 lux, 1/3 sec, 30 IRE (high-sensitivity mode) | | Lens | 4.3mm-129mm, from f/1.6 to f/4.7 | | Optical Zoom | 30x (360x with digital zoom) | | Frame Rate | 60 fps | | Horizontal Viewing Angle | Wide: 63.7°
Tele: 2.3° | | Minimum Object Distance | Wide: 0.4" (10 mm)
Tele: 47.2" (1200 mm) | | Electronic Shutter | 1/1 to 1/10,000 sec, 22 steps | | White Balance | Auto, ATW, indoor, outdoor, outdoor auto, sodium vapor lamp (fix, auto, and outdoor auto), one-push, and manual | | Gain | Auto, manual, gain limit (from 3 dB up to 43 dB in 3 dB steps) | | Wide Dynamic Range | On/Off/Visibility enhancer, light level, brightness compensation selection, and compensation level | | Focus System | Auto (Sensitivity: normal, low), manual, and PTZ trigger | | Exposure Control | Auto, EV compensation, manual, priority (shutter priority, iris priority), brightness, and slow AE | | S/N Ratio | 50 dB | | Wide-D | 130 dB | | De-Fog | On/Off | | Operating Temperature | When Installed in ULISSE2: Up to 149°F (65°C) | | Dimensions | Not specified by the manufacturer | | Weight | 2 lb (0.9 kg) |
