User Manual for Videotec GEKO IRH Medium-Beam High-Power White Light LED Illuminator Click to enlarge the picture
Contents of the user manual for the Videotec GEKO IRH Medium-Beam High-Power White
- Product category: Illuminators Videotec
- Brand: Videotec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Videotec Illuminators
 |
User manual for the Videotec GEKO IRH Medium-Beam High-Power White contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Videotec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Videotec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Videotec product will considerably shorten its lifespan!
|

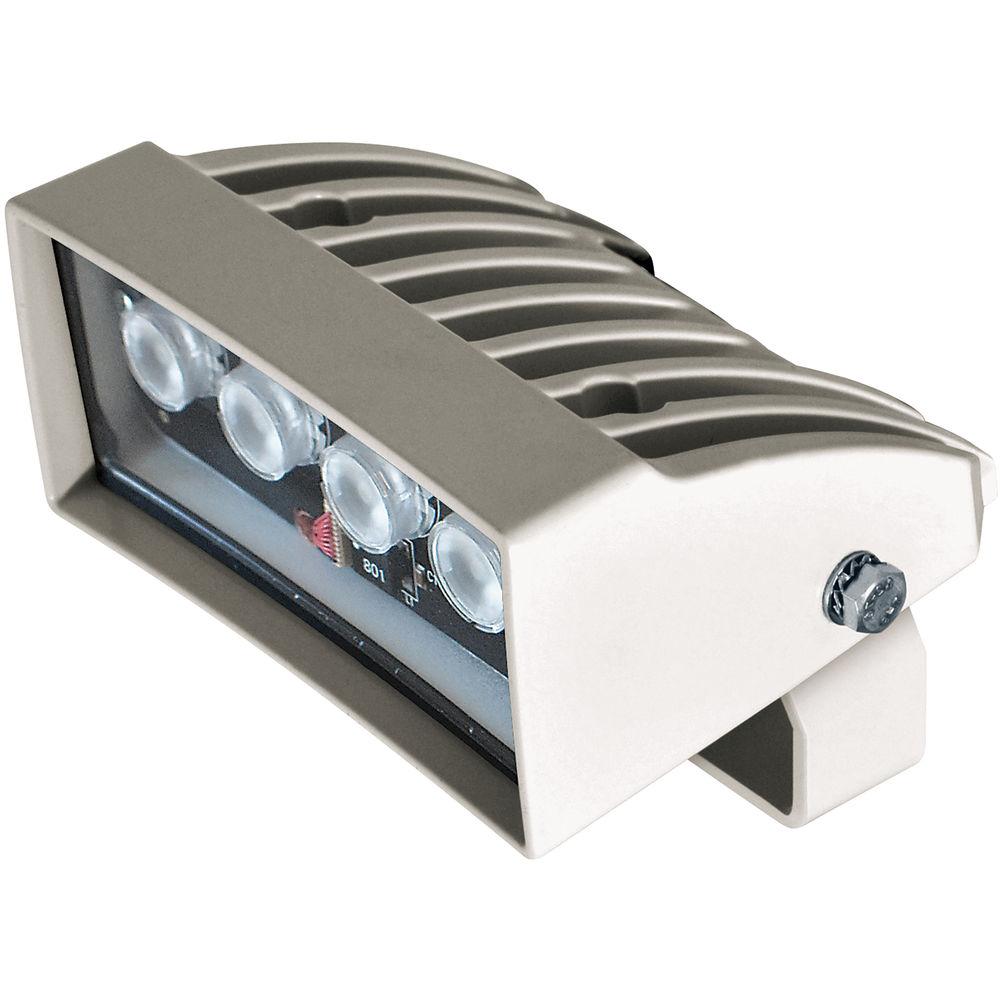

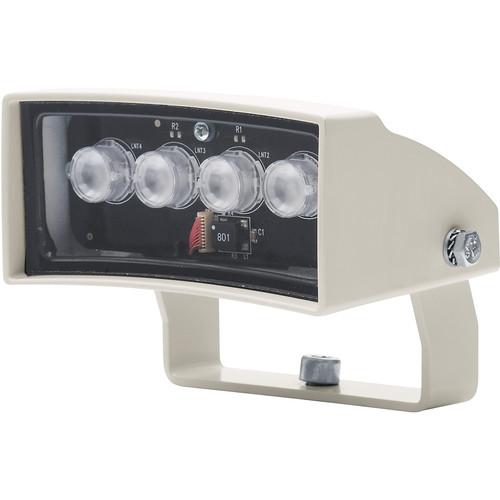

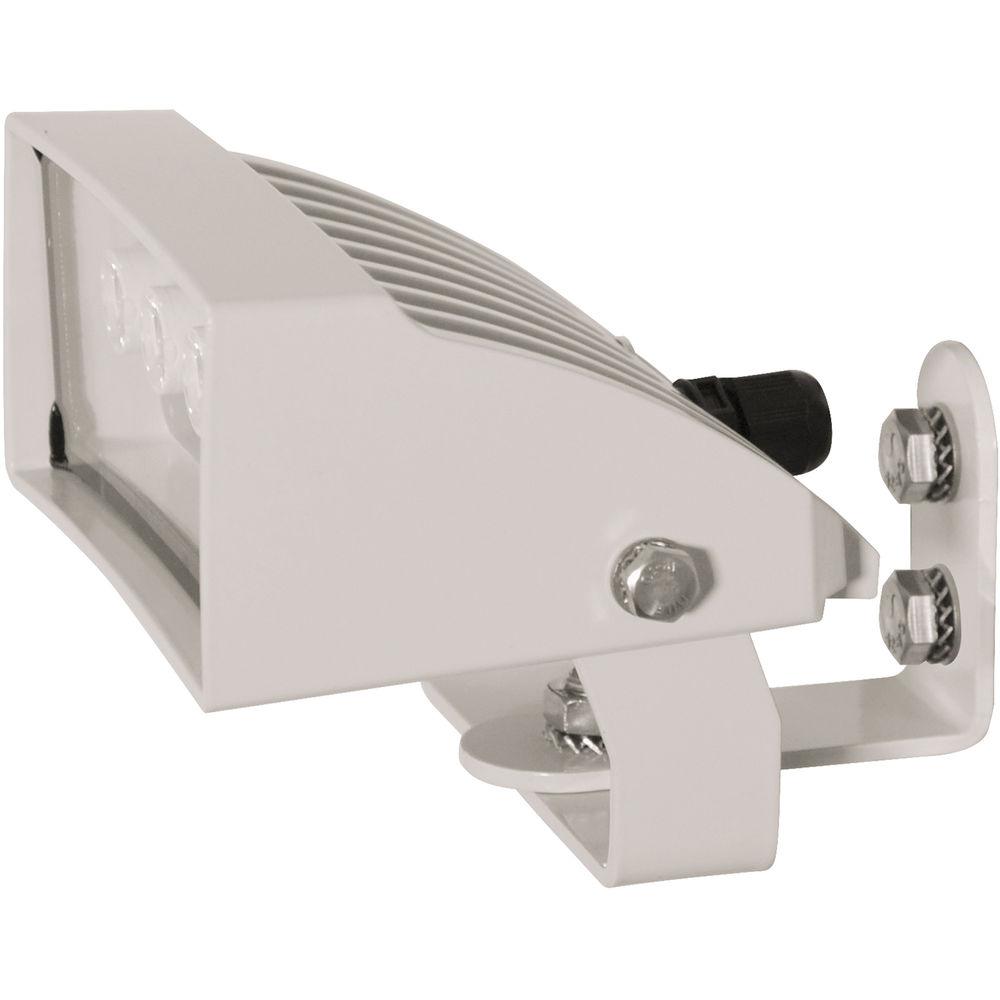

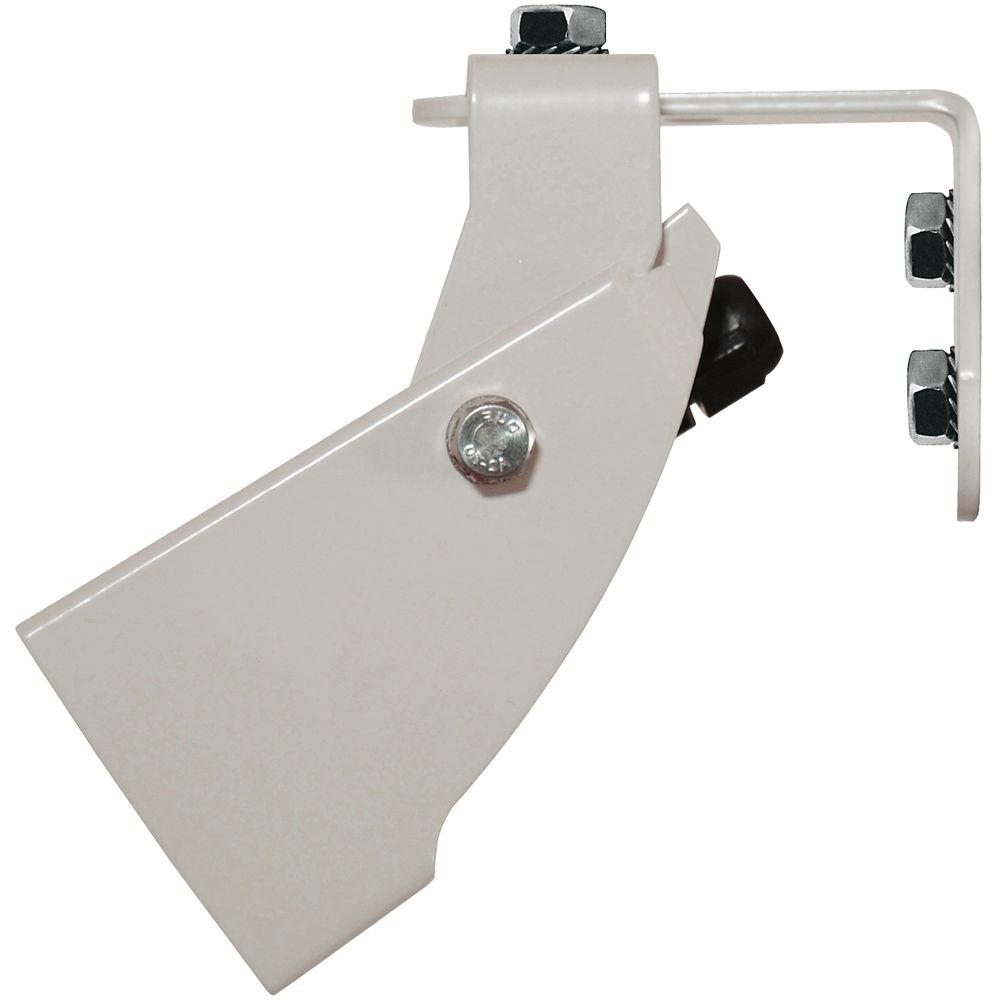

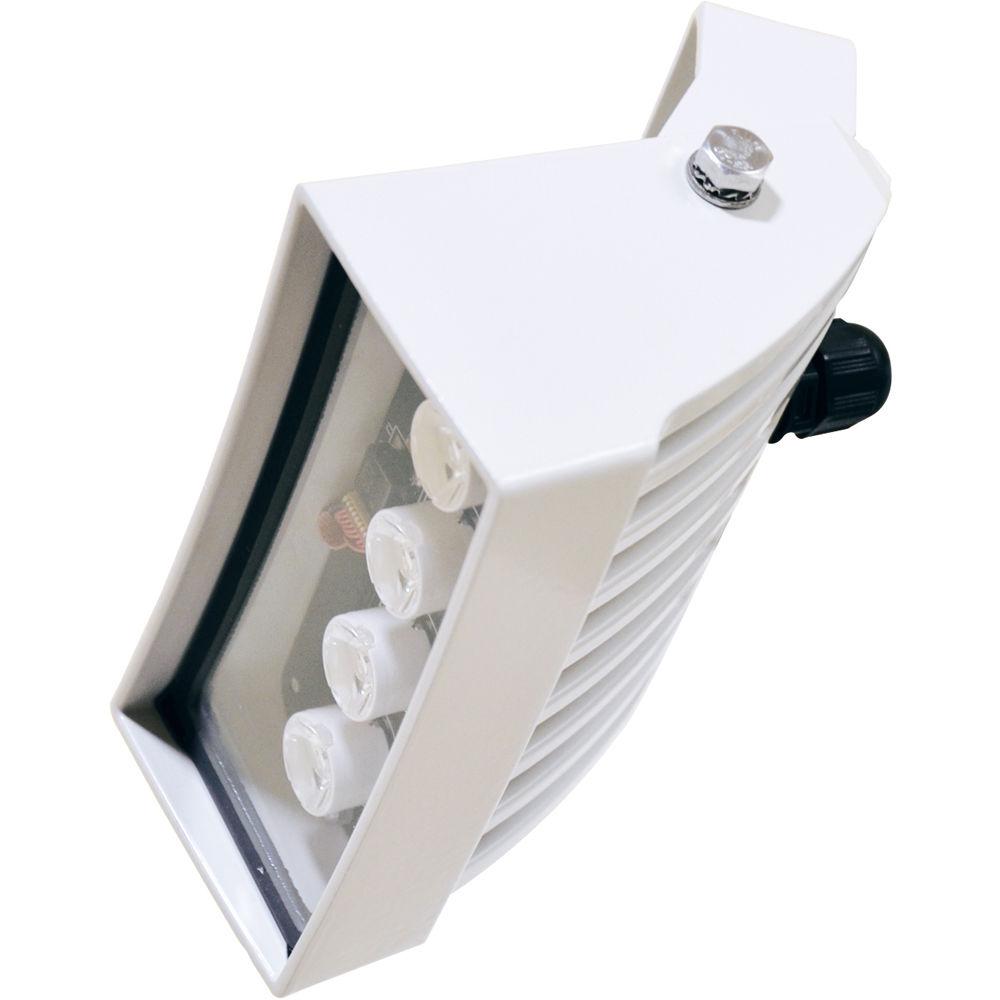

Product description The GEKO IRH Medium-Beam High-Power White Light LED Illuminator from Videotec features a heat sink body that is designed to ensure maximum LED durability and protection against overheating. This illuminator is protected against electrostatic discharge and incorporates a circuit that allows it to be powered directly from a 12 to 24 VDC or 24 VAC power supply. The GEKO IRH includes a wall-mount bracket that rotates horizontally and vertically. - Comes complete with horizontal and vertical rotating support in painted galvanized steel
- Adjustable built-in photocell for automatic activation and deactivation
- Input for activation by means of a volt-free relay contact
- Sturdy aluminum structure
- Suitable for indoor and outdoor use
In the Box Videotec GEKO IRH Medium-Beam High-Power White Light LED Illuminator Wall-Mount Bracket 4 x AWG22 Multipole Cable Table of Contents
|
Upload User Manual
Have you got an user manual for the Videotec GEKO IRH Medium-Beam High-Power White Light LED Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVideotec IRH30HWA Specs | Material of Construction | Die-cast aluminum body | | Wavelength | White light | | Range | 197' (60 m) | | Power Supply | 12 to 24 VDC or 24VAC, 50/60 Hz | | Power Consumption | 6 to 12 W | | Cable | 4 x AWG22 (0.34 mm²)
Length: 6.6" (2 m) | | Certifications | Electrical safety: EN60598
Photo-biological safety of lamps and lamp systems: EN 62471
Electromagnetic compatibility: EN55022, Class A
Immunity: EN50130-4
FCC Part 15, Class A | | Operating Temperature | -58 to 140°F (-50 to 60°C) | | IP Rating | IP66/IP67 according to EN60529 | | Dimensions | 5.2 x 4.4 x 5.3" (133 x 112 x 135 mm ) | | Weight | 2 lb (0.9 kg) |
