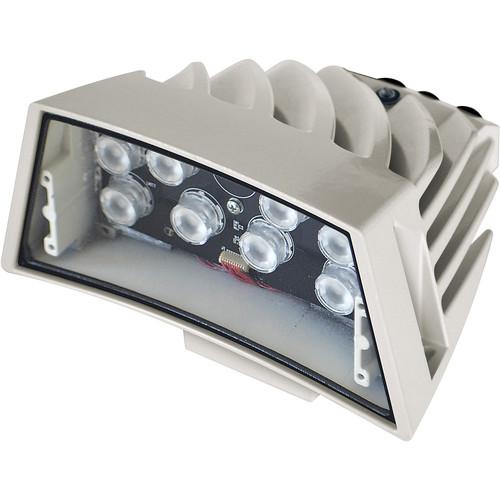

User Manual for Videotec GEKO IRN Wide Beam Infrared LED Illuminator Click to enlarge the picture
Contents of the user manual for the Videotec GEKO IRN Wide Beam Infrared
- Product category: Illuminators Videotec
- Brand: Videotec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Videotec Illuminators
|
User manual for the Videotec GEKO IRN Wide Beam Infrared contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Videotec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Videotec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Videotec product will considerably shorten its lifespan!
|
Product description The GEKO IRN Wide Beam Infrared LED Illuminator from Videotec features a heat sink body that ensures maximum LED durability and protection against overheating. Made of techno-polymer, it provides infrared illumination. This illuminator is protected against electrostatic discharge. It incorporates a circuit that allows it to be powered directly from a 100 to 240 VAC supply. The GEKO includes a wall-mount bracket that rotates horizontally and vertically and can be attached to a housing via an OSUPPIR bracket. - Heatsink body to ensure maximum LED durability
- Strong aluminum structure
- Adjustable light intensity
- Adjustable built-in photocell
- Includes a wall-mount bracket
- Adjustable built-in twilight sensor for automatic activation and deactivation
- IP67-rated for outdoor use
Table of Contents
|
Upload User Manual
Have you got an user manual for the Videotec GEKO IRN Wide Beam Infrared LED Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVideotec IRN60A8AS00 Specs | Wavelength | 850 nm | | Maximum Distance | 262' / 80 m | | Construction | Die cast aluminum body | | Control | 4 x 0.34mm² (22 AWG) | | Operating Temperature | -40° to 140°F / -40 to 60°C | | Power Supply | 100 VAC up to 240 VAC, 1.5 A maximum, 50/60 Hz
3 x 0.75 mm2 (18 AWG) | | Current Consumption | 30 W | | Certifications | Electrical Safety (CE): EN60950-1, IEC60950-1
Electromagnetic Compatibility (CE): EN50130-4, IEC CISPR22 (Class A) , EN55022 (Class A), FCC Part 15 (Class A)
Outdoor Installation (CE): EN60950-22, IEC60950-22
Photobiological Safety (CE): EN62471
IP Protection: EN60529, IP67
IK Protection: EN62262 IK10
UL Certification: cULus Listed TYPE 4X
EAC Certification | | Cable Length | 6.6' / 2 m | | Dimensions | 7.4 x 9.9 x 9.5" / 188 x 251 x 241 mm | | Weight | 4.8 lb / 2.2 kg |
