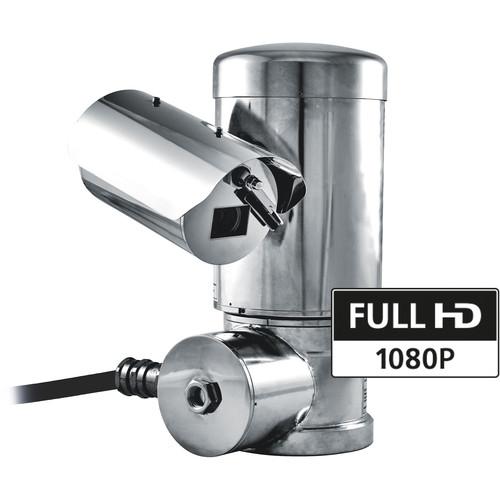

Product description - MAXIMUS MPXHD (Full HD PTZ) used in a gas meter and regulation station in Indonesia
The MAXIMUS MPXHD 2.38MP Outdoor Explosion-Proof PTZ Network Camera from Videotec features a 1/2.8" Exmor CMOS sensor and 4.3-129mm varifocal lens that offers up to 30x optical zoom. Enclosed in an IP66-rated AISI 316L stainless steel housing, the camera can be operated in temperature ranges from -40 to 140°F. It can be powered via a 24 VAC power source and comes with an integrated wiper and alarm board
The camera is suitable for video surveillance and process control in harsh settings where the presence of gases or flammable dust can create a potentially explosive environment (oil and gas industries or marine and industrial sectors).
The camera features an Ethernet port, supports H.264/AVC and MJPEG compression, and conforms to the ONVIF Profile S standard. In addition, the camera also responds immediately to operator commands. The built-in wiper ensures clear images and the optional WASEX washer kit with certified explosion-proof pump reduces the need for maintenance. - 1920 x 1080 camera with a frame rate of 60 fps and 30x optical zoom
- Certified for use in Zone 1 and 2, Group IIC T6 (gas), Zone 21 and 22, and Group IIIC T85° (dust)
- Electropolished AISI 316L stainless steel explosion-proof PTZ unit
- H.264/AVC and MJPEG video compression standards
- Meets ONVIF Profile S standard
- Up to four simultaneous video streams
- One alarm input and one relay output
- 3/4" NPT threaded hole for use of cable glands or conduit
- Explosion-proof inspection box allows for electrical connections directly into the unit
- Position accuracy of 0.02°
- Total control of the auxiliary functions through the Videotec PTZ ASSISTANT
- IP66-rated weather-resistant housing
Table of Contents
|
Upload User Manual
Have you got an user manual for the Videotec MAXIMUS MPXHD 2.38MP Outdoor Explosion-Proof PTZ Network Camera with Integrated Wiper in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVideotec MPXHD2FVW0Z00A Specs | Image Device | 1/2.8" type Exmor CMOS sensor | | Effective Pixels | Approximately 2.38 MP | | Lens | 4.3-129mm, from f/1.6-4.7 | | Zoom | 30x (360x with digital zoom) | | Horizontal Viewing Angle | Wide: 63.7°
Tele: 2.3° | | Minimum Object Distance | 0.3 to 47.2" (10 to 1200 mm) | | Electronic Shutter | 1/1 to 1/10,000 sec, 22 steps | | White Balance | Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium vapor lamp (Fix, Auto, Outdoor Auto), One-push, Manual | | Gain | Auto, Manual, Gain Limit (from 3 to 43 dB in 3 dB steps) | | Minimum Illumination | Color (ICR-OFF):
1.4 lux, 1/30 sec, 50 IRE (Normal mode)
0.35 lux, 1/30 sec, 50 IRE (High sensitivity mode)
0.19 lux, 1/3 sec, 50 IRE (Normal mode)
0.05 lux, 1/3 sec, 50 IRE (High sensitivity mode)
B&W (ICR-ON):
0.05 lux, 1/30 sec, 50 IRE (Normal mode)
0.013 lux, 1/30 sec, 50 IRE (High sensitivity mode)
0.002 lux, 1/3 sec, 30 IRE (High sensitivity mode) | | Wide Dynamic Range | On/Off/Visibility enhancer, Light level, Brightness compensation selection, Compensation level | | Focus System | Auto (Sensitivity: Normal, Low), One-push AF, Manual, Focus compensation with ICR On, Interval AF, Zoom trigger AF | | Picture Effects | E-flip, Mirror image, Color enhancement | | Exposure Control | Auto, EV Compensation, Manual, Priority (Shutter priority, Iris priority), Brightness, Slow AE | | S/N Ratio | More than 50 dB | | Wide Dynamic Range | 130 dB | | De-Fog | On/Off | | Video Encoder | Video Compression: H.264/AVC, MJPEG
Streams: 2 x independent 1920 x 1080 or 4 x independent video streams (depending on the configuration)
Image Resolution: 1920 x 1080 to 352 x 240 in 18 steps
Selectable Frame Rate: 1 to 60 fps
Communication Protocol: ONVIF, Profile S
Device Configuration: TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, NTP, DHCP, WS-DISCOVERY, QoS, IGMP (Multicast)
Streaming: RTSP, RTCP, RTP/IPv4 Web Server | | Alarm | 1 x alarm input
1 x relay output (1 A, 30 VAC/60 VDC maximum) | | Connector | RJ45, 10Base-T/100Base-T | | Construction | Stainless steel AISI 316L with passivated and electro-polished external surfaces | | Control System | Dynamic positioning | | Mount Thread | 3/4" NPT threaded hole for cable glands | | Pan/Tilt Speed | 0.1 to 100°/s | | Rotation | Horizontal Rotation: 360° continuous
Vertical Rotation: -90 to 90° | | Maximum Horizontal Speed | 0.1° to 100°/sec | | Preset Positions | 0.02° | | Window | 0.4" (12 mm) tempered glass | | Power Requirements | 24 VAC, 5 A, 50/60 Hz | | Power Consumption | 120 W maximum | | Operating Temperature | -40 to 140°F (-40 to +60°C) | | Relative Humidity | 10 to 95% (no condensation) | | Certifications | cULus Listed, TYPE 4X
UL listed for USA:
Class I, Zone 1, AEx d IIC T6
Zone 21, AEx Tb IIIC T85°C
Class I, Division 2, Groups A, B, C, and D
Class II, Division 2, Groups F and G
UL listed for Canada:
Class I, Zone 1, Ex d IIC T6 Gb
Class II, Groups E, F and G
Class I, Division 2, Groups A, B, C, and D
Class II, Division 2, Groups F and G
KCs 16- KA4BO-0313X - 16- KA4BO-0314X
Ex d IIC T6
Ex Tb IIIC T85°C
-40°F (-40 °C) ≤ Ta ≤ 140°F (60 °C) | | Dimensions | 13.2 x 9.1 x 15.6" (336 x 232 x 398 mm) | | Weight | 60 lb (27 kg) |
