Product description - VIDEOTEC for critical environments

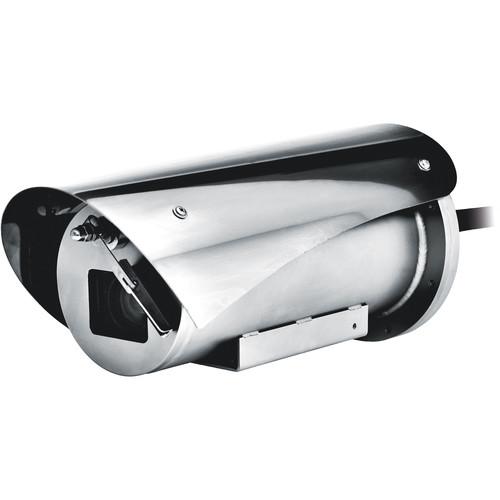

The MAXIMUS MXV 550 TVL Outdoor Explosion-Proof Camera from Videotec features a 1/4" EXView HAD CCD sensor and 3.4-122.4mm varifocal lens that offers up to 36x optical zoom. The camera can be operated via a 12 to 24 VDC/VAC power source. It comes with an integrated wiper, analog control, and a 13' cable tail.The camera is suitable for video surveillance and process control in harsh settings where the presence of gases or flammable dust can create a potentially explosive environment. The camera housing is constructed from AISI316L stainless steel and resistant to corrosion. It supports plug-and-play installation with multipolar wiring that helps avoid complex electrical connections. The camera can be operated in temperature ranges from 76 to 149°F. Enclosed in an IP66/IP68 -rated housing, the camera can be used in harsh environments and immersed in water to a depth of 16' for up to 2 hours. Moreover, the IP69 rating allows the camera to be cleaned with high-pressure and high-temperature water jets. -
- Certified for use in Zones 1 and 2, IIC T5, and T6 Group (Gas) and in Zones 21 and 22, IIIC T100°C, and T85°C Group (Dust)
- AISI 316L stainless steel construction
- Shot peened and electro-polished surfaces
- Resolution up to 550 TV lines
- Image stabilizer (Stable Zoom Mode)
- Day / night (Auto ICR)
- 36x optical zoom lens with autofocus
- One alarm input and one relay output
- 13’ cable tail
- Integrated wiper and sunshield
- Shutter time increases automatically to improve night-time surveillance
- Silicone O-ring seals
Table of Contents
|
Upload User Manual
Have you got an user manual for the Videotec MAXIMUS MXV 550 TVL Outdoor Explosion-Proof Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVideotec MVX2N0WF001A Specs | White Balance | Auto, ATW, Indoor, Outdoor (Fix/Auto), Sodium Vapor Lamp (Fix/Auto), Manual | | Horizontal Resolution | Up to 550 TV Lines | | Image Sensor | 1/4" EXView HAD CCD | | Number of Effective Pixels | 380,000 pixels | | Minimum Illumination | Color (ICR-OFF, Interlace Mode): 1.4 lux (1/60 sec), 0.01 lux (1/4 sec)
B&W (ICR-ON, Interlace Mode): 0.01 lux (1/4 sec) | | S/N Ratio | More than 50 dB | | AE Control | Automatic, Shutter priority, Diaphragm priority, Brightness priority, and Manual | | Backlight Compensation | On/Off | | Focusing System | Auto (Sensitivity: Normal, Low), Trigger PTZ, Manual | | Lens Control | Automatic lens reset | | Optical Zoom | Wide to Tele: 36x, 3.4-122.4mm, f/1.6-4.5 | | Digital Zoom | 12x (432x with optical zoom) | | Angle of View | 57.8 (wide) to 1.7° (tele) | | Minimum Object Distance | Wide: 0.4" (10 mm) Tele: 59.1" (1500 mm) | | EIS | 1/1 to 1/10,000 sec | | Cable Entry | 1 hole, 3/4", NPT
13' (4 m) armored cable | | Serial Interface | RS-485 line, half-duplex
Cable Length: 3937' (1200 m) maximum
Addressable Units: 255 (configuration via OSM) | | Serial Communication | Panasonic 850: 9600 baud, 19,200 baud
Pelco D: 2400 baud, 9600 baud
Videotec Macro: 9600 baud, 38,400 baud | | Alarm I/O | 1 x alarm inputs
1 x relay outputs (1 A, 30 VAC/60 VDC maximum)
Cable Length: 656' (200 m) maximum
Remote Wiper Activation: 1 x input, dry contact NO | | Power Requirements | 24 VAC, 2.2 A, 50/60 Hz
24 VDC, 2.2 A
12 VDC, 3.5 A | | Heater | Ton: 15 ±3°C (59 ±5°F), Toff: 22 ±3°C (72 ±5°F) | | Cable Features | Cable Tail Composition: 3 x 2.5mm2, 0.34" (8.7 mm)
7 x 0.34mm external diameter2, 0.25" (6.4 mm) external diameter
1 x coax 75 Ohms RG59, 0.19" (4.9 mm) external diameter | | Operating Temperature | -58 to 149°F (-50 to 65°C)
Cold Start: -40 to 149°F (-40 to 65°C) | | Relative Humidity | 10 to 95% (no condensation) | | Certifications | ATEX (EN 60079-0: 2012, EN 60079-1: 2014, EN 60079-31: 2014)
IECEx (IEC 60079-0: 2011 Ed.6, IEC 60079-1: 2014-06 Ed.7, IEC 60079-31: 2013 Ed.2)
INMETRO (ABNT NBR IEC 60079-0:2008 + Errata 1:2011, ABNT NBR IEC 60079-1:2009 + Errata 1:2011, ABNT NBR IEC 60079-31:2011)
EAC Ex (TR CU 012/2011)
ETL listed for USA (UL 60079-0: Ed: 6, UL 60079-1:Ed:6, UL 60079-31: Ed.2)
ETL listed for Canada (C22.2-60079-0:2015, CSA C22.2-60079-1Ed: 2 CSA C22.2-60079- 31Ed: 1)
TYPE 6P, TYPE 4X (UL50E)
IP69 (EN/IEC60529), housing only
IP66/IP68 (2 hours, 16' / 5 m, EN/IEC60529) | | Material | Housing Window: Thermally tempered glass | | Dimensions (Ø x L) | 6.1 x 10.4" (155.5 x 264 mm) | | Weight | Not specified by manufacturer |
