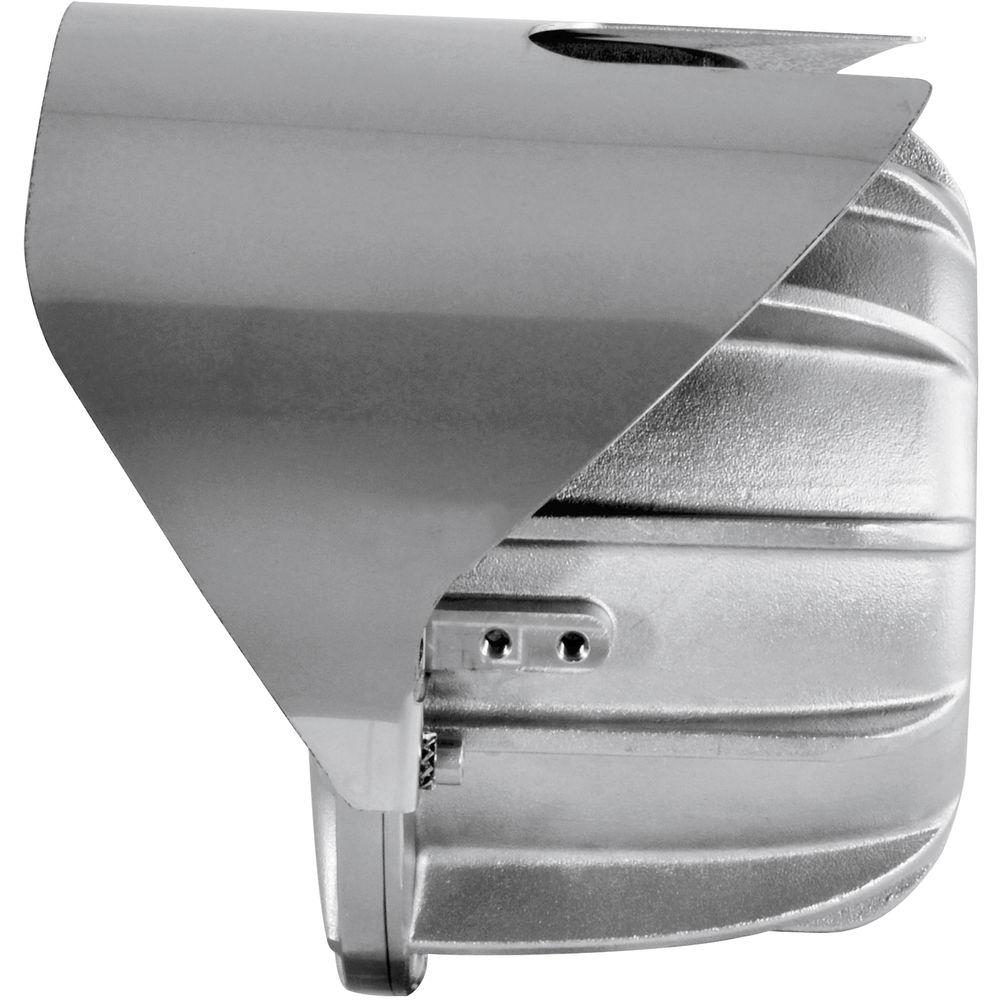

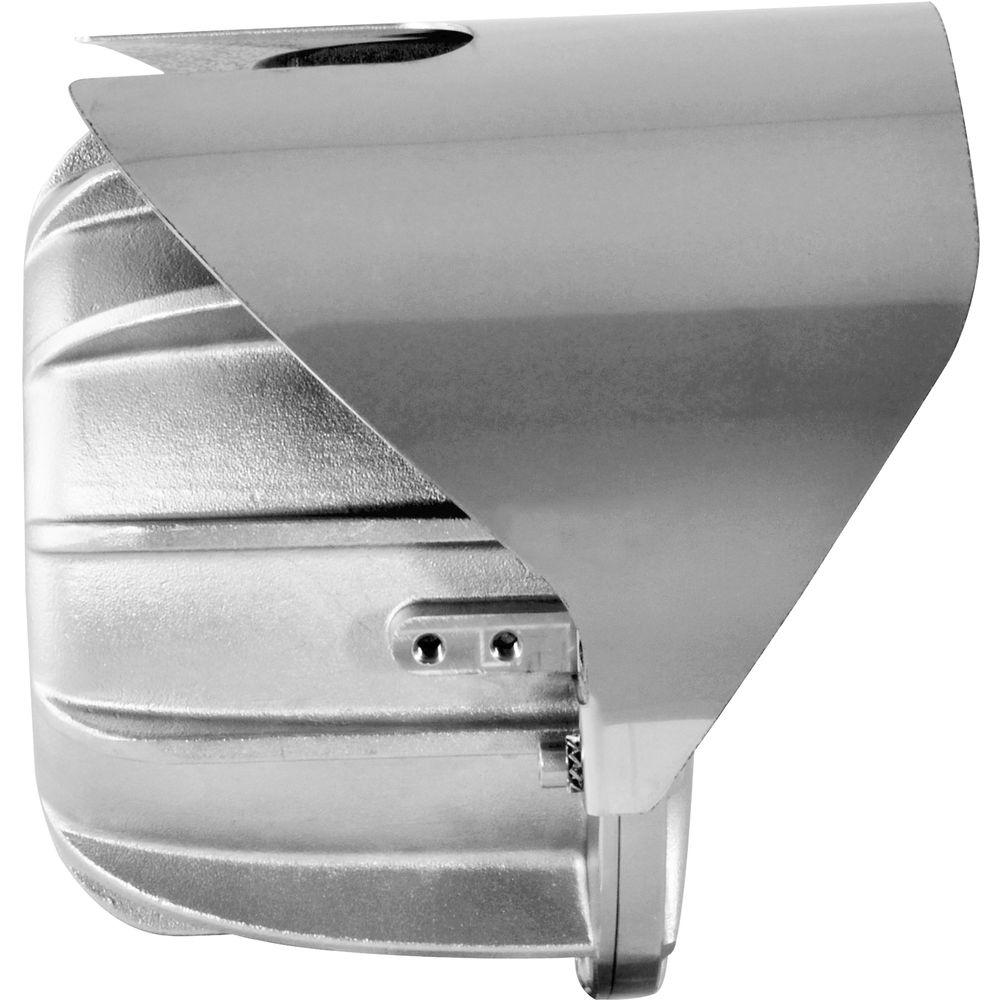

User Manual for Videotec MMX2C0ZA 3.27MP Explosion-Proof Outdoor Network Camera Click to enlarge the picture
Contents of the user manual for the Videotec MMX2C0ZA 3.27MP Explosion-Proof Outdoor Network
- Product category: Wired IP Cameras Videotec
- Brand: Videotec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Videotec Wired IP Cameras
 |
User manual for the Videotec MMX2C0ZA 3.27MP Explosion-Proof Outdoor Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Videotec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Videotec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Videotec product will considerably shorten its lifespan!
|
Product description - MAXIMUS MMX, Full HD Camera

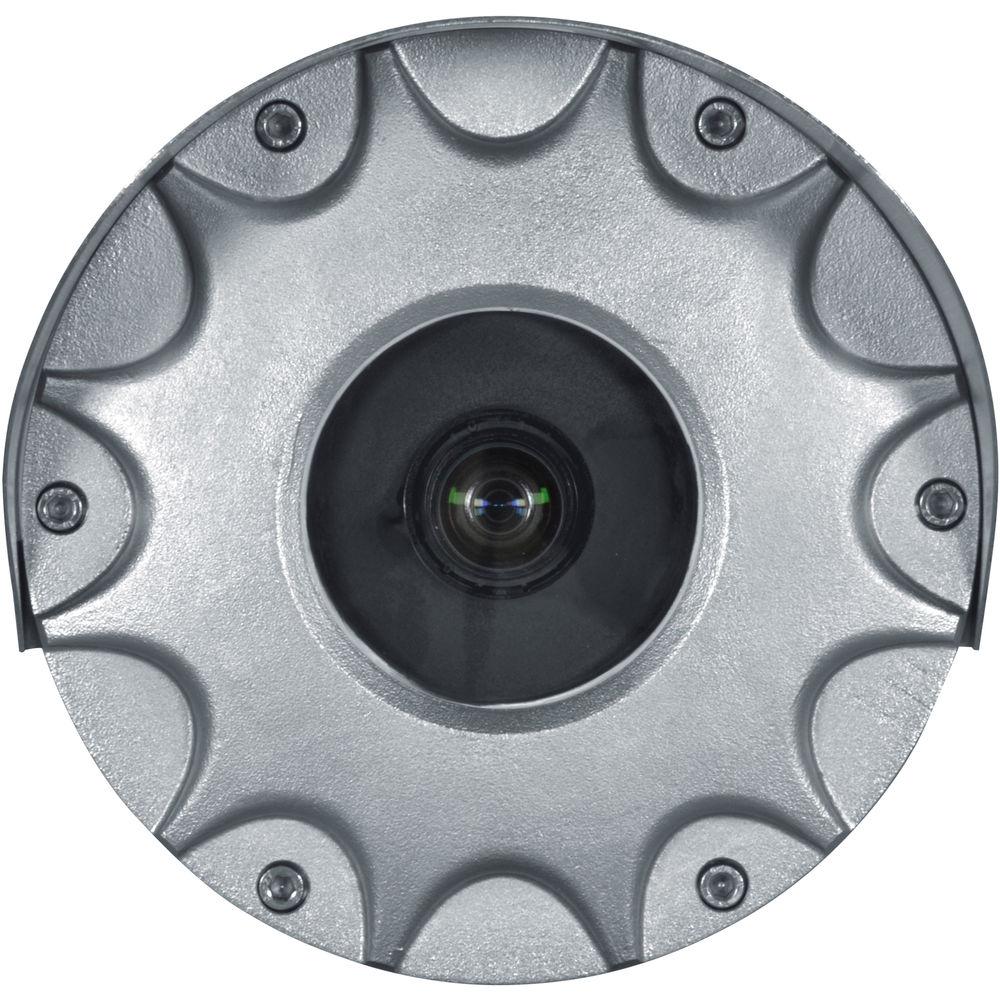

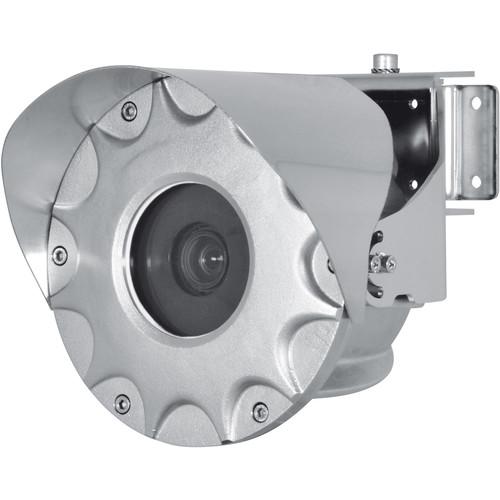

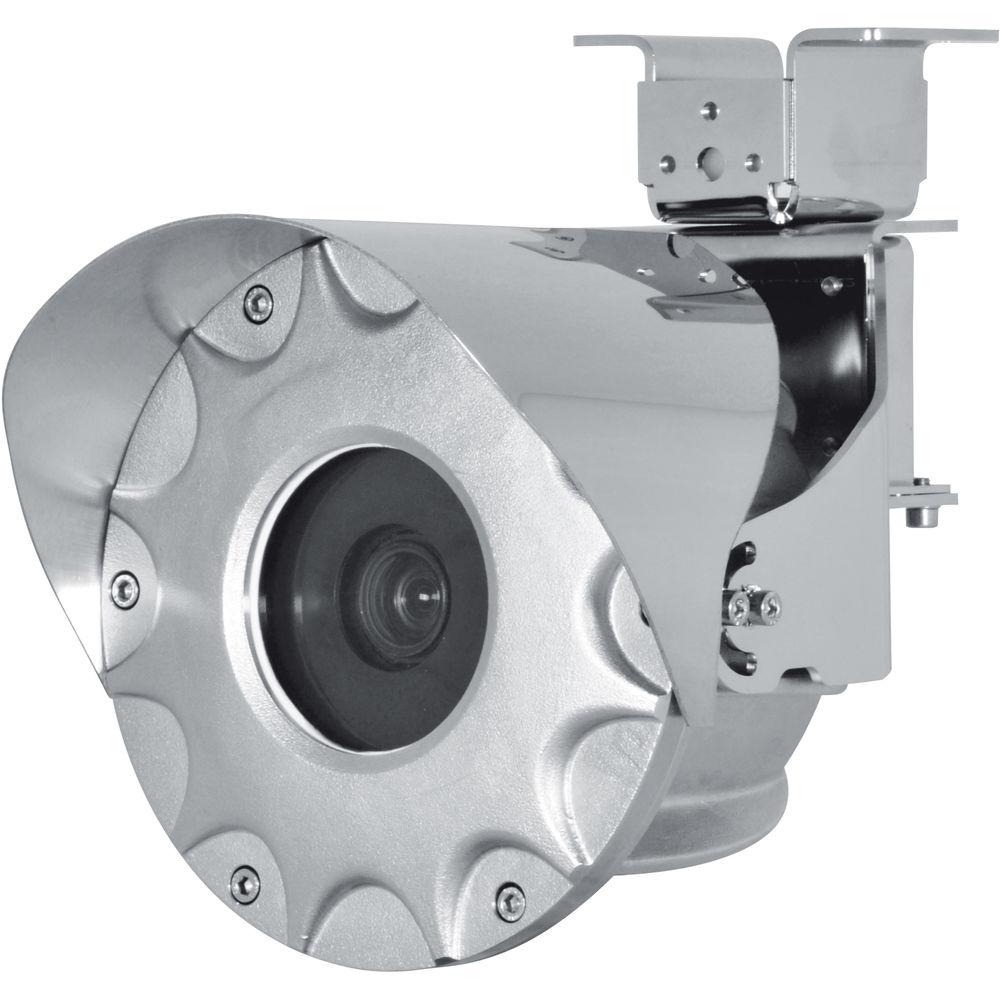

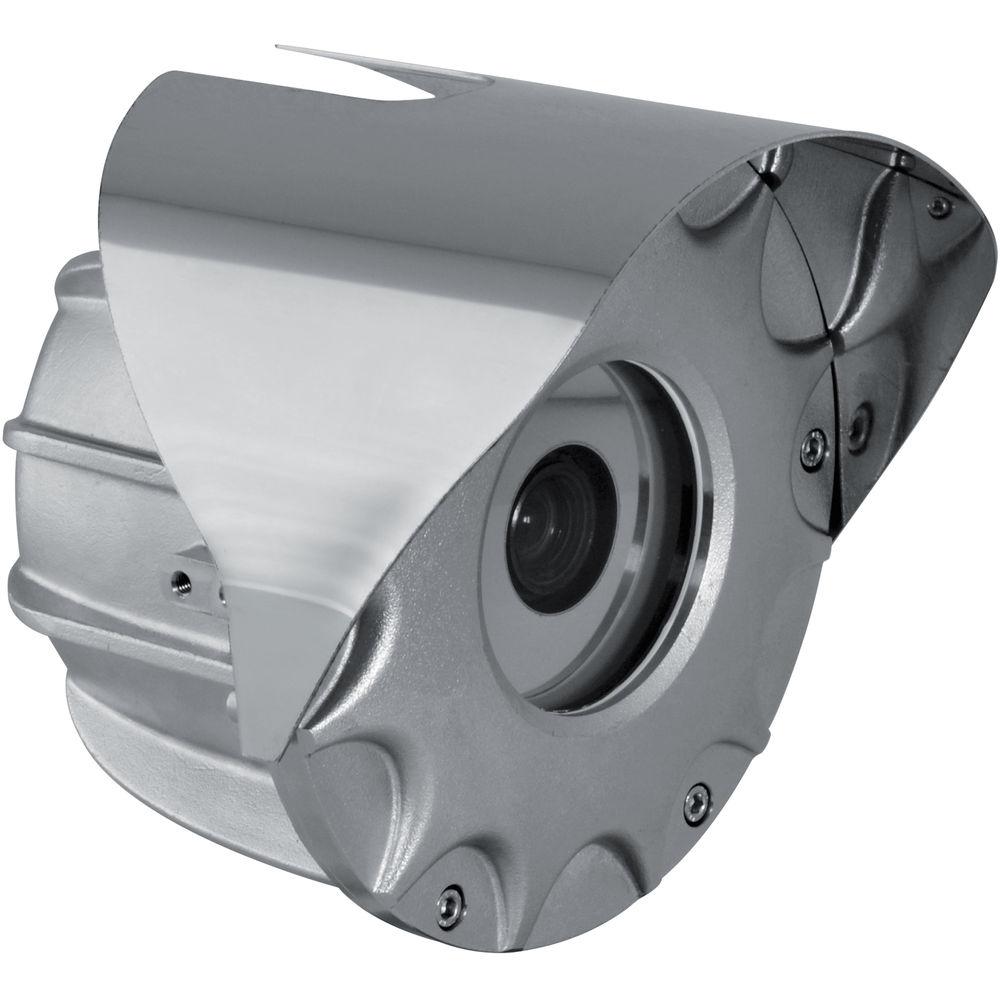

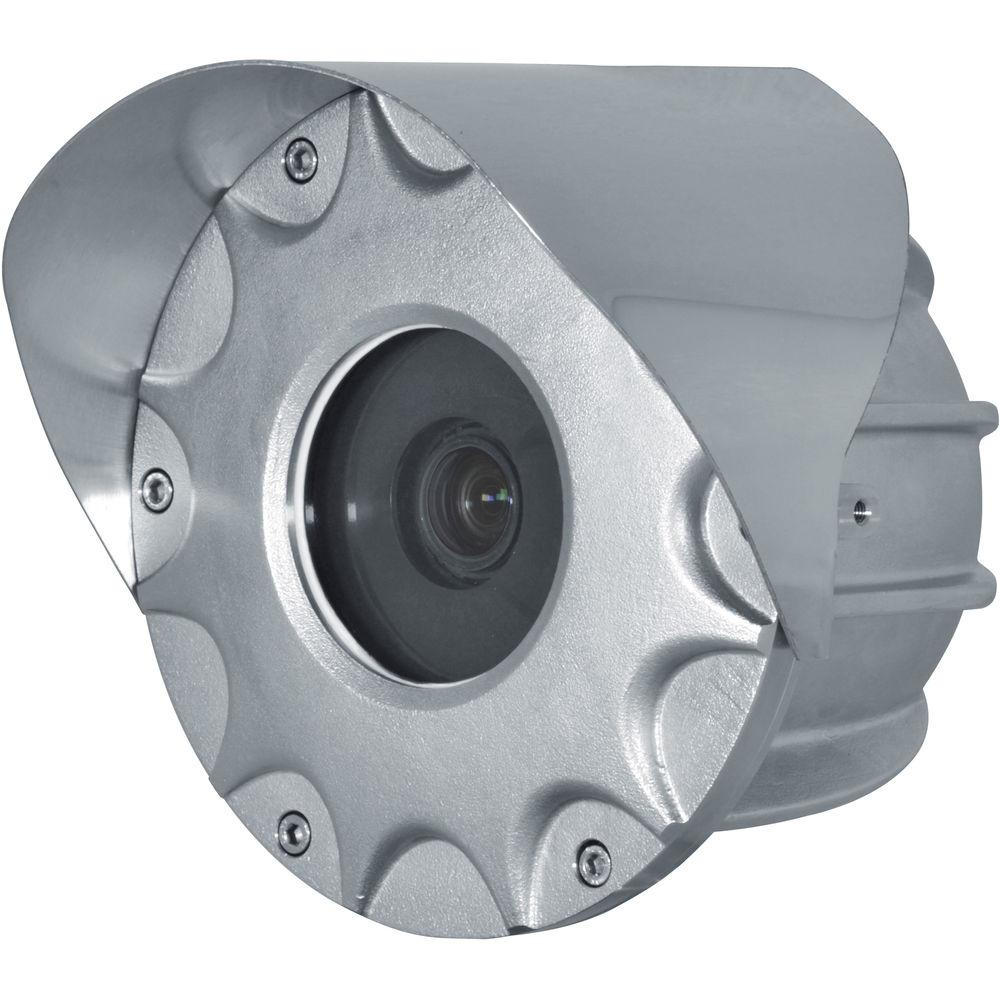

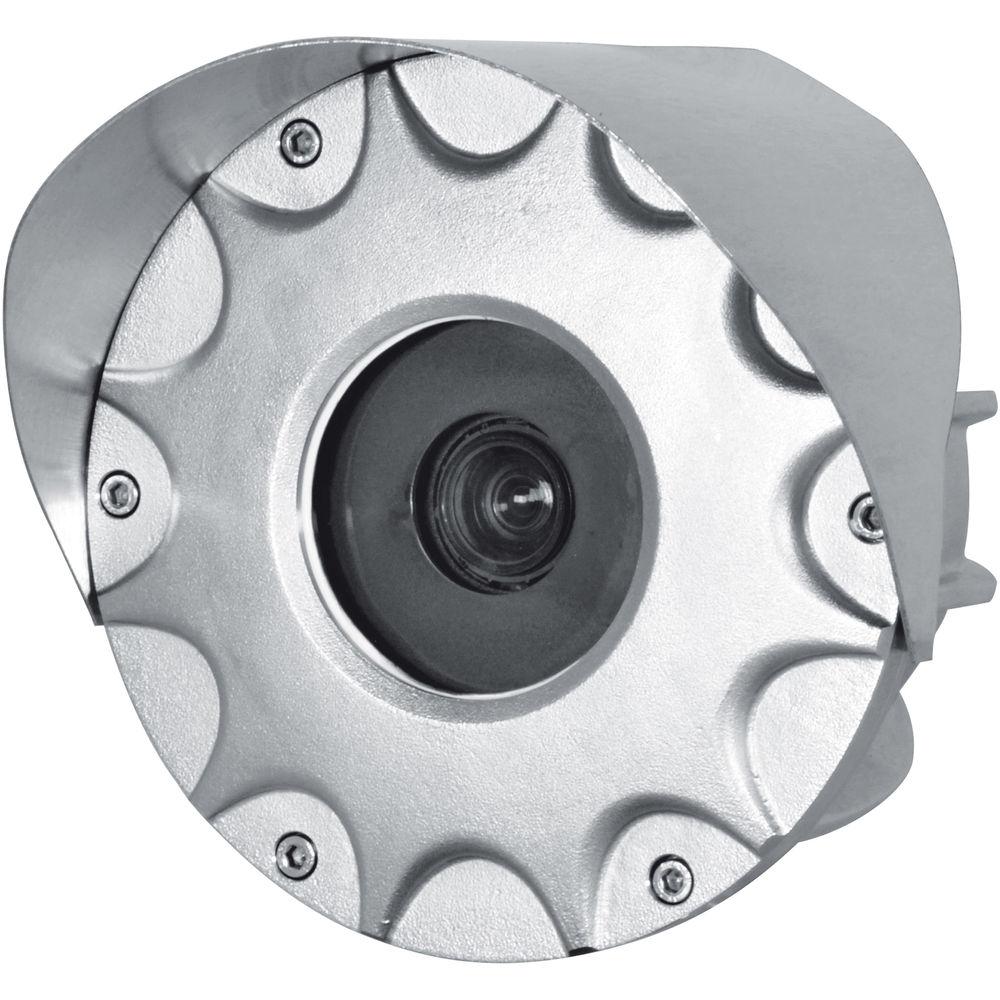

The MMX2C0ZA 3.27MP Explosion-Proof Outdoor Network Camera from Videotec uses an Exmor 1/2.8" CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. An IR cut filter enables day and night recording. The 3-9mm motorized varifocal lens delivers a 90-32° horizontal field of view with 3x optical zoom. Integrated PoE technology simplifies connectivity by transferring power and data through a single cable.
This camera is compliant with ONVIF profiles S and Q, making it compatible with a wide range of surveillance devices. The camera is housed in an anti-corrosive stainless steel enclosure that is IP69 rated for outdoor use. - Suitable for use in hazardous areas where flammable gases or dust are present, such are oil & gas, marine, industrial, and foodstuff industries
- 3x optical and 36x digital zoom
- H.264/AVC, MJPEG, JPEG, and MPEG4 compression
- White balance modes include auto, ATW, indoor, outdoor, outdoor auto, sodium vapor lamp (fix, auto), and manual
- Exposure control modes include auto, manual, priority (shutter priority, iris priority), and brightness
- 11.8" minimum object distance
- AISI 316L stainless steel construction
- IP69-rated enclosure is suitable for outdoor use
- Thermally tempered glass housing window
- Shot-peened and electropolished external surfaces
- Certified for use in Zones 1 and 2, IIBT6 or T5 Group (gas) and in Zones 21 and 22, IIIC T85° Group (dust)

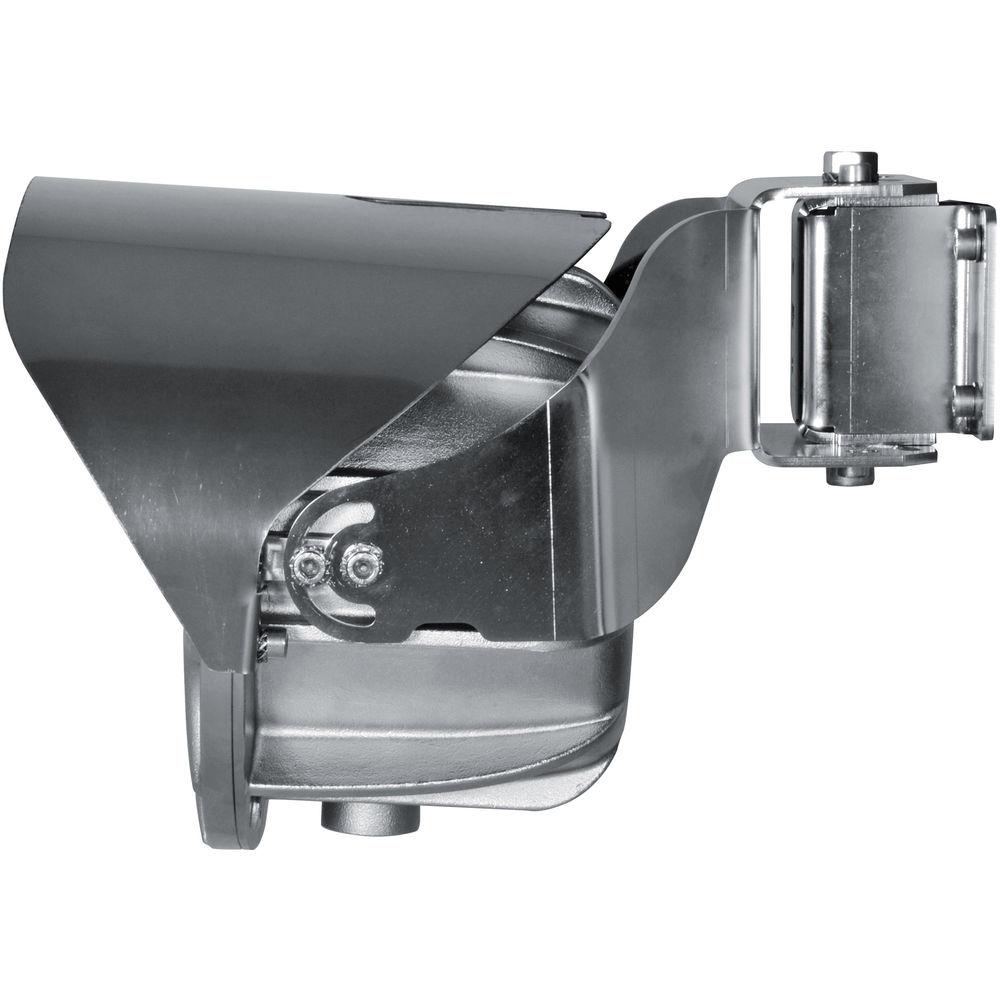

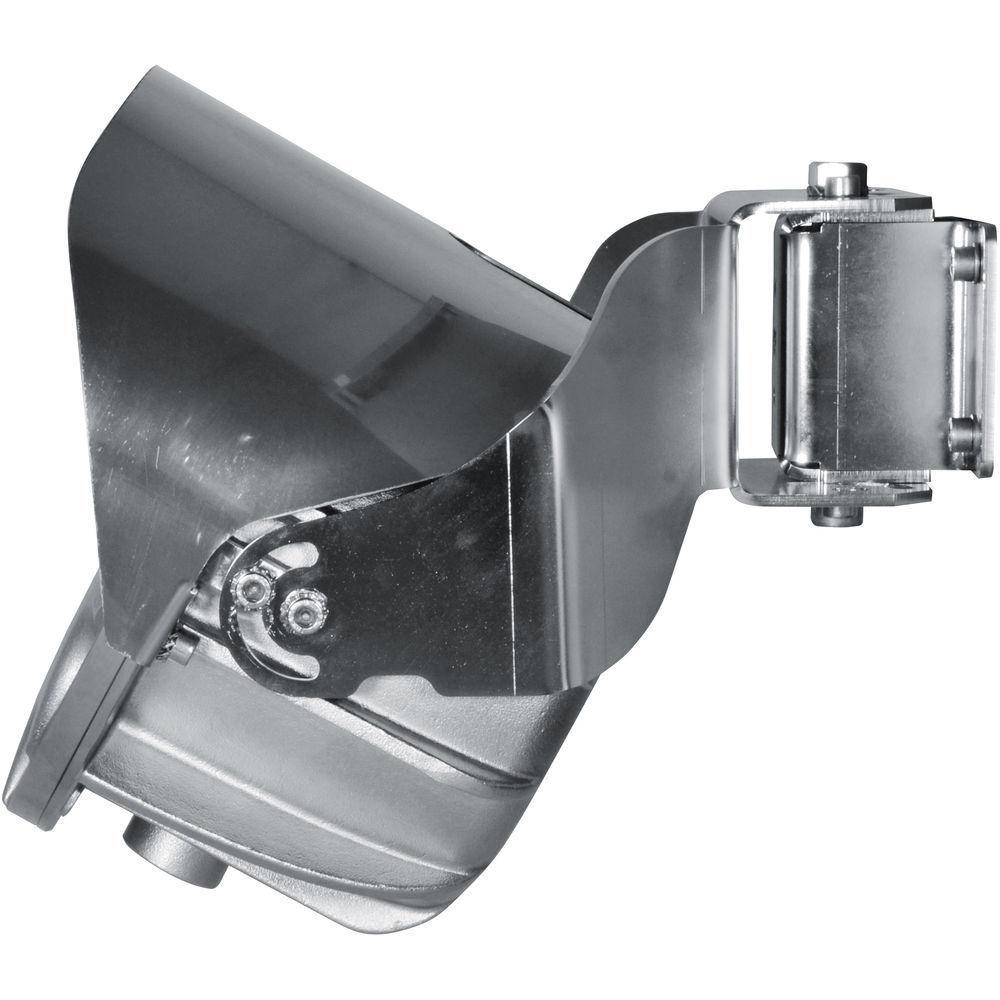

- Supports for ceiling, wall, and parapet installation included
In the Box Videotec MMX2C0ZA 3.27MP Explosion-Proof Outdoor Network Camera Sunshield Supports for Ceiling, Wall, and Parapet Installations Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Videotec MMX2C0ZA 3.27MP Explosion-Proof Outdoor Network Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVideotec MMX2C0ZA Specs | | | Sensor | 3.27 MP 1/2.8" CMOS | | Focal Length | 3 to 9mm | | Maximum Aperture | f/1.2 - f/2.1 | | Zoom | Optical: 3x
Digital: 36x | | Lens Field of View | Horizontal: 90 to 32° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.25 Lux
B&W: 0.03 Lux | | Shutter Speed | 1/10,000 to 1 Seconds | | | | Streaming Resolution | 1920 x 1080 at 30 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | | | Security | HTTPS | | Supported Protocols | DHCP, DNS, DiffServ, HTTP, IGMP, IPv4/v6, NTP, RTCP, RTP, RTSP, SOAP, TCP, UDP | | | | Application Programming Interface (API) | ONVIF Profiles S and Q | | Analytics | Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification | | Data Streaming | Yes | | | | Recording Media | None | | Pan/Tilt | None | | I/O Connections | 1 x RJ45
1 x Power | | Internal Storage | None | | Power Source | AC, DC, PoE 802.3at (30 W) | | Power Consumption | AC: 21 W
DC: 20 W
PoE+: 21 W | | Material of Construction | Stainless Steel | | Operating Temperature | -40 to 149°F / -40 to 65°C | | Operating Humidity | 10 to 95% | | IP Rating | IP69K | | Dimensions |
