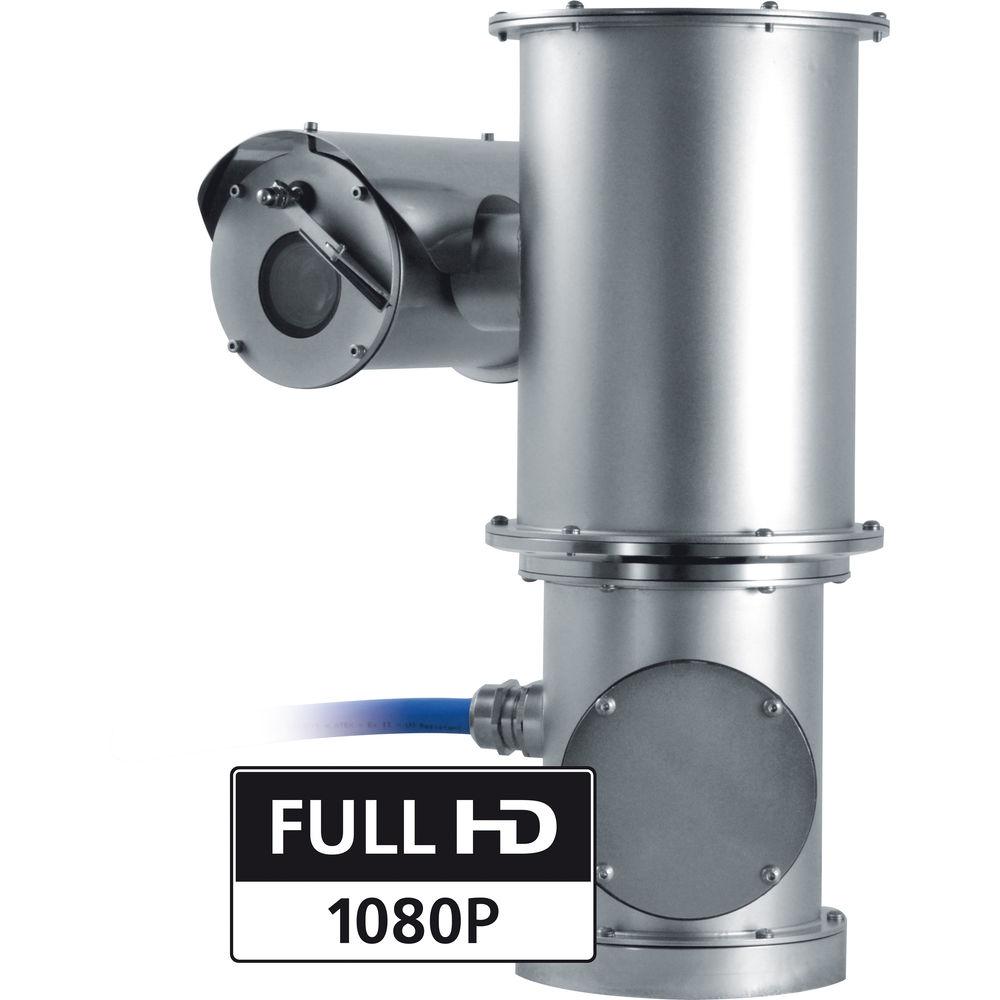

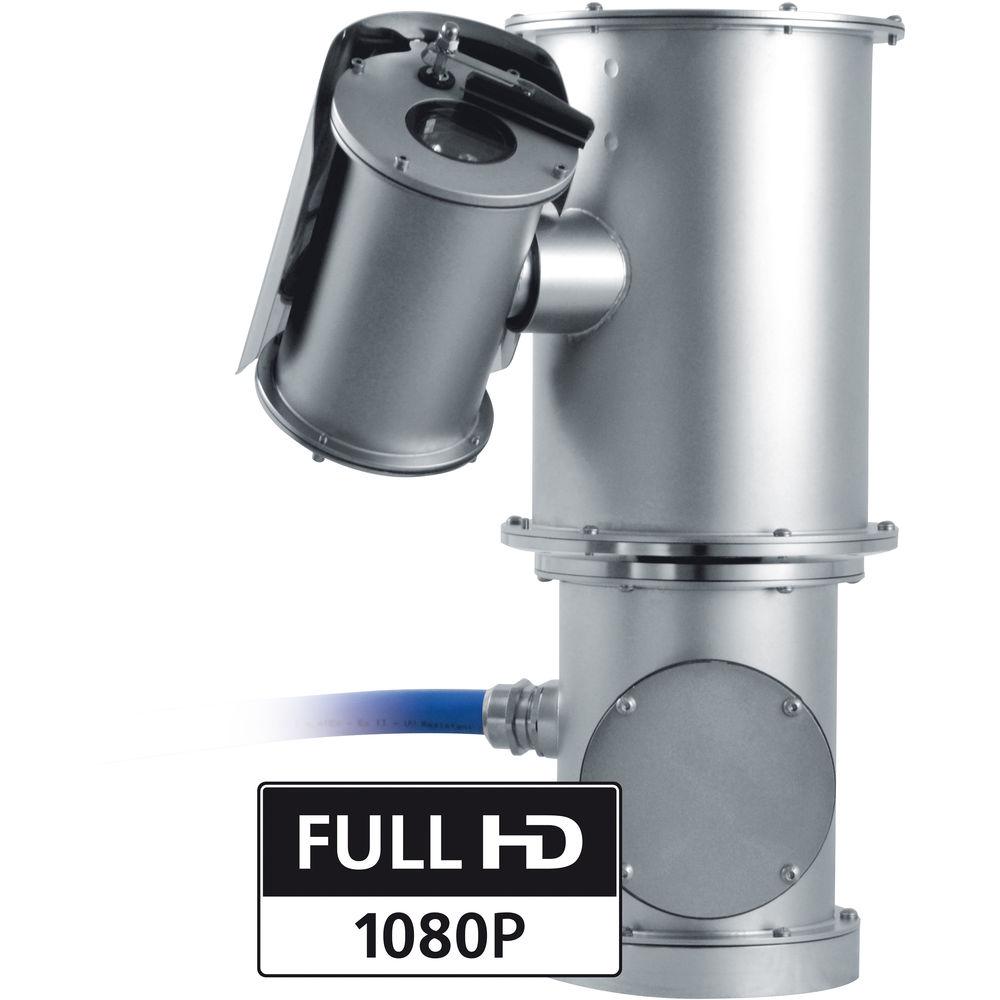

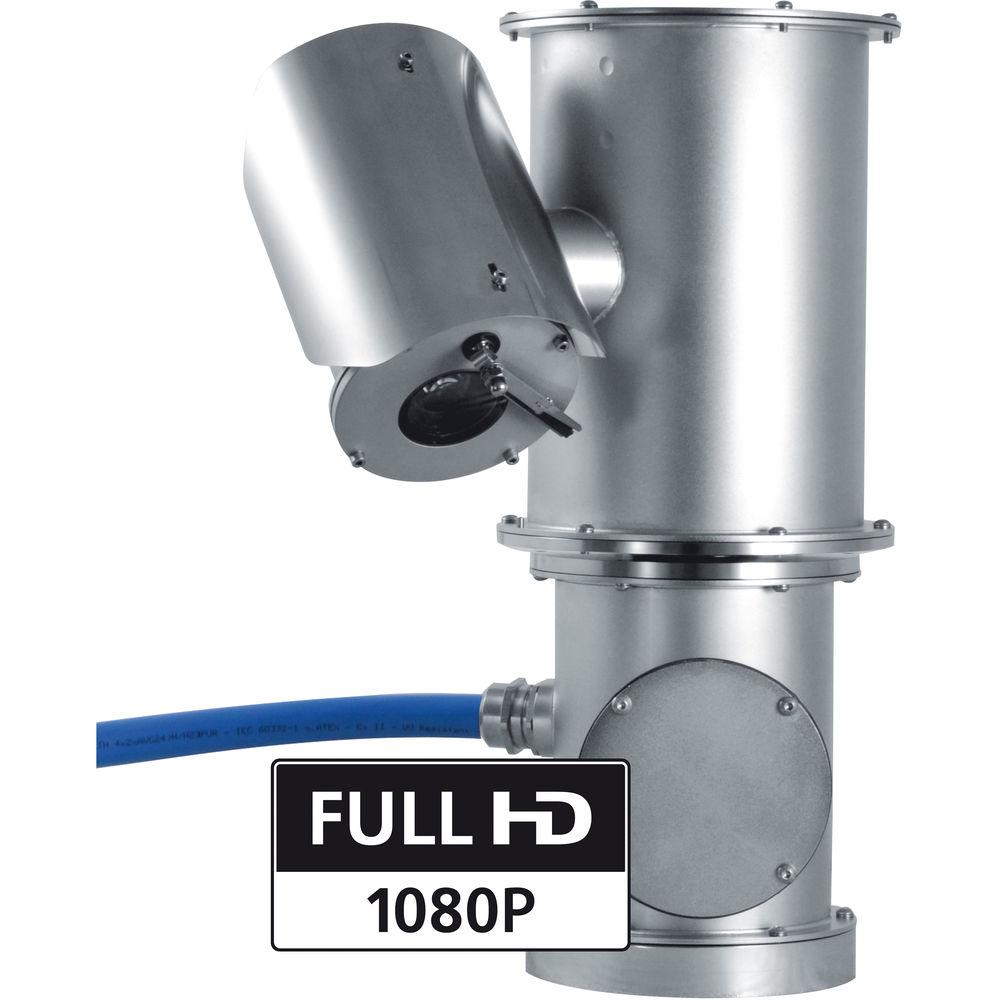

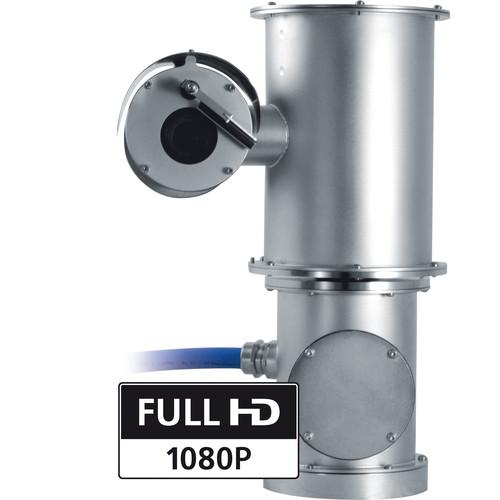

User Manual for Videotec NXPTZHD 1080p Outdoor Network PTZ Camera with Integrated Wiper Click to enlarge the picture
Contents of the user manual for the Videotec NXPTZHD 1080p Outdoor Network PTZ
- Product category: Wired IP Cameras Videotec
- Brand: Videotec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Videotec Wired IP Cameras
 |
User manual for the Videotec NXPTZHD 1080p Outdoor Network PTZ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Videotec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Videotec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Videotec product will considerably shorten its lifespan!
|
Product description - VIDEOTEC for critical environments
The NXPTZHD 1080p Outdoor Network PTZ Camera from Videotec is designed specifically for use in onshore, offshore, marine, and industrial areas. It features a 1/2.8” Exmor CMOS sensor and 4.3-129mm varifocal lens that offers up to 30x optical zoom. Enclosed in an IP69-rated housing, the camera can be used in harsh external environments and even withstand high-pressure and high-temperature water jets.
The camera can be operated via a 24 VAC power source and comes with an integrated wiper and alarm board. This PTZ camera is constructed from AISI316L stainless steel so it is resistant to corrosion and can deliver two to four H.264/AVC or MJPEG video streams simultaneously (up to a total of 20 Mb/s depending on system configuration).
The camera conforms to the ONVIF Profile S standard. The PTZ ASSISTANT plug-in software supports any VMS with the control of functions such as the wiper and washer pump. - Electropolished and silicon micro shot peened AISI 316L stainless steel
- 1920 x 1080 camera with a frame rate of 60 fps and 30x optical zoom
- H.264/AVC and MJPEG video compression standards
- Up to four simultaneous video streams
- Position accuracy of 0.02°
- Pre-wired multipolar 118" cable
- Control of auxiliary functions through the PTZ ASSISTANT
- IP66/ IP68/IP69-rated weather-resistant housing
- Dynamic positioning control system
Table of Contents
|
Upload User Manual
Have you got an user manual for the Videotec NXPTZHD 1080p Outdoor Network PTZ Camera with Integrated Wiper in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVideotec NXPTZHD3FVW0Z00A Specs | Image Device | 1/2.8" type Exmor CMOS sensor | | Effective Pixels | Approximately 2.38 MP | | Minimum Illumination | Minimum Illumination, color (ICR-OFF):
1.4 lux, 1/30 sec, 50 IRE (Normal mode)
0.35 lux, 1/30 sec, 50 IRE (High sensitivity mode)
0.19 lux, 1/3 sec, 50 IRE (Normal mode)
0.05 lux, 1/3 sec, 50 IRE (High sensitivity mode)
Minimum Illumination, B&W (ICR-ON):
0.05 lux, 1/30 sec, 50 IRE (Normal mode)
0.013 lux, 1/30 sec, 50 IRE (High sensitivity mode)
0.002 lux, 1/3 sec, 30 IRE (High sensitivity mode) | | Lens | 4.3-129mm, from f/1.6-4.7 | | Zoom | 30x (360x with digital zoom) | | Horizontal Viewing Angle | Wide: 63.7°
Tele: 2.3° | | Minimum Object Distance | 0.3 to 47.2" (10 to 1200 mm) | | Electronic Shutter | 1/1 to 1/10000 sec, 22 steps | | White Balance | Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium vapor lamp (Fix, Auto, Outdoor Auto), One-push, Manual | | Gain | Auto, Manual, Gain Limit (from 3 dB up to 43 dB in 3 dB steps) | | Wide Dynamic Range | On/Off/Visibility enhancer, Light level, Brightness compensation selection, Compensation level | | Focus System | Auto (Sensitivity: Normal, Low), One-push AF, Manual, Focus compensation with ICR On, Interval AF, Zoom trigger AF | | Picture Effects | E-flip, Mirror image, Color enhancement | | Exposure Control | Auto, EV Compensation, Manual, Priority (Shutter priority, Iris priority), Brightness, Slow AE | | S/N Ratio | More than 50 dB | | Wide Dynamic Range | 130 dB | | De-Fog | On/Off | | Video | Video Compression: H.264/AVC, MJPEG
Video Streams: 2 x independent full HD
4 x independent (depending on the configuration)
Image Resolution: 1920 x 1080 to 352 x 240, 18 steps
Selectable Frame Rate: 1 to 60 fps
Certified ONVIF Profile S | | Construction | Stainless steel electropolished and silicon micro shot peened external surfaces | | Cable | Pre-wired multipolar cable 118" (299 cm) | | Variable Speed | Horizontal/Tilt: 0.1 to 100°/s | | Rotation | Horizontal: 360° continuous
Vertical: -90 to +90° | | Preset Positions | 0.02° | | Alarm | 1 x alarm input
1 x relay output (1 A, 30 VAC/60 VDC maximum) | | Network Protocols | Network: Ethernet port LAN 10/100T
Protocols: ONVIF, Profile S
Streaming: RTSP, RTCP, RTP
Device Configuration: TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, NTP, DHCP, WS-DISCOVERY, QoS, IGMP (Multicast) | | Operating Temperature | -40 to 140°F (-40 to 60°C) | | Certifications | Electrical Safety (CE): EN60950-1, IEC60950-1
Electromagnetic Compatibility:
CE: EN50130-4, EN55022 (Class A), EN55032
(Class A), EN61000-6-4
FCC: Part 15 (Class A)
ICES-003 (Class A)
Outdoor Installation (CE): EN60950-22, IEC 60950-22
IP Protection Degree: EN60529 (IP66, IP68, IP69)
Other Certifications: cULus listed, TYPE 4X, EAC certification | | Power Requirements | 120 VAC, 5 A maximum, 50/60 Hz | | Power Consumption | 120 W maximum | | Dimensions (D x H x W) | 9.45 x 18.8 x 13" (24 x 48 x 33 cm) | | Weight | 44 lb (22 kg) |
