Product description - ULISSE COMPACT HD, the amazing performance

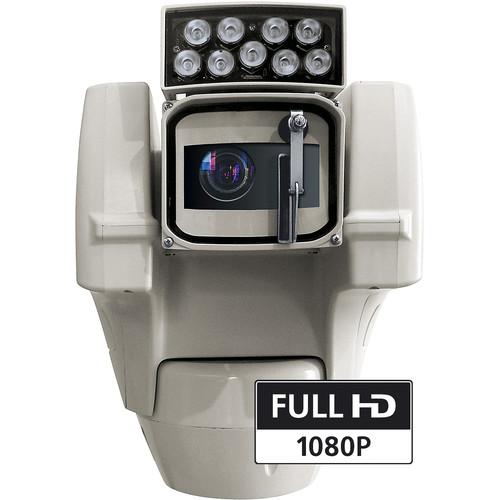

The gray white ULISSE COMPACT HD 1080p Outdoor Network PTZ Camera from Videotec comes pre-installed with a white light IR LED illuminator and an integrated wiper. The illuminator emits a 30° IR beam at a wavelength of 850 nm. The camera features a 1/2.8" Exmor CMOS sensor and 4.3-129mm varifocal lens that offers up to 30x optical zoom. Enclosed in an IP66-rated housing, the camera can be used in harsh environments.
The camera supports H.264/AVC and MJPEG compression formats and conforms to ONVIF Profile S. In addition, the camera also responds immediately to operator commands.
The PTZ ASSISTANT plug-in software supports any VMS with control of functions such as wiper, washer pump, IR, and auto focus. The de-fog feature allows viewing in foggy or misty scenes. When activated, the camera detects haze levels and automatically applies required effects.
The camera unit is suitable for a wide variety of security environments, such as traffic and highway control, stadiums, industrial surveillance, prisons, military installations, borders, and perimeter surveillance. - 1920 x 1080 camera with a frame rate of 60 fps and 30x optical zoom
- Supports H.264/AVC and MJPEG video compression formats
- Night vision recording with 30° IR illuminator
- Day/night capability (Auto ICR)
- Up to four simultaneous video streams
- One alarm input and relay output
- Total control of the auxiliary functions through the Videotec PTZ ASSISTANT
- Auto power on through integrated sensor or by VMS
- Camera and the light beam is factory aligned
- Pre-installed illuminator does not slow down the P&T's rotation speed
- Two independent video streams in 1080p or four independent video streams depending on the configuration
- Constructed from aluminum and technopolymer
- Dynamic positioning control system
- Autopan, Preset, Patrol, Tour (maximum 1), and Autoflip functions
- IP66-rated weather-resistant housing
In the Box Videotec ULISSE COMPACT HD 1080p Outdoor Network PTZ Camera with Night Vision and 30° IR LED Illuminator (24 VAC) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Videotec ULISSE COMPACT HD 1080p Outdoor Network PTZ Camera with Night Vision and 30° IR LED Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVideotec ULISSE Specs | Image Sensor | 1/2.8" type Exmor CMOS sensor | | Effective Pixels | Approximately 2.38 MP | | Minimum Illumination | Color (ICR-OFF):
1.4 lux, 1/30 sec, 50 IRE (Normal mode)
0.35 lux, 1/30 sec, 50 IRE (High sensitivity mode)
0.19 lux, 1/3 sec, 50 IRE (Normal mode)
0.05 lux, 1/3 sec, 50 IRE (High sensitivity mode)
B&W (ICR-ON):
0.05 lux, 1/30 sec, 50 IRE (Normal mode)
0.013 lux, 1/30 sec, 50 IRE (High sensitivity mode)
0.002 lux, 1/3 sec, 30 IRE (High sensitivity mode) | | Focal Length | 4.3-129.0mm, from f/1.6-4.7 | | IR Illuminator | Horizontal Beam: 30°
Wavelength: 850 nm | | Zoom | 30x (360x with digital zoom) | | Horizontal Viewing Angle | Wide: 63.7°
Tele: 2.3° | | Minimum Object Distance | Wide: 0.4" (10 mm) Tele: 47.2" (1200 mm) | | Electronic Shutter | 1/1 to 1/10000 sec, 22 steps | | White Balance | Auto, ATW, Indoor, Outdoor, Outdoor auto, Sodium vapor lamp (Fix, Auto, Outdoor auto), One-push, Manual | | Gain | Auto, Manual, Gain Limit (from 3 dB up to 43 dB, in 3 dB steps) | | Wide Dynamic Range | Wide-D: 130 dB
On/Off/Visibility enhancer, Light level, Brightness compensation selection, Compensation level | | Focus System | Auto (Sensitivity: Normal, Low), One-push AF, Manual, Focus compensation with ICR On, Interval AF, Zoom trigger AF | | Picture Effects | E-flip, Mirror image, Color enhancement | | Exposure Control | Auto, EV Compensation, Manual, Priority (Shutter priority, Iris priority), Brightness, Slow AE | | S/N Ratio | More than 50 dB | | De-Fog | On/Off | | Cable | Cable Glands: 2 x M16
2 x M12
Cables Input Section: 0.75 mm² (19 AWG) up to 1.5 mm² (16 AWG)
Cables Signal Section: 0.14 mm² (30 AWG) up to 1.5 mm² (16 AWG) | | Rotation | Horizontal Rotation: 360° continuous rotation
Vertical Rotation: -90 to 90° | | Speed | Horizontal Speed: 0.1°/sec, up to 200°/sec
Tilt Speed: 0.1°/sec, up to 200°/sec | | Preset Positions | Accuracy of Preset Positions: 0.05° | | Power Requirements | 24 VAC, 4 A, 50/60 Hz | | Power Consumption | 40 W, P&T static, heating switched off
60 W, P&T in motion, heating switched off
125 W, peak at start-up, heating switched on
With Illuminator On: 55 W, P&T static, heating switched off
75 W, P&T in motion, heating switched off
140 W, peak at start-up, heating switched on | | Alarm | I/O Alarm Card
Alarm Inputs: 1
Relay Outputs: 1 (1 A, 30 VAC/60 VDC maximum) | | Network | Connector: RJ45, 10Base-T/100Base-T | | Video Encoder | Communication Protocol: ONVIF Profile S
Device Configuration: TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, NTP, DHCP, WS-DISCOVERY, QoS, IGMP (Multicast)
Streaming: RTSP, RTCP, RTP/IPv4
Video Compression: H.264/AVC, MJPEG
Image Resolution: 1920 x 1080 to 352 x 240 in 18 steps
Selectable Frame Rate: 1 to 60 fps
Web Server | | IR LED | Horizontal Beam: 30°
Wavelength: 850 nm | | Operating Temperature | Continuous Working: -40 to 140°F (-40 to +60°C)
Non Continuous Working (absolute maximum temperature for short periods): 149°F (+65°C) | | Wind Resistance | Operational: 99.4 mph (160 km/h)
Stationary: 130.5 mph (210 km/h) | | Surge | Surge Immunity: Up to 2 kV line to line, up to 4 kV line to earth (Class 4) | | Relative Humidity | 10 to 95% (no condensation) | | Certifications | Electrical Safety (CE): EN60950-1, IEC60950-1
Electromagnetic Compatibility (CE): EN610000-6-4, EN50130-4, EN55022 (Class A), FCC Part 15 (Class A)
Outdoor Installation (CE): EN60950-22, IEC60950-22
Photobiological Safety (CE): EN62471
IP Protection Degree: EN60529 (IP66)
UL certification: cULus Listed ( TYPE 4X )
EAC certification | | Dimensions | 10.3 x 15.4 x 15.4" (261 x 391 x 390 mm) | | Weight | 28.7 lb (13 kg) |
