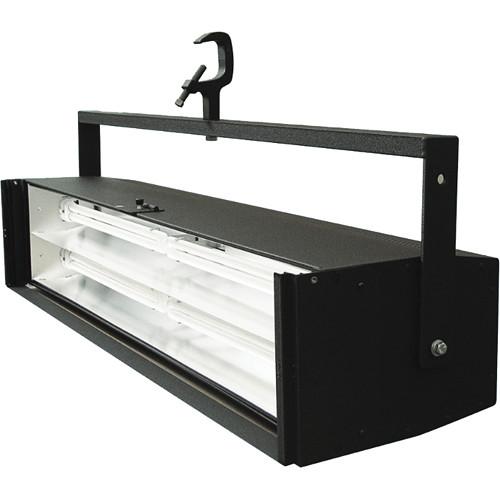

User Manual for Videssence Power CYC PC220-455BX Focusable Fluorescent Light Fixture Click to enlarge the picture
Contents of the user manual for the Videssence Power CYC PC220-455BX Focusable Fluorescent
- Product category: Fluorescent Lights Videssence
- Brand: Videssence
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Videssence Fluorescent Lights
|
User manual for the Videssence Power CYC PC220-455BX Focusable Fluorescent contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Videssence product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Videssence user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Videssence product will considerably shorten its lifespan!
|
Product description This 120 VAC, non-dimmable Power CYC PC220-455BX Focusable Fluorescent Light Fixture from Videssence is a 220W compact fluorescent unit with variable beam spread. Each of the 4 lamps adjusts separately with external slide knobs at the back of the fixture to allow a beam angle range from 60° to 90°. The fixture provides concentrated, even coverage for studio cycloramas or fill lighting applications. Additional control can be achieved with gel frame and barn door accessory options. In the Box Videssence Power CYC PC220-455BX Focusable Fluorescent Light Fixture (120 VAC, Non-Dimmable) O.D.C-Clamp (2") 2 x Two-Lamp Ballast 4 x Fluorescent Biax Lamp - 55 Watts/3000K 1-Year Limited Warranty on Fixture Table of Contents
|
Upload User Manual
Have you got an user manual for the Videssence Power CYC PC220-455BX Focusable Fluorescent Light Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVidessence PC220-455BX Specs | Material | 0.063 Formed aluminum, black textured TGIC polyester coat finish | | Lamps | 4x 55W fluorescent, T55W/2G11/830, 4-pin
Color temperature: 3,000 K (standard) Lamp life: 12,000 hr
CRI: 82 | | Light Intensity | 4,800 Lumen per lamp | | Beam Angle | Adjustable: 60 - 90° | | Ballast | 2x 2-Lamp ballasts: 120 VAC, 60 Hz HPF electronic | | Dimming | No | | Socket | Molded white thermoplastic with push wire connections and 18 gauge leads | | Mounting | 0.125 Welded aluminum yoke
Rotates vertically through the yoke and horizontally through included pipe clamp | | Control | Local | | Input Voltage | 120 VAC, 60 Hz | | Power Factor | >.97 | | Sound | Class A sound rating and THD of <20% | | Cable | 16' (4.9 m) Power cord with NEMA5-15 3-prong plug
In-line switch | | Dimensions | 51.37 x 9.0 x 13.15" (130.5 x 23 x 33.4 cm) | | Weight | 30 lb (13.5 kg) |
