User Manual for Videssence Power Key Fluorescent Light Click to enlarge the picture
Contents of the user manual for the Videssence Power Key Fluorescent Light
- Product category: Fluorescent Lights Videssence
- Brand: Videssence
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Videssence Fluorescent Lights
|
User manual for the Videssence Power Key Fluorescent Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Videssence product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Videssence user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Videssence product will considerably shorten its lifespan!
|

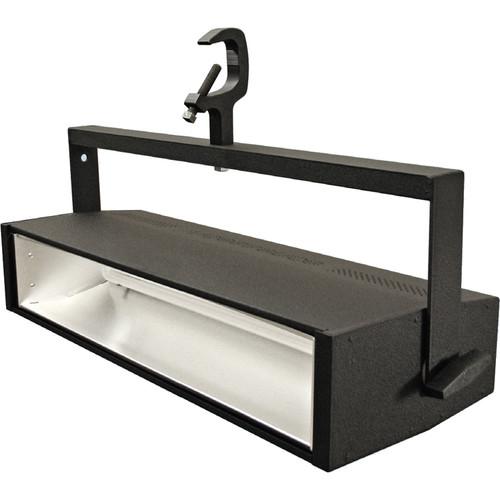

Product description Ideal for studios and news sets, the Power Key Fluorescent Light from Videssence is sturdily constructed with 0.063 aluminum and boasts an interior made of aluminum with a 95% reflectance finish. What really sets the Power Key apart is its focusing capability, very rare in a fluorescent fixture. The light provides concentrated, even coverage that can be varied 60 to 90°. It's great to have a light around that can minimize unnecessary repositioning and downtime with a simple slide knob. The Power Key ships with a 3000K biax lamp that can be swapped out for other optional temperature, or filtered with the addition of a filter frame. Optional barndoors are also available. The Power Key comes with an aluminum yoke and a C-clamp for hanging overhead, and an optional TVMP connector will allow you to stand-mount it. In the Box Videssence Power Key Fluorescent Light 55W Biax Lamp C-Clamp Yoke 16' Power Cord with NEMA5-15 3-Prong Plug Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Videssence Power Key Fluorescent Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVidessence P055-155BX Specs | Housing | 0.063 Formed aluminum, coated black textured TGIC polyester coat finish | | Reflector | Formed .020 high purity aluminum (99.9%) reflector material with 95% reflectance finish | | Socket | Molded, white, high-strength thermoplastic with push wire connections and 18-gauge leads. Model number 2G11 4-pin | | Input Voltage | 120 VAC | | Lamps | 55 W biax lamp (3000K)
Lamp Life: 12,000 hours
Output: 4800 lumens | | CRI | 82 | | Photometrics | 332 fc / 3574 lux at 3.0' / .91 m
83 fc / 893 lux at 6.0' / 1.83 m
37 fc / 398 lux at 9.0' / 2.74 m
21 fc / 226 lux at 12' / 3.66 m | | Ballast | 1-lamp ballast with phase control | | Mounting | 0.125 Welded aluminum yoke which allows vertical or horizontal mounting | | Dimensions | 30.37 x 11.3 x 11.45 / 77 x 28.7 x 29 cm (including knobs, not including yoke) | | Weight | 12 lb / 5.4 kg |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 31 owners. Add your rating and experience with the product.
