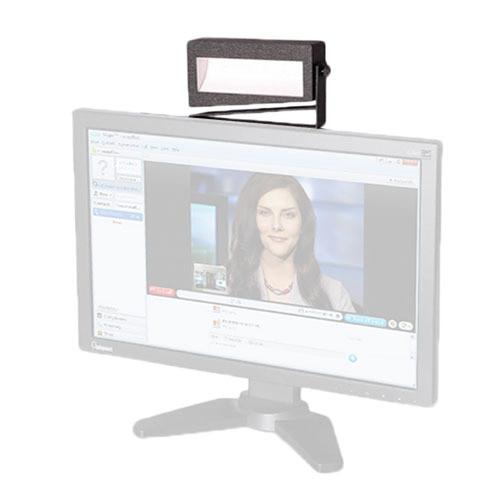

User Manual for Videssence ViewMe Video Chat Lighting Kit with Z Bracket Click to enlarge the picture
Contents of the user manual for the Videssence ViewMe Video Chat Lighting Kit
- Product category: LED Lights Videssence
- Brand: Videssence
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Videssence LED Lights
|
User manual for the Videssence ViewMe Video Chat Lighting Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Videssence product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Videssence user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Videssence product will considerably shorten its lifespan!
|
Product description The Videssence ViewMe Video Chat Lighting Kit with Bracket is an ideal way to light yourself or anyone else who desires soft flattering illumination for chat, webinars or other instructional uses.The kit comes with one 3.4W LED lamp with a color temperature of 3,000K and an average life of 50,000 hours. This kit includes a Z bracket which mounts the light directly to your TV for a flat, evenly lit effect which is ideal for tight spaces. A multi-voltage (120 - 230V AC) power supply is also provided. - Housing
- Constructed of 22 gauge CRS, then coated with durable black textured TGIC polyester powder coat finish.
- LED Module
- Osram / Sylvania HF2 Narrow Stick LED. Fixture is rated at 3.4w and produces a soft, even coverage wash of 3,000K light. LED is 85 CRI with a rated life of 50,000 hours.
- Reflector
- Precisely formed aluminum reflector is coated in durable, highly reflective, white TGIC polyester powder coat finish. Indirect design provides comfortable, soft illumination.
- Electrical
- Power supply unit is a 120 thru 230V 50/60Hz transformer. It is 24 volt, DC Class 2, with plug for any standard electrical 120 volt outlet. UL, CUL, CE Listed. RoHS Compliant. Fixtures operate silently and include an on/off button on the master unit. Jumper cable powers the second unit from the master unit.
- Packaging
- Boxed in heavy 200# corrugated cardboard with formed foam insert, your kit is well protected for portable use.
- Mounting - Z Bracket
- Bracket mounted with a formed 18 gauge CRS yoke. Unit may tilt for aiming and can be locked in place. Bracket attaches to the top of your computer screen with double sided touch-fastener tape.
In the Box Videssence ViewMe Video Chat Lighting Kit with Z Bracket #VM004-LB LED Fixture Z Bracket Mount Yoke Touch Fastener Strip 120 - 230V Power Supply with Plug Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Videssence ViewMe Video Chat Lighting Kit with Z Bracket in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVidessence VM004-LB Specs | | | Color Temperature | 3000K | | Color Accuracy Standard | CRI 85 | | Cooling System | None | | Display | None | | Expected Lamp Life | 50,000 Hours | | Fixture Dimensions | 3.5 x 6.4 x 1.5" / 8.9 x 16.2 x 3.8 cm (Including Bracket) | | Fixture Weight | 14 oz / 397 g | | | | Fixture Mount | None | | Accessory Mount | None | | | | AC Input Power | 120 to 230 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Max Power Consumption | 3.4 W | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 12.2 x 10.0 x 5.4" |
