User Manual for ViewSonic 22" Widescreen Multi-Touch Full HD 1080p LED Monitor Click to enlarge the picture
Contents of the user manual for the ViewSonic 22" Widescreen Multi-Touch Full HD
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic 22" Widescreen Multi-Touch Full HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

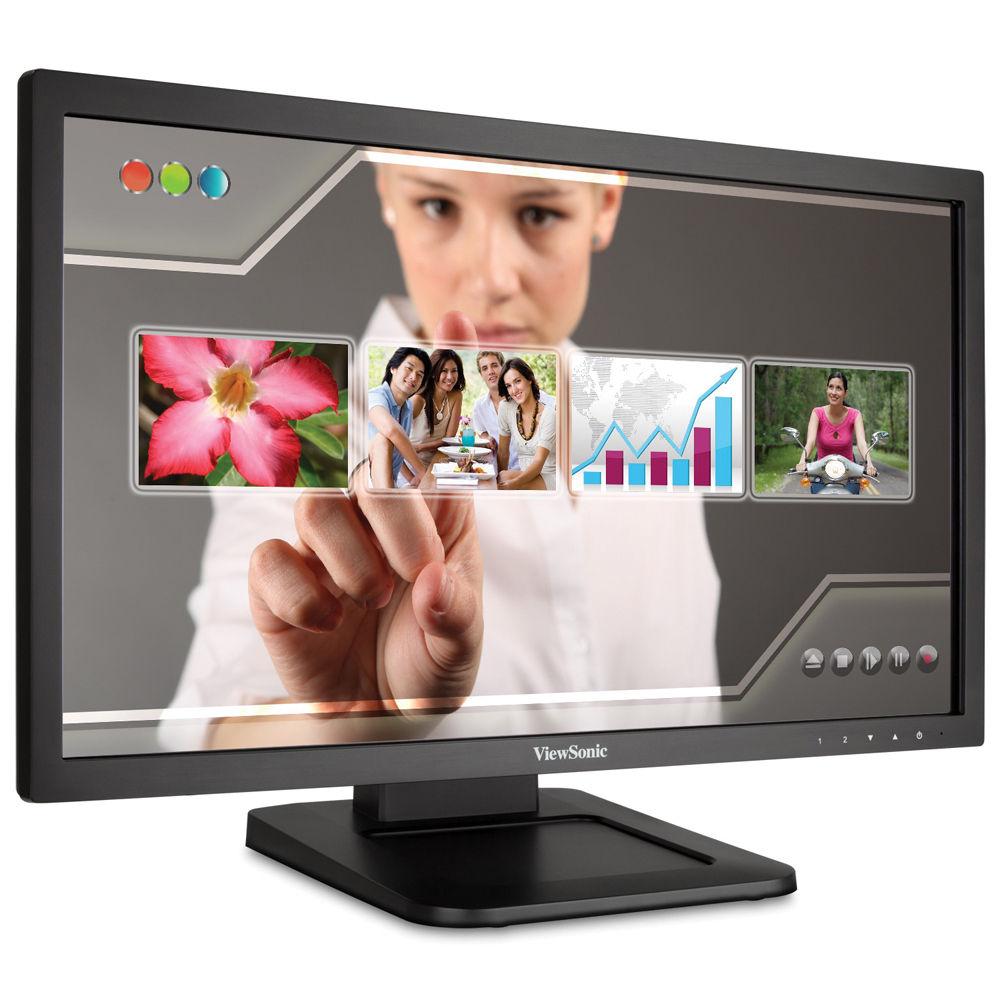

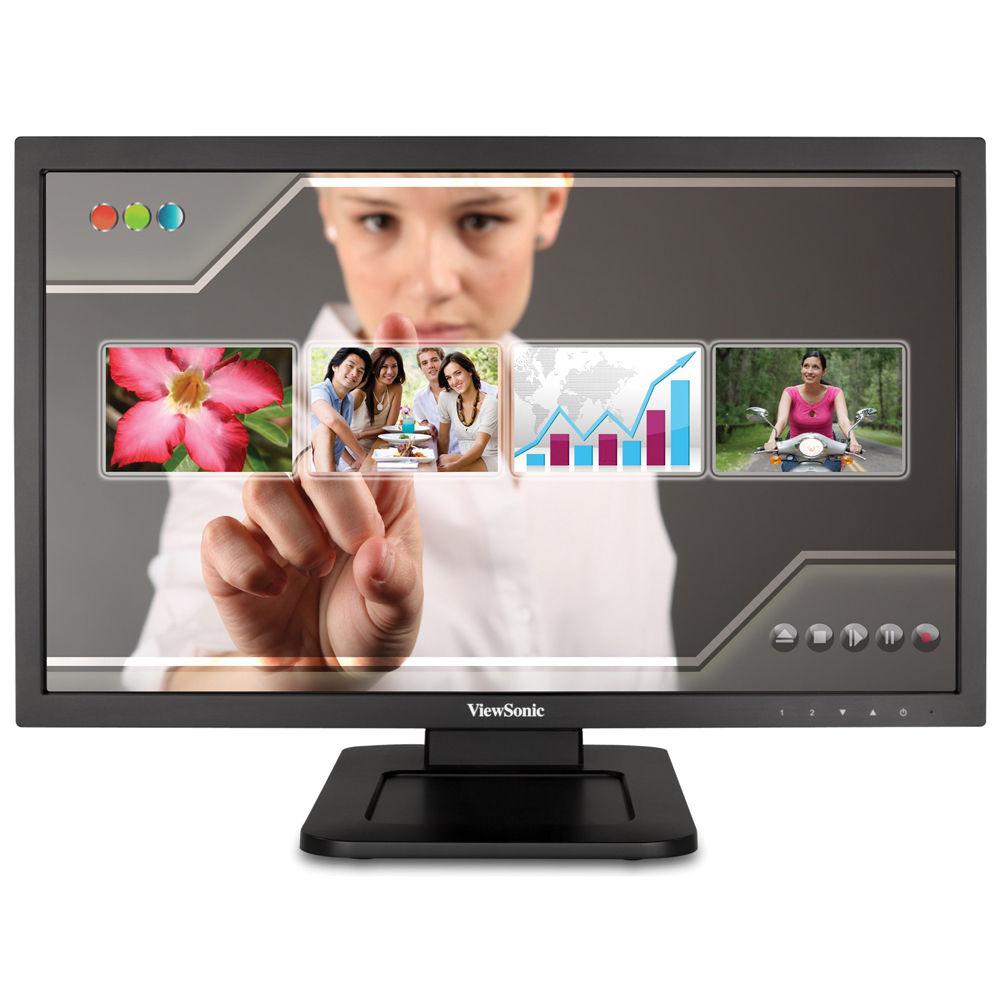

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More ViewSonic's 22" Widescreen Multi-Touch Full HD 1080p LED Monitor is a touch-screen LED-backlit display with 1920 x 1080 progressive HD resolution, progressive being the better of the two HD types. The monitor's multi-touch functionality means that two or more on-screen buttons can be pressed at the same time, for interactive actions like rotations and two-finger taps. An 8H scratch-resistant coating ensures a consistent high quality touch experience.

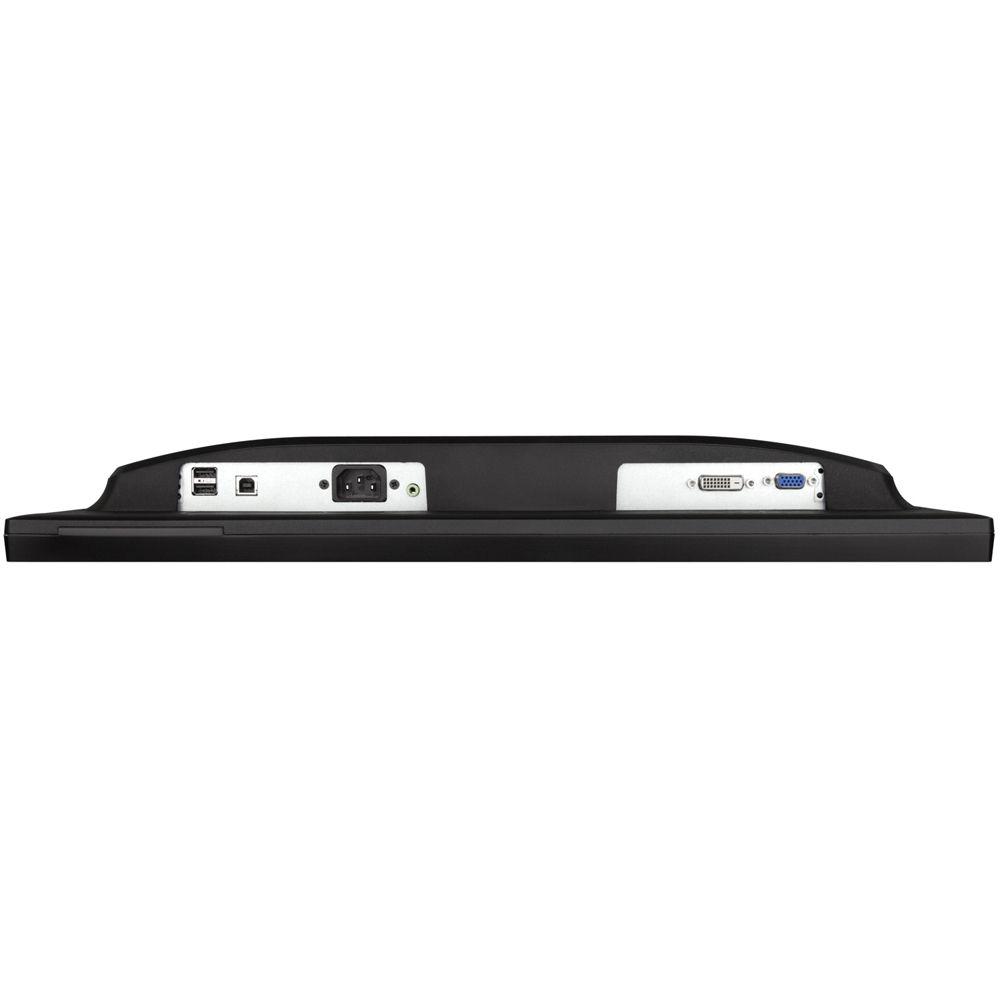

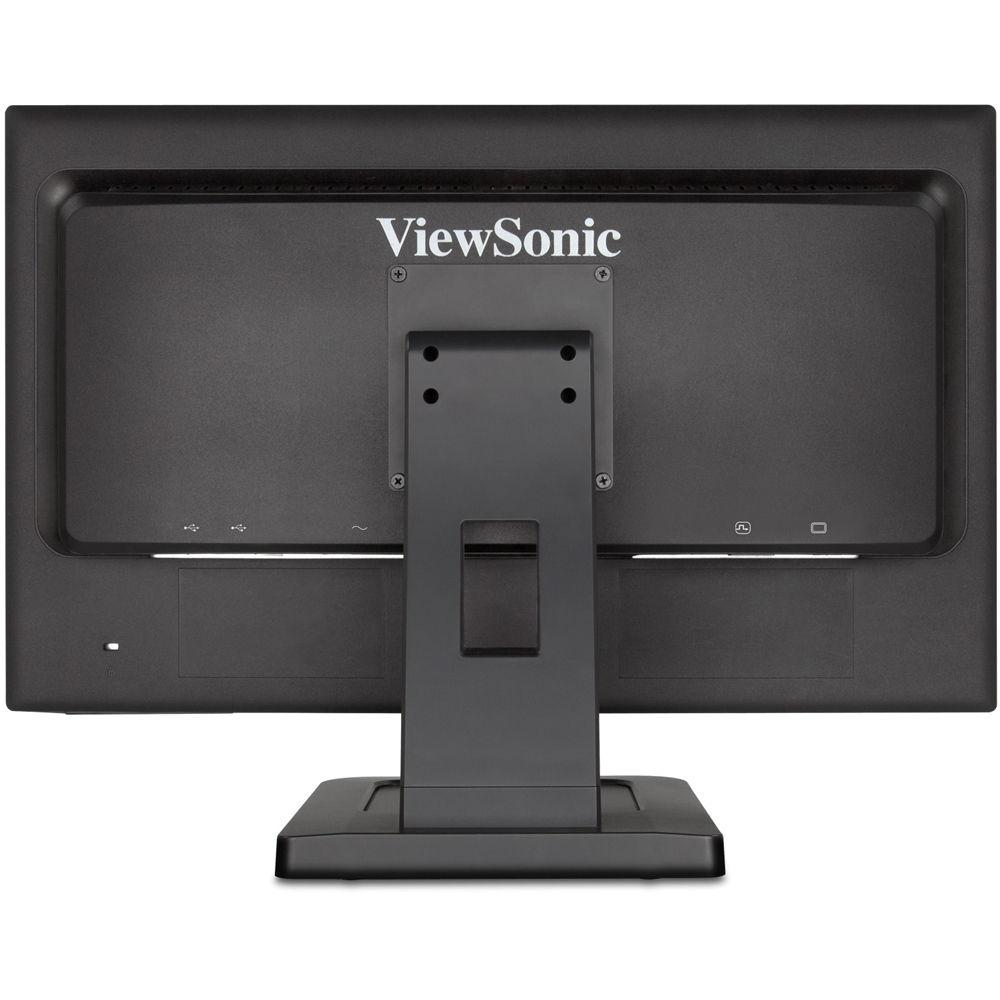

Two built-in speakers, by way of SRS Premium Sound, deliver as much a surround sound experience as two speakers can. The monitor is equipped with VGA, DVI and USB connections and comes to you with VGA, DVI and audio cables included. A stand for table-top use is included as well, however, via optional 100 x 100mm VESA mounting brackets, you can use the monitor mounted on a wall. - Widescreen 1080p Full HD LED Touch-Screen Display
- The TD2220 has an 8H scratch resistant surface hardness that helps ensure a consistent high-quality touch experience.
What is Multi-Touch?
Multi-touch means two or more on-screen buttons can be pressed at the same time. Multi-touch allows actions like zoom in/out, rotation, and two-finger taps.
Full HD 1080p Resolution
The monitor's 1920 x 1080 resolution is capable of displaying a native full HD 1080p image, with "p" standing for "progressive," which is the better of the two HD types. Support for 1080p means that you can experience the picture clarity and details of 1080p content you may view, like 1080p movies and videos, which most are.
What is LED?
An "LED monitor" refers to a monitor with an LCD panel and an LED backlight. A typical LCD monitor uses CCFL lamps to illuminate the panel. In an LED backlit LCD monitor, white LED lamps are used for light instead. LED lamps are environmentally friendly, consuming about 40% less power than traditional CCFL lamps.
sRGB Color Correction
This monitor features embedded sRGB color correction technology, which reproduces color-for-color matches to original input sources. sRGB ensures all displayed images/videos are as natural as the original sources.
SRS Premium Sound
Designed by SRS Labs, SRS Sound aims at delivering as much a surround sound experience as possible with the monitor's two built-in speakers.
Eco Mode
ViewSonic's proprietary Eco-mode function lets you select between Standard, Optimize and Conserve modes. Standard mode will display images at the monitor's full brightness capacity. Optimize mode dims the brightness some, and Conserve mode dims a bit more to save 30-40% on energy costs. UPC: 766907649413 In the Box ViewSonic 22" Widescreen Multi-Touch Full HD 1080p LED Monitor Power Cable AC/DC Adapter VGA Cable DVI Cable Audio Cable ViewSonic Wizard CD (Not Available in All Countries) Quick Start Guide 3-Year Limited Warranty on Parts, Labor and Backlight User Manual PDF 769.8kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic 22" Widescreen Multi-Touch Full HD 1080p LED Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic TD2220 Specs | | | Size | 21.5" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Finish | Matte | | Hardness Rating | 8H | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 24 to 83 kHz | | Vertical Frequency | 50 to 76 Hz | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Backlight Lifespan | 40,000 Hours | | | | Connectivity | 1 x USB Type-B Input
2 x USB Type-A Output
1 x DVI-D
1 x VGA | | HDCP Support | Yes | | Built-In Speakers | Yes, 2 x 2 W | | | | Power Consumption | 43 W (Maximum)
18 W (Eco)
26 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 90% | | Certifications | TCO Certified, ENERGY STAR, RoHS, WEEE, EPEAT Silver, as per Manufacturer | | | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 20.1 x 12.2 x 2.6" / 51.2 x 31.1 x 6.6 mm (Without Stand)
20.1 x 14.4 x 9.5" / 51.0 x 36.6 x 24.0 mm (With Stand) | | Weight | 10.8 lb / 4.9 kg (With Stand)
8.7 lb / 4 kg (Without Stand) | | | | Package Weight | 15.45 lb | | Box Dimensions (LxWxH) | 22.3 x 16.9 x 8.9" |
