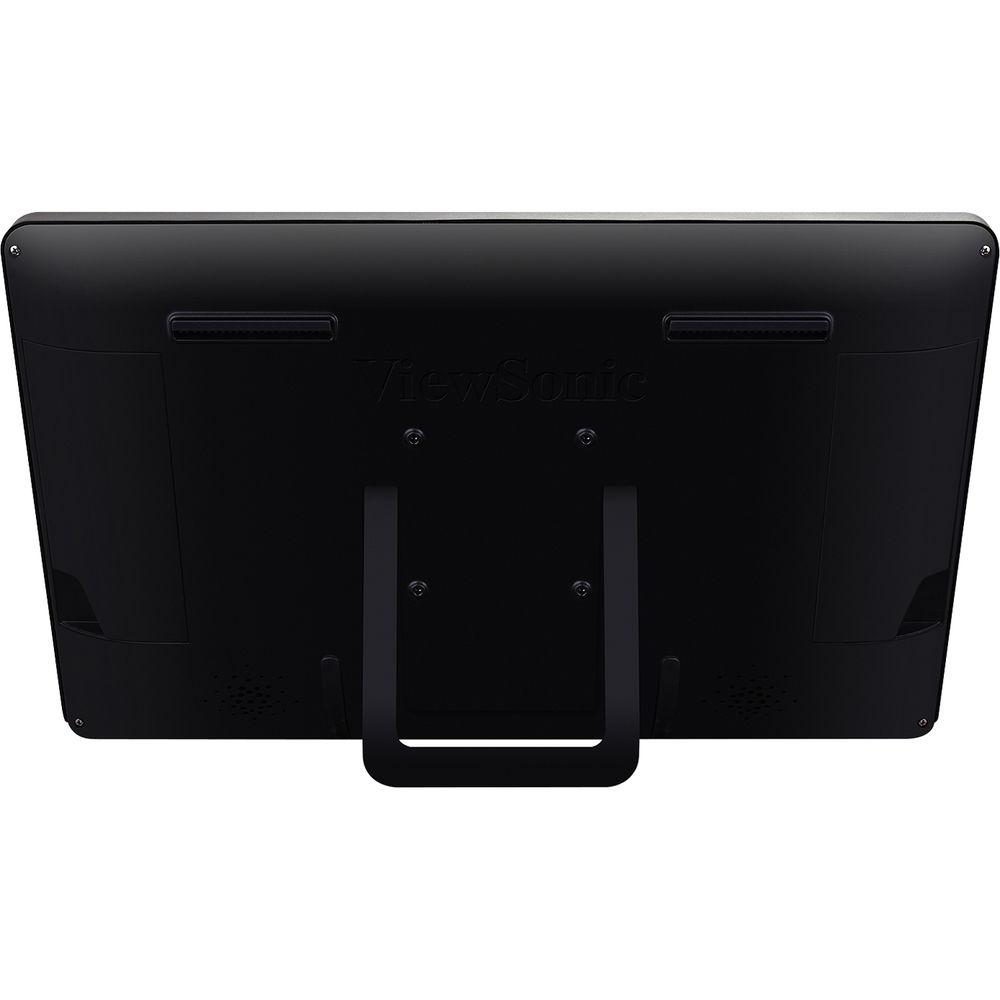

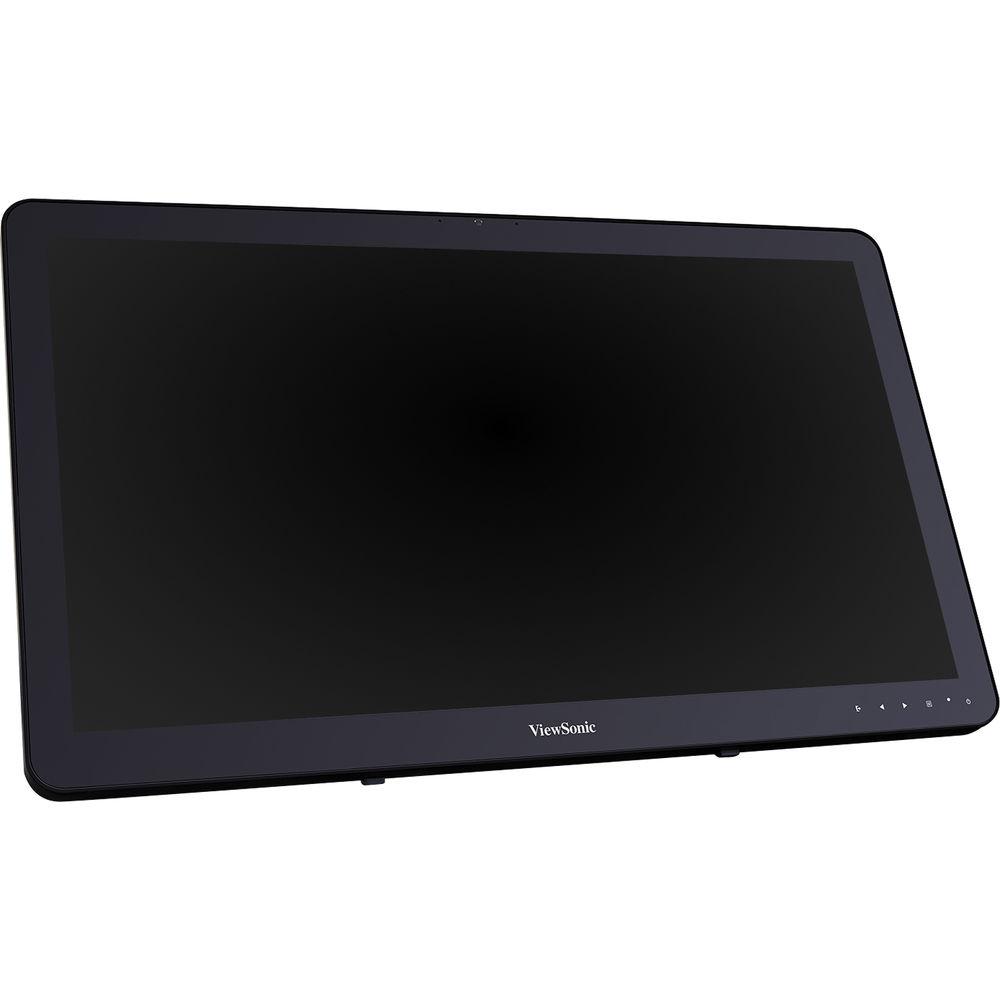

User Manual for ViewSonic 24" Smart Display Kiosk for Android Click to enlarge the picture
Contents of the user manual for the ViewSonic 24" Smart Display Kiosk for
- Product category: Computer Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Computer Monitors
 |
User manual for the ViewSonic 24" Smart Display Kiosk for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

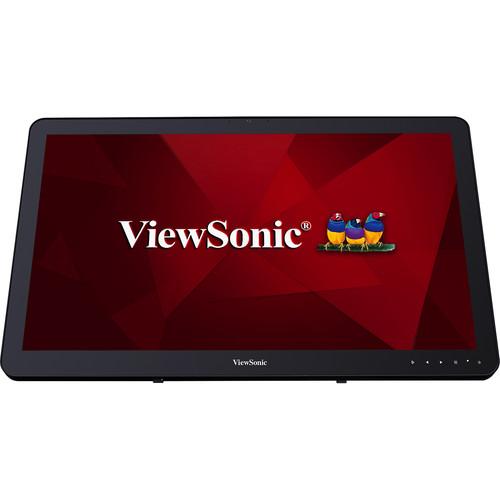

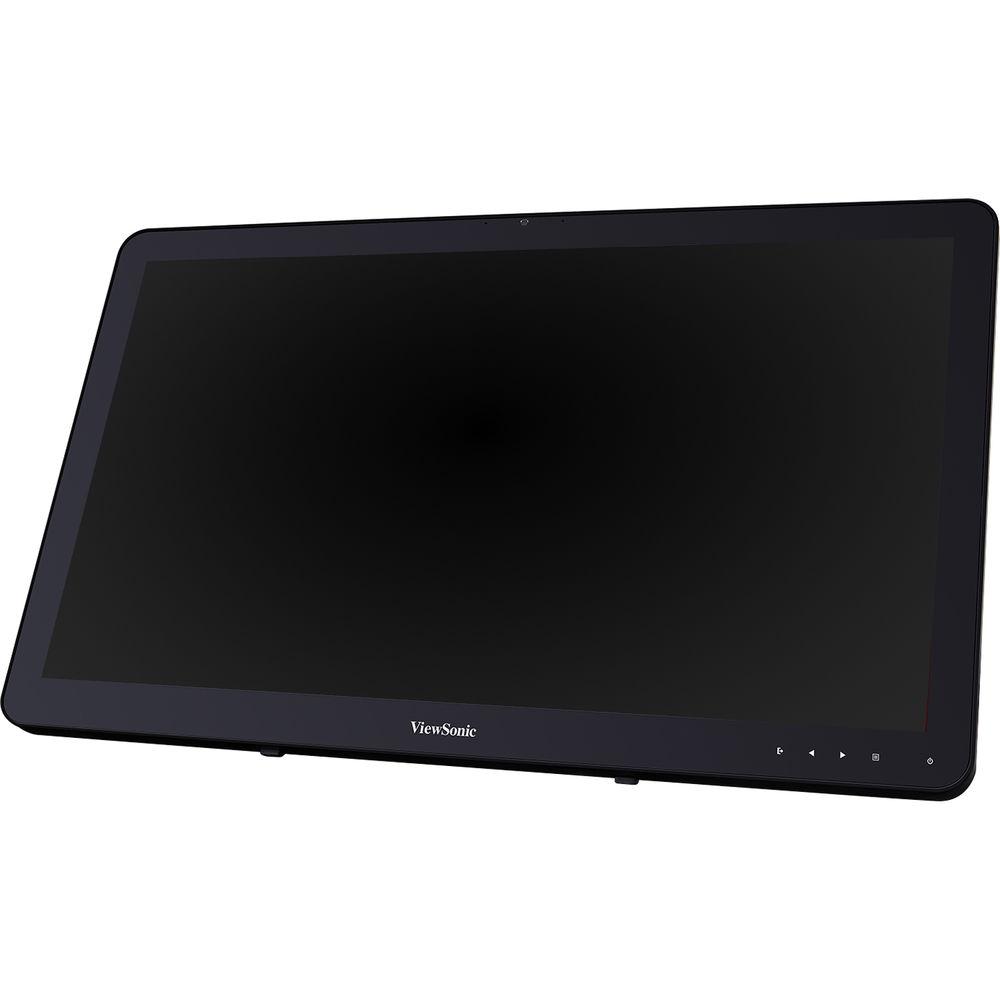

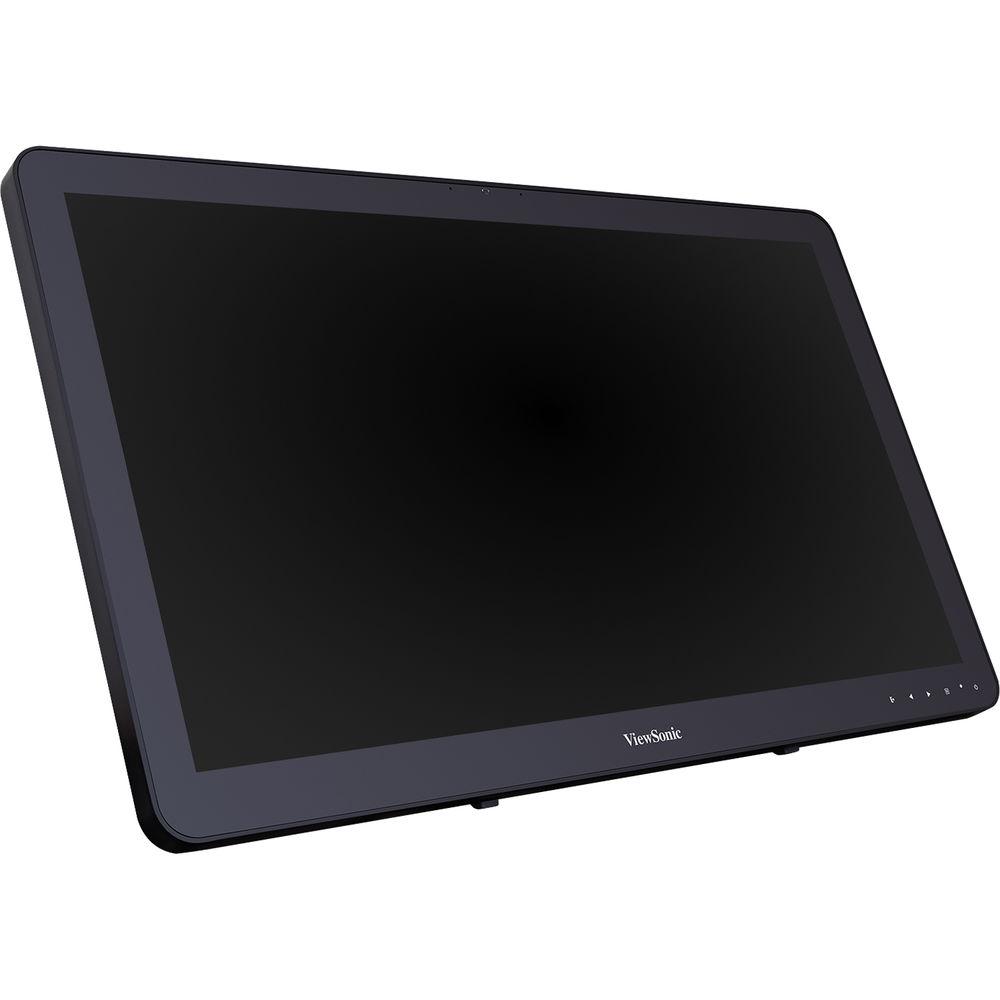

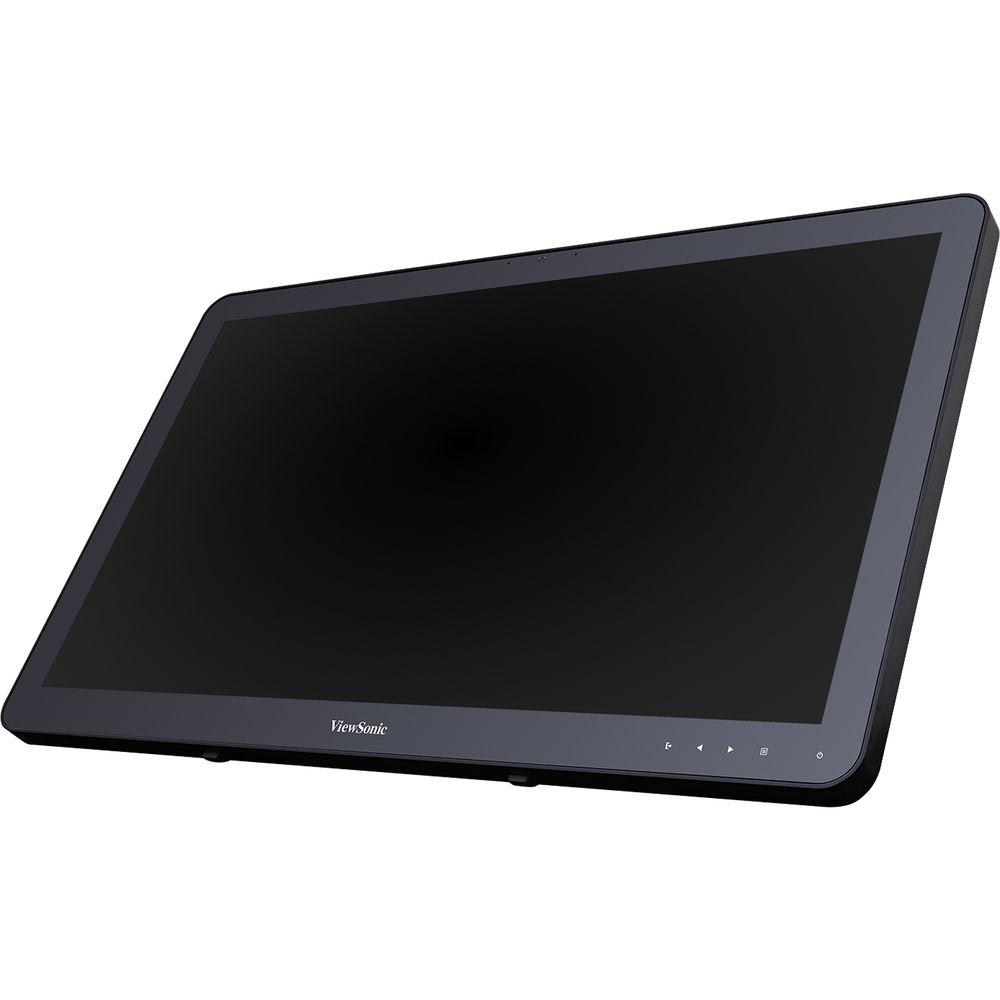

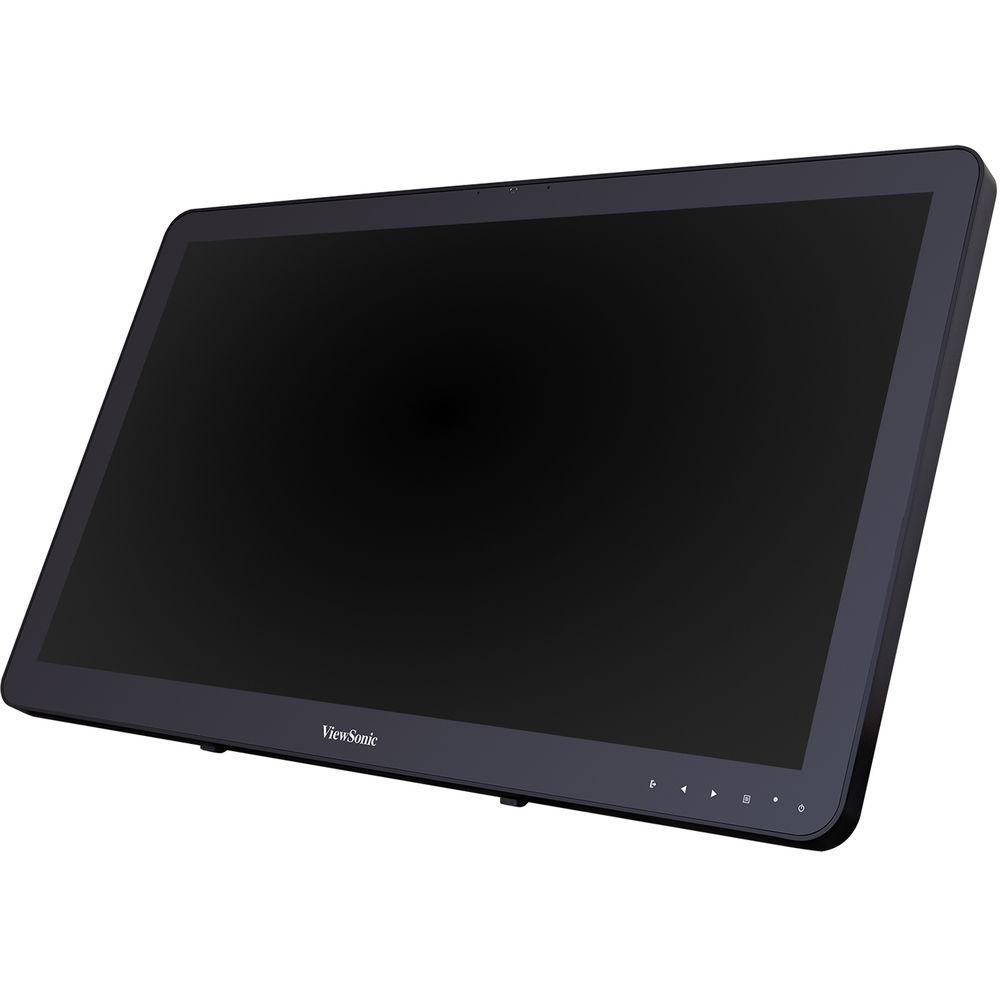

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More vsavfwxtrcrrwsdatrcfddfsfctvwfwzzxzts The 24" Smart Display/Kiosk from ViewSonic delivers flexibility and power needed for heavy usage in public spaces. With its sleek, thin bezel, fan-less design, 7H hardness screen coating, and VESA compatible mounting capabilities, this display is a flexible solution for information kiosks, public displays, or POS stations in business centers, libraries, or retail environments.Combining the power of a Rockchip quad-core processor, a professional-grade In-Plane Switching (IPS) panel, and a 10-point capacitive touchscreen, this smart display delivers a responsive, tablet-like browsing experience, while an Android OS, Google Chrome browser, and full Google GMS certification provide instant access to Google Play store and thousands of current Android apps. A built-in webcam, integrated microphone, and speakers make the display an ideal interactive kiosk-in-a-box. - General
-
- Powerful quad-core processor
- Android Lollipop 5.1 OS with Google GMS certification
- 10-point multi-touch
- Equipped with Wi-Fi, Bluetooth, and RJ45
- 4 x USB Type-A ports
- Applications
-
- Retail
- Public display
- Hospitality
UPC: 766907826418 In the Box ViewSonic 24" Smart Display/Kiosk for Android Power Adapter and Cord Limited 3-Year Warranty Data Sheet PDF 372.4kbvsavfwxtrcrrwsdatrcfddfsfctvwfwzzxzts More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic 24" Smart Display Kiosk for Android in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic VSD242 Specs | | | Type | Color TFT active matrix IPS LED | | Processor | Rockchip RK3288 Cortex-A17 Quad-Core 1.8 GHz | | Viewable Size | 20.5" (52.3 cm) horizontal
11.5" (29.2 cm) Vertical
23.6" (59.9 cm) diagonal | | Brightness | 250 cd/m | | Contrast Ratio | 3000:1 (typical) | | Viewing Angle | 178° horizontal

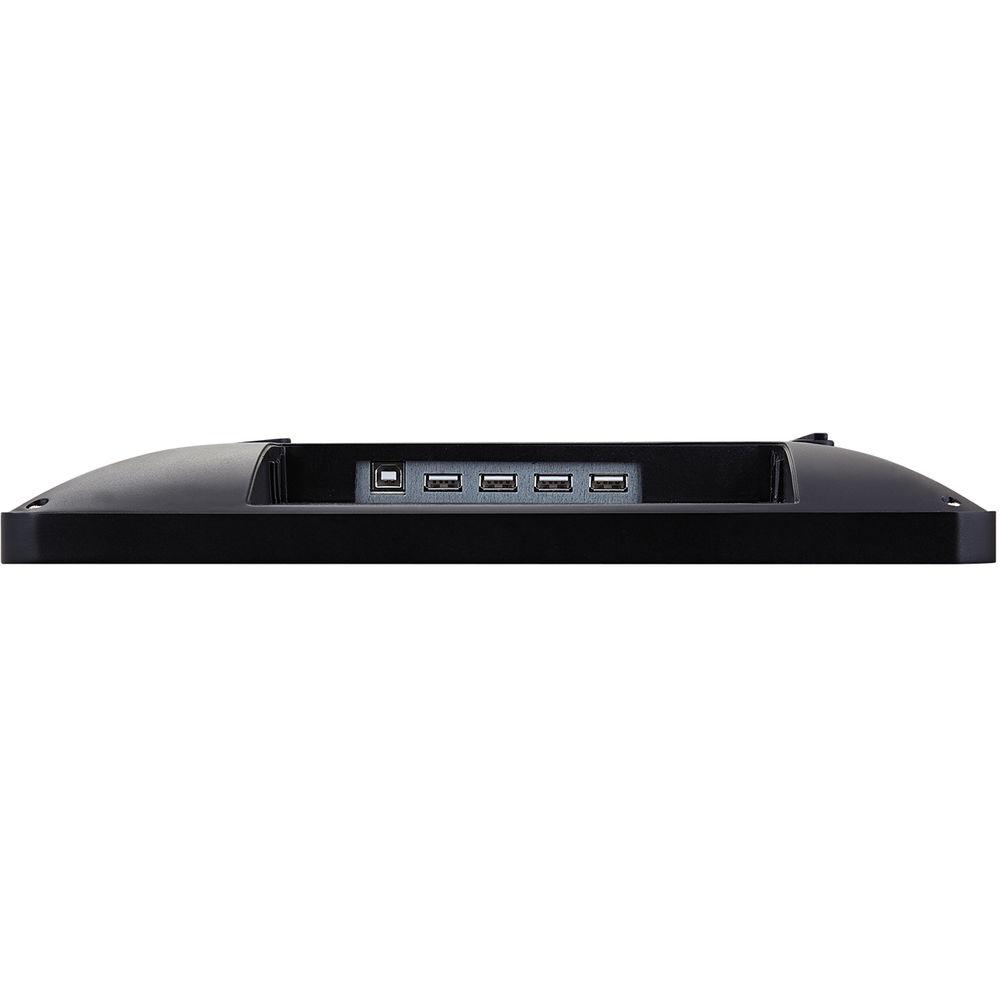

178° vertical | | Response Time | 16 ms (GtG) | | | | Backlight | White-light LED | | Resolution | 1920 x 1080 | | | | USB Input | 4 x Type-A (v2.0)
1 x Type-B, mini-USB | | HDMI | In/Out (MHL) | | Audio | 1 x 3.5 mm headphone jack

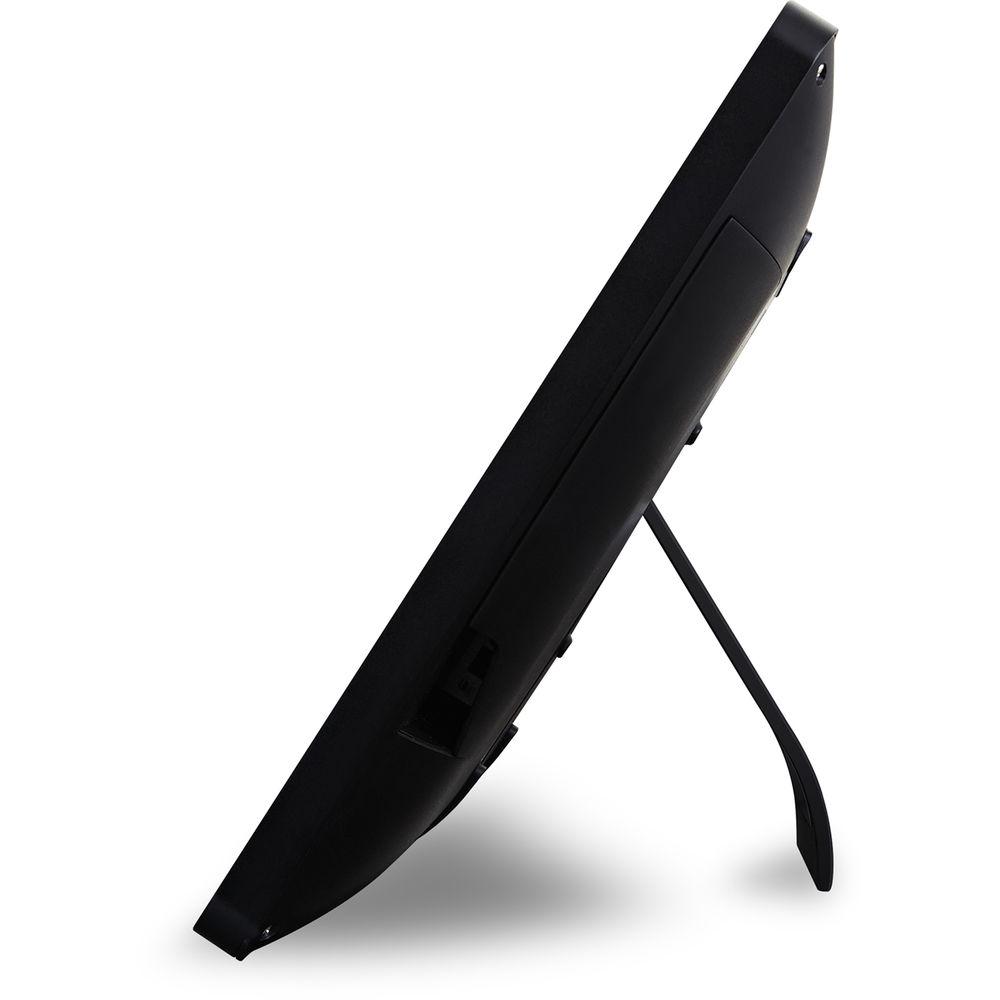

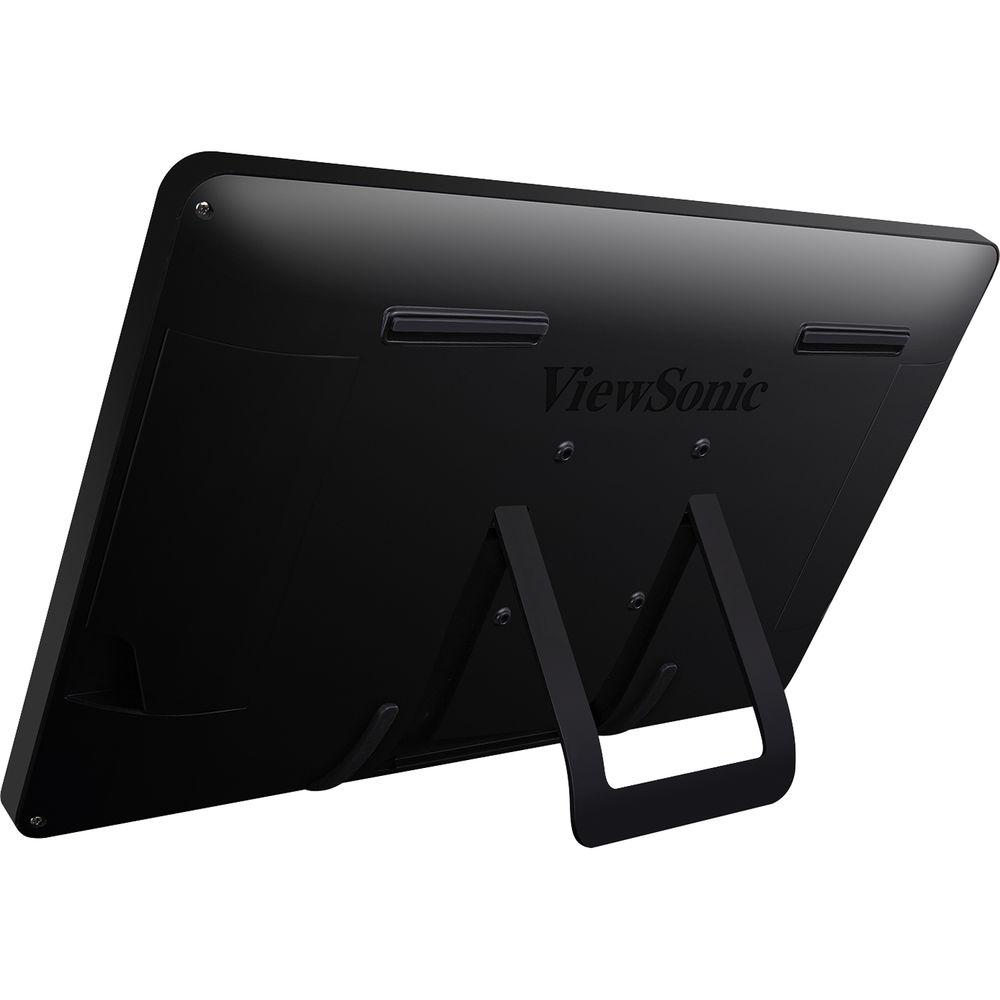

1 x 3.5 mm mic In | | Power | DC-in jack (ID 1.7 mm, OD 4.0 mm) | | Card Reader | SD card | | Ethernet (LAN) Capability | RJ45, Wi-Fi 802.11 b/g/n, Bluetooth 4.0 | | Speakers | 2 x 2.5 W | | VESA Compatibility | 100 x 100 mm | | | | Tilt Range | 0 to 90° | | Touch Screen | Projected capacitive 10-point touch | | Internal Microphone | Echo cancelling | | System Memory | DDR3 2 GB | | Operating System | Android 5.1 | | Regulations | CE, CB, cTUVus, FCC-B (including ICES003, CA IC, NOM, China CCC, CEL Gost-R, FAC, WEEE, RoHS, REACH, ErP, Argentina CNC, AR-S | | Power | AC-DC Power (Input: 100 to 240 V / Output: 12 VDC, 4.0 A)
Consumption 48 W (typical) | | Environmental Requirements | Temperature: 32 to 95°F (0 to 35°C)
Humidity: 20 to 90% (non-condensing) | | Recycle / Disposal | Please dispose of in accordance with local, state, or federal laws | | Dimensions (W x H x D) | With Stand: 22.6 x 13.9 x 1.9 (57.3 x 35.2 x 4.7 cm) | | Weight | 12.3 lb (5.6 kg) | | | | Package Weight | 17.0 lb | | Box Dimensions (LxWxH) | 25.0 x 16.5 x 5.3" |
