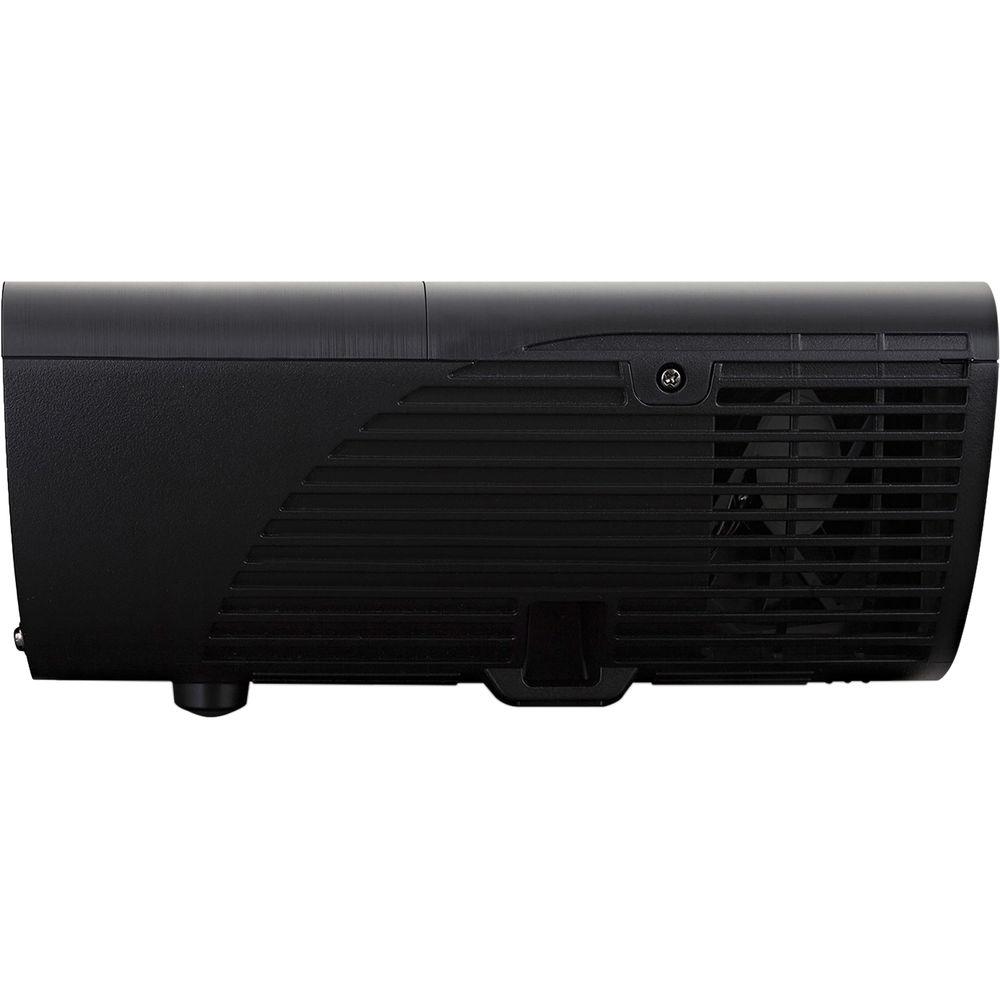

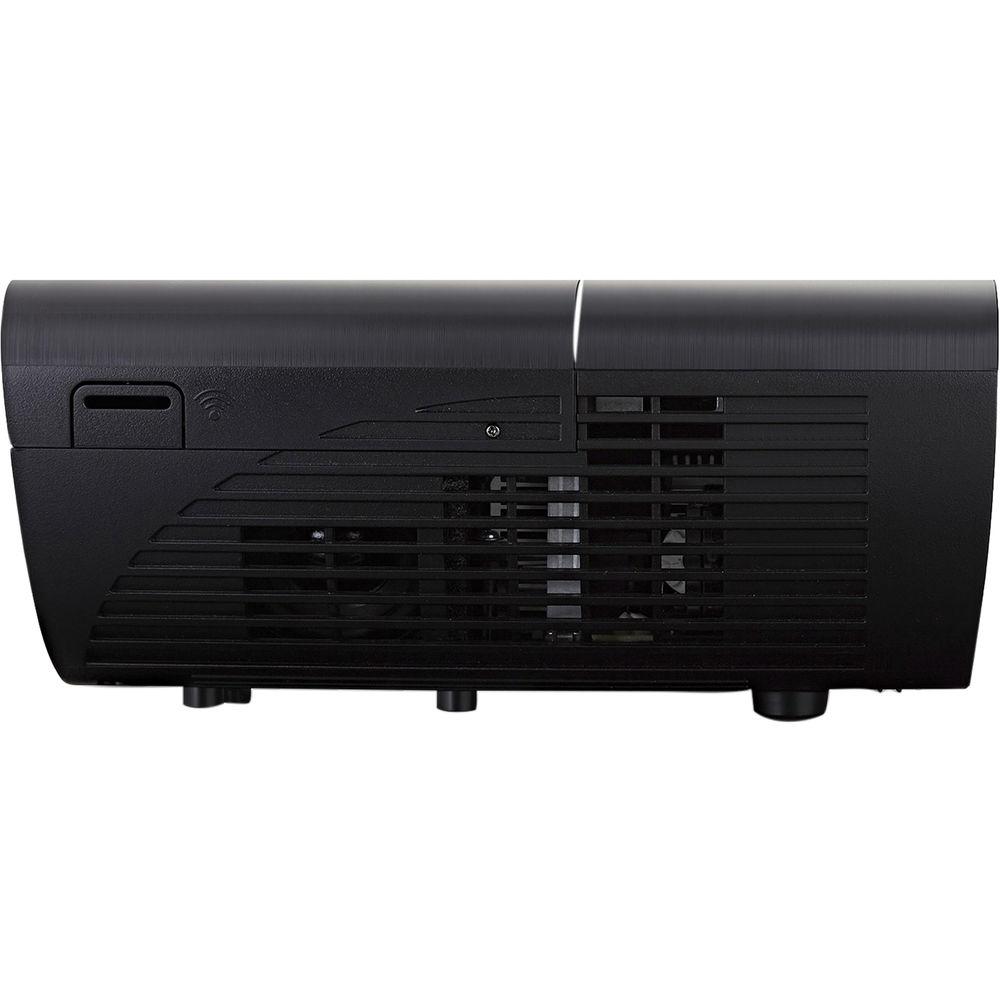

User Manual for ViewSonic 3300-Lumen WXGA LightStream Projector Click to enlarge the picture
Contents of the user manual for the ViewSonic 3300-Lumen WXGA LightStream Projector
- Product category: Multimedia Projectors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Multimedia Projectors
 |
User manual for the ViewSonic 3300-Lumen WXGA LightStream Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

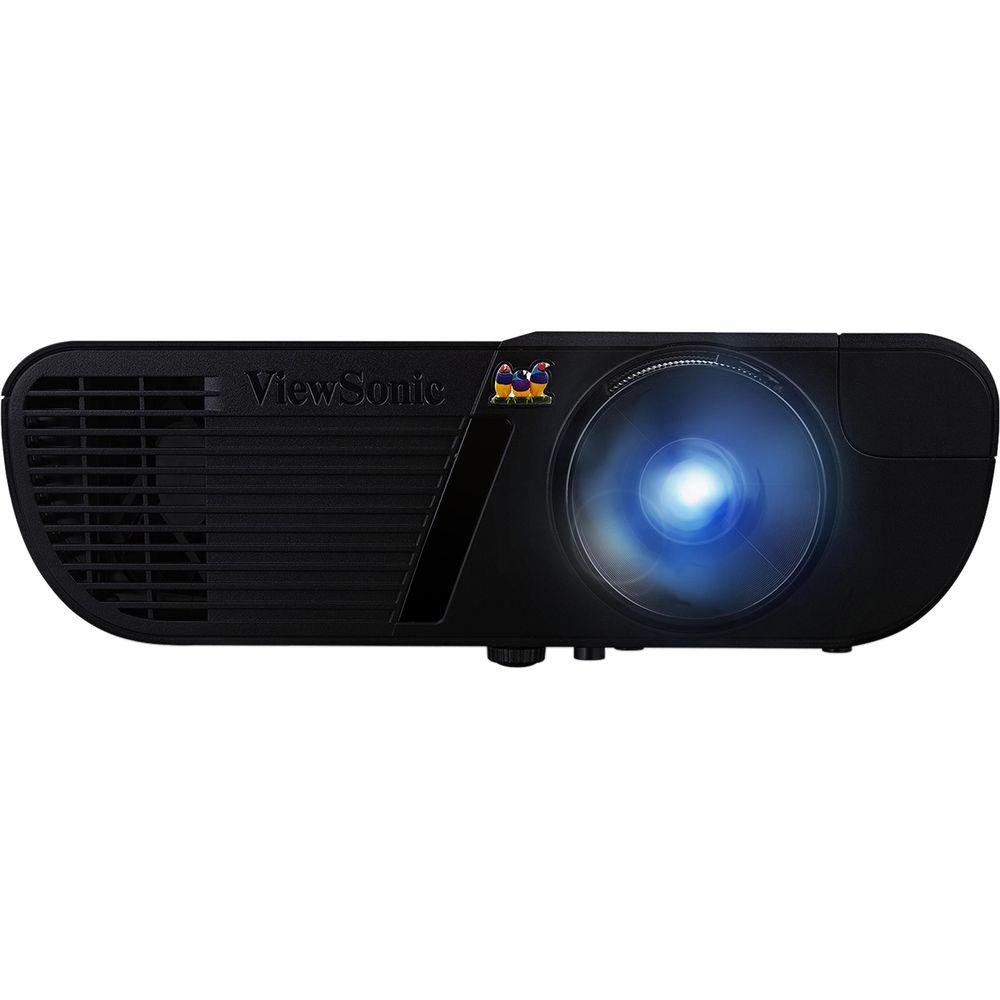

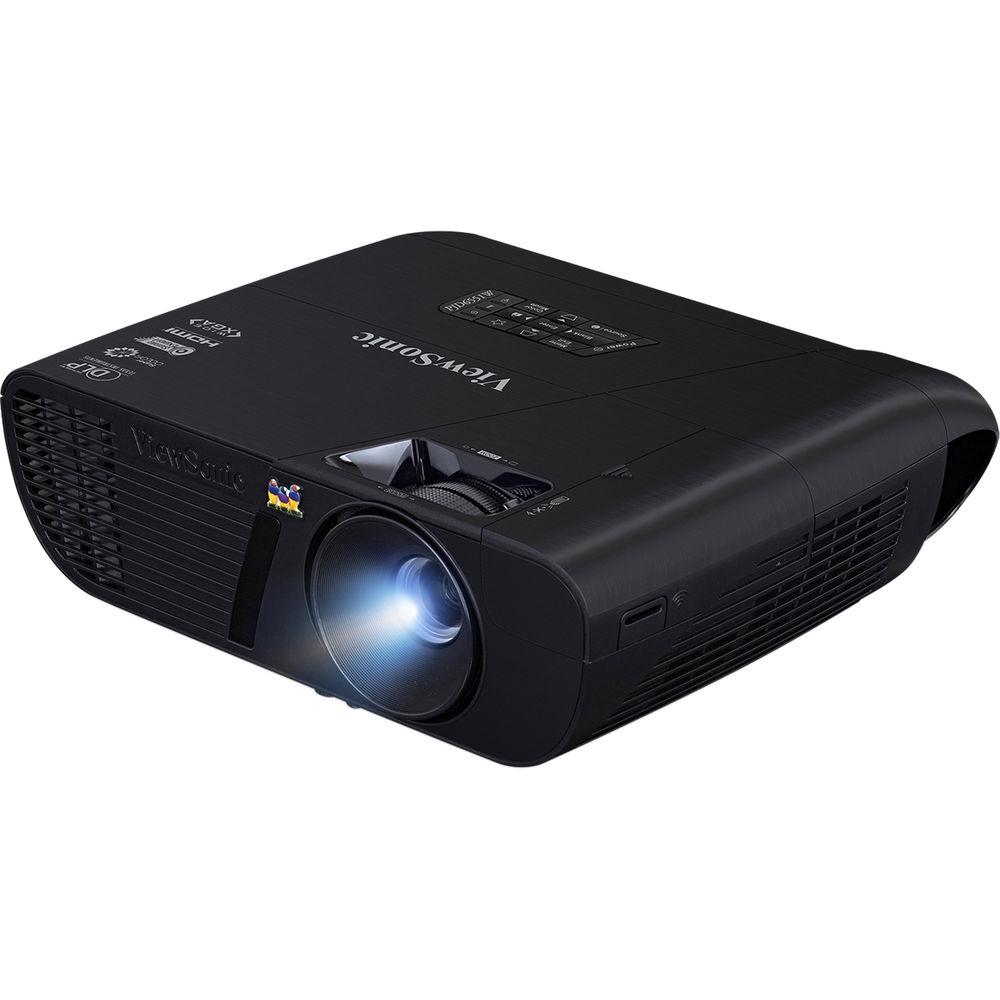

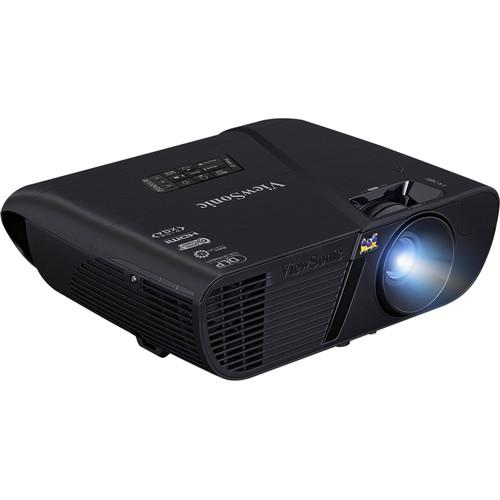

Product description The 3300-Lumen WXGA LightStream Projector from ViewSonic features 3,300 lumens, WXGA 1280 x 800 native resolution, an intuitive user-friendly design and a sleek black chassis. It also comes with SuperColor technology that offers a wide color range for true-to-life image projection in any light, while SonicExpert, ViewSonic’s proprietary sound enhancement technology, powers a 10W cube speaker to deliver remarkably clear and audible sound. Furthermore, the projector features PortAll, an enclosed HDMI/MHL connection compartment, supports wireless HDMI dongles or MHL connectors, while a cable management hood eliminates unsightly cable clutter. With extensive connectivity and network management capability, the projector is ideal for classrooms and meeting rooms. - Color Accuracy
- SuperColor Technology features a 6-segment color wheel and lamp control capabilities, providing a wide color range and crystal clear images.
- Network Capable
- Comes equipped with Crestron RoomView Express, an easy-to-use network management system that lets administrators remotely observe and control over 250 LightStream projectors from a single PC.

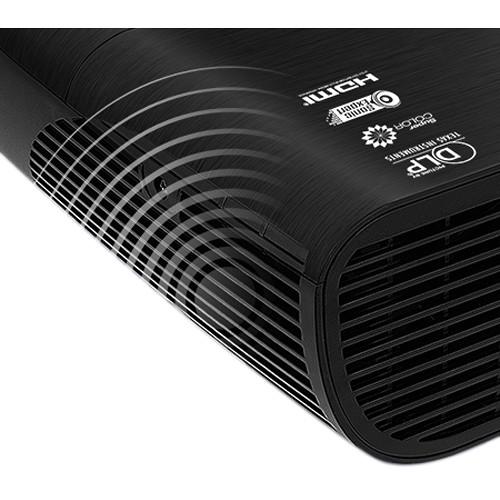

- SonicExpert Technology
- The projector is designed with ViewSonic's proprietary SonicExpert technology that incorporates an enlarged speaker chamber and a more powerful amplifier to deliver a full 20 Hz to 20 kHz sound range. An integrated speaker captivates your audience with immersive sound.
- Smart Design

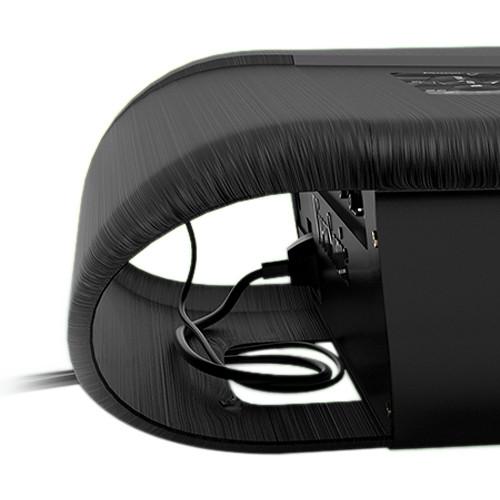

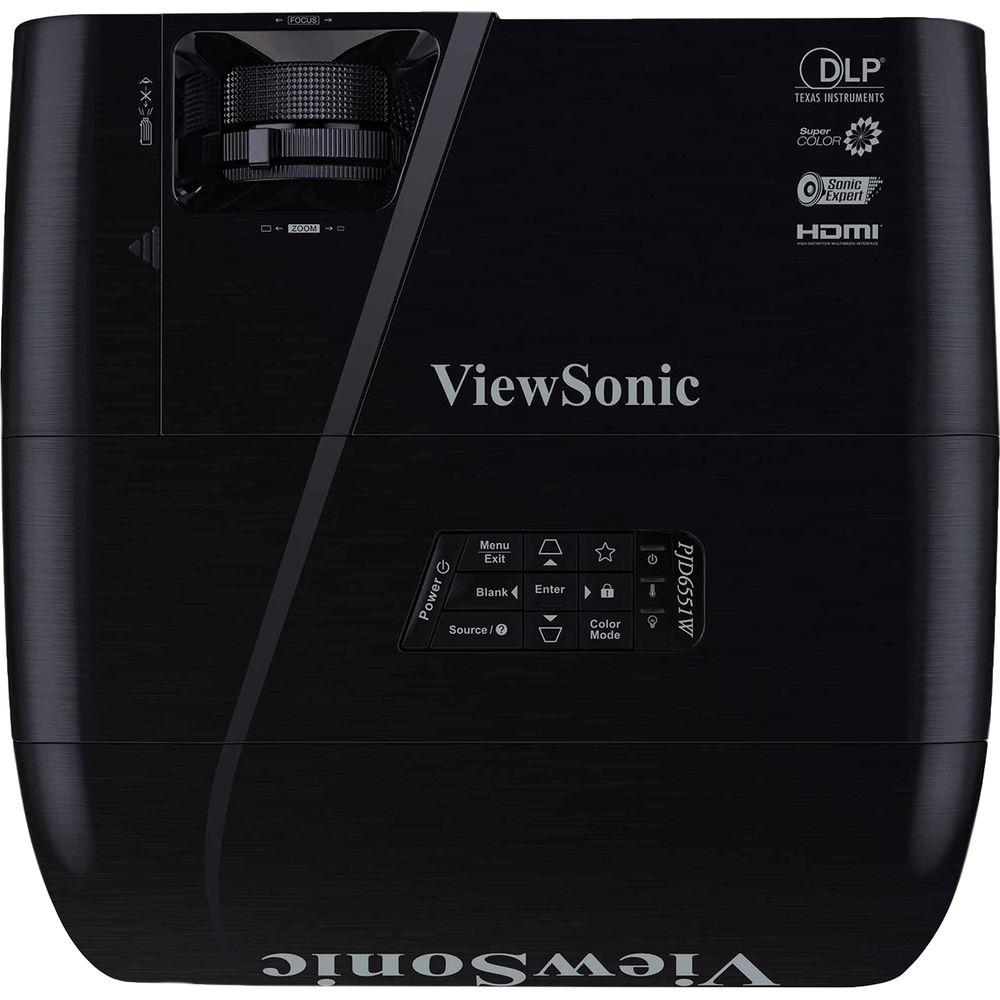

- The cable management hood connects onto the back of the projector to hide unsightly cable clutter and exposed ports. An easy-access top lamp door enables simple lamp maintenance and replacement.

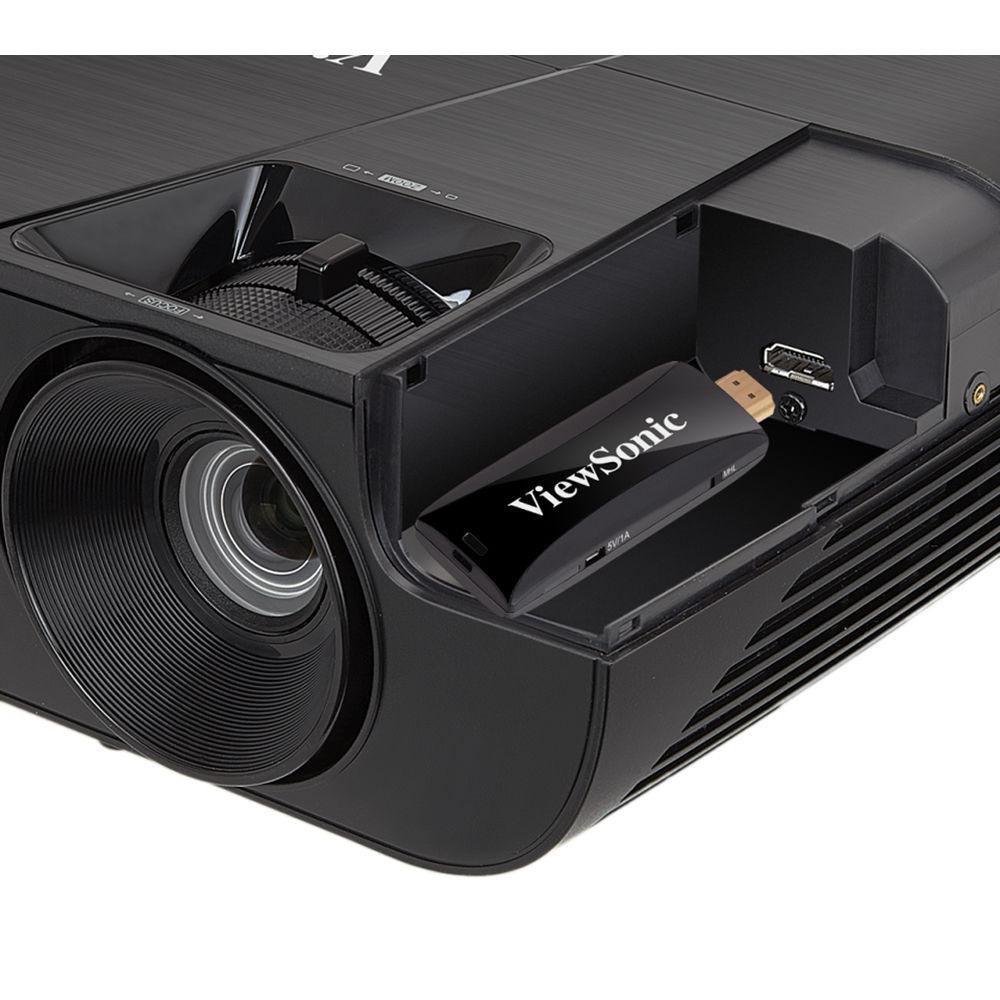

- PortAll: Discreet Wireless Streaming
- A hidden compartment with an integrated and secure MHL/HDMI port that lets you discreetly stream multimedia content from an optional wireless dongle, or lets you connect to other devices via an HDMI cable.
- Balanced Color and Brightness
- Choose between 5 view modes for the best possible viewing experience in any environment, regardless of ambient light.
UPC: 766907841411 In the Box ViewSonic 3300-Lumen WXGA LightStream Projector Power Cable VGA Cable Laser Remote Control with Batteries Limited 1-Year Warranty on Lamp Limited 3-Year Warranty on Projector More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic 3300-Lumen WXGA LightStream Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic PJD6551W Specs | | | Display System | DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | 1920 x 1080 | | Max Brightness | 3300 Lumens | | Aspect Ratio | 16:10 | | Scan | Horizontal: 15 to 100 kHz

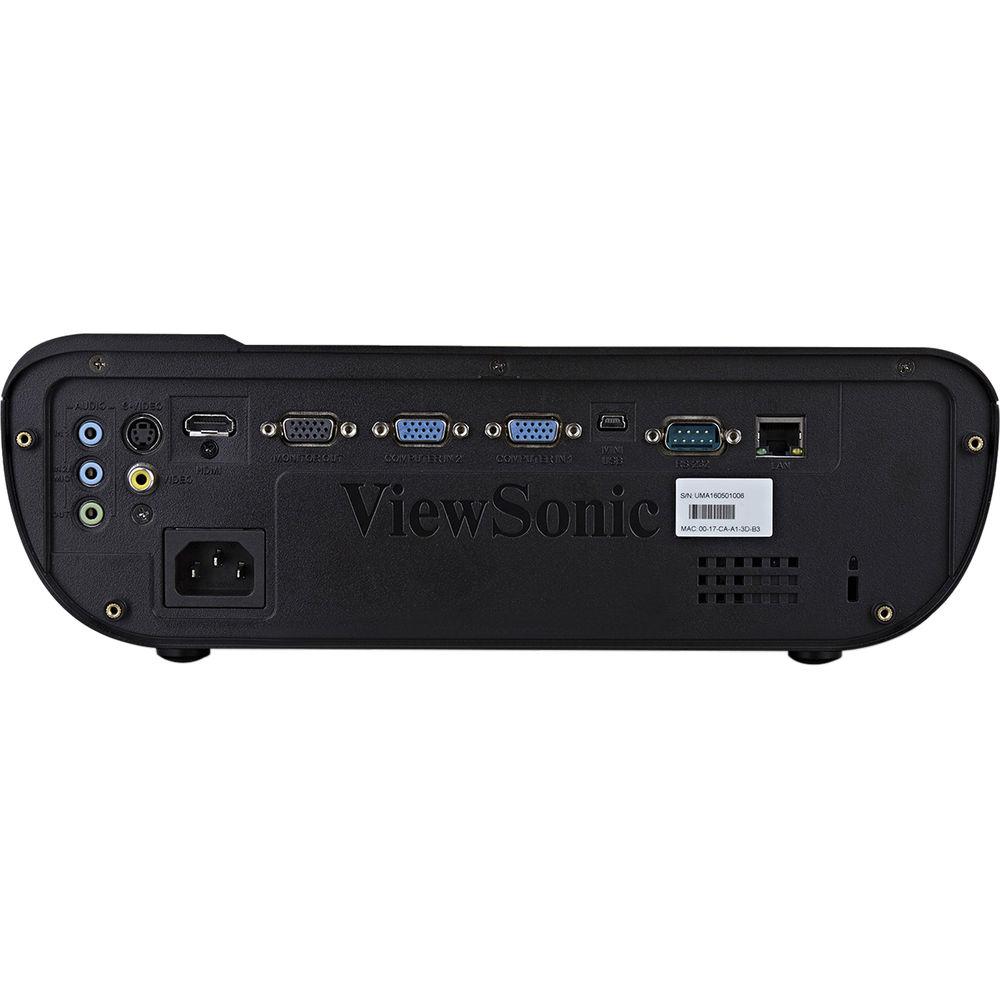

Vertical: 24 to 120 Hz | | | | Throw Distance | 3.28 - 36' / 1 - 10.973 m | | Throw Ratio | 1.55 - 1.7:1 | | Projection Size | 29.92 - 300.00" / .76 - 7.62 m | | | | Keystone Correction | Vertical: ± 40° | | | | Inputs/Outputs | 1 x Ethernet (RJ45) LAN
3 x 1/8" (3.5 mm) Mini Audio (Input/Output)
1 x HDMI Video
1 x HDMI with MHL Support Video
2 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x Composite (RCA) Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Mini-USB Control/Service | | | | Lamp Power | 190 W | | Expected Lamp Life | Medium Brightness: 5000 Hours | | Power Consumption | Medium Brightness: 295 W
Standby Mode (Lamp Off): <0.5 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 10 - 85% | | Dimensions (W x H x D) | 12.4 x 8.9 x 4.1" / 31.5 x 22.6 x 10.4 cm | | Weight | 5.51 lb / 2.50 kg |
