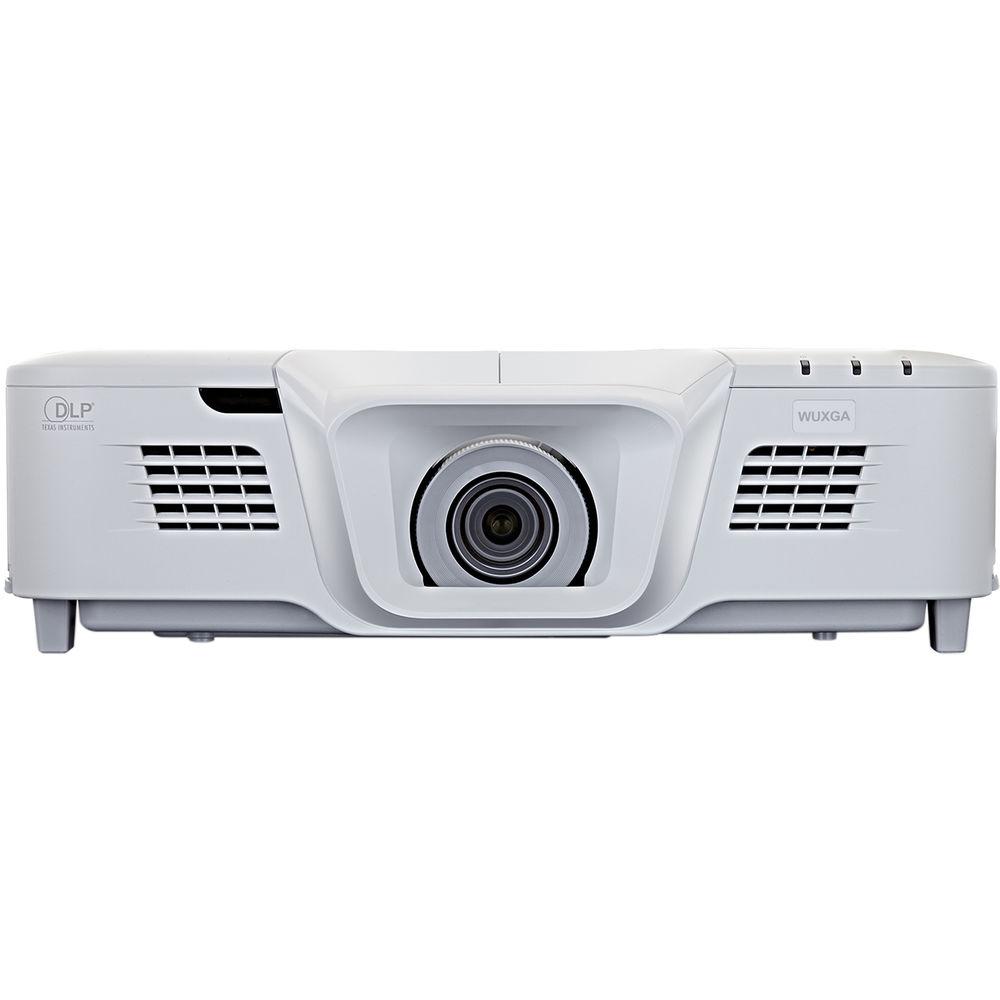

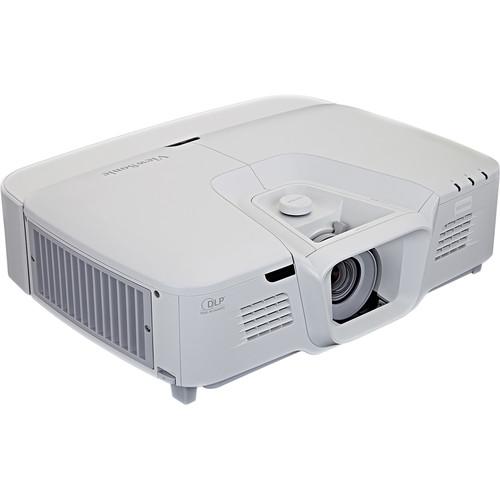

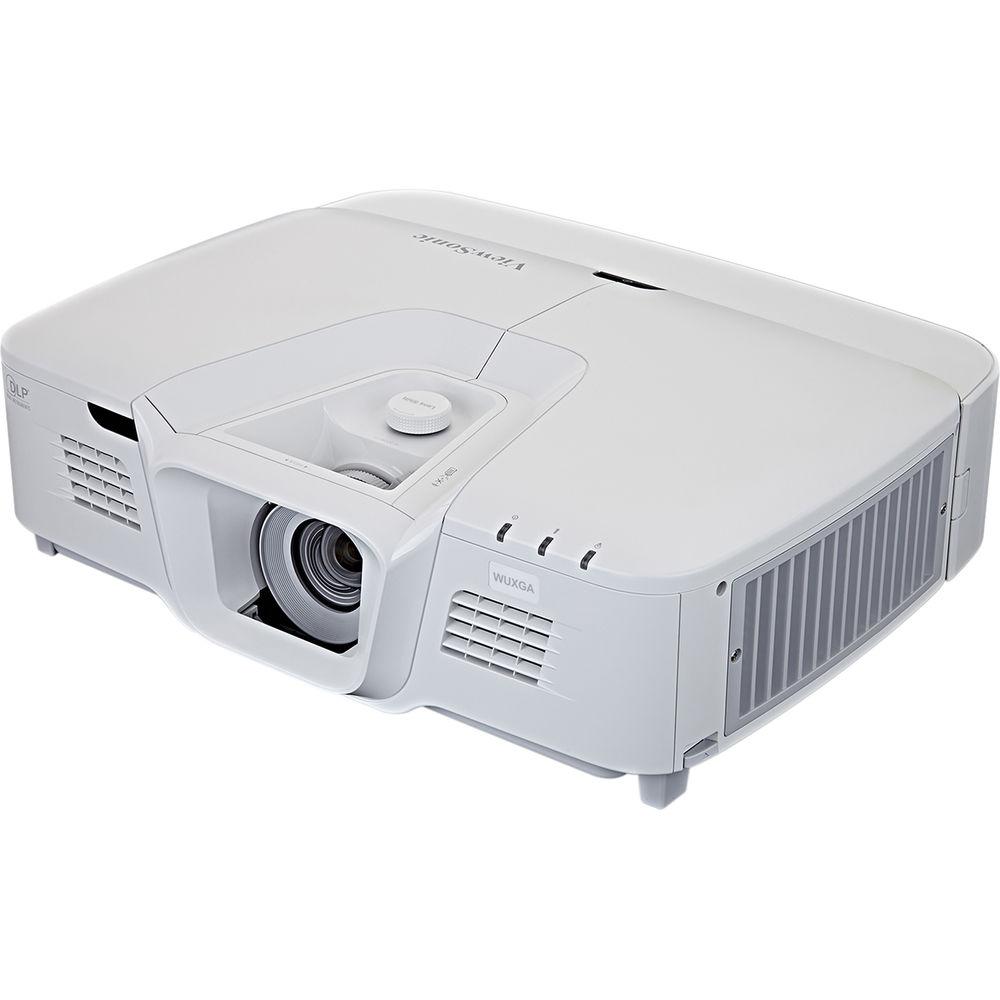

Product description The 5200-Lumen WUXGA LightStream Projector from ViewSonic is an ideal projector for professional installations, large venues, business, and education environments. With its 1.6x optical zoom, centered lens, vertical lens shift, and HV keystoning, the projector provides flexibility even in the most challenging installations. It includes a sleek top cover design for quick lamp and accessory access, while an intuitive PortAll compartment accommodates additional accessories such as an HDBaseT receiver, wireless streaming device, or PC stick.
Furthermore, the cable management hood hides unsightly cables, and a 4-in-1 power button serves as a central point for LED notifications. Moreover, four HDMI ports and additional audio and video ports allow for extensive connectivity to handle multiple devices without the need to switch cables. Powered by SuperColor technology for amazing images, and SonicExpert technology for clear sound, the projector delivers professional audio visual performance. - Brightness

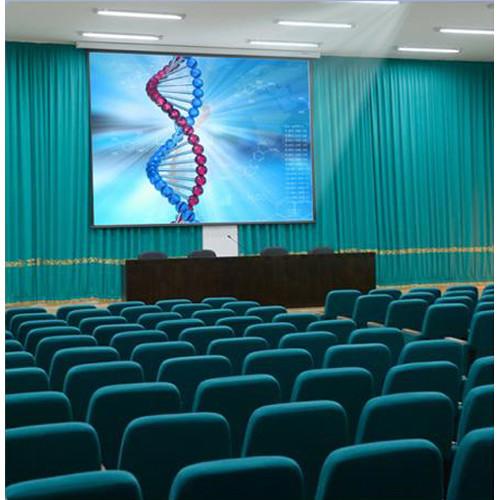

- With 5,200 lumens and a high contrast ratio, the projector will produce bright images in large spaces with high ambient light including large boardrooms, conference halls, and auditoriums.
- Vertical Lens Shift with Centered Lens

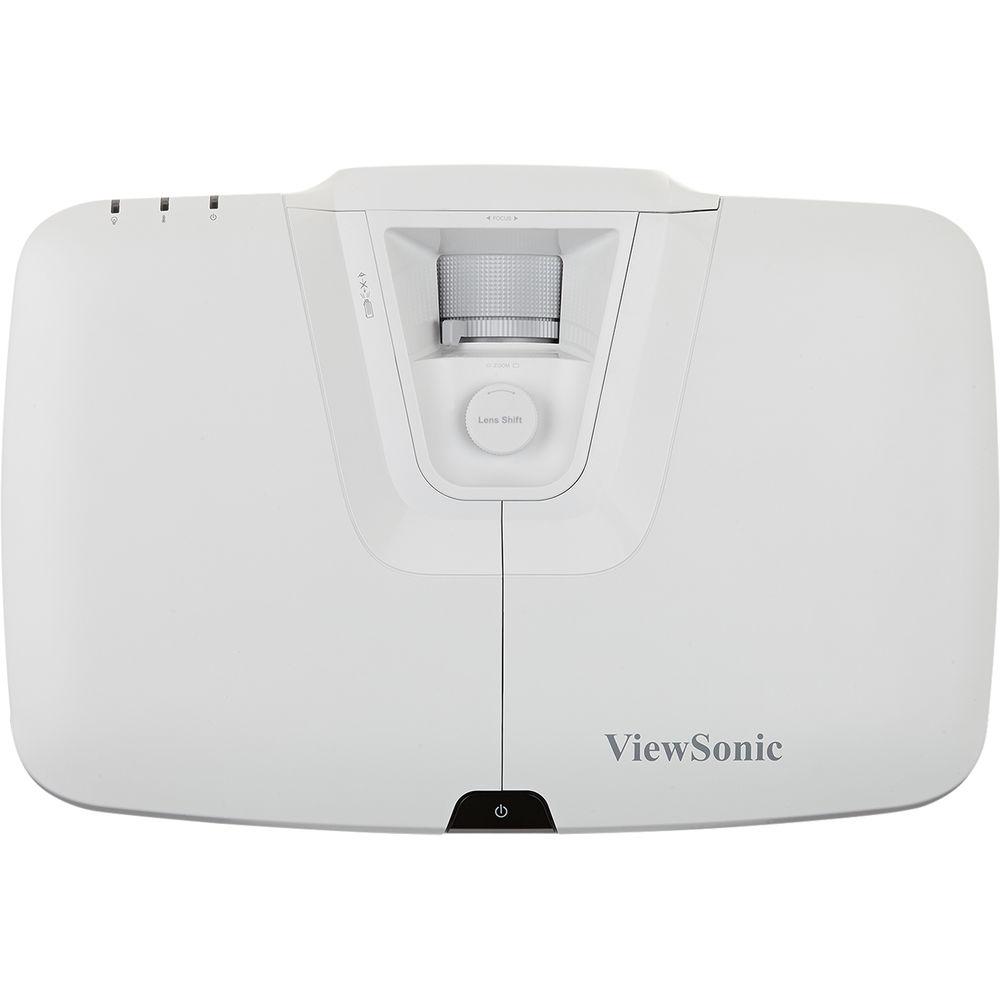

- A vertical lens shift feature offers up and down adjustments of the projection lens for flexible placement in challenging installations. A centered lens design makes this projector ideal for replacing existing centered lens installations; you won't have to move or reinstall existing ceiling mounts or projection screens.
- PortAll: Discreet Wireless Streaming

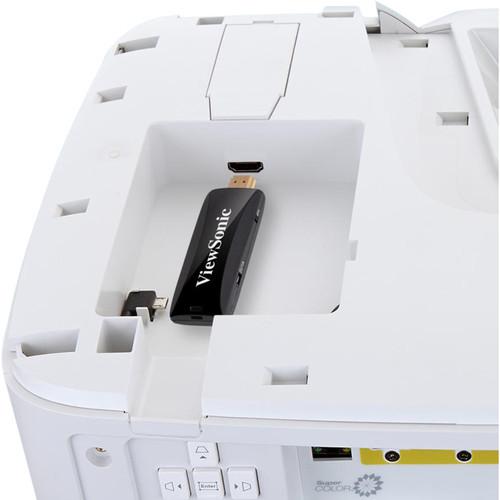

- The projector includes ViewSonic's PortAll feature. The hidden compartment has an integrated and secure MHL/HDMI port that lets you discreetly stream multimedia content from an optional wireless dongle, or lets you connect to other devices via an HDMI cable. An optional HDBaseT adapter lets you discreetly stream multimedia content from set-top boxes, Blu-ray players, AV receivers, and more via an HDBaseT receiver.
- 4 HDMI Inputs
- Four HDMI inputs allow you to connect to a variety of HD devices including gaming consoles, Blu-ray players, laptop PCs, digital cameras, and many others for a true high-definition experience.
- Color Accuracy
- SuperColor Technology projects images with reliable color performance, in both bright and dark environments, without sacrificing image quality.
- SonicExpert Technology
- This LightStream projector is designed with ViewSonic's proprietary SonicExpert technology that incorporates an enlarged speaker chamber and an amplifier to deliver a full 20 Hz to 20 kHz sound range. Dual integrated speakers captivate your audience with immersive sound.
- Motorized Screen Control
- With an integrated 12V trigger output, this projector can be connected to a motorized projection screen via a 12V cable. The screen will automatically lower when the projector is power on, and automatically be raised when the projector is powered off.
- Mounting Flexibility
- A wider optical zoom provides more mounting flexibility over a standard 1.2x optical zoom. More flexible mounting options translate to less installation hassle.
UPC: 766907830118 In the Box ViewSonic 5200-Lumen WUXGA LightStream Projector Power Cable VGA Cable Laser Remote Control with Batteries Limited 1-Year Warranty on Lamp Limited 3-Year Warranty on Projector More from Manufacturer ayayzbsuatsfrwtawccx Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic 5200-Lumen WUXGA LightStream Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

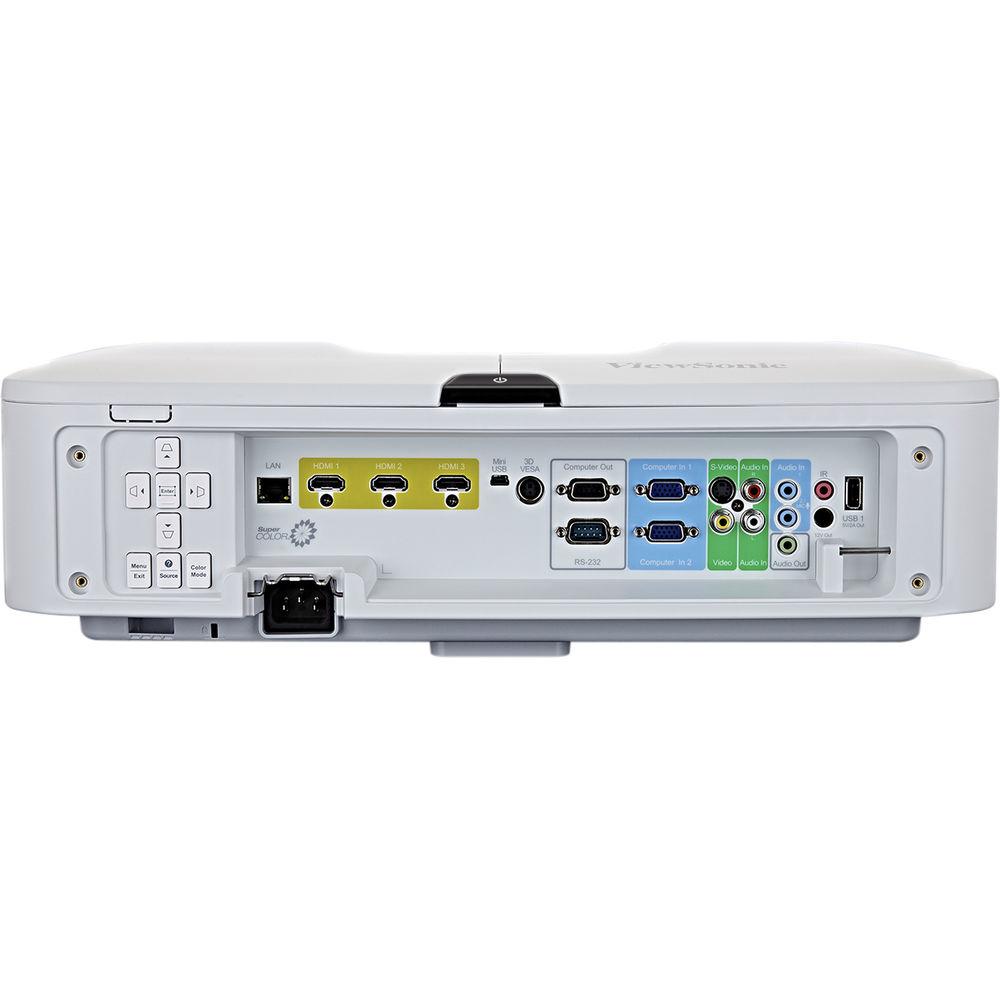

Technical parametersViewSonic PRO8800WUL Specs | | | Display System | DLP | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Max Brightness | 5200 Lumens | | Aspect Ratio | 16:10 | | Scan | Horizontal: 15 to 100 kHz
Vertical: 24 to 120 Hz | | | | Lens Shift | Vertical: 2.5 ± 5% | | Throw Distance | 2.26 - 36.2' / 0.689 - 11.034 m | | Throw Ratio | 1.0 - 1.71:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Vertical: ± 30°
Horizontal: ± 30° | | | | Inputs/Outputs | 1 x Ethernet (RJ45) LAN
1 x 1/8" (3.5 mm) Mini Audio (Output)
3 x 1/8" (3.5 mm) Mini Audio (Input)
3 x HDMI Video
1 x HDMI with MHL Support Video
1 x S-Video (4-Pin DIN) Video (Input)
2 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x 5BNC Video
1 x Composite (RCA) Video (Input)
1 x Micro-USB Video
1 x VESA 3D Sync Control/Service | | | | Lamp Power | 370 W | | Expected Lamp Life | Medium Brightness: 2000 Hours
Low Brightness: 2500 Hours | | Power Consumption | Medium Brightness: 574 W
Standby Mode (Lamp Off): <0.5 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 10 - 85% | | Dimensions (W x H x D) | 22.7 x 21.1 x 10.2" / 57.7 x 53.6 x 25.9 cm | | Weight | 13.8 lb / 6.3 kg |
