User Manual for ViewSonic 55" Super Ultra-Narrow Bezel Commercial Display Click to enlarge the picture
Contents of the user manual for the ViewSonic 55" Super Ultra-Narrow Bezel Commercial
- Product category: Commercial Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Commercial Monitors
 |
User manual for the ViewSonic 55" Super Ultra-Narrow Bezel Commercial contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

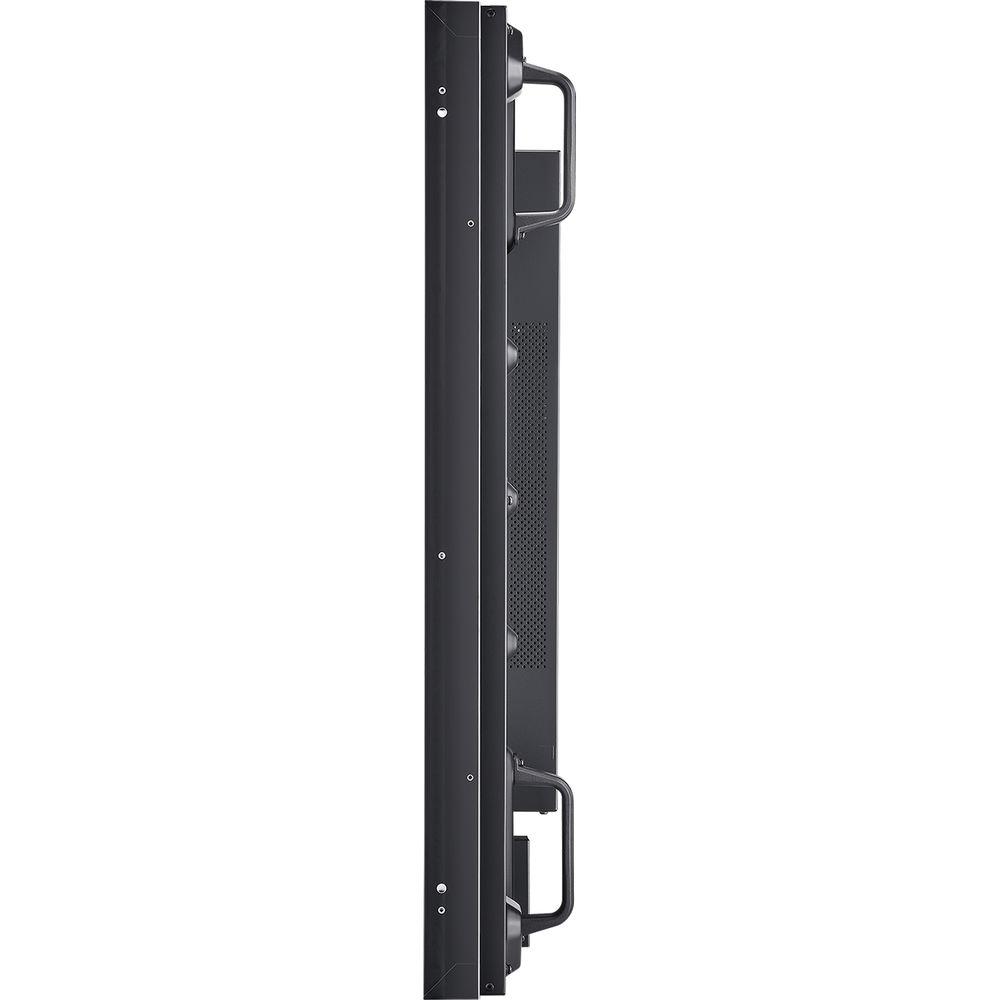

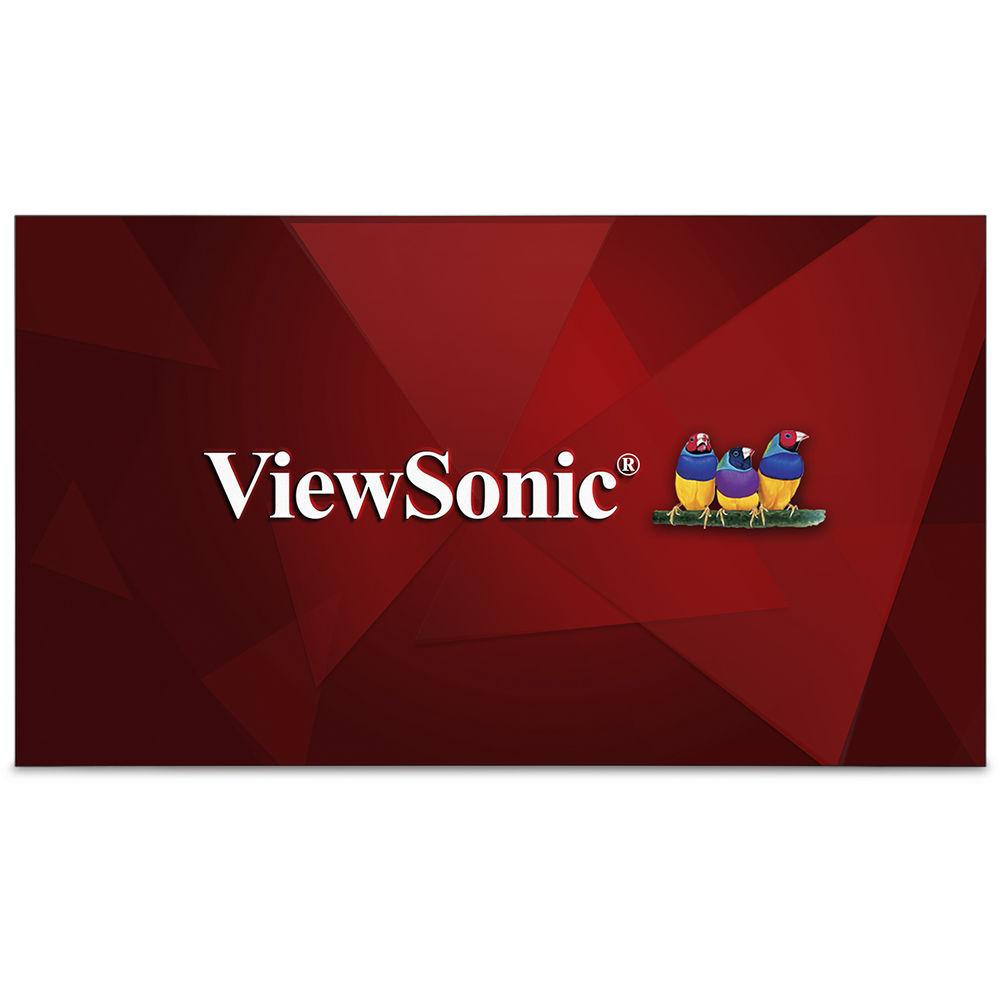

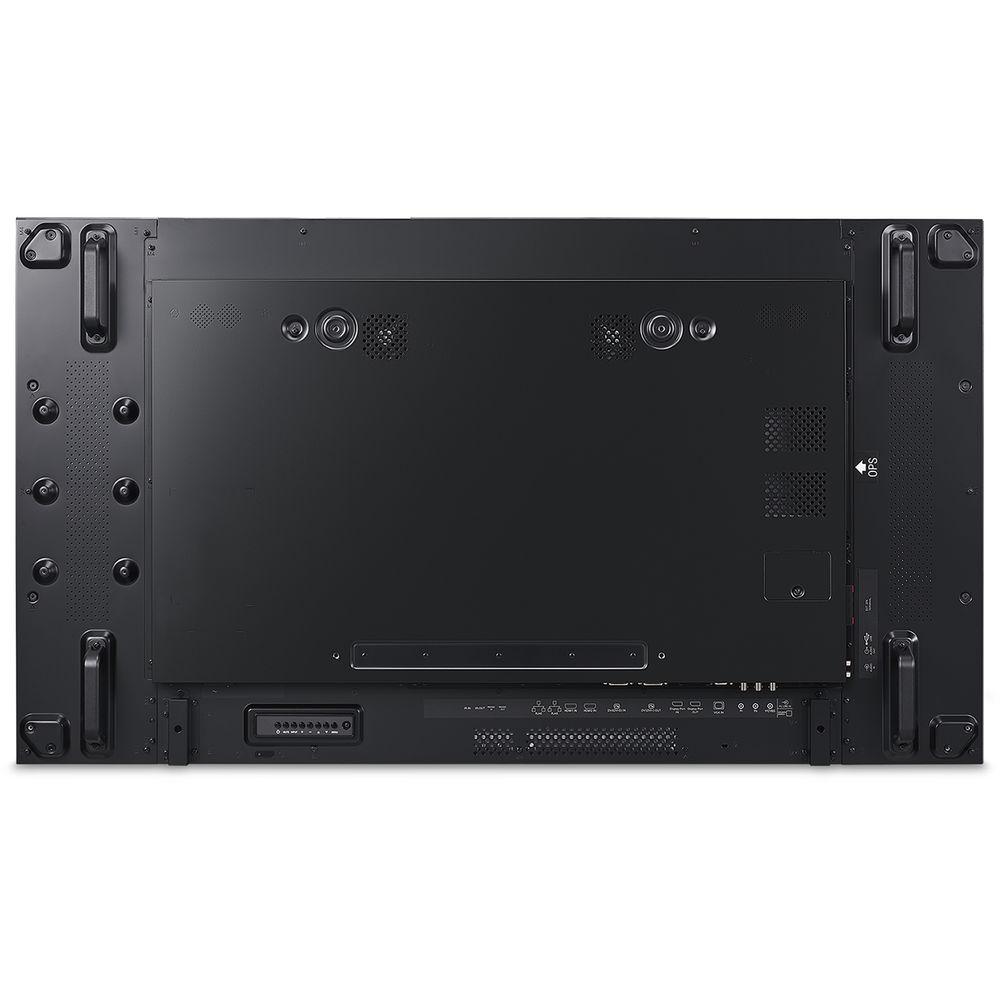

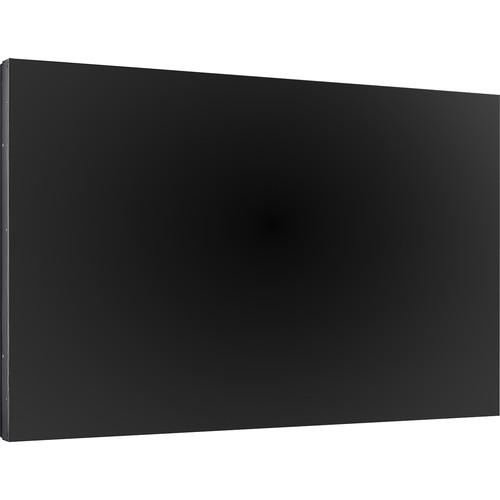

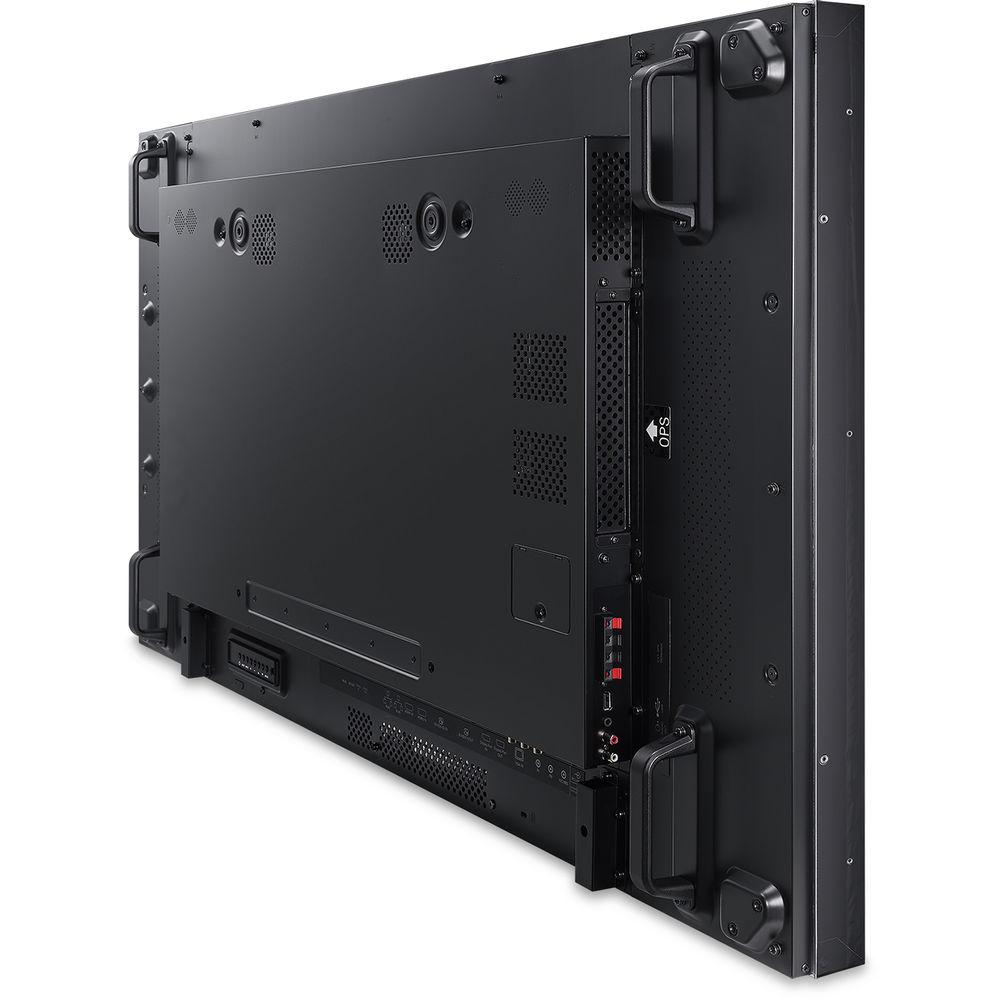

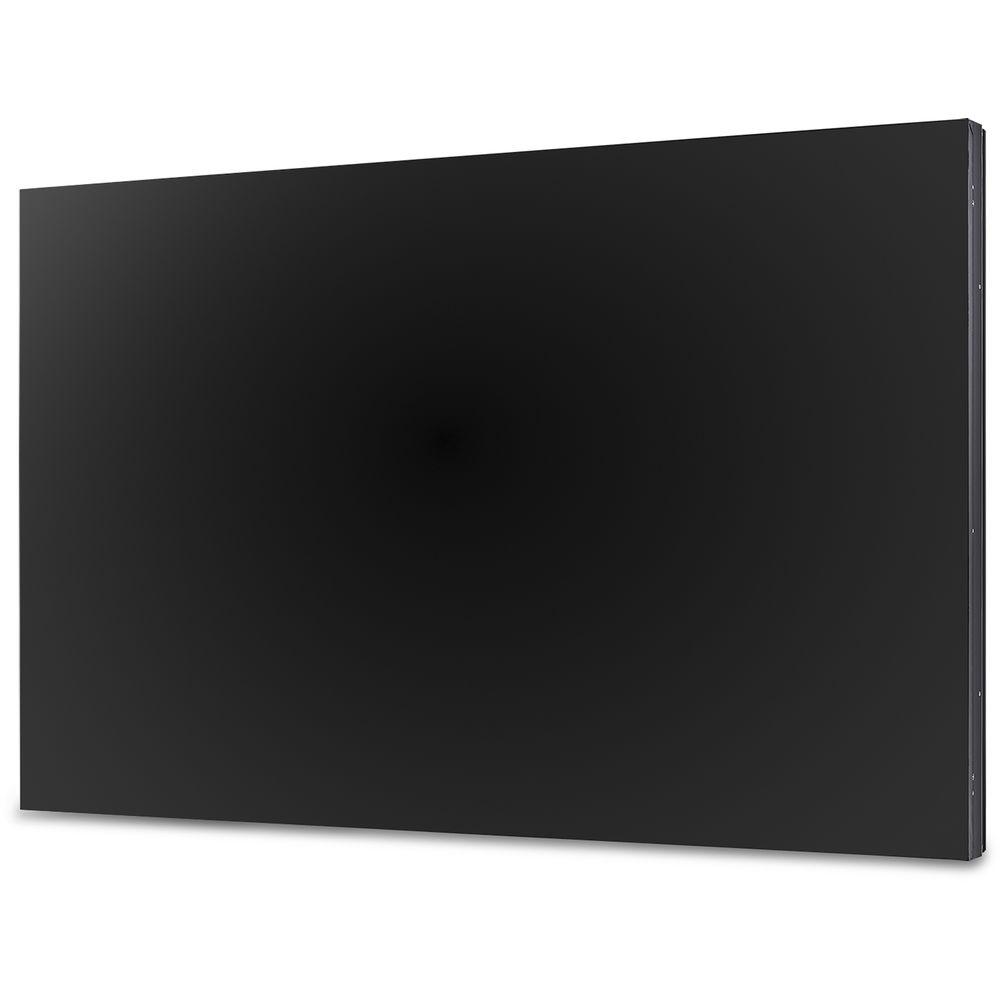

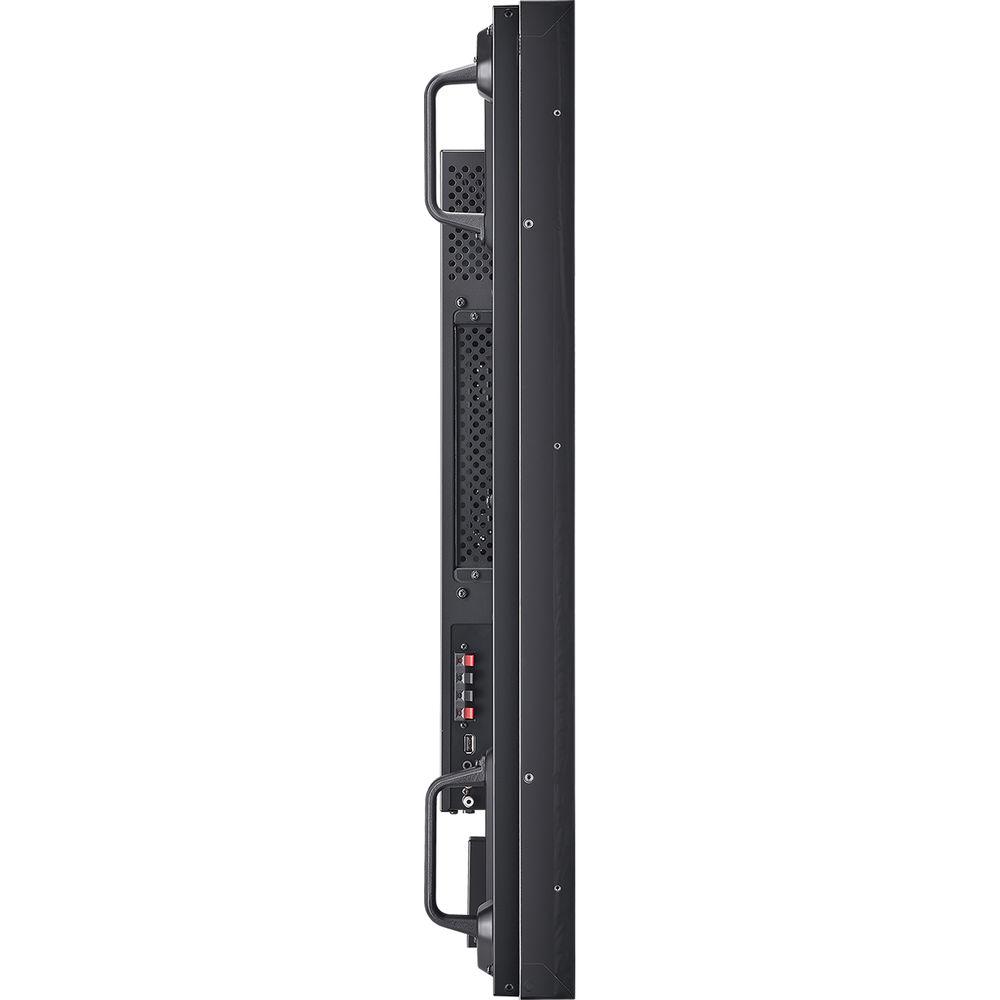

Product description The Commercial Display from ViewSonic is a 55" commercial display with a super ultra-narrow bezel designed for multi-panel landscape or portrait video wall applications. It has an edge-to-edge bezel width of 0.07" between combined displays and supports up to 10x10 video wall installations via DisplayPort or DVI daisy-chain. This display features Full HD 1080p resolution, 700 cd/m² high brightness, SuperClear technology for wide viewing angles, and dual 10W stereo speakers. It includes a remote control, 5.9' power cord, 5.9' VGA cable, 5.9' RS232 cable, 5.9' daisy chain cable, IR sensor cable, edge alignment kits, and a 8-piece thumb screw set. - Designed for public, retail, and transportation settings
- SuperClear IPS panel technology delivers 178 degrees of vertical and horizontal viewing angles
- Supports up to 10x10 tiling setup with integrated DisplayPort and DVI outputs
- HDMI CEC functionality offers local control of DVD players, sound systems, and HDMI connected devices directly with the display's remote controller
- Included vController software provides a simple and intuitive interface for remote management, OSD-related settings, and scheduling on deployed displays through RS232 or LAN
- Equipped with Intel's Open Pluggable Specification (OPS), this display provides for cable-free integration and easy installation of available modules
- This display can connect to an external media player
- Dual integrated speakers with outputs for connecting to a speaker system
UPC: 766907961614 In the Box ViewSonic 55" Super Ultra-Narrow Bezel Commercial Display Remote Control 5.9' Power Cord 5.9' VGA Cable 5.9' RS232 Cable 5.9' Daisy Chain Cable IR Sensor Cable 2 x Edge Alignment Kits 8 x Thumb Screws CD ROM Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic 55" Super Ultra-Narrow Bezel Commercial Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic CDX5562 Specs | Display Size | 55" / 139.7 cm | | Viewable Area | 54.6" / 138.7 cm | | Orientation | Landscape / portrait | | Light Source | Direct-lit LED | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Static Contrast Ratio | 1200:1 | | Backlight Life | 50,000 hours | | Brightness | 700 cd/m² | | Response Time | 8 ms (typical GTG) | | Bezel Width | Top: 0.09 mm
Left: 0.09 mm
Bottom: 0.09 mm
Right: 0.09 mm | | Viewing Angles | 178° horizontal, 178° vertical | | Panel Surface | Anti-glare, hard coating (3H) | | Operation | 24/7 | | CPU | Embedded Player: USB supported internal media player | | Audio | 2 x 10 W internal speakers | | Connectors | 2 x HDMI 1.4 Type-A, input
1 x DVI-D, input
1 x DVI-I, output
1 x 15-pin VGA, input
1 x DisplayPort, input
1 x DisplayPort, output
1 x BNC Composite, input
3 x BNC Component, input
1 x stereo RCA audio, input
1 x 3.5mm audio, input
1 x 3.5mm audio, output
1 x Speaker output
1 x USB 2.0 port
1 x 2.5mm jack RS-232C port, output
1 x 2.5mm jack RS-232C port, input
1 x RJ45 port, Ethernet LAN | | Power | Voltage: 100 - 240 VAC
Stand-by: < 0.5 W | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 20 to 80% (non-condensing) | | Dimensions | 47.7 x 26.9 x 3.9" / 121.14 x 68.22 x 9.85 cm | | Weight | 53.7 lb / 24.4 kg |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 91 owners. Add your rating and experience with the product.
