User Manual for ViewSonic 5500-Lumen WUXGA Professional Installation Projector Click to enlarge the picture
Contents of the user manual for the ViewSonic 5500-Lumen WUXGA Professional Installation Projector
- Product category: Multimedia Projectors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Multimedia Projectors
 |
User manual for the ViewSonic 5500-Lumen WUXGA Professional Installation Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

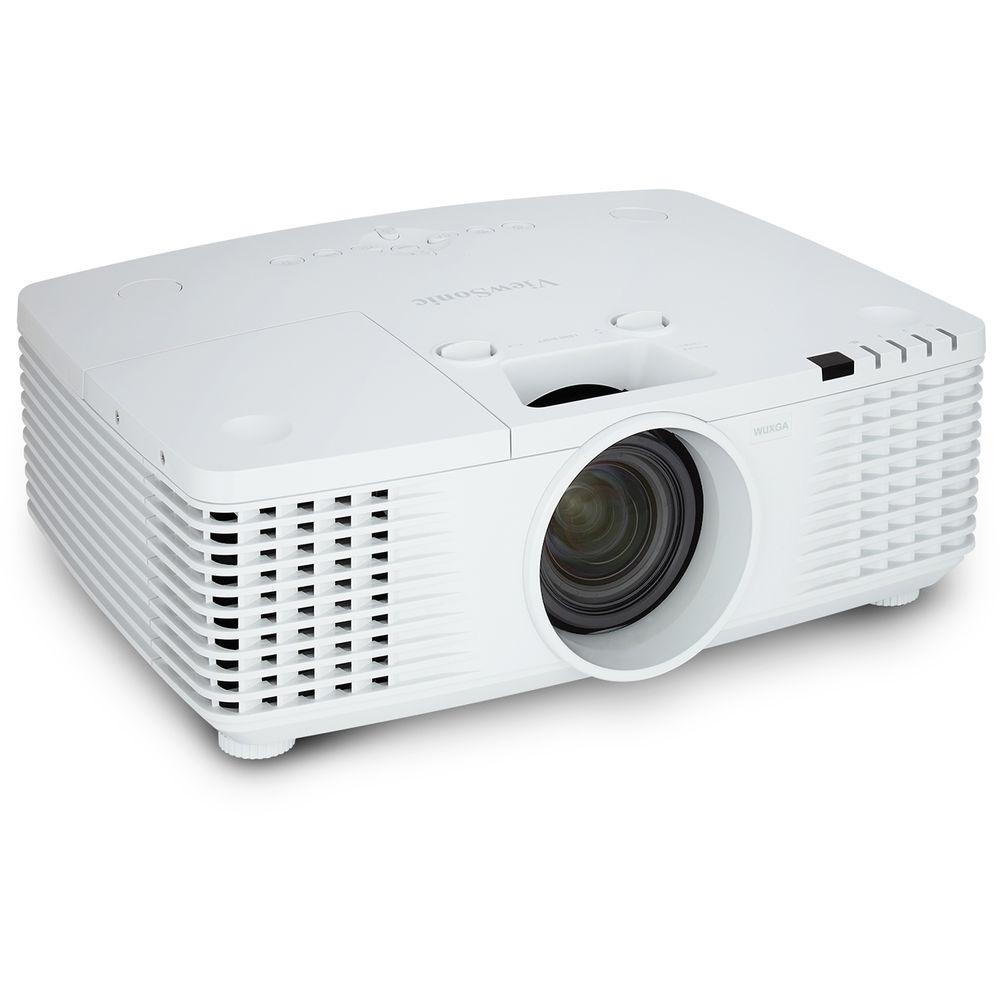

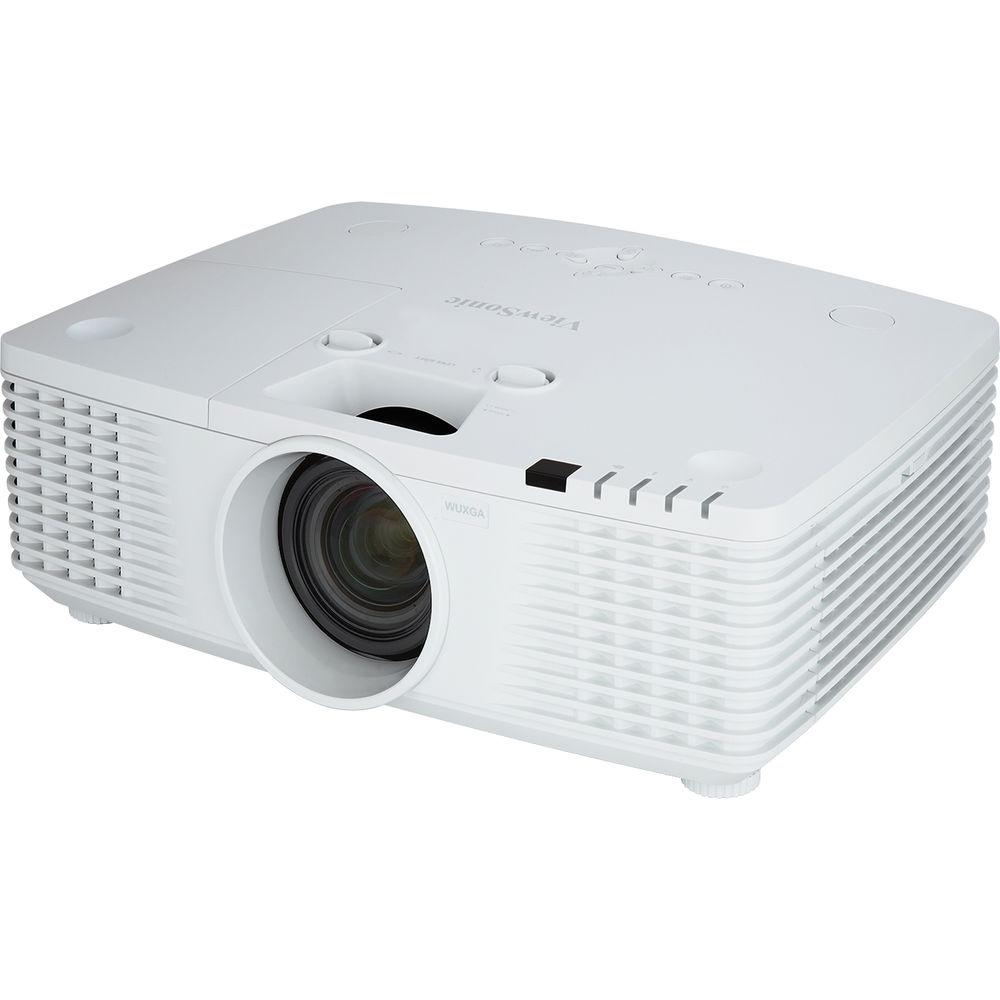

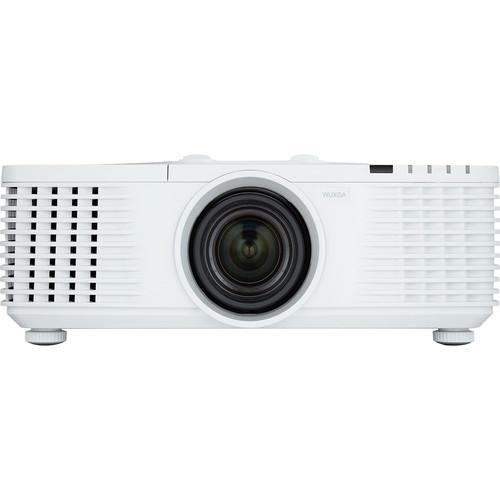

Product description The 5500-Lumen WUXGA Professional Installation Projector from ViewSonic delivers 5500-lumen brightness and is suitable for auditoriums, large boardrooms, houses of worship, and more. Thanks to SuperColor technology, the projector provides clear images, crisp graphics, and sharp videos, no matter the environment. Designed for installers, this projector is easy to deploy and manage with its wide 1.7x optical zoom adjustment, a centered lens design, and a vertical/horizontal lens shift feature that provides flexibility. Thanks to the stackable design, light output can be doubled by simply placing one projector on top of the other. -
- 30-bit color
- Two 7W built-in speakers

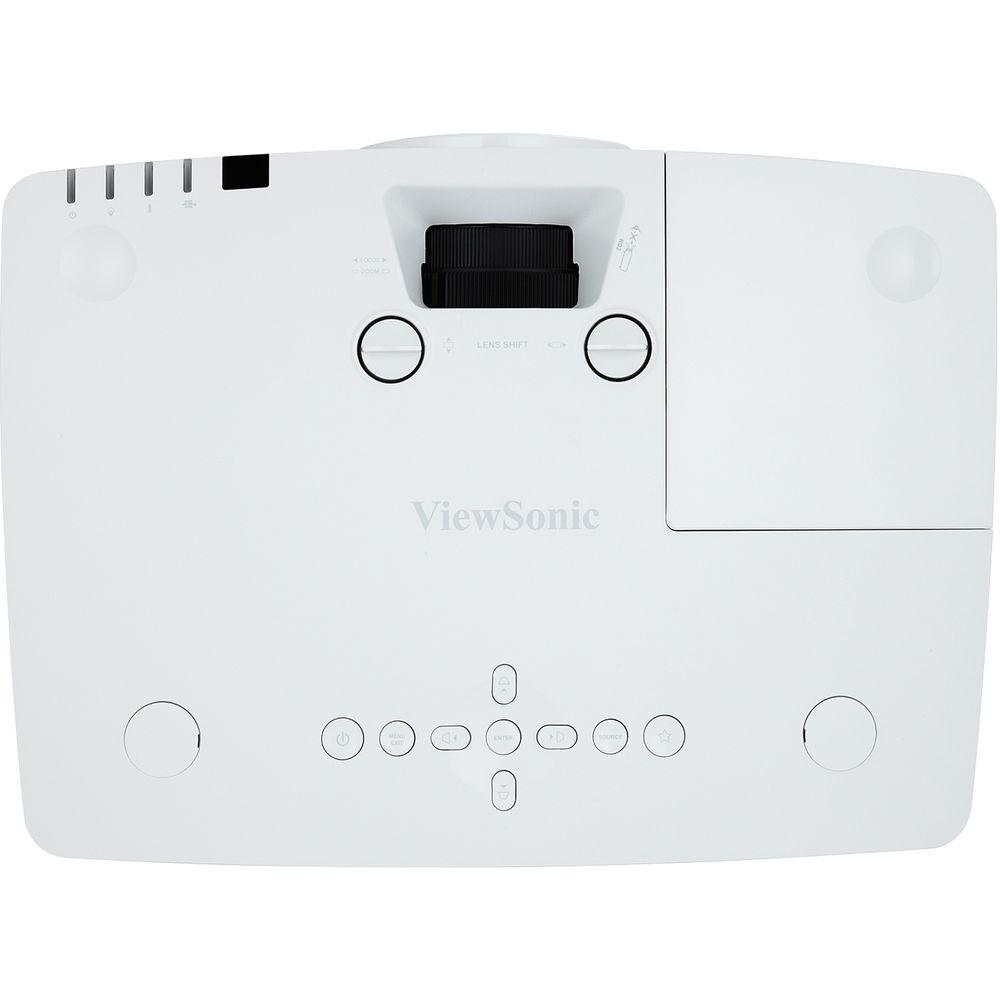

- Physical control for controlling power, H/V lens shift, focus, zoom, keystone/arrow keys, left/blank, right/panel key lock, menu/exit, mode/enter, and source
- OSD with image, video, audio, basic, and advanced controls
- 360° installation
- One wired remote in and one wired remote out connection
- Suitable for large venues with high ambient light
UPC: 766907848212 In the Box ViewSonic 5500-Lumen WUXGA Professional Installation Projector Power Cable VGA Cable Laser Remote Control with Batteries ViewSonic Wizard CD Limited 3-Year Warranty Limited 1-Year Warranty on Lamp More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic 5500-Lumen WUXGA Professional Installation Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic PRO9800WUL Specs | | | Display System | DLP | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 5500 Lumens | | Aspect Ratio | 16:10 | | Scan | Vertical: 24 to 120 Hz
Horizontal: 15 to 100 kHz | | | | Focus | Manual | | Lens Shift | Vertical: to 12.1%
Vertical: + 20.8%
Horizontal: ± 10.3% | | Throw Distance | 4 - 55.8' / 1.219 - 17.008 m | | Throw Ratio | 1.25 - 2.13:1 | | Projection Size | 26.2 - 371.4" / 66.55 - 943.36 cm | | | | Keystone Correction | Vertical: ± 30°

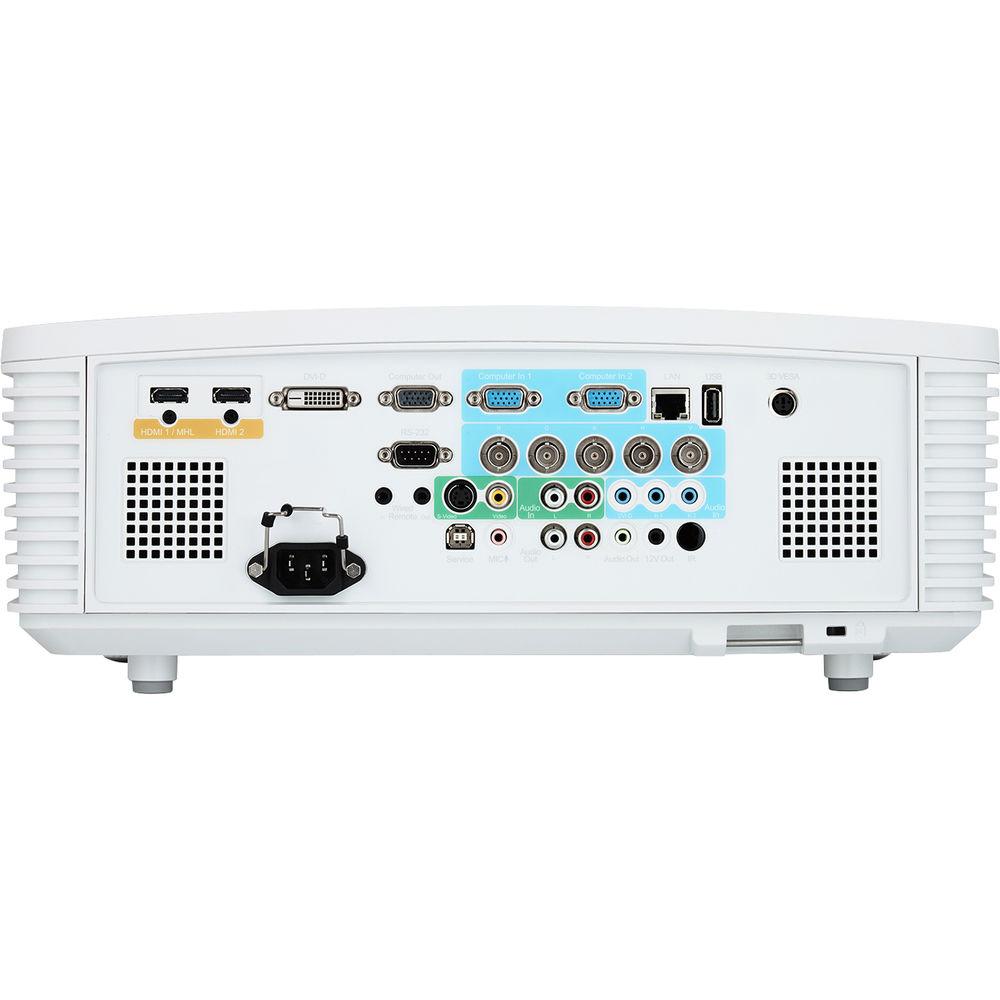

Horizontal: ± 25° | | | | Inputs/Outputs | 1 x USB Type-A Female
1 x USB Type-B Female
1 x Ethernet (RJ45) LAN
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x RS-232C (Unspecified Connector) Control
1 x HDMI Audio/Video
1 x HDMI with MHL Support Audio/Video
1 x DVI-D Video
2 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x Composite (RCA) Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Micro-USB Audio/Video
1 x RCA Stereo (L/R) Audio (Output)
1 x VESA 3D Sync Video (Output)
1 x 5BNC Video | | | | Lamp Power | 370 W | | Expected Lamp Life | Medium Brightness: 1500 Hours
Low Brightness: 3500 Hours | | Security | Cable Lock Slot | | Power Consumption | Medium Brightness: 480 W
Standby Mode (Lamp Off): <0.5 W | | Temperature | 41 to 104°F (5 to 40°C)
Humidity: 10 - 85% | | Dimensions (W x H x D) | 17.5 x 12.8 x 5.8" / 44.5 x 32.5 x 14.7 cm | | Weight | 18.3 lb / 8.30 kg | | | | Package Weight | 27.07 lb | | Box Dimensions (LxWxH) | 23.4 x 18.8 x 13.0" |
