User Manual for ViewSonic CDE4803-H 48" Full HD LED-Backlit Commercial Display with One-Wire HDBaseT Input Click to enlarge the picture
Contents of the user manual for the ViewSonic CDE4803-H 48" Full HD LED-Backlit
- Product category: Commercial Monitors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Commercial Monitors
 |
User manual for the ViewSonic CDE4803-H 48" Full HD LED-Backlit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

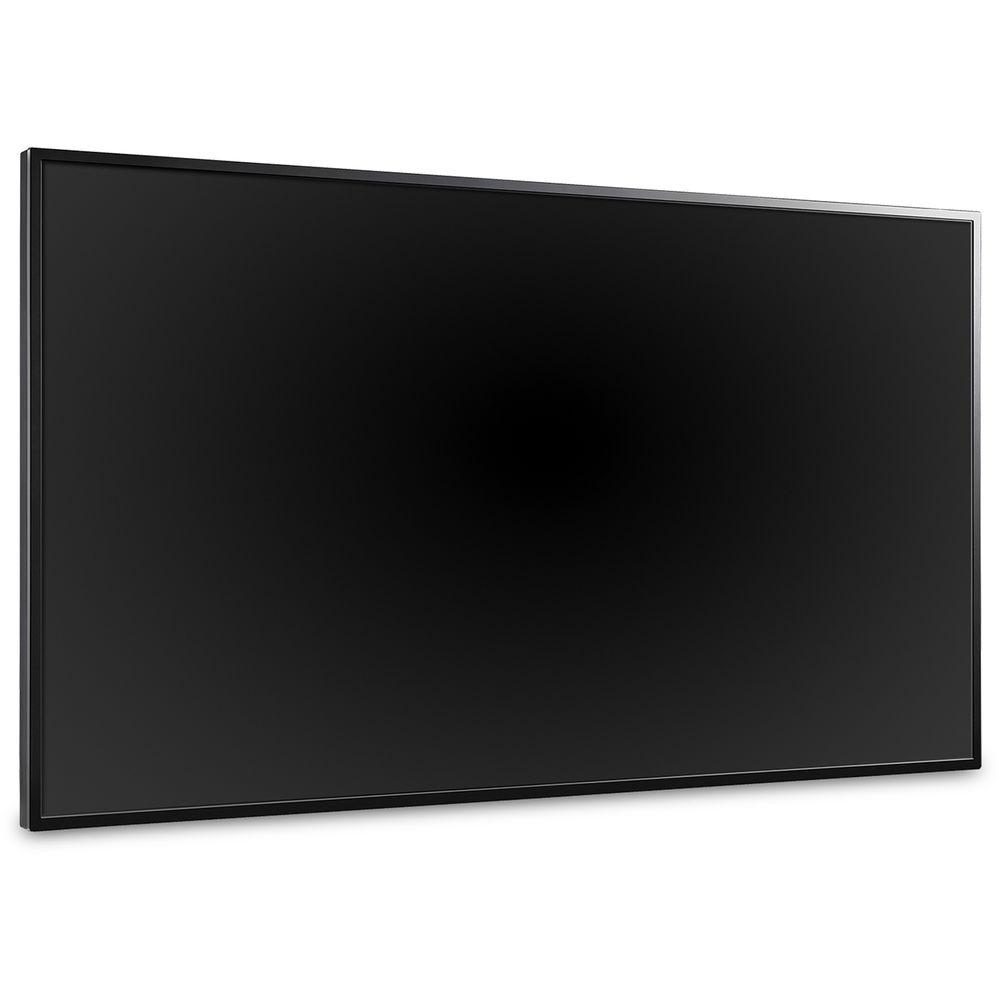

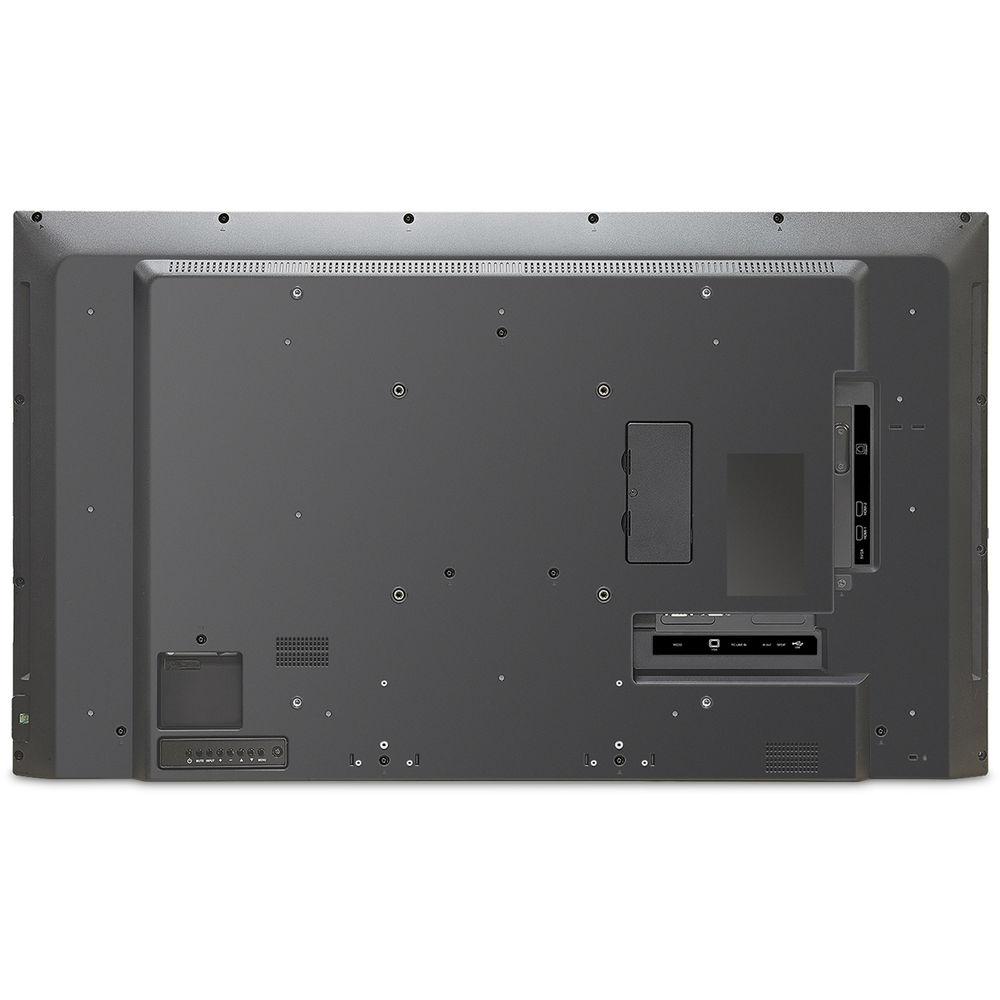

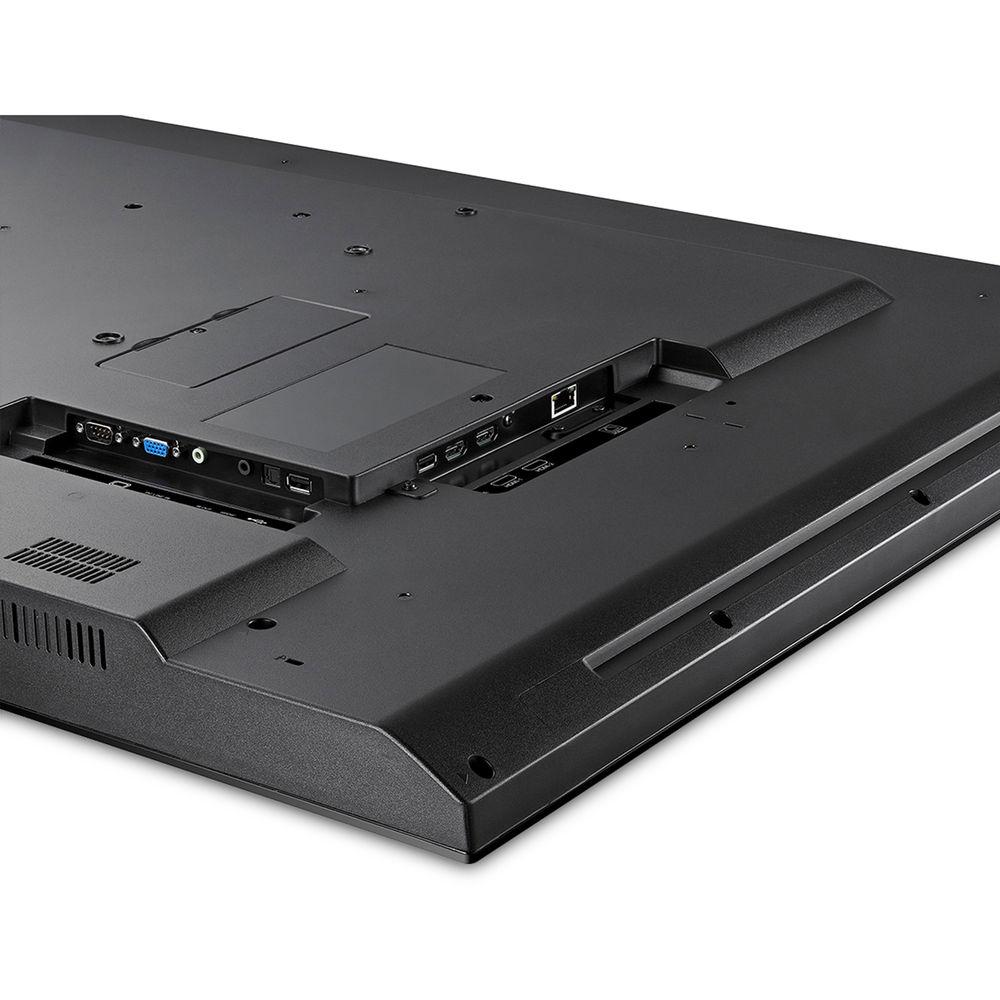

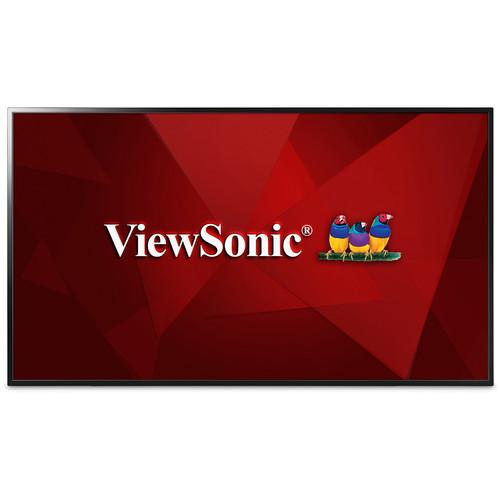

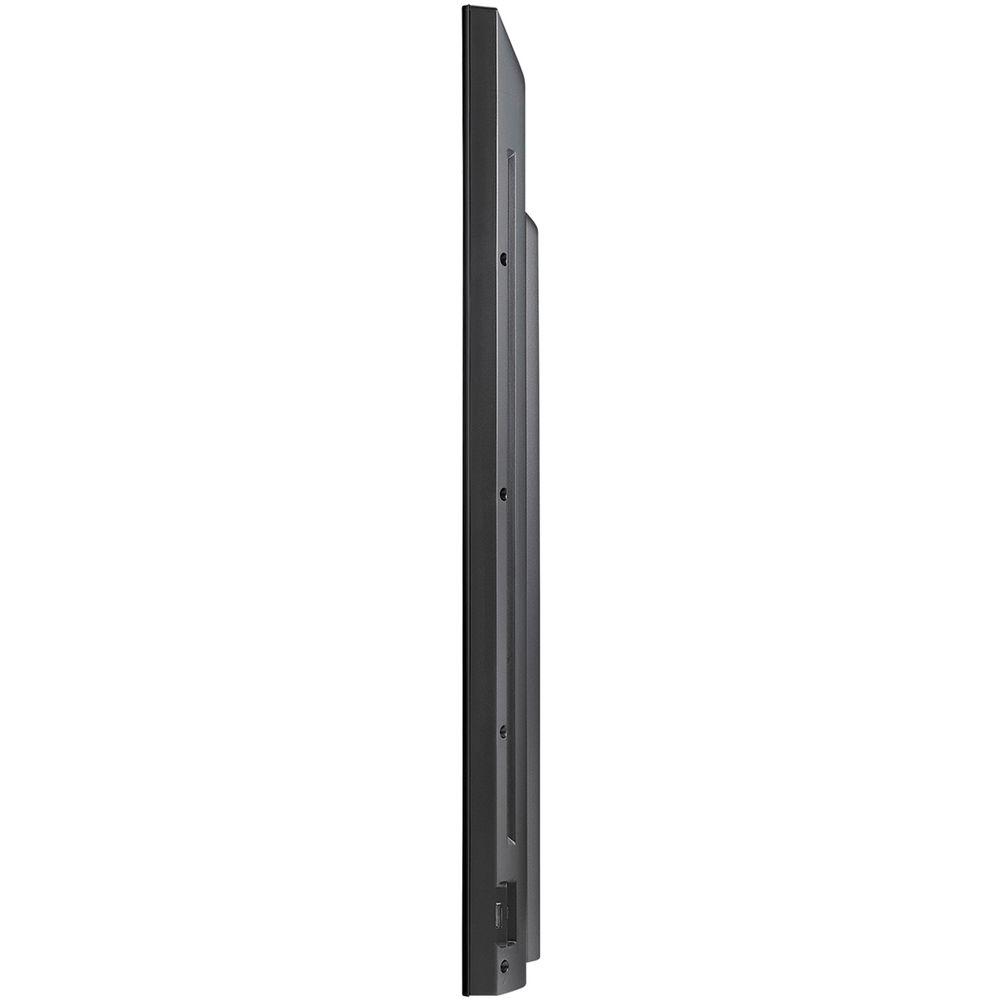

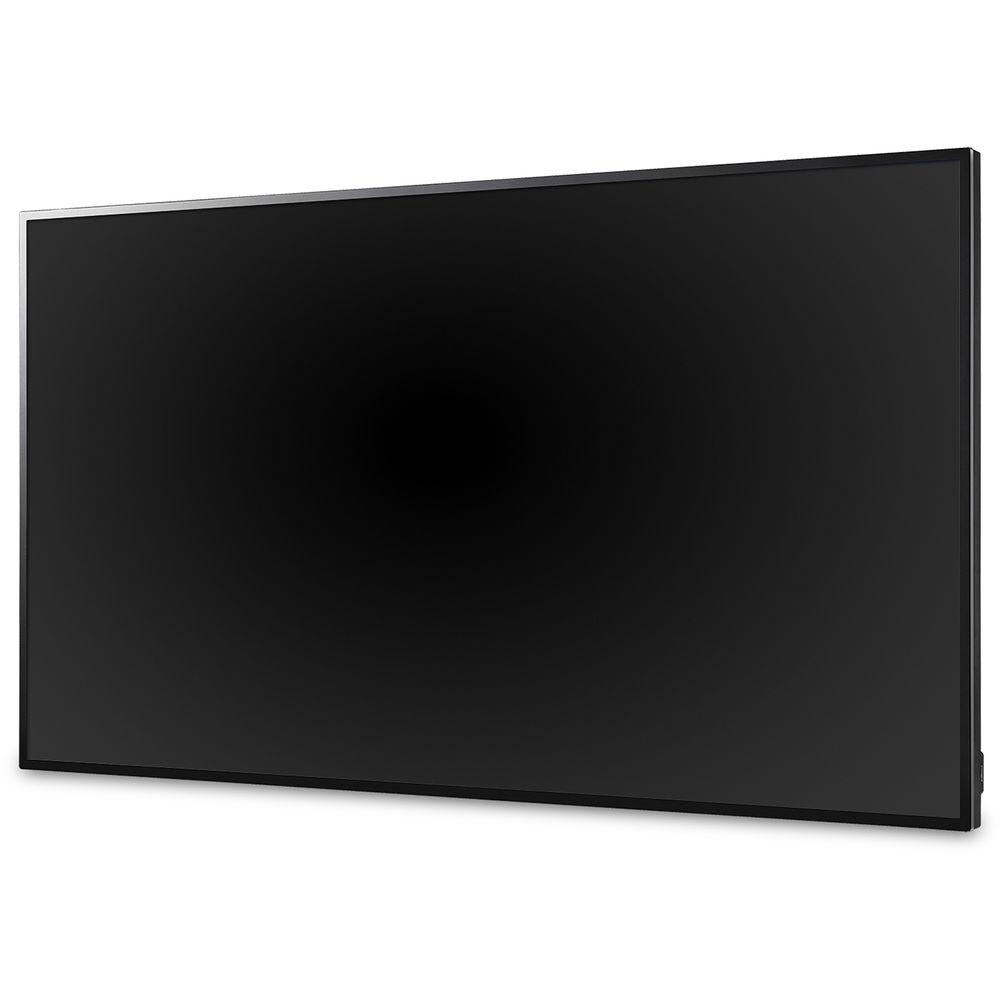

Product description The ViewSonic CDE4803-H 48" Full HD LED-Backlit Commercial Display comes with one-wire HDBaseT input for menu boards and hospitality environments. In addition to the connectivity options like an HDBaseT receiver input, Dual HDMI, VGA, and SPDIF, the display comes with a simple and convenient USB multimedia playback functionality. This slim-bezel display features a 1920 x 1080 resolution, 350 cd/m2 brightness, wide viewing angles of 178°. The HDMI CEC pass-through support provides one-touch-play, with additional features for multiple connected devices such as HD set-top-boxes, and digital signage media players. An RS-232 port with IR pass-through provides automated control for hospitality installation. Creating a more comfortable viewing experience, this commercial display is equipped with flicker-free and blue light filter technologies. In addition, the free, bundled vController software offers easy maintenance and intuitive interfaces for remote management via a PC server or laptop. - One-Wire HDBaseT Input
- With an integrated HDBaseT input, this display can receive uncompressed HD video and audio over long distances via a single network cable.
- Integrated USB Multimedia Player
- This display features an integrated media player with a convenient USB playback function. Photos, music, and 1080p video can be quickly displayed on-screen directly from a USB drive - without the need for a PC.
- vController Software
- Included vController software provides a simple and intuitive interface for remote management, OSD-related settings, and scheduling on deployed displays through RS-232 or LAN.
- Hospitality Mode for Automated Multi-Screen Control
- This display is suitable for multi-screen setups in hotels, restaurants, sports bars, or retail outlets that require a duplicated setup and customizable presets. With a USB-programmable hospitality setting, each display will have the same customized channel default, audio level, front-panel lockout, and auto power-up settings.
- Control Multiple Devices with HDMI CEC and IR Pass-Through
- RS-232 IR pass-through offers local control for set-top boxes, and other RS-232 connected devices, directly with the display's remote controller. HDMI CEC functionality offers local control of DVD players, sound systems, and other HDMI connected devices, directly with the display's remote controller.
- Enhanced Viewing Comfort
- Flicker-free technology and a blue light filter help to eliminate eye strain from extended viewing periods.
- Mounting Options
- This display can be wall mounted or used with an optional STND-040 display stand for tabletop settings.
UPC: 766907825923 In the Box ViewSonic CDE4803-H 48" Full HD LED-Backlit Commercial Display with One-Wire HDBaseT Input Remote Control with AAA Batteries 6' Power Cable 6' VGA Cable 6' RS-232 Cable Limited 3-Year Warranty Brochure PDF 409.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic CDE4803-H 48" Full HD LED-Backlit Commercial Display with One-Wire HDBaseT Input in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic CDE4803-H Specs | | | Screen Size (Diagonal) | 48" | | Native Resolution | 1920 x 1080 | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Brightness | 350 cd/m
