User Manual for ViewSonic LightStream PJD6252L 3300-Lumen XGA DLP Projector Click to enlarge the picture
Contents of the user manual for the ViewSonic LightStream PJD6252L 3300-Lumen XGA DLP
- Product category: Multimedia Projectors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Multimedia Projectors
 |
User manual for the ViewSonic LightStream PJD6252L 3300-Lumen XGA DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|
Product description ViewSonic LightStream Projectors: Flooding the Market with Brightness! Read More tcdvcxyxffwdyverdxaybysy Enjoy bright images in nearly any environment with the Viewsonic LightStream PJD6252L 3300-Lumen XGA DLP Projector. Its 3300 lumens of brightness can overcome ambient light in many situations, while its 22,000:1 contrast ratio will help dark areas of the images remain dark. The 1024 x 768 XGA resolution is suitable for displaying many file and document types. The projector features a 1.95 to 2.15:1 throw ratio which will allow you to place it near the back of the room in most situations.
The PJD6252L has an MHL-compatible HDMI input for connecting digital high-definition sources such as Blu-ray players and HD cable/satellite boxes. Its VGA output will allow you to daisy chain multiple projectors or displays in order to display the same source, and the analog audio input and output and onboard 10-Watt speaker will ensure that audio accompanies your video. The projector is controllable via Ethernet, RS-232, and with the Crestron RoomView Express software. It includes a VGA cable and an IR remote control. - SuperColor: Enhanced Color Accuracy
- ViewSonic's SuperColor Technology offers a wider color range than conventional DLP projectors. With a six-segment color wheel design and dynamic lamp control capabilities, SuperColor Technology is designed to project images with reliable, true-to-life color performance in both bright and dark environments without sacrificing image quality.
- PortAll: Discreet Wireless Streaming
- This projector includes ViewSonic's PortAll feature – a hidden compartment with an integrated and secure MHL/HDMI port that lets you discreetly stream multimedia content from a wireless dongle or connect to other devices via an HDMI cable.
- Network Capable
- This projector comes equipped with Crestron RoomView Express, a network management system that's designed for ease of use and lets administrators remotely observe and control over 250 LightStream projectors from a single computer.
- Smart Design
- The cable management hood connects onto the back of the projector to hide unsightly cable clutter and exposed ports. An easy-access top lamp door enables simple lamp maintenance and replacement.
- SonicExpert Technology
- This LightStream projector is designed with ViewSonic's SonicExpert technology that incorporates an enlarged speaker chamber and an amplifier that delivers a full 20 Hz to 20 kHz sound range.
- Dual 3D Blu-ray Ready HDMI Inputs
- Designed with two HDMI ports, this projector is suitable for connecting to any HDMI-enabled device and can display 3D images directly from 3D Blu-ray players. 3D images can be viewed with optional ViewSonic PGD-350 Shutter Glasses or any other compatible 3D glasses.
- Balanced Color and Brightness
- A choice of five unique view modes allows you to tailor your viewing experience to your environment and ambient light conditions.
- Programmable Remote Control
- Control up to eight projectors in the same venue via a single remote control. A programmable "MyButton" hotkey can be configured to launch the most commonly used functions.
UPC: 766907777215 In the Box ViewSonic LightStream PJD6252L 3300-Lumen XGA DLP Projector Remote Control 2 x AAA Batteries VGA Cable ViewSonic CD Wizard AC Power Cord Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp Brochure PDF 488.7kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic LightStream PJD6252L 3300-Lumen XGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic PJD6252L Specs | | | Display System | 0.55" DMD DLP | | Native Chip Resolution | 1024 x 768 (XGA) | | Max Brightness | 3300 Lumens | | Aspect Ratio | Native: 4:3 | | Dynamic Contrast Ratio | 22,000:1 | | Supported 3D Formats | Frame Sequential
Frame Packing
Top Bottom
Side by Side | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 100 kHz
Vertical: 24 to 120 Hz | | | | Focus | Manual | | Optical Zoom | Manual: 1.1x | | Throw Distance | 3.9 - 43' / 1.189 - 13.106 m | | Throw Ratio | 1.95 - 2.15:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Vertical: ± 30°

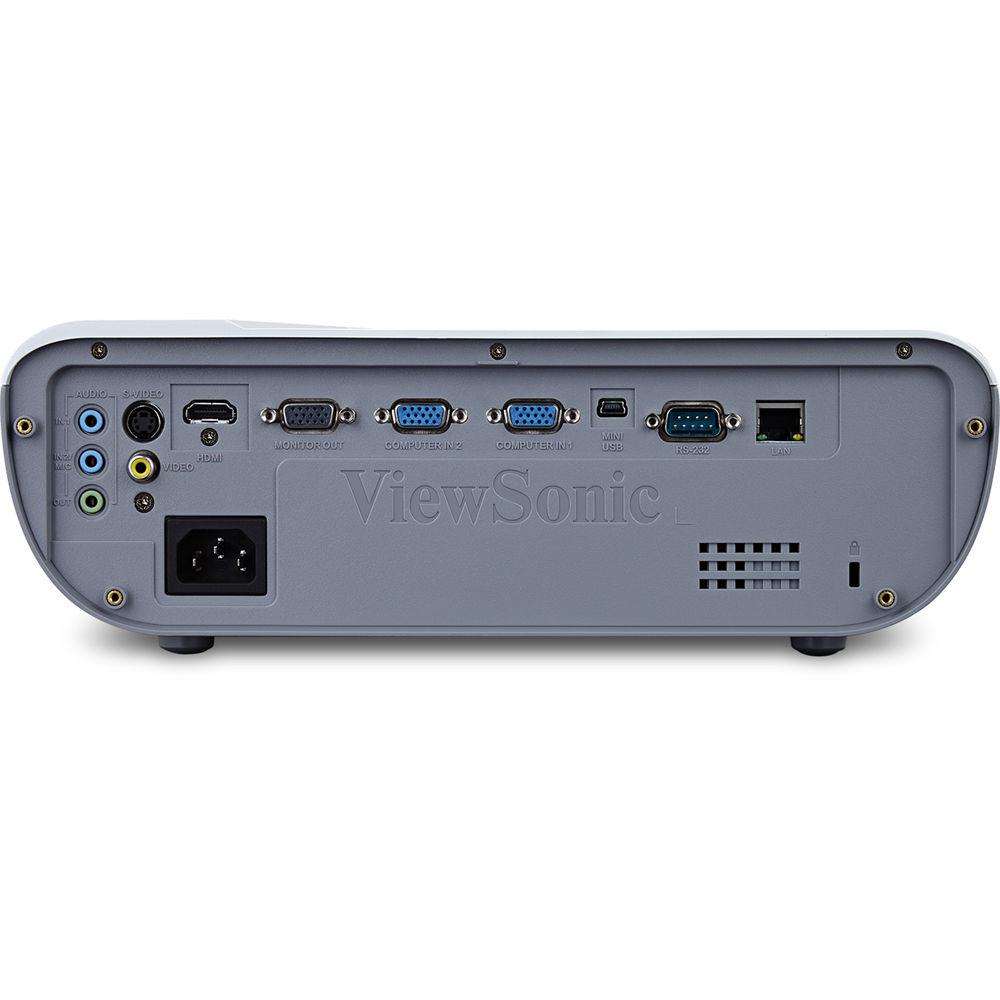

Horizontal: ± 30° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | Closed Captioning | Yes | | | | Inputs/Outputs | 1 x HDMI with MHL Support Audio/Video (Input)
2 x VGA (DE-15) Video (Input)
1 x Composite (RCA) Video (Input)
2 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x VGA (DE-15) Video (Output)
1 x Ethernet (RJ45) LAN (Input)
1 x Mini-USB Control (Input)
1 x RS-232C (Unspecified Connector) Control (Input) | | | | Lamp Power | 190 W | | Expected Lamp Life | Medium Brightness: 4000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Medium Brightness: 32 dB
Low Brightness: 27 dB | | Security | Cable Lock Slot
Password Protection
Security Bar | | Supported Languages | Arabic
Czech
Dutch
English
Finnish
French
German
Hindi
Indonesian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 295 W
Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | 6000' / 1828 m | | Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 10 - 90% | | Dimensions (W x H x D) | 12.4 x 4.1 x 9.0" / 316.0 x 103.7 x 228.0 mm | | Weight | 5.5 lb / 2.5 kg | | | | Package Weight | 9.15 lb | | Box Dimensions (LxWxH) | 17.7 x 16.1 x 8.8" |
