User Manual for ViewSonic LightStream PRO8510L 5200-Lumen XGA DLP Projector Click to enlarge the picture
Contents of the user manual for the ViewSonic LightStream PRO8510L 5200-Lumen XGA DLP
- Product category: Multimedia Projectors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Multimedia Projectors
 |
User manual for the ViewSonic LightStream PRO8510L 5200-Lumen XGA DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

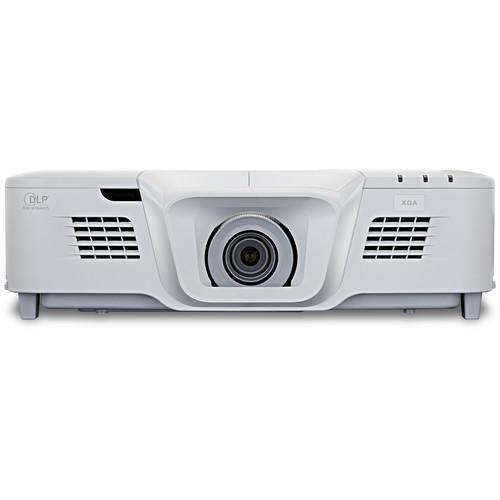

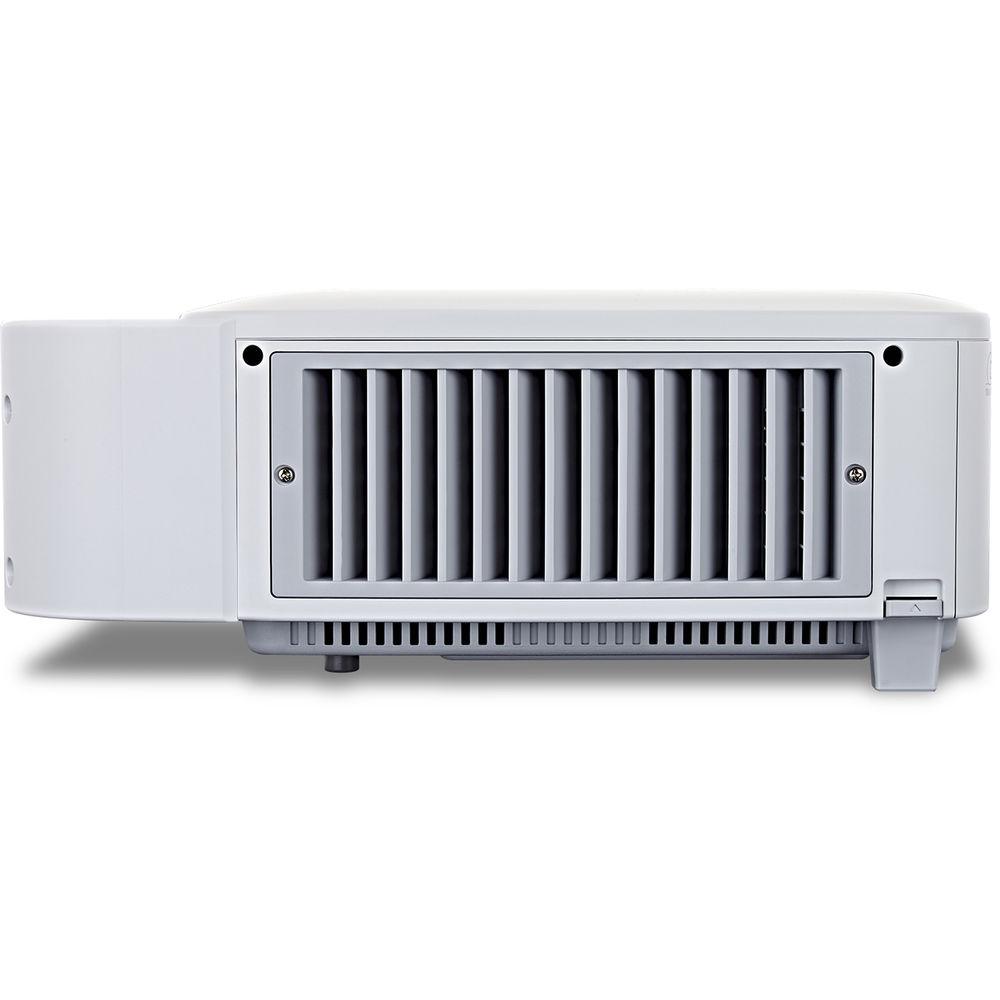

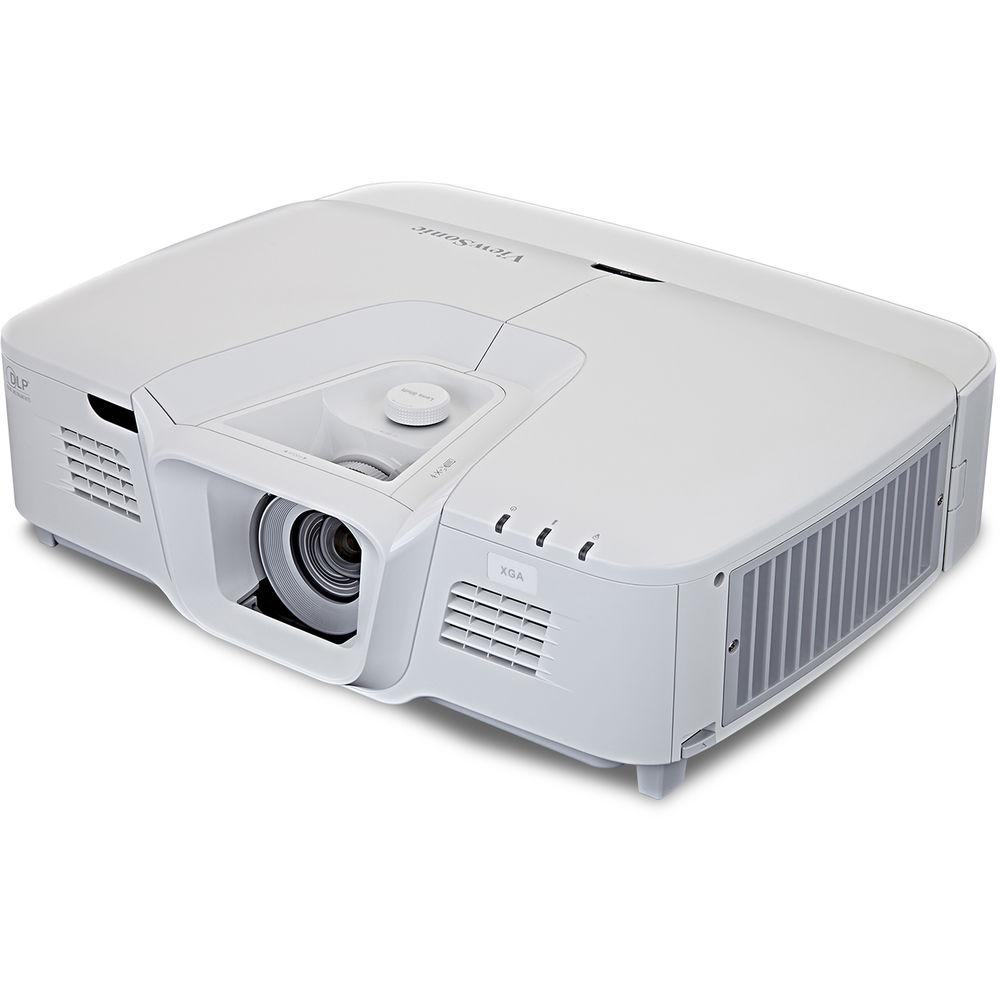

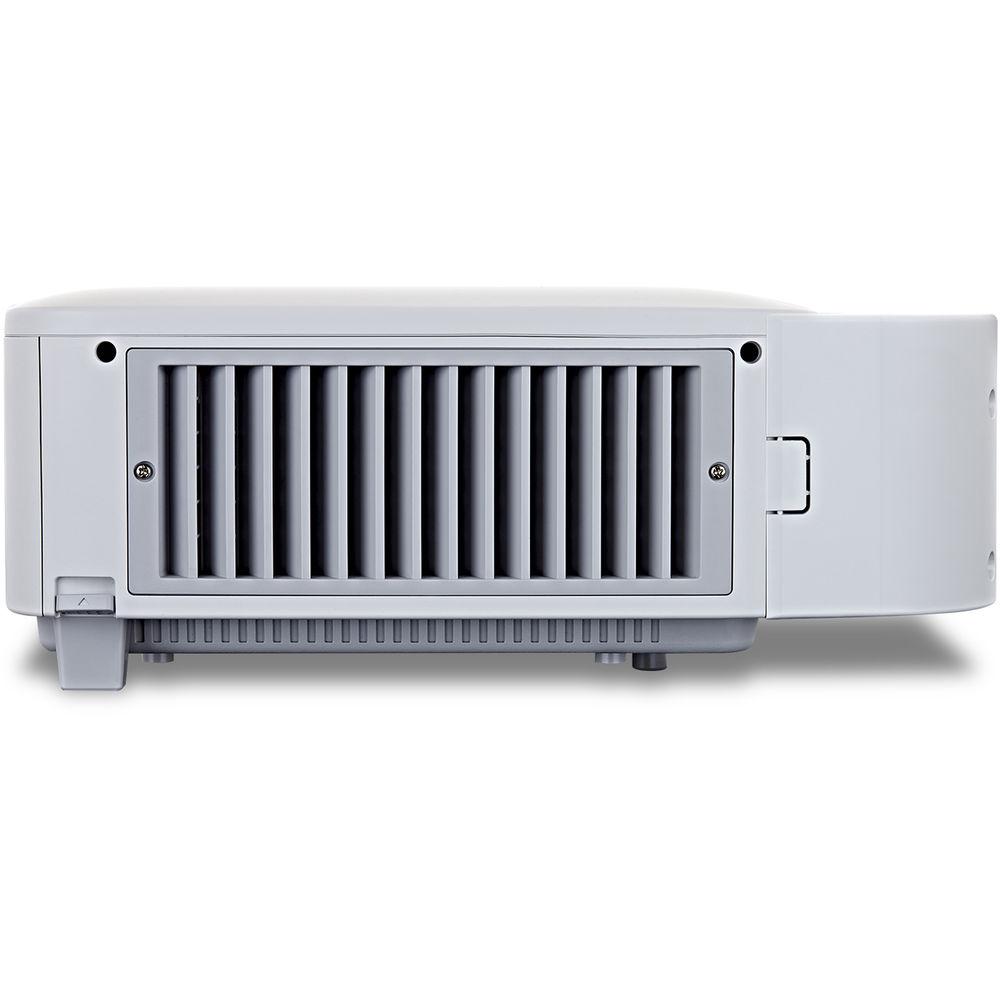

Product description Enjoy bright images in nearly any environment with the ViewSonic LightStream PRO8510L 5200-Lumen XGA DLP Projector. Its 5200 lumens of brightness can overcome ambient light in many situations, while its 5000:1 contrast ratio will help dark areas of images remain dark. The 1024 x 768 XGA native resolution is suitable for displaying many file and document types, and it supports resolutions up to 1080p. The projector features a 1.07 to 1.71:1 throw ratio, which will allow you to place it near the back of the room in many situations.
The PRO8150L has one MHL-compatible HDMI input and three standard HDMI inputs for connecting digital high definition sources such as Blu-ray players and HD cable/satellite boxes. Its VGA output will allow you to daisy-chain multiple projectors or displays so they can all display the same source, and the analog audio input and output and onboard 10-Watt speakers will ensure that audio accompanies your video. The projector is controllable via Ethernet or RS-232, and includes a VGA cable and an IR remote. - 5200 Lumen Brightness
- Packed with 5200 lumens and a 5000:1 contrast ratio, this projector will produce bright images in large spaces with high ambient light including boardrooms, conference halls, and auditoriums.

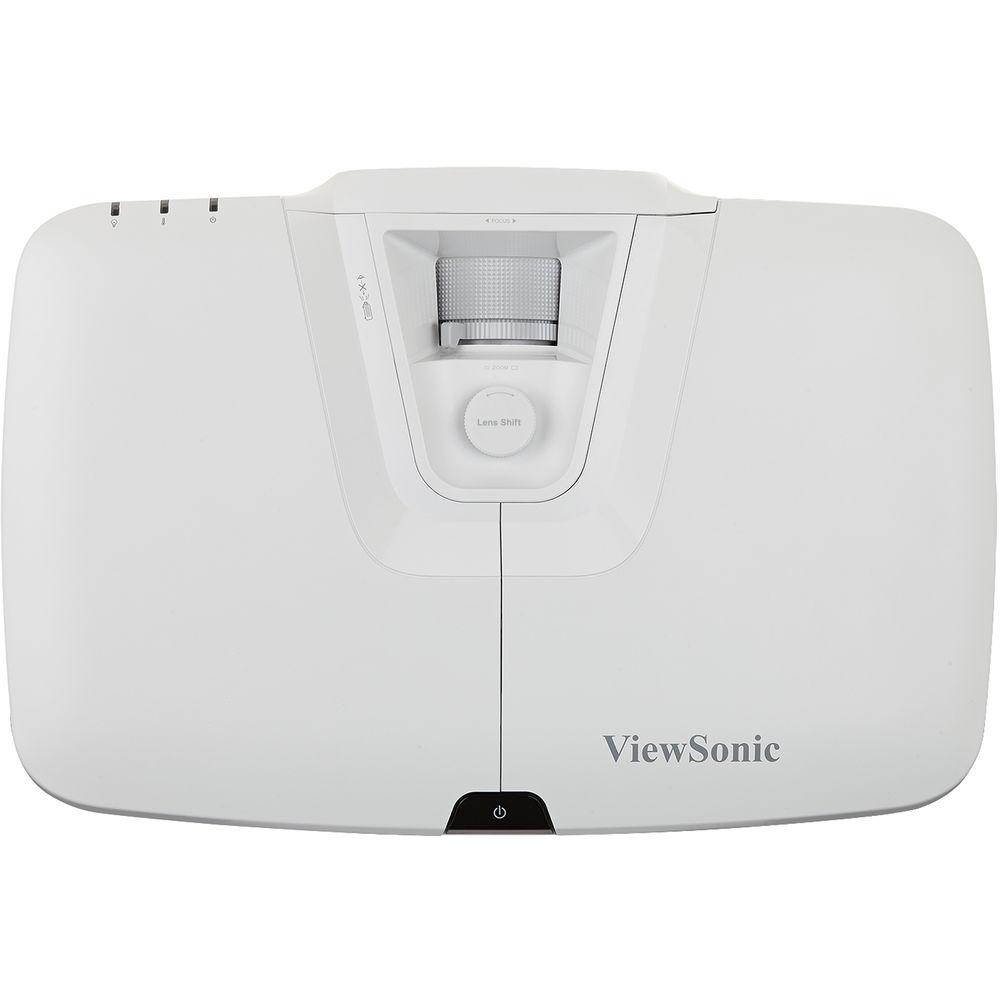

- Vertical Lens Shift with Centered Lens
- A vertical lens shift feature offers up and down adjustments of the projection lens for flexible placement in challenging installations. What's more, a centered-lens design makes this projector well suited for replacing existing centered-lens installations, making it unnecessary to move or reinstall existing ceiling mounts or projection screens.
- PortAll: Discreet Wireless Streaming
- This projector includes ViewSonic's PortAll feature – a hidden compartment with an integrated and secure MHL/HDMI port that lets you discreetly stream multimedia content from a wireless dongle, or connect to other devices via an HDMI cable.
- Four HDMI Inputs
- Four HDMI inputs allow you to connect to a variety of HD devices including gaming consoles, Blu-ray players, laptop computers, digital cameras, and others for a true high definition experience.
- SuperColor: Enhanced Color Accuracy
- SuperColor technology projects images with augmented color performance, in both bright and dark environments, without sacrificing image quality.
- SonicExpert Technology
- This LightStream projector is designed with ViewSonic's SonicExpert technology that incorporates an enlarged speaker chamber and an amplifier that delivers a full 20 Hz to 20 kHz sound range.
- 4-in-1 Power Button with IR Pass-Through
- A centrally located power button not only turns the projector on and off, but also functions as an IR receiver and control for remote devices. In addition, LED lights on the power button indicate whether any dongles are powered on within the PortAll compartment.
- 1.6x Optical Zoom
- A 1.6x optical zoom provides more mounting flexibility over a lower optical zoom.
UPC: 766907829815 In the Box ViewSonic LightStream PRO8510L 5200-Lumen XGA DLP Projector Remote Control with Batteries VGA Cable Power Cable Cable Management Cover Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp More from Manufacturer ysyuxzuwxdfurevtszvbbresedttr Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic LightStream PRO8510L 5200-Lumen XGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic PRO8510L Specs | | | Display System | 0.55" DMD DLP | | Native Chip Resolution | 1024 x 768 (XGA) | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | 5200 Lumens | | Aspect Ratio | Native: 16:9 | | Contrast Ratio | 5000:1 | | DLP Link 3D | Yes | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 100 kHz
Vertical: 24 to 120 Hz | | | | Focus | Manual | | Optical Zoom | Manual: 1.6x | | Throw Distance | 2.3 - 37.3' / 0.701 - 11.369 m | | Throw Ratio | 1.07 - 1.71:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Manual-Vertical: ± 30°

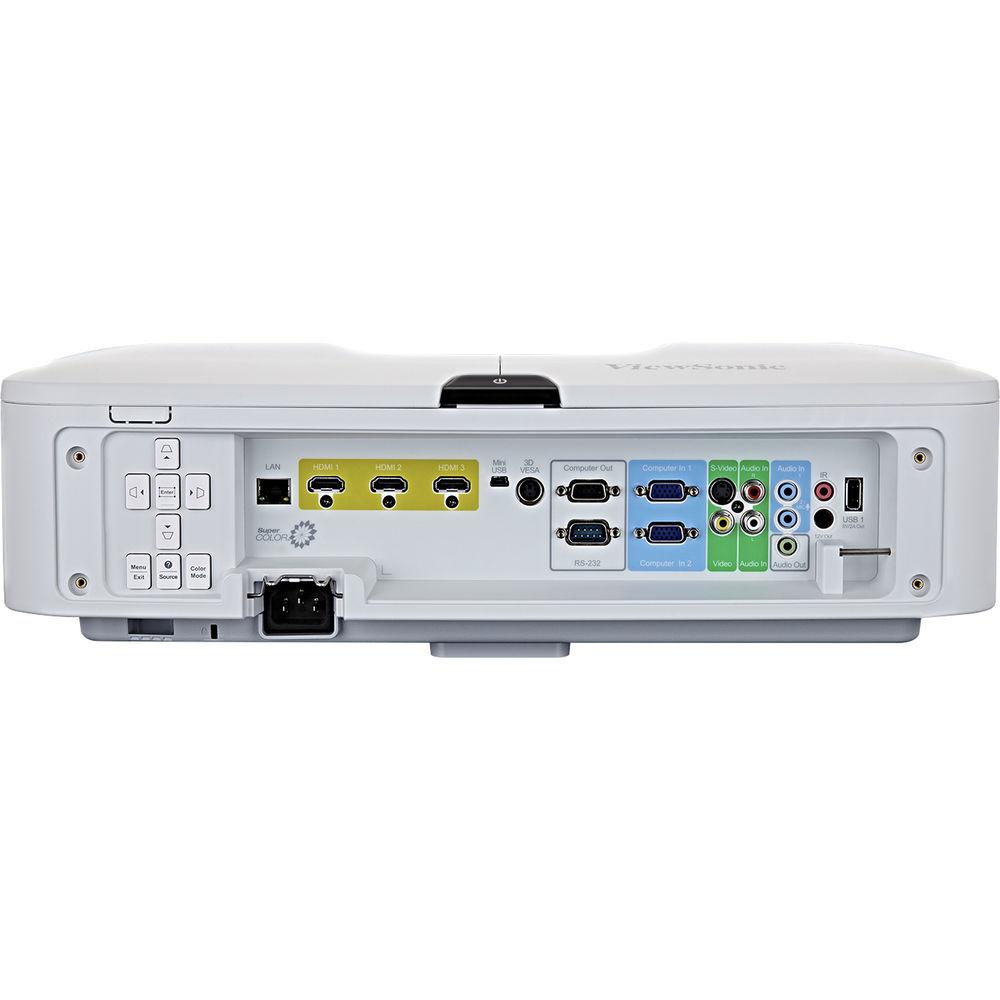

Manual-Horizontal: ± 30° | | Ceiling Mountable | Yes | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 20W | | | | Inputs/Outputs | 3 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
2 x VGA (DE-15) Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Composite (RCA) Video (Input)
1 x VGA (DE-15) Video (Output)
2 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x USB Power (Output)
1 x Micro-USB Power (Output)
1 x Mini-USB Control/Service (Input)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x 1/8" (3.5 mm) Mini Control (Output)
1 x 12 V Trigger Control (Output)
1 x VESA 3D Sync Control (Output)
1 x Ethernet (RJ45) LAN (Input) | | | | Lamp Power | 370 W | | Expected Lamp Life | Medium Brightness: 2000 Hours
Low Brightness: 2500 Hours | | Fan Noise | Low Brightness: 33 dB | | Security | Cable Lock Slot | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 570 W
Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | 6000' / 1828 m | | Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 0 - 90% | | Dimensions (W x H x D) | 19.5 x 12.4 x 5.5" / 496.5 x 316.2 x 139.8 mm | | Weight | 13.89 lb / 6.30 kg | | | | Package Weight | 26.0 lb | | Box Dimensions (LxWxH) | 23.0 x 22.0 x 11.5" |
