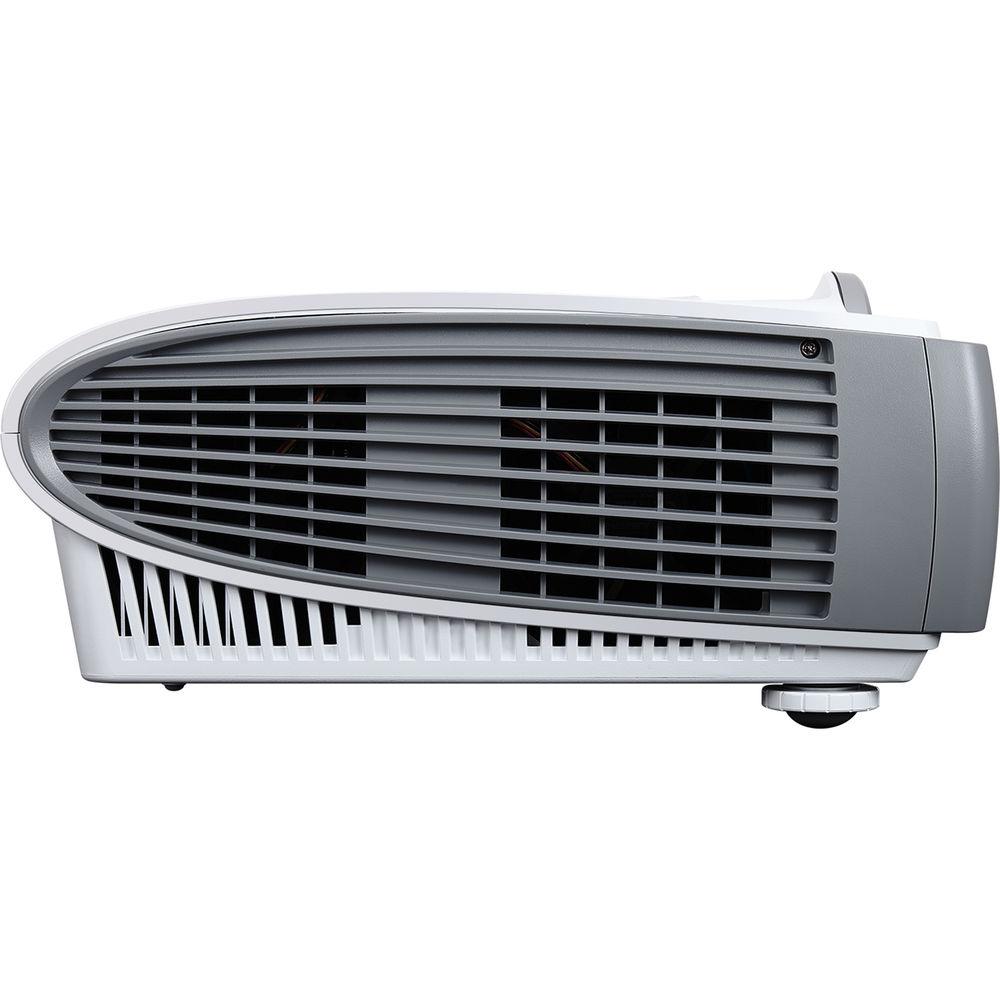

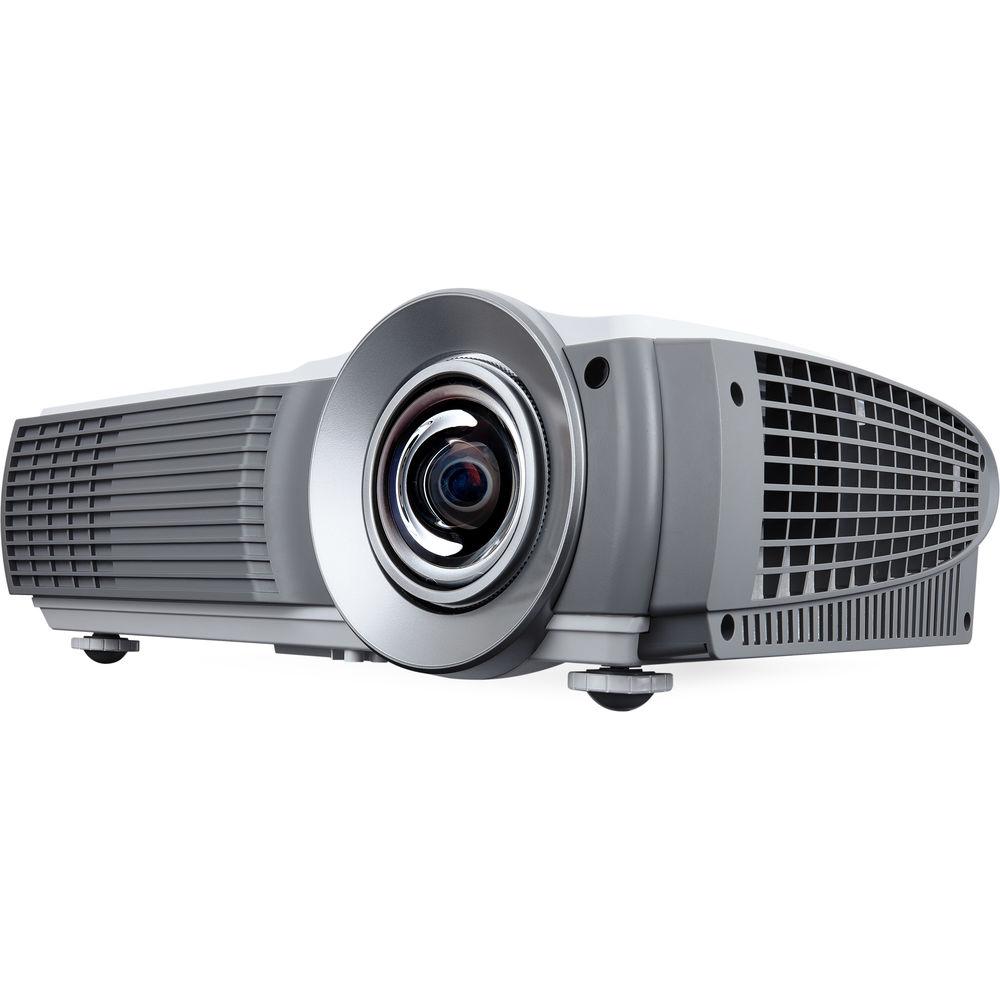

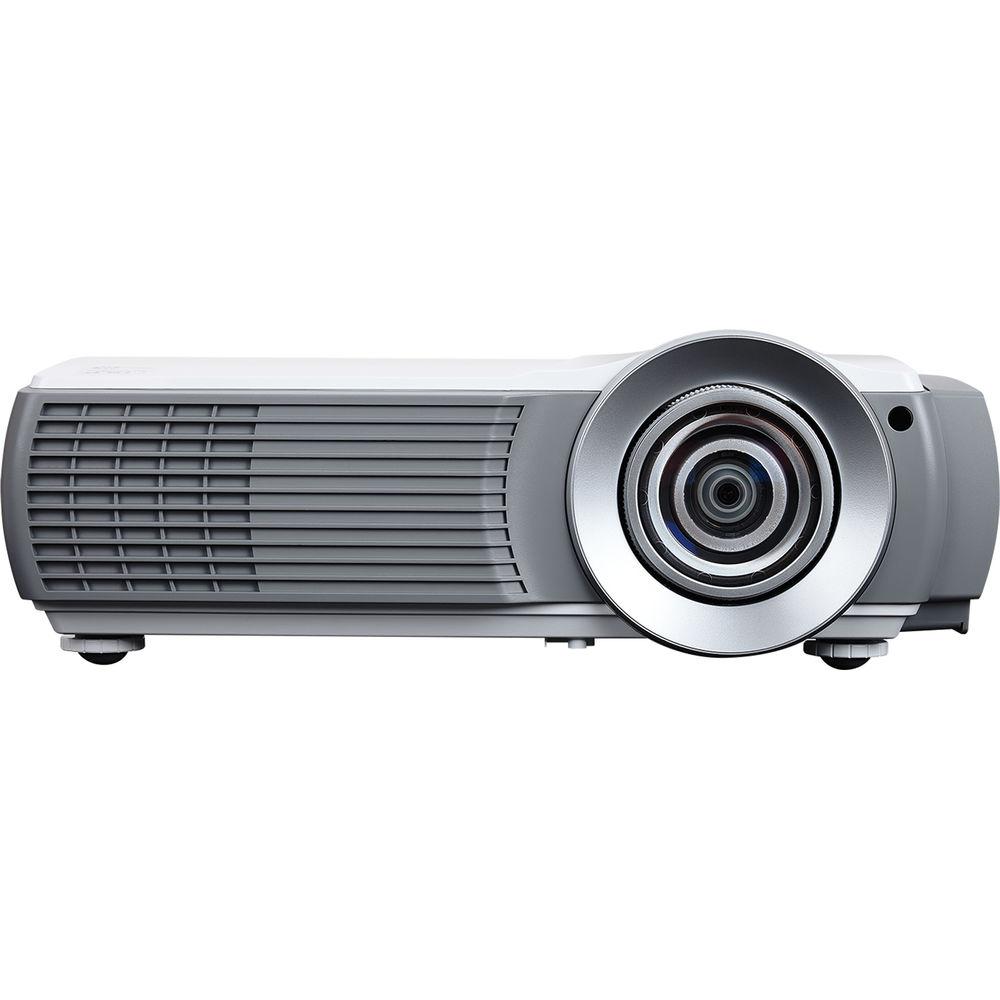

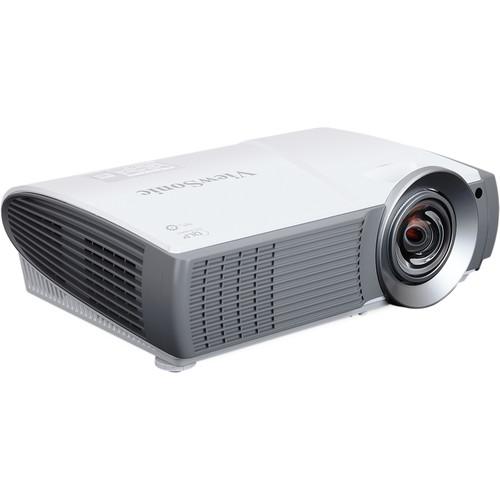

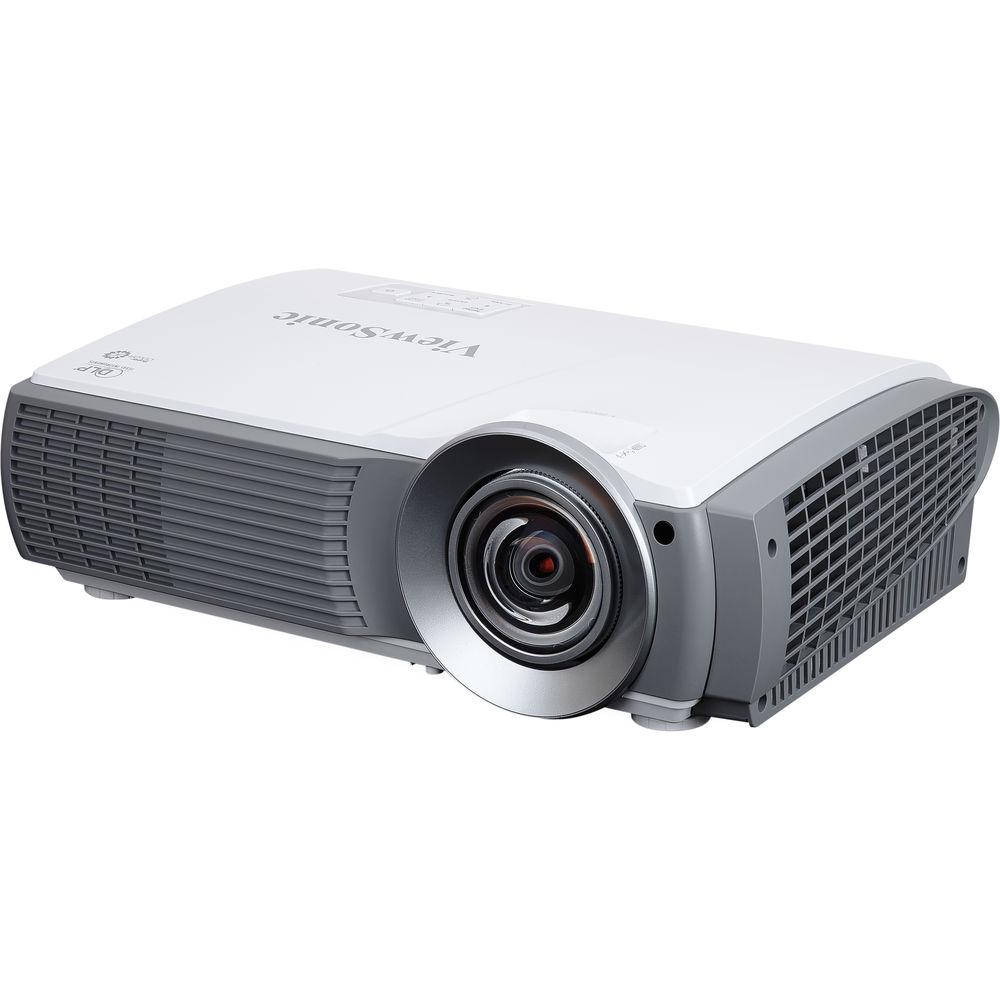

User Manual for ViewSonic LS620X 3200-Lumen XGA Short Throw Laser DLP Projector Click to enlarge the picture
Contents of the user manual for the ViewSonic LS620X 3200-Lumen XGA Short Throw
- Product category: Multimedia Projectors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Multimedia Projectors
 |
User manual for the ViewSonic LS620X 3200-Lumen XGA Short Throw contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

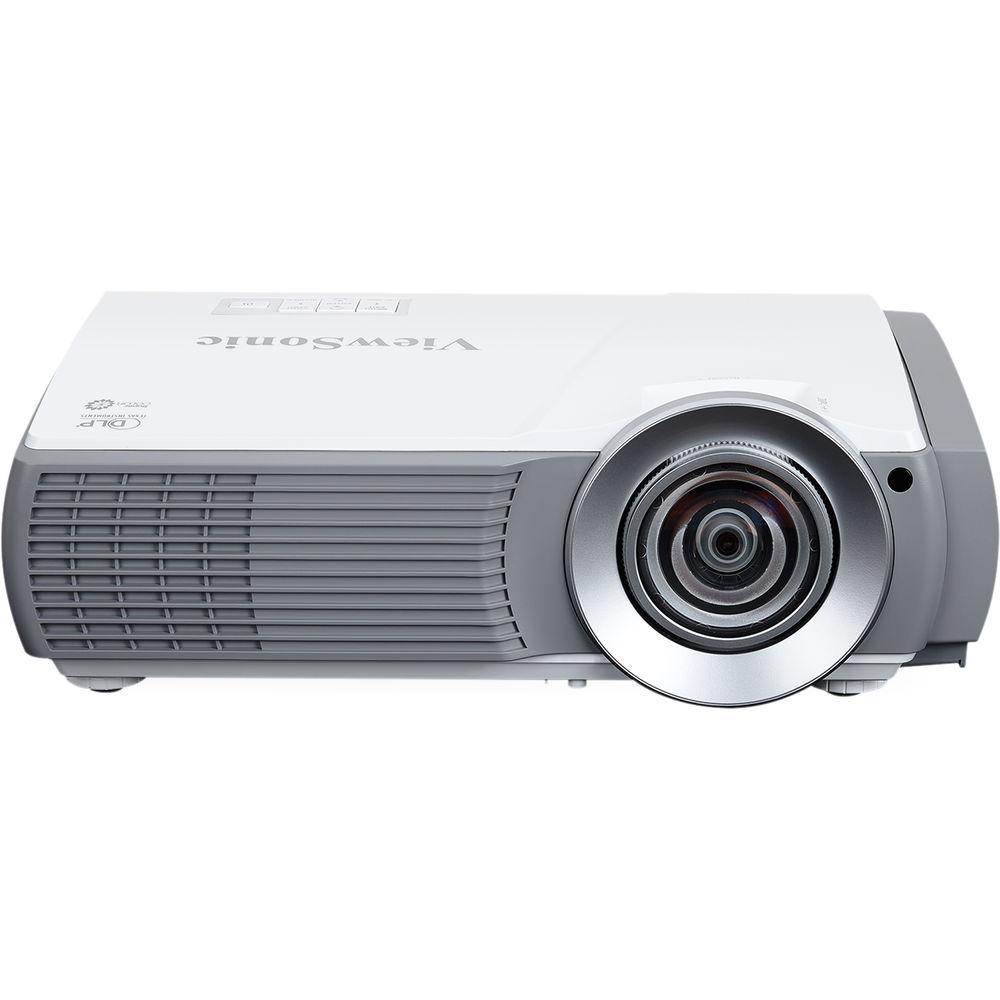

Product description Featuring an XGA 1024 x 768 resolution, a 0.61:1 throw ratio, and 3200 lumens of brightness, the ViewSonic LS620X 3200-Lumen XGA Short Throw Laser DLP Projector is an ideal projection solution for education environments. Designed with a laser phosphor light source lasting up to 25,000 hours, and a sealed optical engine and waveform air filter that protects against dust and moisture, this projector delivers long-term, virtually maintenance-free usage for any classroom. SuperColor technology offers a wider color range for life-like images in any classroom.
With its 0.61:1 short throw ratio and vertical keystoning, the LS620X makes installation a hassle-free experience. The short throw ratio allows you to place the projector just a few feet from a wall or screen to give you clear and remarkable image quality. Crestron and AMX certification delivers network management capabilities. - Long-Lasting Laser Phosphor Light Source
- The projector is designed with a laser phosphor light source lasting up to 25,000 hours. This enables the projector to deliver long-term, virtually maintenance-free usage.
- SuperColor for Enhanced Color Accuracy
- SuperColor technology features an exclusive 6-segment color wheel and dynamic lamp control capabilities, providing a wide color range for beautiful images.
- Network Monitoring & Control
- An IT administrator can monitor, schedule, and manage the projector remotely, as well as receive projector status alerts, with the integrated Crestron e-Control system and RoomView Express management software. Because this projector is Crestron and AMX certified, an administrator can control and monitor the projector for any size campus or enterprise.
- Large Images in Small Spaces
- A short throw lens enables large images to be projected from short distances in small rooms. In addition, any blinding lights in front of the presenter, distracting shadows on the projected image, or glaring hotspots on the screen, are all eliminated because the projector's light source is closer to the projection surface.
- 3D Blu-ray-Ready HDMI Input
- Equipped with HDMI, this projector is perfect for connecting to any HDMI-enabled device, and can display 3D images directly from 3D Blu-ray players. 3D images can be viewed with optional ViewSonic PGD-350 Shutter Glasses, or any other compatible 3D glasses.
- Controls
- Physical Controls: Power, keystone/arrow keys, left/blank, menu/exit, right/panel key lock, mode/enter, auto, source
On Screen Display: Display, image, power management, basic, advanced, system, information - Regulations
- Mexico Energy test/Registration, EAC, TUV-S Mark (Argentina), India BIS, FCC, CE, EMC, CB, CCC, RoHS, REACH, SVHC, WEEE, ErP, Mexico NOM, cTUVus, PSB, RCM, CECP
UPC: 766907911312 In the Box ViewSonic LS620X 3200-Lumen XGA Short Throw Laser DLP Projector Power Cable VGA Cable Remote Control / Laser Pointer with Batteries Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic LS620X 3200-Lumen XGA Short Throw Laser DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic LS620X Specs | | | Display System | 1-Chip 0.55" DMD DLP | | Native Chip Resolution | 1024 x 768 (XGA) | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 @ 60 Hz | | Max Brightness | 3200 Lumens | | Aspect Ratio | Native: 4:3
Supported: 16:9
Supported: 16:10 | | Dynamic Contrast Ratio | 100,000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Frame Sequential
Frame Packing (up to 1080p)
Side by Side (up to 1080i)
Top Bottom (up to 1080p) | | Color Wheel | 6-Segment | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 102 kHz

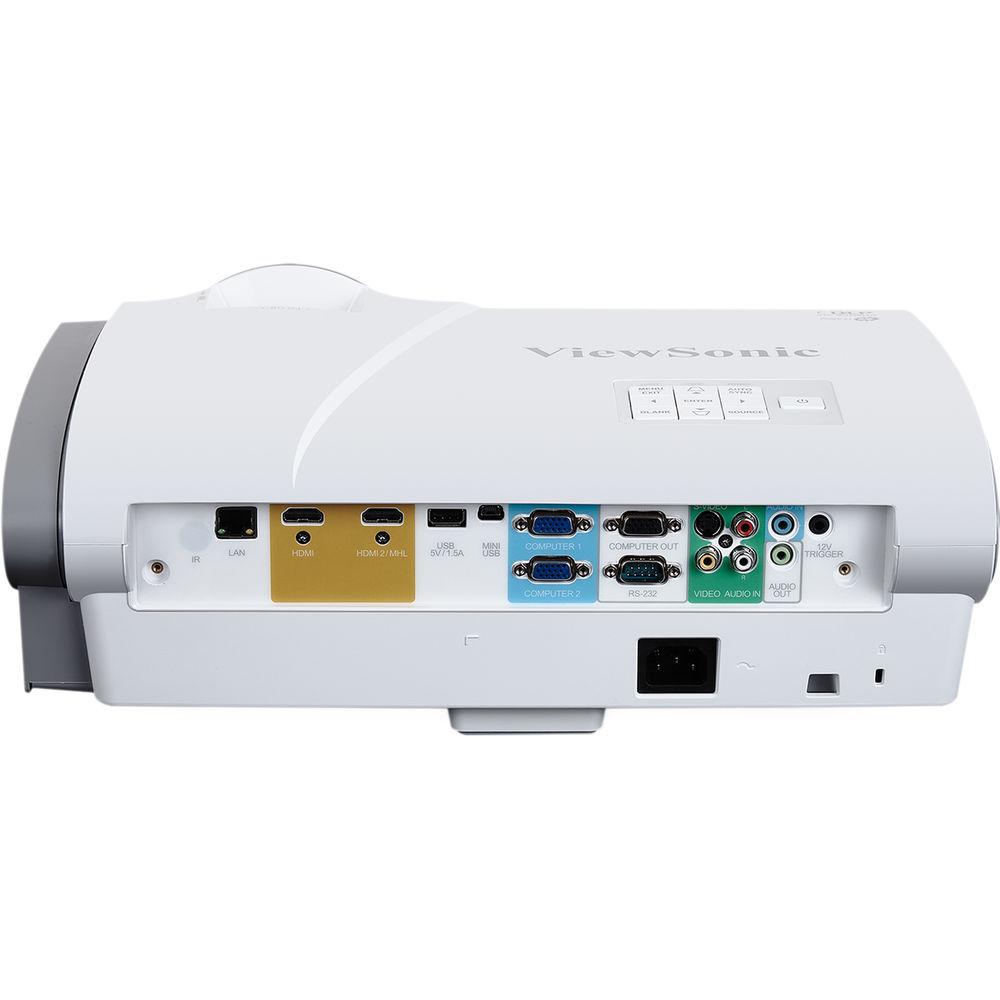

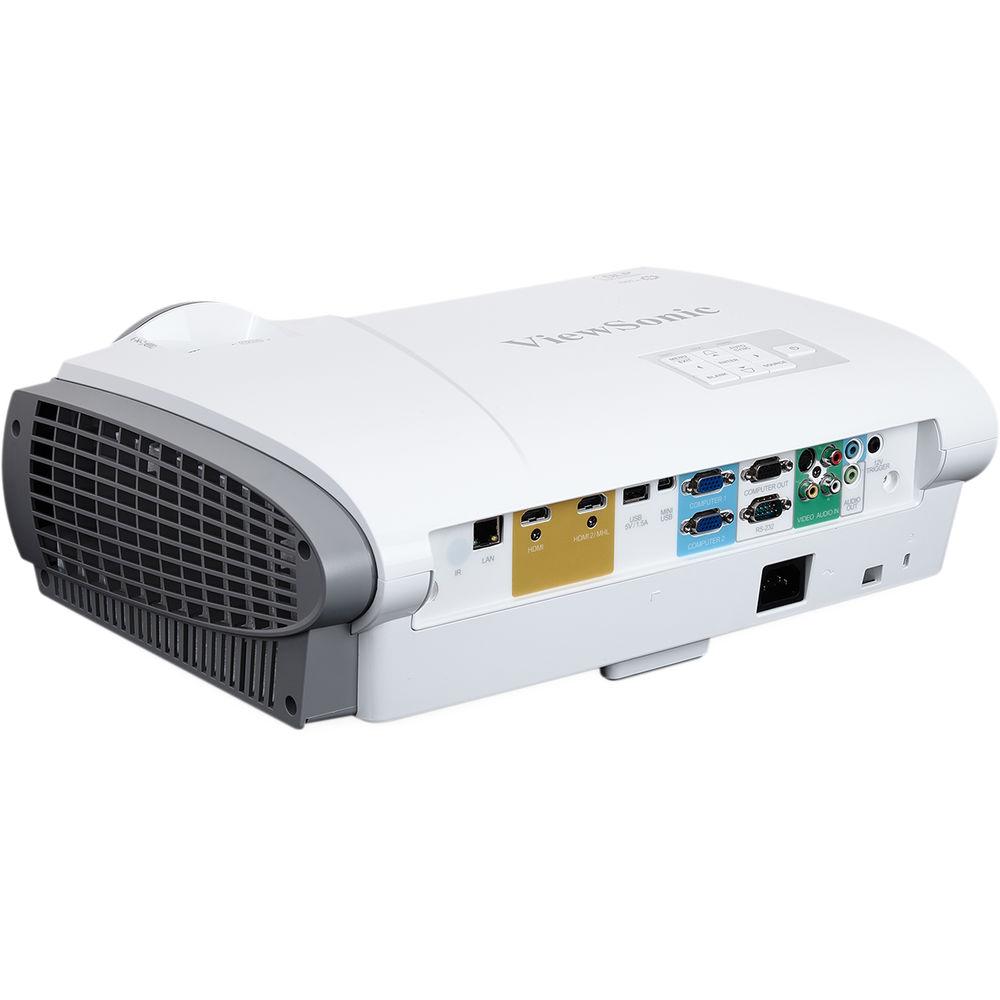

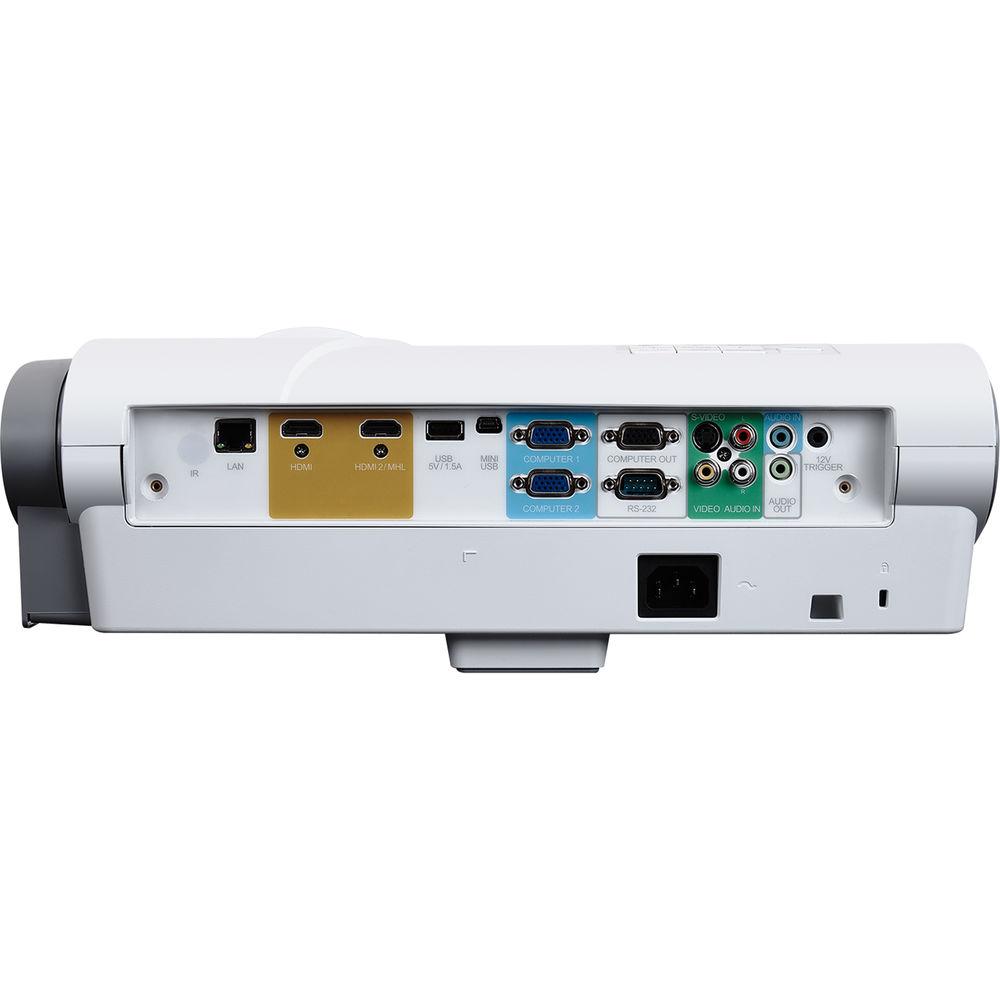

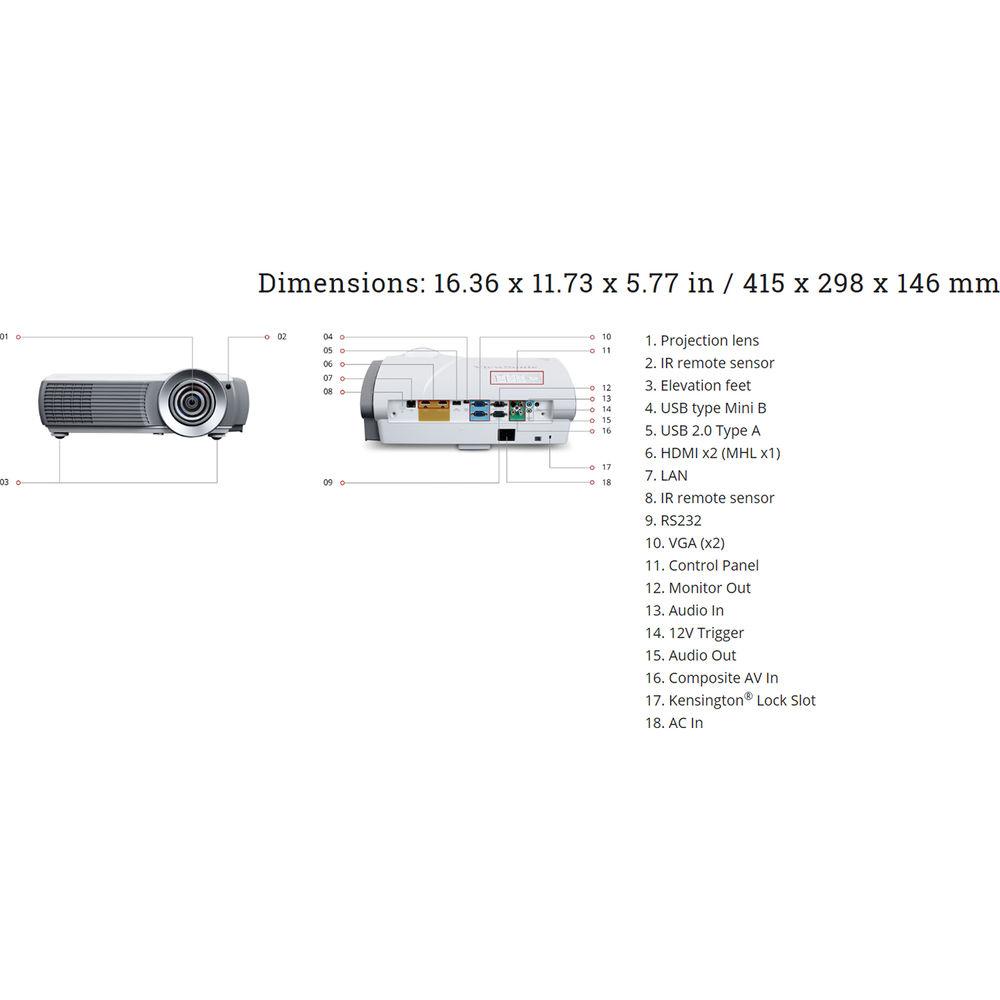

Vertical: 48 to 120 Hz | | | | Focus | Manual | | Optical Zoom | None | | Throw Distance | 2.42 - 6.1' / 0.738 - 1.859 m | | Throw Ratio | 0.61:1 | | Projection Size | 60 - 150" / 152.40 - 381.00 cm | | | | Keystone Correction | Vertical: ± 40° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 10W | | Closed Captioning | Yes | | | | Inputs/Outputs | 1 x HDMI Type-A Audio, Video Input
1 x HDMI with MHL Support (HDMI Type-A) Audio, Video Input
2 x VGA (DE-15) Video Input
1 x VGA (DE-15) Video Output
1 x Composite (RCA) Video Input
1 x Composite (2RCA) Audio Input
1 x S-Video (4-Pin DIN) Video Input
1 x 1/8" (3.5 mm) Mini Audio Input
1 x 1/8" (3.5 mm) Mini Audio Output
1 x Ethernet (RJ45) LAN
1 x USB Type-A Power Output
1 x Micro-USB Service Input
1 x 12 V Trigger Control | | Memory Card Slot | None | | Wireless LAN / Wi-Fi | None | | | | Light Source | Laser Phosphor | | Lamp Power | 260 W | | Expected Lamp Life | Medium Brightness: 20,000 Hours
Low Brightness: 25,000 Hours | | Security | Cable Lock Slot
Password Protection
Security Bar | | Supported Audio File Types | None | | Supported Document File Types | None | | Supported Photo File Types | None | | Supported Video File Types | None | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 305 W
Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | 9842' / 3000 m | | Operating Humidity | 10 - 90% | | Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 10 - 90% | | Dimensions (W x H x D) | 16.4 x 11.7 x 5.7" / 41.7 x 29.7 x 14.5 cm | | Weight | 12.1 lb / 5.5 kg | | | | Package Weight | 16.4 lb | | Box Dimensions (LxWxH) | 19.0 x 15.5 x 11.0" |
