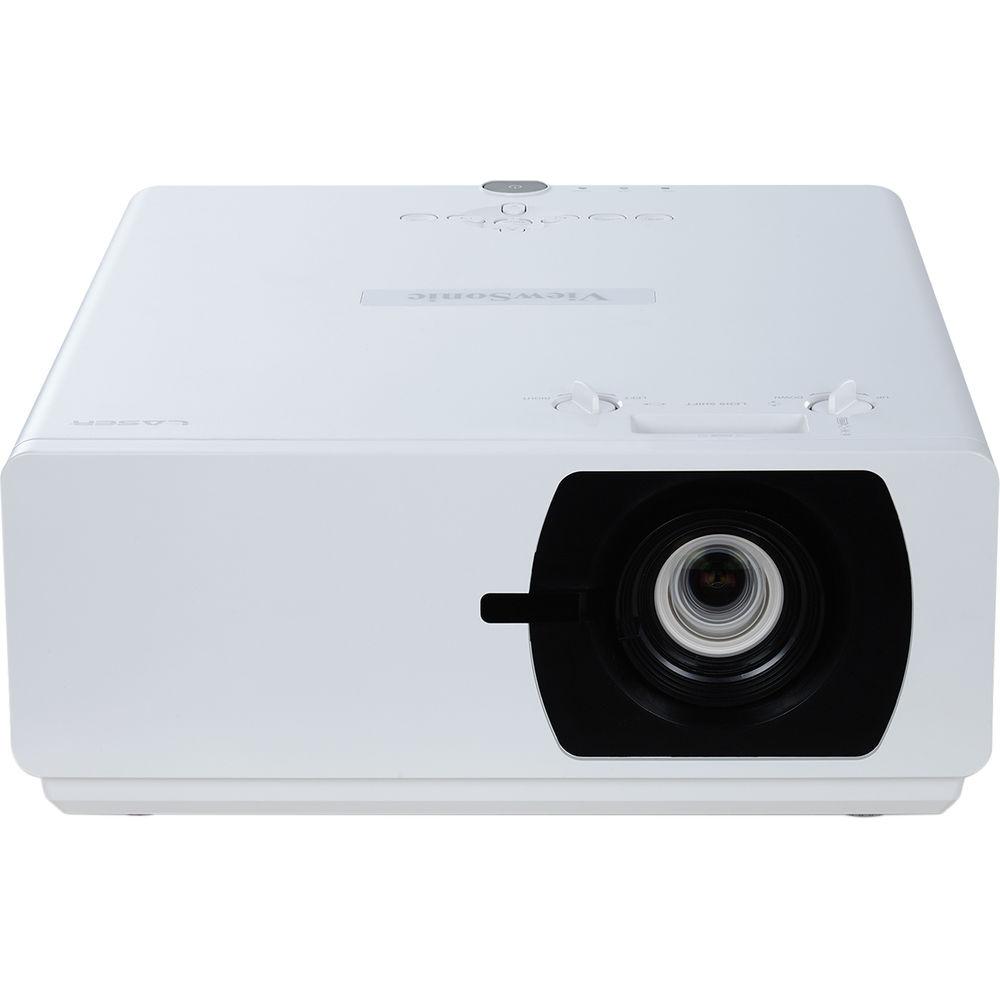

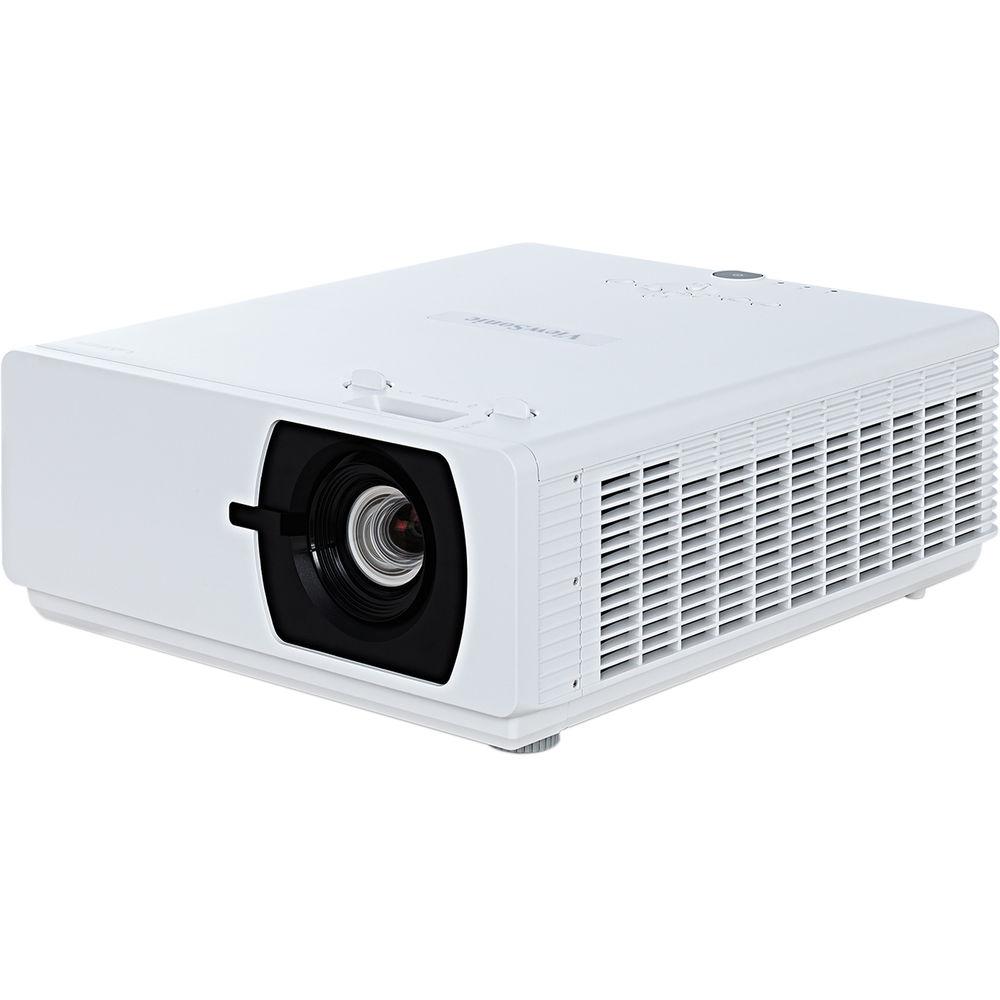

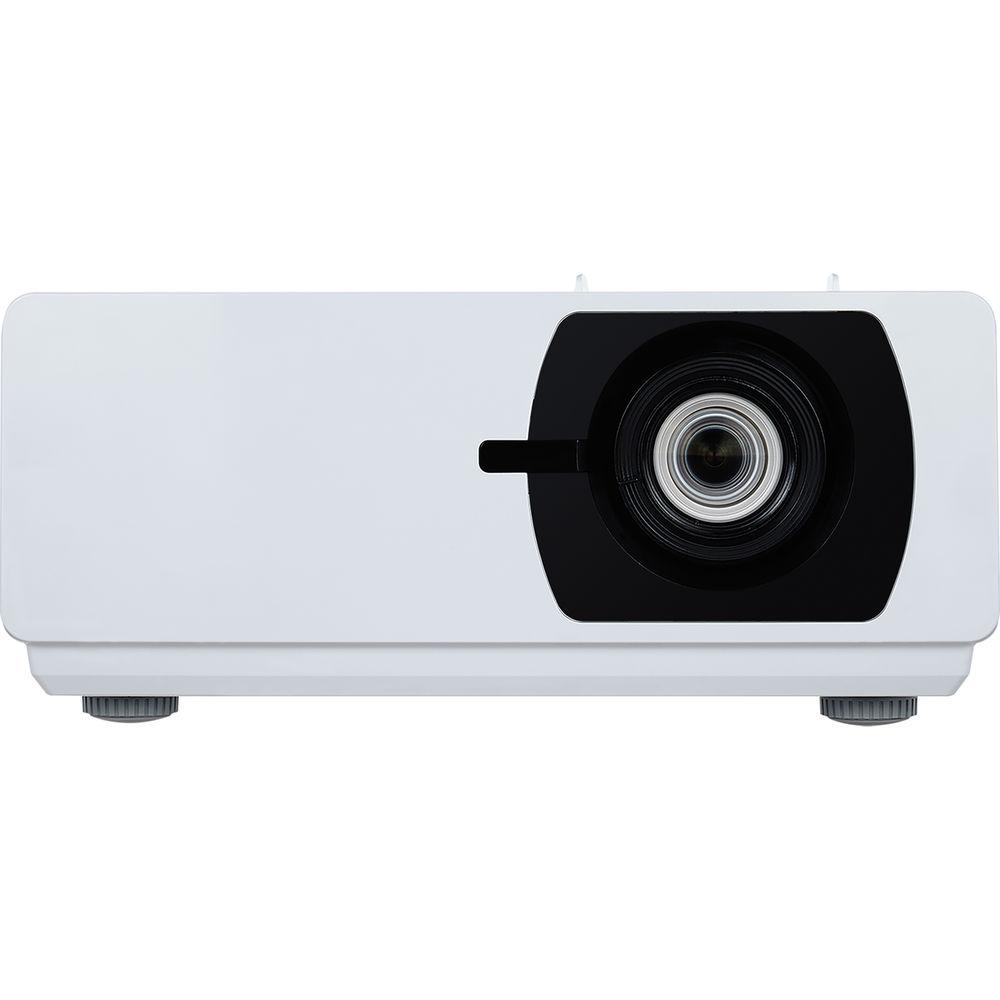

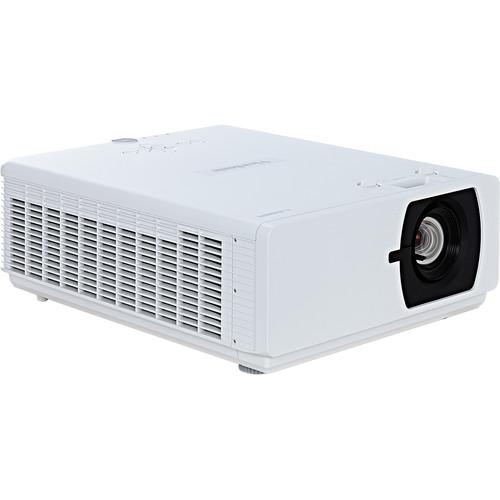

User Manual for ViewSonic LS800HD 5000-Lumen Full HD Laser DLP Projector Click to enlarge the picture
Contents of the user manual for the ViewSonic LS800HD 5000-Lumen Full HD Laser
- Product category: Multimedia Projectors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Multimedia Projectors
 |
User manual for the ViewSonic LS800HD 5000-Lumen Full HD Laser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|
Product description Make your content jump off the screen with the LS800HD Laser Projector from ViewSonic. Delivering 5000 lumens of brightness, a 100,000:1 contrast ratio, and up to 30,000 hours of life from its laser phosphor light source, this projector is well suited for use in auditoriums, lecture halls, large boardrooms, houses of worship, and other large venues. SuperColor technology brings graphics and video content to life while 1.65x optical zoom, vertical/horizontal keystone, four-corner adjustment, and vertical/horizontal lens shift facilitate deployment and management. The built-in HDBaseT receiver allows the projector to receive uncompressed HD video and audio from over 200' away via network cable. Moreover, 360-degree tilt angle projection, portrait mode, and 24/7 operation allow for extreme mounting flexibility. - 5000 Lumen Brightness
- With 5000 lumen brightness and a high contrast ratio, this projector delivers bright images even in large spaces with high ambient light such as large boardrooms, conference halls, and auditoriums.
- High Contrast Ratio
- The high-contrast ratio of 100,000:1 enhances colors and shades, enabling clear, sharp images.
- Long-Lasting Laser Phosphor Light Source
- A sealed optical engine and laser phosphor light source that lasts up to 30,000 hours allow the projector to deliver long-term, low-maintenance usage for a lower overall total cost of ownership.
- One-Wire HDBaseT Input
- With an integrated HDBaseT input, this projector can receive uncompressed HD video and audio over long distances via a single network cable.
- 360° Orientation
- Its robust mechanical construction allows the projector to be installed in almost any angle. For example, you can mount the projector pointing straight down at the floor of a museum exhibit or art gallery installation, or upside-down at a 45° angle.
- Portrait Mode Projection
- This projector can be placed in a vertical position and project images in portrait orientation.
- Mounting Flexibility
- The 1.65x optical zoom provides mounting flexibility, allowing for easier installation of the projector.
- Horizontal & Vertical Keystone Correction
- Horizontal and vertical keystone correction and a corner adjustment feature help eliminate distortion to ensure evenly proportioned pictures.

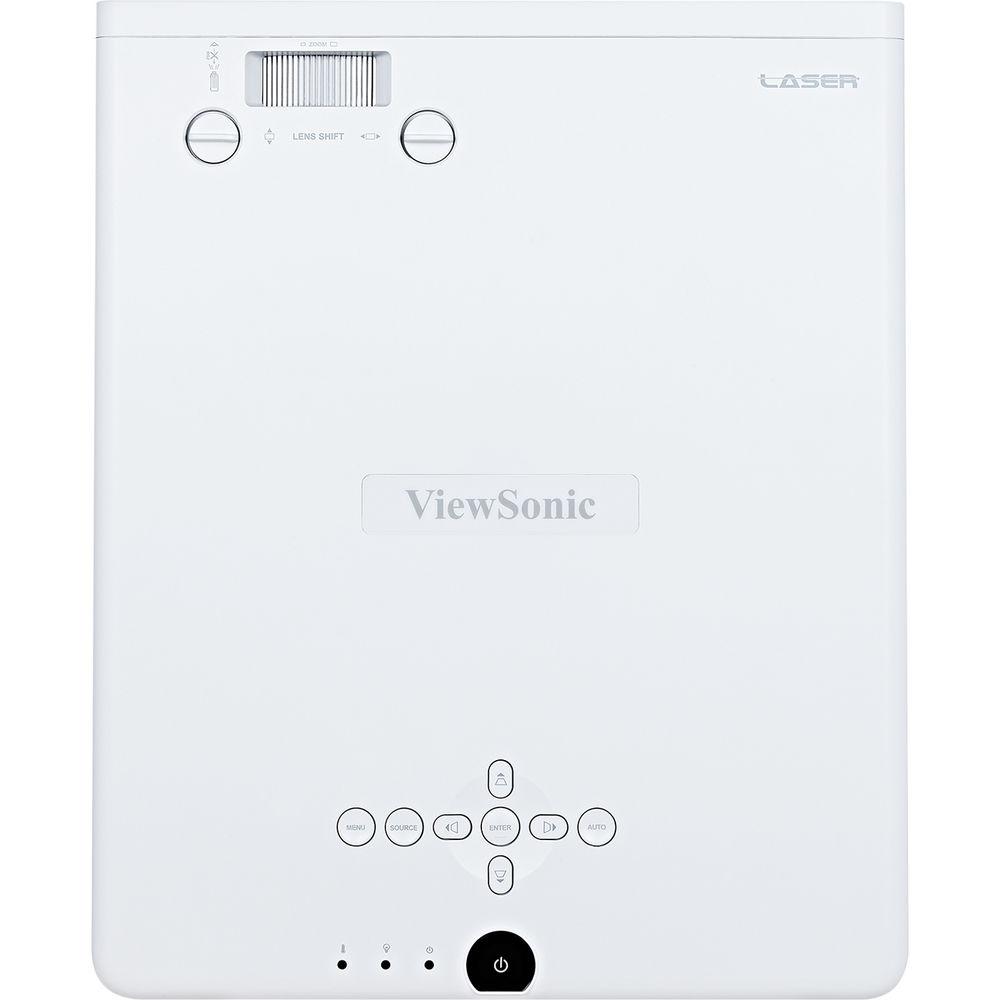

- Horizontal & Vertical Lens Shift
- A horizontal/vertical lens shift feature offers up-and-down, as well as left-and-right, adjustments of the projection lens. This feature allows for flexible projector placement in challenging installations.
- Network Monitoring & Control
- An IT administrator can monitor, schedule, and manage the projector remotely, as well as receive projector status alerts, via the integrated Crestron e-Control system and RoomView Express management software. The LS800HD projector is Crestron and AMX certified.
- Reduced Input Latency
- With an input latency of 16 ms, this projector delivers smooth images with fast frame-by-frame action.
- Continuous Operation
- The LS800HD is designed to run 24/7.
UPC: 766907932317 In the Box ViewSonic LS800HD 5000-Lumen Full HD Laser DLP Projector Power Cable VGA Cable Remote Control and Batteries Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic LS800HD 5000-Lumen Full HD Laser DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic LS800HD Specs | | | Display System | 1-Chip DMD DLP | | Native Chip Resolution | 1920 x 1080 (HD) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 5000 Lumens | | Aspect Ratio | Native: 16:9
Supported: 16:10
Supported: 2.35:1
Supported: 4:3 | | Dynamic Contrast Ratio | 100,000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Frame Sequential
Frame Packing (up to 1080p)
Side by Side (up to 1080i)
Top Bottom (up to 1080p) | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 102 kHz
Vertical: 23 to 120 kHz | | | | Focus | Manual | | Lens Shift | Horizontal: -2.5 + 2.5%
Vertical: -2.9 + 11.8% | | Optical Zoom | Manual: 1.65x | | Throw Distance | 4.1 - 41' / 1.25 - 12.497 m | | Throw Ratio | 1.2 - 1.9:1 | | Projection Size | 30 - 300" / .76 - 7.62 m | | | | Keystone Correction | Manual-Vertical: ± 25°

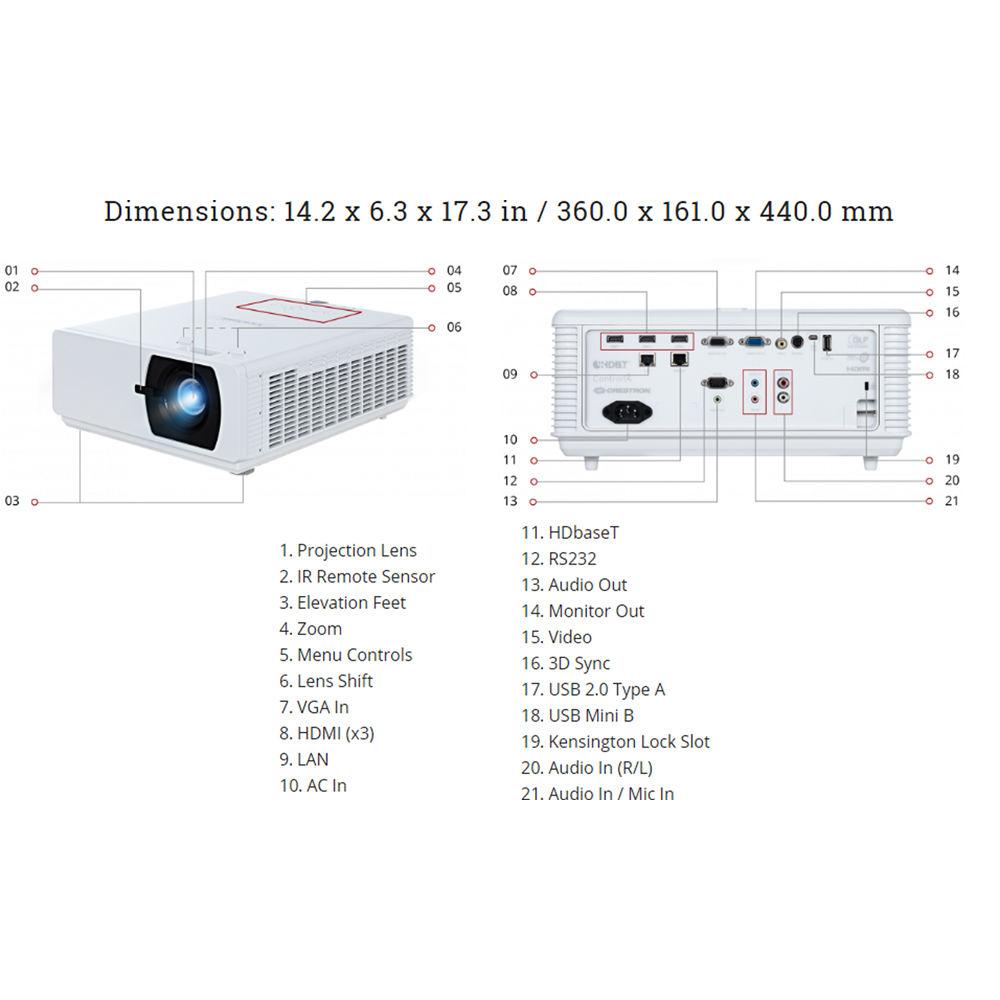

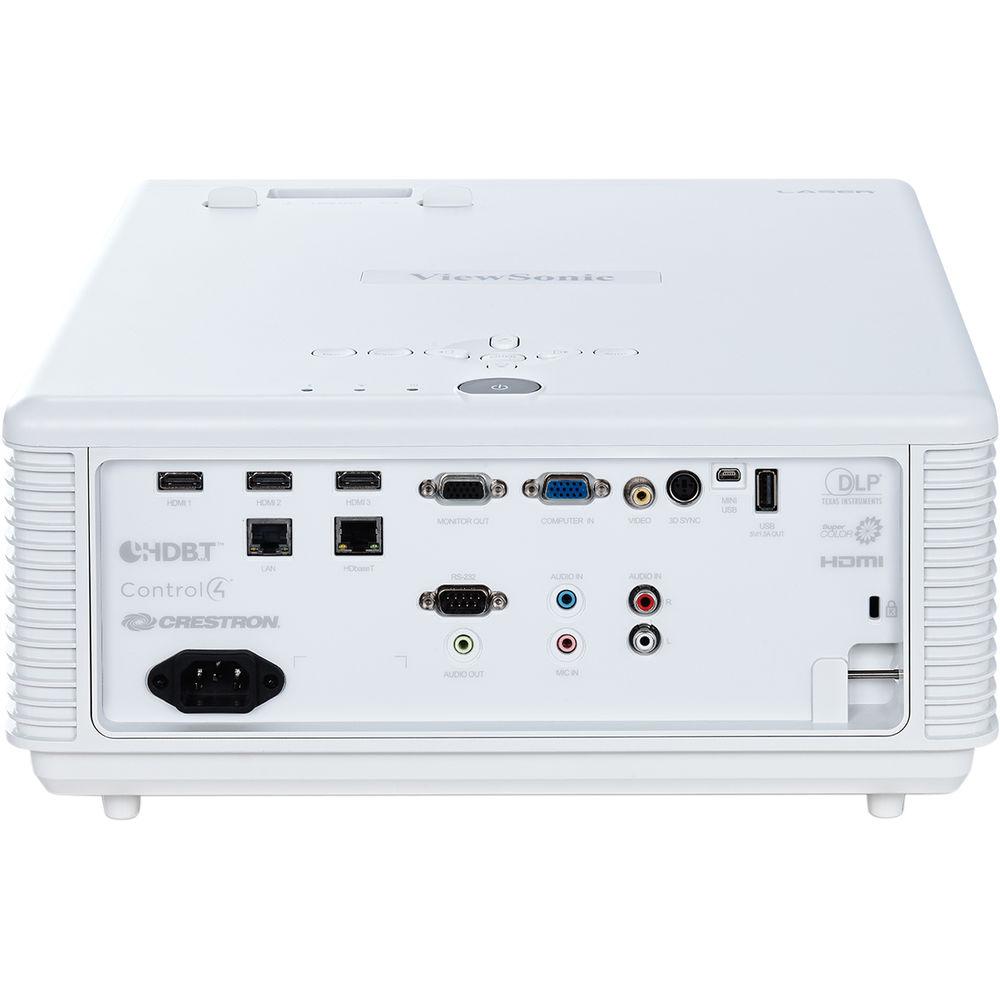

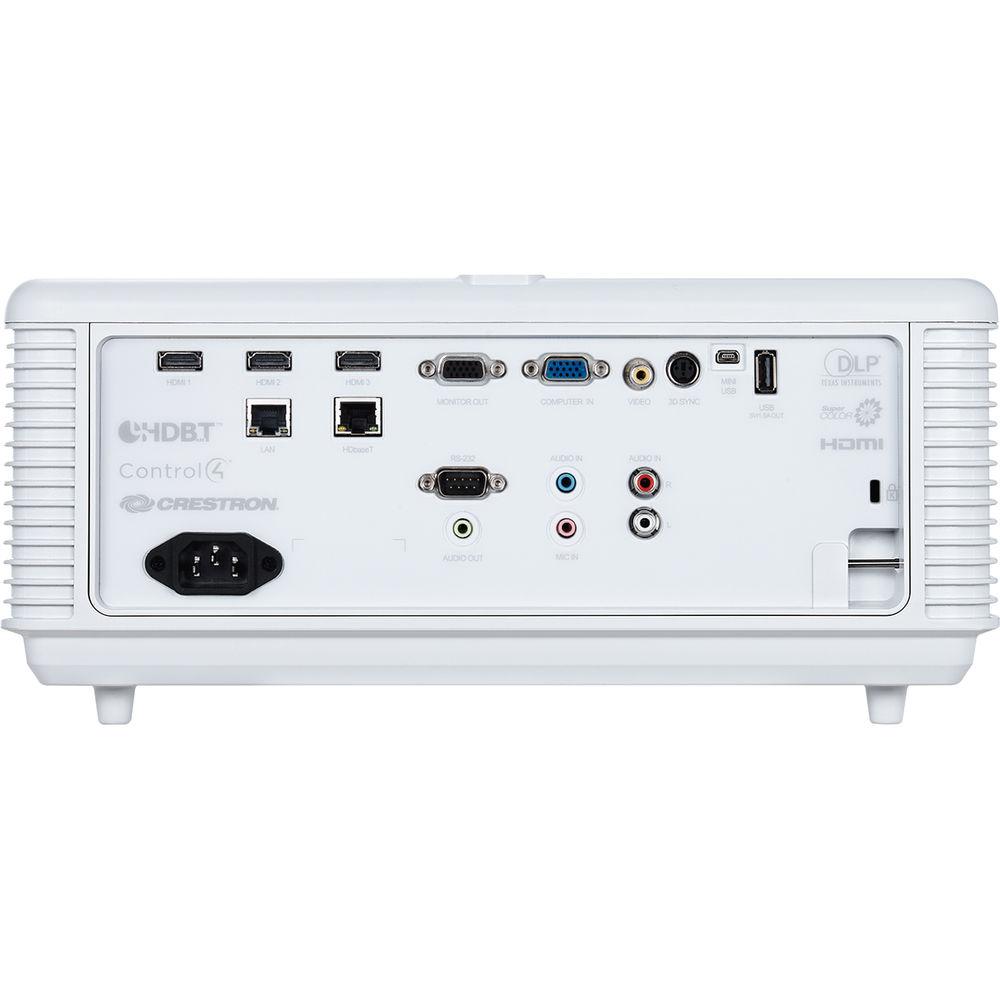

Manual-Horizontal: ± 30° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 5W | | Closed Captioning | Yes | | | | Inputs/Outputs | 3 x HDMI Type-A Audio, Video Input
1 x VGA (DE-15) Video Input
1 x VGA (DE-15) Video Output
1 x Composite (RCA) Video Input
1 x Composite (2RCA) Audio Input
1 x S-Video (4-Pin DIN) Video Input
1 x HDBaseT (RJ45) Audio, Control, Data, LAN, Remote, Video Input
1 x Ethernet (RJ45) Control Input
1 x 1/8" (3.5 mm) Mini Audio Input
1 x 1/8" (3.5 mm) Mini Audio Output
1 x 1/8" (3.5 mm) Mini Microphone Input
1 x RS-232 (DE-15) Control Input
1 x VESA 3D Sync (4-Pin DIN) Control Output
1 x USB Type-A Power Output
1 x Mini-USB Service Input | | Memory Card Slot | None | | Wireless LAN / Wi-Fi | None | | | | Light Source | Laser Phosphor | | Expected Lamp Life | Full Brightness: 20,000 Hours
Low Brightness: 30,000 Hours | | Security | Cable Lock Slot
Password Protection
Security Bar | | Supported Audio File Types | None | | Supported Document File Types | None | | Supported Photo File Types | None | | Supported Video File Types | None | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 430 W
Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | 9842' / 3000 m | | Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 0 - 90% | | Dimensions (W x H x D) | 14.2 x 6.3 x 17.3" / 36.1 x 16.0 x 43.9 cm | | Weight | 24.3 lb / 11.0 kg | | | | Package Weight | 37.0 lb | | Box Dimensions (LxWxH) | 22.0 x 18.5 x 11.0" |
