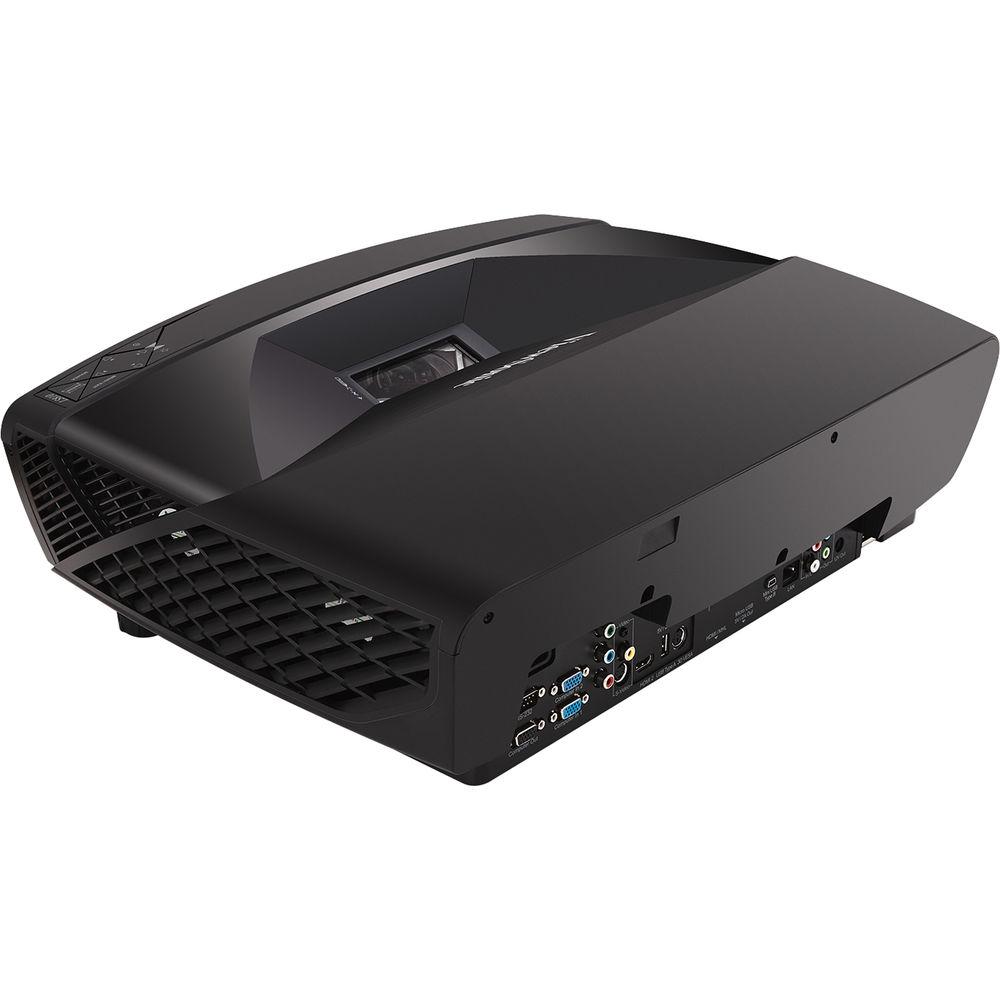

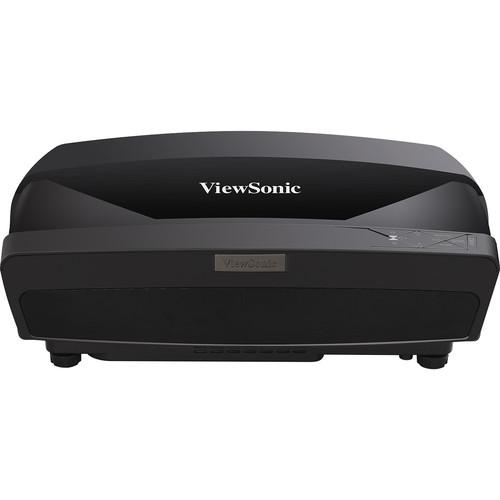

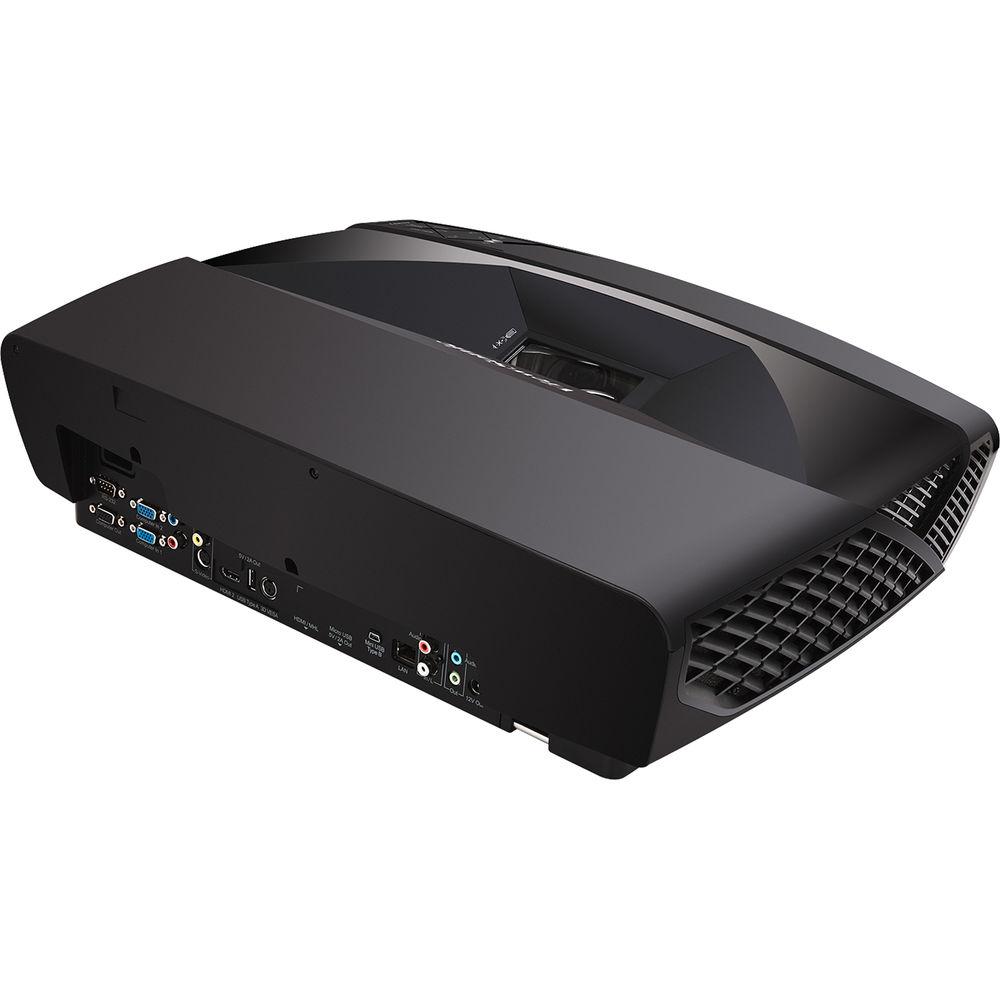

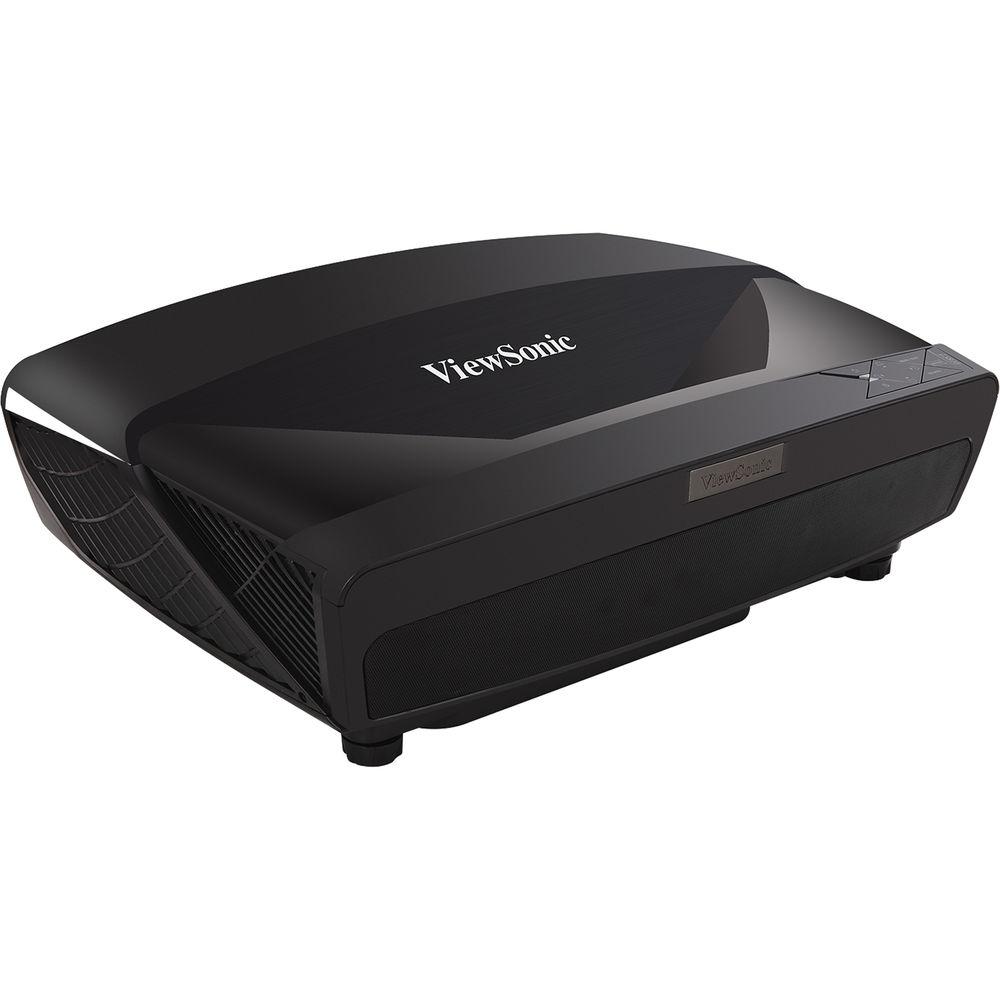

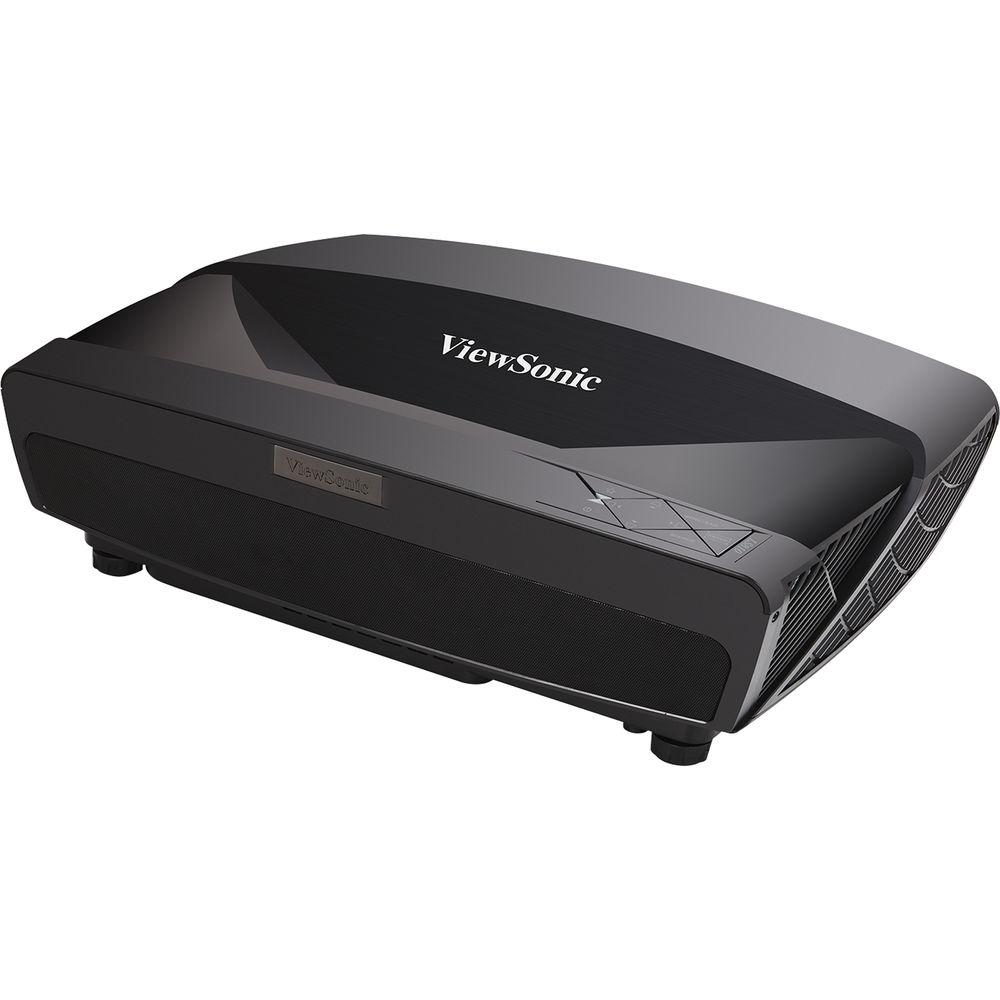

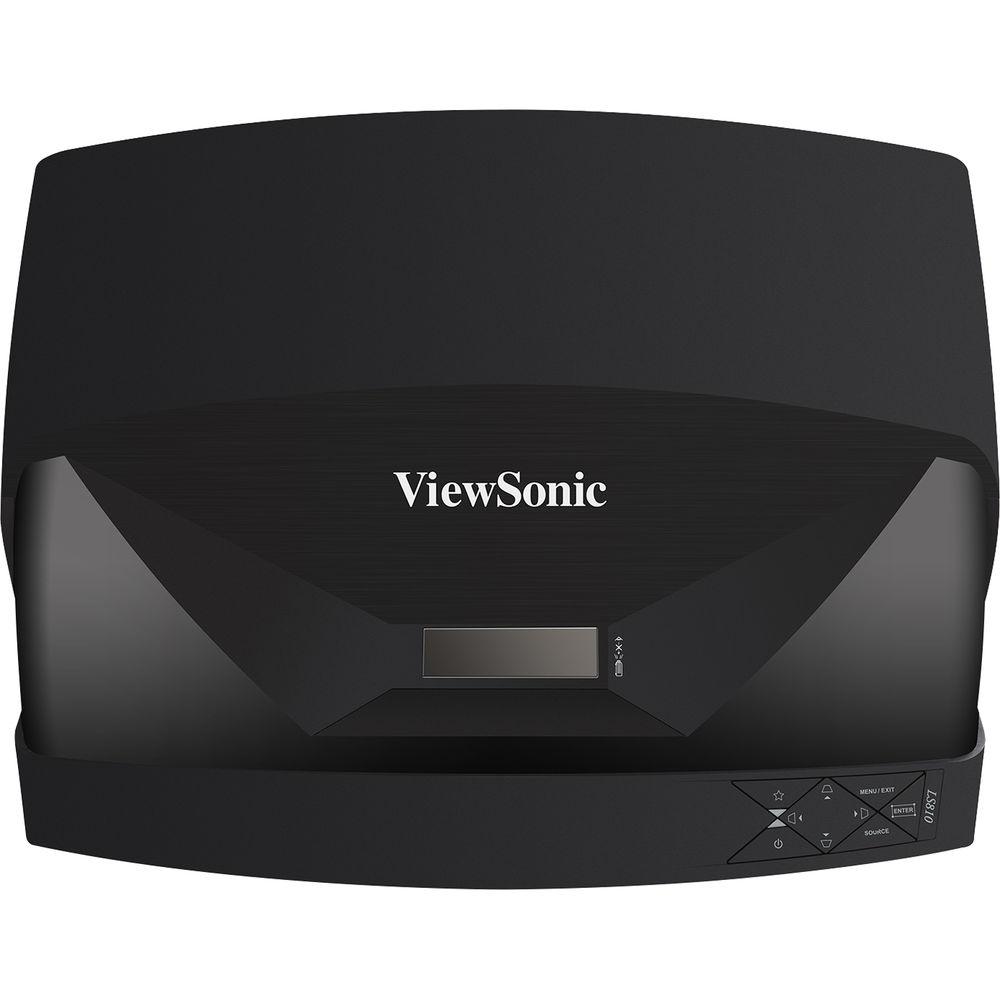

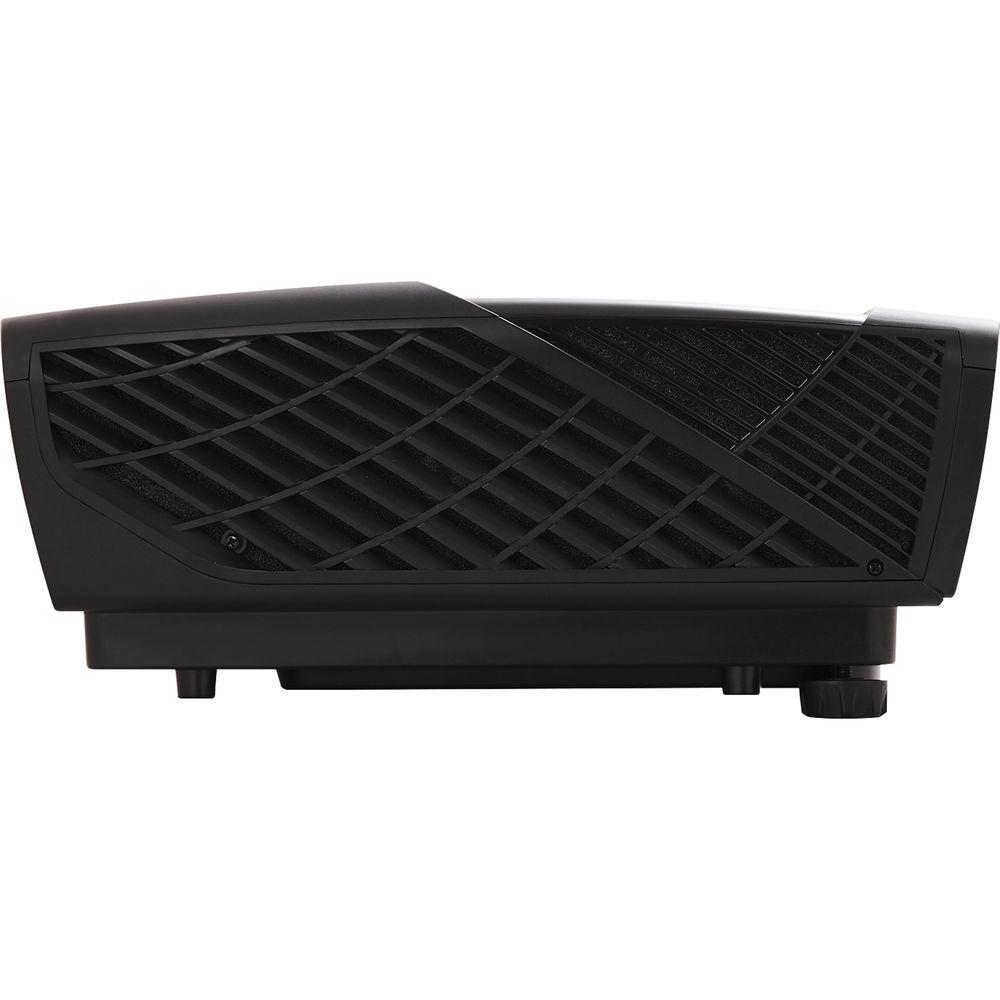

User Manual for ViewSonic LS810 5200-Lumen WXGA Ultra-Short Throw DLP Projector Click to enlarge the picture
Contents of the user manual for the ViewSonic LS810 5200-Lumen WXGA Ultra-Short Throw
- Product category: Multimedia Projectors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Multimedia Projectors
 |
User manual for the ViewSonic LS810 5200-Lumen WXGA Ultra-Short Throw contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|
Product description Enjoy shadowless images in most installations with the ViewSonic LS810 5200-Lumen WXGA Ultra-Short Throw DLP Projector. It features an ultra-short 0.23:1 throw ratio, which will allow it to be mounted only 1.21' from your screen, wall, or whiteboard and project an image as large as 70", or 2.6' from your projection surface for a 150" image, reducing the risk of possible shadows. Its 5200 lumens of brightness, combined with its 100,000:1 dynamic contrast ratio, will help it overcome ambient light in many situations and retain detail in dark areas of the image without compromising overall brightness. The 1280 x 800 native resolution will help ensure that text is clear at most viewing distances.

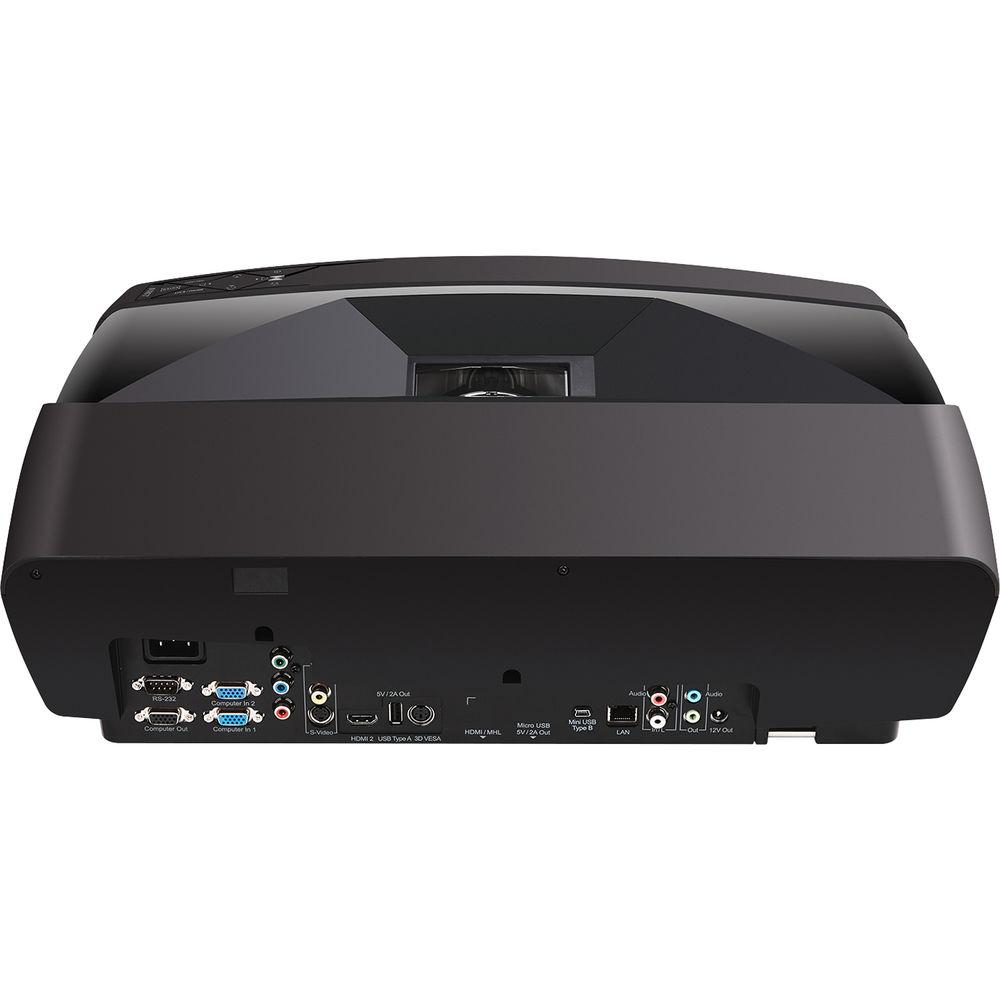

The LS810 features USB, S-Video, RCA composite, and two HDMI inputs to support various sources. One HDMI input is MHL-compatible, which will allow you to connect your compatible smart device directly to the projector to mirror its screen. The USB input allows you to project directly from a Windows or Mac computer. You can output the video to another projector or display with the VGA output. Its 1/8" audio inputs and output allow for audio transmission, for a more immersive experience. An IR remote is included for convenient control, plus a VGA cable and an HDMI cable for virtually instant connectivity. - Long-Lasting Laser Phosphor Light Source
- Designed with a laser phosphor light source lasting up to 20,000 hours, the LS810 is designed to deliver long-term, virtually maintenance-free usage, for a lower overall total cost of ownership.
- 5200-Lumen Brightness
- The 5200 lumens of brightness of the LS810 is designed to produce bright images in spaces with high ambient light including boardrooms, classrooms, and public spaces.
- Large Images in Small Spaces
- A short throw lens enables large images to be projected from short distances to minimize the risk of shadows from the presenter or passers-by.
- High Dynamic Contrast Ratio
- A 100,000:1 dynamic contrast ratio helps enhance fine shades of gray, a key characteristic for delivering enhanced clarity and detail.
- PortAll for Discreet Wireless Streaming
- This projector includes ViewSonic's PortAll feature—a hidden compartment with an integrated MHL/HDMI port that lets you discreetly stream multimedia content from an optional wireless dongle, or lets you connect to other devices via an HDMI cable. Additionally, an integrated micro-USB cable lets you quickly and easily power micro-USB-enabled devices.
- SuperColor for Enhanced Color Accuracy
- ViewSonic's SuperColor technology features a six-segment color wheel and dynamic lamp control capabilities, helping to provide a wide color range.
- SonicExpert Technology

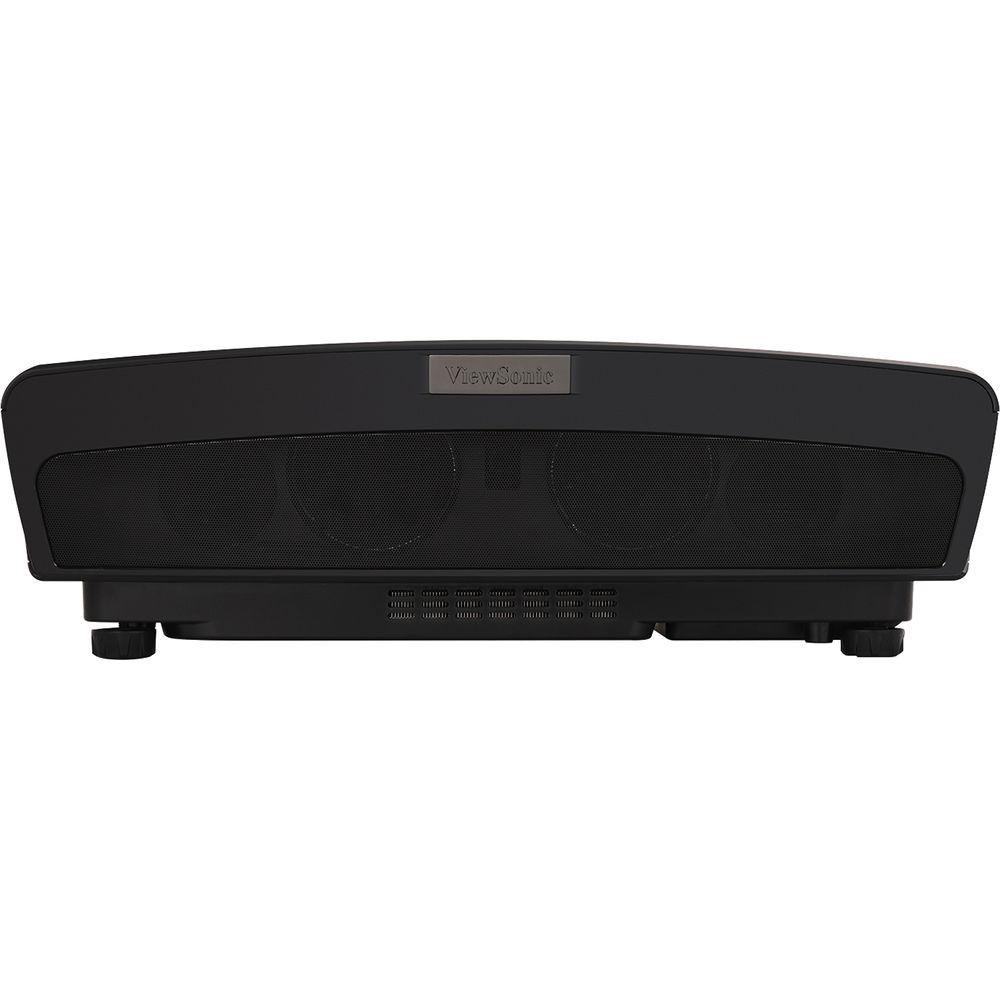

- The LS810 is designed with ViewSonic's SonicExpert technology, which is designed to incorporate an enlarged speaker chamber to deliver a full 20 Hz to 20 kHz sound range from the dual integrated speakers.
UPC: 766907847413 In the Box ViewSonic LS810 5200-Lumen WXGA Ultra-Short Throw DLP Projector Remote Control with Batteries HDMI Cable VGA Cable Power Cable Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic LS810 5200-Lumen WXGA Ultra-Short Throw DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic LS810 Specs | | | Display System | DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | 5200 Lumens | | Aspect Ratio | Native: 16:10
Supported: 16:9 | | Dynamic Contrast Ratio | 100,000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 100 kHz
Vertical: 24 to 120 Hz | | | | Throw Distance | 1.21 - 2.6' / 0.369 - 0.792 m | | Throw Ratio | 0.23:1 | | Projection Size | 70 - 150" / 177.80 - 381.00 cm | | | | Keystone Correction | Vertical: ± 30°

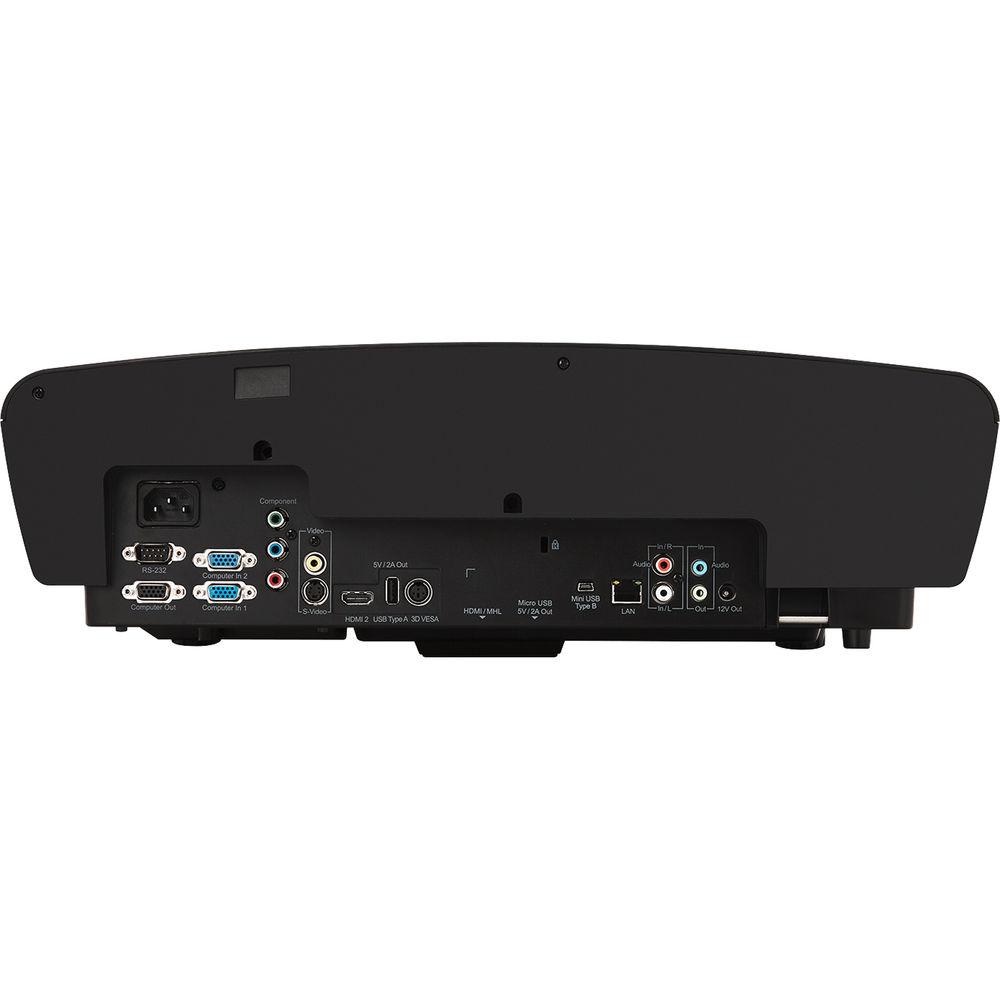

Horizontal: ± 30° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 16W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
1 x USB Power (Output)
1 x Micro-USB Audio/Video (Input)
2 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x Mini-USB Audio/Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Composite (RCA) Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x 1/8" (3.5 mm) Mini Control (Output) | | | | Light Source | Laser Phosphor | | Lamp Power | 390 W | | Expected Lamp Life | Medium Brightness: 15,000 Hours
Low Brightness: 20,000 Hours | | Security | Password Protection | | Supported Languages | Arabic
Czech
Dutch
English
Finnish
French
German
Hindi
Indonesian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 450 W
Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | 9842' / 3000 m | | Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 0 - 90% | | Dimensions (W x H x D) | 20.0 x 6.5 x 15.4" / 50.8 x 16.5 x 39.1 cm | | Weight | 22.05 lb / 10.00 kg | | | | Package Weight | 36.5 lb | | Box Dimensions (LxWxH) | 23.5 x 22.5 x 14.0" |
