User Manual for ViewSonic LS820 Full HD 3500-Lumen Ultra-Short Throw Laser Projector Click to enlarge the picture
Contents of the user manual for the ViewSonic LS820 Full HD 3500-Lumen Ultra-Short
- Product category: Multimedia Projectors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Multimedia Projectors
 |
User manual for the ViewSonic LS820 Full HD 3500-Lumen Ultra-Short contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

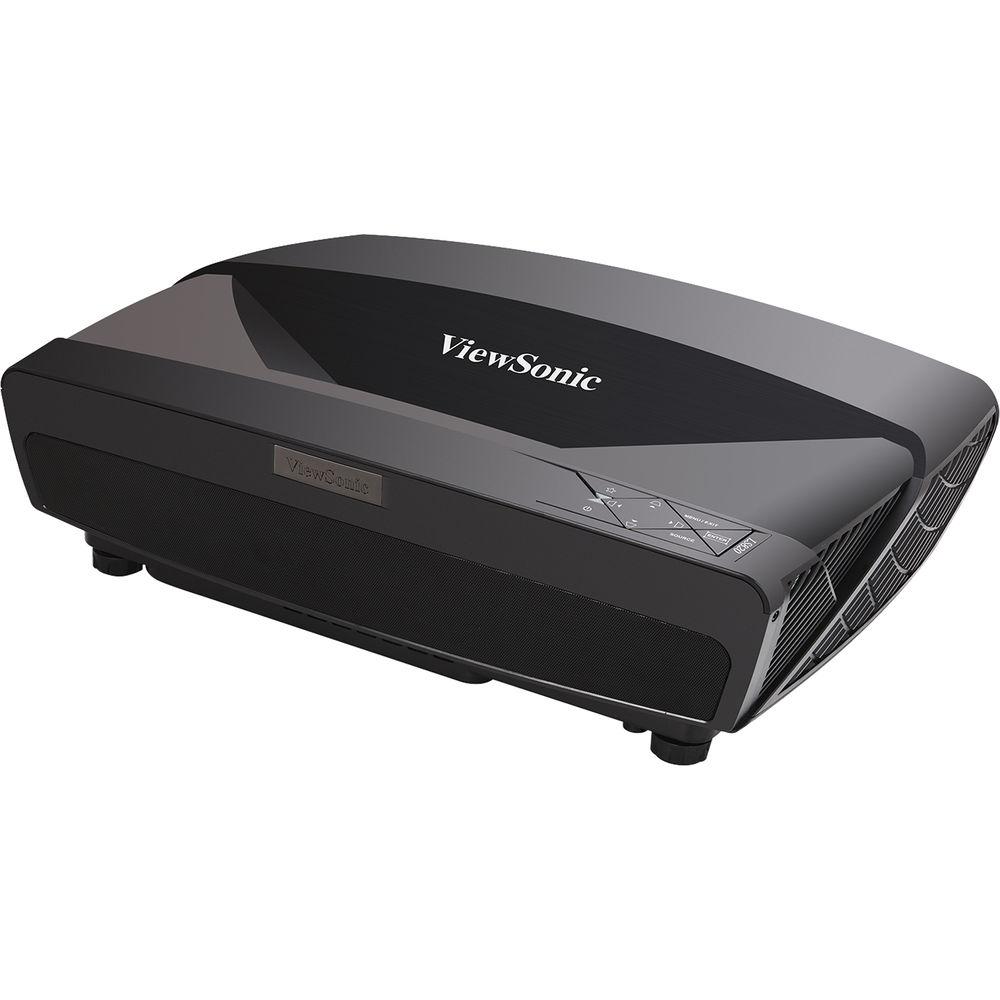

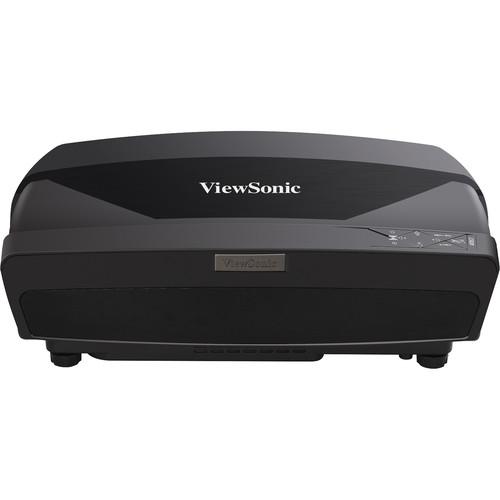

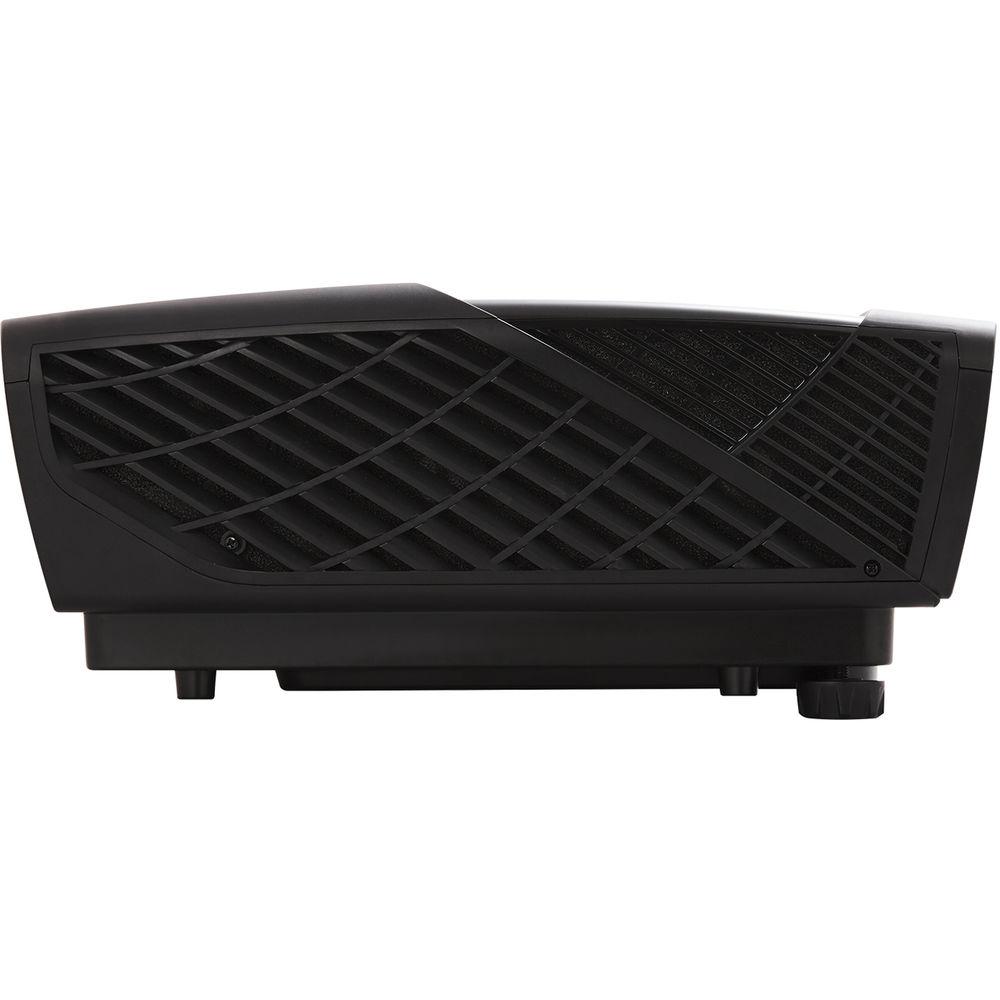

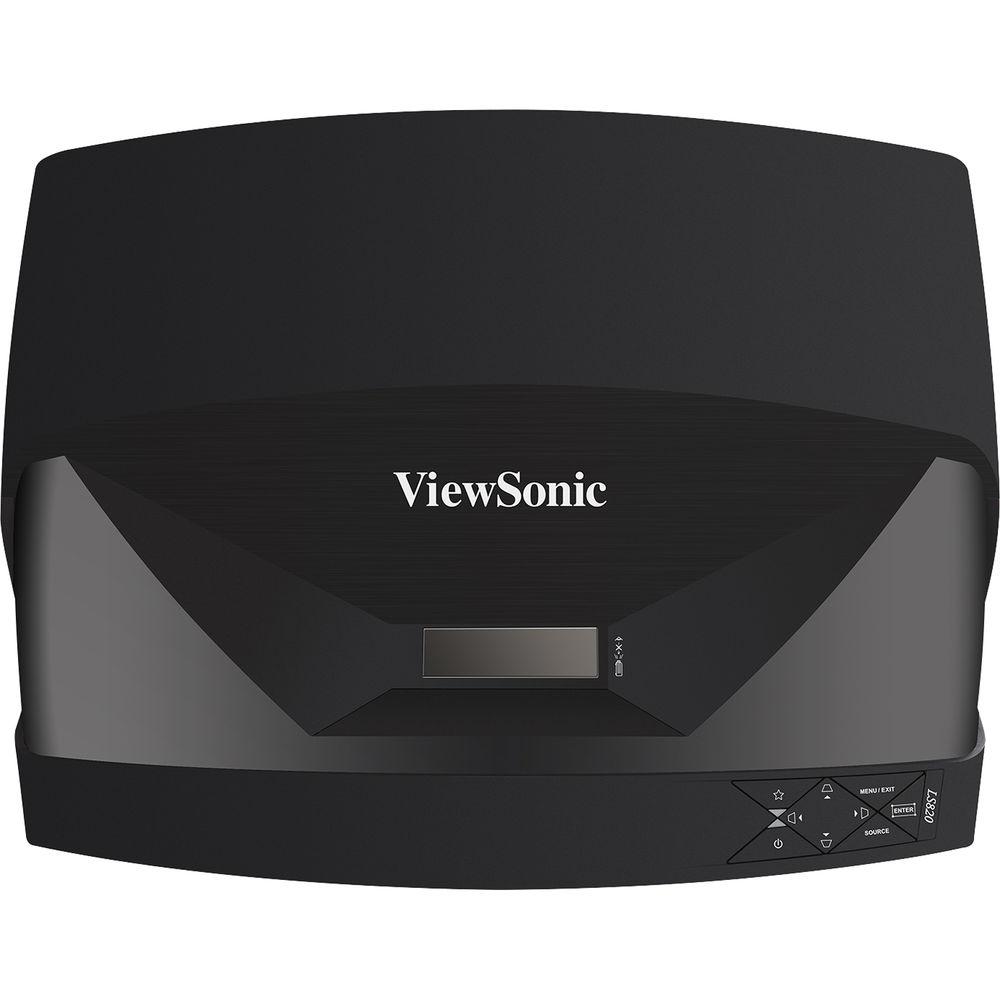

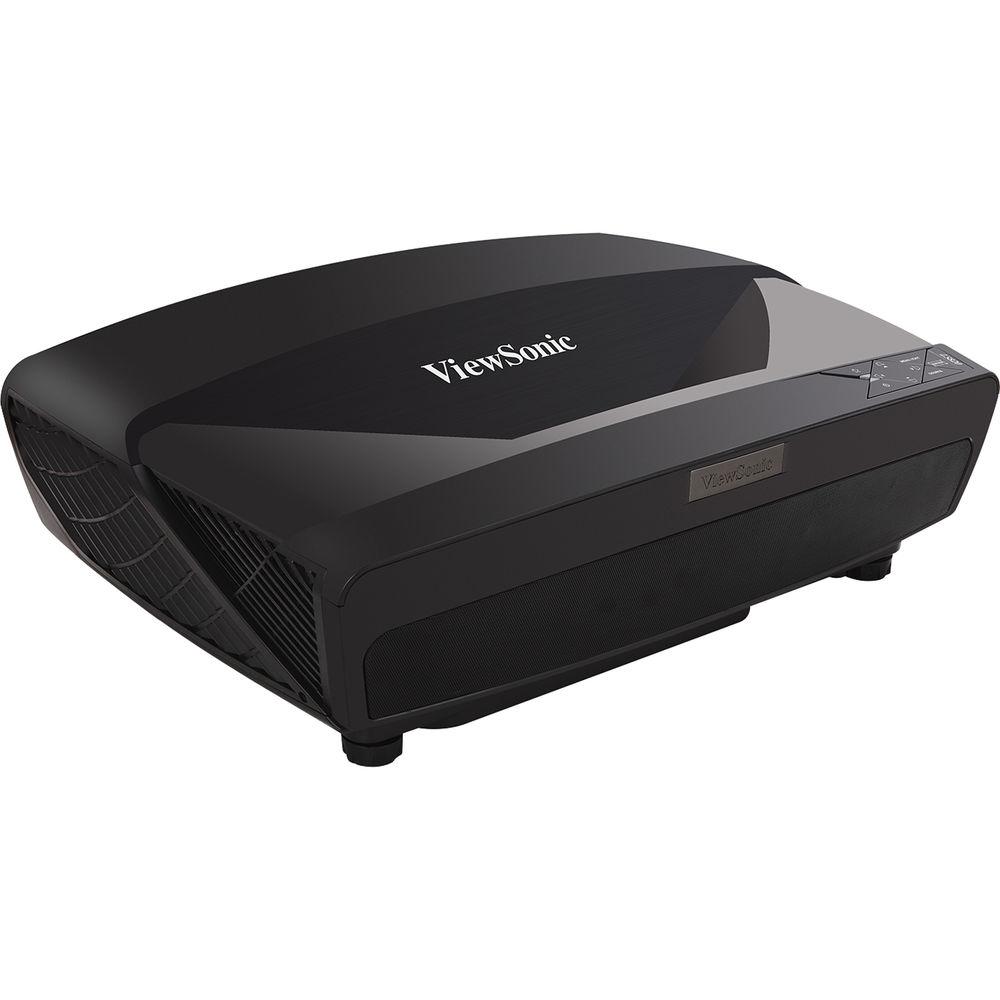

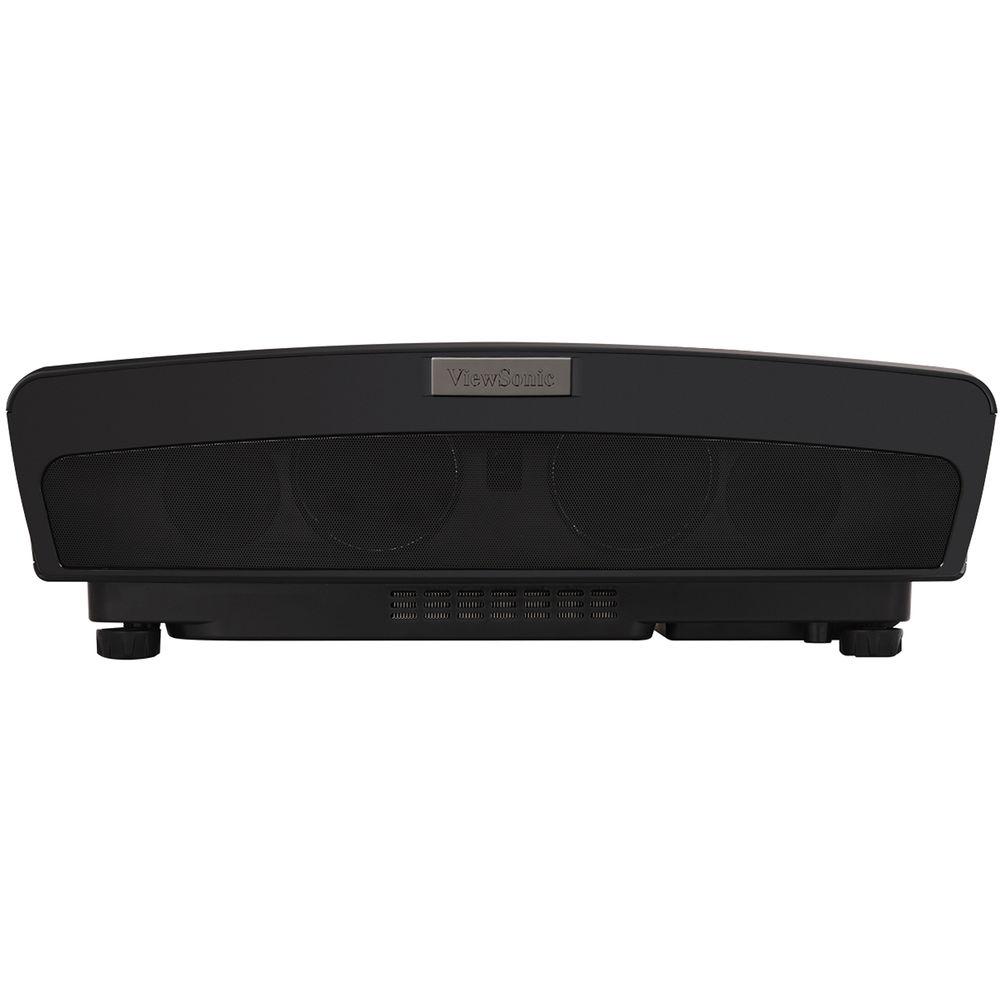

Product description The LS820 Full HD 3500-Lumen Ultra-Short Throw Laser Projector from ViewSonic features a Full HD (1920 x 1080) resolution and 3500 lumens of brightness. With a 0.23:1 ultra-short throw ratio, this projector can be placed on your home entertainment stand, just inches away from a wall or screen, and project an immersive 100" image. And with stunning 1080p resolution and Rec. 709 color accuracy, this projector delivers a cinema-like experience.
The LS820 also features a hidden PortAll compartment that accommodates additional accessories such as a wireless streaming device or PC stick. Powered by SuperColor technology for true-to-life images, and SonicExpert technology for clear sound, the LS820 delivers an immersive audiovisual performance. - Long-lasting laser phosphor light source
- Full HD (1080p) resolution
- Ultra-high contrast ratio
UPC: 766907847512 In the Box ViewSonic LS820 Full HD 3500-Lumen Ultra-Short Throw Laser Projector Remote Control/Laser Pointer with Batteries Power Cable VGA Cable HDMI Cable Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Light Source More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic LS820 Full HD 3500-Lumen Ultra-Short Throw Laser Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic LS820 Specs | | | Display System | DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Max Brightness | 3500 Lumens | | Aspect Ratio | Native: 16:9
Supported: 16:10
Supported: 4:3
Supported: 2.35:1 | | Dynamic Contrast Ratio | 100,000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Frame Sequential
Frame Packing
Side by Side
Top Bottom | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 100 kHz
Vertical: 24 to 120 kHz | | | | Focus | Manual | | Optical Zoom | None | | Throw Distance | 1.21 - 2.62' / 36.881 - 79.858 cm | | Throw Ratio | 0.23:1 | | Projection Size | 70 - 150" / 1.78 - 3.81 m | | | | Keystone Correction | Manual-Vertical: + 30°
Manual-Vertical: - 12°

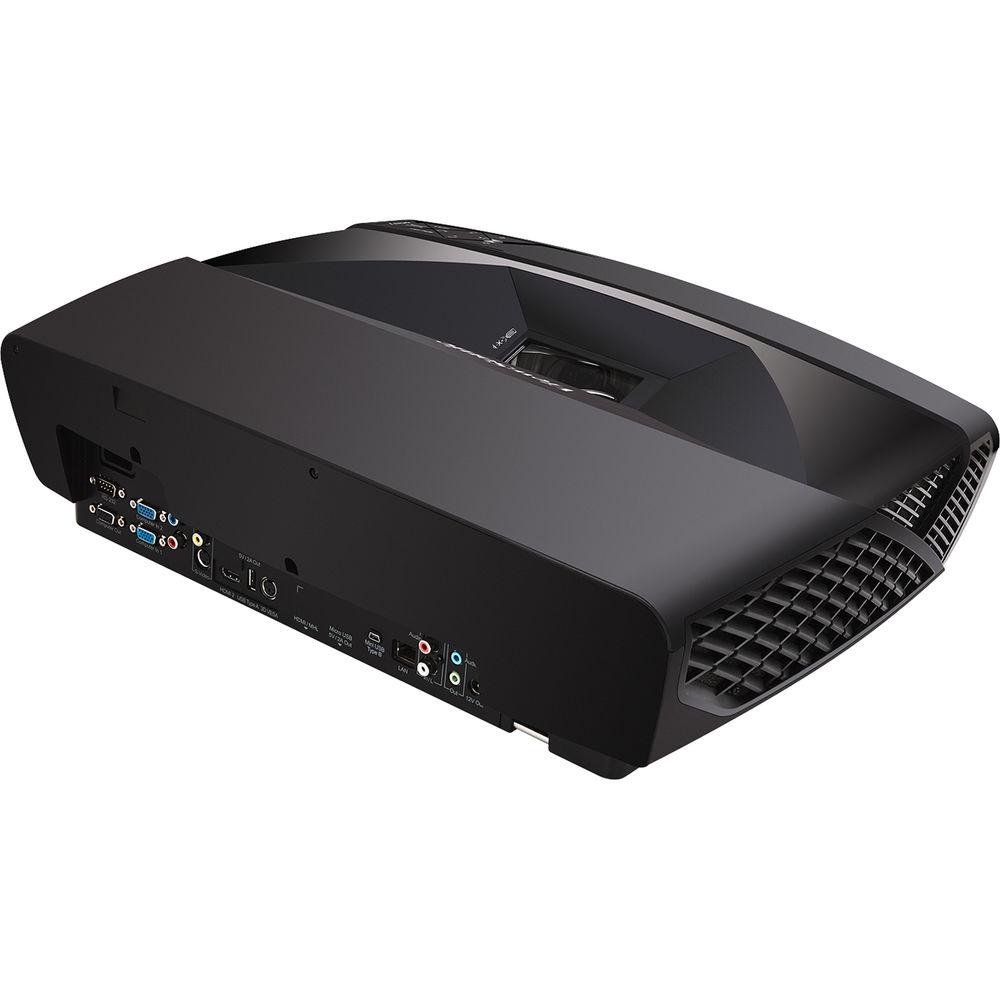

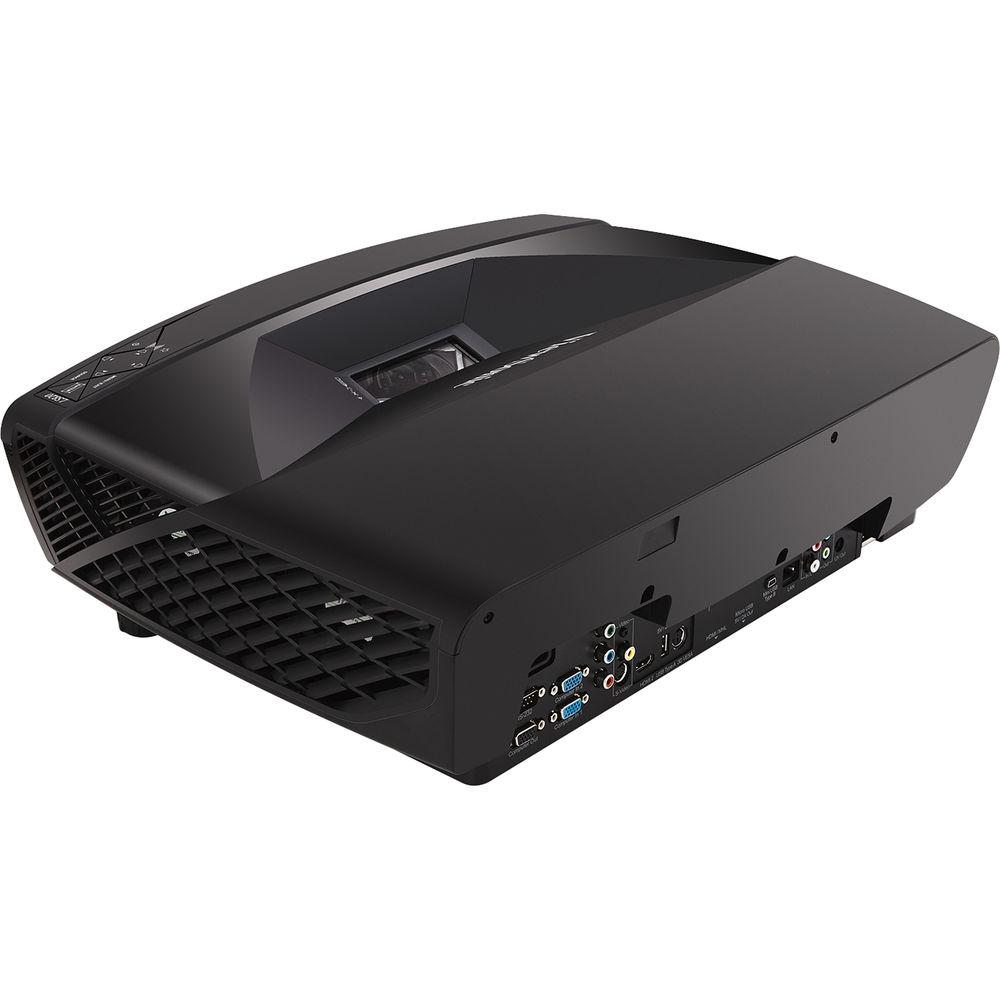

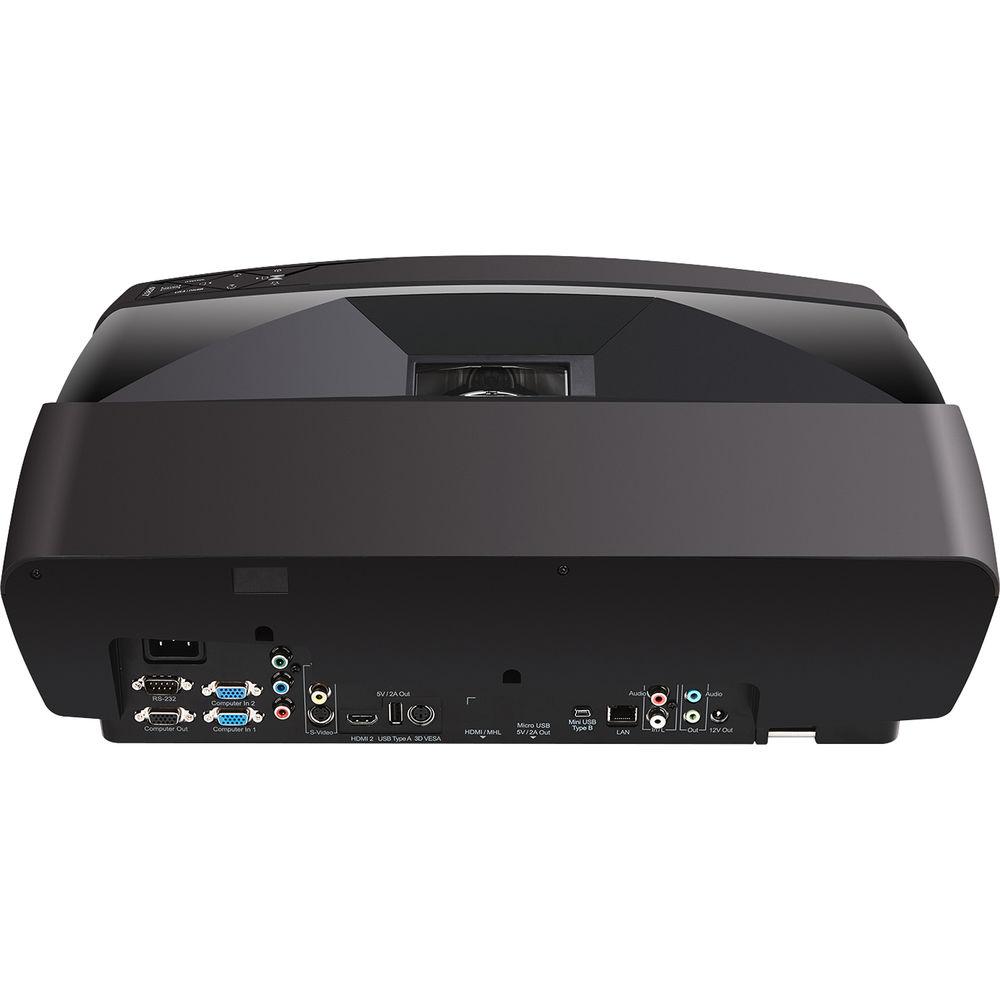

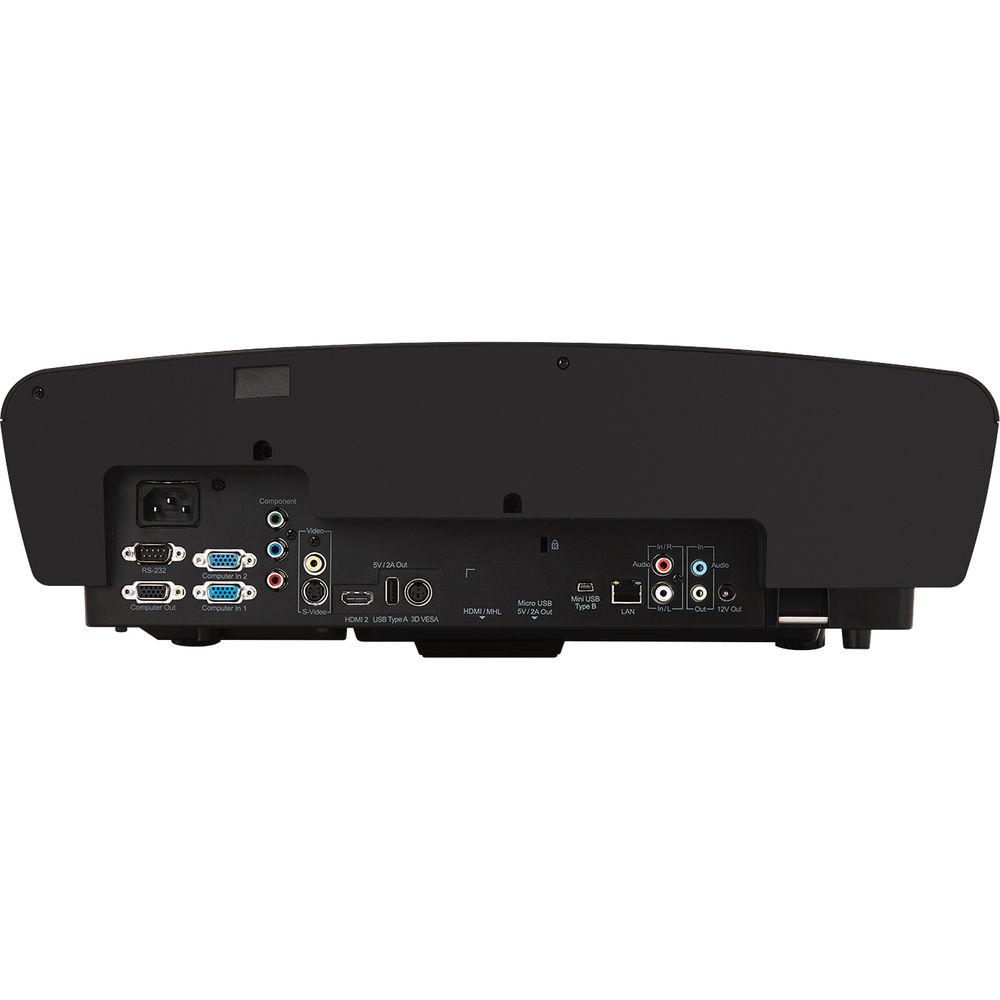

Manual-Horizontal: ± 30° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 16W | | | | Inputs/Outputs | 1 x HDMI (HDMI Type-A) Audio, Video Input
1 x HDMI with MHL Support (HDMI Type-A) Audio, Video Input
2 x VGA (DE-15) Video Input
1 x Component (3RCA) Video Input
1 x Composite (RCA) Video Input
1 x S-Video (4-Pin DIN) Video Input
1 x Composite (2RCA) Audio Input
1 x 1/8" (3.5 mm) Mini Audio Input
1 x VGA (DE-15) Video Output
1 x 1/8" (3.5 mm) Mini Audio Output
1 x Ethernet (RJ45) Control, Service
1 x USB 2.0 (USB Type-A) Power Output
1 x USB 2.0 (Mini-USB) Control, Service
1 x USB 2.0 (Micro-USB) Power Output
1 x VESA 3D Sync (4-Pin DIN) Control Output
1 x RS-232 (DE-9) Control, Service Input/Output
1 x 12 V Trigger Control Output | | Memory Card Slot | None | | Wireless LAN / Wi-Fi | None | | | | Light Source | Laser Phosphor | | Lamp Power | 390 W | | Expected Lamp Life | Medium Brightness: 15,000 Hours
Low Brightness: 20,000 Hours | | Fan Noise | Low Brightness: 28 dB | | Security | Cable Lock Slot
Password Protection
Security Bar | | Supported Languages | Arabic
Czech
Dutch
English
Finnish
French
Hindi
Indonesian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Thai
Turkish | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 450 W
Standby Mode (Lamp Off): <0.5 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 - 90% | | Dimensions (W x H x D) | 20.0 x 6.5 x 15.4" / 50.8 x 16.5 x 39.1 cm | | Weight | 30.00 lb / 13.61 kg | | | | Package Weight | 37.5 lb | | Box Dimensions (LxWxH) | 23.5 x 22.5 x 14.0" |
