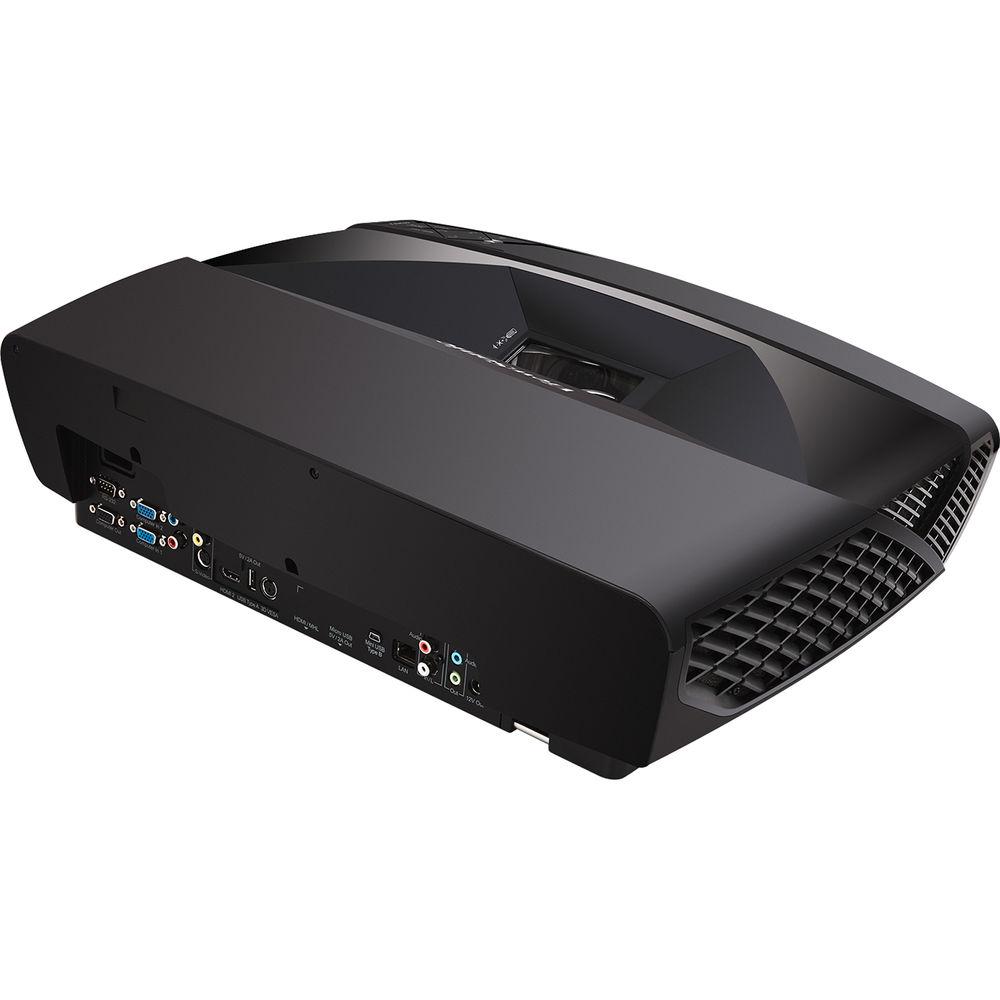

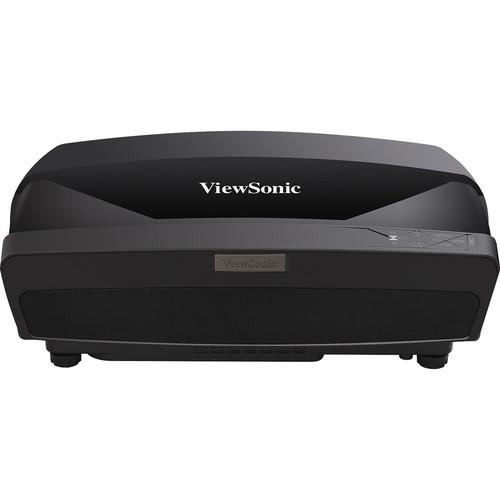

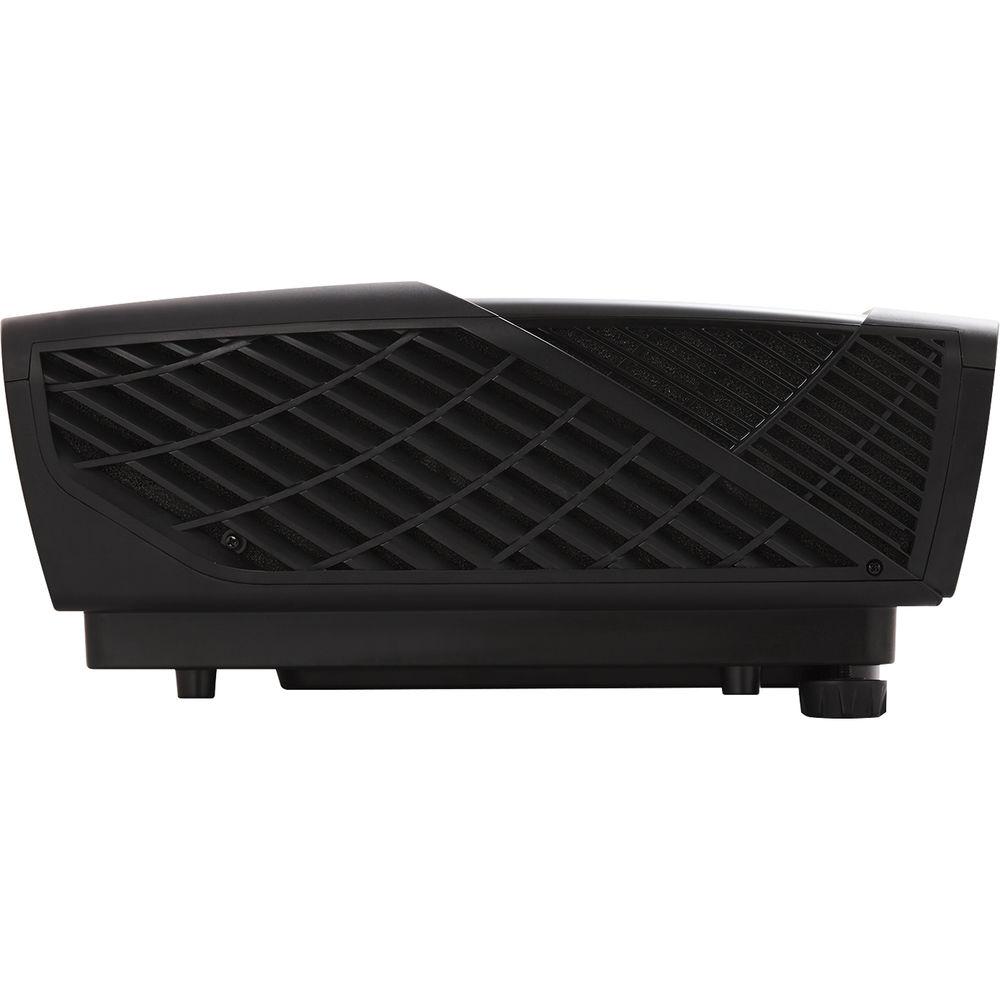

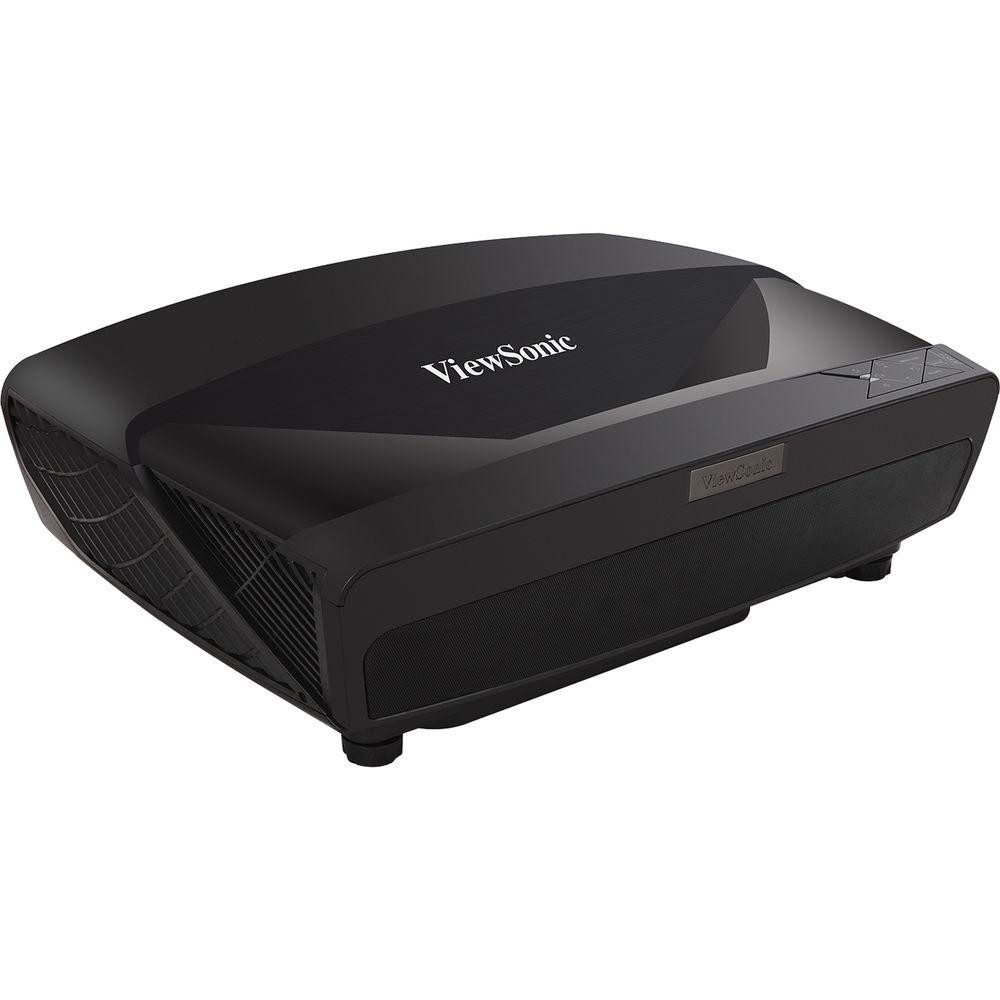

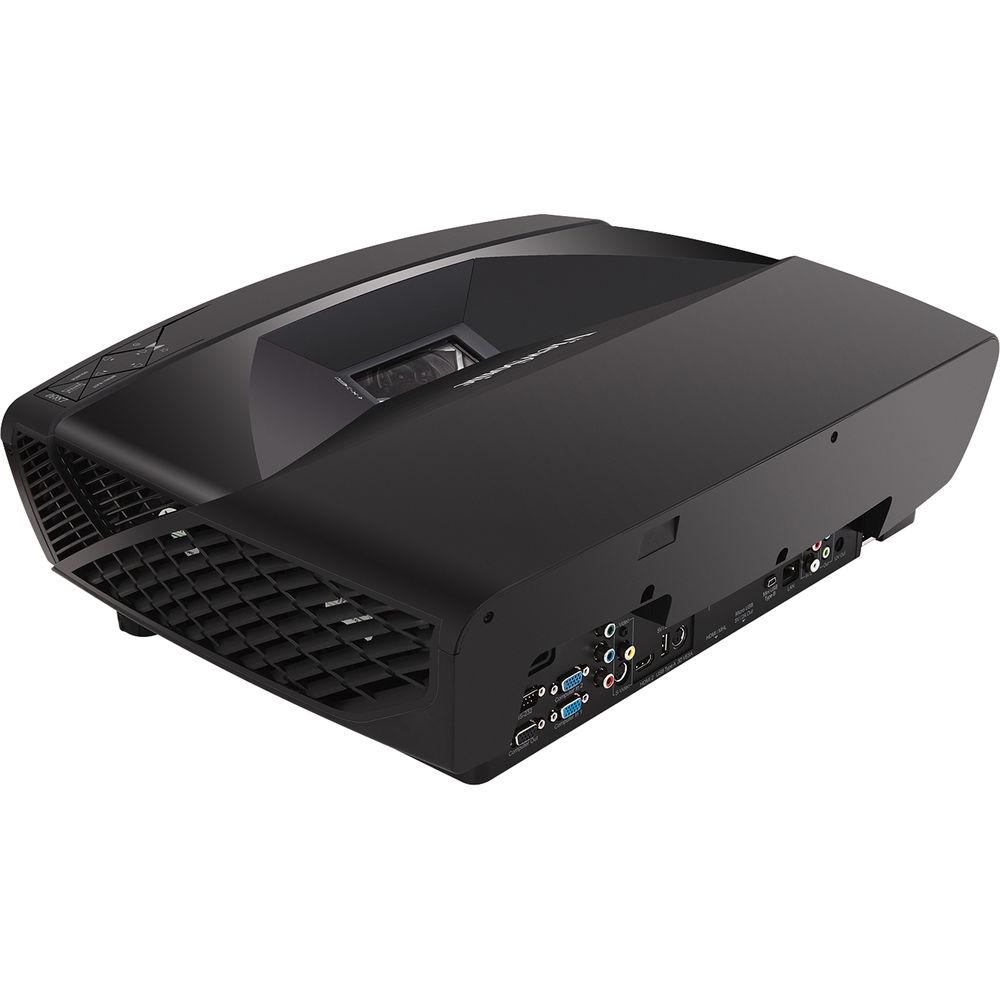

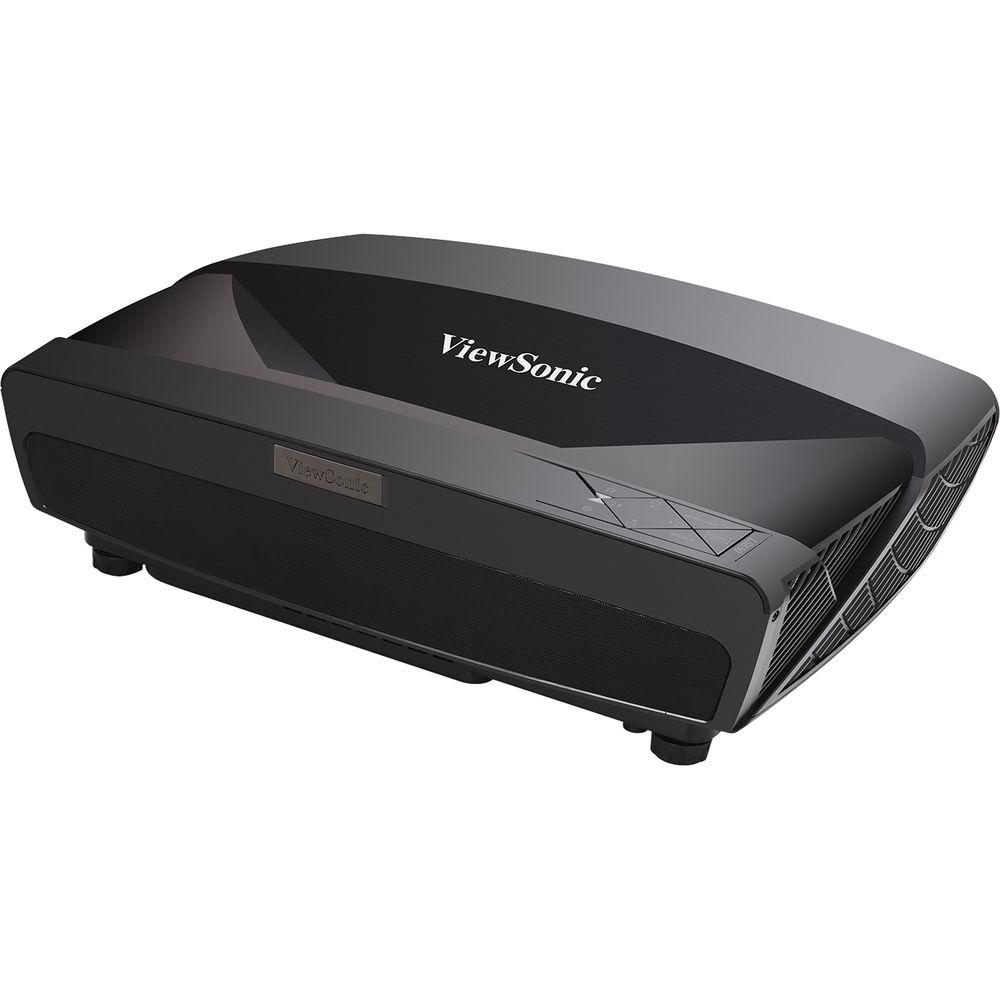

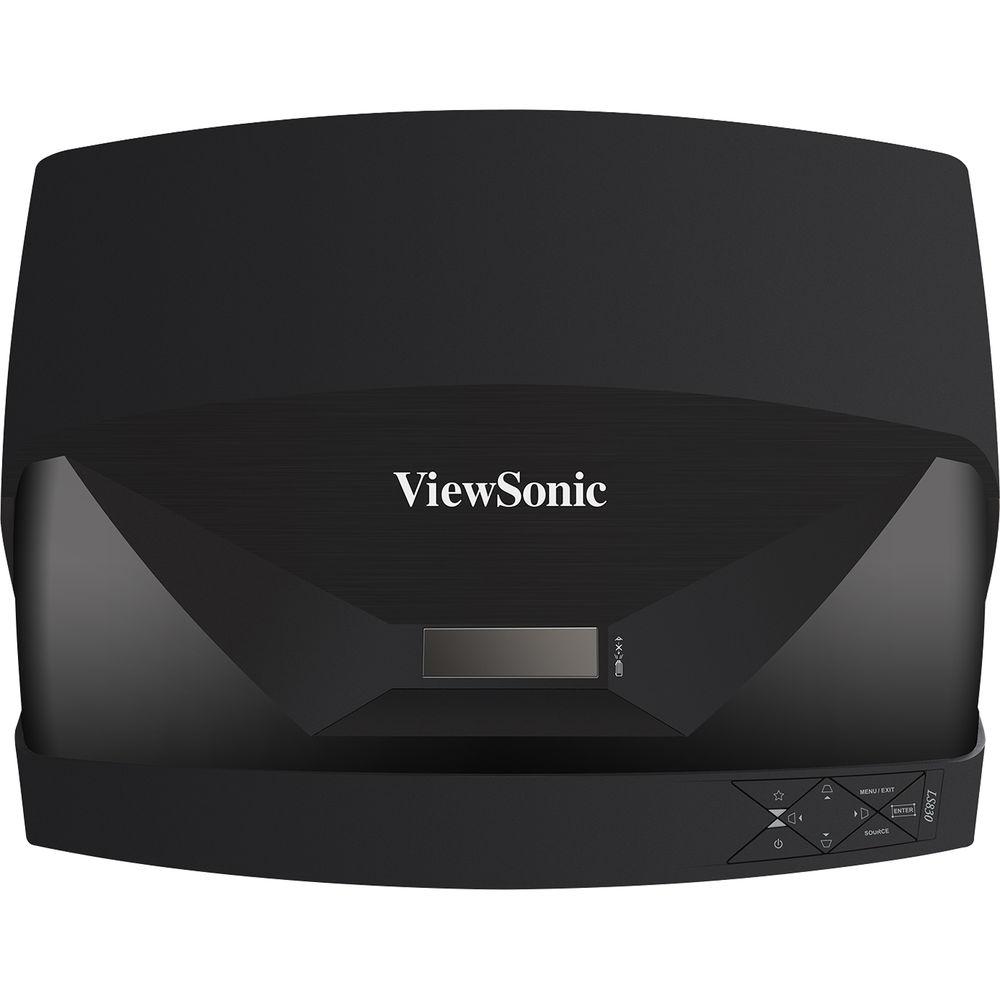

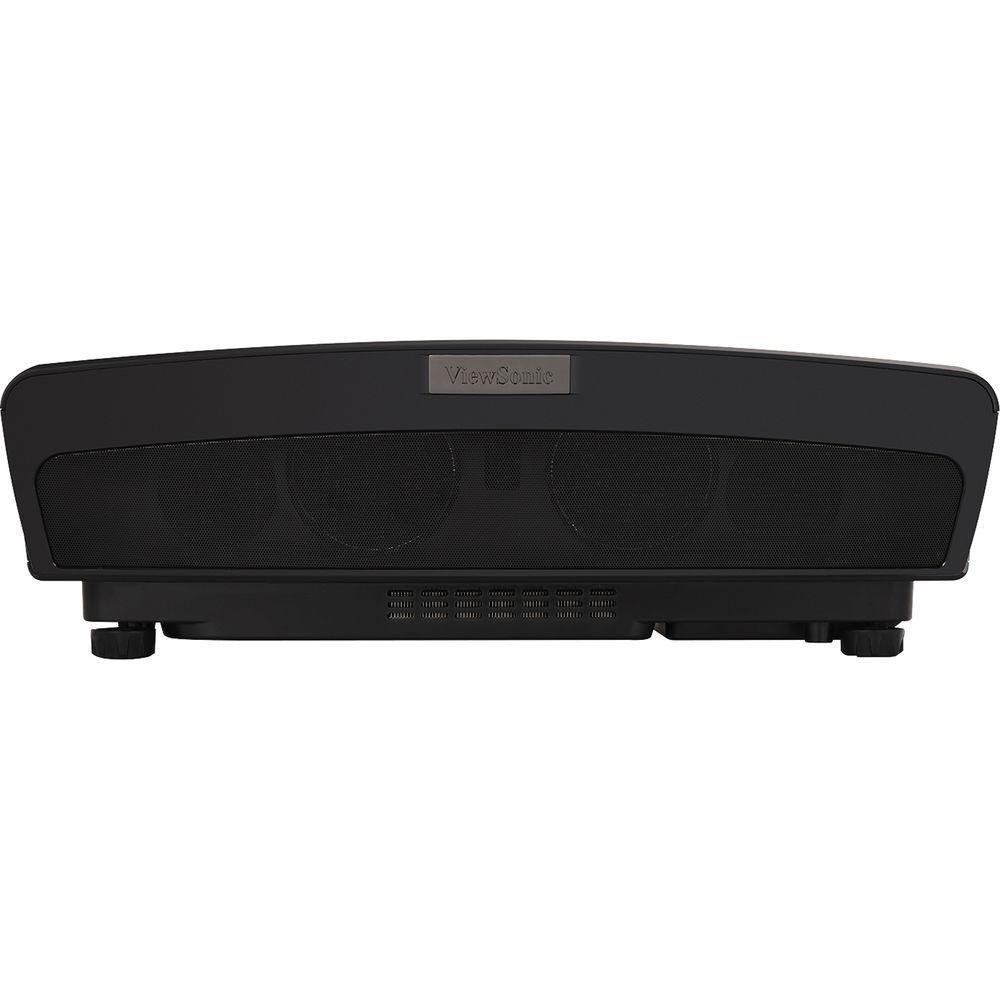

User Manual for ViewSonic LS830 4500-Lumen Full HD Ultra-Short Throw Laser DLP Projector Click to enlarge the picture
Contents of the user manual for the ViewSonic LS830 4500-Lumen Full HD Ultra-Short
- Product category: Multimedia Projectors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Multimedia Projectors
 |
User manual for the ViewSonic LS830 4500-Lumen Full HD Ultra-Short contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|
Product description Enjoy bright images in most environments with the ViewSonic LS830 4500-Lumen Full HD Ultra-Short Throw Laser DLP Projector. Its 4500 lumens of brightness can overcome ambient light in many situations, making it well suited for presentation areas such as boardrooms and classrooms. The Full HD 1920 x 1080 native resolution is suitable for displaying many file and document types. The projector features an ultra-short 0.23:1 throw ratio, allowing you to place it very near your projection surface to avoid cast shadows or to facilitate use in small rooms.

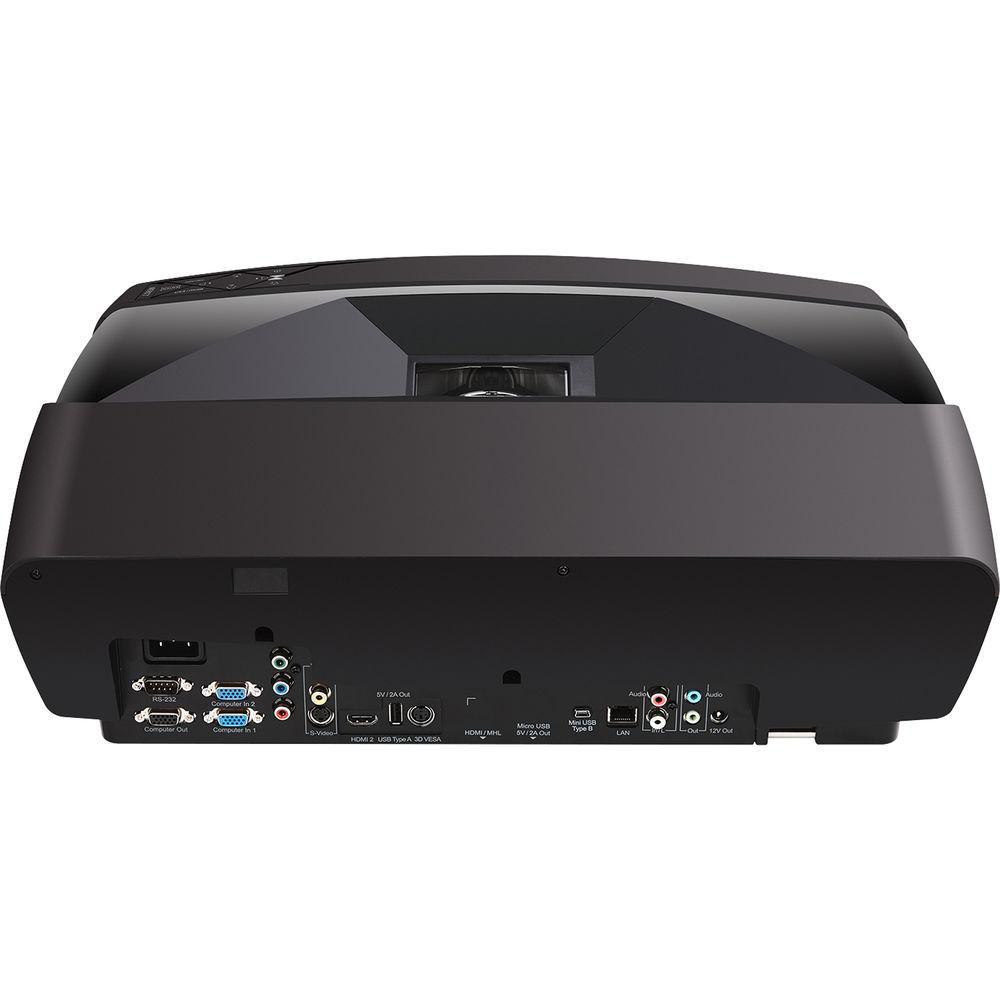

The LS830 has two HDMI inputs for connecting digital high-definition sources such as Blu-ray players and HD cable/satellite boxes. One HDMI input is MHL-compatible for wired streaming of your mobile content while simultaneously charging your device. The projector also has two VGA inputs for analog sources, plus an RCA component video, composite video, and S-Video input. Its HDMI inputs are 3D-capable for viewing 3D Blu-ray discs with other compatible equipment, which is available separately. A VGA output allows daisy-chaining of multiple projectors or displays. The LS830 includes a VGA cable and an IR remote control with a built-in laser pointer. - Long-Lasting Laser Phosphor Light Source
- The laser phosphor light source lasts up to 20,000 hours for virtually maintenance-free usage and a lower total cost of ownership.
- 4500 Lumens of Brightness
- The LS830 combines 4500 lumens of brightness with a 100,000:1 dynamic contrast ratio to produce clear images in nearly any environment. The dynamic contrast ratio is designed to enhance even the finest shades of gray to deliver enhanced quality and detail for sharp images.
- Large Images in Small Spaces
- The short-throw lens enables large images to be projected from short distances, minimizing shadows on the image while allowing you to project in small rooms.
- PortAll Enclosed MHL/HDMI Adapter Compartment
- ViewSonic's PortAll feature utilizes a hidden compartment with an integrated and secure MHL/HDMI port that lets you discreetly stream multimedia content from a wireless adapter or connect to other devices via an HDMI cable.
- SuperColor for Enhanced Color Accuracy
- ViewSonic's SuperColor technology features a six-segment color wheel and dynamic lamp control capabilities, helping to provide a wide color range.
- SonicExpert Technology
- ViewSonic's SonicExpert technology incorporates dual 8W speakers to deliver a full 20 Hz to 20 kHz frequency range.
UPC: 766907843217 In the Box ViewSonic LS830 4500-Lumen Full HD Ultra-Short Throw Laser DLP Projector Laser Pointer Remote Control with Batteries HDMI Cable VGA Cable Power Cable Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic LS830 4500-Lumen Full HD Ultra-Short Throw Laser DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic LS830 Specs | | | Display System | DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Max Brightness | 4500 Lumens | | Aspect Ratio | Native: 16:9 | | Dynamic Contrast Ratio | 100,000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Frame Packing (up to 1080p)
Side by Side (up to 1080i)
Top Bottom (up to 1080p) | | Color Wheel | 6-Segment | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 100 kHz
Vertical: 24 to 120 Hz | | | | Focus | Manual | | Optical Zoom | None | | Throw Distance | 1.21 - 2.62' / 0.369 - 0.799 m | | Throw Ratio | 0.23:1 | | Projection Size | 70 - 150" / 177.80 - 381.00 cm | | | | Keystone Correction | Vertical: ± 30°
Horizontal: ± 30° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 16W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
2 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x Component (3RCA) Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Composite (RCA) Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x Ethernet (RJ45) LAN (Input/Output)
1 x USB 2.0 Power (Output)
1 x Micro-USB Power (Output)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x 12 V Trigger Control (Output)
1 x VESA 3D Sync Control (Output) | | Wireless LAN / Wi-Fi | None | | | | Light Source | Laser Phosphor | | Expected Lamp Life | Full Brightness: 15,000 Hours
Low Brightness: 20,000 Hours | | Fan Noise | Low Brightness: 28 dB | | Supported Languages | Arabic
Czech
Dutch
English
Finnish
French
German
Hindi
Indonesian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 450 W
Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | 9842' / 3000 m | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 - 90% | | Dimensions (W x H x D) | 20.0 x 6.5 x 15.4" / 50.8 x 16.5 x 39.1 cm | | Weight | 22.05 lb / 10.00 kg | | | | Package Weight | 36.5 lb | | Box Dimensions (LxWxH) | 23.5 x 22.3 x 14.0" |
