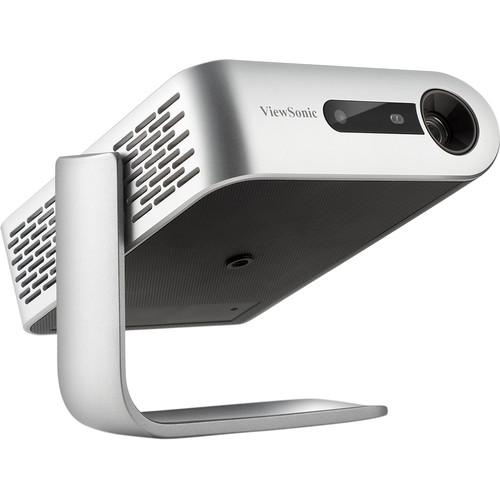

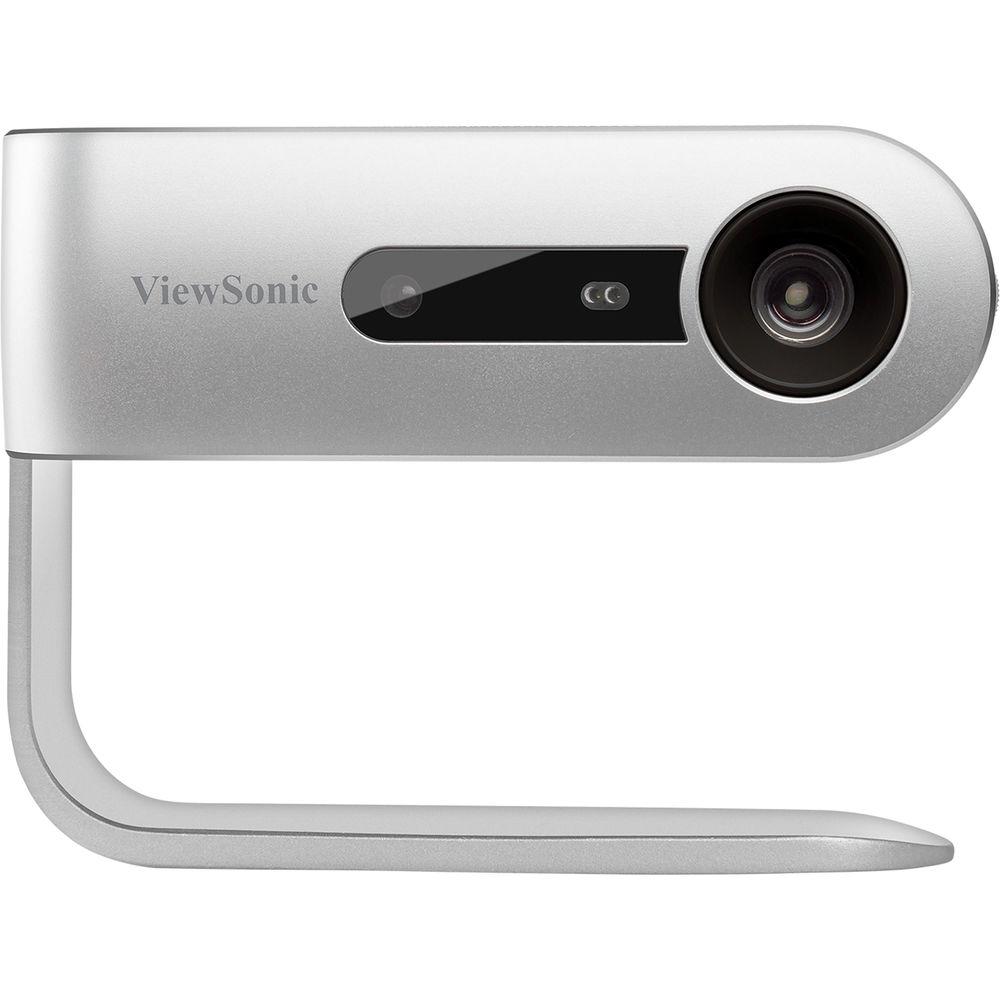

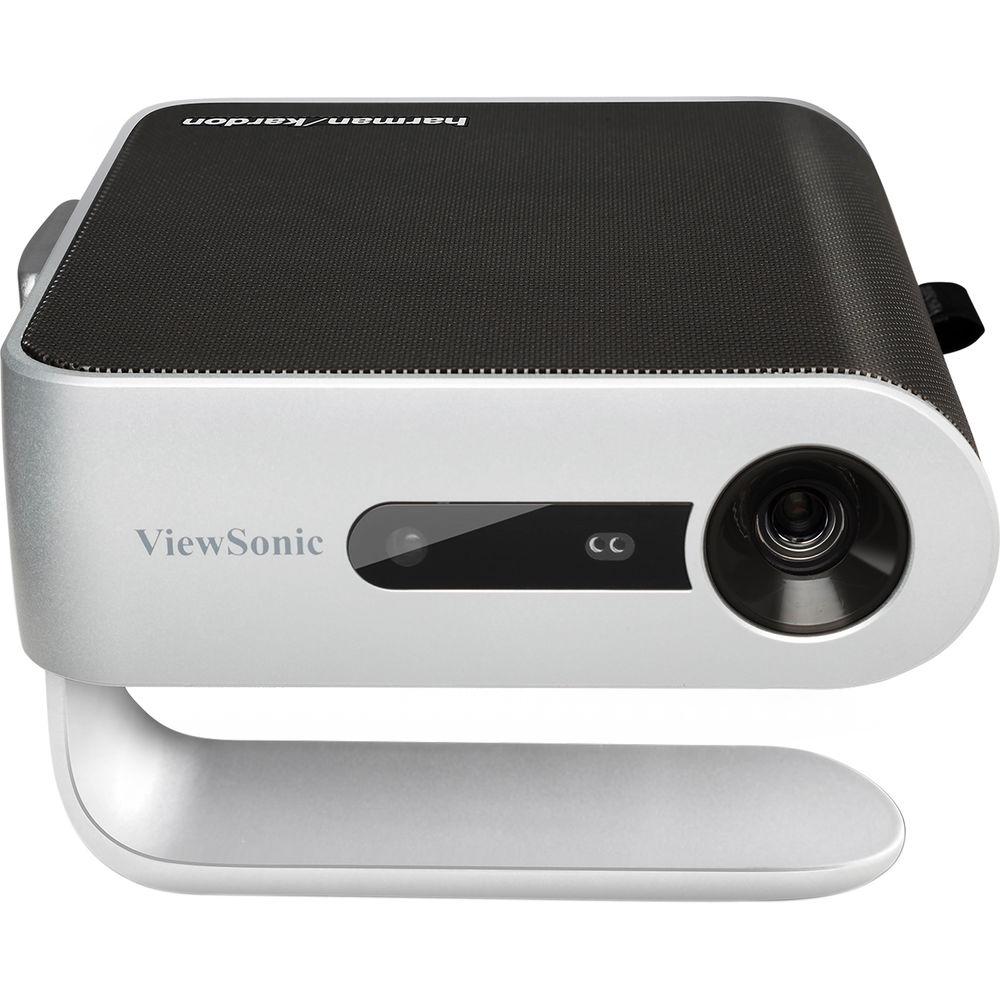

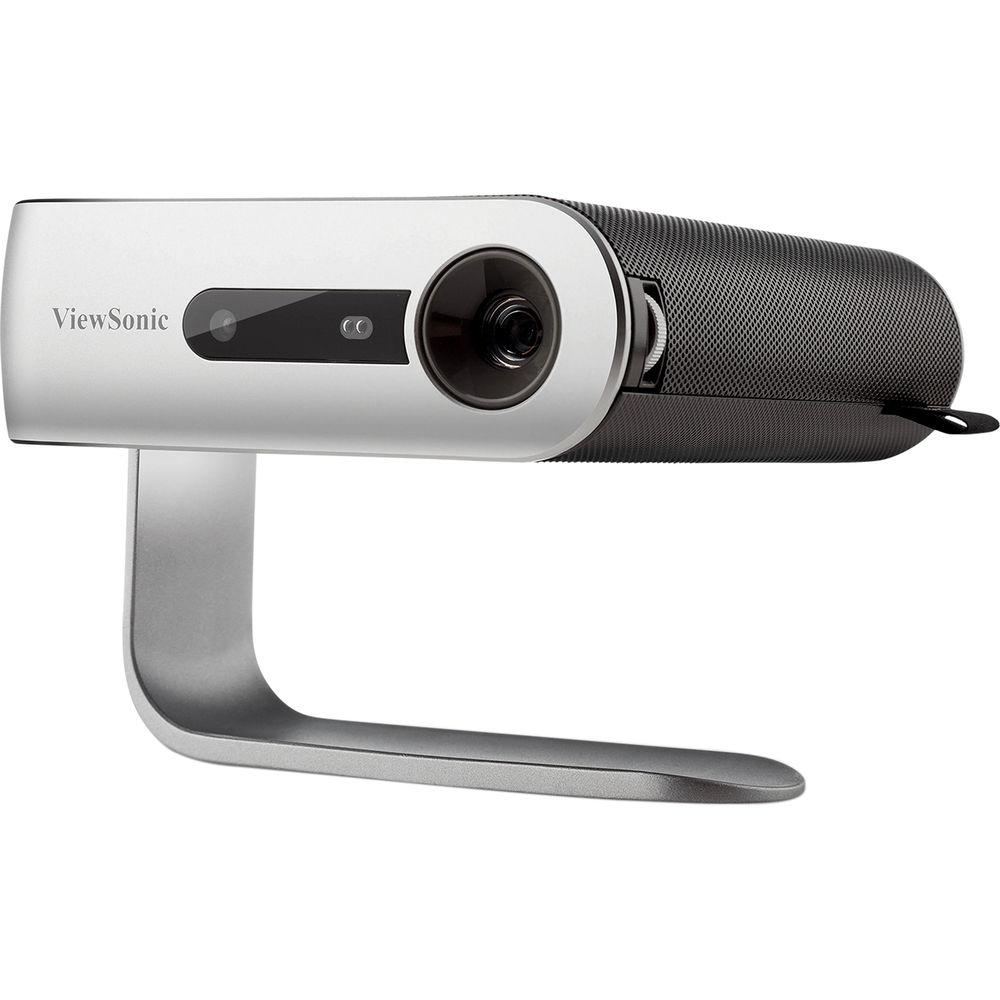

User Manual for ViewSonic M1 250-Lumen WVGA Pico Projector Click to enlarge the picture
Contents of the user manual for the ViewSonic M1 250-Lumen WVGA Pico Projector
- Product category: Pico Projectors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Pico Projectors
 |
User manual for the ViewSonic M1 250-Lumen WVGA Pico Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|
Product description Take your presentations on the go with the ViewSonic M1 250-Lumen WVGA Pico Projector. Its 250 lumens of brightness can produce images up to 100" diagonal in low-light conditions, and its 120,000:1 dynamic contrast ratio will help enhance dark areas of the image. The LED light source has an operating life of up to 30,000 hours in Eco mode.

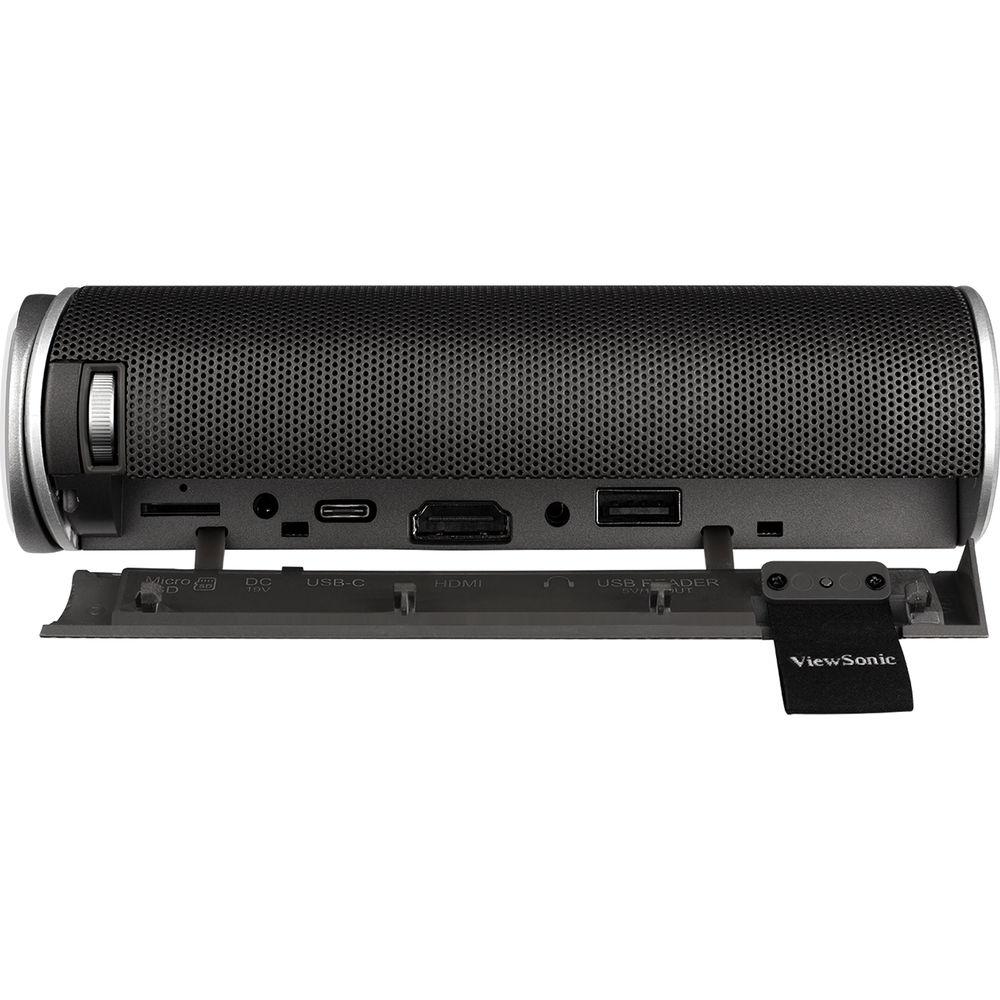

The M1 has dual 3W speakers built-in to eliminate the need for external speakers, simplifying its ease of transport and setup. It also has an onboard HDMI port, microSD slot, and USB Type-A and Type-C ports for added convenience. The M1 also includes a remote control. - LED Light Source
- The M1 uses solid-state LED technology that is mercury-free for a green, filter-free design. The LED light source provides up to 30,000 hours of use while consuming less power than that of a typical LCD TV.

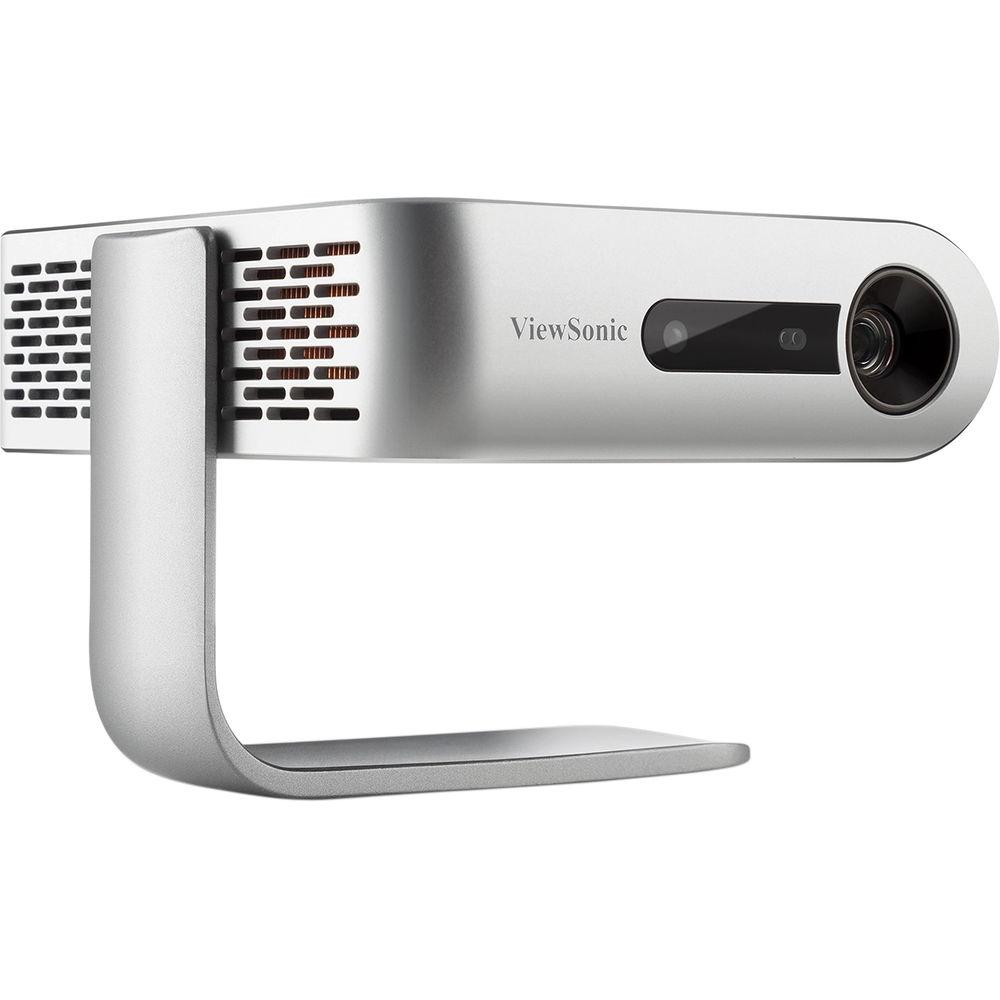

- 360° Projection with the Smart Stand

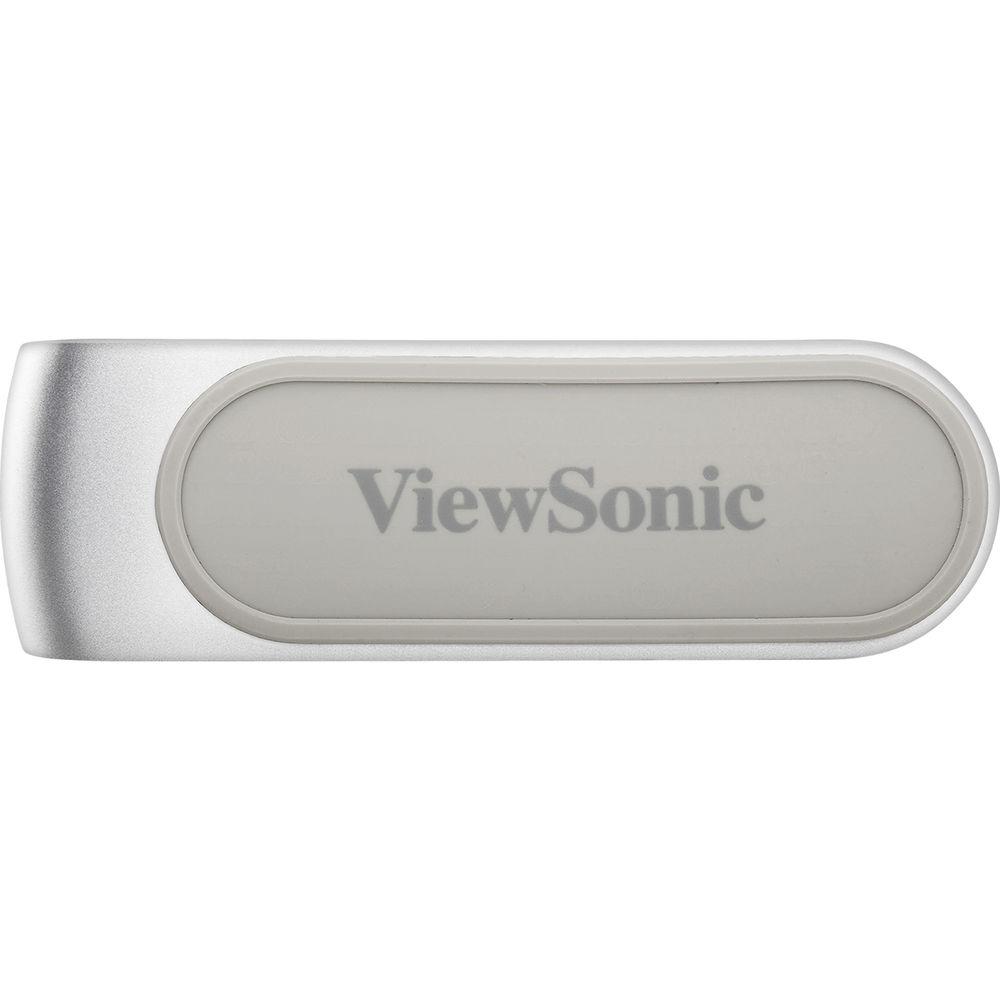

- The integrated Smart Stand provides for simple 360° setup, allowing the M1 to be placed in different positions at nearly any angle. The stand also doubles as a lens cover that automatically turns the projector off when it's closed, and automatically powers it on when opened.

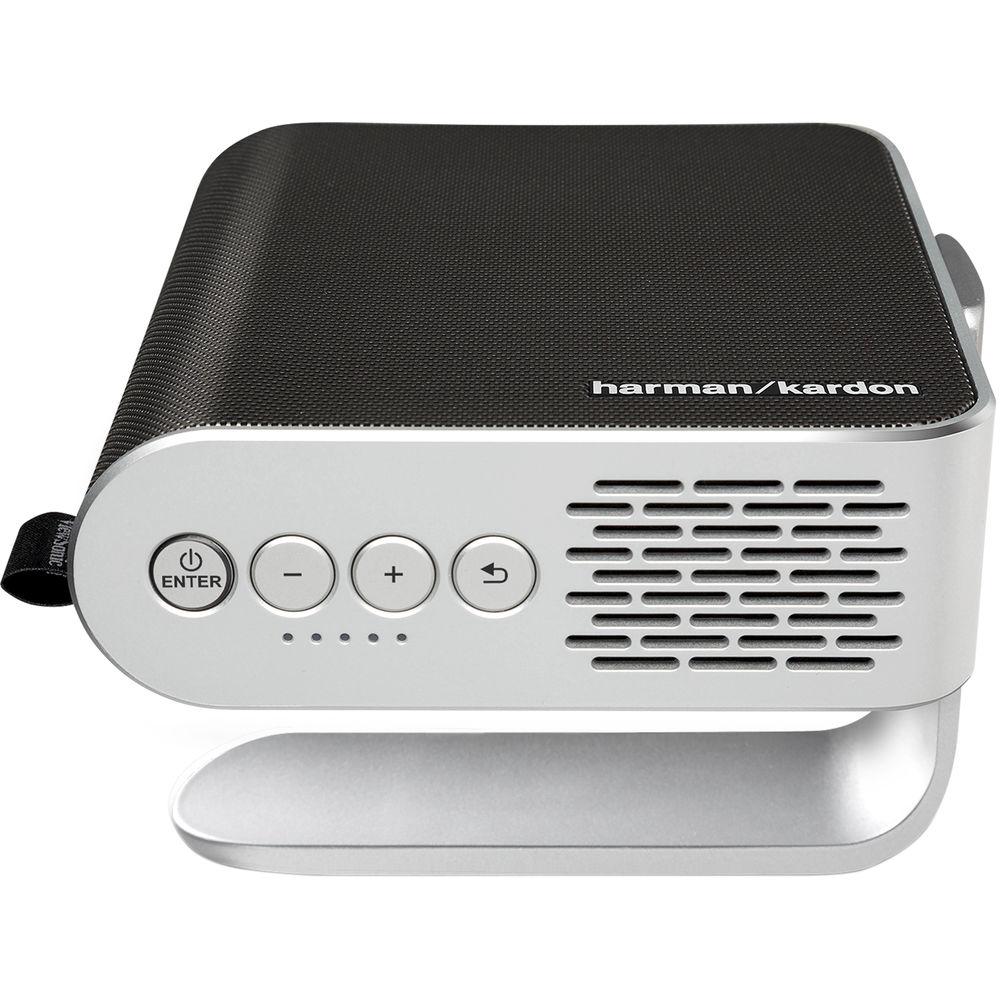

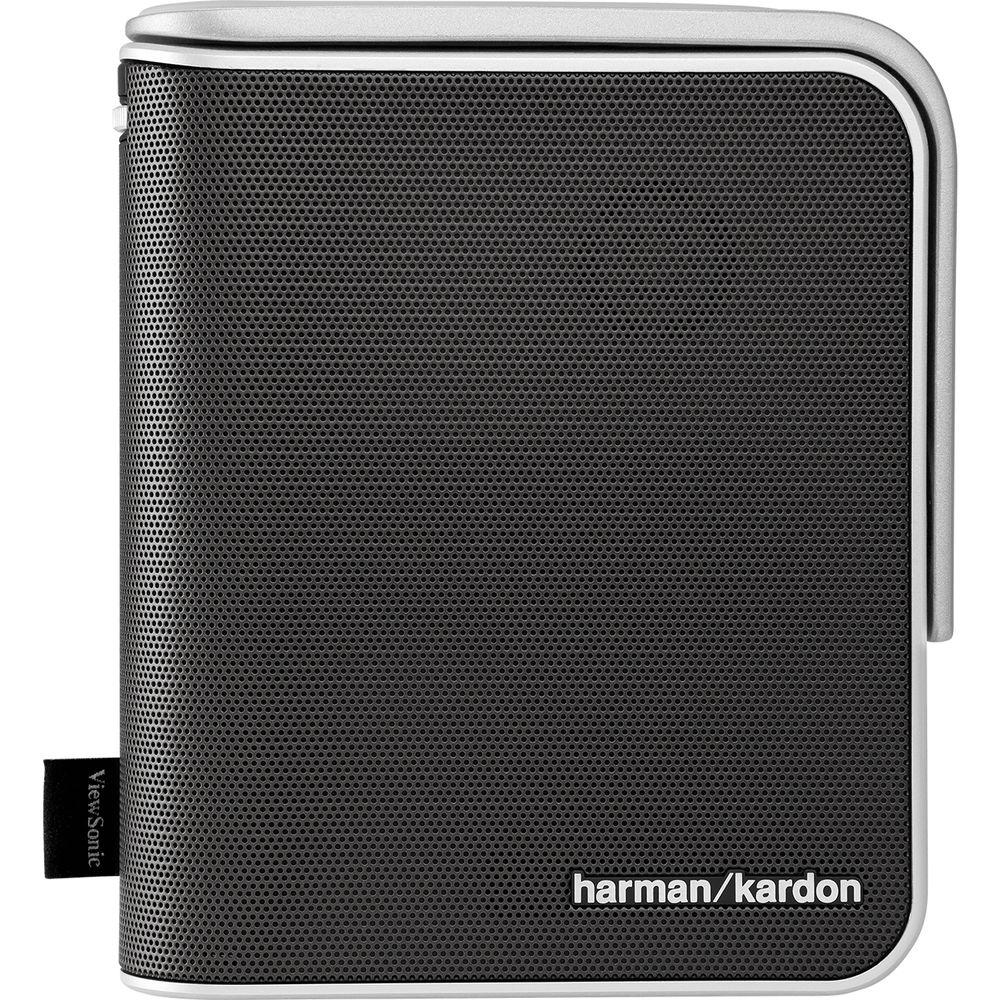

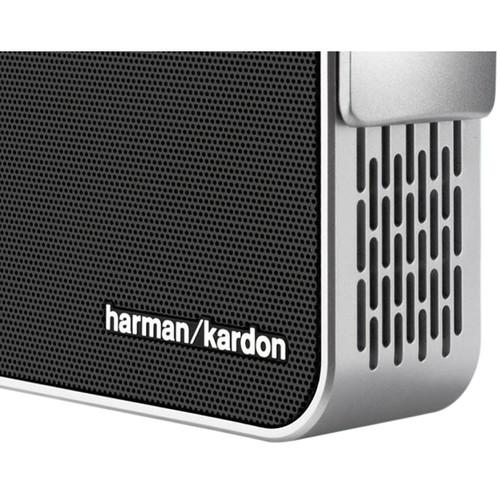

- Dual Harman Kardon Speakers
- The integrated Harman Kardon speakers are designed to produce loud 360° sound, so you can enjoy music and movies at home or on the go.
- USB Type-C for Video and Power
- A USB Type-C port delivers data, audio, video, and charging in a single port.
- Hours of Entertainment
- For entertainment on the go, the built-in battery provides up to six hours of power, allowing you to watch movies and share media without wires or cables, and with the 16GB of internal storage, you can enjoy up to 4000 songs and up to four hours of movies.
- Safety Auto-Off
- A built-in safety feature temporarily turns off the lamp when objects are too close to the projector are detected. This is useful for protecting the eyes of wandering children or pets from direct light exposure.
- Automatic Vertical Keystone Correction
- Vertical keystone correction helps eliminate crooked and distorted images for a properly proportioned image.
- Plug-and-Play Connectivity
- An integrated microSD card slot and built-in USB reader allow you to show photos, videos, and other multimedia without having to connect to a computer. The USB port can also charge your compatible mobile device.
- Additional Features
-
- SuperColor
- 3D ready
- SonicExpert
- SonicMode
- Portrait Mode
- Quick power on/off
UPC: 766907000658 In the Box ViewSonic M1 250-Lumen WVGA Pico Projector Remote Control 3.3' USB Type-C Cable Power Cord Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Light Source More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic M1 250-Lumen WVGA Pico Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic M1 Specs | | | Display System | 0.2" DLP | | Native Chip Resolution | 854 x 480 (WVGA) | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | 250 Lumens | | Offset | 100% ± 5% | | Aspect Ratio | Native: 16:9 | | Dynamic Contrast Ratio | 120,000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Frame Packing (up to 1080p)
Side by Side (up to 1080i)
Top Bottom (up to 1080p) | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 135 kHz
Vertical: 23 to 120 Hz | | | | Focus | Manual | | Lens | f/1.7 (f = 5.5 mm) | | Optical Zoom | None | | Throw Distance | 25 - 105" / 63.5 - 266.7 cm | | Throw Ratio | 1.2:1 | | Projection Size | 24 - 100" / 60.96 - 254.00 cm | | | | Keystone Correction | Auto-Vertical: ± 40° | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 6W | | Projection Tilt Option | Yes | | | | Inputs/Outputs | 1 x HDMI (HDMI Type-A) Audio, Video Input
1 x 1/8" (3.5 mm) Mini Audio Output
1 x USB 3.1 Gen 1 (USB Type-C) Audio, Data, Power, Video
1 x USB 2.0 (USB Type-A) Power Output | | Memory Card Slot | 1 x microSDHC | | | | Internal Storage | 16.0GB | | Wireless LAN / Wi-Fi | None | | | | Light Source | LED | | Lamp Power | 10 W | | Expected Lamp Life | Low Brightness: 30,000 Hours | | Fan Noise | Low Brightness: 25 dB | | Supported Languages | Arabic
Czech
Dutch
English
Finnish
French
German
Hindi
Indonesian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Power Requirements | 19 VDC | | Power Consumption | Full Brightness: 40 W
Standby Mode (Lamp Off): <0.5 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions (W x H x D) | 5.8 x 1.6 x 5.0" / 14.7 x 4.1 x 12.7 cm | | Weight | 1.5 lb / .68 kg | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 8.6 x 7.5 x 4.7" |
