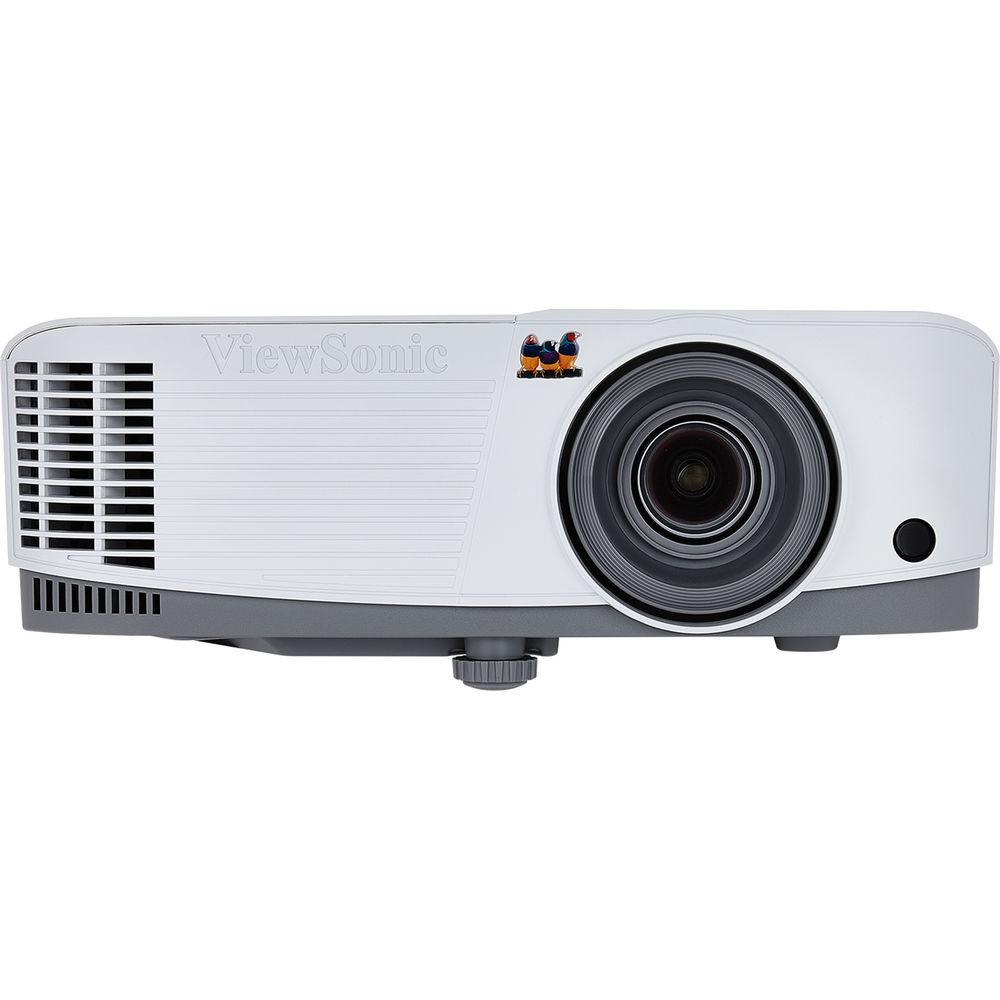

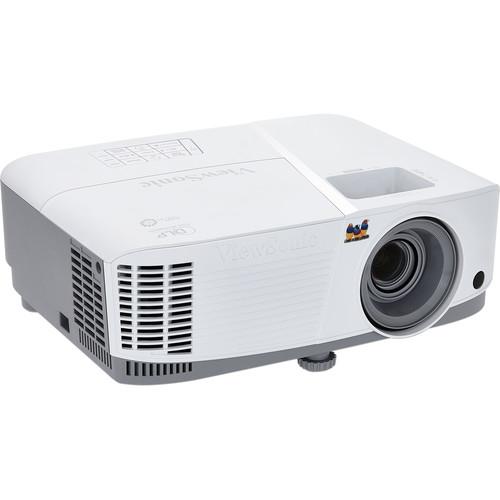

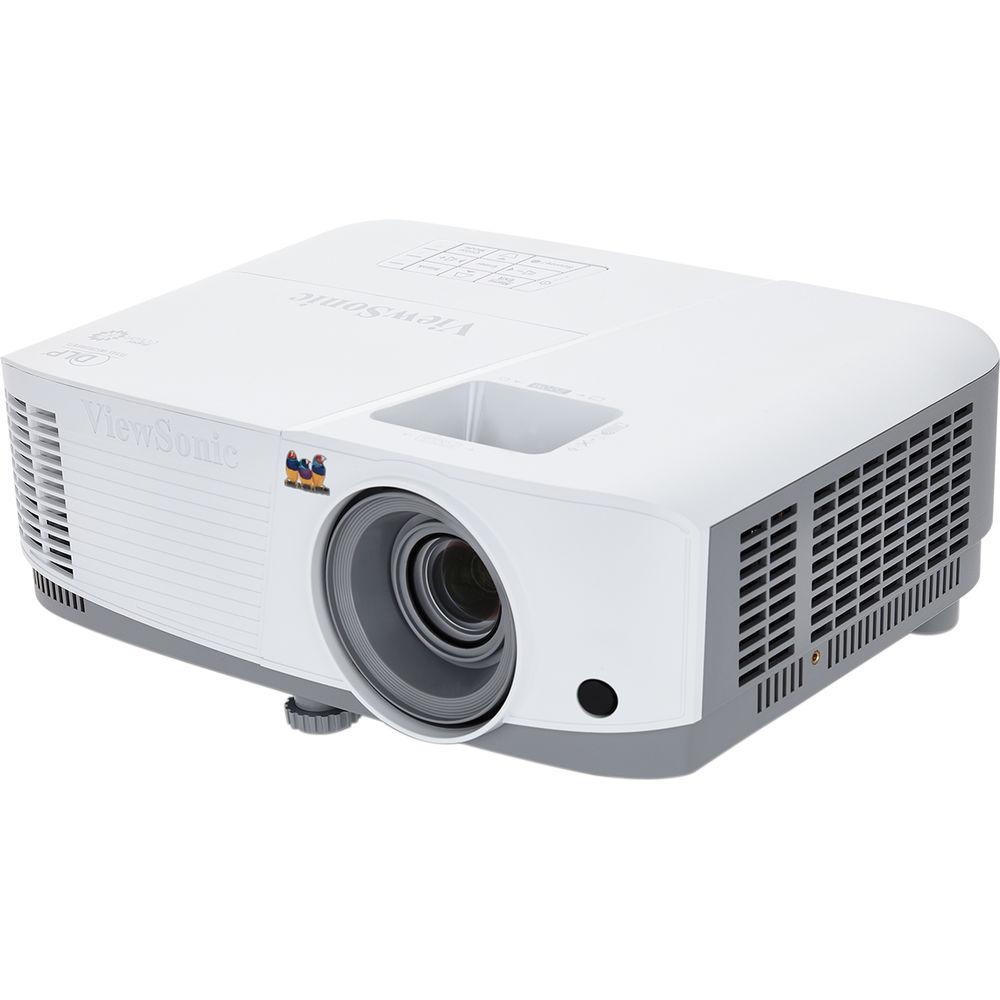

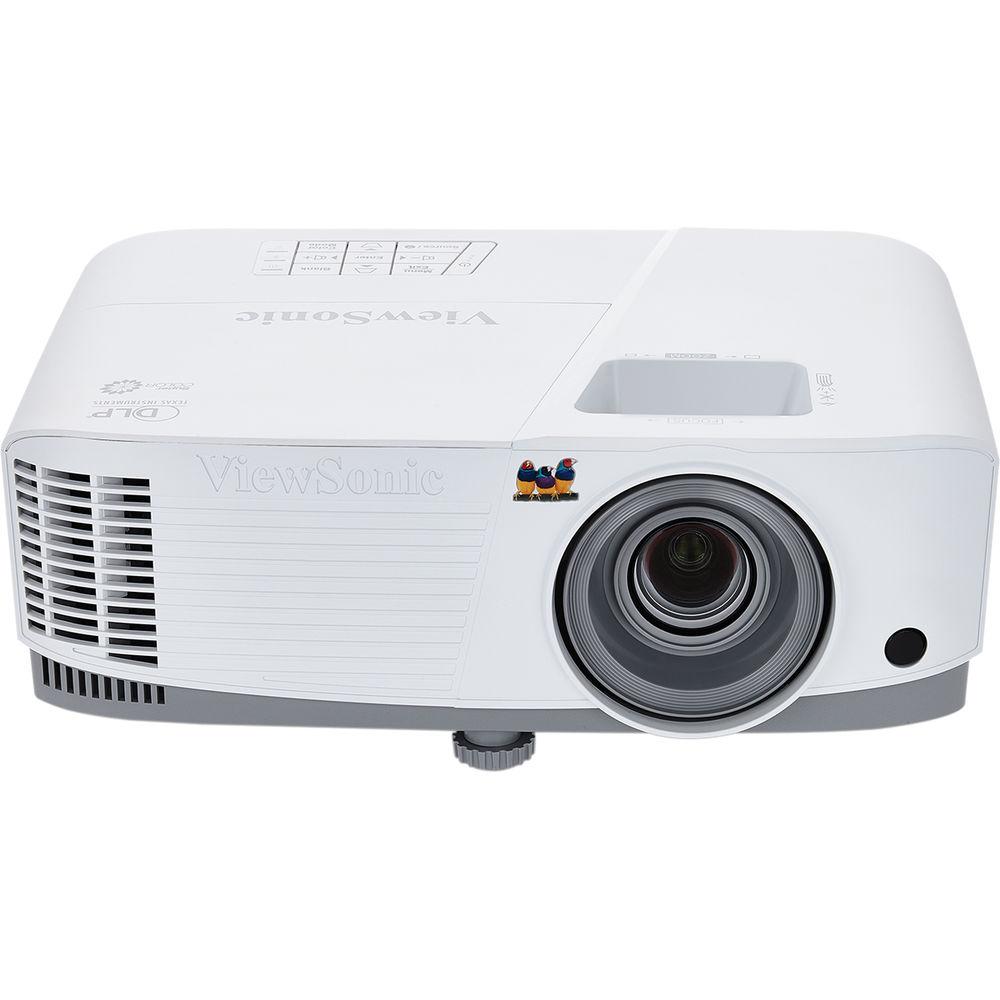

Product description Enjoy bright images in many environments with the ViewSonic PA503X 3600-Lumen XGA DLP Projector. Its 3600 lumens of brightness can overcome ambient light in many situations, making it well suited for presentation areas such as boardrooms and classrooms. The 1024 x 768 XGA native resolution is suitable for displaying many file and document types, and it will accept video signals up to WUXGA (1920 x 1200) for higher resolution sources. The projector features a 1.96 to 2.15:1 throw ratio, which will allow you to place it near the back of the room in many installations.
The PA503X has one HDMI input for connecting digital high-definition sources such as Blu-ray players and HD cable/satellite boxes. It also has two VGA inputs for analog sources, and its VGA output will allow you to daisy-chain multiple projectors or displays so they can all display the same source. Analog audio input and output and an onboard 2W speaker will ensure that audio accompanies your video. The projector includes a VGA cable and an IR remote control. - SuperColor for Enhanced Color Accuracy
- ViewSonic's SuperColor technology features a six-segment color wheel and dynamic lamp control capabilities, helping to provide a wide color range.
- 3D Blu-ray Ready HDMI Input
- This projector is suitable for connecting to any HDMI-enabled device, and can display 3D images directly from 3D Blu-ray players. 3D images can be viewed with optional ViewSonic PGD-350 Shutter Glasses, or any other compatible 3D glasses.
- Quick Power Off
- With the Quick Power Off feature enabled, the projector can be powered off in seconds rather than waiting for a cool-down cycle to complete. This lets users pack the projector away without having to worry about the internal fan still running.
- Additional Features
-
- Energy efficient SuperEco mode
- Designed for reduced input latency
UPC: 766907905113 In the Box ViewSonic PA503X 3600-Lumen XGA DLP Projector Remote Control VGA Cable Power Cable Limited 3-Year Warranty More from Manufacturer wtyczeyuzartsttwtrweudbcayueevbxrazdy Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic PA503X 3600-Lumen XGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic PA503X Specs | | | Display System | DLP | | Native Chip Resolution | 1024 x 768 (XGA) | | Supported Resolutions | WUXGA - 1920 x 1200 | | Max Brightness | 3600 Lumens | | Aspect Ratio | Native: 4:3 | | Dynamic Contrast Ratio | 22,000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 102 kHz

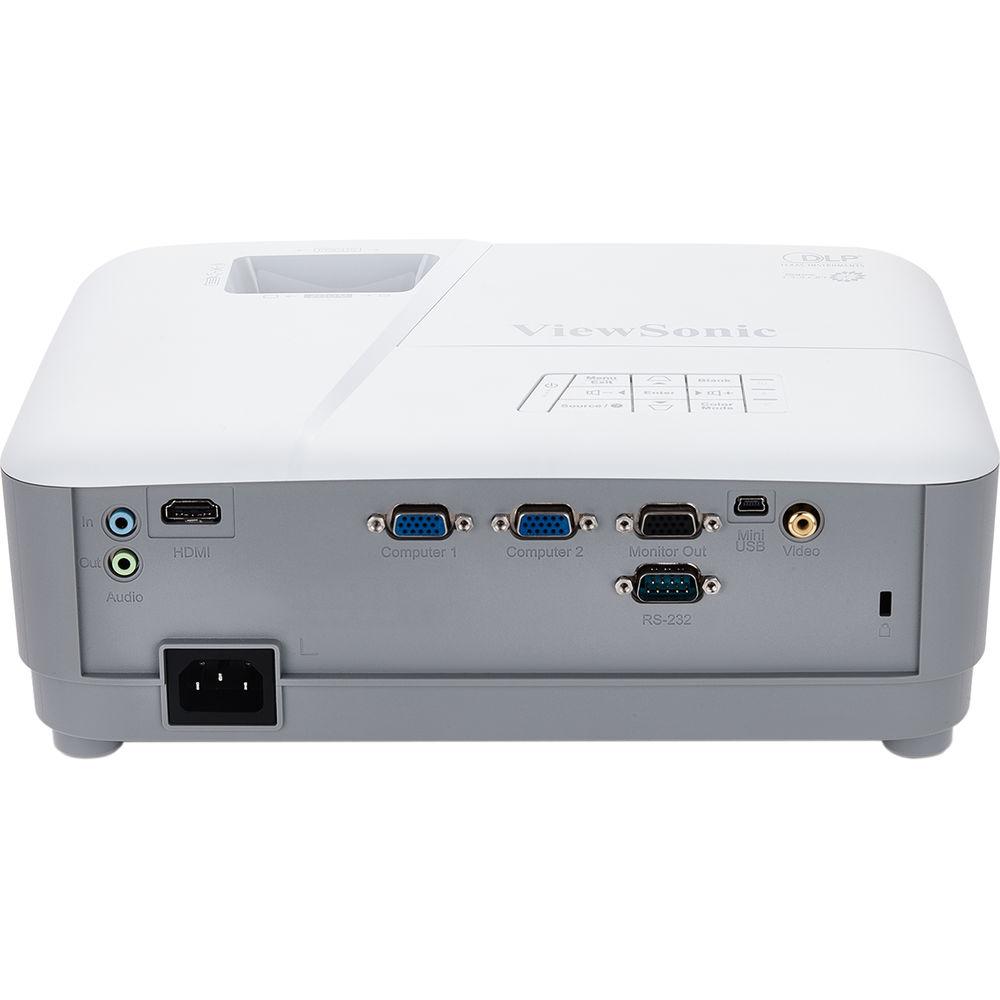

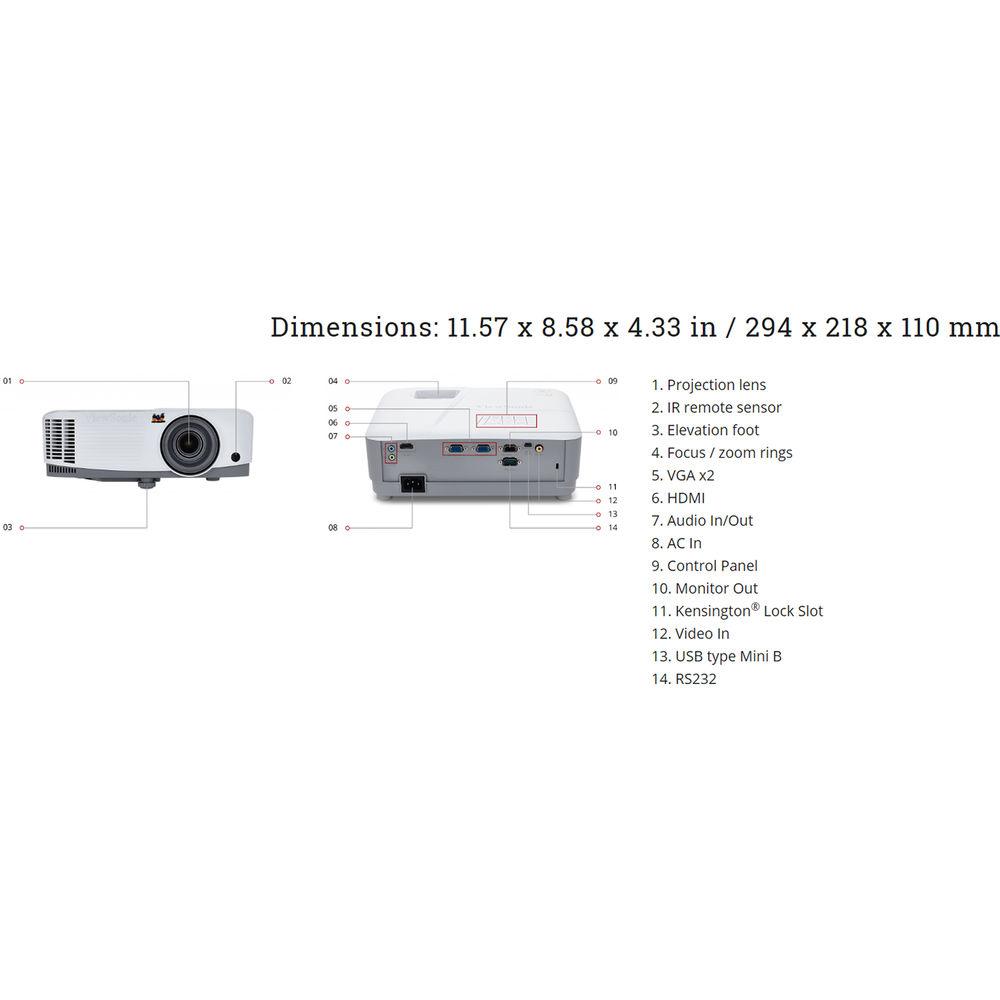

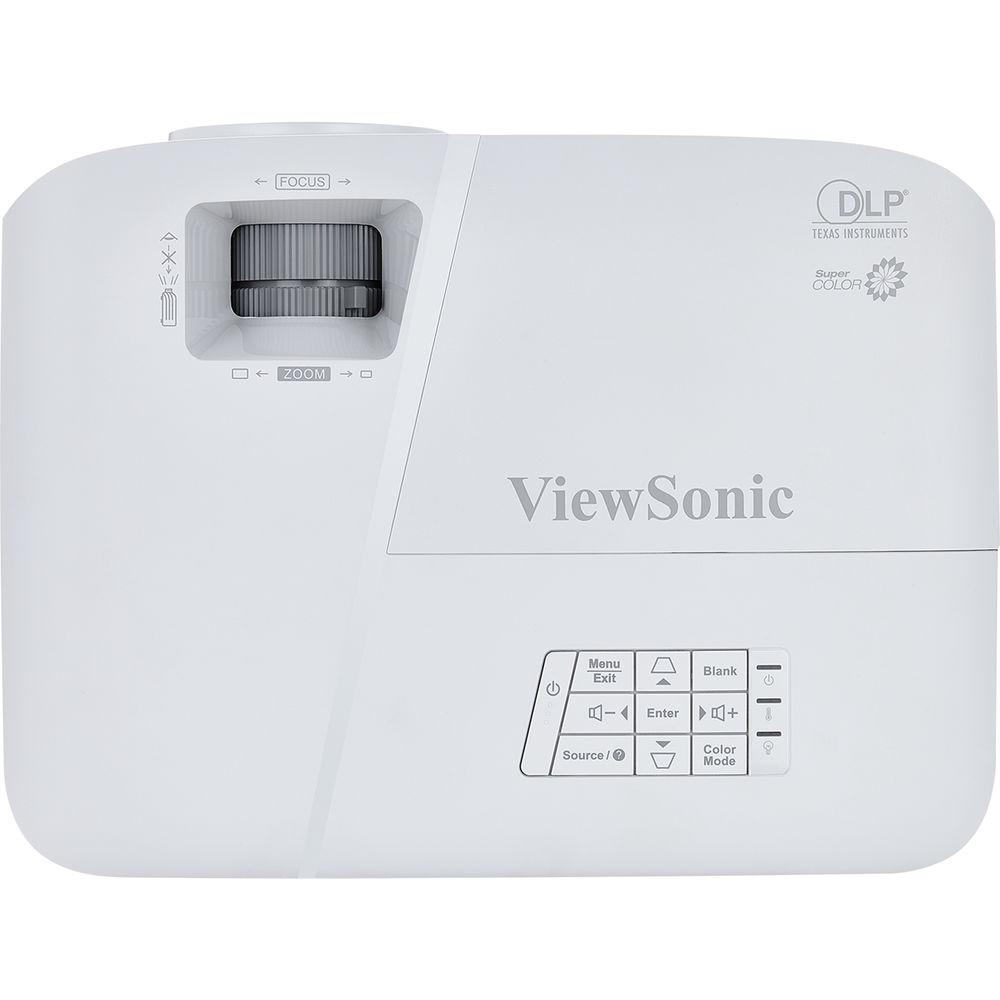

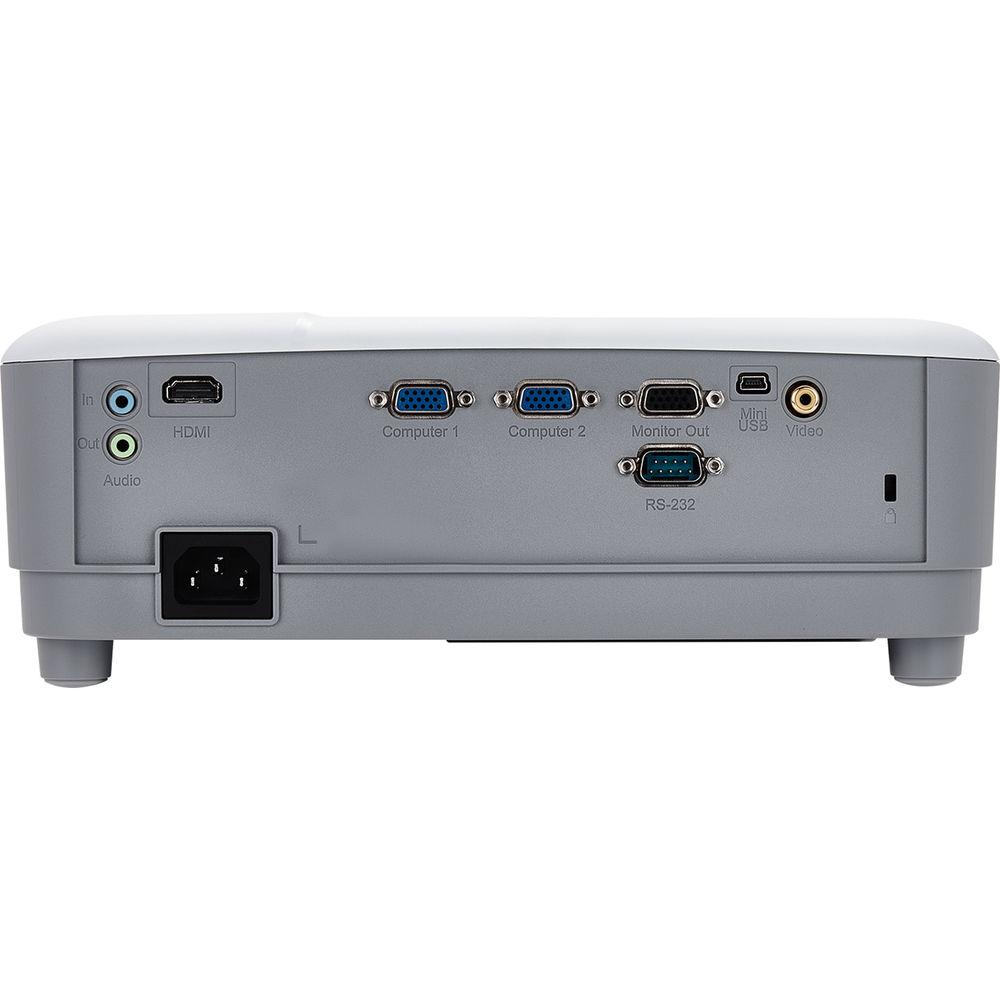

Vertical: 23 to 120 Hz | | | | Focus | Manual | | Optical Zoom | Manual: 1.1x | | Throw Distance | 3.9 - 43' / 1.189 - 13.106 m | | Throw Ratio | 1.96 - 2.15:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Vertical: ± 40° | | Built-In Speaker | Yes | | Speaker Power | 2W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
2 x VGA (DE-15) Video (Input)
1 x Composite (RCA) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x VGA (DE-15) Video (Output)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x Mini-USB Type-B Female (Input)
1 x RS-232C (Unspecified Connector) Control (Input) | | | | Lamp Power | 190 W | | Expected Lamp Life | Medium Brightness: 4500 Hours
Low Brightness: 15,000 Hours | | Security | Cable Lock Slot | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 260 W
Standby Mode (Lamp Off): <0.5 W | | Temperature | Operating
32 to 104°F (0 to 40°C) | | Dimensions (W x H x D) | 11.6 x 4.3 x 8.6" / 294.0 x 110.0 x 218.0 mm | | Weight | 4.89 lb / 2.22 kg | | | | Package Weight | 7.5 lb | | Box Dimensions (LxWxH) | 14.2 x 11.9 x 7.4" |
