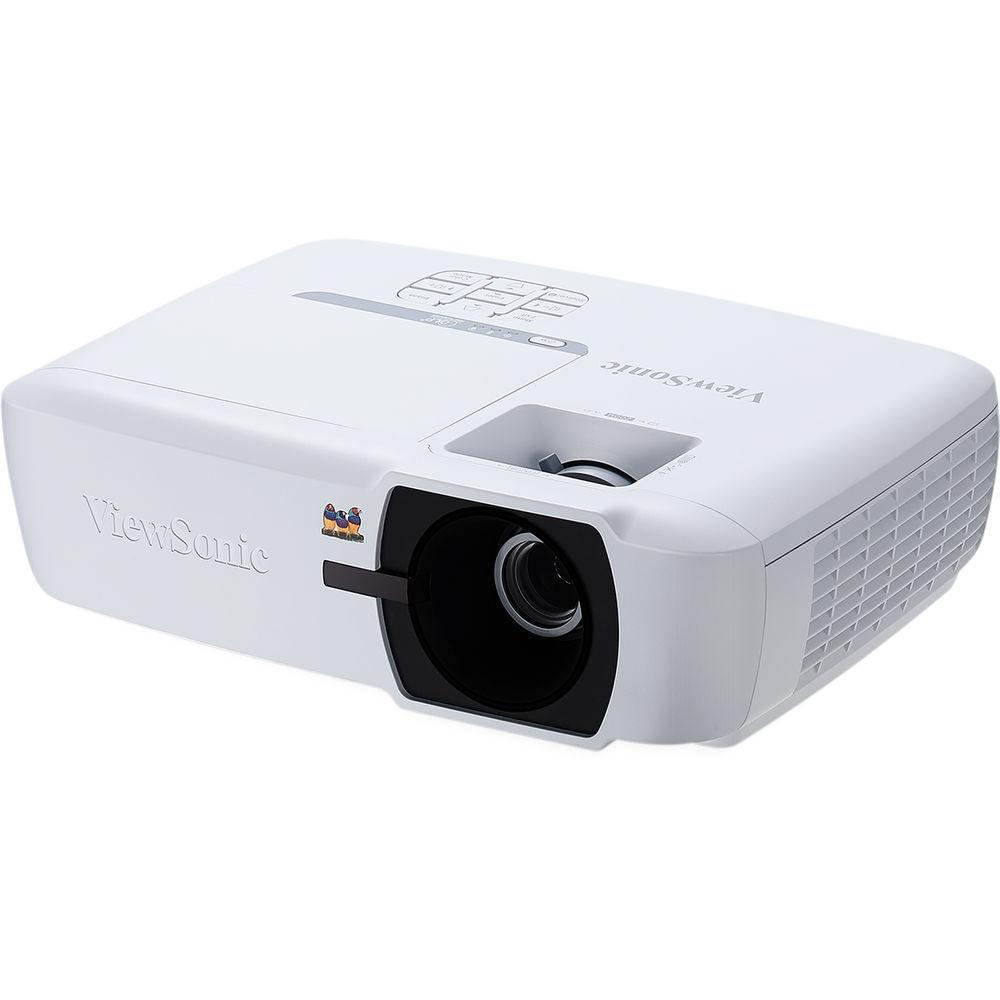

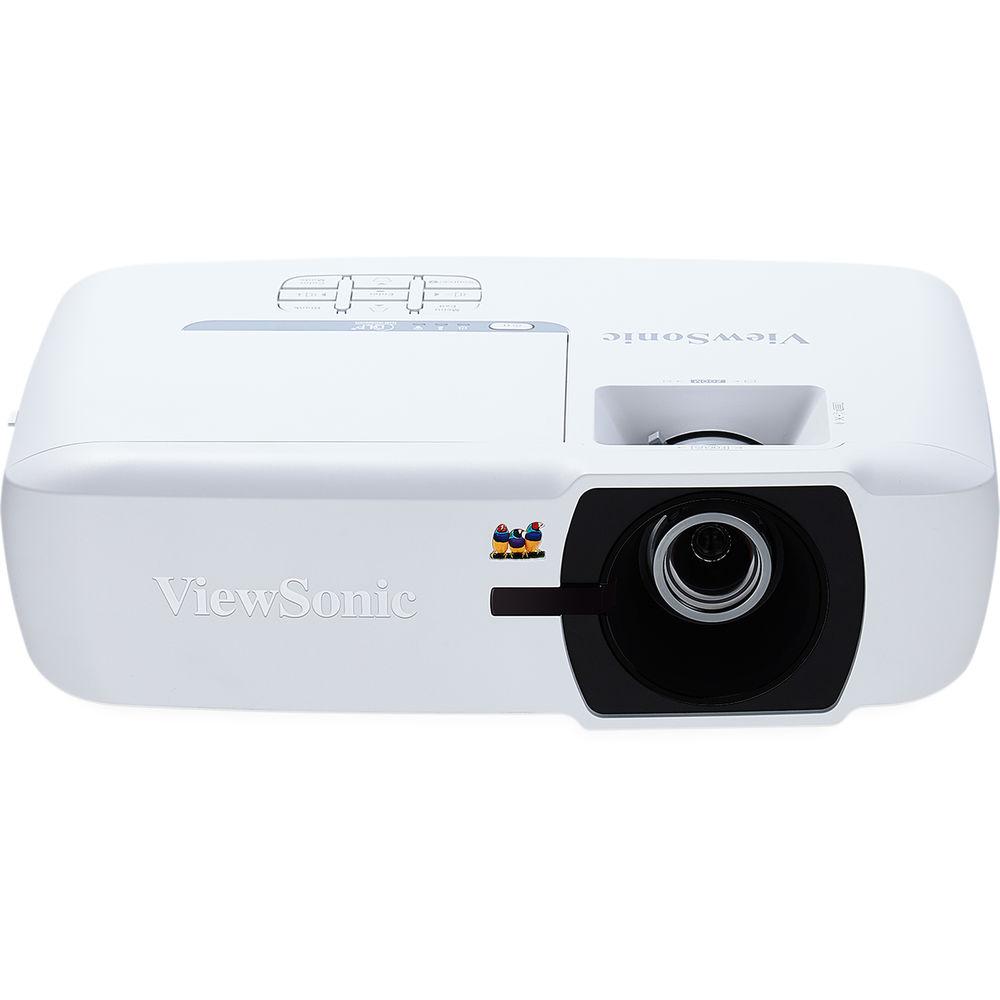

User Manual for ViewSonic PA505W 3500-Lumen WXGA DLP Projector Click to enlarge the picture
Contents of the user manual for the ViewSonic PA505W 3500-Lumen WXGA DLP Projector
- Product category: Multimedia Projectors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Multimedia Projectors
 |
User manual for the ViewSonic PA505W 3500-Lumen WXGA DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|
Product description Enjoy bright images in many environments with the ViewSonic PA505W 3500-Lumen WXGA DLP Projector. Its 3500 lumens of brightness can overcome ambient light in many situations, making it well suited for presentation areas such as boardrooms and classrooms. The WXGA 1280 x 800 native resolution is suitable for displaying many file and document types, and it can accept video signals up to Full HD (1920 x 1080) from higher resolution sources. The projector features a 1.5 to 1.7:1 throw ratio, providing for flexible installation options.
The PA505W has two HDMI inputs for connecting digital high-definition sources such as Blu-ray players and HD cable/satellite boxes. It also has a VGA input for analog sources, plus an RCA composite video input. Its HDMI inputs are 3D-capable for viewing 3D Blu-ray discs with other compatible equipment, which is available separately. A VGA output allows daisy-chaining of multiple projectors or displays. The PA505W includes a VGA cable and an IR remote control. - SuperColor for Enhanced Color Accuracy
- ViewSonic's SuperColor technology features a six-segment color wheel and dynamic lamp control capabilities, helping to provide a wide color range.
- 3500 Lumens of Brightness
- The PA505W combines 3500 lumens of brightness with a 22,000:1 dynamic contrast ratio to produce clear images in nearly any environment.
- Energy-Efficient SuperEco Mode
- SuperEco mode allows users to dim projector brightness by up to 70%, thereby reducing the lamp's power consumption and, ultimately, total cost of ownership.
- Reduced Input Latency
- This projector is designed to deliver smooth images without delay and a low 16 ms input latency for enhanced frame-by-frame action.
- Balanced Color and Brightness
- A choice of five unique view modes provide an enhanced viewing experience in nearly any environment regardless of ambient light.
- Dual 3D Blu-ray-Ready HDMI Inputs
- Designed with two HDMI ports, this projector is well suited for connecting to any HDMI-enabled device, and can display 3D images directly from 3D Blu-ray players. 3D images can be viewed with the optional ViewSonic PGD-350 shutter glasses, or any other compatible 3D glasses.
UPC: 766907913613 In the Box ViewSonic PA505W 3500-Lumen WXGA DLP Projector Remote Control VGA Cable Power Cable Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic PA505W 3500-Lumen WXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic PA505W Specs | | | Display System | DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | 3500 Lumens | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 22,000:1 | | Color Wheel | 6-Segment | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 102 kHz

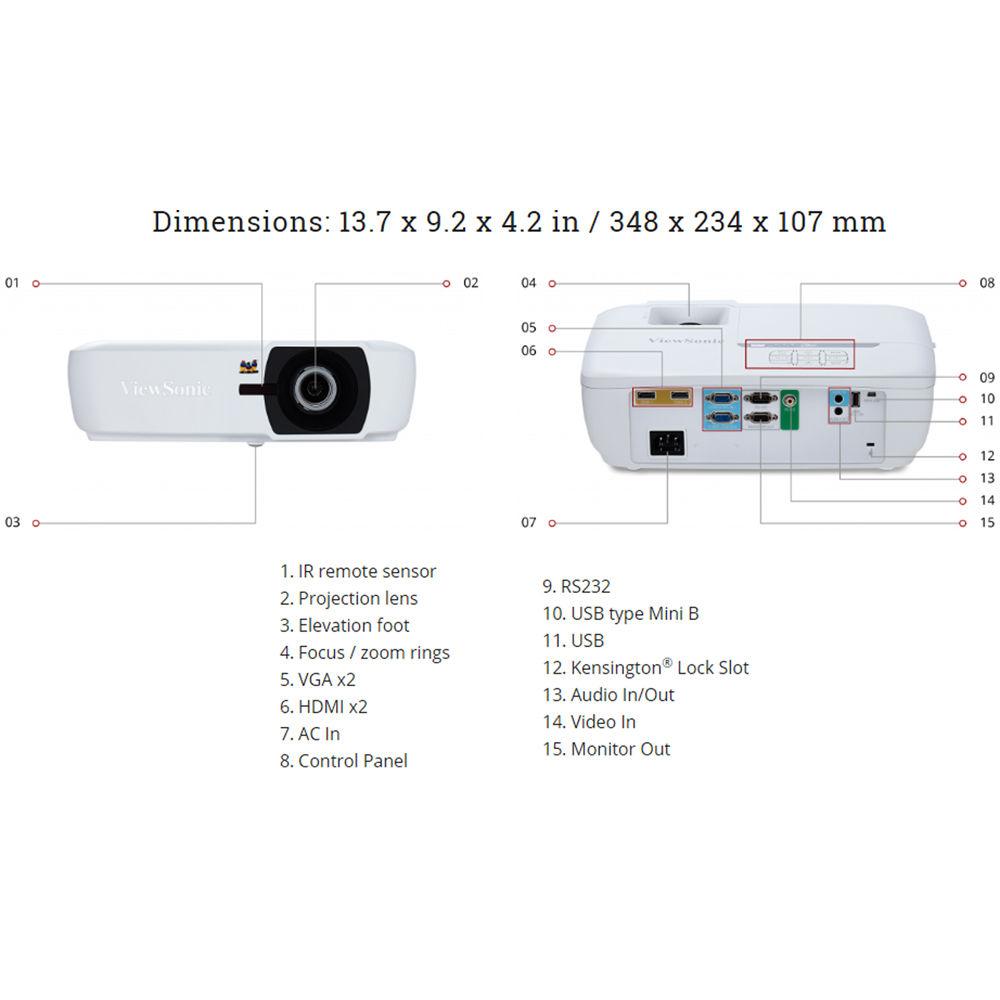

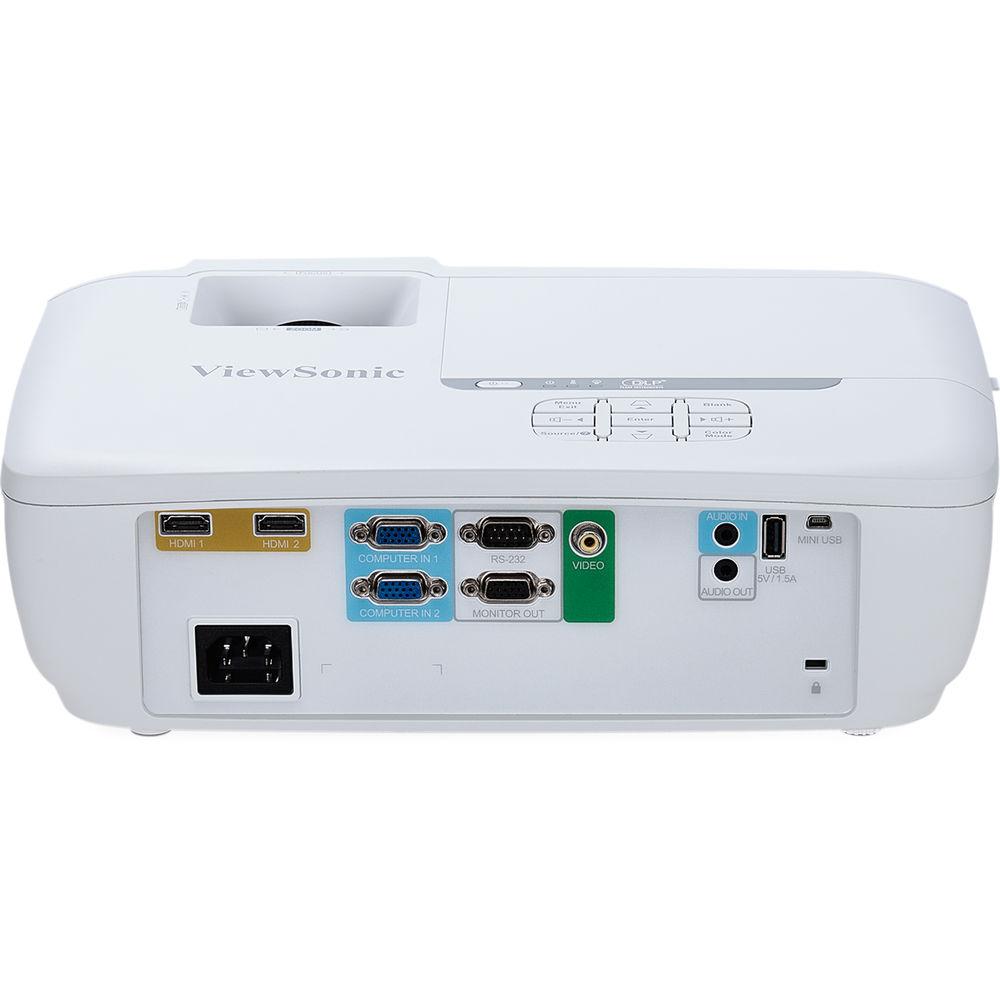

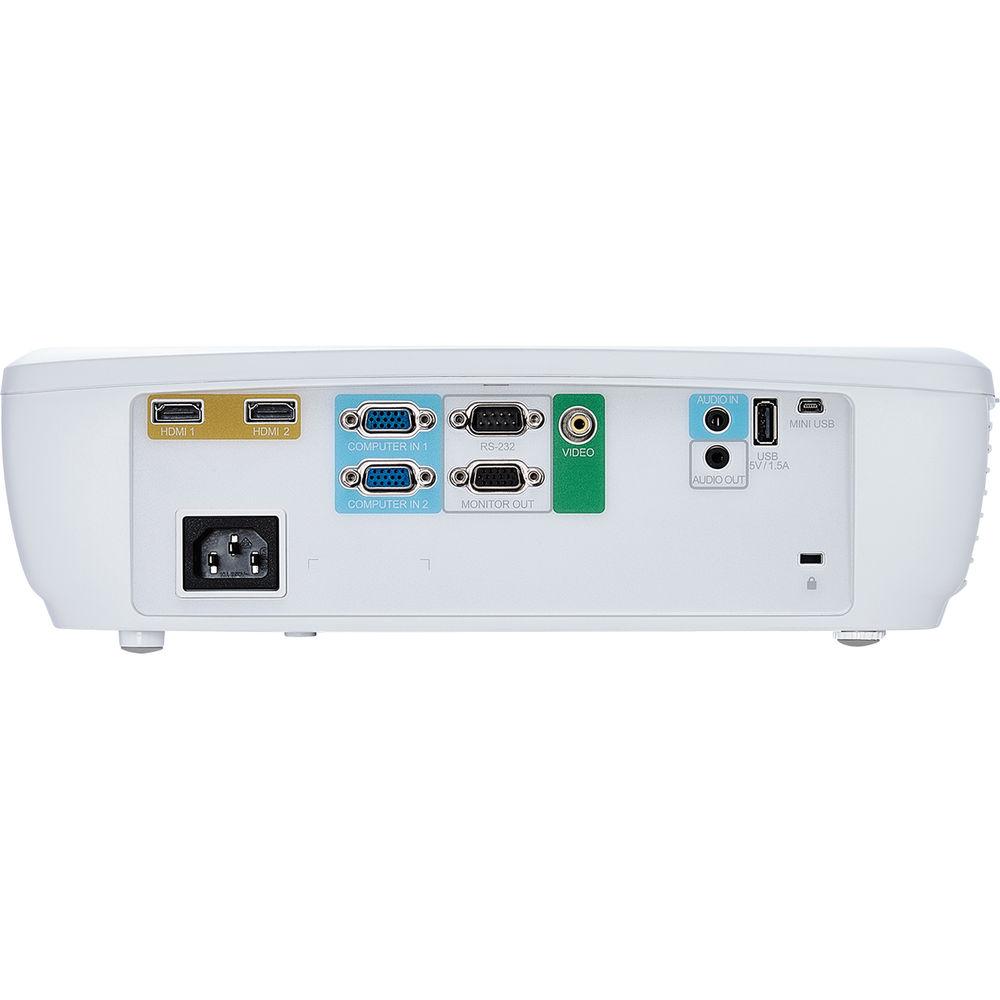

Vertical: 23 to 120 Hz | | | | Focus | Manual | | Optical Zoom | Manual: 1.1x | | Throw Distance | 3.3 - 36' / 1.006 - 10.973 m | | Throw Ratio | 1.5 - 1.7:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Manual-Vertical: ± 40° | | Built-In Speaker | Yes | | Speaker Power | 8W | | | | Inputs/Outputs | 2 x HDMI Audio/Video (Input)
2 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x Composite (RCA) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x USB Type-A Female (Input)
1 x Mini-USB Type-B Female (Input)
1 x RS-232C (Unspecified Connector) Control (Input) | | Wireless LAN / Wi-Fi | None | | | | Light Source | Lamp | | Lamp Power | 240 W | | Expected Lamp Life | Full Brightness: 3500 Hours
Low Brightness: 7000 Hours | | Security | Cable Lock Slot | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 310 W
Standby Mode (Lamp Off): <0.5 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 - 90% | | Dimensions (W x H x D) | 13.7 x 4.2 x 9.2" / 34.8 x 10.7 x 23.4 cm | | Weight | 6.5 lb / 2.9 kg | | | | Package Weight | 9.55 lb | | Box Dimensions (LxWxH) | 16.4 x 13.3 x 7.2" |
