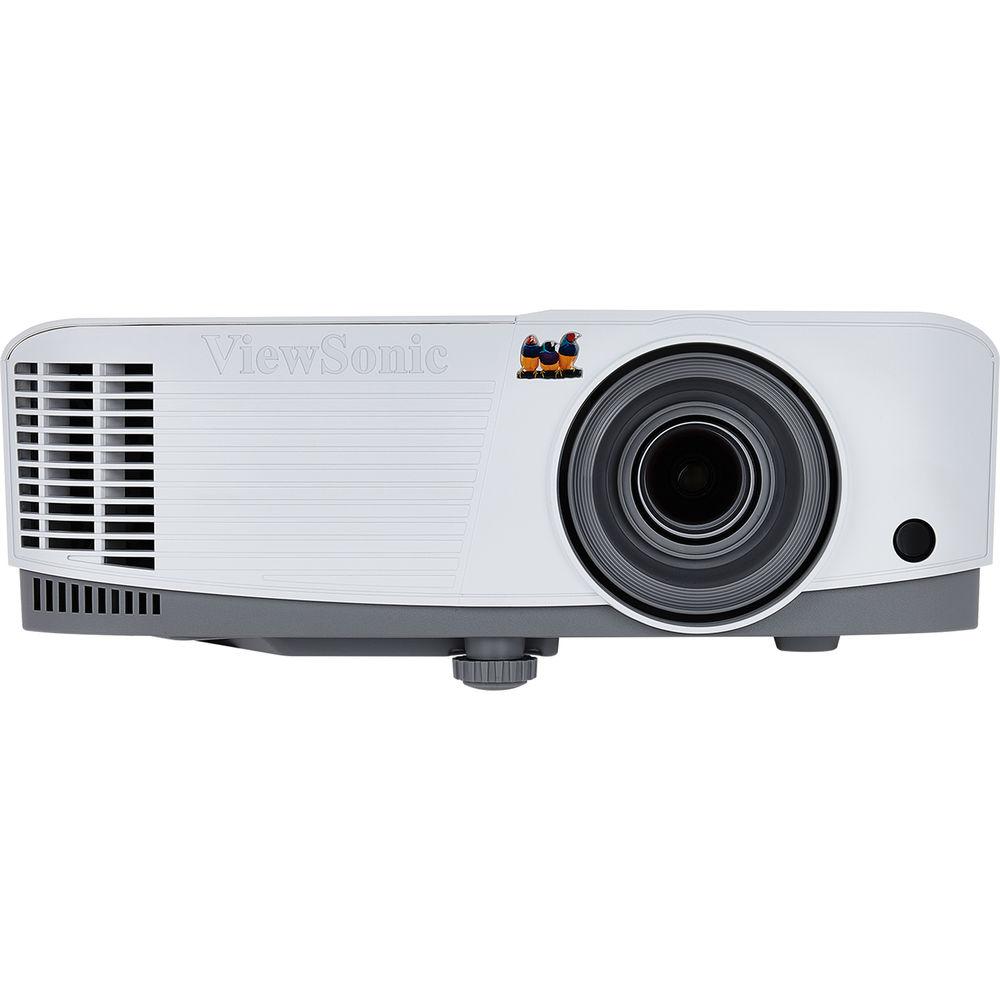

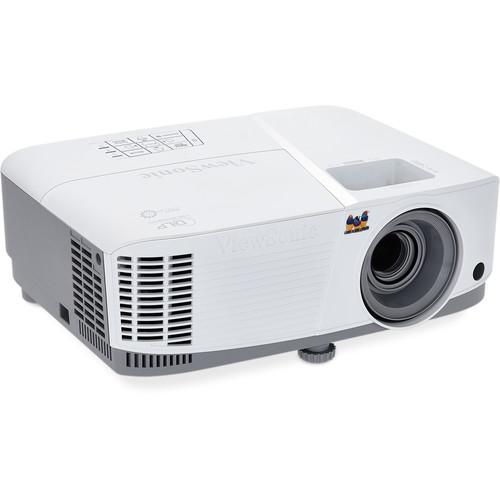

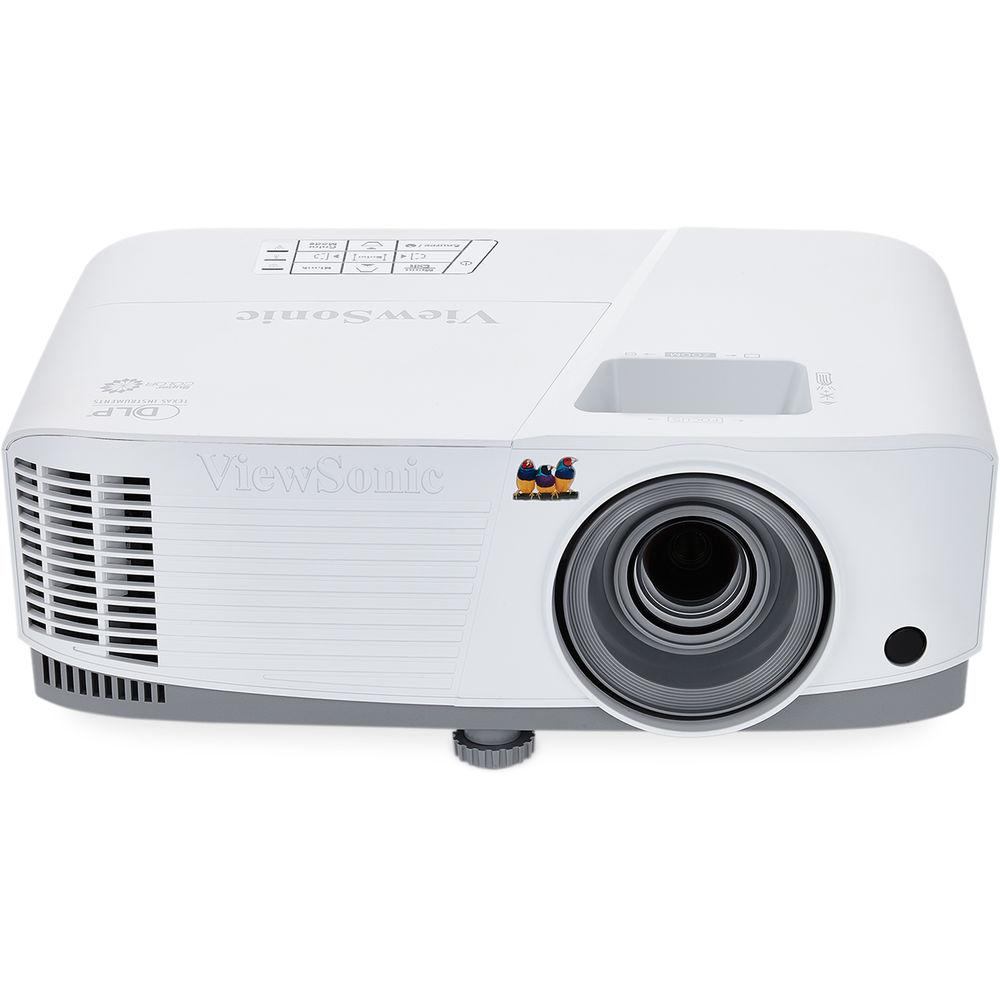

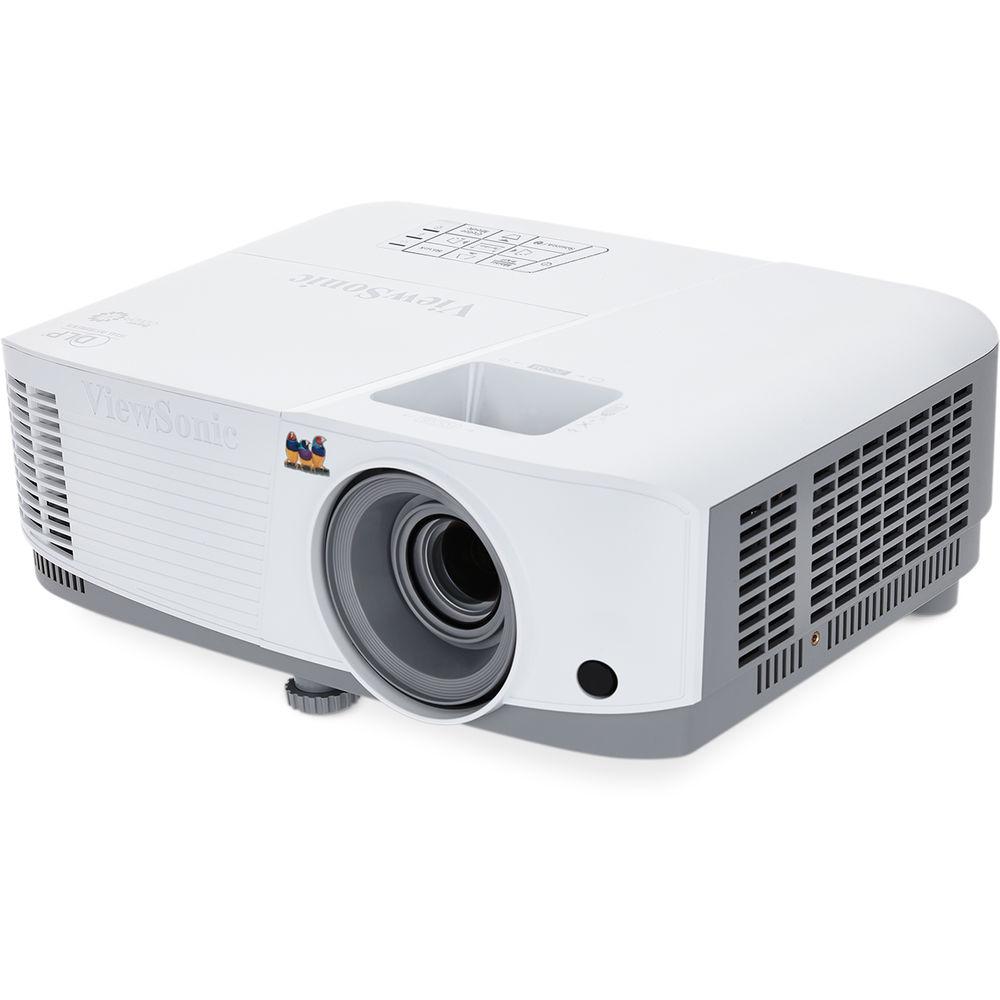

User Manual for ViewSonic PG603W 3600-Lumen WXGA DLP Projector Click to enlarge the picture
Contents of the user manual for the ViewSonic PG603W 3600-Lumen WXGA DLP Projector
- Product category: Multimedia Projectors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Multimedia Projectors
 |
User manual for the ViewSonic PG603W 3600-Lumen WXGA DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|
Product description Enjoy bright images in many environments with the ViewSonic PG603W 3600-Lumen WXGA DLP Projector. Its 3600 lumens of brightness can overcome ambient light in many situations, making it well suited for presentation areas such as boardrooms and classrooms. The WXGA 1280 x 800 native resolution is suitable for displaying many file and document types, and it can accept video signals up to Full HD (1920 x 1080) from higher resolution sources. The projector features a 1.55 to 1.7:1 throw ratio, providing flexible installation options.
The PG603W has an HDMI input for connecting digital high-definition sources such as Blu-ray players and HD cable/satellite boxes. It also has a VGA input for analog sources, plus an RCA composite video input. Its HDMI input is 3D-capable for viewing 3D Blu-ray discs with other compatible equipment, which is available separately. A VGA output allows daisy-chaining of multiple projectors or displays. The PG603W includes a VGA cable and an IR remote control. - SuperColor for Enhanced Color Accuracy
- ViewSonic's SuperColor technology features a six-segment color wheel and dynamic lamp control capabilities, helping to provide a wide color range.
- 3600 Lumens of Brightness
- The PG603W combines 3600 lumens of brightness with a 22,000:1 dynamic contrast ratio to produce clear images in nearly any environment.
- Network Monitoring and Control
- You can monitor, schedule, and manage the projector remotely, as well as receive projector status alerts, with the integrated Crestron e-Control system and RoomView Express management software. And since the PG603W is Crestron and AMX certified, you can control and monitor the projector for nearly any size campus or enterprise.
- USB Reader and Display
- Deliver your presentations using a plug-and-play USB connection without running a connection cable. Using the built-in USB reader, you can display photos, Microsoft Office files, and PDFs directly from a USB flash drive.
- Energy-Efficient SuperEco Mode
- SuperEco mode allows users to dim projector brightness by up to 70%, thereby reducing the lamp's power consumption and, ultimately, total cost of ownership.
- Balanced Color and Brightness
- A choice of five unique view modes provide an enhanced viewing experience in nearly any environment regardless of ambient light.
- 3D Blu-ray-Ready HDMI Input
- Designed with an HDMI port, this projector is well suited for connecting to any HDMI-enabled device and can display 3D images directly from 3D Blu-ray players. 3D images can be viewed with the optional ViewSonic PGD-350 shutter glasses, or any other compatible 3D glasses.
- Programmable Remote Control
- A programmable MyButton hotkey can be configured to launch the most commonly used functions. Control up to eight projectors in the same venue or from a mobile device via the free vRemote app.
- LAN and Optional Wi-Fi Display
- With its networking capability, the PG603W can project images over a wired network, or, with the optional PJ-WPD-200 wireless adapter, wireless LAN. The LAN display offers a quad split screen to simultaneously project content from up to four computers, with the ability to broadcast from up to eight projectors.
UPC: 766907916010 In the Box ViewSonic PG603W 3600-Lumen WXGA DLP Projector Remote Control VGA Cable Power Cable Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp More from Manufacturer becszvyxrwrzbduwsfrqfqybrefz Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic PG603W 3600-Lumen WXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic PG603W Specs | | | Display System | 0.65" DMD DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Minimum: 640 x 480
Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | 3600 Lumens | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 22,000:1 | | DLP Link 3D | Yes | | Color Wheel | 6-Segment | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 102 kHz

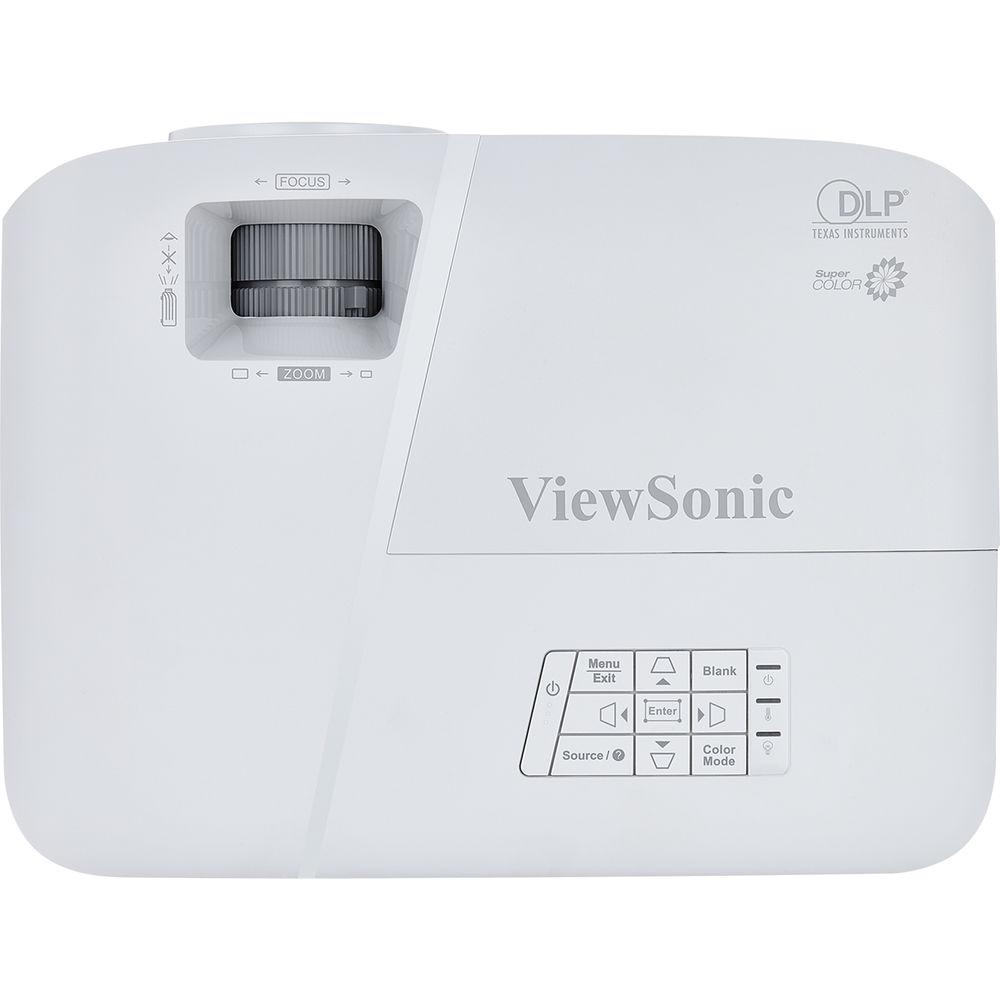

Vertical: 23 to 120 Hz | | | | Focus | Manual | | Optical Zoom | Manual: 1.1x | | Throw Distance | 3.3 - 36' / 1.006 - 10.973 m | | Throw Ratio | 1.55 - 1.7:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Manual-Vertical: ± 30°

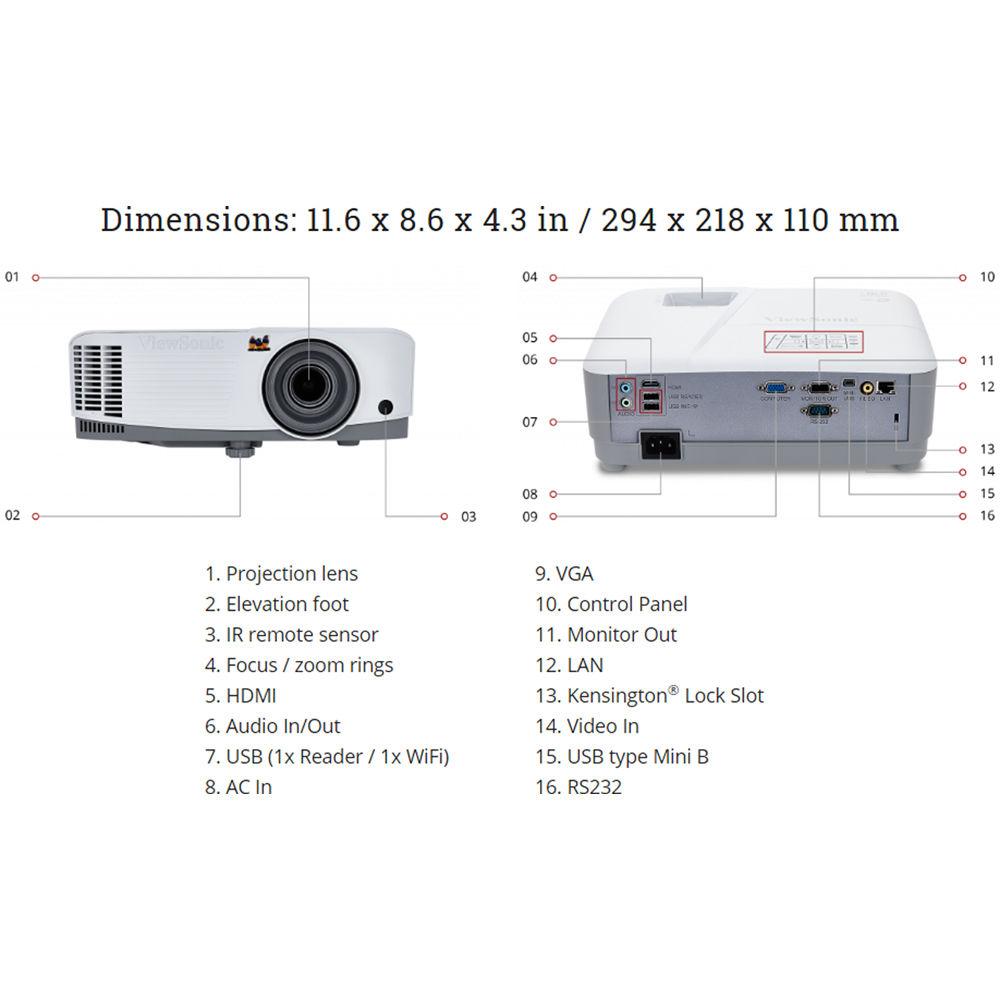

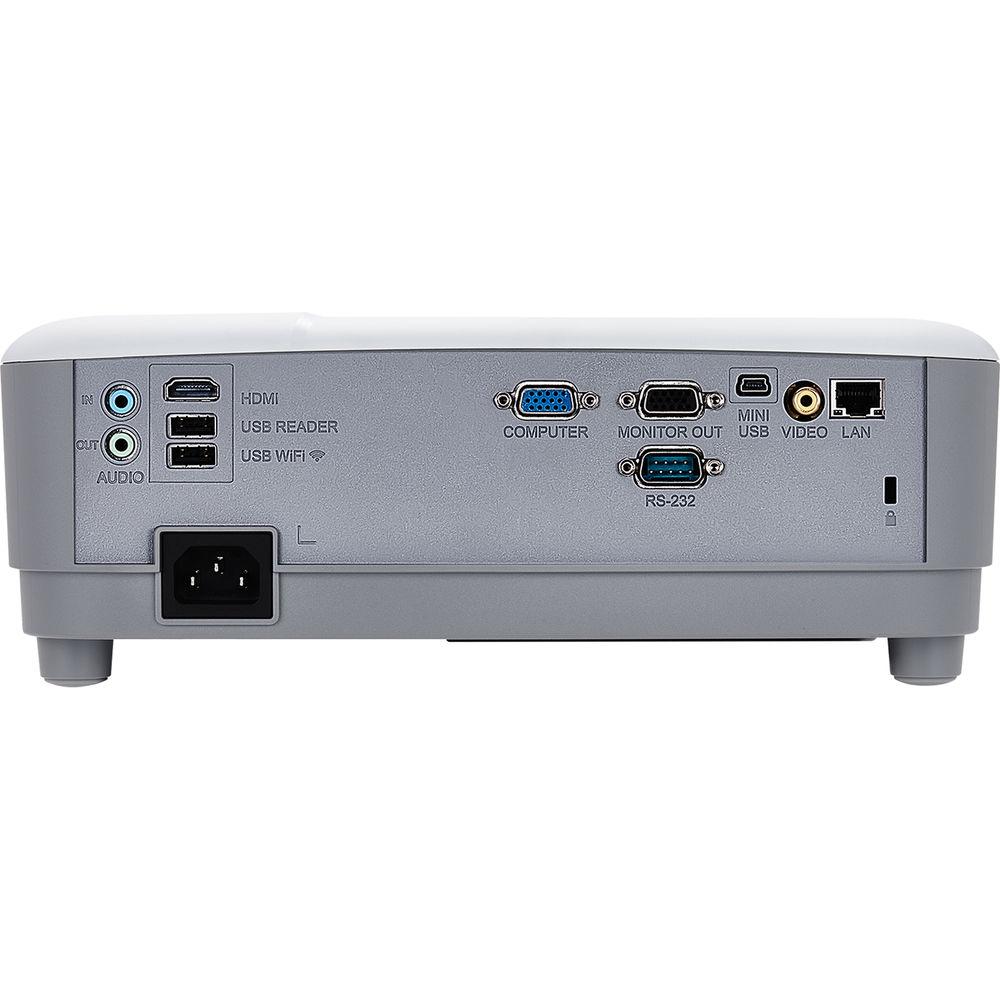

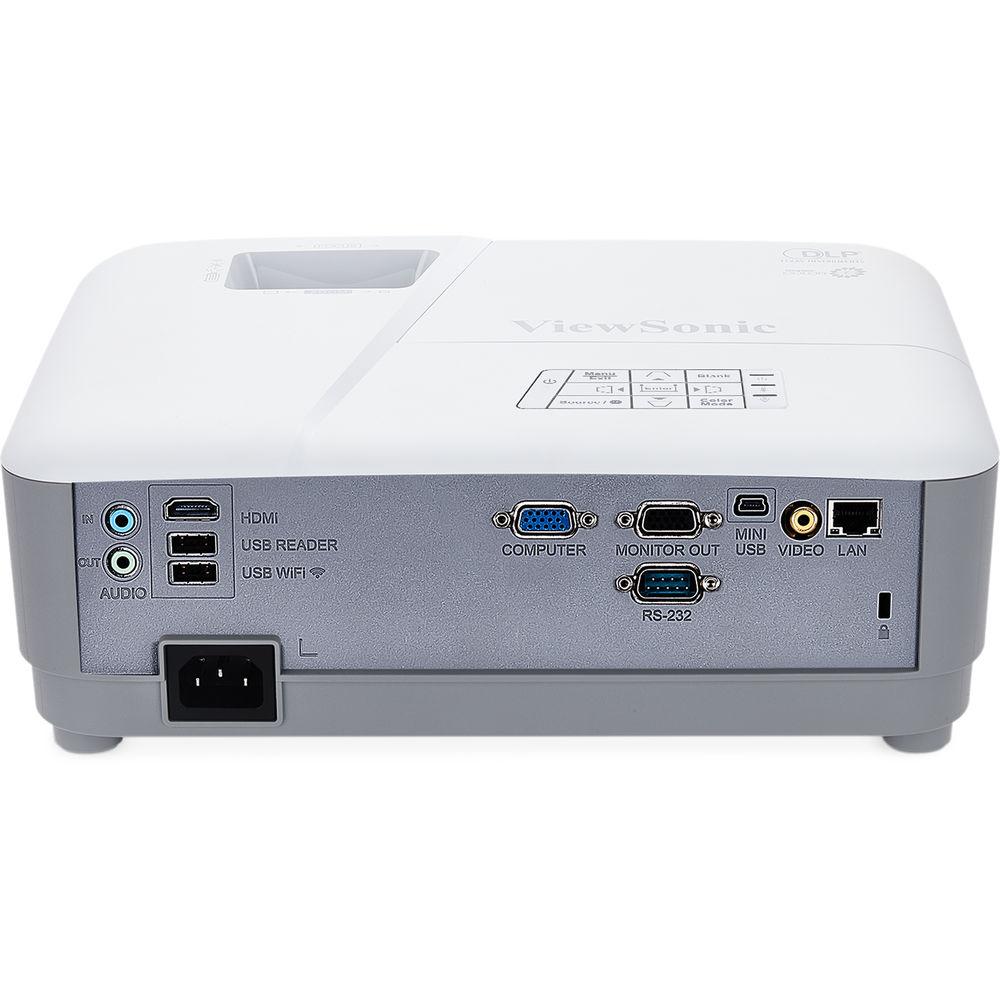

Manual-Horizontal: ± 20° | | Built-In Speaker | Yes | | Speaker Power | 10W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x Composite (RCA) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
2 x USB Type-A Female (Input)
1 x Ethernet (RJ45) LAN (Input)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x Mini-USB Type-B Female (Input) | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | Lamp | | Lamp Power | 200 W | | Expected Lamp Life | Full Brightness: 5000 Hours
Low Brightness: 15,000 Hours | | Security | Cable Lock Slot | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 270 W
Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | 9842' / 3000 m | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 - 90% | | Dimensions (W x H x D) | 11.6 x 4.3 x 8.6" / 29.5 x 10.9 x 21.8 cm | | Weight | 5.1 lb / 2.3 kg | | | | Package Weight | 7.55 lb | | Box Dimensions (LxWxH) | 14.2 x 11.8 x 7.4" |
