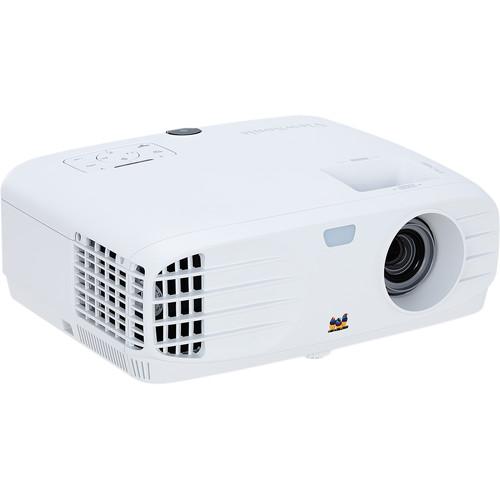

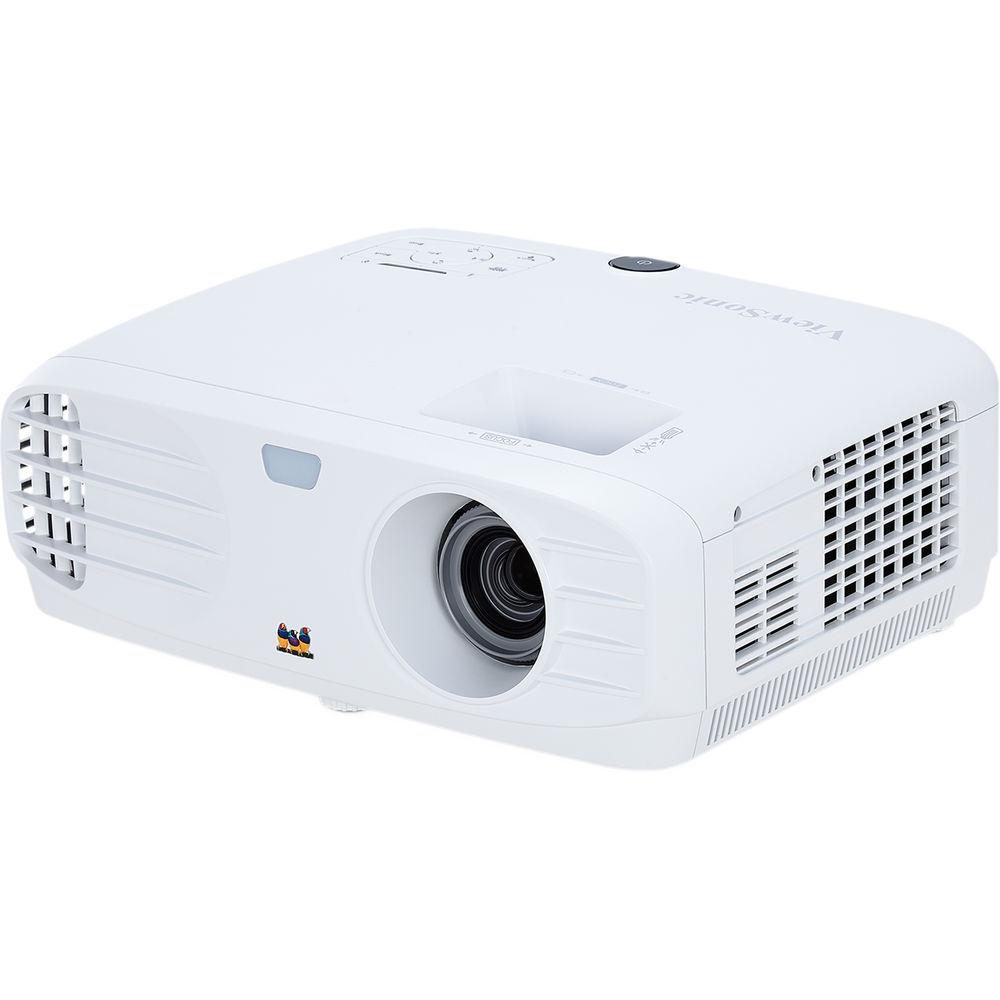

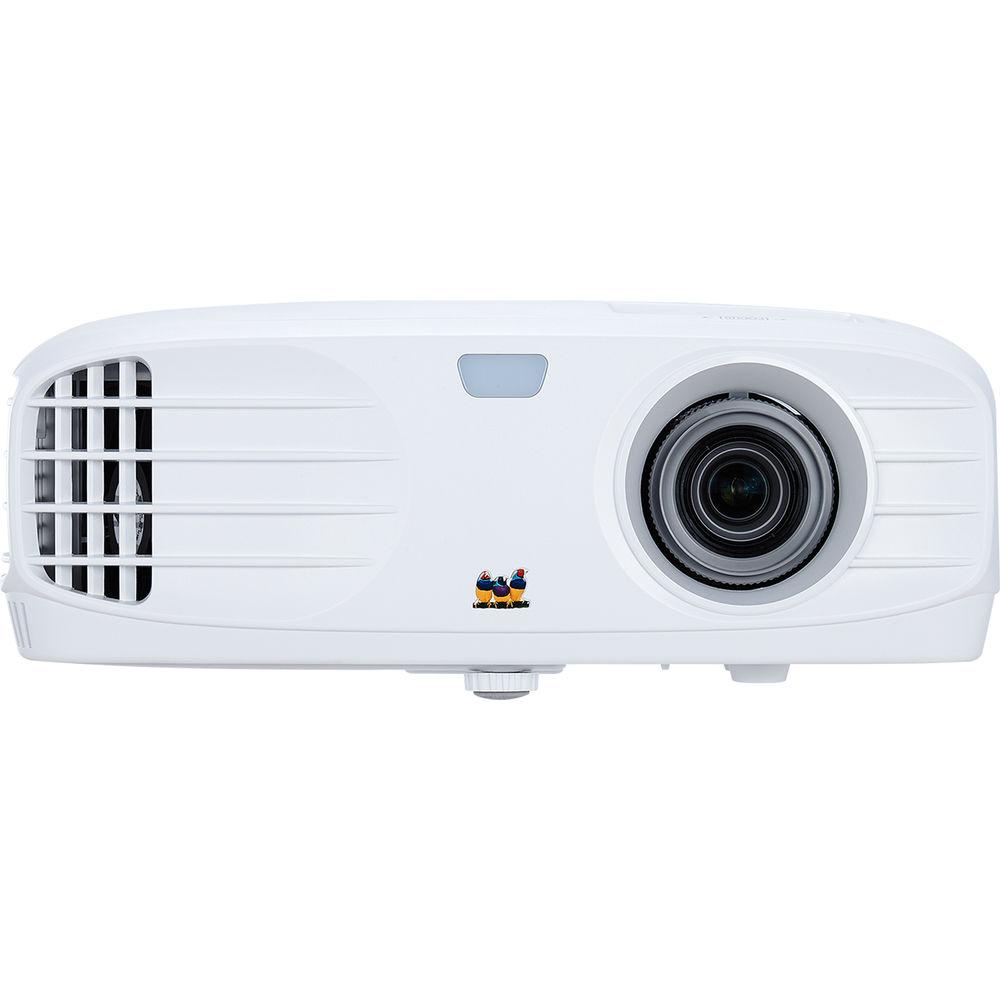

User Manual for ViewSonic PG700WU 3500-Lumen WUXGA DLP Projector Click to enlarge the picture
Contents of the user manual for the ViewSonic PG700WU 3500-Lumen WUXGA DLP Projector
- Product category: Multimedia Projectors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Multimedia Projectors
 |
User manual for the ViewSonic PG700WU 3500-Lumen WUXGA DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

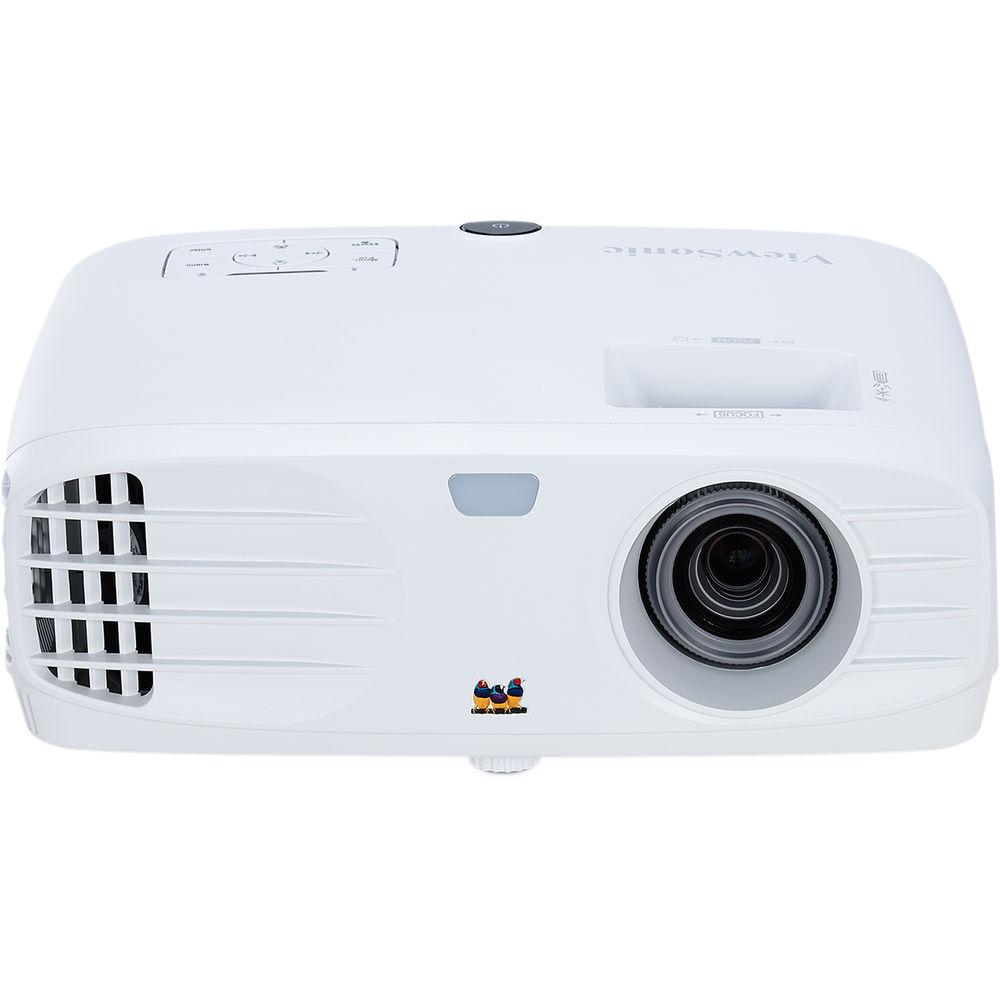

Product description Enjoy bright images in most environments with the ViewSonic PG700WU 3500-Lumen WUXGA DLP Projector. Its 3500 lumens of brightness can overcome ambient light in many situations, making it well-suited for presentation areas such as boardrooms and classrooms. The WUXGA 1920 x 1200 native resolution is suitable for displaying most file and document types, as well as HD video.
The PG700WU has two HDMI inputs for connecting digital high-definition sources such as Blu-ray players and HD cable/satellite boxes, and a VGA input for analog sources. Its HDMI inputs are 3D-capable for viewing 3D Blu-ray discs with other compatible equipment, which is available separately. A VGA output allows daisy-chaining of multiple projectors or displays. The PG700WU includes a VGA cable and an IR remote control for added convenience. - 3500 Lumens of Brightness
- The PG700WU combines 3500 lumens of brightness with a 12,000:1 dynamic contrast ratio to produce clear images in most environments.
- SuperEco Helps Extend Lamp Life
- The SuperEco energy-saving feature allows you to dim projection brightness by up to 70%, reducing power consumption, extending the lamp life up to 15,000 hours.

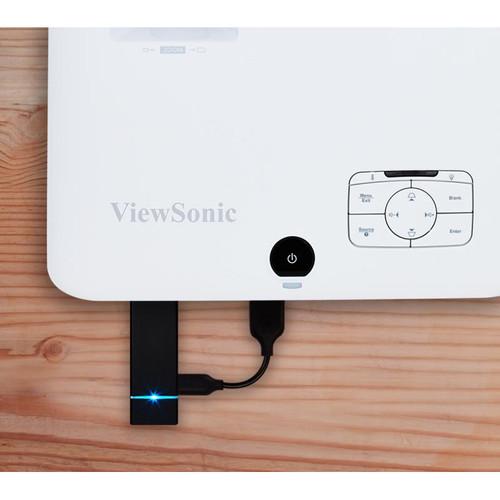

- HDMI Input & Powered USB Port
- Wireless HDMI adapters, such as Google Chromecast, Roku Streaming Stick, Amazon Fire TV Stick, and others, can be plugged into the projector's HDMI port while receiving power via a USB cable plugged into the projector's powered USB output. The USB port can power most wireless adapters, so a separate power source isn't likely needed.
- Network Monitoring & Control
- Your IT admin can monitor, schedule, and manage the projector remotely and receive projector status alerts with the integrated Crestron e-Control system and RoomView Express management software. Because this projector is Crestron and AMX certified, your IT admin can control and monitor the projector for any size campus or enterprise.
- SuperColor for Enhanced Color Accuracy
- ViewSonic's SuperColor technology features a six-segment color wheel and dynamic lamp control capabilities, helping to provide a wide color range.
- Dual 3D Blu-ray Ready HDMI Inputs
- Enjoy 3D projection with your compatible 3D Blu-ray player and the optional PGD-350 shutter glasses, or any other compatible 3D glasses.
- Reduced Input Latency
- The PG700WU features a low 16 ms input latency to produce fast frame-by-frame action.
UPC: 766907000733 In the Box ViewSonic PG700WU 3500-Lumen WUXGA DLP Projector Remote Control VGA Cable Power Cable Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic PG700WU 3500-Lumen WUXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic PG700WU Specs | | | Display System | 0.48" DMD DLP | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 3500 Lumens | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 12,000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Frame Packing (up to 1080p)
Side by Side (up to 1080i)
Top Bottom (up to 1080p) | | Color Wheel | 6-Segment | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 102 kHz

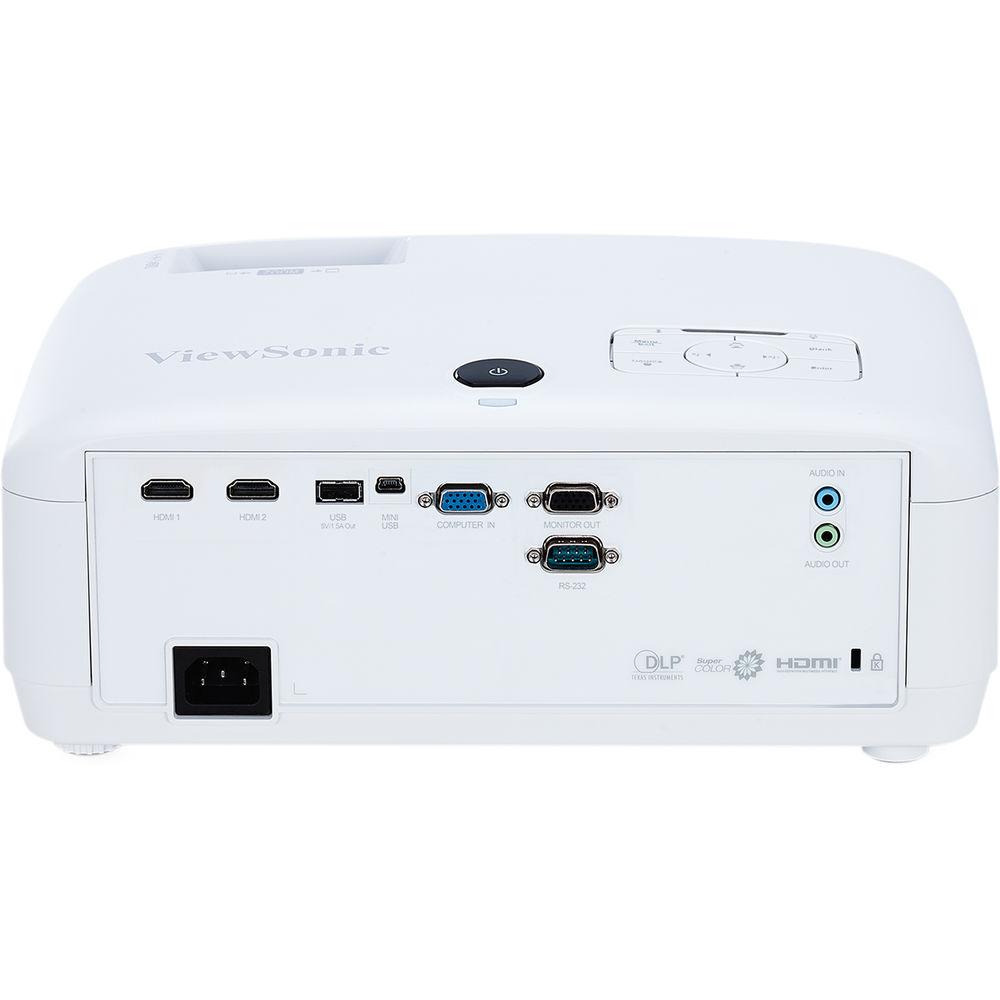

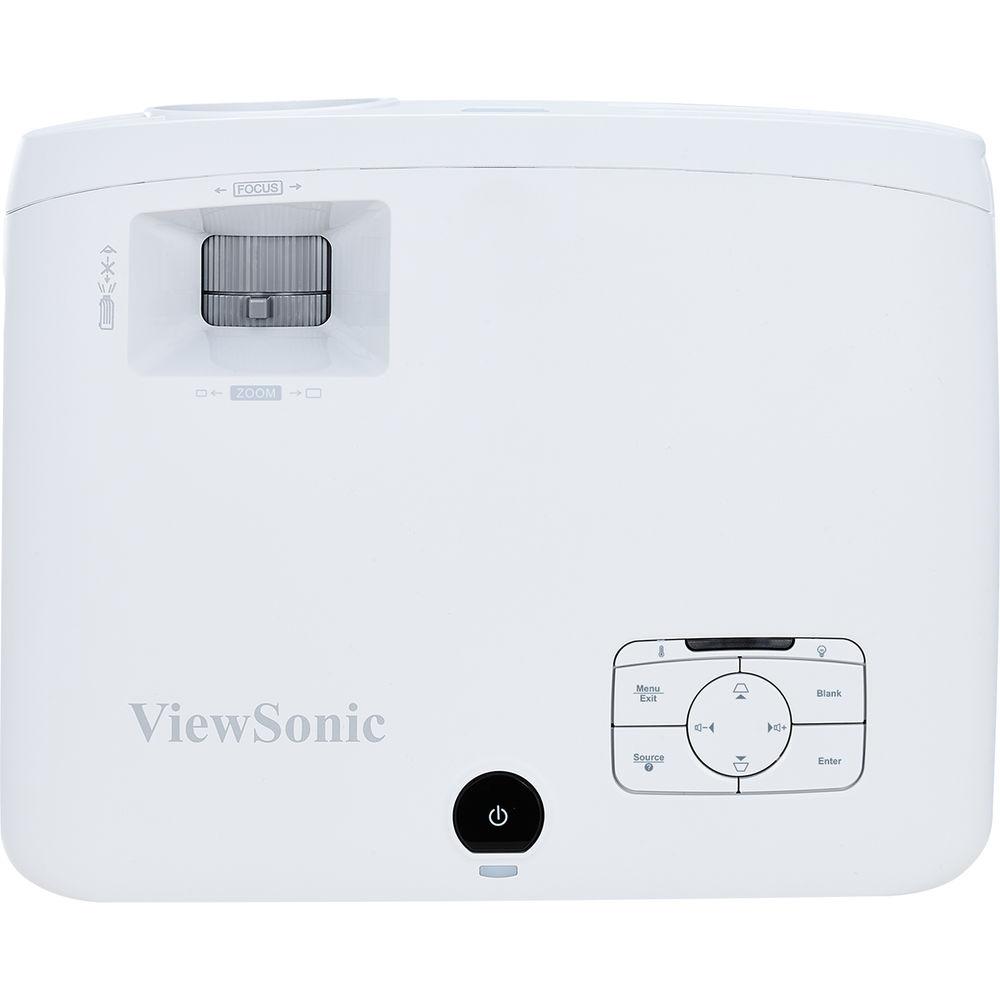

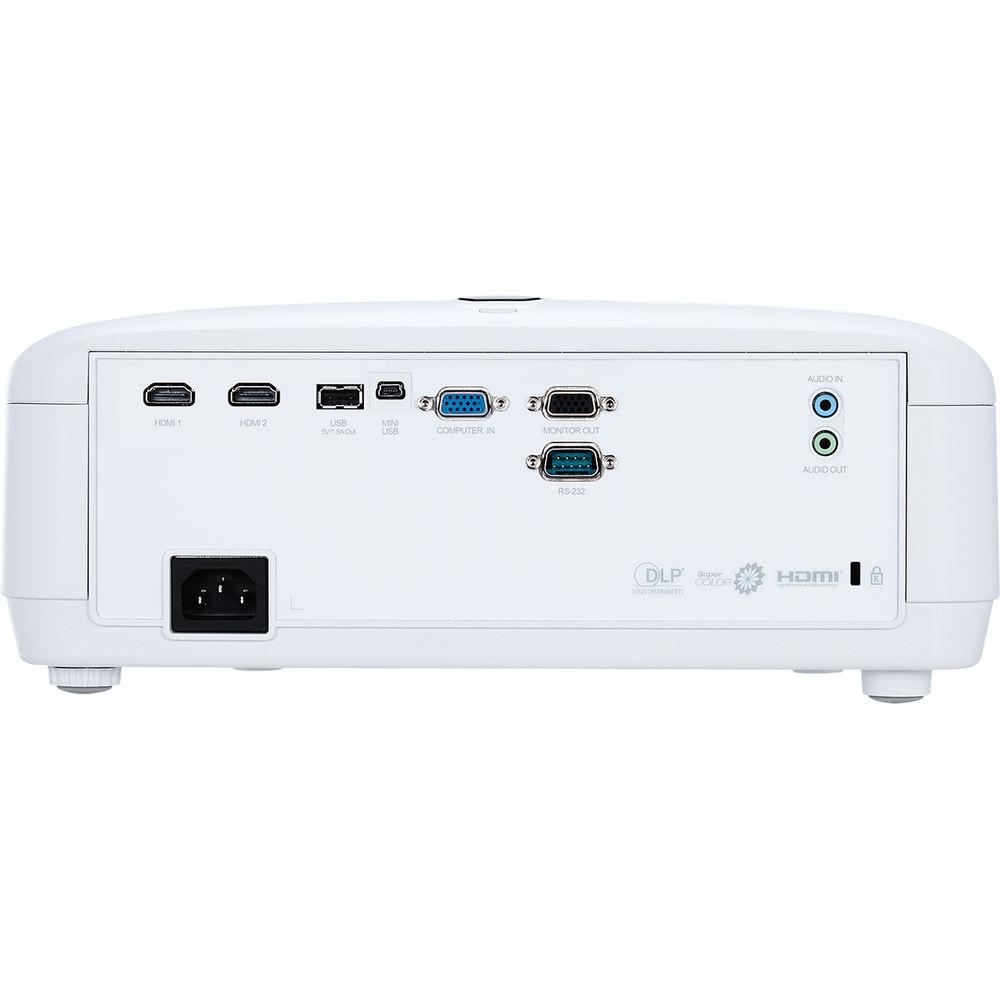

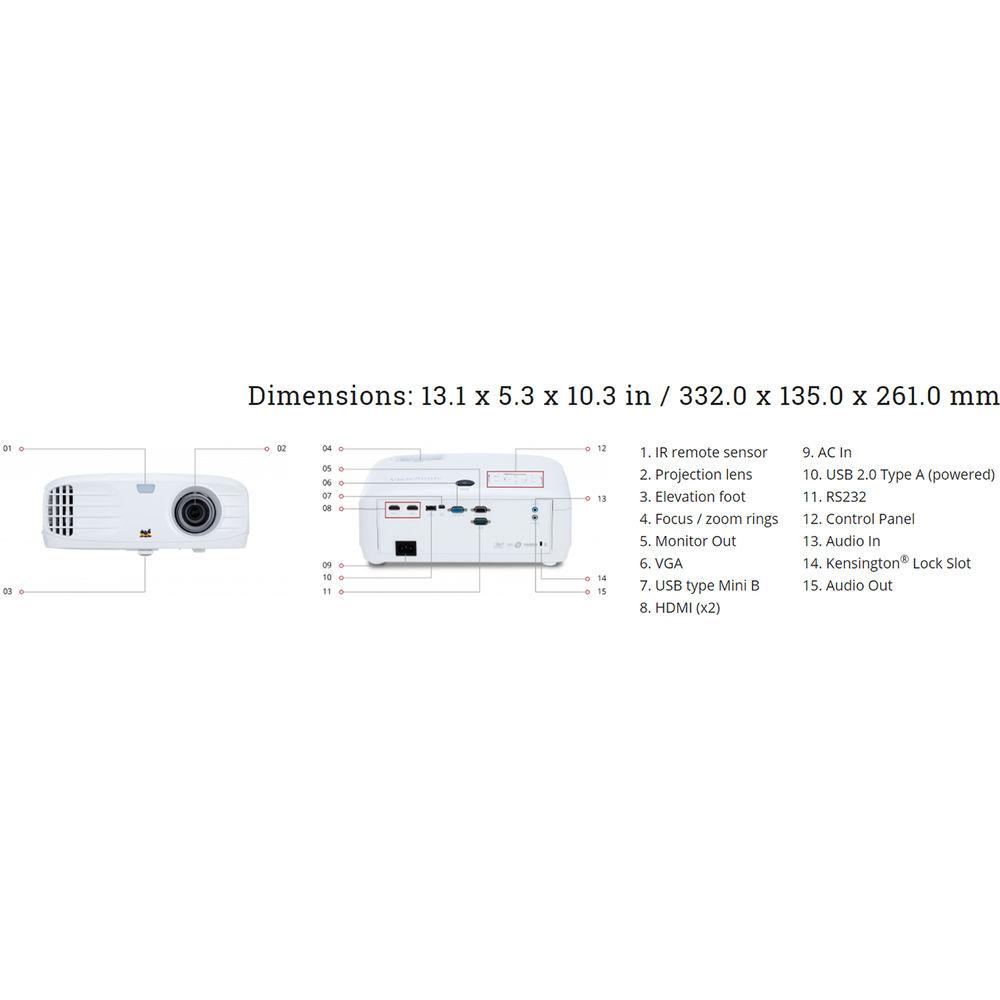

Vertical: 23 to 120 Hz | | Latency | 16 ms | | | | Focus | Manual | | Optical Zoom | Manual: 1.1x | | Throw Distance | 3.2 - 35' / 0.975 - 10.668 m | | Throw Ratio | 1.5 - 1.65:1 (95" @ 3.16 m) | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Vertical: ± 40° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes | | Speaker Power | 2W | | | | Inputs/Outputs | 2 x HDMI (HDMI Type-A) Audio, Video Input
1 x USB 2.0 (USB Type-A) Power Output
1 x VGA (DE-15) Video Input
1 x VGA (DE-15) Video Output
1 x 1/8" (3.5 mm) Mini Audio Input
1 x 1/8" (3.5 mm) Mini Audio Output
1 x RS-232 (DE-9) Control
1 x USB 2.0 (Mini-USB) Control Output | | Memory Card Slot | None | | Wireless LAN / Wi-Fi | None | | | | Light Source | Lamp | | Lamp Power | 203 W | | Expected Lamp Life | Full Brightness: 5000 Hours
Low Brightness: 15,000 Hours | | Security | Cable Lock Slot
Password Protection
Security Bar | | Supported Languages | Arabic
Czech
Dutch
English
Finnish
French
German
Hindi
Indonesian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 290 W
Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | 9842' / 3000 m | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 - 90% | | Dimensions (W x H x D) | 13.1 x 5.3 x 10.3" / 332.0 x 135.0 x 261.0 mm | | Weight | 7.94 lb / 3.6 kg | | | | Package Weight | 11.15 lb | | Box Dimensions (LxWxH) | 16.3 x 13.2 x 8.2" |
