User Manual for ViewSonic PG705HD 4000-Lumen Full HD DLP Projector Click to enlarge the picture
Contents of the user manual for the ViewSonic PG705HD 4000-Lumen Full HD DLP
- Product category: Multimedia Projectors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Multimedia Projectors
 |
User manual for the ViewSonic PG705HD 4000-Lumen Full HD DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

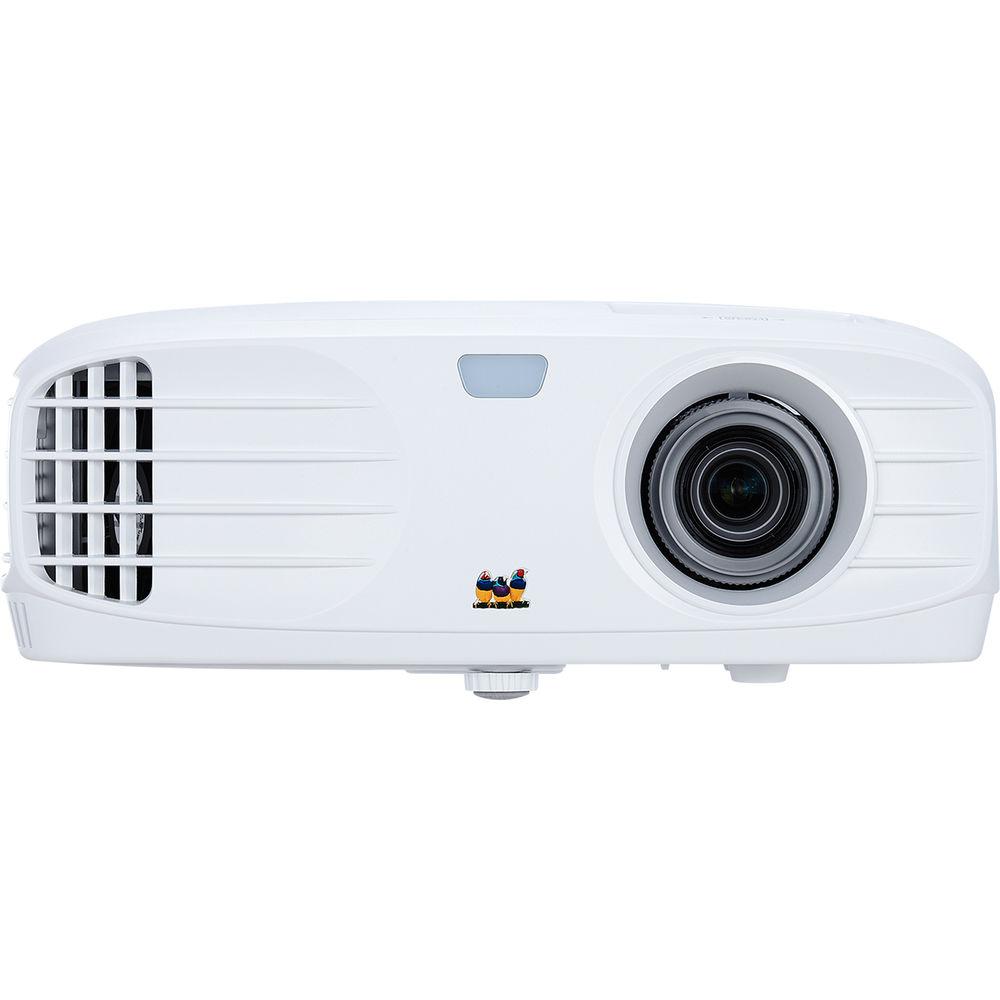

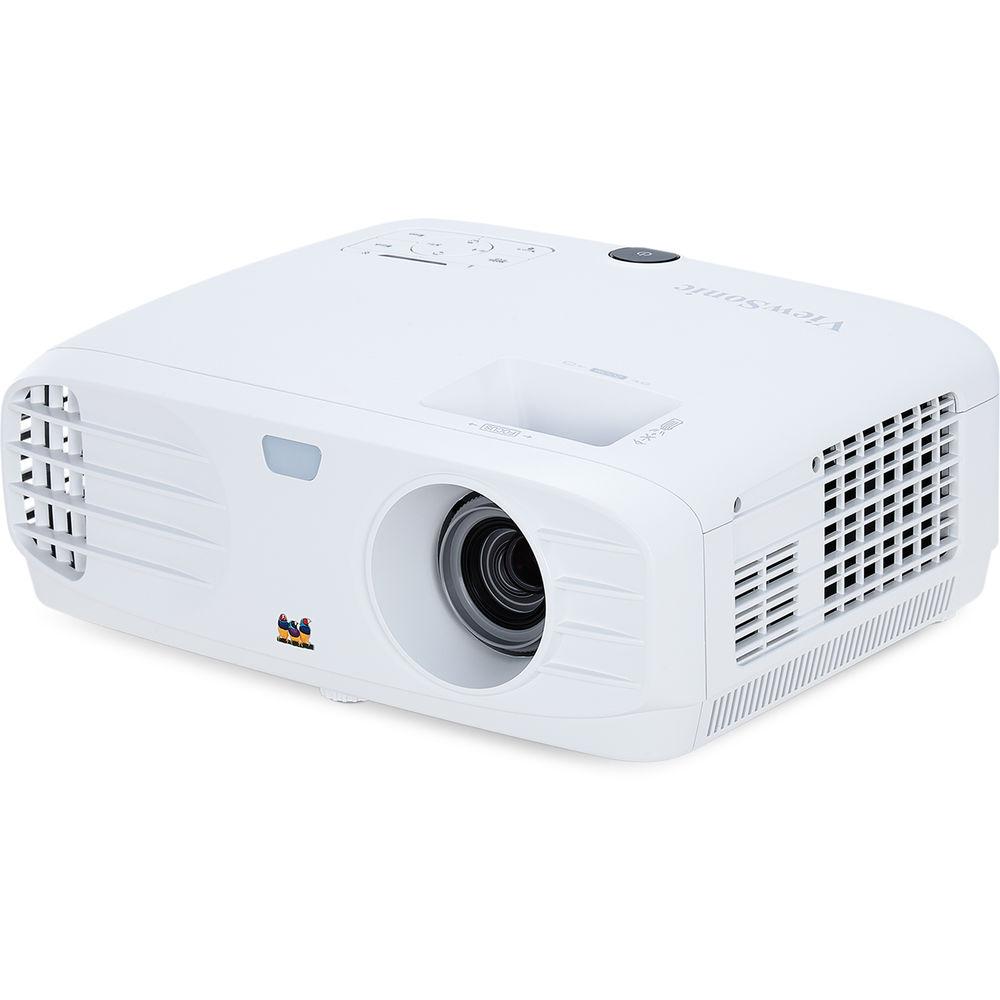

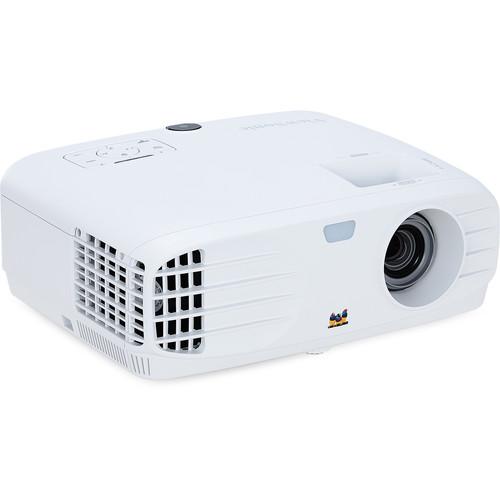

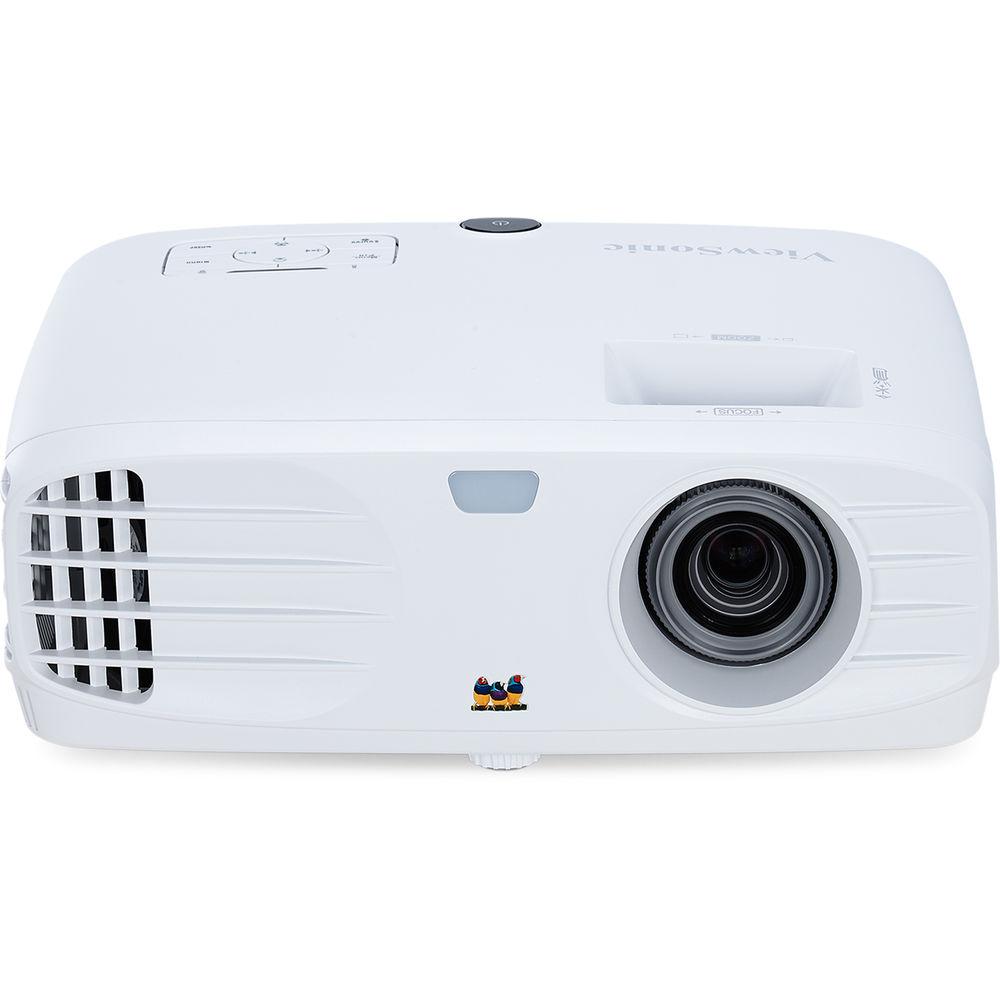

Product description Enjoy bright images in various room conditions with the ViewSonic PG705HD 4000-Lumen Full HD DLP Projector. Its 4000 lumens of brightness can overcome ambient light in many situations, making it well suited for presentation areas such as boardrooms and classrooms. The 1920 x 1080 Full HD native resolution is suitable for displaying many file and document types, and it also accepts video signals up to WUXGA (1920 x 1200) for higher resolution sources. The projector features a 1.5 to 1.8:1 throw ratio, which allows you to place it near the back of the room in many installations without losing focus.
The PG705HD has two HDMI inputs for connecting digital high-definition sources such as Blu-ray players and HD cable/satellite boxes. The projector also has a VGA input for analog sources, plus an RCA composite video and S-Video input. Its HDMI inputs are 3D-capable for viewing 3D Blu-ray discs with other compatible equipment, which is available separately. A VGA output allows daisy-chaining of multiple projectors or displays. The PG705HD includes a VGA cable and an IR remote control. - SuperColor for Enhanced Color Accuracy
- ViewSonic's SuperColor technology features a six-segment color wheel and dynamic lamp control capabilities, helping to provide a wide color range.
- 4000 Lumens of Brightness
- The PG705HD outputs 4000 lumens of brightness to produce visible images in nearly any environment.
- Network Monitoring & Control
- You can monitor, schedule, and manage the projector remotely, as well as receive projector status alerts, with the integrated Crestron e-Control system and RoomView Express management software. Because this projector is Crestron and AMX certified, IT admins can control and monitor the projector for virtually any size campus or enterprise.
- Energy-Efficient SuperEco Mode
- SuperEco mode allows users to dim projector brightness by up to 70%, thereby reducing the lamp's power consumption and, ultimately, total cost of ownership.
- Balanced Color and Brightness
- A choice of five unique view modes provide an enhanced viewing experience in nearly any environment regardless of ambient light.
- Dual 3D Blu-ray-Ready HDMI Inputs
- Designed with two HDMI ports, this projector is well suited for connecting to any HDMI-enabled device, and can display 3D images directly from 3D Blu-ray players. 3D images can be viewed with the optional ViewSonic PGD-350 shutter glasses, or any other compatible 3D glasses.
- Programmable Remote Control
- The programmable MyButton hotkey on the remote can be configured to launch the most commonly used functions. Control up to eight projectors in the same venue or from a mobile device via the free V-remote app.
UPC: 766907929515 In the Box ViewSonic PG705HD 4000-Lumen Full HD DLP Projector Remote Control VGA Cable Power Cable Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic PG705HD 4000-Lumen Full HD DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic PG705HD Specs | | | Display System | 0.47" DMD DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 4000 Lumens | | Aspect Ratio | Native: 16:9 | | Dynamic Contrast Ratio | 12,000:1 | | DLP Link 3D | Yes | | Color Wheel | 6-Segment | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 102 kHz

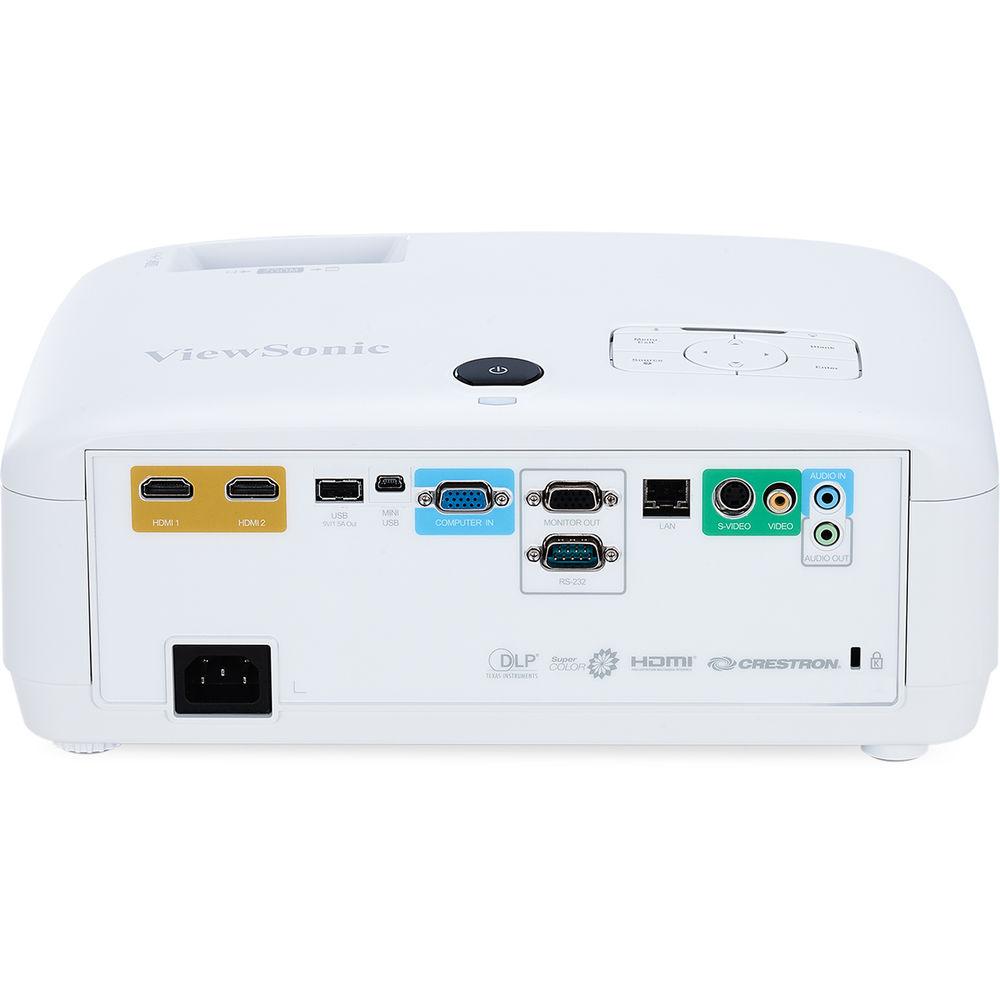

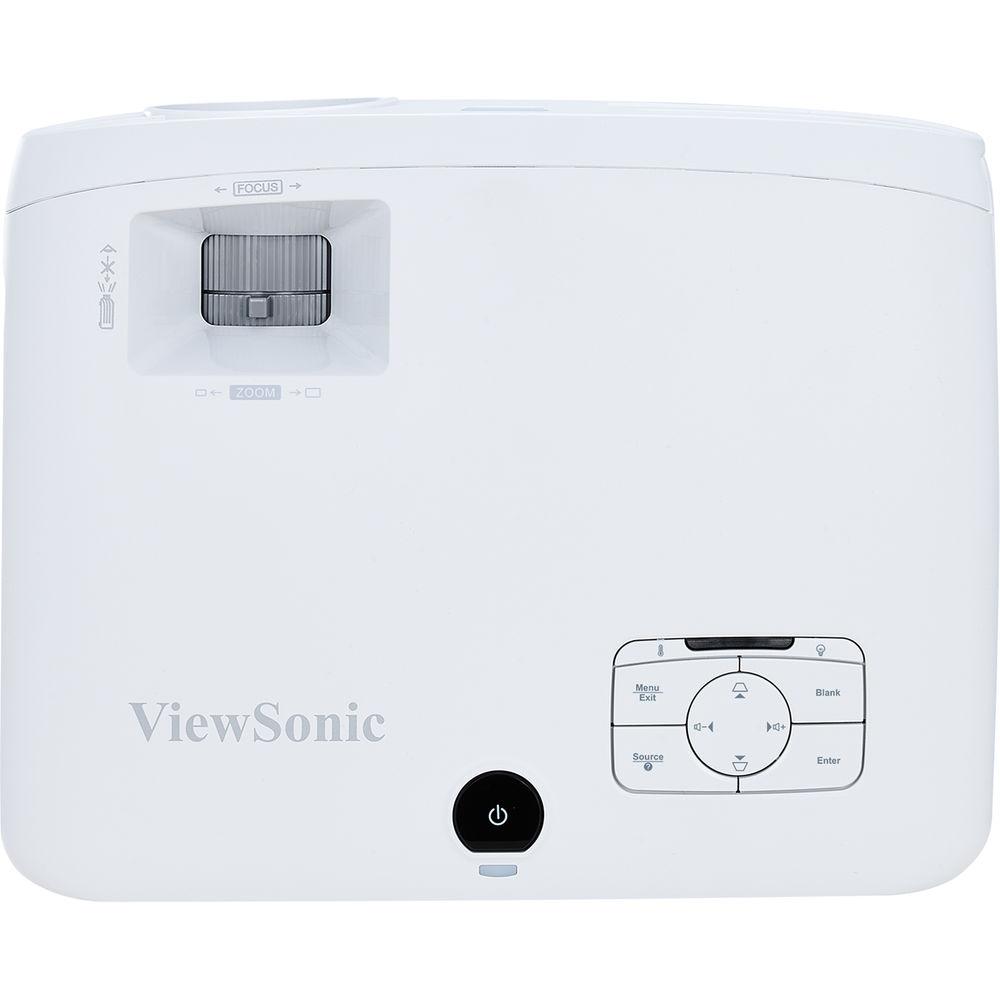

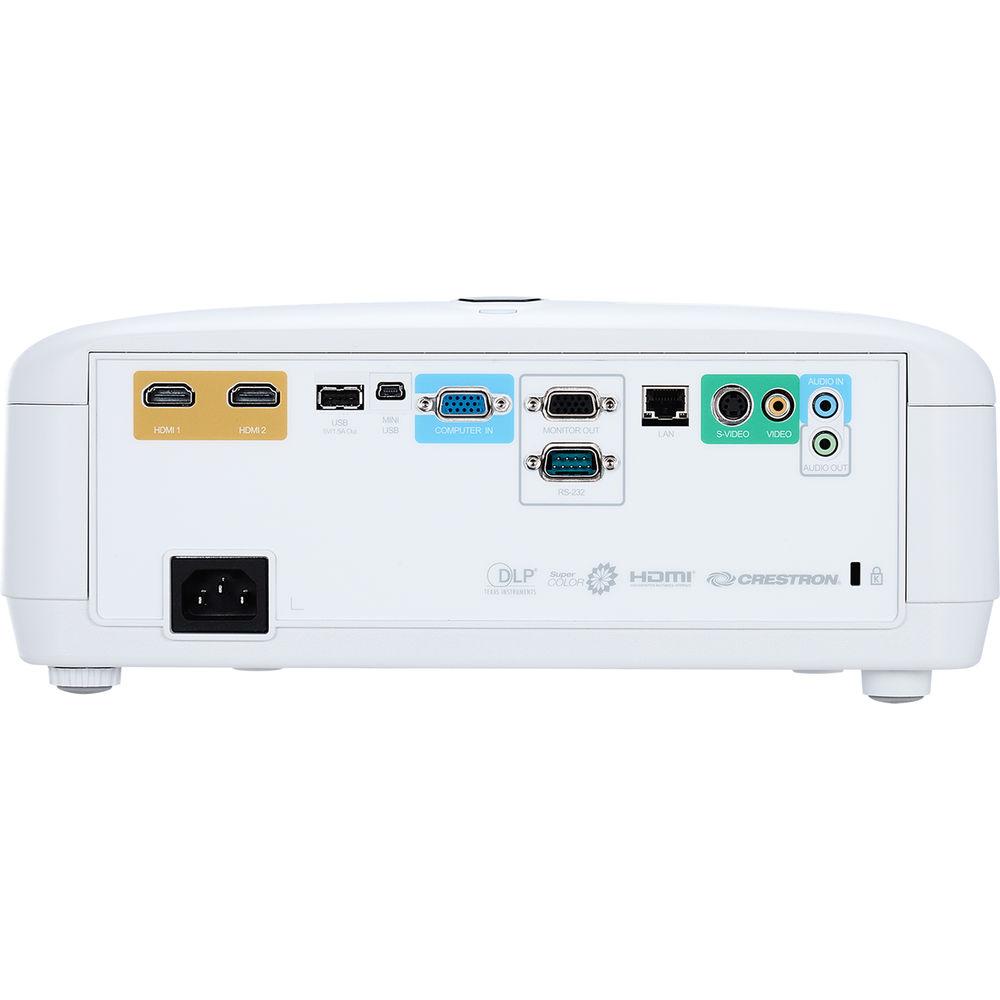

Vertical: 23 to 120 Hz | | | | Focus | Manual | | Optical Zoom | Manual: 1.2x | | Throw Distance | 3.2 - 38.4' / 0.98 - 11.7 m | | Throw Ratio | 1.5 - 1.8:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Vertical: ± 40° | | Built-In Speaker | Yes | | Speaker Power | 10W | | | | Inputs/Outputs | 2 x HDMI Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Composite (RCA) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x USB 2.0 Type-A Female (Input)
1 x Mini-USB Type-B Female (Input)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x Ethernet (RJ45) LAN (Input) | | Wireless LAN / Wi-Fi | None | | | | Light Source | Lamp | | Lamp Power | 240 W | | Expected Lamp Life | Full Brightness: 4000 Hours
Low Brightness: 15,000 Hours | | Security | Cable Lock Slot | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 350 W

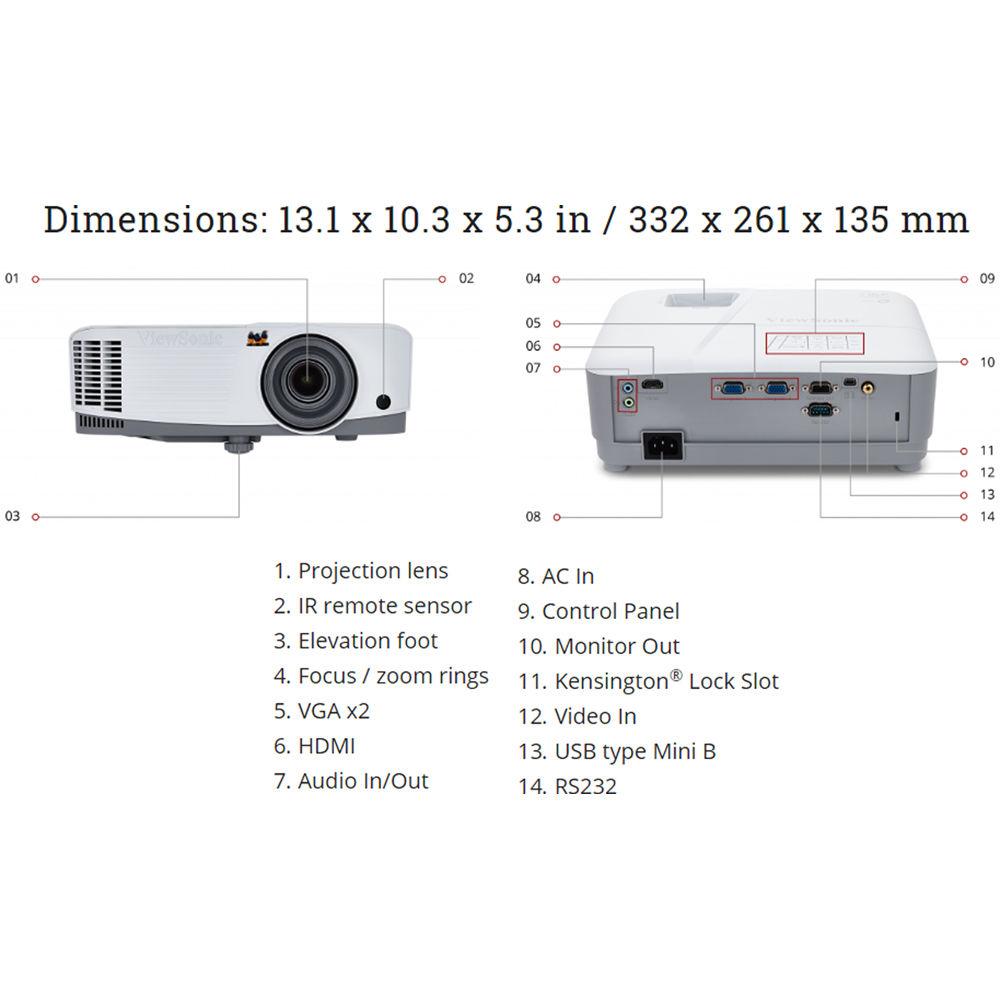

Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | 9842' / 3000 m | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 - 90% | | Dimensions (W x H x D) | 13.1 x 5.3 x 10.3" / 33.3 x 13.5 x 26.2 cm | | Weight | 8.1 lb / 3.7 kg | | | | Package Weight | 11.4 lb | | Box Dimensions (LxWxH) | 16.2 x 13.2 x 8.2" |
