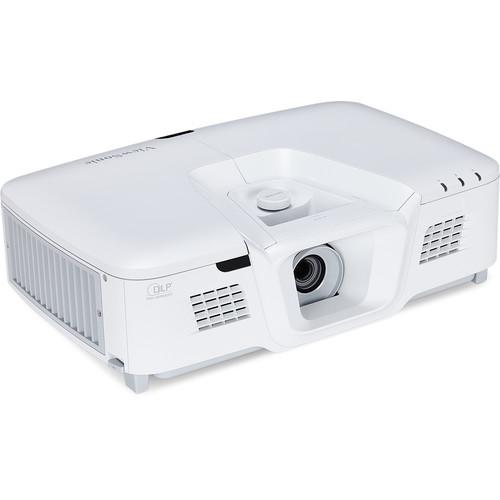

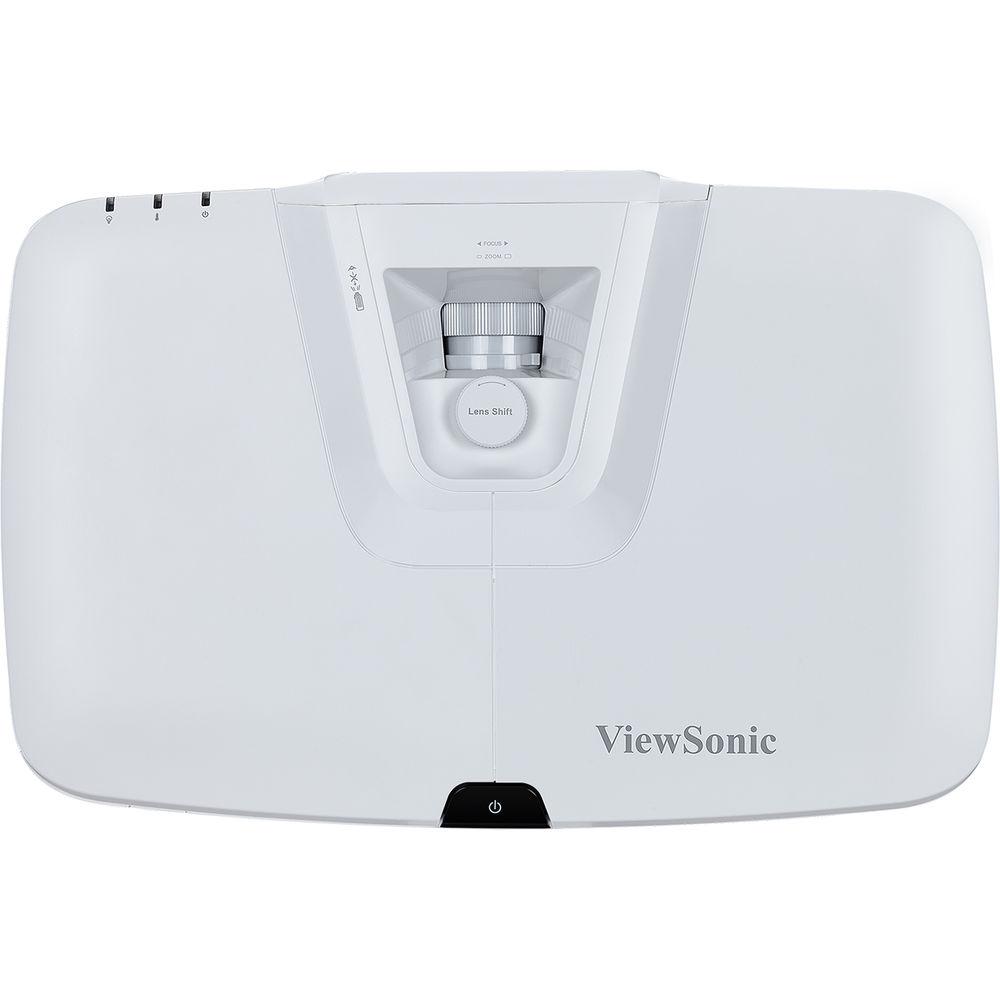

User Manual for ViewSonic PG800W 5000-Lumen WXGA DLP Projector Click to enlarge the picture
Contents of the user manual for the ViewSonic PG800W 5000-Lumen WXGA DLP Projector
- Product category: Multimedia Projectors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Multimedia Projectors
 |
User manual for the ViewSonic PG800W 5000-Lumen WXGA DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|
Product description Enjoy bright images in most environments with the ViewSonic PG800W 5000-Lumen WXGA DLP Projector. Its 5000 lumens of brightness can overcome ambient light in many situations, making it well suited for presentation areas such as boardrooms and classrooms. The WXGA 1280 x 800 native resolution is suitable for displaying many file and document types, and it can accept video signals up to WUXGA (1920 x 1200) from higher resolution sources. The projector features a 1.2 to 1.6:1 throw ratio, providing flexible installation options.
The PG800W has two HDMI inputs for connecting digital high-definition sources such as Blu-ray players and HD cable/satellite boxes. One HDMI input is MHL-compatible for wired streaming of your mobile content while simultaneously charging your device. The projector also has two VGA inputs for analog sources, plus an RCA composite video and S-Video input. Its HDMI inputs are 3D-capable for viewing 3D Blu-ray discs with other compatible equipment, which is available separately. A VGA output allows daisy-chaining of multiple projectors or displays. The PG800W includes a VGA cable and an IR remote control. - 5000 Lumens of Brightness
- The PG800W combines 5000 lumens of brightness with a 50,000:1 dynamic contrast ratio to produce clear images in nearly any environment.
- Vertical and Horizontal Lens Shift with Centered Lens
- Vertical and horizontal lens shift offer up, down, left, and right adjustment of the projection lens for flexible placement in challenging installations. The centered-lens design makes the PG800W well suited for replacing existing centered-lens installations, so you don't have to move or reinstall existing ceiling mounts or projector screens.

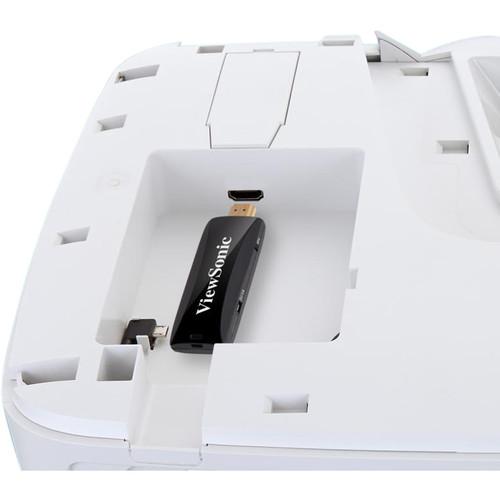

- PortAll Enclosed MHL/HDMI Adapter Compartment
- ViewSonic's PortAll feature utilizes a hidden compartment with an integrated and secure MHL/HDMI port that lets you discreetly stream multimedia content from a wireless adapter or connect to other devices via an HDMI cable.
- Network Monitoring and Control
- You can monitor, schedule, and manage the projector remotely, as well as receive projector status alerts, with the integrated Crestron e-Control system and RoomView Express management software. And since the PG800W is Crestron and AMX certified, you can control and monitor the projector for nearly any size campus or enterprise.
- SuperColor for Enhanced Color Accuracy
- ViewSonic's SuperColor technology features a six-segment color wheel and dynamic lamp control capabilities, helping to provide a wide color range.
- Auto Power On/Off
- The PG800W can be configured to automatically turn on for quick and easy startup whenever an active video input is detected. Conversely, when no signal is present, the projector will automatically power off after an amount of time you can set.
- SonicExpert Technology
- The ViewSonic's SonicExpert technology incorporates dual 10W speakers to deliver a full 20 Hz to 20 kHz sound range.
- 4-in-1 Power Button with IR Pass-Through
- The centrally located power button not only turns the projector on and off, but also functions as an IR receiver and control for remote devices. LED lights on the power button indicate whether any connected wireless adapters are powered on within the PortAll compartment.
- Enhanced Mounting Flexibility
- 1.3x optical zoom provides additional mounting flexibility to help reduce installation hassle.
UPC: 766907934014 In the Box ViewSonic PG800W 5000-Lumen WXGA DLP Projector Remote Control with Batteries VGA Cable Power Cable Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp More from Manufacturer bxexqzxafsdexvtssqfrudzbwbcxsdtcsqxsct Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic PG800W 5000-Lumen WXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

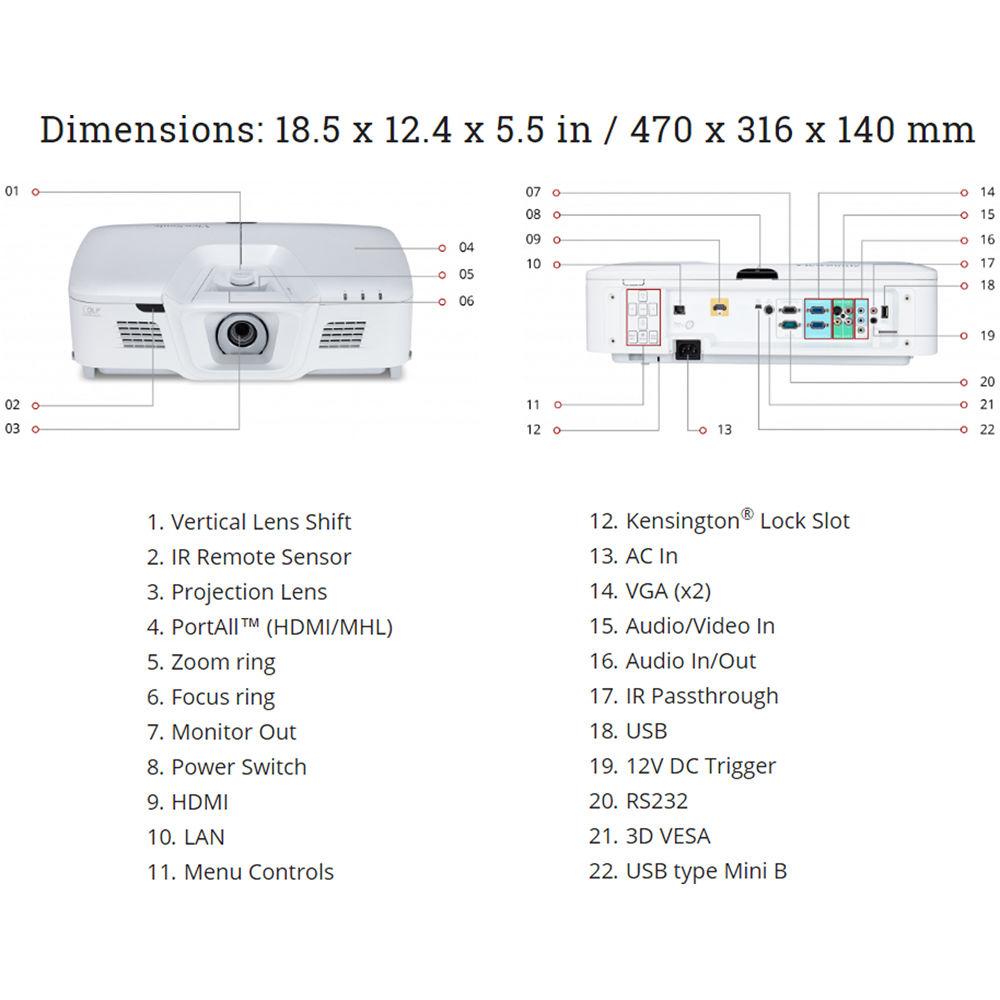

Technical parametersViewSonic PG800W Specs | | | Display System | 0.65" DMD DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 5000 Lumens | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 50,000:1 | | DLP Link 3D | Yes | | Color Wheel | 6-Segment | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 102 kHz
Vertical: 23 to 120 Hz | | | | Focus | Manual | | Optical Zoom | Manual: 1.3x | | Throw Distance | 2.6 - 33.3' / 0.79 - 10.15 m | | Throw Ratio | 1.2 - 1.6:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Manual-Vertical: ± 40° | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 20W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
2 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Composite (RCA) Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x USB 2.0 Type-A Female (Input)
1 x Mini-USB Type-B Female (Input)
1 x Ethernet (RJ45) LAN (Input)
1 x 12 V Trigger Control (Output)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x VESA 3D Sync Control (Output)
1 x 1/8" (3.5 mm) Mini Control (Output) | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | Lamp | | Lamp Power | 370 W | | Expected Lamp Life | Full Brightness: 2000 Hours
Low Brightness: 2500 Hours | | Security | Cable Lock Slot | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 574 W
Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | 9842' / 3000 m | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 - 90% | | Dimensions (W x H x D) | 18.5 x 5.5 x 12.4" / 47.0 x 14.0 x 31.5 cm | | Weight | 13.7 lb / 6.2 kg | | | | Package Weight | 18.4 lb | | Box Dimensions (LxWxH) | 23.0 x 21.0 x 10.0" |
