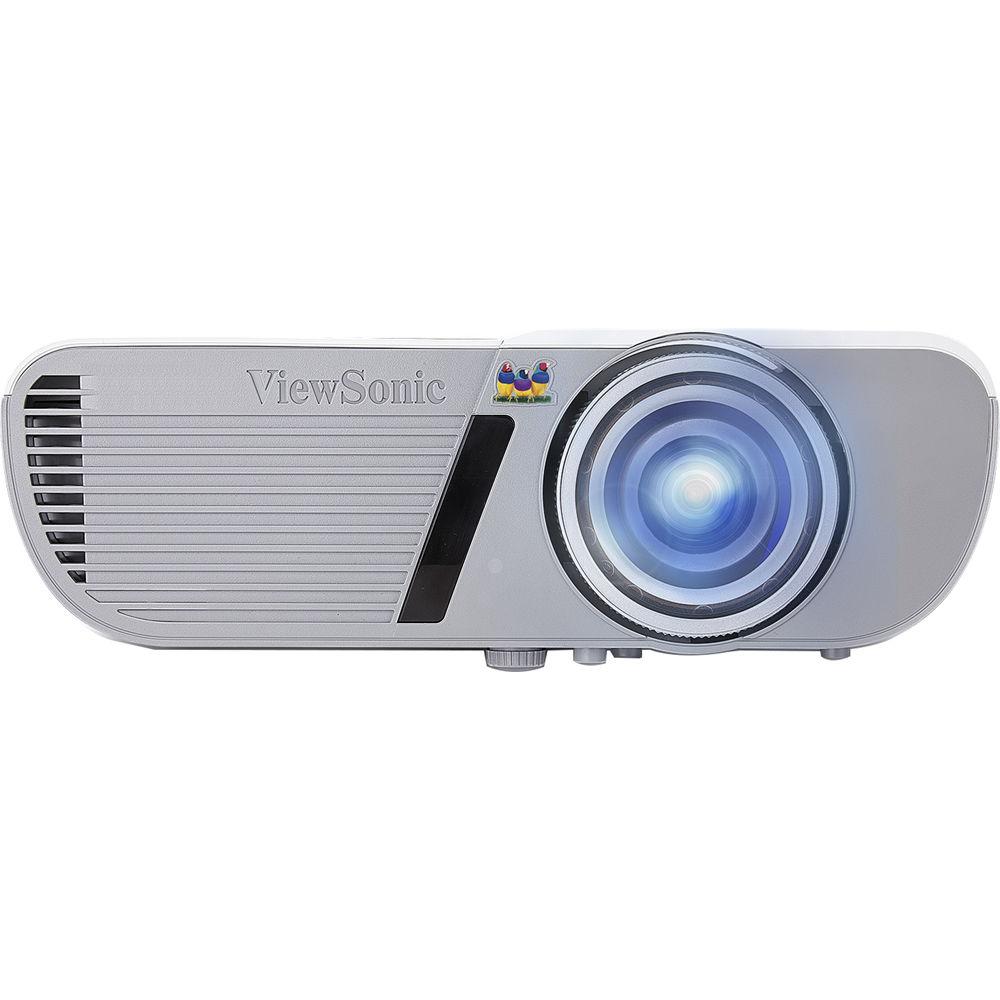

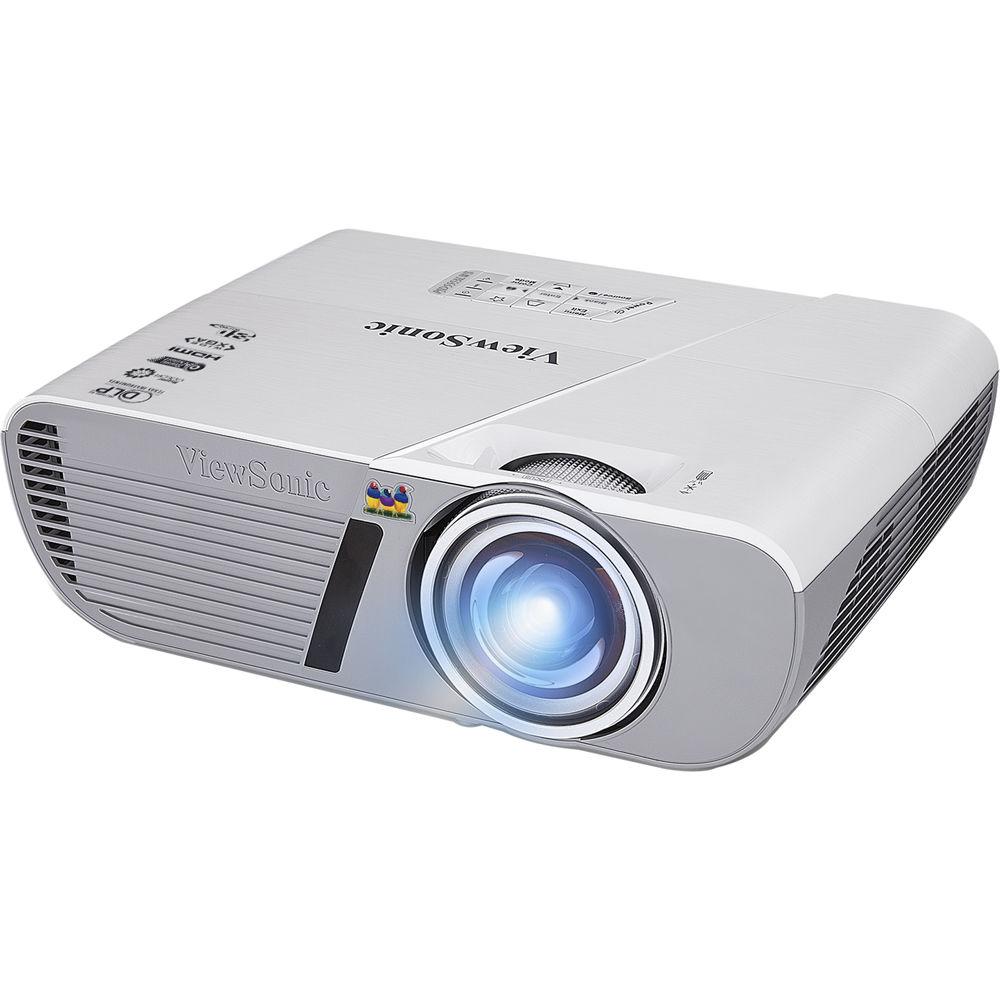

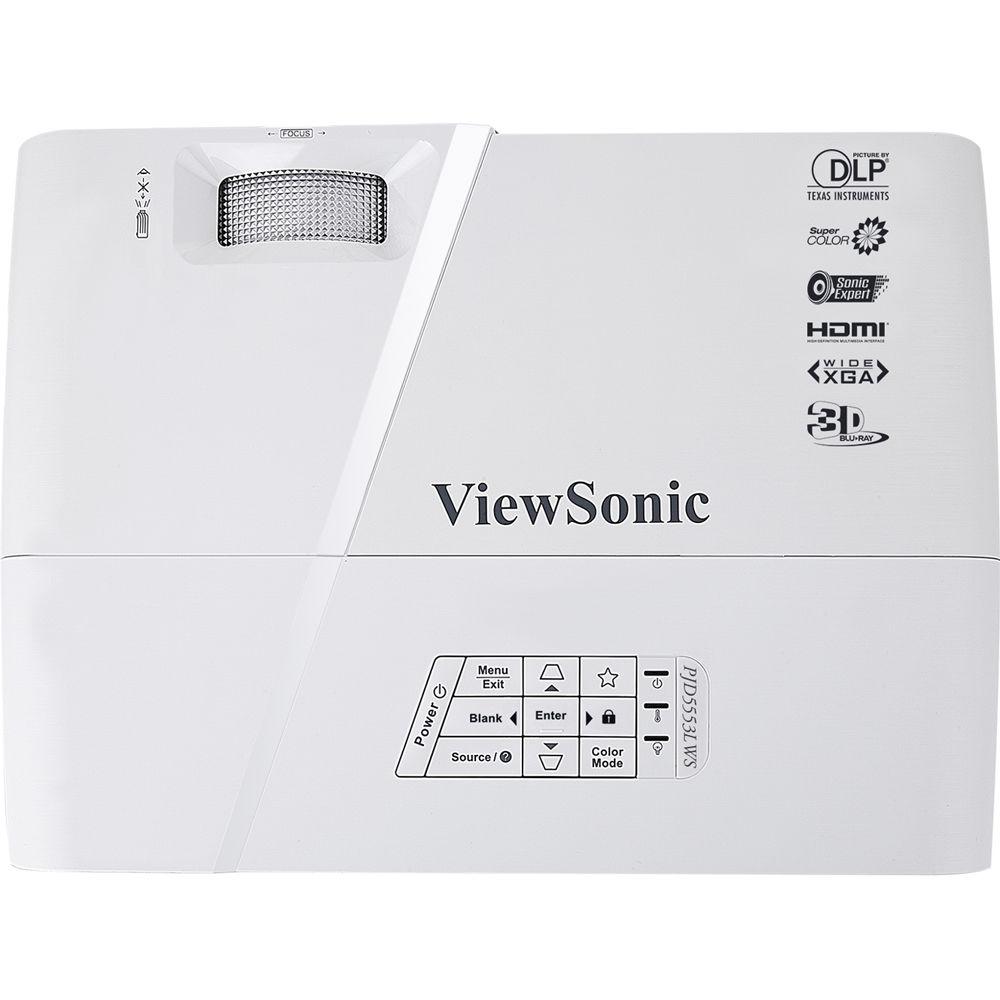

User Manual for ViewSonic PJD5553LWS 3200-Lumen WXGA Short Throw DLP Projector Click to enlarge the picture
Contents of the user manual for the ViewSonic PJD5553LWS 3200-Lumen WXGA Short Throw
- Product category: Multimedia Projectors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Multimedia Projectors
 |
User manual for the ViewSonic PJD5553LWS 3200-Lumen WXGA Short Throw contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|
Product description Designed for education, business, and home use, the Viewsonic PJD5553LWS 3200-Lumen WXGA Short Throw DLP Projector features a short 0.49:1 throw ratio, enabling it to display large images when positioned near the screen. This short throw ratio also helps prevent shadows on the screen when the presenter is walking near the front of the room. Its 1280 x 800 resolution will produce clear and detailed images and text at most sizes, and its 3200 lumens of brightness combined with its 20,000:1 dynamic contrast ratio will ensure that those images are visible even in rooms where the ambient light can't be controlled.

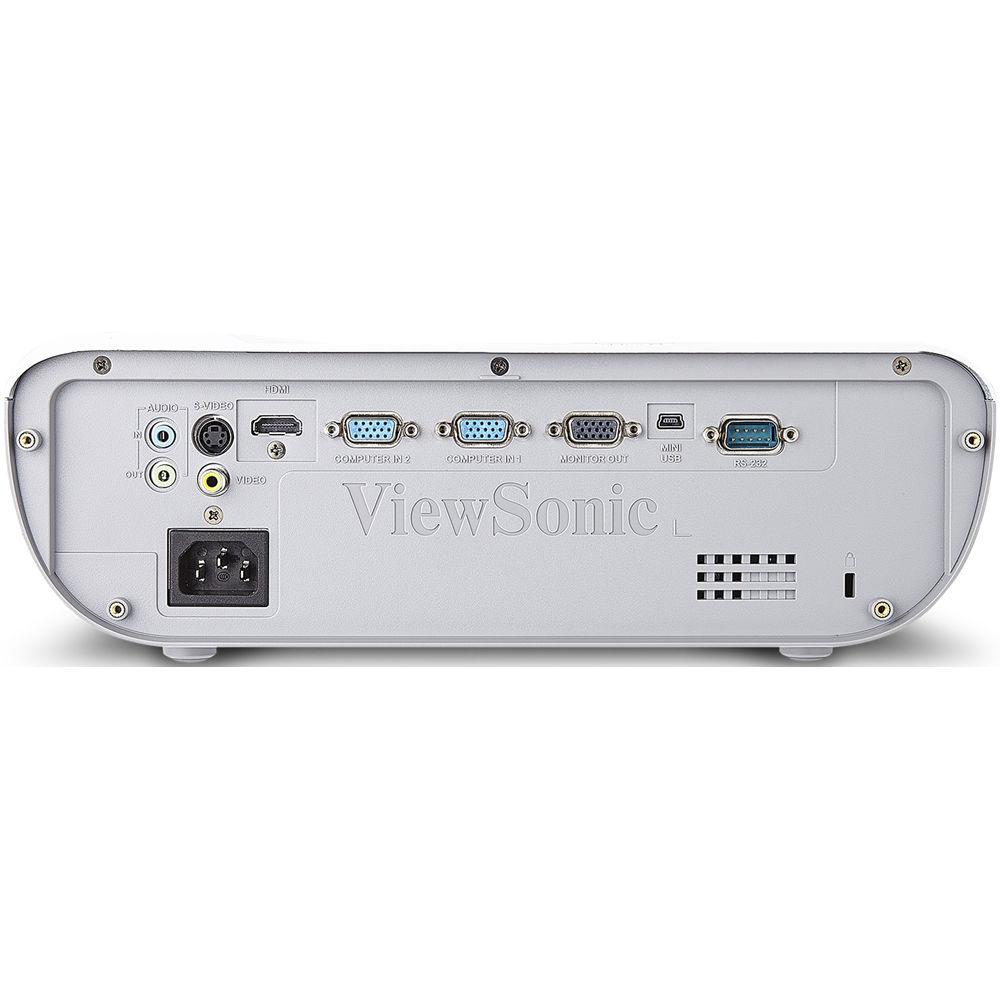

The PJD5553LWS is prepared for nearly any source, thanks to its HDMI, S-Video, RCA composite, and two VGA inputs. It has a VGA output for daisy-chaining multiple projectors to display the same source, and a built-in 2W speaker to eliminate the need for an external speaker setup. The projector is RS-232 controllable and includes an IR remote control. - SonicExpert Technology
- This LightStream projector is designed with ViewSonic's SonicExpert technology that incorporates an enlarged speaker chamber and a more powerful amplifier to deliver a full 20 Hz to 20 kHz sound range.
- Smart Design
- An optional cable management hood connects onto the back of the projector to hide unsightly cable clutter and exposed ports. An easy-access top lamp door enables simple lamp maintenance and replacement.
- 3D Blu-ray Ready HDMI Input
- Equipped with HDMI, the PJD5553LWS will connect to any HDMI-enabled device, and can display 3D images directly from 3D Blu-ray players. 3D images can be viewed with optional compatible 3D glasses.
- Balanced Color and Brightness
- A choice of five unique view modes enhance your viewing experience in any environment, regardless of ambient light.
UPC: 766907808117 In the Box ViewSonic PJD5553LWS 3200-Lumen WXGA Short Throw DLP Projector VGA Cable Remote Control with Batteries Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp Reference Chart PDF 672.1kbtwszbdqusvbrccauczxdwses More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic PJD5553LWS 3200-Lumen WXGA Short Throw DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic PJD5553LWS Specs | | | Display System | 0.65" DMD DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | 3200 Lumens | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 20,000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 102 kHz
Vertical: 23 to 120 Hz | | | | Focus | Manual | | Optical Zoom | None | | Throw Distance | 1.74 - 8.66' / 0.53 - 2.64 m | | Throw Ratio | 0.49:1 | | Projection Size | 50 - 250" / 127.00 - 635.00 cm | | | | Keystone Correction | Manual-Vertical: ± 40° | | Built-In Speaker | Yes (Mono) | | Speaker Power | 2W | | | | Inputs/Outputs | 1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
2 x VGA (DE-15) Video (Input)
1 x Composite (RCA) Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x HDMI Audio/Video (Input)
1 x USB Type-B Female (Input) | | | | Lamp Power | 190 W | | Expected Lamp Life | Medium Brightness: 5000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Medium Brightness: 32 dB
Low Brightness: 27 dB | | Security | Cable Lock Slot
Keypad Lock | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 265 W
Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | 10000' / 3048 m | | Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 10 - 90% Non-condensing | | Dimensions (W x H x D) | 12.4 x 9.0 x 4.1" / 316.0 x 228.0 x 103.7 mm | | Weight | 5.5 lb / 2.5 kg | | | | Package Weight | 8.05 lb | | Box Dimensions (LxWxH) | 16.4 x 13.7 x 8.9" |
