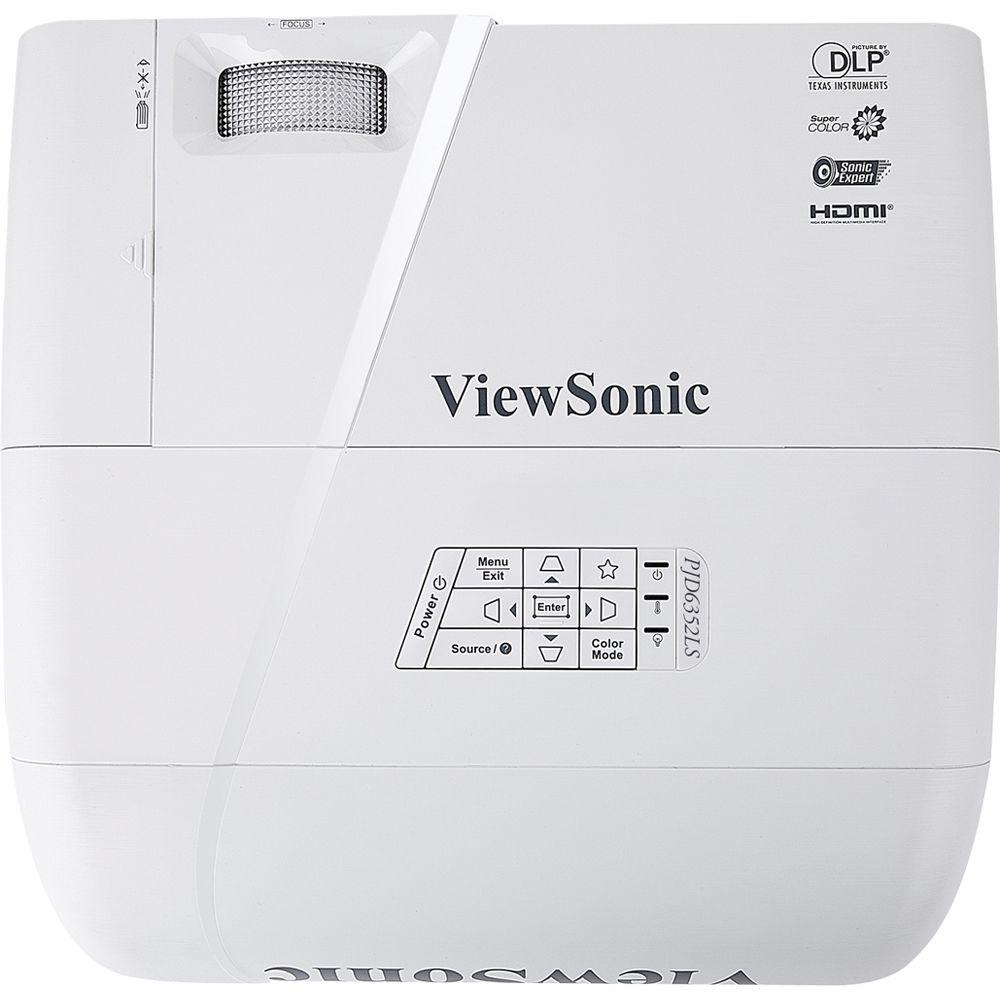

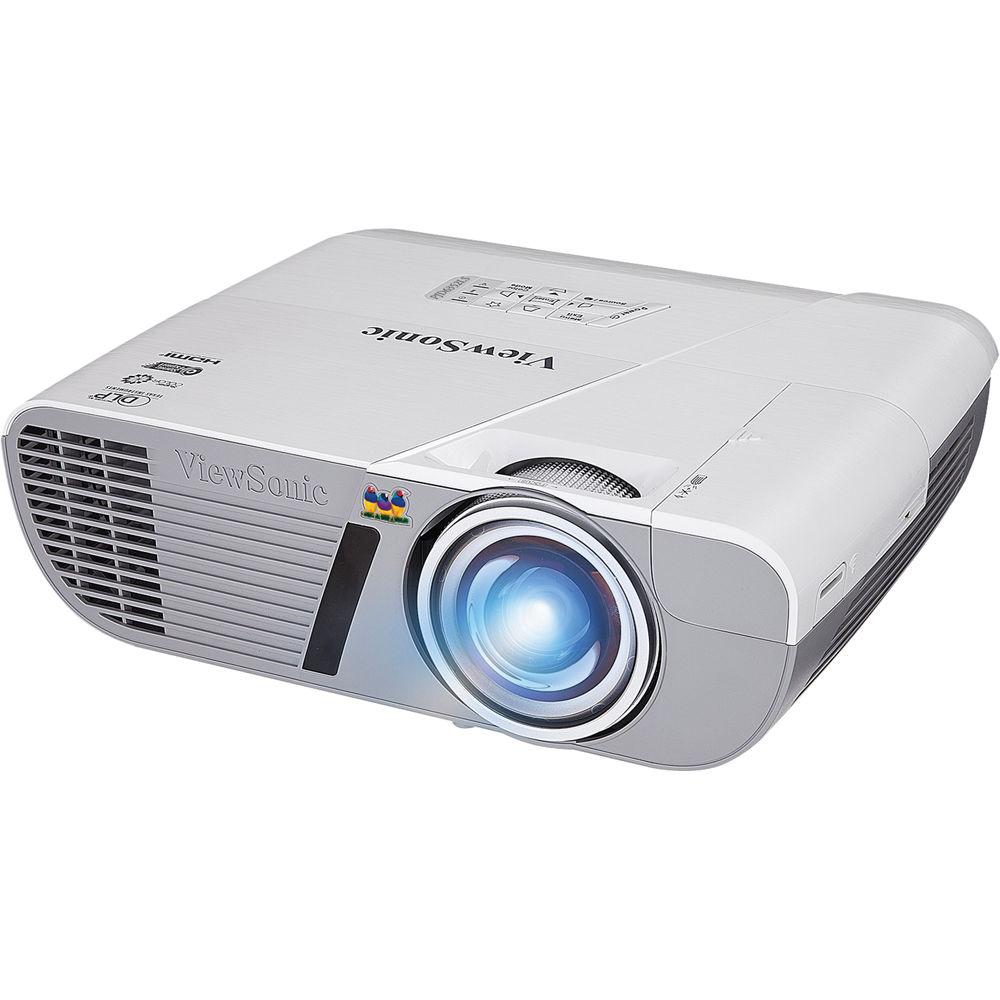

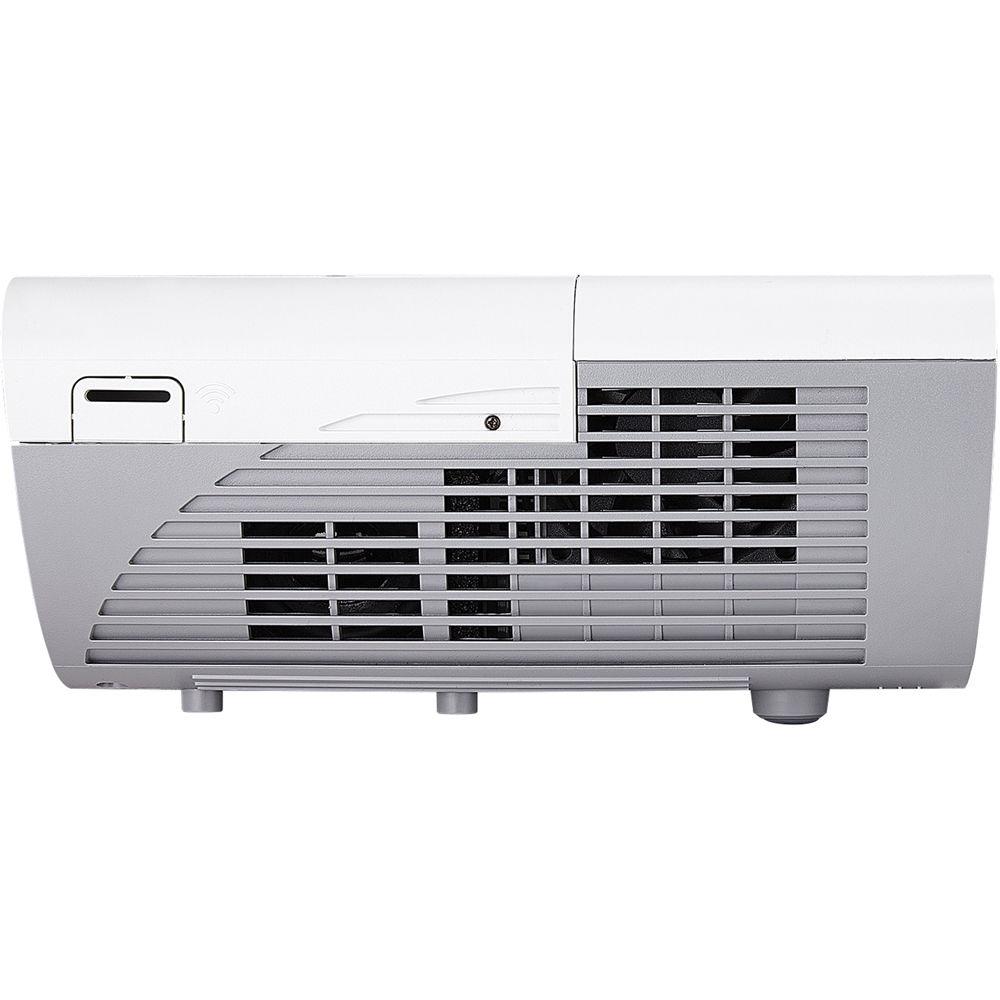

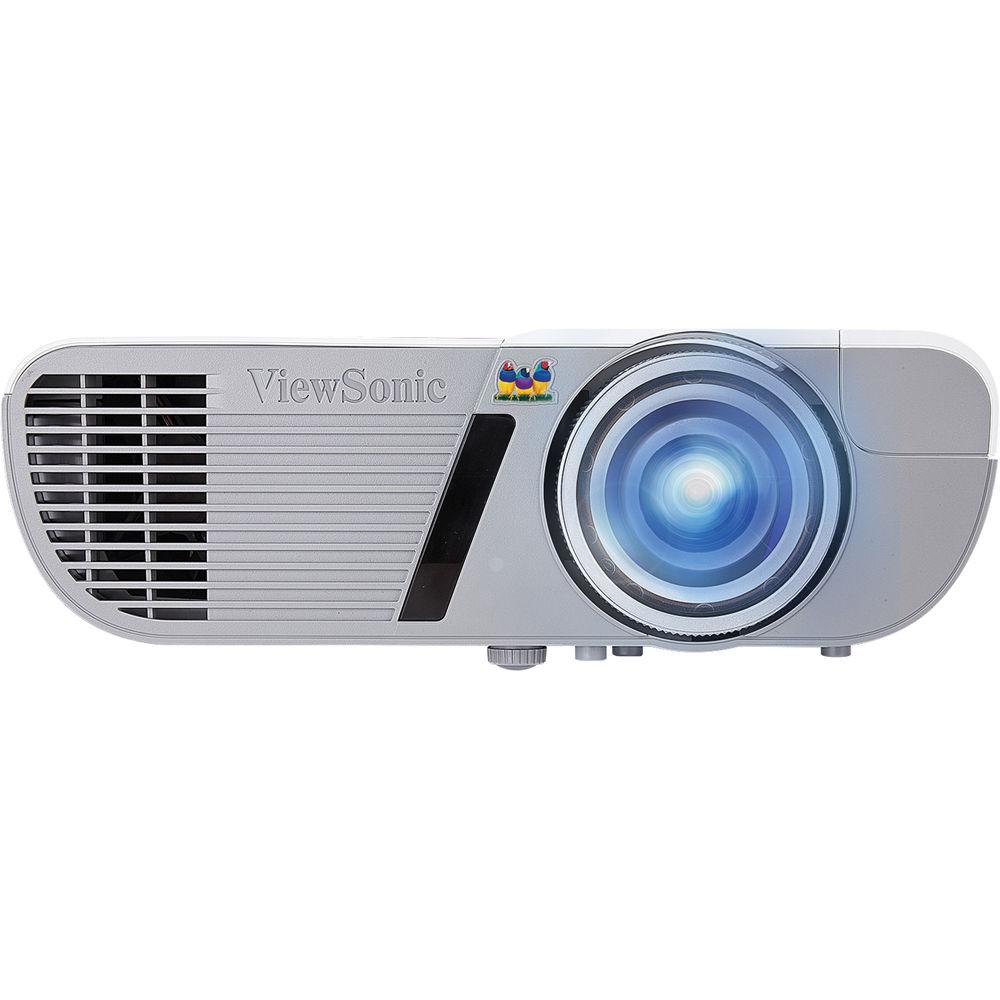

User Manual for ViewSonic PJD6352LS 3200L LightStream XGA Networkable Short-Throw Projector Click to enlarge the picture
Contents of the user manual for the ViewSonic PJD6352LS 3200L LightStream XGA Networkable
- Product category: Multimedia Projectors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Multimedia Projectors
 |
User manual for the ViewSonic PJD6352LS 3200L LightStream XGA Networkable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|
Product description The white ViewSonic PJD6352LS 3200-Lumen LightStream XGA Networkable Short-Throw Projector features a fixed zoom with a short 0.61 throw ratio. It is equipped with two VGA inputs, an S-video input, and two HDMI inputs, one of which supports MHL. It also has a brightness of 3200 lumens and a 22,000:1 dynamic contrast ratio, and can project a maximum image size of 250". It incorporates ViewSonic's SuperColor technology, which is designed to offer a wide color range for true-to-life image projection in any light. The PJD6352LS also contains SonicExpert, ViewSonic's sound enhancement technology, which enhances the audio from the 10W built-in speaker.
The projector's additional features include PortAll, a hidden compartment with an integrated and secure MHL/HDMI port, which lets you either discreetly stream multimedia content from a wireless HDMI dongle or connect other devices via an HDMI cable. The integrated Crestron RoomView Express functionality enables easy network control, and can also be accessed via RS-232.
The optional cable management hood eliminates cable clutter, while a top lamp door enables easy access for lamp maintenance. With horizontal and vertical keystone, corner adjustment, and an included remote control, the PJD6352LS is designed to be used in many different applications. - SuperColor Technology for a Wide Color Range
- ViewSonic's SuperColor Technology uses dynamic lamp control capabilities so as to project images with reliable and true-to-life color performance, in both bright and dark environments without sacrificing image quality. The SuperColor six-segment color wheel decreases the white segment that may cause washed out images, while increasing the yellow and cyan segments for increased brightness and saturation.
- Network Capable
- The PJD6350 comes equipped with Crestron RoomView Express, a network management system that lets administrators remotely monitor and control over 250 LightStream projectors from a single computer.
- Dual 3D Blu-ray Ready HDMI Inputs
- Designed with two HDMI ports, this projector can display 3D images directly from 3D Blu-ray players or any HDMI source.
- SonicExpert Technology
- The PJD6350 features ViewSonic's SonicExpert technology, which is designed to deliver a full 20 Hz to 20 kHz sound range via the 10W speaker.
- PortAll Secure MHL/HDMI Port
- ViewSonic's PortAll feature is a hidden compartment with an integrated and secure MHL/HDMI port that lets you discretely stream multimedia content from a wireless HDMI dongle, or connect to other devices via an HDMI cable.
- Programmable Remote Control
- A programmable hotkey, "MyButton," can be configured to launch the most commonly used functions. Control up to eight projectors in the same venue or from a mobile device via the free vRemote app.
- Horizontal and Vertical Keystone Correction
- Horizontal and vertical keystone correction and a corner adjustment feature are designed to eliminate crooked and distorted images, for a perfectly proportioned picture every time.
- Designed for Easy Maintenance
- An easy-access top lamp door enables simple lamp maintenance and replacement.
- Optional Cable Management
- The optional cable management hood (sold separately) connects onto the back of the projector to hide cable clutter and exposed ports.
In the Box ViewSonic PJD6352LS 3200L LightStream XGA Networkable Short-Throw Projector (White) VGA Cable Remote Control with Batteries Power Cable Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp User Manual PDF 6.9mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic PJD6352LS 3200L LightStream XGA Networkable Short-Throw Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic PJD6352LS Specs | | | Display System | 0.55" DMD DLP | | Native Chip Resolution | 1024 x 768 (XGA) | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | 3200 Lumens | | Aspect Ratio | Native: 4:3
Supported: 16:9 | | Dynamic Contrast Ratio | 22,000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Frame Sequential
Frame Packing
Top Bottom
Side by Side | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 102 kHz
Vertical: 23 to 120 Hz | | | | Focus | Manual | | Throw Distance | 2.001 - 10.138' / 0.61 - 3.09 m | | Throw Ratio | 0.61:1 | | Projection Size | 50 - 250" / 127.00 - 635.00 cm | | | | Keystone Correction | Vertical: ± 30°

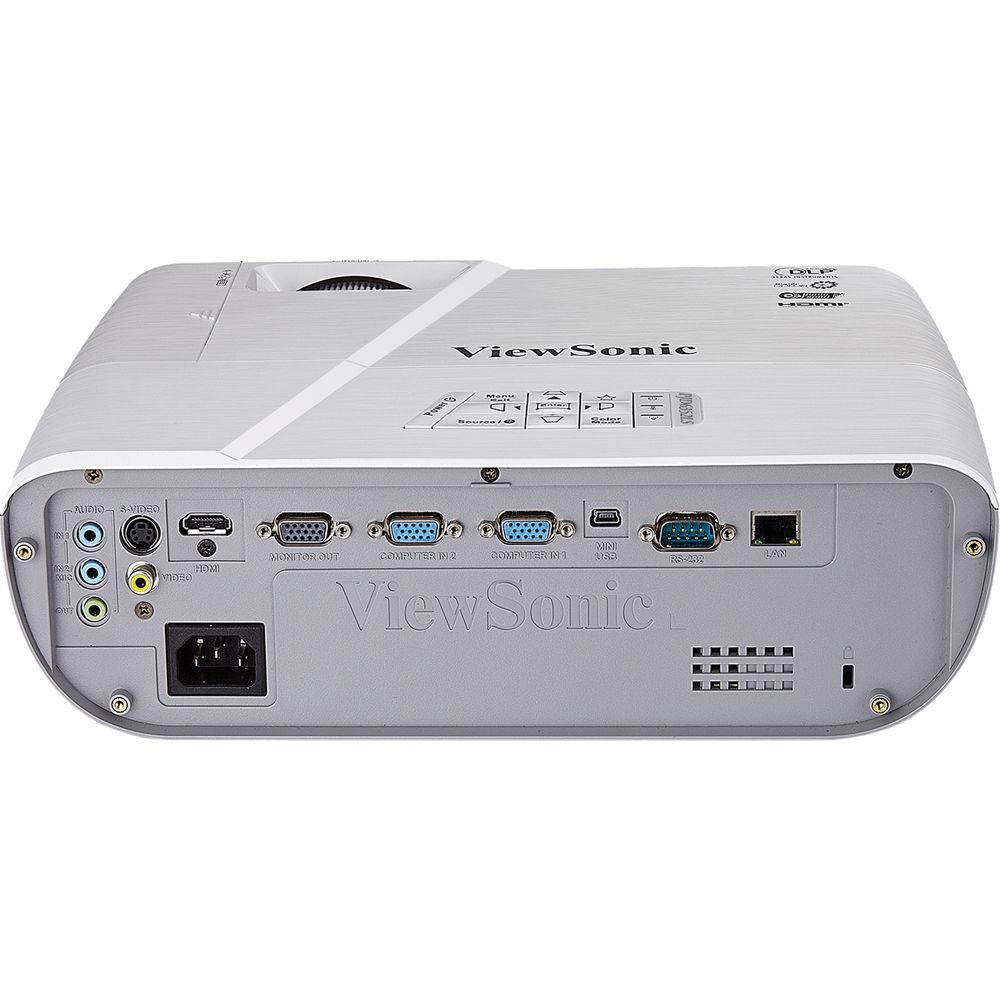

Horizontal: ± 30° | | Ceiling Mountable | Yes | | Built-In Speaker | Yes | | Speaker Power | 10W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
2 x VGA (DE-15) Video (Input)
1 x Composite (RCA) Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
2 x 1/8" (3.5 mm) Mini Audio (Input)
1 x VGA (DE-15) Video (Output)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x Mini-USB Control/Service (Input)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x Ethernet (RJ45) LAN (Input) | | | | Lamp Power | 210 W | | Expected Lamp Life | Medium Brightness: 4000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Medium Brightness: 32 dB
Low Brightness: 27 dB | | Security | Cable Lock Slot | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 330 W
Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | 10000' / 3048 m | | Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 10 - 90% | | Dimensions (W x H x D) | 12.4 x 4.1 x 9.0" / 31.5 x 10.4 x 22.9 cm | | Weight | 5.1 lb / 2.3 kg | | | | Package Weight | 9.2 lb | | Box Dimensions (LxWxH) | 17.0 x 16.0 x 8.5" |
