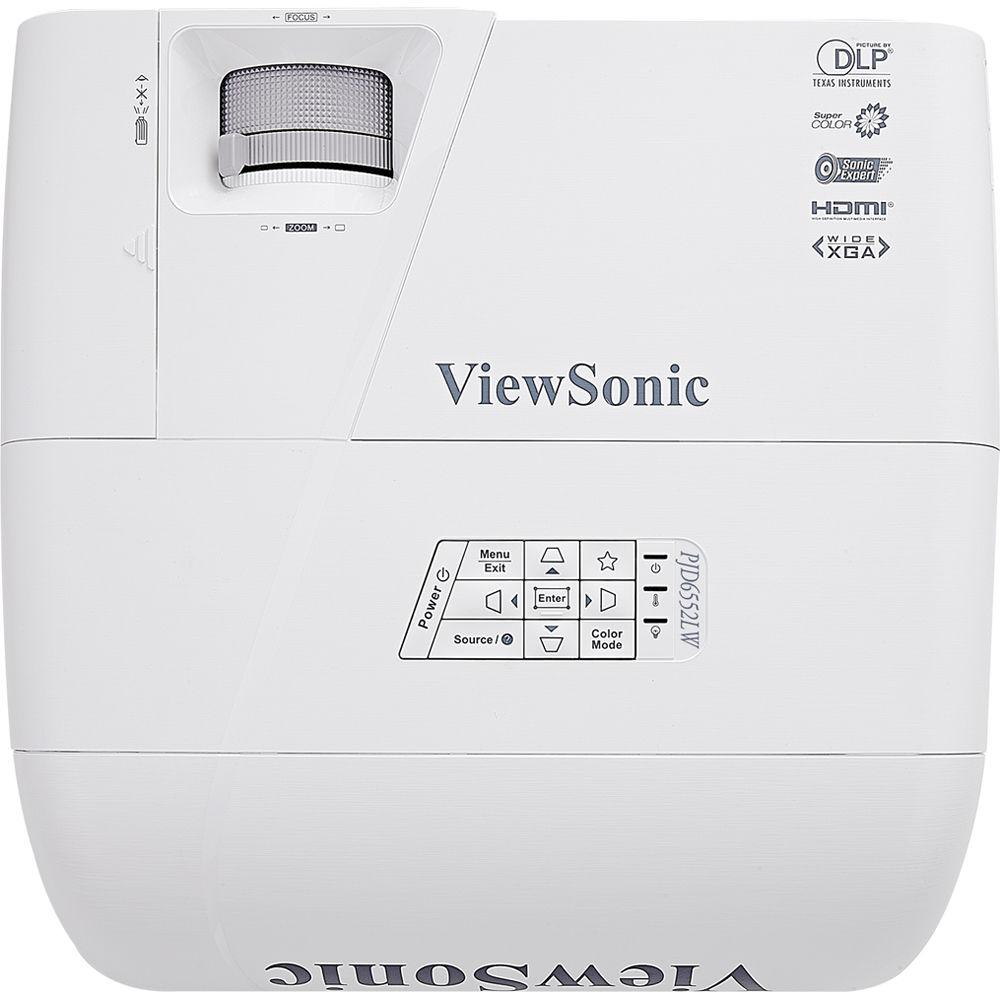

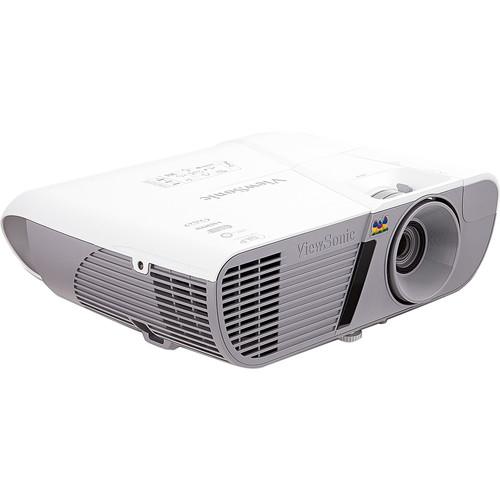

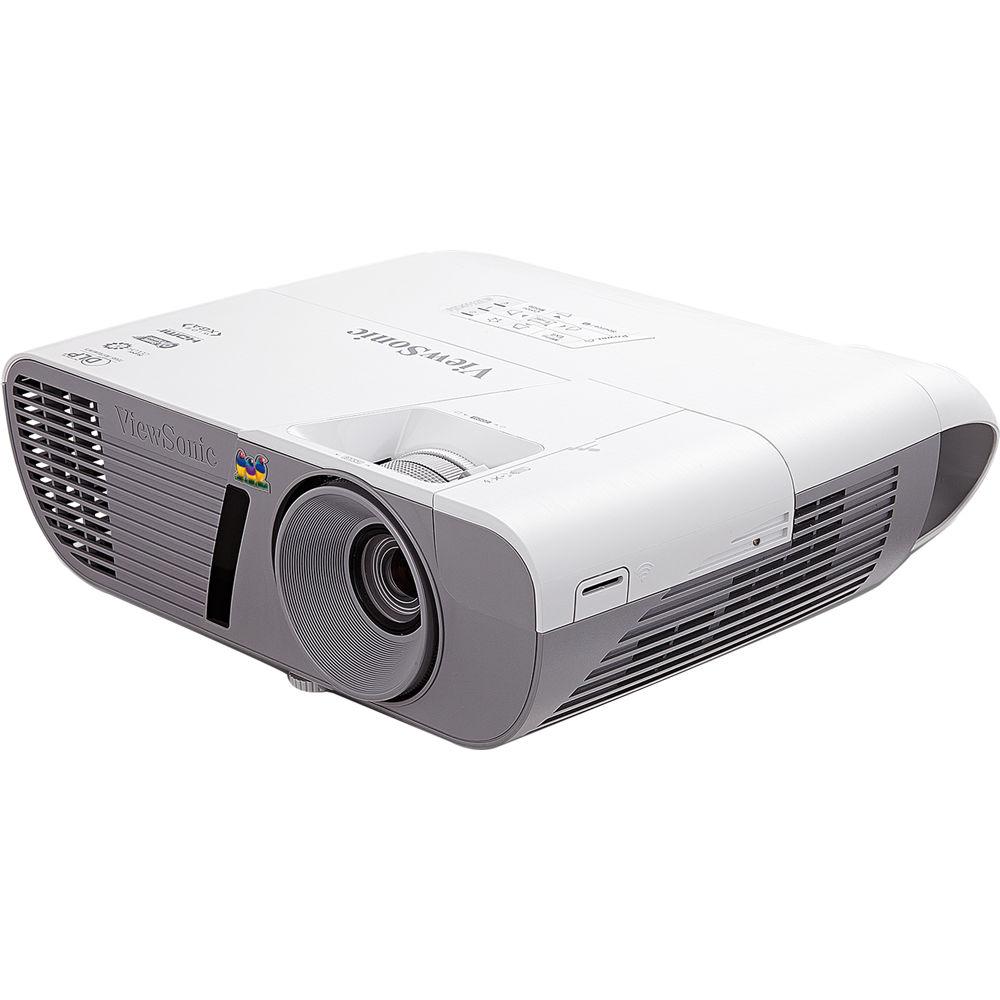

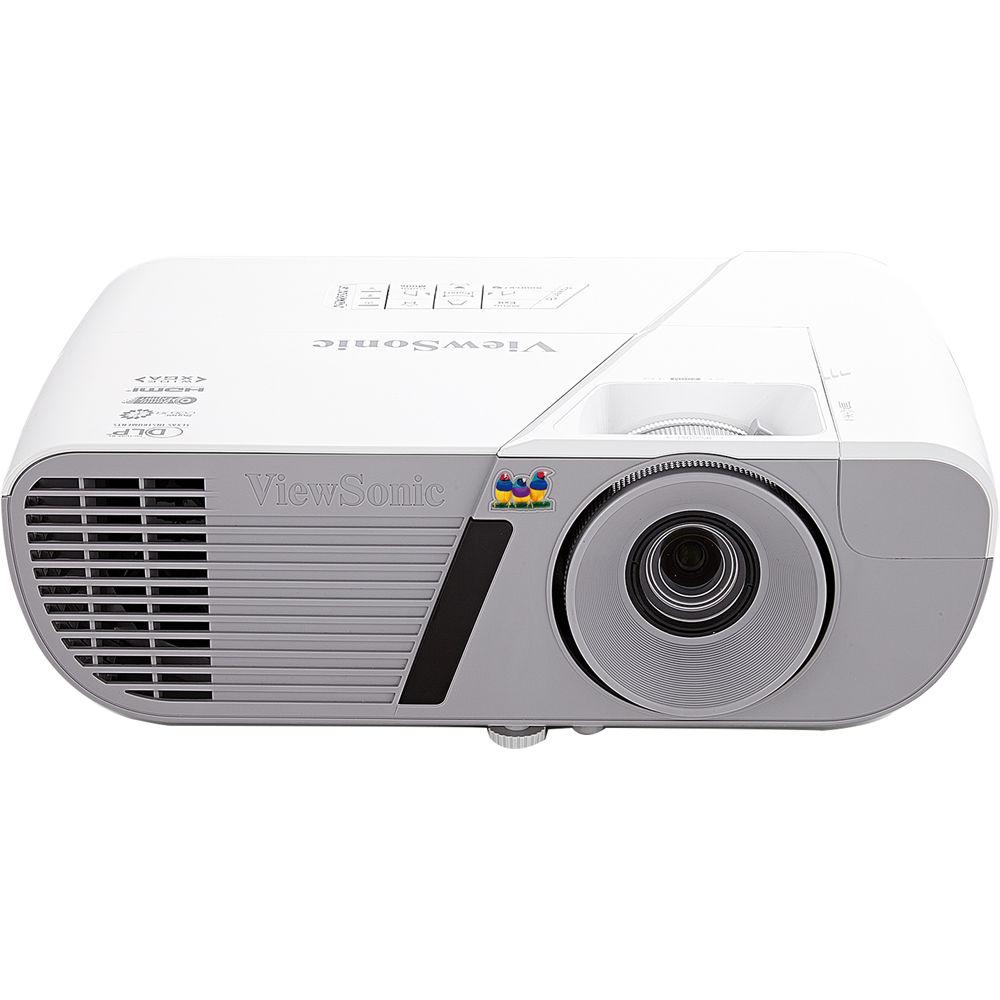

User Manual for ViewSonic PJD6552LW 3500-Lumen WXGA DLP Projector Click to enlarge the picture
Contents of the user manual for the ViewSonic PJD6552LW 3500-Lumen WXGA DLP Projector
- Product category: Multimedia Projectors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Multimedia Projectors
 |
User manual for the ViewSonic PJD6552LW 3500-Lumen WXGA DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|
Product description Designed for education, business, and home use, the Viewsonic PJD6552LW 3500-Lumen WXGA DLP Projector features a 1280 x 800 native resolution to produce clear, detailed images and text at most sizes. Its 3500 lumens of brightness combined with its 22,000:1 dynamic contrast ratio will help ensure that those images are visible even in rooms where ambient light can't be controlled. The projector's 1.21 to 1.57:1 throw ratio allows for a wide range of placement options.

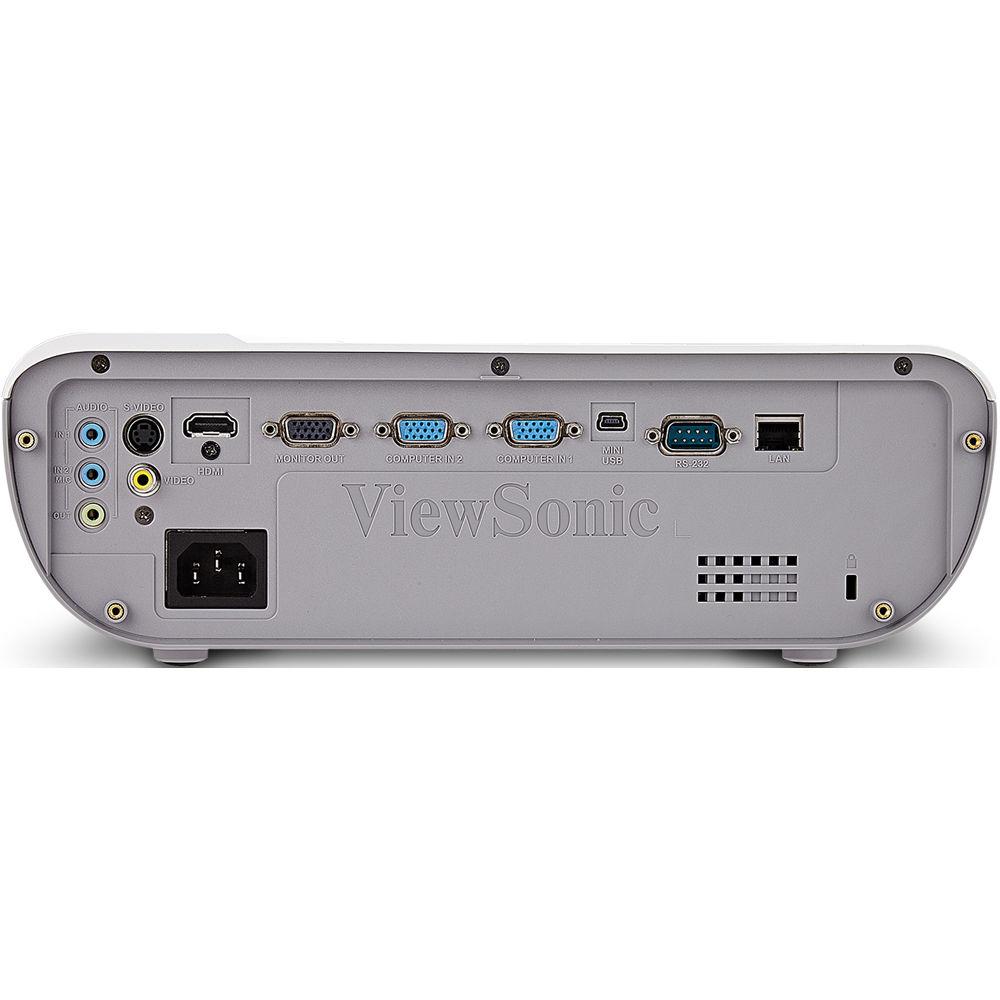

The PJD6552LW is prepared for nearly any source, thanks to its RCA composite, two HDMI, and two VGA inputs. One of the HDMI inputs is MHL-compatible for simple connectivity with mobile devices. The projector has a VGA output for daisy-chaining multiple projectors to display the same source and a built-in 10W speaker to eliminate the need for an external speaker setup. It is controllable via Ethernet, RS-232, and USB, and includes an IR remote control with a built-in laser pointer. - SuperColor Technology for Enhanced Color Accuracy
- ViewSonic's SuperColor Technology offers a six-segment color wheel design and dynamic lamp control capabilities, projecting images with enhanced color performance in both bright and dark environments without sacrificing image quality.
- PortAll Secure MHL/HDMI Port
- The PJD6552LW includes ViewSonic's PortAll feature - a hidden compartment with an integrated and secure MHL/HDMI port that lets you discretely stream multimedia content from a wireless dongle, or lets you connect to other devices via an HDMI cable.
- Network Capable
- The PJD6552LW comes equipped with Crestron RoomView Express, a network management system that lets administrators remotely monitor and control over 250 LightStream projectors from a single Windows computer.
- Smart Design
- The optional cable management hood connects onto the back of the projector to hide unsightly cable clutter and exposed ports. An easy-access top lamp door enables simple lamp maintenance and replacement.
- SonicExpert Technology
- The PJD6552LW is designed with ViewSonic's SonicExpert technology that incorporates an enlarged speaker chamber and a more powerful amplifier to deliver a full 20 Hz to 20 Khz sound range from its integrated 10-Watt speaker.
- Dual 3D Blu-ray-Ready HDMI Inputs
- Designed with two HDMI ports, this projector can display 3D images directly from 3D Blu-ray players.
- Balanced Color and Brightness
- A choice of five unique view settings provide an enhanced viewing experience in nearly any environment.
- Horizontal and Vertical Keystone Correction
- Horizontal and vertical keystone correction and a corner adjustment feature eliminate crooked and distorted images for a proportioned picture every time.
- Programmable Remote Control
- A programmable "MyButton" hotkey can be configured to launch the most commonly used functions. Control up to eight projectors in the same venue or from a mobile device via the free V-remote app.
UPC: 766907781014 In the Box ViewSonic PJD6552LW 3500-Lumen WXGA DLP Projector VGA Cable Remote Control with Laser and Batteries Power Cord Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp Reference Chart PDF 672.1kbuteybtxw Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic PJD6552LW 3500-Lumen WXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic PJD6552LW Specs | | | Display System | 0.65" DMD DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | 3500 Lumens | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 22,000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Vertical: 15 to 102 kHz
Horizontal: 23 to 120 Hz | | | | Focus | Manual | | Optical Zoom | Manual: 1.3x | | Throw Distance | 3.3 - 32.8' / 1.006 - 9.997 m | | Throw Ratio | 1.21 - 1.57:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Vertical: ± 30°
Horizontal: ± 30° | | Ceiling Mountable | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | | | Inputs/Outputs | 2 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x VGA (DE-15) Video (Output)
2 x VGA (DE-15) Video (Input)
1 x Composite (RCA) Video (Input)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
1 x USB Control (Input)
1 x Ethernet (RJ45) LAN (Input) | | Wireless LAN / Wi-Fi | None | | | | Lamp Power | 210 W | | Expected Lamp Life | Medium Brightness: 4000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Medium Brightness: 32 dB
Low Brightness: 27 dB | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 330 W
Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | 6000' / 1828 m | | Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 10 - 90% | | Dimensions (W x H x D) | 12.4 x 9.0 x 4.1" / 31.5 x 22.9 x 10.4 cm | | Weight | 5.1 lb / 2.3 kg | | | | Package Weight | 8.9 lb | | Box Dimensions (LxWxH) | 17.6 x 16.3 x 8.9" |
