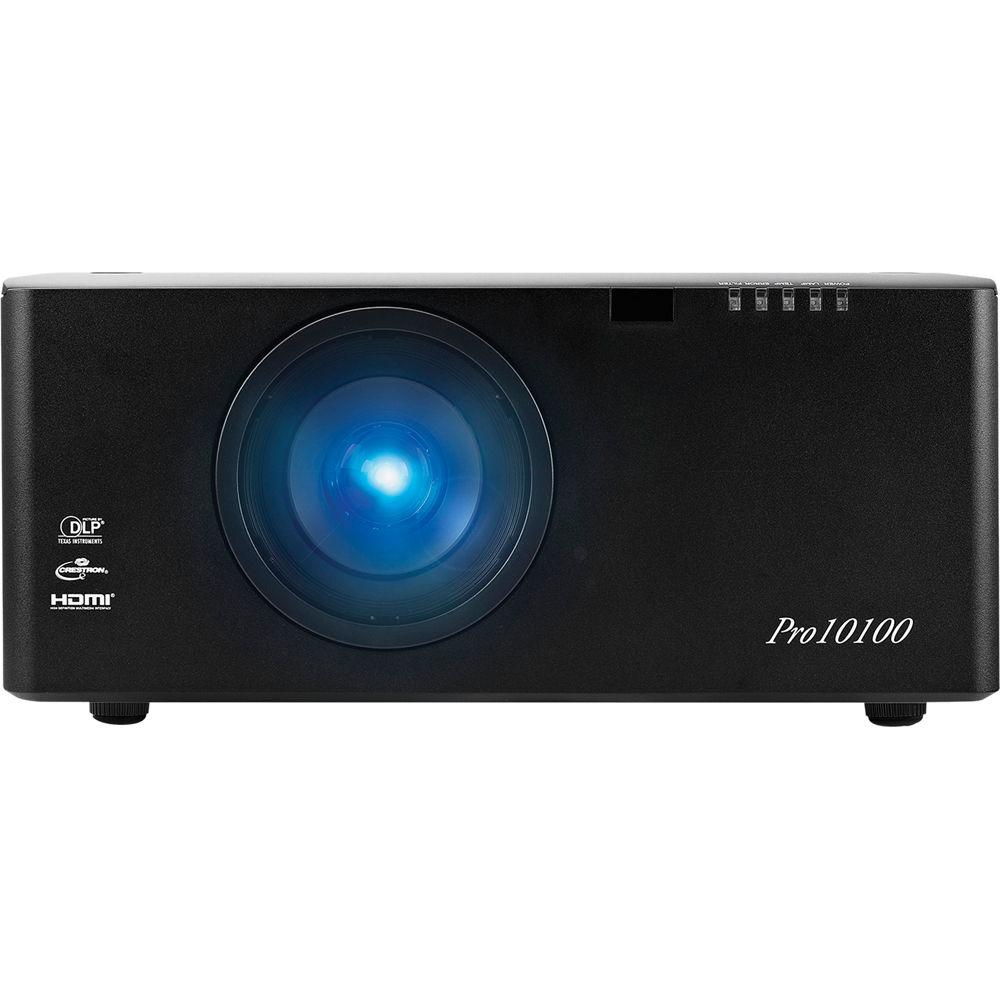

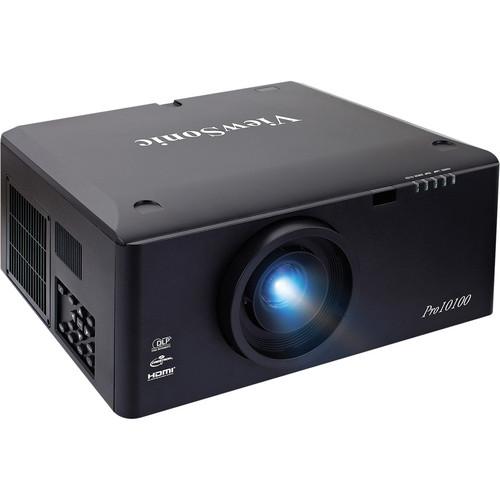

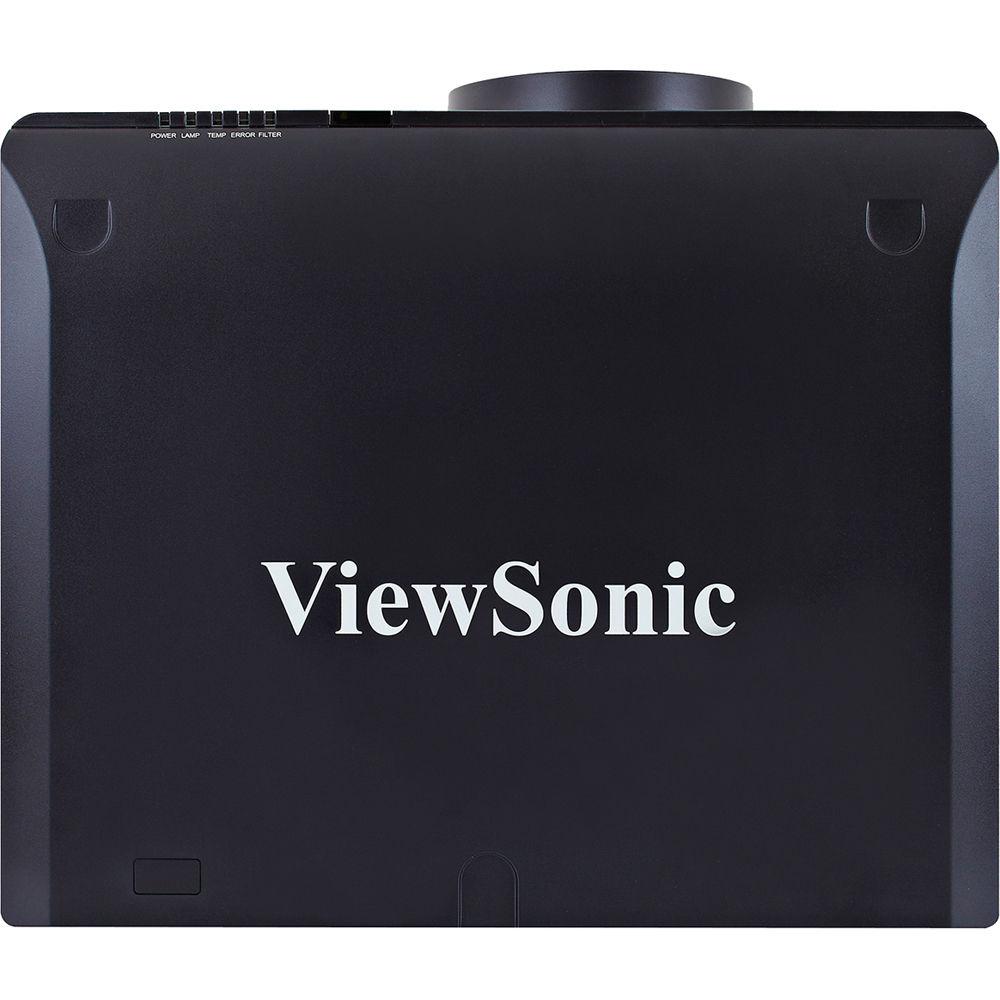

Product description Designed for large commercial venues, the ViewSonic Pro10100 ProAV XGA DLP Installation Projector is compatible with three optional lenses for a variety of uses. The projector supports up to 6000 ANSI lumens of brightness and a 4400:1 dynamic contrast ratio that promotes clear and vivid images - even in well lit environments. It uses a DLP chip display system with BrilliantColor technology, which provides multi-color processing for vivid, accurate color reproduction. Plus, the Pro10100's lamp lasts for up to 2000 hours in Eco-Mode. The Pro10100 also offers several connectivity options including HDMI, DVI-D, 5-BNC component, VGA, Ethernet and more. It can project up to a 300" diagonal screen size and it provides both vertical and horizontal motorized lens shift for installation flexibility. It features a powered zoom and focus as well. The projector's interchangeable lens design works with a short throw, standard throw or long throw lens (all lenses are sold separately). The Pro10100's other features include a dual-layer filter with advanced heat-dissipation technology and network management/control capabilities. It's also designed for flexible 360° installation. - 6000 ANSI Lumens of Brightness
- The Pro10100 high-brightness professional installation projector is designed for large venues including auditoriums, convention centers, lecture halls, houses of worship and more. It works for various commercial applications as well. The Pro10100 outputs 6000 ANSI lumens of brightness for clear, sharp images - even in rooms with ambient light.
- Advanced DLP Technology
- Advanced DLP (Digital Light Processing) technology allows you to experience clear, sharp and lifelike images with the same DLP technology used in Hollywood. For fast action, the response time is 1000 times faster than similar LCD-based projectors. And with no air filters to clean or change, you'll enjoy a low TCO (Total Cost of Ownership).
- BrilliantColor Technology
- The Pro10100 uses BrilliantColor multi-color processing technology to produce rich, vibrant colors and images with precise detail. The projector also uses up to six separate colors and its sophisticated multi-segment color wheel enhances yellow color performance for accurate color reproduction.
- Motorized Vertical & Horizontal Lens Shift
- Equipped with a motorized lens shift feature, the Pro10100 projector offers vertical and horizontal adjustments of the projection lens. This feature provides flexible projector placement for challenging installations.
- Powered Zoom & Focus Offer Convenient Setup
- The Pro10100 comes standard with powered zoom and focus, which enables the installer to easily adjust lens zoom and focus settings from a remote control. This feature provides installation flexibility, ease of use and fast deployment.
- Interchangeable Lens Design for Greater Versatility
- An interchangeable lens design provides greater flexibility for various large venue and commercial installations. With optional short throw, standard throw and long throw lenses available, the Pro10100 supports a variety of throw ratios and distances to meet installation needs for different environments. All lenses are sold separately.
- Optional Edge Blending Technology
- Multiple-image edge-blending functionality with advanced picture adjustment is available for the Pro10100 as an optional feature that's sold separately. Designed for ProAV applications and challenging installations, this feature allows multiple Pro10100 projectors to seamlessly project multiple images to form a single cohesive image with uniform brightness and color - no matter how large the projection screen surface.
- Five-Mode Warping & Geometric Adjustment Technology
- The Pro10100 is also equipped with a five-mode warping and geometric adjustment feature. This feature corrects distorted images caused by four-corner, curve, pincushion, barrel, and rotation projection surfaces. Plus, vertical auto keystone correction automatically corrects and adjusts distorted images into a square shape.
- Versatile Connectivity Options
- The Pro10100 includes a wide range of high-definition content inputs including HDMI, DVI-D, 5-BNC component, VGA, composite video and S-video. In addition, an RJ-45 Ethernet connection provides network capability for monitoring and managing with the included Crestron RoomView Express software. This wide range of connectivity boosts the Pro10100's functionality by letting it work in tandem with a number of other peripheral devices.
- Efficient Network Management
- IT admin can monitor, schedule and manage this projector remotely. They can also receive projector status alerts thanks to the integrated Crestron e-Control system and RoomView Express management software. Users can control the Pro10100 from a computer via wired Ethernet network connection, which allows control of the projector from anywhere on the network.
- Designed for 360° Installation
- With a 360° installation design, the Pro10100 can be installed both vertically and horizontally. Combined with powered lens shift and optional edge blending features, the Pro10100 reduces installation limitations and provides improved projection flexibility for use in a wide range of installation applications and environments.
- Precise DICOM SIM Technology
- With support for the DICOM (Digital Imaging and Communications in Medicine) standard, the Pro10100 is able to accurately display multiple high-resolution DICOM-format medical images, including X-rays, sonograms and nuclear magnetic resonance (NMR) images. This technology is widely used in hospitals, medical centers, academic conferences and other venues where precise DICOM images are required.
Other Features - DMD 0.7" XGA (2 x LVDS Type A DMD) Dark Chip 3 projection technology
- XGA 1024 x 768 native resolution
- Dual-layer, dust-free filter with advanced heat-dissipation technology
- 30-bit color depth with support for 1.07 billion colors (10+10+10)
- Supports from VGA to WSXGA+ (1680 x 1050) resolution when used with a PC
- Supports from VGA to MAC21 (1152 x 870) resolution when used with a Mac
- Built-in 10W mono speaker and 3.5mm mini-jack audio output

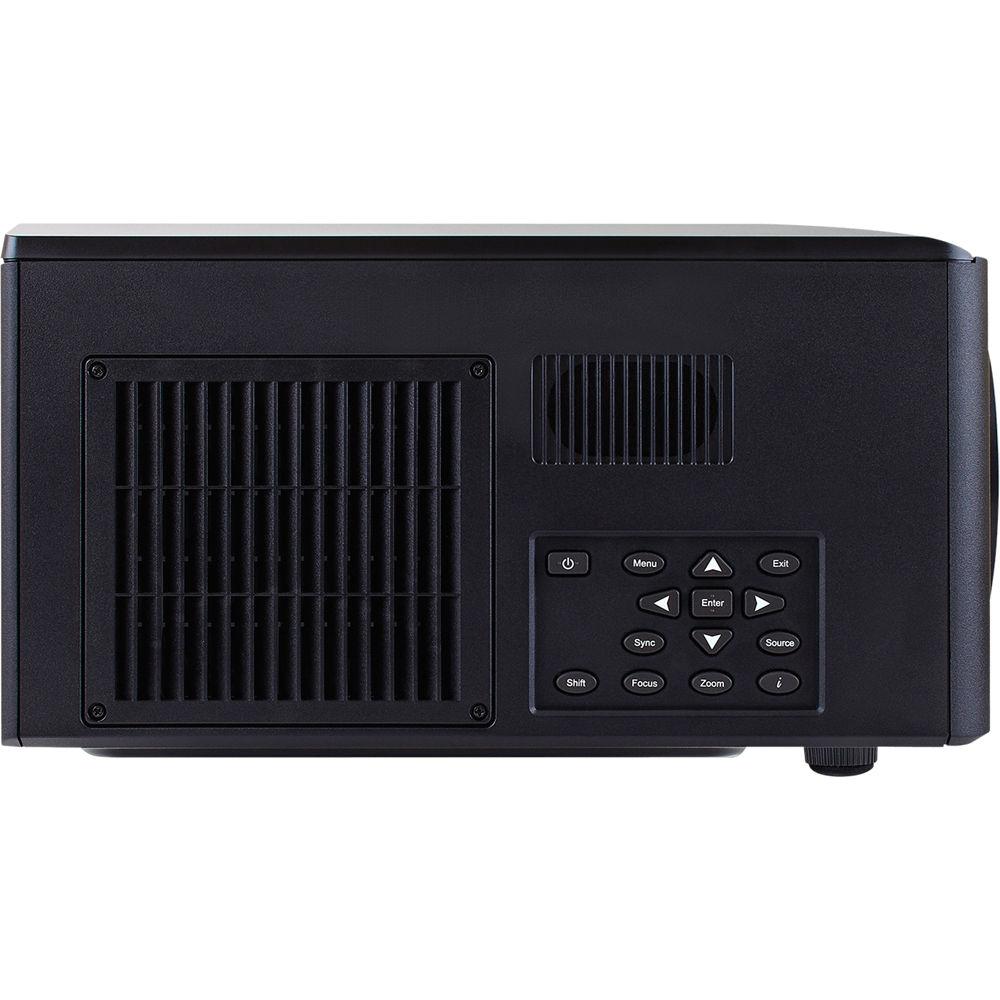

- Basic controls include: power, arrow keys, menu, exit, sync, enter, source, shift, focus, zoom and info
- OSD controls include: picture, screen, setting, options and more
- Recommended for use in altitudes up to 6000' but projector will remain operational up to 10,000'
- Supported regulations include: CB, UL/cUL, FCC (including ICES-004), CE, TUV-GS. C-Tick, CCC, WEEE, RoHS, ErP, REACH and SVHC

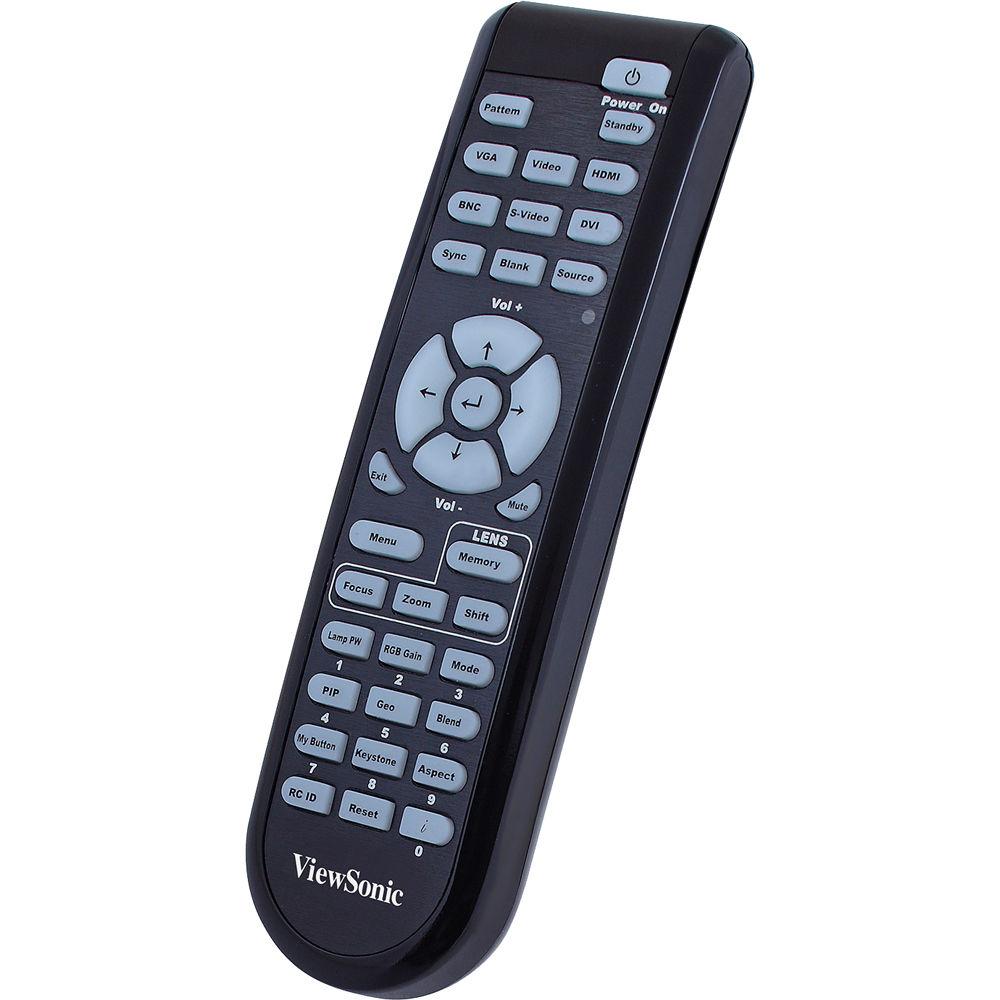

UPC: 766907689617 In the Box ViewSonic Pro10100 ProAV XGA DLP Installation Projector (Body Only) Power Cable VGA Cable Remote Control 2 x AA Batteries (for Remote) ViewSonic Wizard CD (with User Guide) 3-Year Limited Projector Warranty 1-Year Limited Lamp Warranty User Manual PDF 6.8mbecdwcsdaafudvbeeuyzxcca Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic Pro10100 ProAV XGA DLP Installation Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic Pro10100 Specs | | | Display System | 1-Chip 0.7" DC3 DMD DLP | | Native Chip Resolution | 1024 x 768 (XGA) | | Max Brightness | 6000 Lumens | | Aspect Ratio | Native: 4:3 | | Dynamic Contrast Ratio | 4400:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 100 kHz

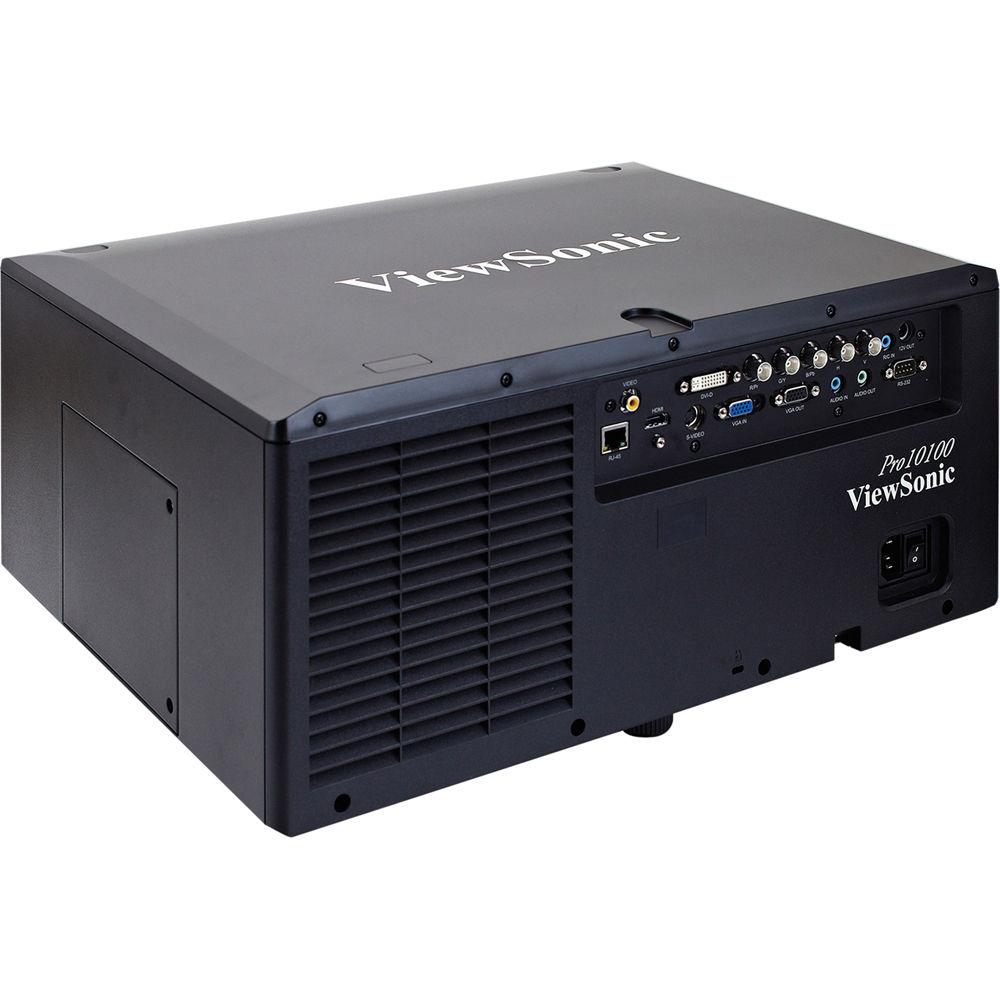

Vertical: 24 to 87 Hz | | | | Projection Size | 50 - 300" / 127.00 - 762.00 cm | | | | Keystone Correction | Vertical: ± 20° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x DVI-D Video (Input)
1 x VGA (DE-15) Video (Input)
1 x 5BNC Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Composite (RCA) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x VGA (DE-15) Video (Output)
1 x 12 V Trigger Control (Output)
1 x 1/8" (3.5 mm) Mini Remote (Input)
1 x Ethernet (RJ45) LAN
1 x RS-232C (Unspecified Connector) Control | | | | Lamp Power | 370 W | | Expected Lamp Life | Medium Brightness: 1500 Hours
Low Brightness: 2000 Hours | | Fan Noise | Medium Brightness: 38 dB
Low Brightness: 33 dB | | Security | Cable Lock Slot
Padlock
Password Protection
Security Bar | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 480 W
Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | 10000' / 3048 m | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 0 - 85% | | Dimensions (W x H x D) | 17.8 x 8.3 x 15.4" / 452.1 x 210.8 x 391.2 mm | | Weight | 30.6 lb / 13.9 kg without lens | | | | Package Weight | 38.45 lb | | Box Dimensions (LxWxH) | 23.0 x 19.75 x 15.75" |
