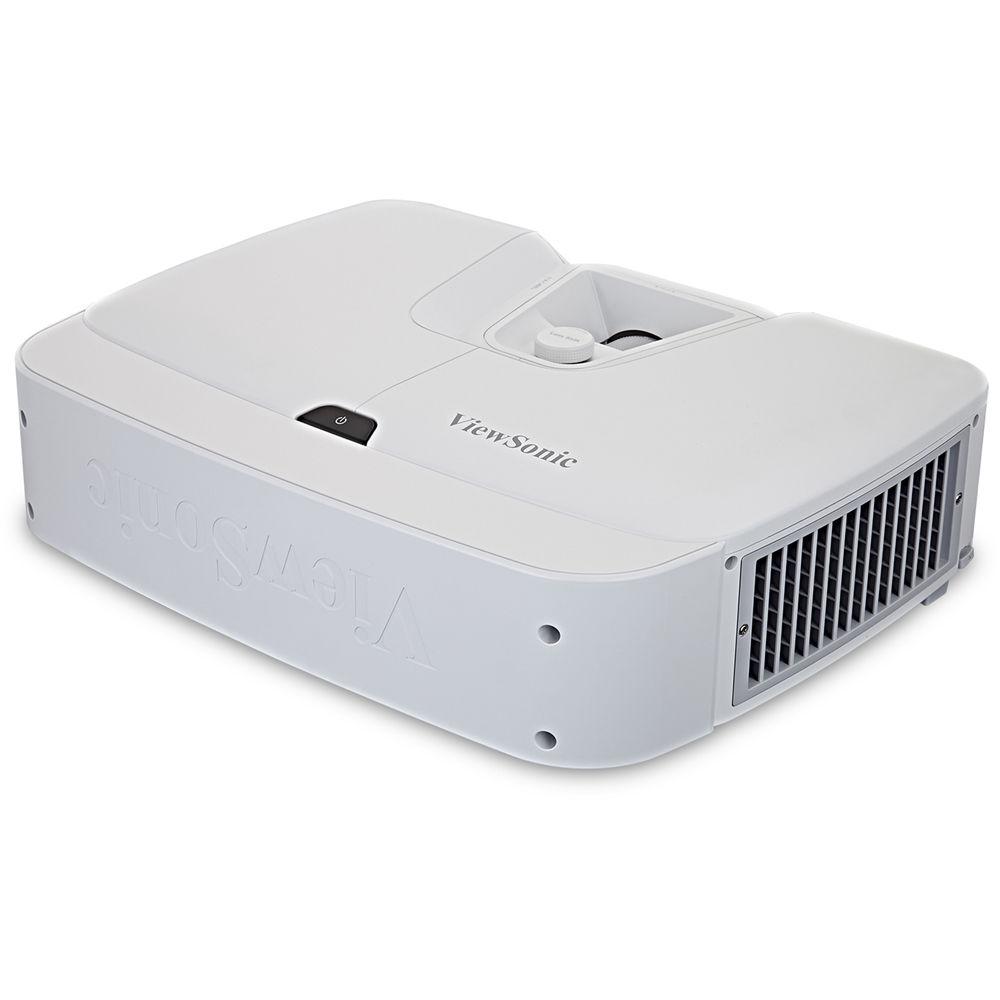

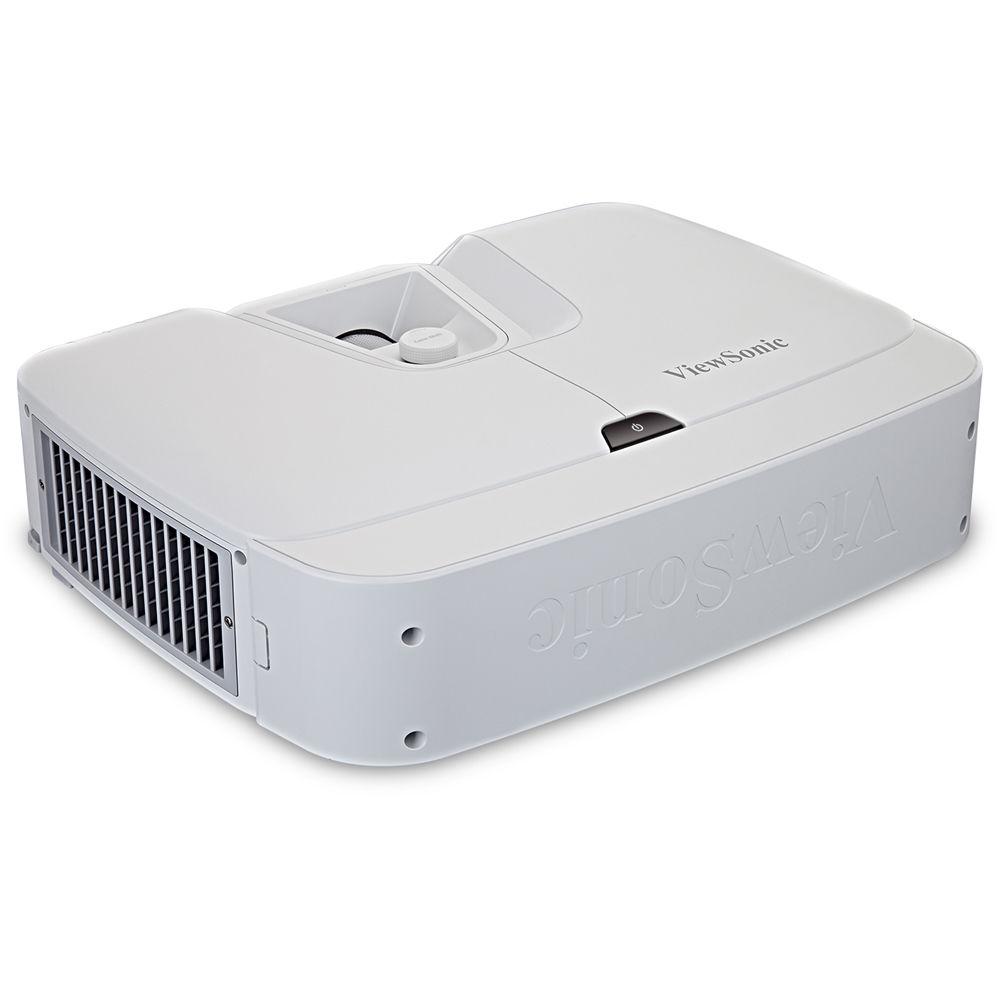

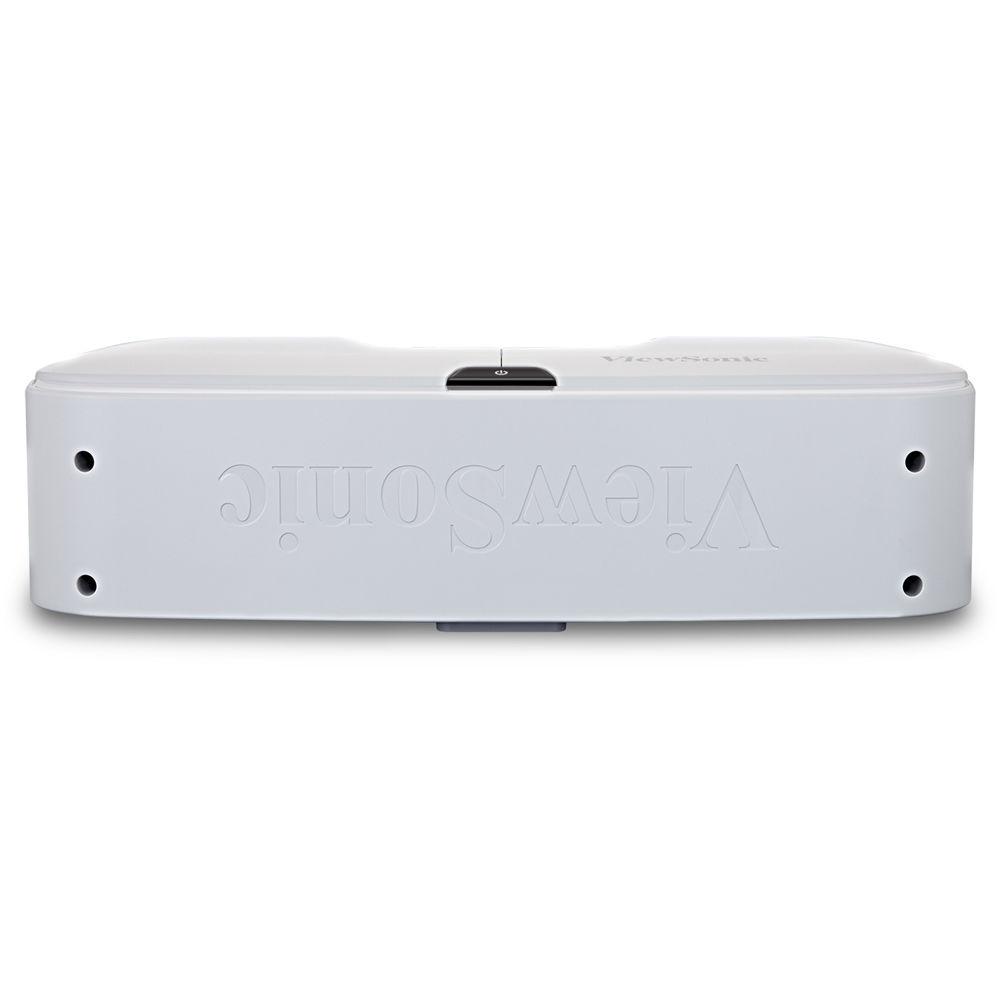

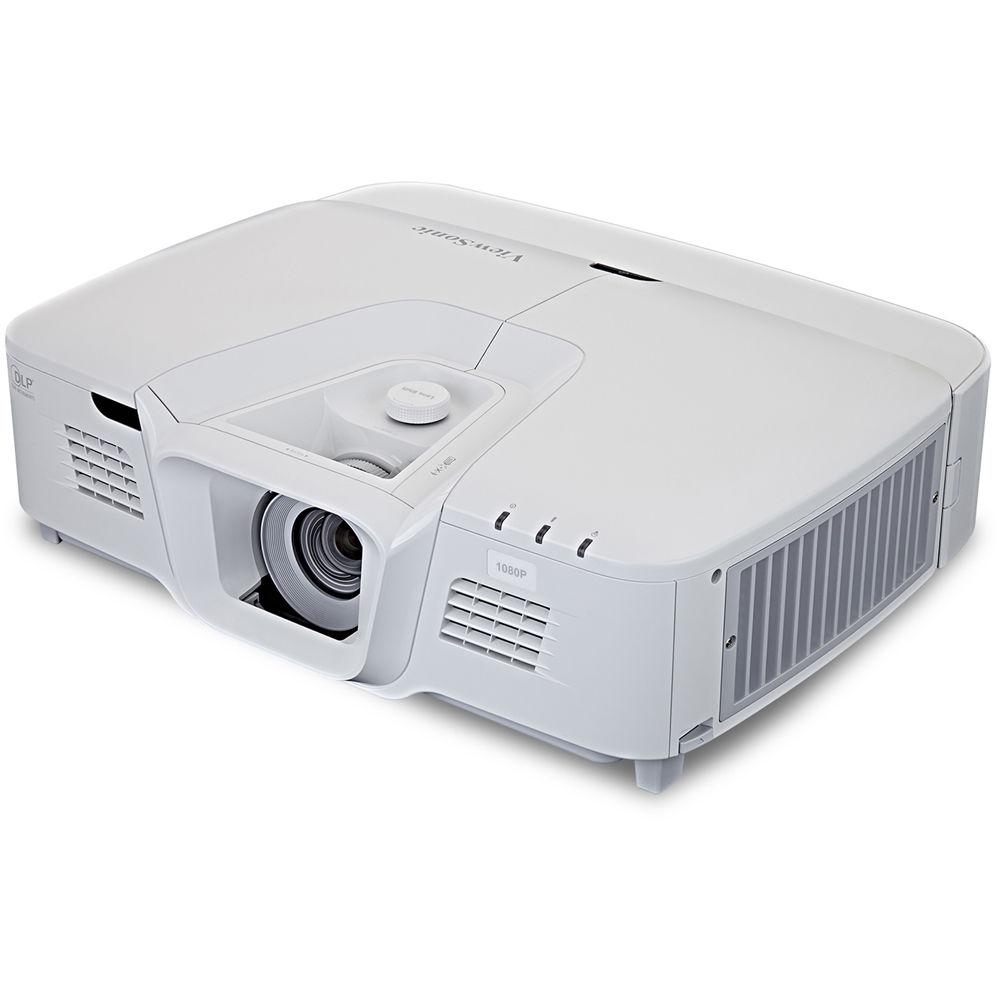

User Manual for ViewSonic Pro8530HDL 5200-Lumen Full HD DLP Projector Click to enlarge the picture
Contents of the user manual for the ViewSonic Pro8530HDL 5200-Lumen Full HD DLP
- Product category: Multimedia Projectors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Multimedia Projectors
 |
User manual for the ViewSonic Pro8530HDL 5200-Lumen Full HD DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

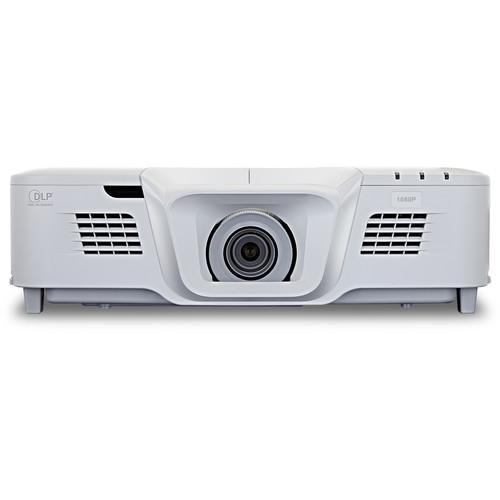

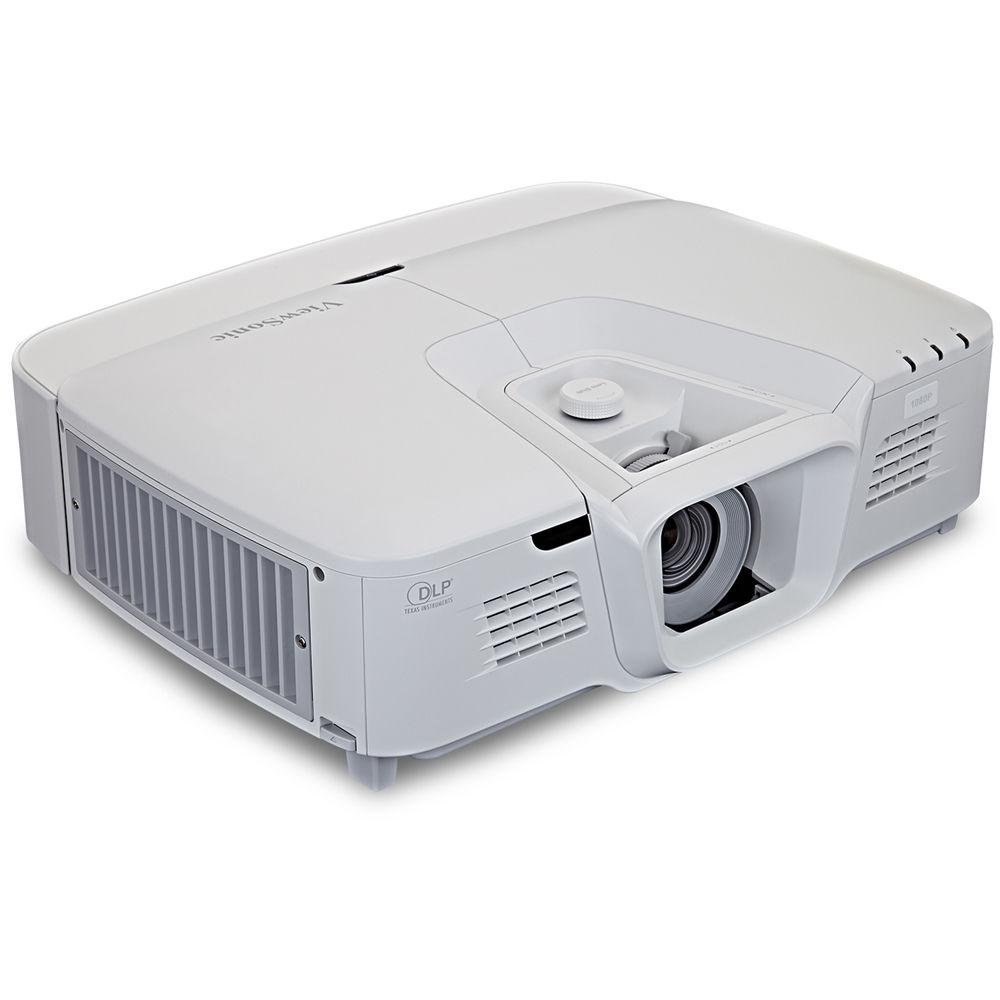

Product description Enjoy bright images in nearly any environment with the ViewSonic Pro8530HDL 5200-Lumen Full HD DLP Projector. Its 5200 lumens of brightness can overcome ambient light in many situations, while its 5000:1 contrast ratio will help dark areas of the image remain dark while bright areas appear bright. The Full HD 1920 x 1080 resolution is suitable for displaying HD images and most file and document types. The projector features a 1.07 to 1.71:1 throw ratio which provides a wide range of placement options.
The Pro8530HDL has three HDMI inputs for connecting high definition sources such as Blu-ray players and HD cable/satellite boxes, plus a hidden MHL-compatible HDMI input for discreet connection to a wireless dongle, though it supports any HDMI device. The projector has an analog audio input and two onboard 10-Watt speakers to ensure that audio accompanies your video, plus an analog audio output to route audio to a second projector, display, or speaker system. The projector is controllable via Ethernet, RS-232, or with the included IR remote. - 5200-Lumen Brightness
- Packed with 5200 lumens and a 5000:1 contrast ratio, this projector is designed to produce bright images in large spaces with high ambient light including large boardrooms, conference halls, and auditoriums.

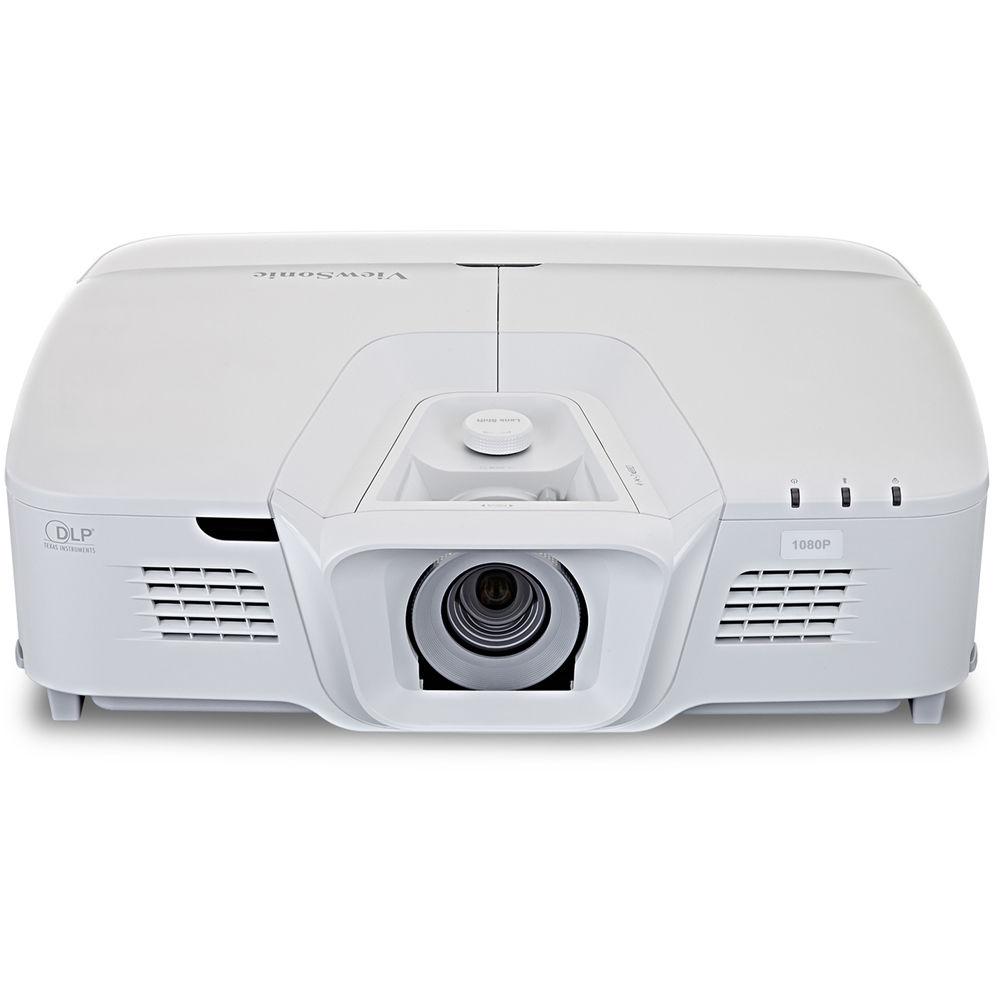

- Vertical Lens Shift with Centered Lens
- A vertical lens shift feature offers up and down adjustments of the projection lens for flexible placement in challenging installations. What's more, a centered-lens design makes this projector suitable for replacing existing centered-lens installations, making it unnecessary to move or reinstall existing ceiling mounts or projection screens.
- PortAll Enclosed HDMI/MHL Dongle Compartment
- ViewSonic's PortAll feature utilizes a hidden compartment with an integrated and secure MHL/HDMI port that lets you discreetly stream multimedia content from a wireless dongle, or connect to other devices via an HDMI cable.
- Four HDMI Inputs
- Four HDMI inputs allow you to connect to a variety of HD devices including gaming consoles, Blu-ray players, laptop PCs, digital cameras, and many others for a true high definition experience.
- SuperColor: Enhanced Color Accuracy
- ViewSonic's SuperColor technology is designed to offer a wider color range than conventional DLP projectors. With a six-segment color wheel design and dynamic lamp control capabilities, SuperColor technology is designed to project images with reliable and true-to-life color performance in both bright and dark environments without sacrificing image quality.
- SonicExpert Technology
- The Pro8530HDL is designed with ViewSonic's SonicExpert technology that incorporates an enlarged speaker chamber and an amplifier to deliver a full 20 Hz to 20 kHz sound range. Dual integrated speakers captivate your audience with immersive sound.
- 4-in-1 Power Button with IR Pass-Through
- A centrally located, easy-to-use power button not only turns the projector on and off, but also functions as an IR receiver and control for remote devices. In addition, intuitive LED lights on the power button indicate whether any dongles are powered on within the PortAll compartment.
- Mounting Flexibility
- A wider optical zoom provides more mounting flexibility; more flexible mounting options translate to less installation hassle.
UPC: 766907830019 In the Box ViewSonic Pro8530HDL 5200-Lumen Full HD DLP Projector Remote Control with Batteries VGA Cable Cable Management Cover Power Cable Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic Pro8530HDL 5200-Lumen Full HD DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

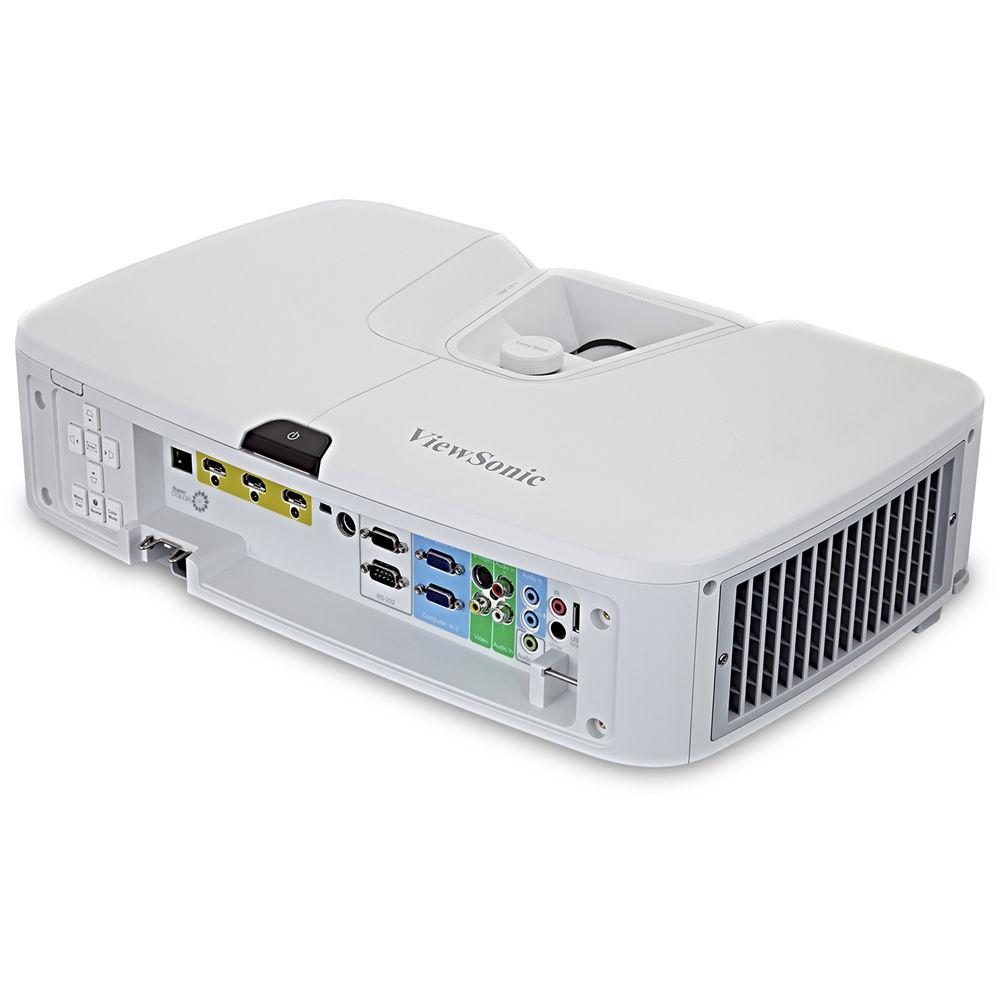

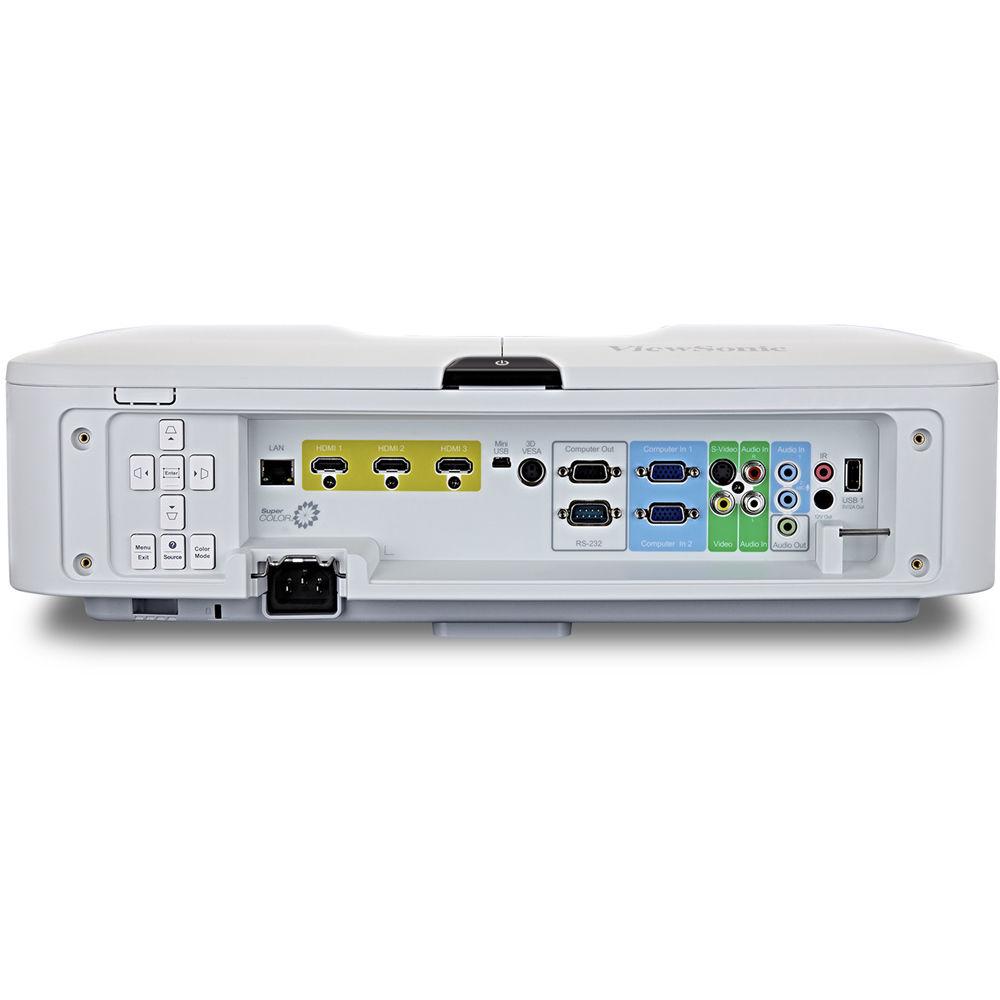

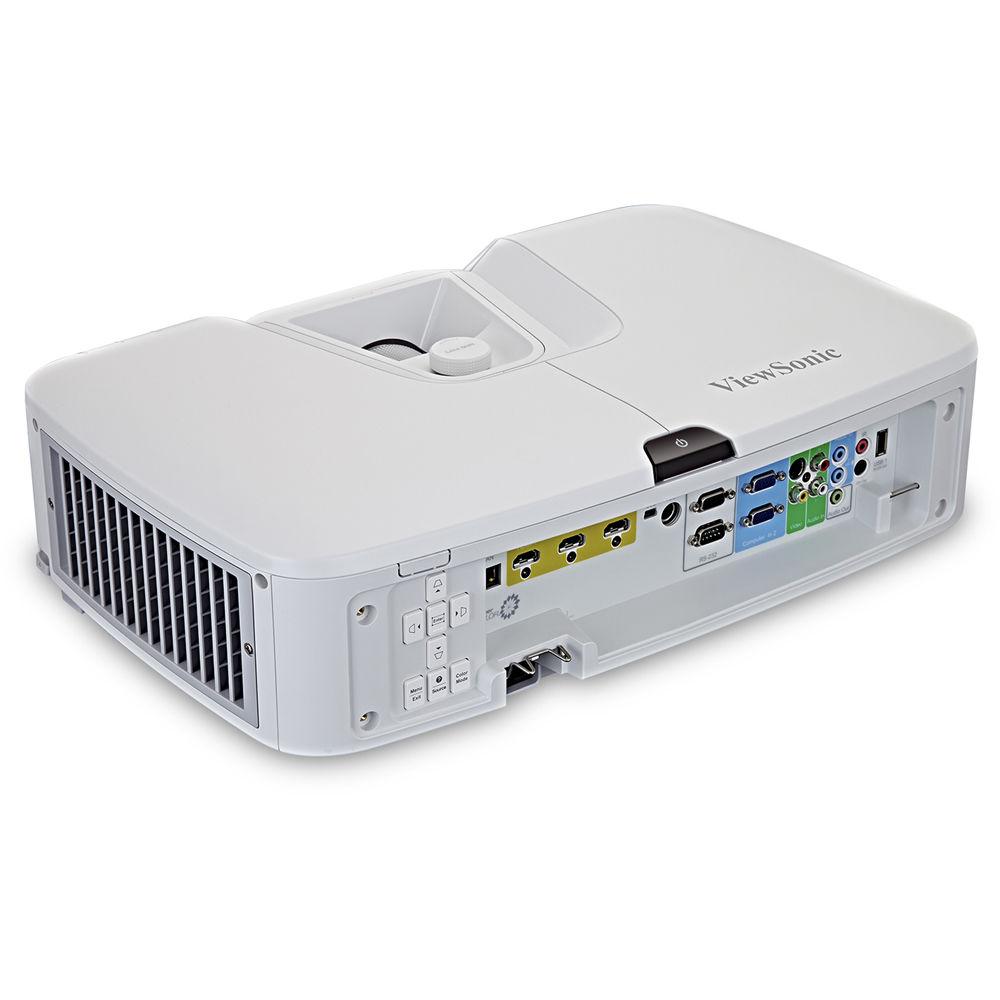

Technical parametersViewSonic Pro8530HDL Specs | | | Display System | 1-Chip 0.65" DMD DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Max Brightness | 5200 Lumens | | Aspect Ratio | Native: 16:9 | | Contrast Ratio | 5000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 100 kHz
Vertical: 24 to 120 Hz | | | | Focus | Manual | | Optical Zoom | Manual: 1.6x | | Throw Distance | 2.3 - 37.3' / 0.701 - 11.369 m | | Throw Ratio | 1.07 - 1.71:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Vertical: ± 30°
Horizontal: ± 30° | | Ceiling Mountable | Yes | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 20W | | | | Inputs/Outputs | 3 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x Composite (RCA) Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
2 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x VGA (DE-15) Video (Output)
1 x USB Power (Output)
1 x Micro-USB Power (Output)
1 x Mini-USB Control (Input)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x 1/8" (3.5 mm) Mini Control (Output)
1 x 12 V Trigger Control (Output)
1 x VESA 3D Sync Control (Output)
1 x Ethernet (RJ45) LAN (Input) | | Wireless LAN / Wi-Fi | None | | | | Lamp Power | 370 W | | Expected Lamp Life | Medium Brightness: 2000 Hours
Low Brightness: 2500 Hours | | Fan Noise | Low Brightness: 33 dB | | Security | Cable Lock Slot
Keypad Lock | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 570 W
Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | 6000' / 1828 m | | Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 0 - 90% | | Dimensions (W x H x D) | 19.5 x 5.5 x 12.4" / 496.5 x 139.8 x 316.2 mm | | Weight | 13.89 lb / 6.30 kg | | | | Package Weight | 25.5 lb | | Box Dimensions (LxWxH) | 23.3 x 22.0 x 11.5" |
