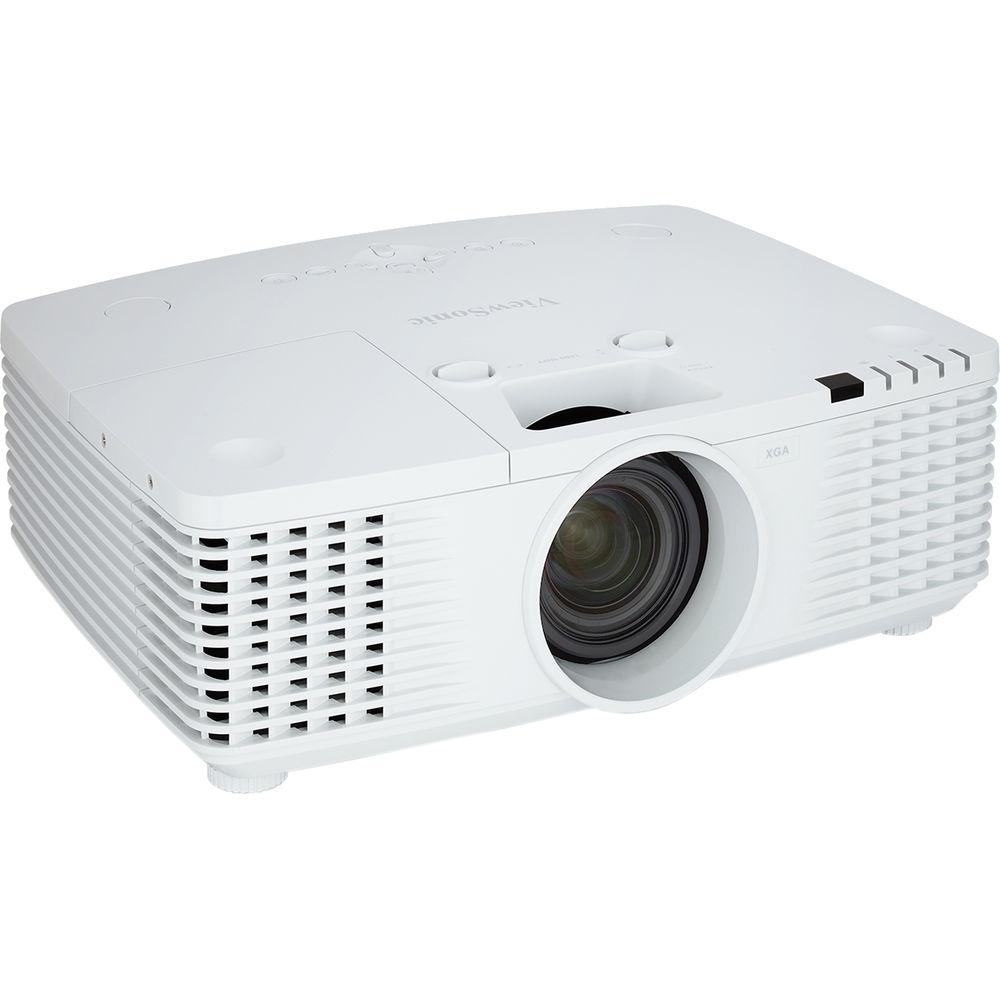

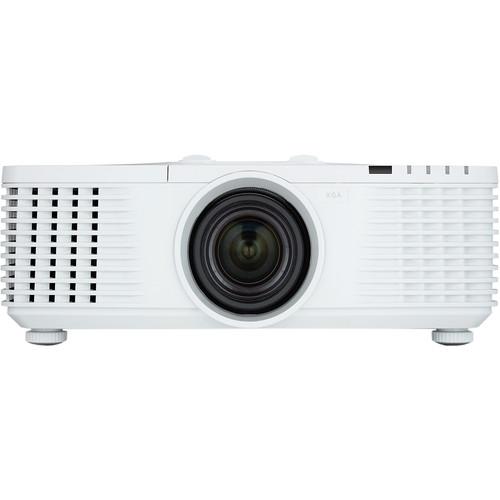

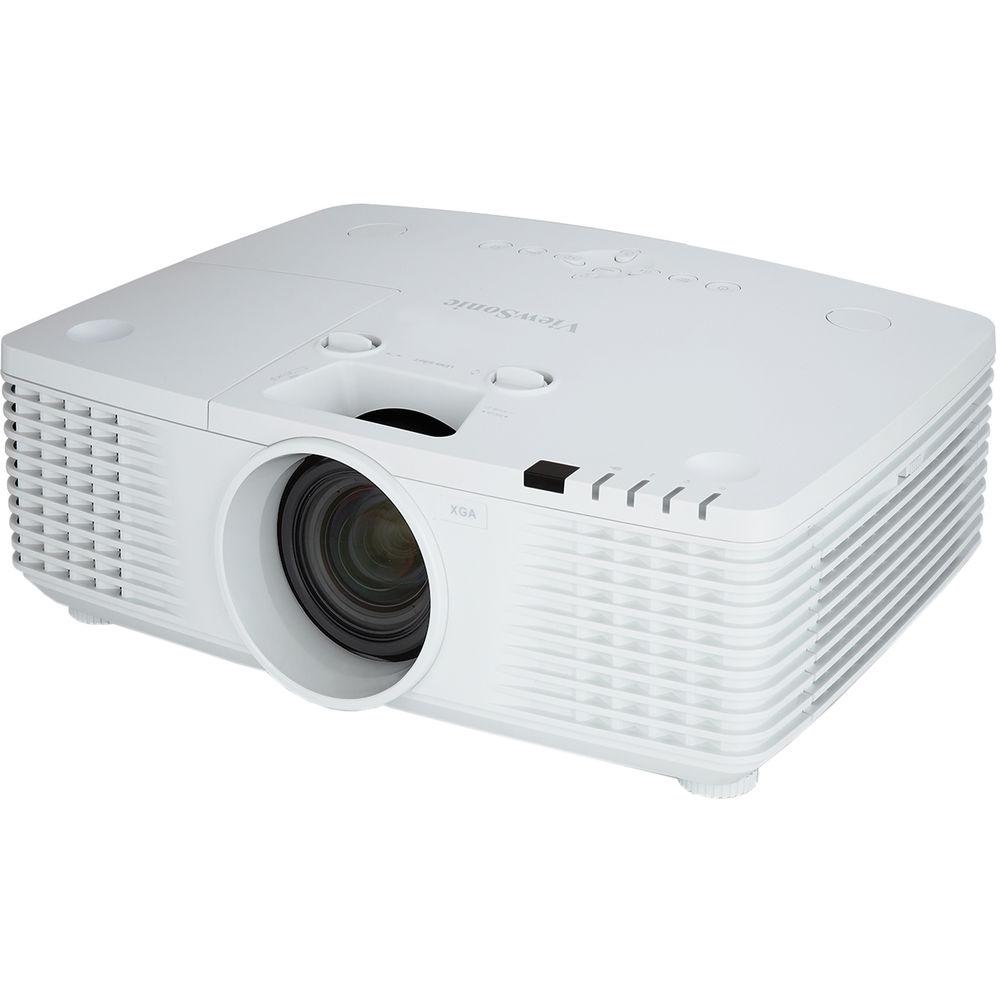

User Manual for ViewSonic Pro9510L 6200-Lumen XGA DLP Projector Click to enlarge the picture
Contents of the user manual for the ViewSonic Pro9510L 6200-Lumen XGA DLP Projector
- Product category: Multimedia Projectors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Multimedia Projectors
 |
User manual for the ViewSonic Pro9510L 6200-Lumen XGA DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|
Product description Enjoy bright images in nearly any environment with the ViewSonic Pro9510L 6200-Lumen XGA DLP Projector. Its 6200 lumens of brightness can overcome ambient light in many situations, making it well suited for large presentation areas such as boardrooms, auditoriums, and more. The 1024 x 768 XGA native resolution is suitable for displaying many file and document types, and it will accept video signals up to 1080p for higher resolution sources. The projector features a 1.3 to 2.21:1 throw ratio, which will allow you to place it near the back of the room in many installations.
The Pro9510L has one MHL-compatible HDMI input and one standard HDMI input for connecting digital high-definition sources such as Blu-ray players and HD cable/satellite boxes. Its VGA output will allow you to daisy-chain multiple projectors or displays so they can all display the same source, and the analog audio input and output and dual onboard 7W speakers will ensure that audio accompanies your video. The projector is controllable via Ethernet or RS-232, and includes a VGA cable and an IR remote with a built-in laser pointer. - 6200 Lumens
- Packed with 6200 lumens, this projector can produce bright images in large spaces with ambient light, including large boardrooms, conference halls, and auditoriums.

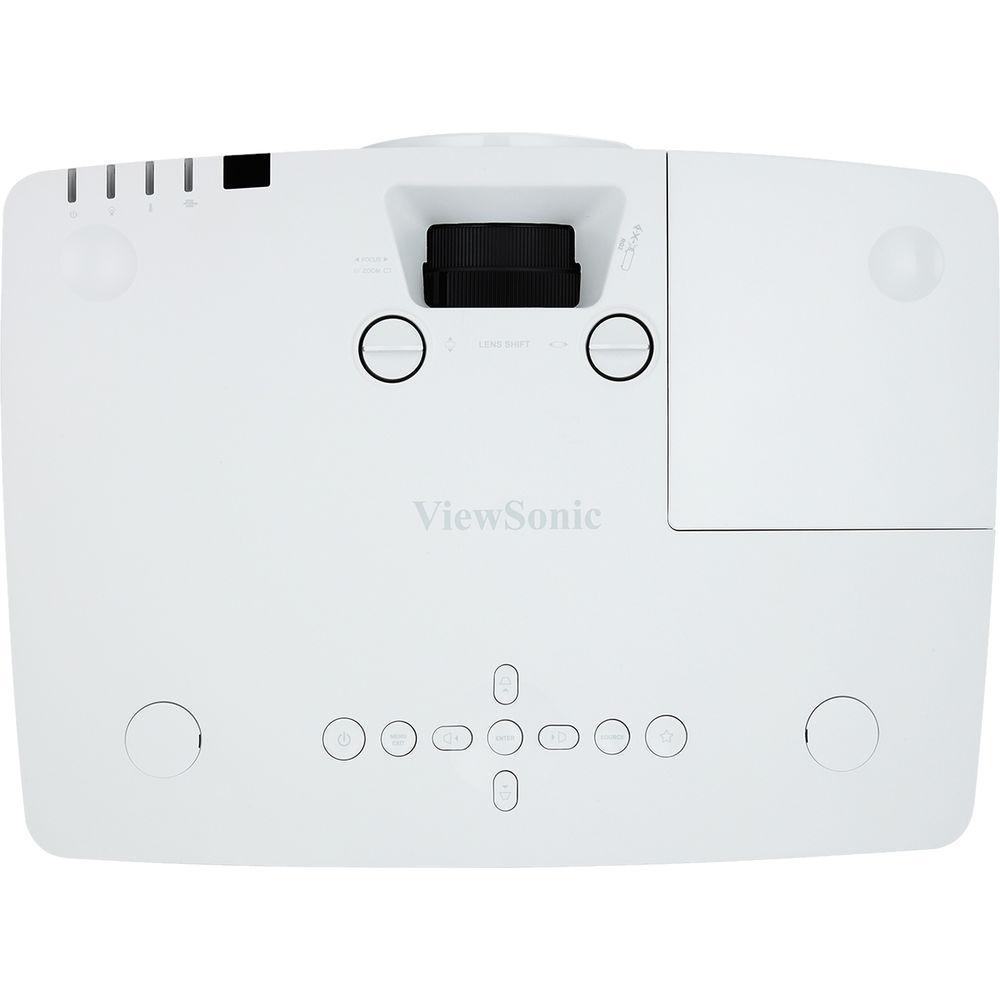

- Vertical/Horizontal Lens Shift with Centered Lens
- A vertical/horizontal lens shift feature offers up and down, left and right adjustments of the projection lens for flexible placement in challenging installations. What's more, a centered lens design makes this projector suitable for replacing existing centered lens installations, making it unnecessary to move or reinstall existing ceiling mounts or projection screens.
- Stackable Design
- Thanks to a stackable design, light output can be doubled by simply placing one projector on top of the other, making the Pro9510L well suited for large venues with high ambient light.
- 360° Orientation
- A robust mechanical construction allows the projector to be installed in any horizontal or vertical orientation, at any angle. You can mount the projector pointing straight down at the floor of a museum exhibit or art gallery installation, or mount the projector upside-down at a 45° angle if need be.
- SuperColor: Amazing Color Accuracy
- ViewSonic's SuperColor technology features a six-segment color wheel and dynamic lamp control capabilities, providing a wide color range and enhanced images.
- SonicExpert Technology
- This projector is designed with ViewSonic's SonicExpert technology that incorporates an enlarged speaker chamber and a more powerful amplifier to deliver a full 20 Hz to 20 kHz sound range. Dual integrated speakers help captivate your audience with immersive sound.
- Convenient Auto Power On/Off
- This projector can be configured to automatically turn on for quick and easy startup whenever an active video input is detected. Conversely, when no signal is present, the projector will automatically power off after a user-defined amount of time.
- Mounting Flexibility
- A wider optical zoom provides more mounting flexibility over a standard 1.2x optical zoom. More flexible mounting options translate to less installation hassle.
- Motorized Screen Control
- With an integrated 12V trigger output, this projector can be connected to a motorized projection screen via a 12V cable. The screen will automatically lower when the projector is powered on, and automatically be raised when the projector is powered off.
UPC: 766907847918 In the Box ViewSonic Pro9510L 6200-Lumen XGA DLP Projector Remote Control with Laser Pointer VGA Cable Power Cable Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic Pro9510L 6200-Lumen XGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic PRO9510L Specs | | | Display System | DLP | | Native Chip Resolution | 1024 x 768 (XGA) | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | 6200 Lumens | | Aspect Ratio | Native: 4:3 | | DLP Link 3D | Yes | | Supported 3D Formats | Frame Sequential
Frame Packing
Side by Side
Top Bottom | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 100 kHz
Vertical: 24 to 120 Hz | | | | Focus | Manual | | Optical Zoom | Manual: 1.7x | | Throw Distance | 3.3 - 55.8' / 1.006 - 17.008 m | | Throw Ratio | 1.3 - 2.21:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Vertical: ± 30°

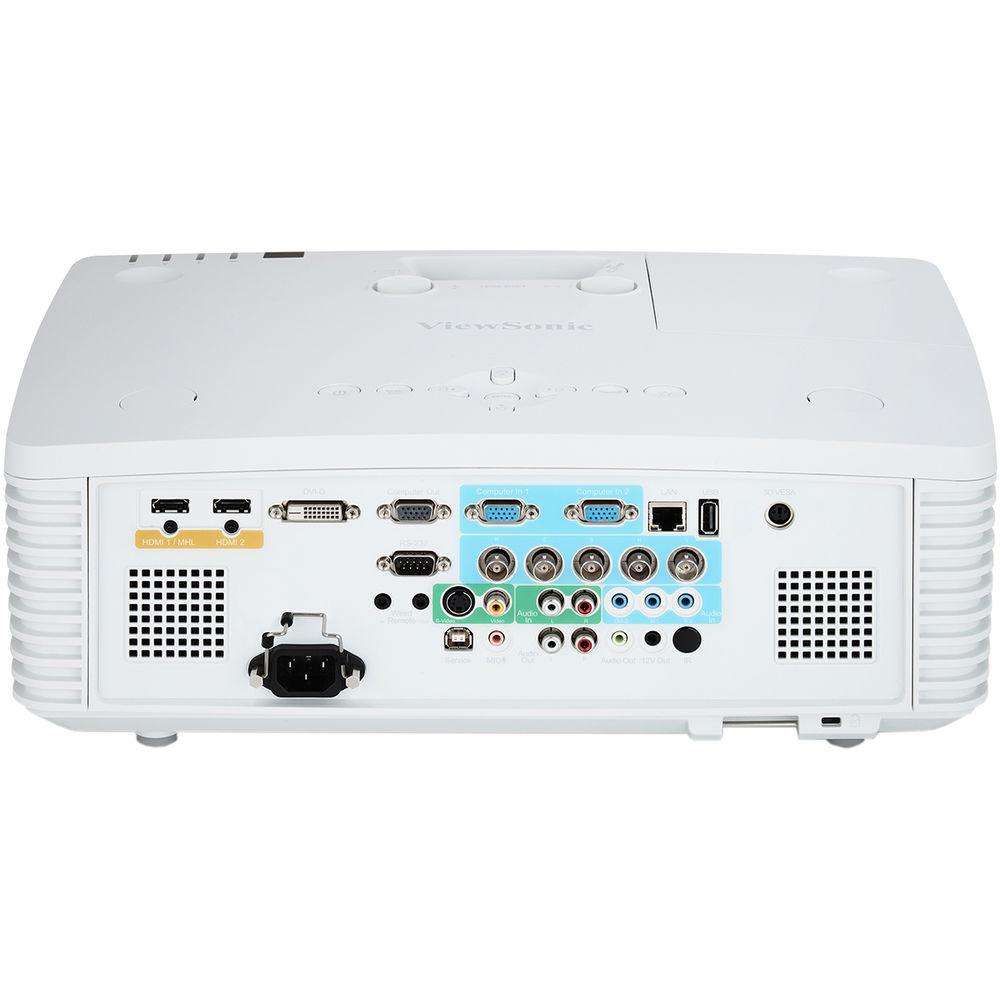

Horizontal: ± 30° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 14W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
1 x DVI-D Video (Input)
1 x USB 2.0 Audio/Video (Input)
1 x 5BNC Video (Input)
2 x VGA (DE-15) Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Composite (RCA) Video (Input)
3 x 1/8" (3.5 mm) Mini Audio (Input)
1 x VGA (DE-15) Video (Output)
1 x RCA Stereo (L/R) Audio (Output)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x Ethernet (RJ45) LAN (Input)
1 x USB 2.0 Service (Input)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x VESA 3D Sync Control (Output)
1 x 1/8" (3.5 mm) Mini Remote (Input)
1 x 1/8" (3.5 mm) Mini Remote (Output) | | | | Lamp Power | 370 W | | Expected Lamp Life | Medium Brightness: 1500 Hours
Low Brightness: 3500 Hours | | Security | Cable Lock Slot
Security Bar | | Supported Languages | Brazilian Portuguese
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 480 W
Standby Mode (Lamp Off): <0.5 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 10 - 85% | | Dimensions (W x H x D) | 17.5 x 12.8 x 5.8" / 445.0 x 325.5 x 147.8 mm | | Weight | 18.28 lb / 8.29 kg | | | | Package Weight | 28.0 lb | | Box Dimensions (LxWxH) | 23.4 x 18.3 x 13.5" |
