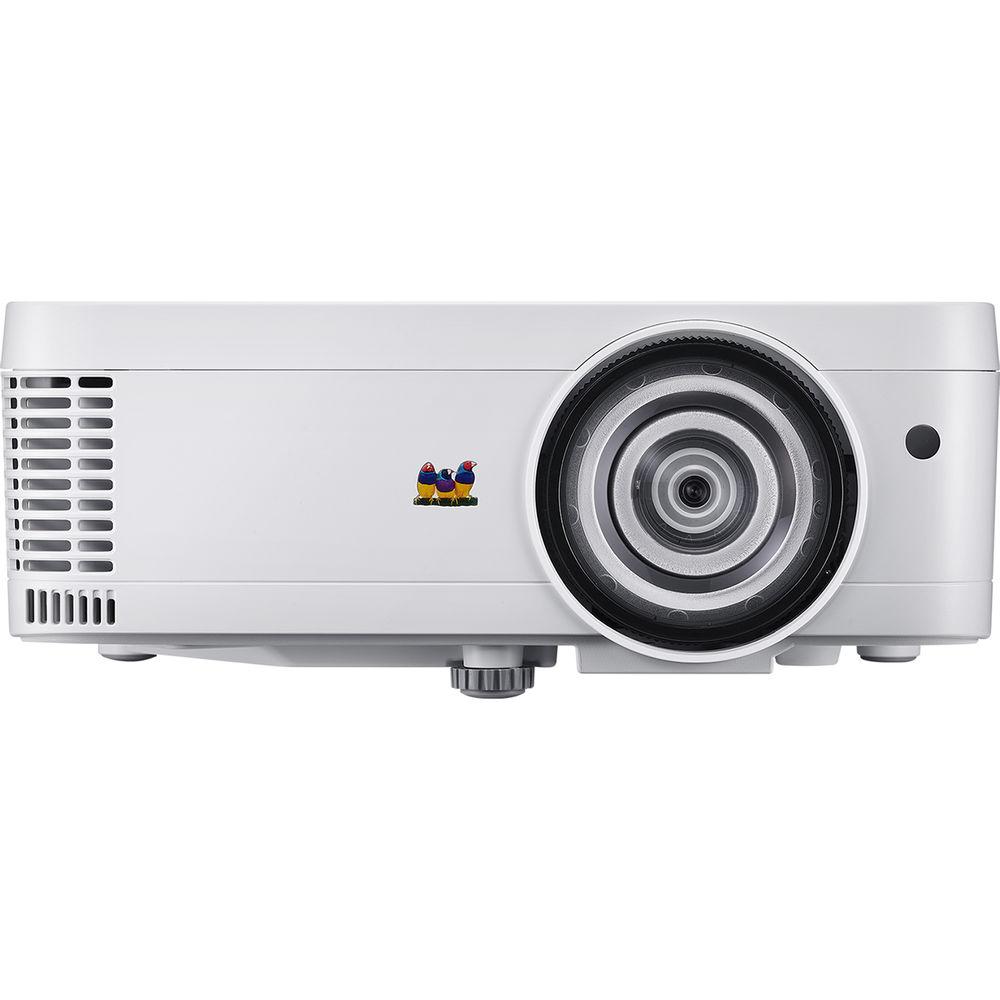

User Manual for ViewSonic PS501X 3500-Lumen XGA Short-Throw DLP Projector Click to enlarge the picture
Contents of the user manual for the ViewSonic PS501X 3500-Lumen XGA Short-Throw DLP
- Product category: Multimedia Projectors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Multimedia Projectors
 |
User manual for the ViewSonic PS501X 3500-Lumen XGA Short-Throw DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

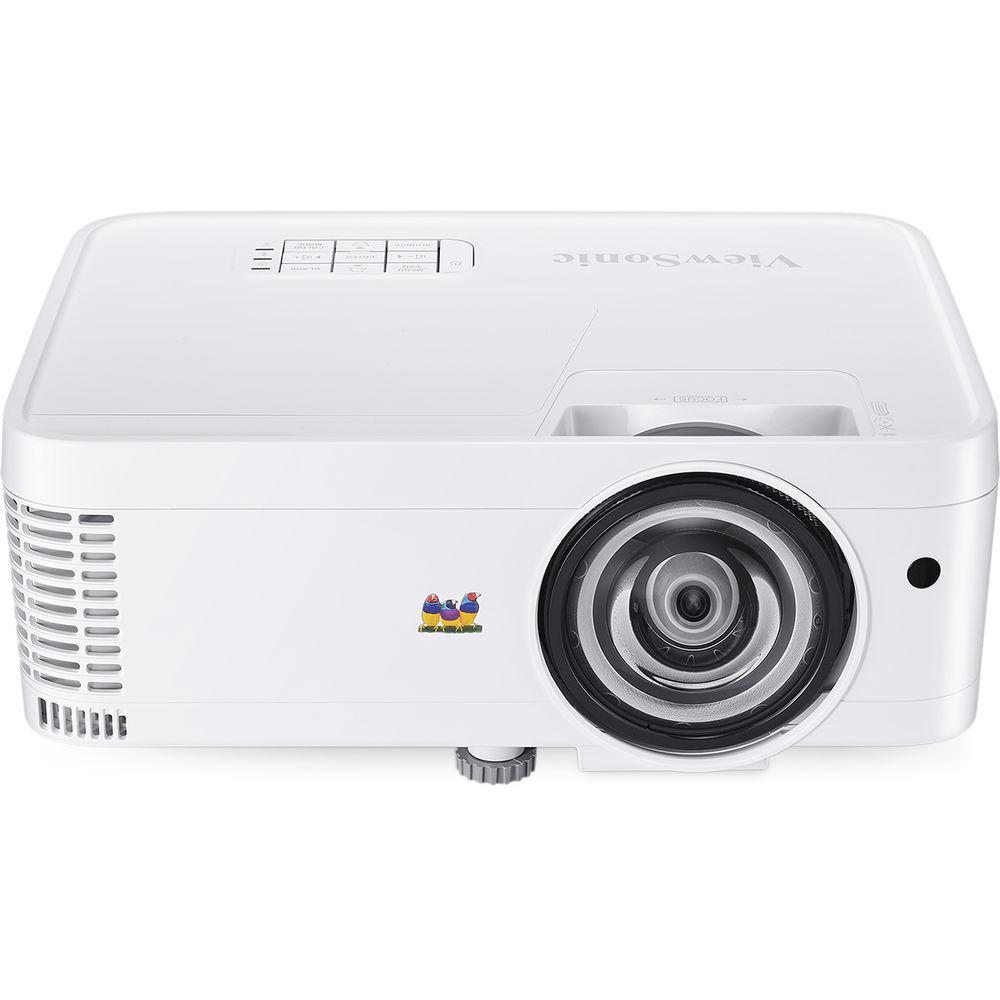

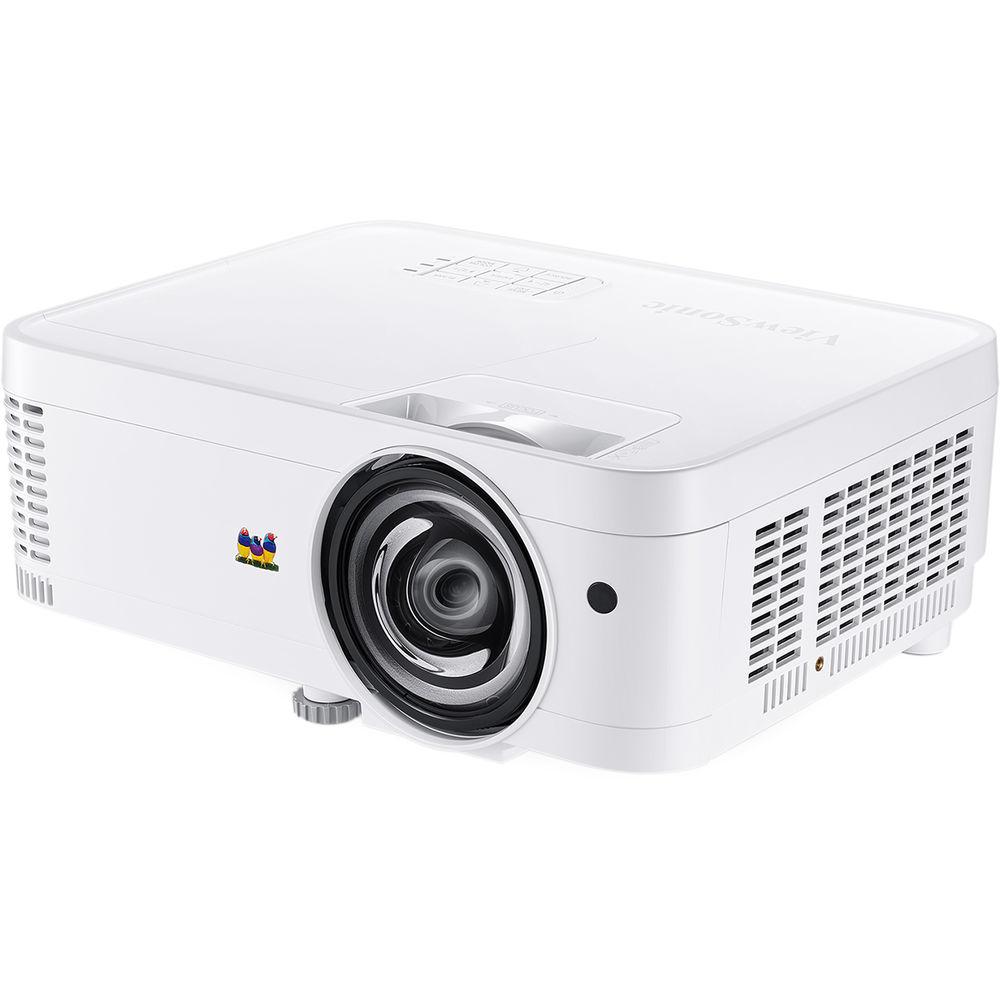

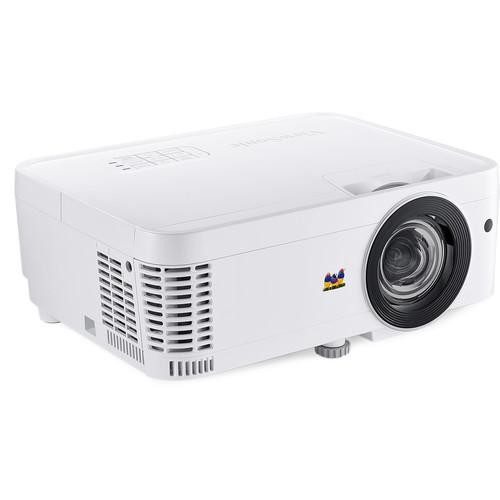

Product description Enjoy bright images in most environments with the ViewSonic PS501X 3500-Lumen XGA Short-Throw DLP Projector. Its 3500 lumens of brightness can overcome ambient light in many situations, making it well-suited for presentation areas such as boardrooms and classrooms. The XGA 1024 x 768 native resolution is suitable for displaying many file and document types, as well as HD video. The projector features a short 0.61:1 throw ratio, allowing you to place it near your projection surface to minimize cast shadows or to facilitate use in small rooms.

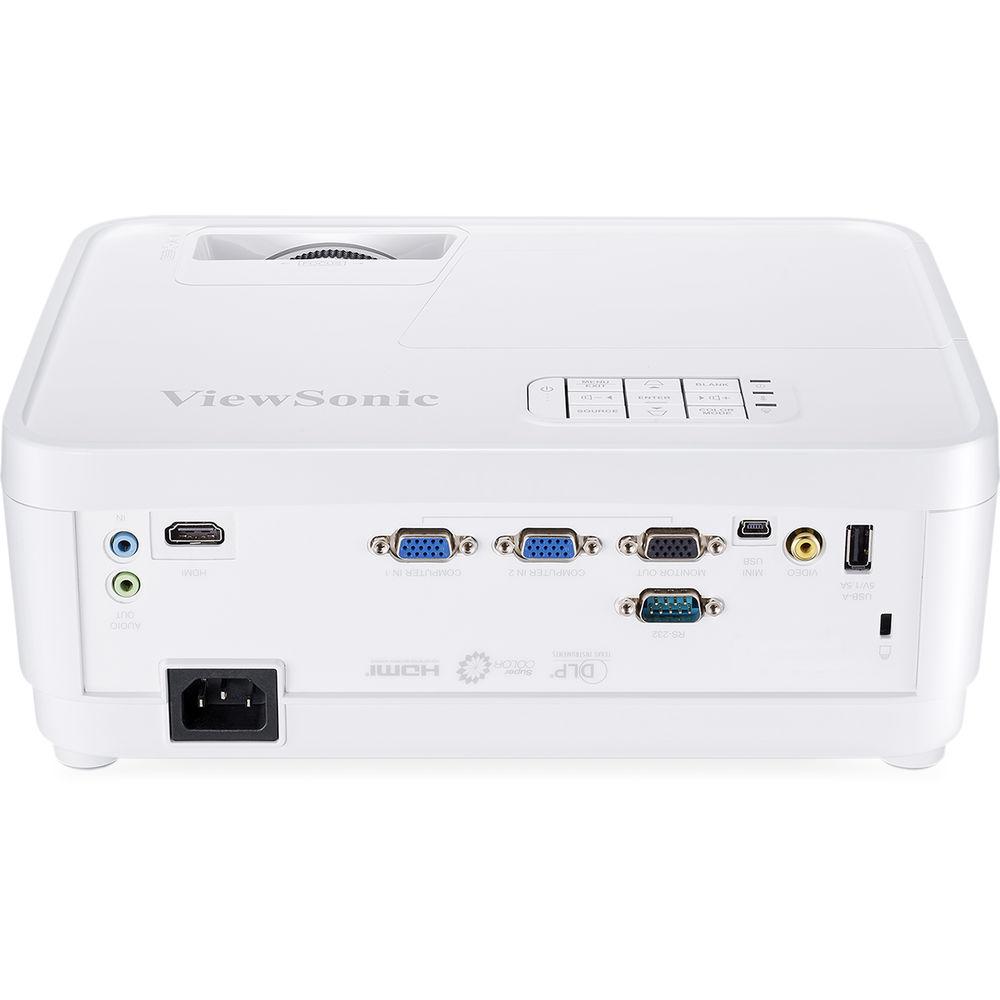

The PS501X has an HDMI input for connecting digital high-definition sources such as Blu-ray players and HD cable/satellite boxes, two VGA inputs for analog sources, and an RCA composite video input. Its HDMI input is 3D-capable for viewing 3D Blu-ray discs with other compatible equipment, which is available separately. A VGA output allows daisy-chaining of multiple projectors or displays. The PS501X includes a VGA cable and an IR remote control for added convenience. - SuperColor for Enhanced Color Accuracy
- ViewSonic's SuperColor technology features a six-segment color wheel and dynamic lamp control capabilities, helping to provide a wide color range.
- Large Images in Small Spaces
- The short-throw lens enables large images to be projected from short distances, minimizing shadows or hotspots on the image while allowing you to project in small rooms.
- 3500 Lumens of Brightness
- The PS501X combines 3500 lumens of brightness with a 22,000:1 dynamic contrast ratio to produce clear images in most environments. The dynamic contrast ratio is designed to enhance even the finest shades of gray to deliver enhanced quality and detail for sharp images.
- HDMI Input & Powered USB Port
- Wireless HDMI adapters, such as Google Chromecast, Roku Streaming Stick, Amazon Fire TV Stick, and others, can be plugged into the projector's HDMI port while receiving power via a USB cable plugged into the projector's powered USB output. The USB port can power most wireless adapters, so a separate power source isn't likely needed.
- SuperEco Helps Extend Lamp Life
- The SuperEco energy-saving feature reduces power consumption, extending the lamp life up to 15,000 hours.
- Reduced Input Latency
- The PS501X features a low 16 ms input latency to produce fast frame-by-frame action.
- 3D Blu-ray Ready HDMI Input
- Enjoy 3D projection with your compatible 3D Blu-ray player and the optional PGD-350 shutter glasses, or any other compatible 3D glasses.
- Interactive Whiteboard Module-Compatible

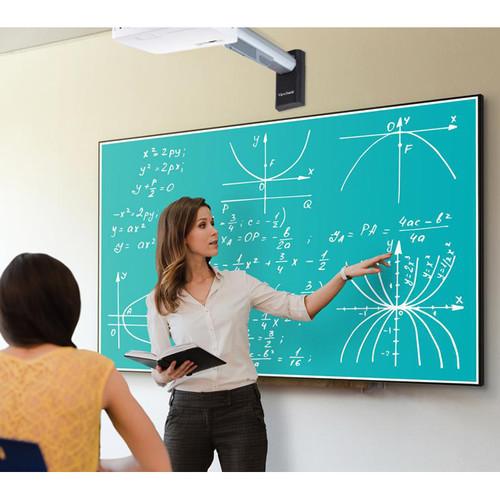

- When paired with the optional PJ-VTOUCH-10S interactive whiteboard module, this projector can become an interactive projection solution. Multiple users can simultaneously interact and collaborate at the screen by using their fingers or styli.
UPC: 766907958119 In the Box ViewSonic PS501X 3500-Lumen XGA Short-Throw DLP Projector Remote Control with Batteries VGA Cable Power Cable Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic PS501X 3500-Lumen XGA Short-Throw DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic PS501X Specs | | | Display System | 0.55" DMD DLP | | Native Chip Resolution | 1024 x 768 (XGA) | | Supported Resolutions | Minimum: VGA - 640 x 480
Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | 3500 Lumens | | Aspect Ratio | Native: 4:3 | | Dynamic Contrast Ratio | 22,000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Frame Packing (up to 1080p)
Side by Side (up to 1080i)
Top Bottom (up to 1080p) | | Color Wheel | 6-Segment | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 102 kHz

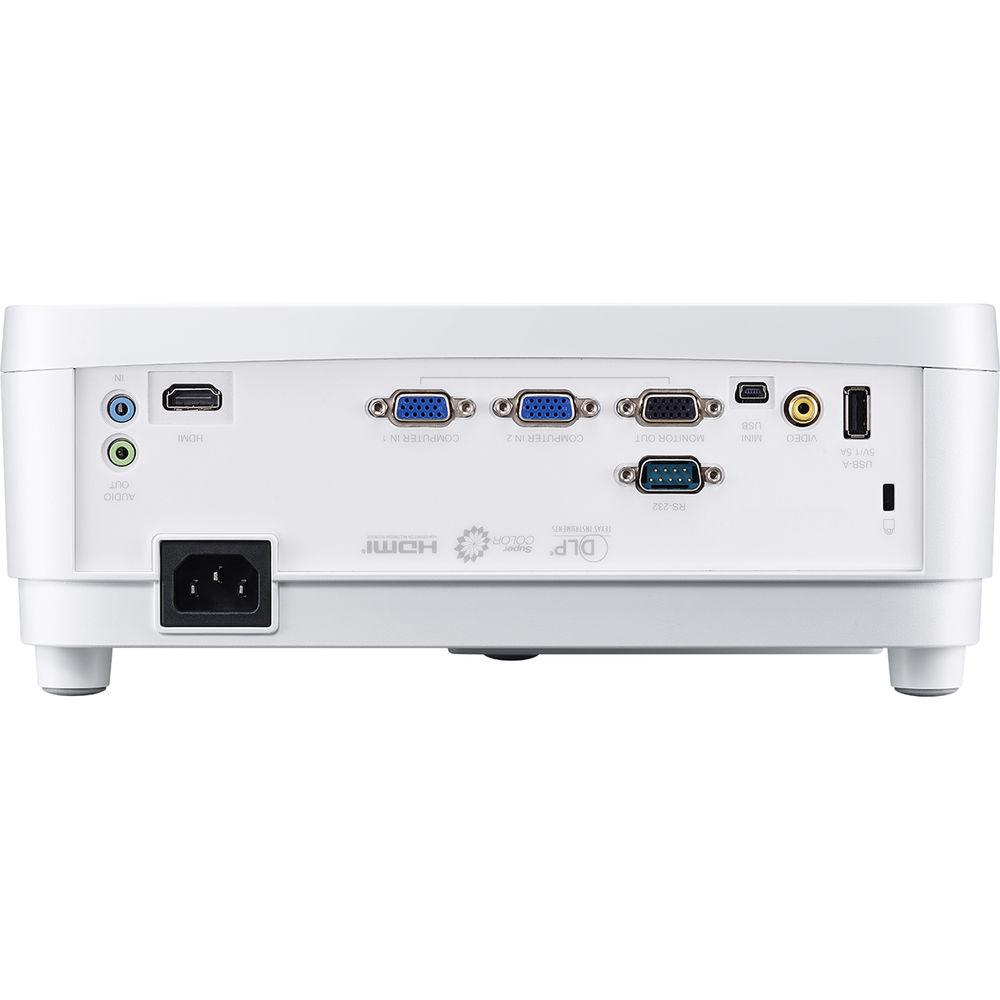

Vertical: 23 to 120 Hz | | | | Focus | Manual | | Optical Zoom | None | | Throw Distance | 2.4 - 7.3' / 0.732 - 2.225 m | | Throw Ratio | 0.61:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Vertical: ± 40° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes | | Speaker Power | 2W | | Closed Captioning | Yes | | | | Inputs/Outputs | 1 x HDMI (HDMI Type-A) Audio, Video Input
2 x VGA (DE-15) Video Input
1 x VGA (DE-15) Video Output
1 x Composite (RCA) Video Input
1 x 1/8" (3.5 mm) Mini Audio Input
1 x 1/8" (3.5 mm) Mini Audio Output
1 x RS-232 (DE-9) Control
1 x USB 2.0 (USB Type-A) Power Output
1 x USB 2.0 (Mini-USB) Service Input | | Memory Card Slot | None | | Wireless LAN / Wi-Fi | None | | | | Lamp Power | 190 W | | Expected Lamp Life | Full Brightness: 5000 Hours
Low Brightness: 15,000 Hours | | Security | Cable Lock Slot | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 260 W

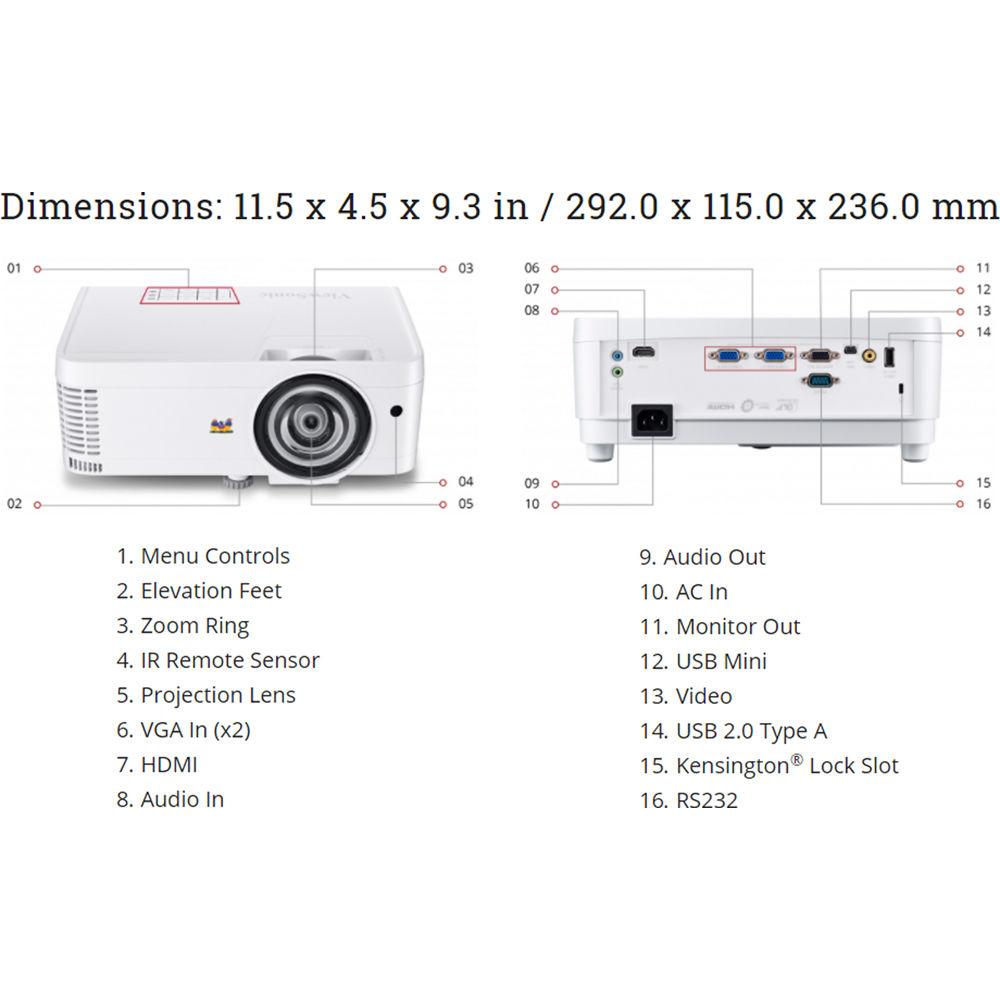

Standby Mode (Lamp Off): <0.5 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 - 90% | | Dimensions (W x H x D) | 11.5 x 4.5 x 9.3" / 29.2 x 11.4 x 23.6 cm | | Weight | 5.7 lb / 2.59 kg | | | | Package Weight | 7.9 lb | | Box Dimensions (LxWxH) | 14.0 x 12.0 x 7.5" |
