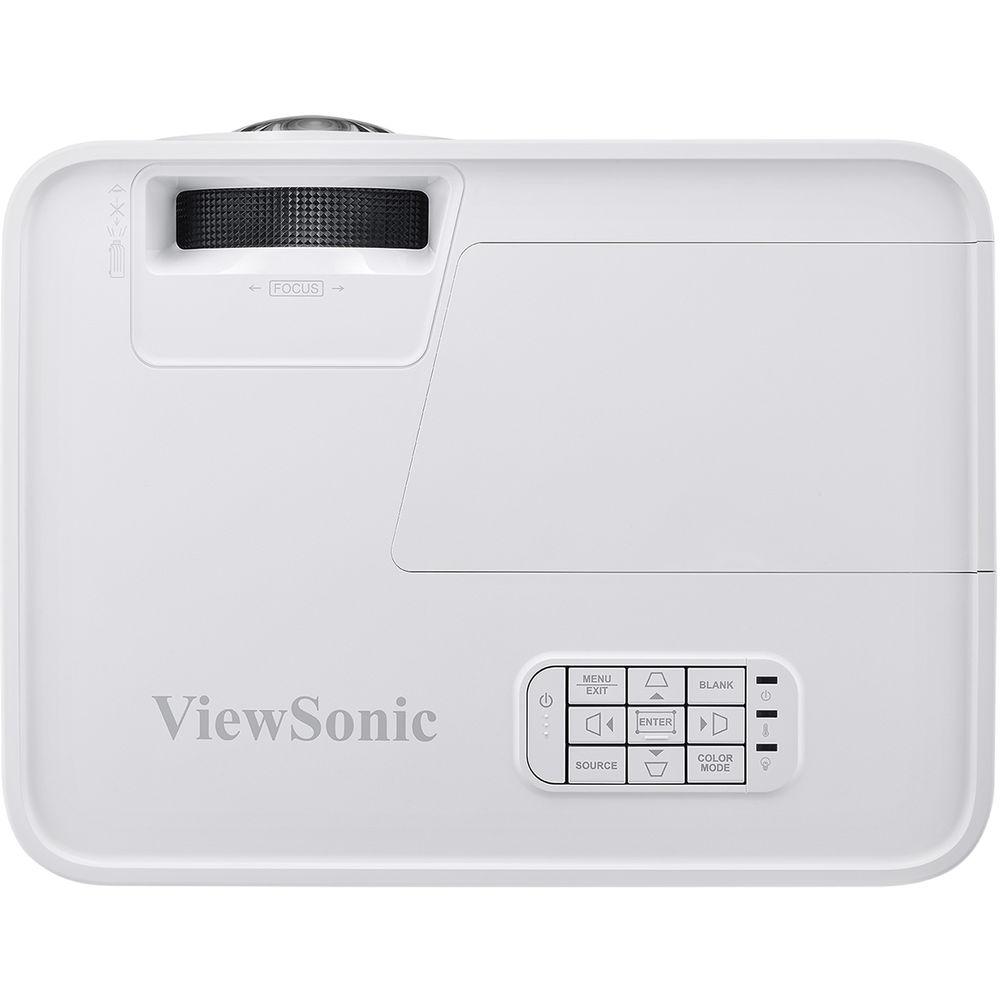

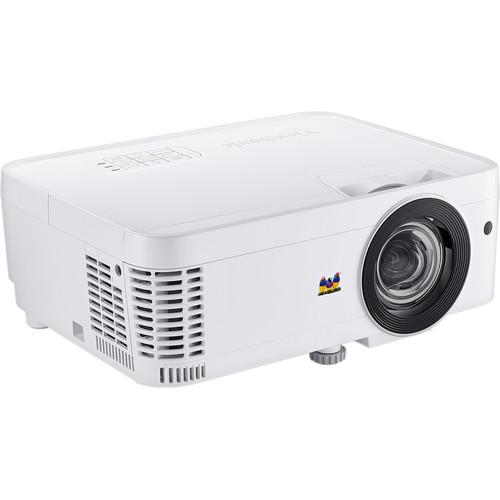

User Manual for ViewSonic PS600W 3500-Lumen WXGA Short-Throw DLP Projector Click to enlarge the picture
Contents of the user manual for the ViewSonic PS600W 3500-Lumen WXGA Short-Throw DLP
- Product category: Multimedia Projectors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Multimedia Projectors
 |
User manual for the ViewSonic PS600W 3500-Lumen WXGA Short-Throw DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

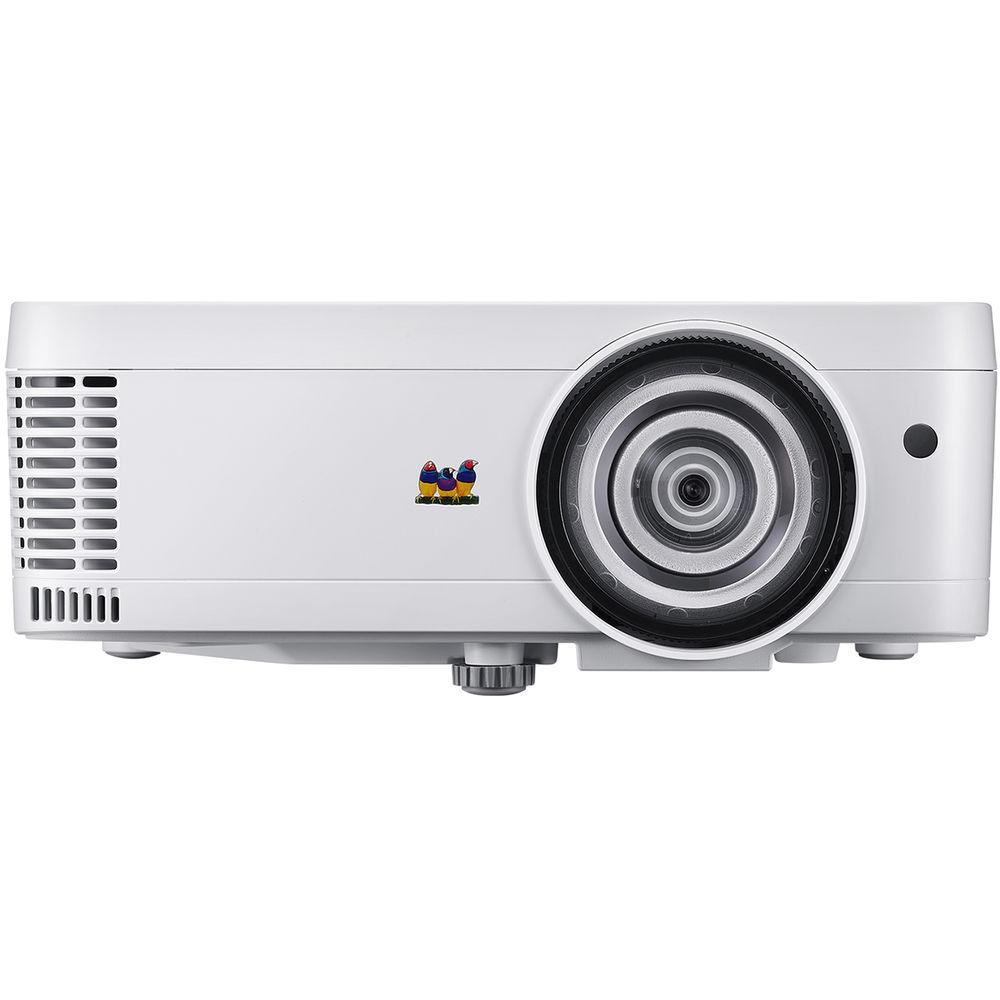

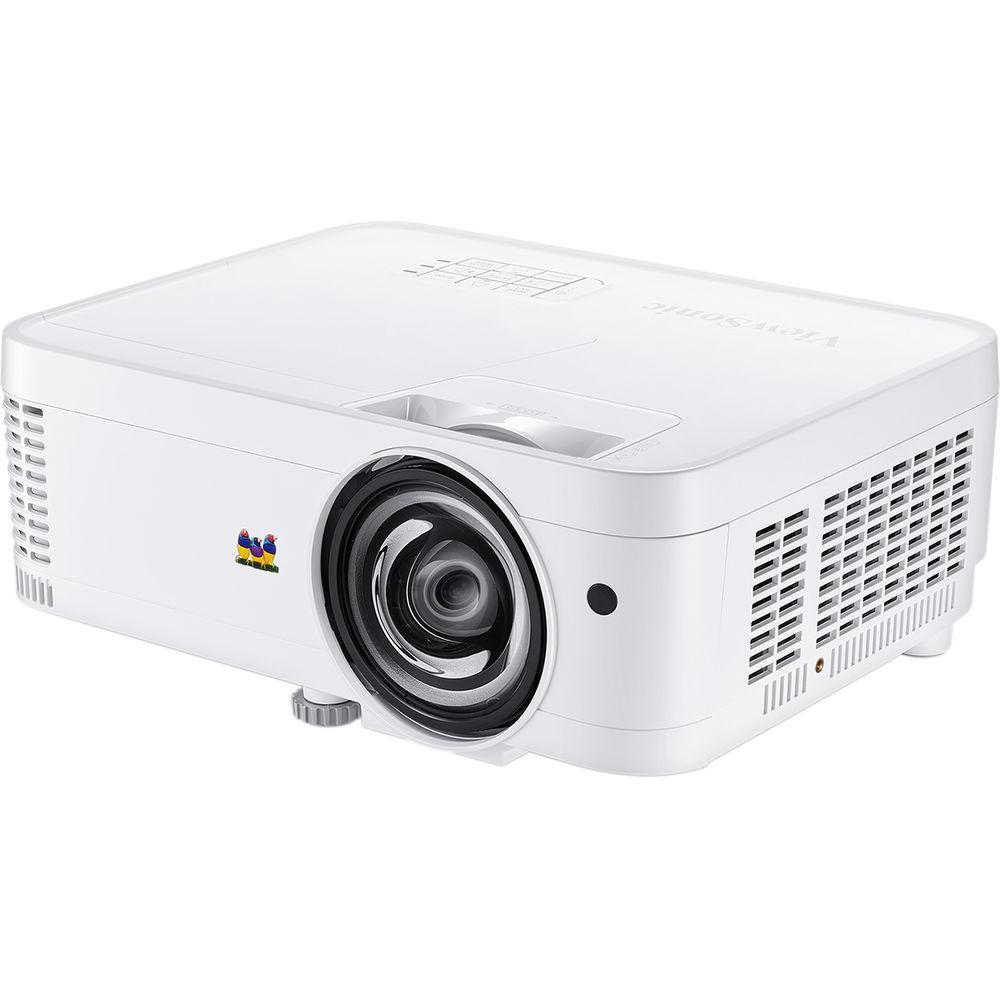

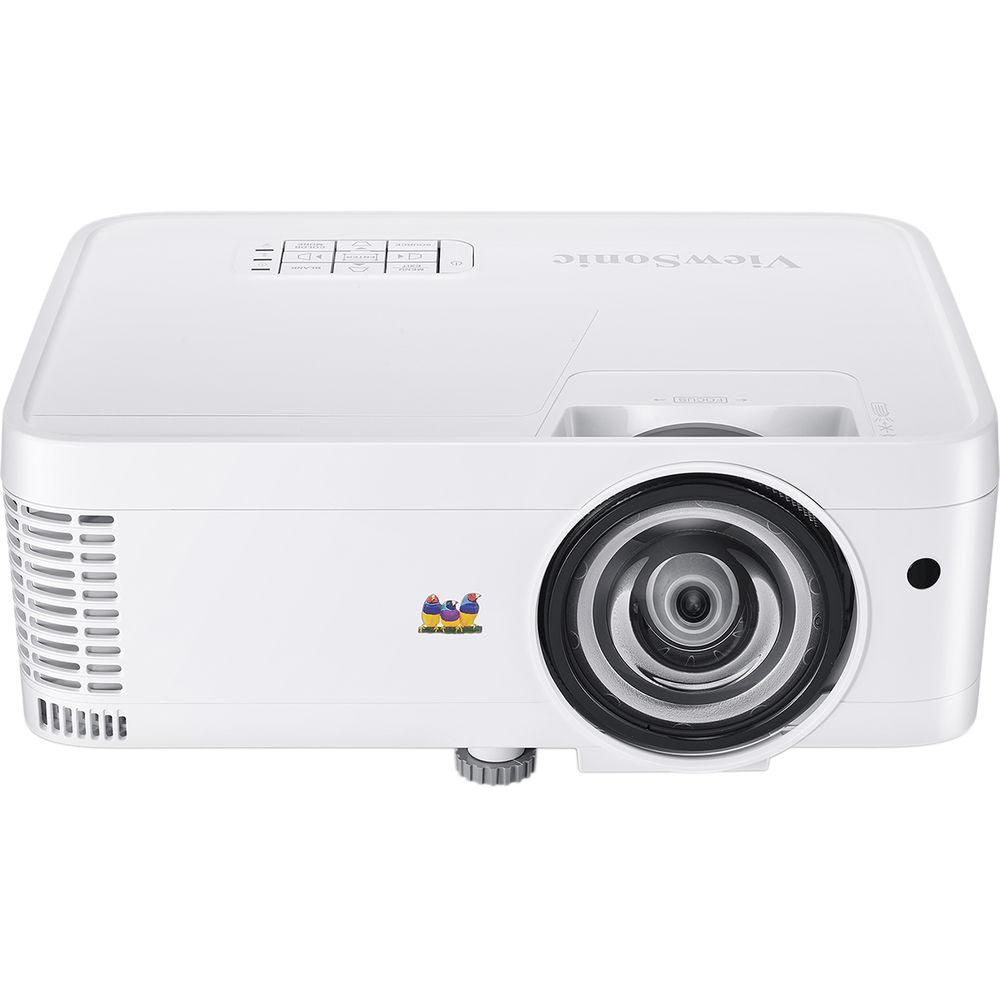

Product description Enjoy bright images in most environments with the ViewSonic PS600W 3500-Lumen WXGA Short-Throw DLP Projector. Its 3500 lumens of brightness can overcome ambient light in many situations, making it well-suited for presentation areas such as boardrooms and classrooms. The WXGA 1280 x 800 native resolution is suitable for displaying most file and document types, as well as HD video. With its short 0.49:1 throw ratio, the projector can be placed very near your projection surface while still producing large images.
The PS600W has two HDMI inputs for connecting digital high-definition sources such as Blu-ray players and HD cable/satellite boxes, and two VGA inputs for analog sources. Its HDMI inputs are 3D-capable for viewing 3D Blu-ray discs with other compatible equipment, which is available separately. A VGA output allows daisy-chaining of multiple projectors or displays. The PS600W includes a VGA cable and an IR remote control for added convenience. - SuperColor for Enhanced Color Accuracy
- ViewSonic's SuperColor technology features a six-segment color wheel and dynamic lamp control capabilities, helping to provide a wide color range.
- Large Images in Small Spaces
- The short-throw lens enables large images to be projected from short distances. This helps to eliminate blinding light for the presenter, distracting shadows on the projected image, and glaring hotspots on the screen.
- 3500 Lumens of Brightness
- The PS600W combines 3500 lumens of brightness with a 22,000:1 dynamic contrast ratio to produce clear images in most environments.
- Horizontal and Vertical Keystone Correction
- Horizontal and vertical keystone correction, plus a corner adjustment feature, help eliminate crooked and distorted images.
- SuperEco Helps Extend Lamp Life
- The SuperEco energy-saving feature allows you to dim projection brightness by up to 70%, reducing power consumption, extending the lamp life up to 15,000 hours.
- LAN Control
- An integrated RJ45 connection allows you to remotely set up and manage projector content from a computer. You can also remotely turn the projector on or off or adjust the volume and other settings via an on-screen interface designed to be user-friendly.
- HDMI Input & Powered USB Port
- Wireless HDMI adapters, such as Google Chromecast, Roku Streaming Stick, Amazon Fire TV Stick, and others, can be plugged into the projector's HDMI port while receiving power via a USB cable plugged into the projector's powered USB output. The USB port can power most wireless adapters, so a separate power source isn't likely needed.
- Dual 3D Blu-ray Ready HDMI Inputs
- Enjoy 3D projection with your compatible 3D Blu-ray player and the optional PGD-350 shutter glasses, or any other compatible 3D glasses.
- Reduced Input Latency
- The PS600W features a low 16 ms input latency to produce fast frame-by-frame action.
- Compatible with an Optional Interactive Whiteboard Module

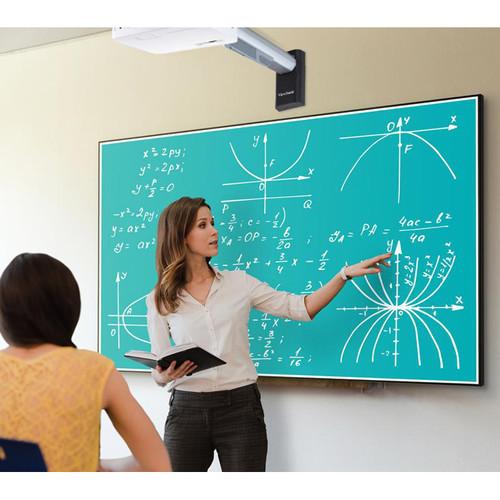

- When paired with the optional PJ-VTOUCH-10S interactive whiteboard module, the projector becomes an interactive projection solution. Multiple users can simultaneously interact and collaborate at the screen using their fingers or styli.
UPC: 766907958416 In the Box ViewSonic PS600W 3500-Lumen WXGA Short-Throw DLP Projector Remote Control VGA Cable Power Cable Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic PS600W 3500-Lumen WXGA Short-Throw DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic PS600W Specs | | | Display System | 0.65" DMD DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | 3500 Lumens | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 22,000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Frame Packing (up to 1080p)
Side by Side (up to 1080i)
Top Bottom (up to 1080p) | | Color Wheel | 6-Segment | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 102 kHz
Vertical: 23 to 120 Hz | | Latency | 16 ms | | | | Focus | Manual | | Optical Zoom | None | | Throw Distance | 2.1 - 6.2' / 0.64 - 1.89 m | | Throw Ratio | 0.49:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Vertical: ± 40°

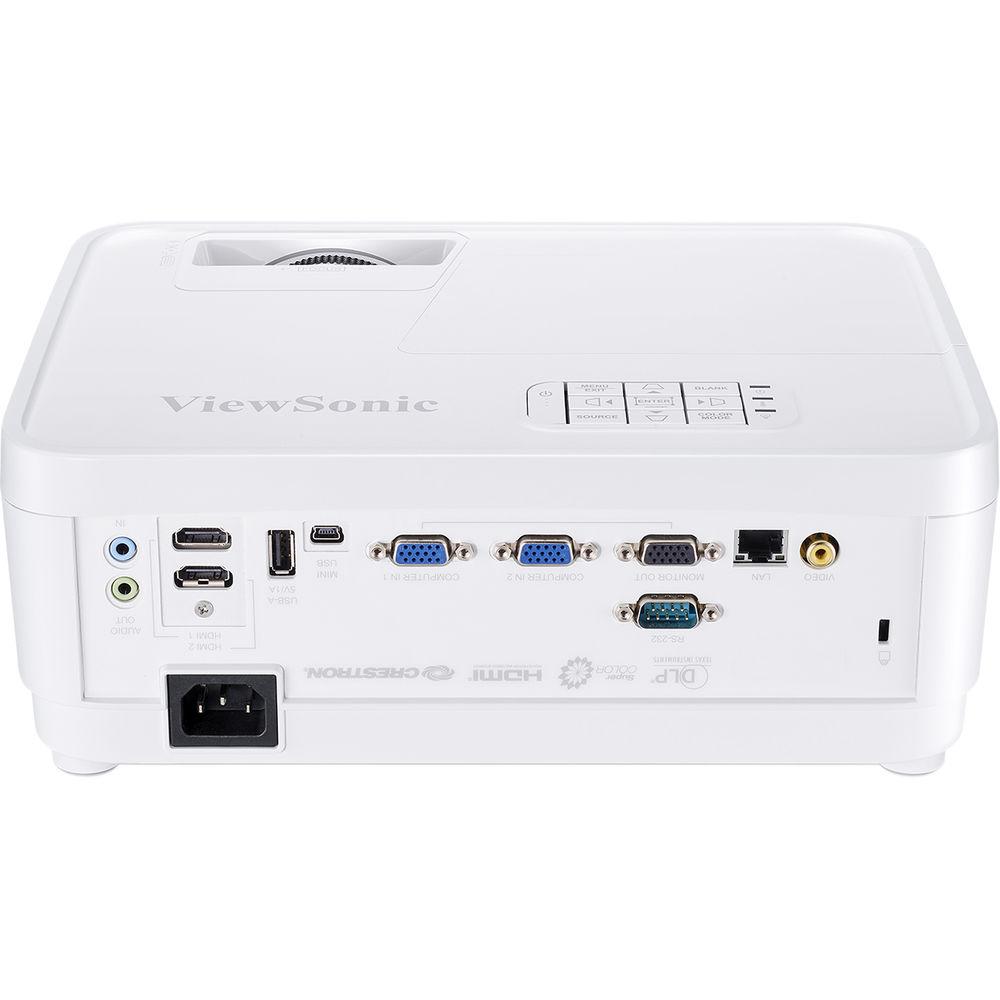

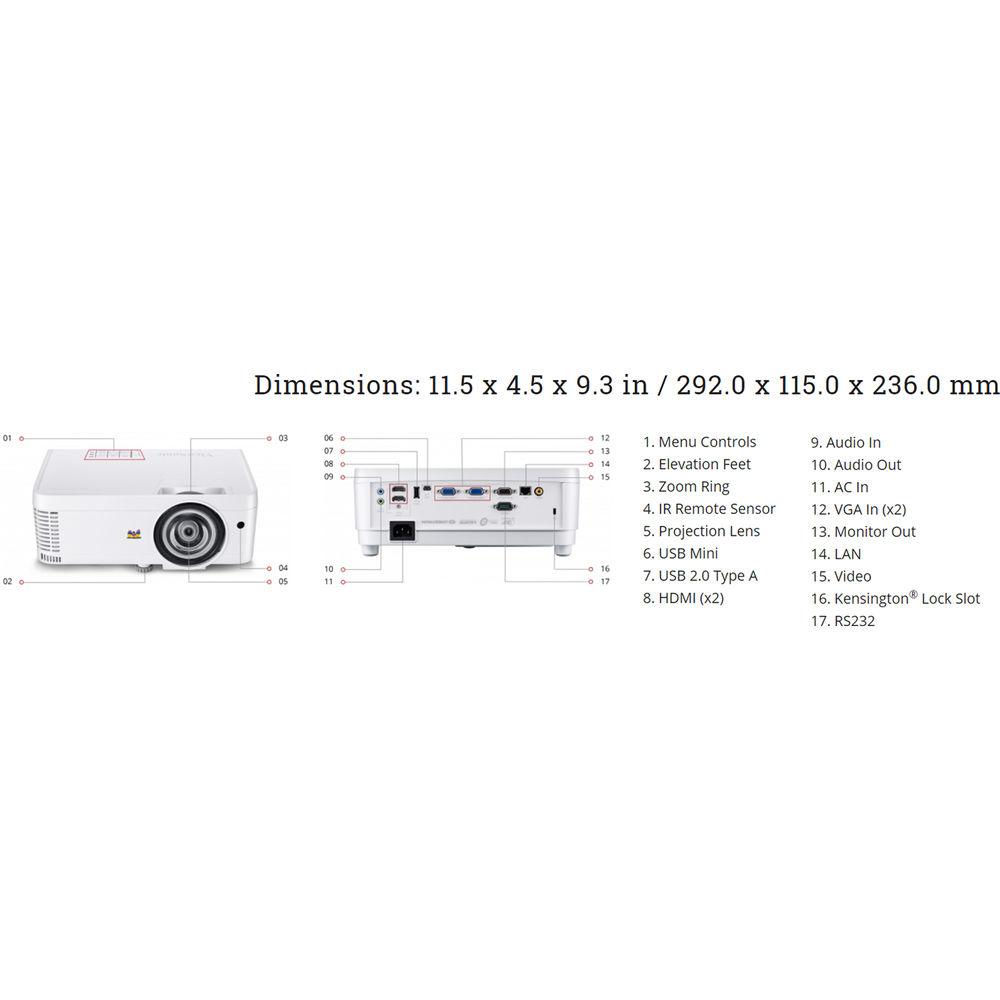

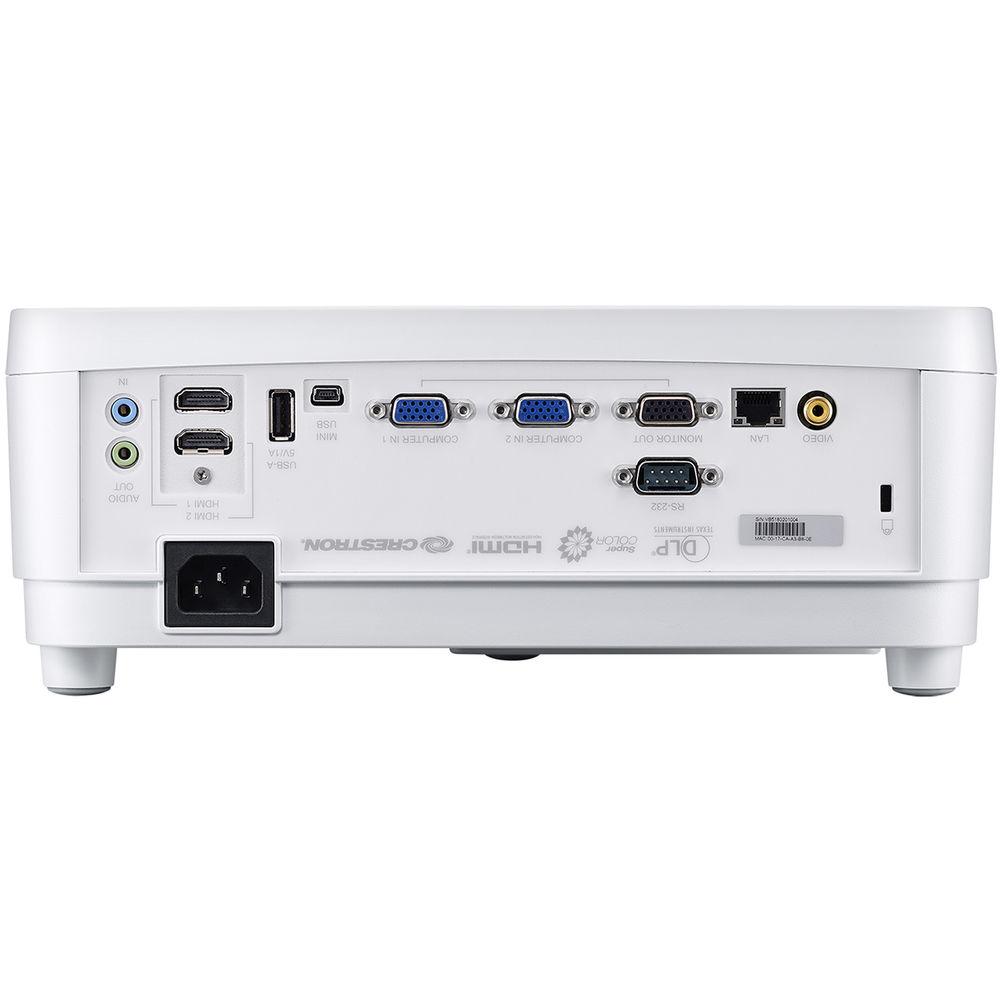

Horizontal: ± 26° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes | | Speaker Power | 10W | | Closed Captioning | Yes | | | | Inputs/Outputs | 2 x HDMI (HDMI Type-A) Audio, Video Input
2 x VGA (DE-15) Video Input
1 x VGA (DE-15) Video Output
1 x Composite (RCA) Video Input
1 x Ethernet (RJ45) LAN
1 x 1/8" (3.5 mm) Mini Audio Input
1 x 1/8" (3.5 mm) Mini Audio Output
1 x USB 2.0 (USB Type-A) Power Output
1 x USB 2.0 (Mini-USB) Data Input | | Memory Card Slot | None | | | | Light Source | Lamp | | Lamp Power | 200 W | | Expected Lamp Life | Full Brightness: 5000 Hours
Low Brightness: 15,000 Hours | | Security | Cable Lock Slot | | Supported Languages | Arabic
Czech
English
Finnish
French
German
Hindi
Indonesian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 260 W
Standby Mode (Lamp Off): <0.5 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 - 90% | | Dimensions (W x H x D) | 11.5 x 4.5 x 9.3" / 29.2 x 11.4 x 23.6 cm | | Weight | 5.7 lb / 2.59 kg | | | | Package Weight | 8.3 lb | | Box Dimensions (LxWxH) | 14.3 x 11.8 x 7.3" |
