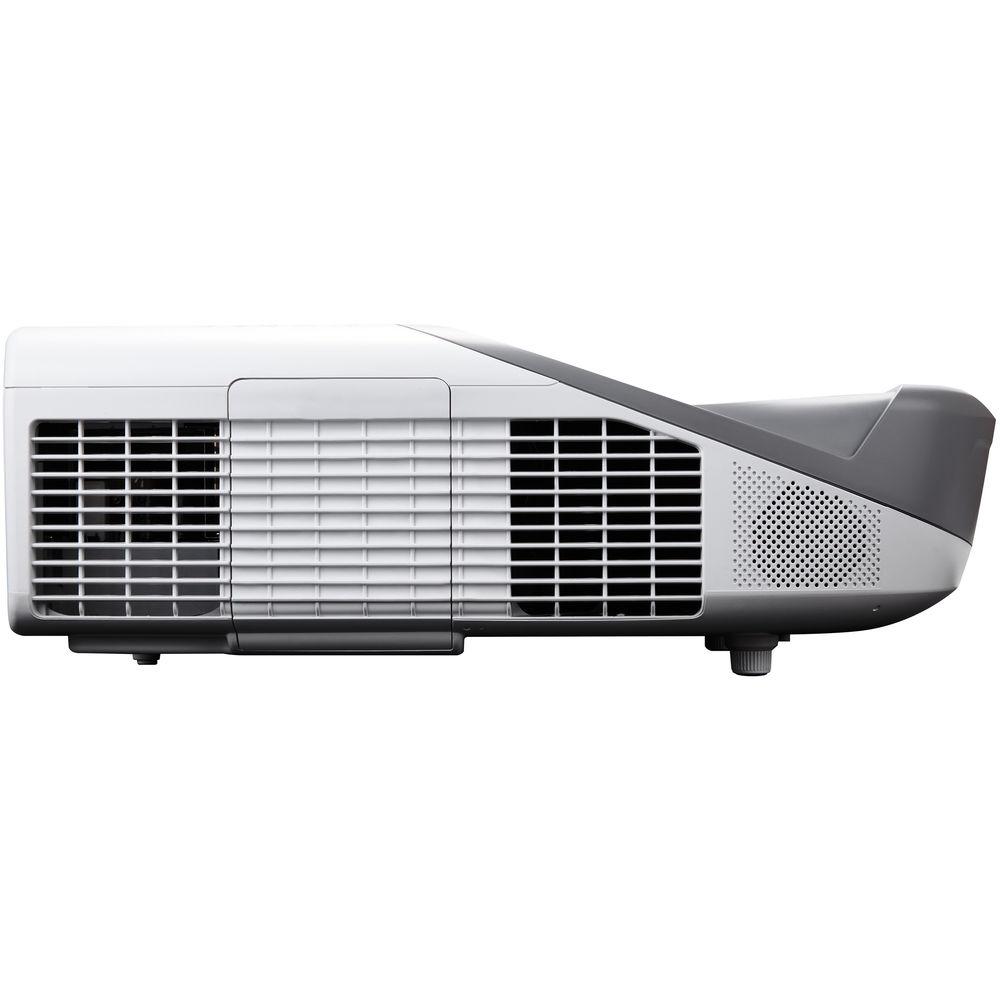

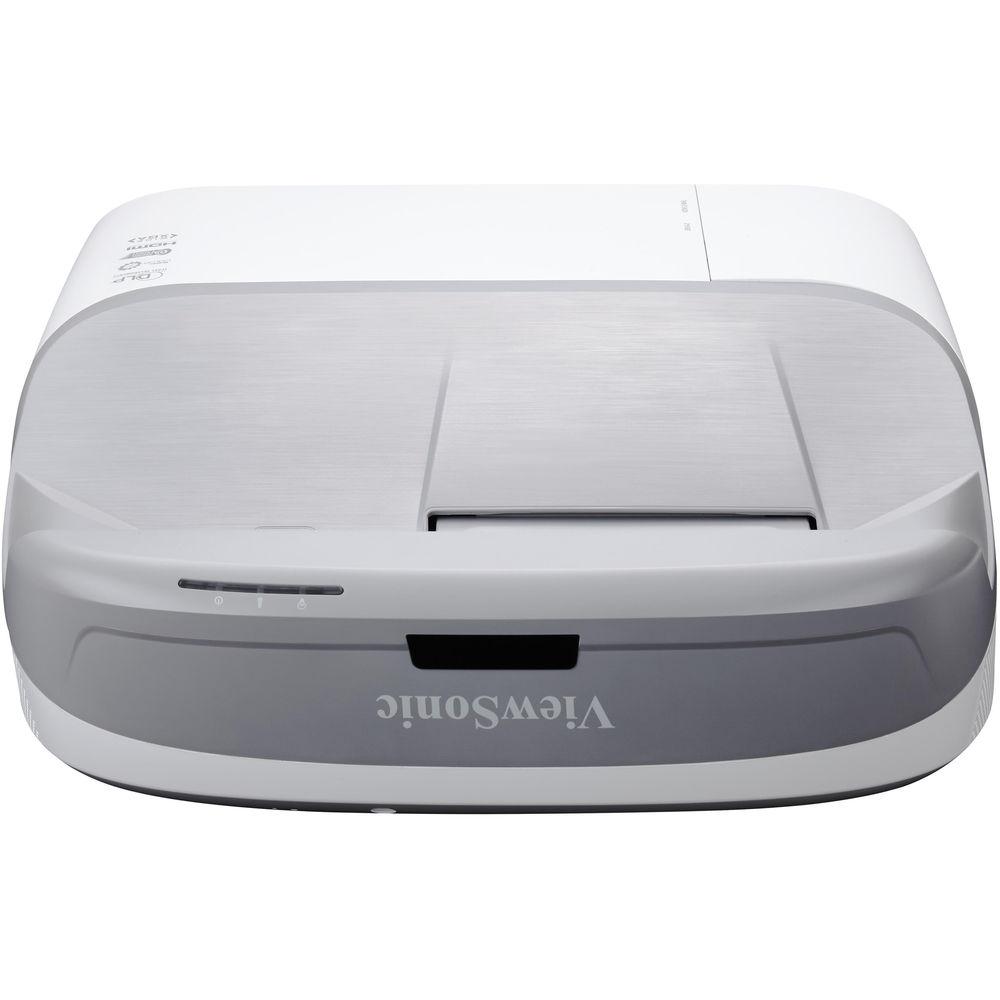

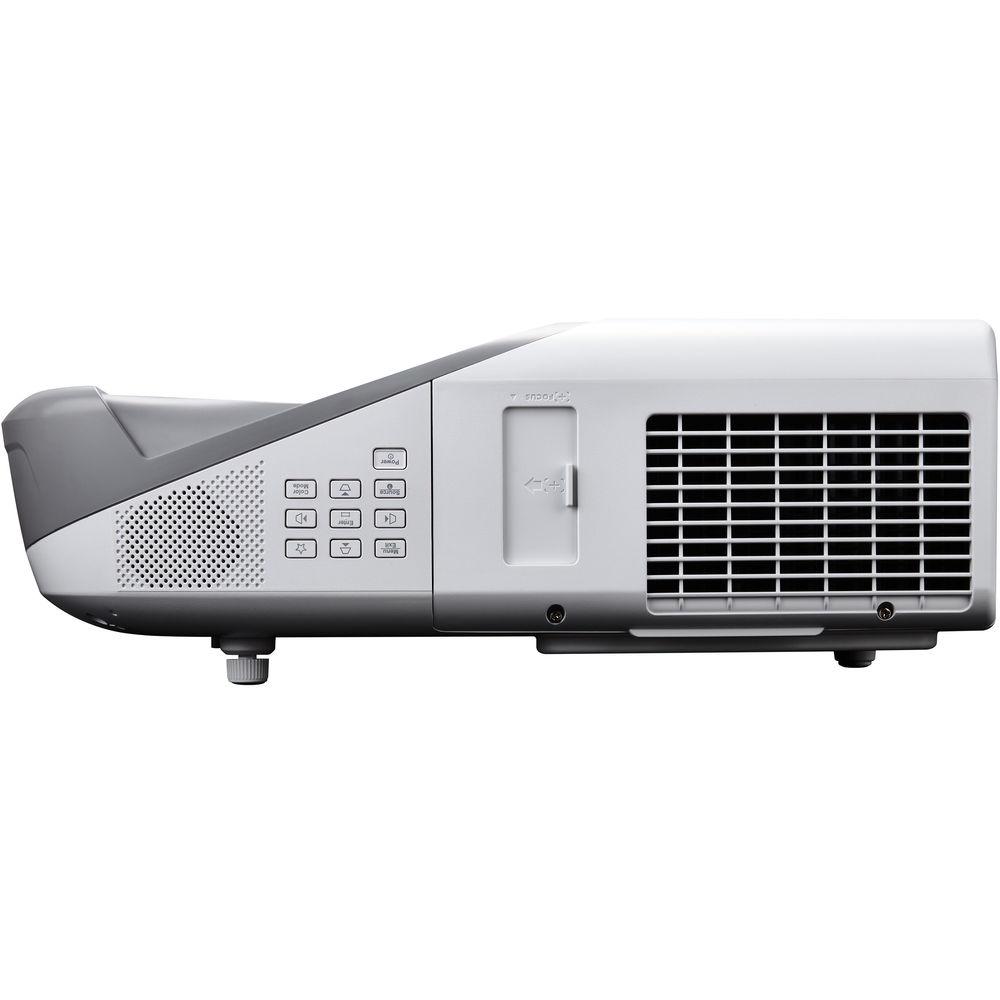

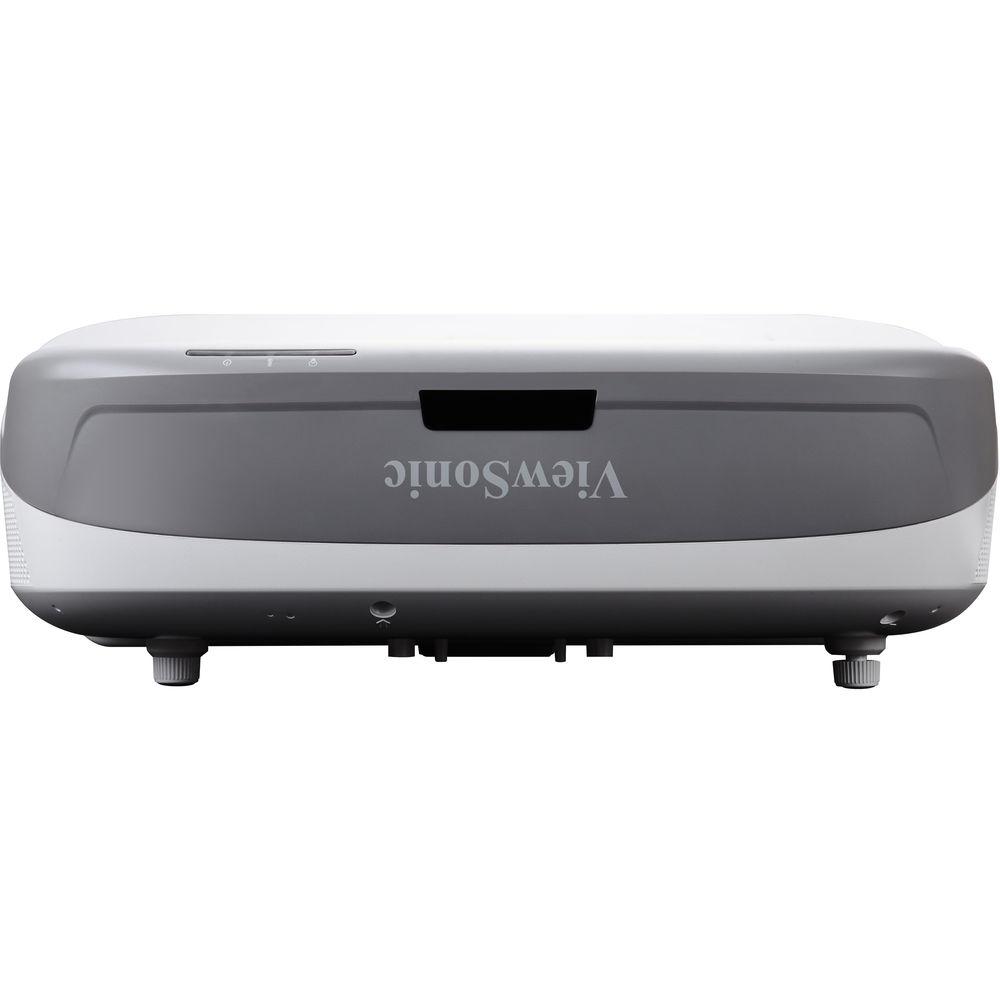

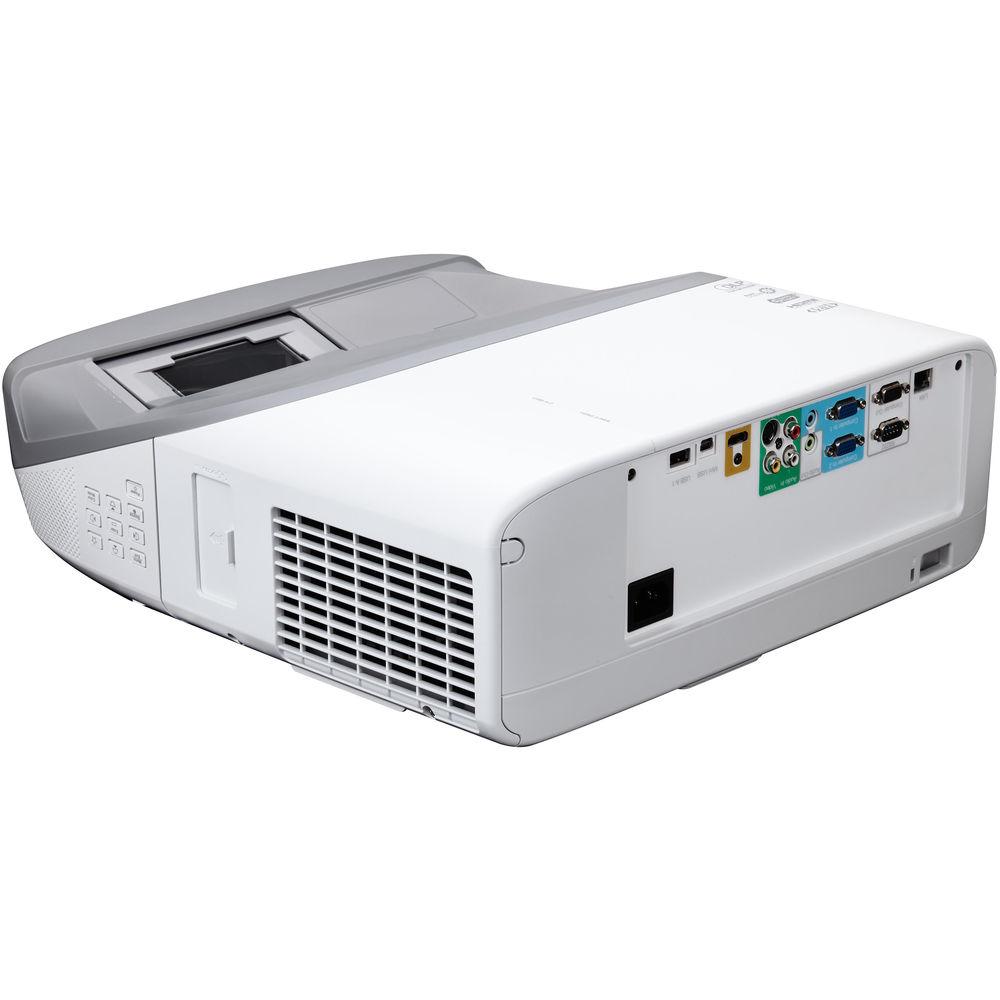

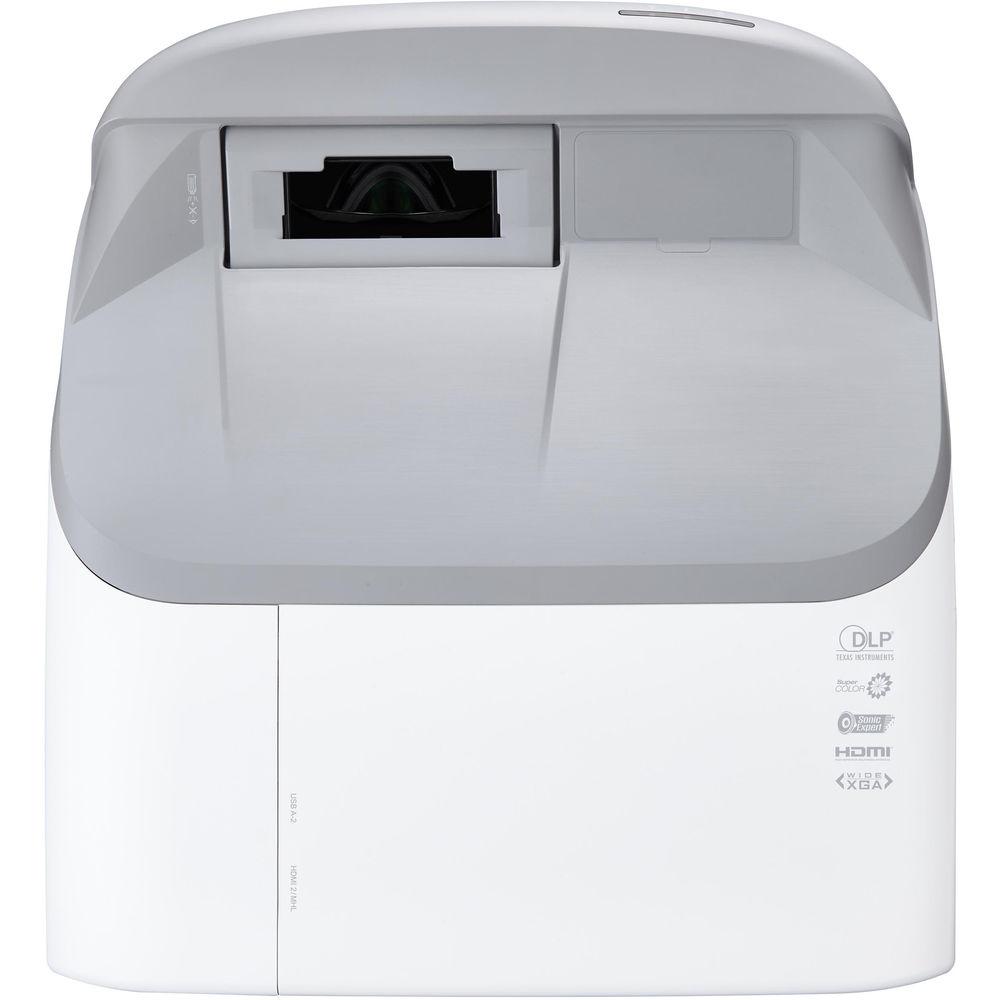

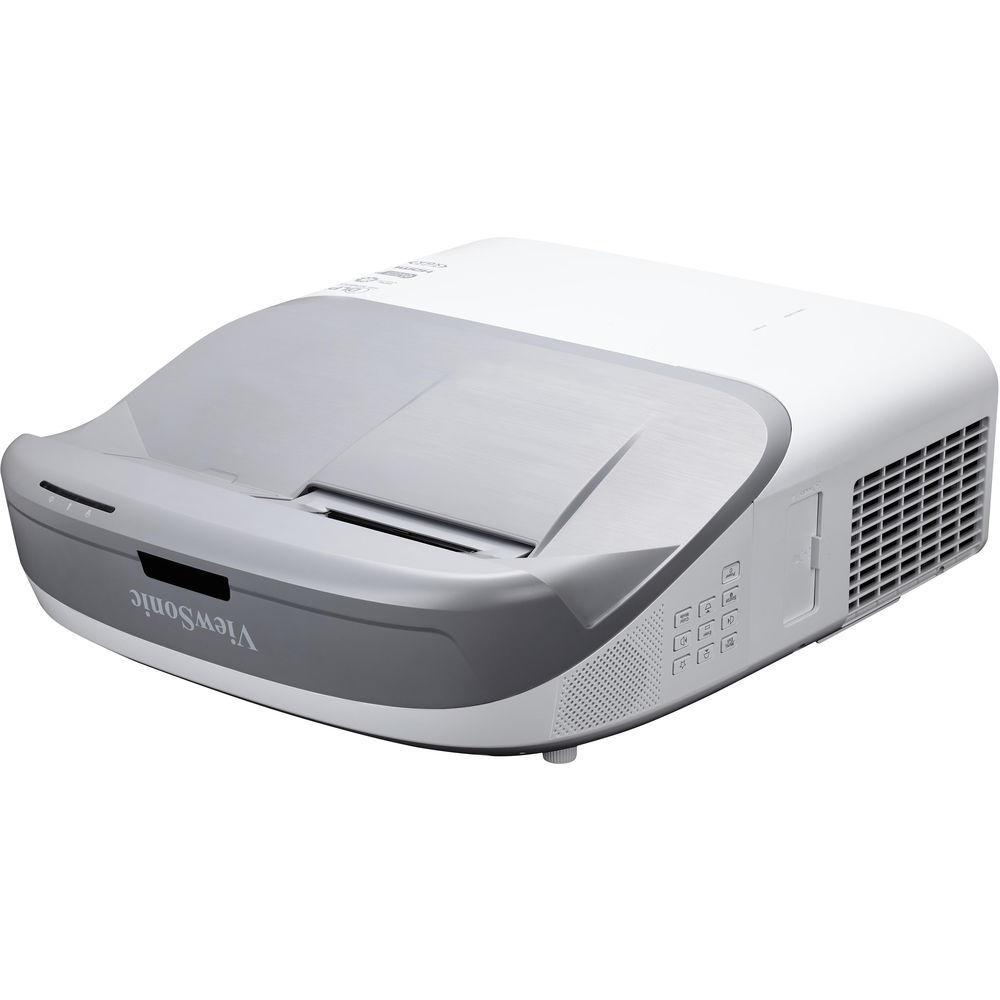

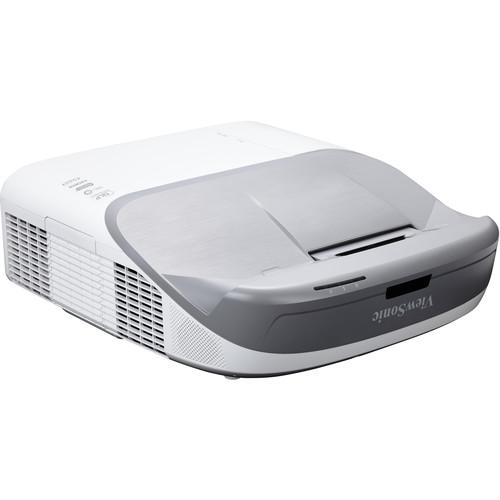

User Manual for ViewSonic PS700W 3300-Lumen WXGA Ultra-Short Throw DLP Projector Click to enlarge the picture
Contents of the user manual for the ViewSonic PS700W 3300-Lumen WXGA Ultra-Short Throw
- Product category: Multimedia Projectors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Multimedia Projectors
 |
User manual for the ViewSonic PS700W 3300-Lumen WXGA Ultra-Short Throw contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|
Product description Enjoy bright images with virtually no shadows with the ViewSonic PS700W 3300-Lumen WXGA Ultra-Short Throw DLP Projector. Its 3300 lumens of brightness can overcome ambient light in many situations, making it well suited for presentation areas such as boardrooms and classrooms. The WXGA 1280 x 800 native resolution is suitable for displaying many file and document types. The projector features an ultra-short 0.23:1 throw ratio, allowing you to place it very near your projection surface to avoid casting shadows or to facilitate use in small rooms.
The PS700W has two HDMI inputs for connecting digital high-definition sources such as Blu-ray players and HD cable/satellite boxes. The projector also has two VGA inputs for analog sources, plus an RCA composite video and S-Video input. It supports 3D over HDMI for viewing 3D Blu-ray discs with other compatible equipment, which is available separately. A VGA output allows daisy-chaining of multiple projectors or displays. The PS700W can be controlled via LAN or the included IR remote control. - 3300 Lumens of Brightness
- The PS700W combines 3300 lumens of brightness with dynamic contrast ratio technology to produce clear images in nearly any environment.
- Large Images in Small Spaces
- The ultra-short throw lens enables large images to be projected from short distances, minimizing shadows and hotspots on the image while allowing you to project in small rooms.
- Horizontal and Vertical Keystone Correction
- Keystone correction and corner adjustment help eliminate crooked and distorted images for a properly proportioned image.
- SonicExpert Technology
- ViewSonic's SonicExpert technology delivers a full 20 Hz to 20 kHz frequency range to help provide more immersive audio.
- PortAll Enclosed MHL/HDMI Adapter Compartment
- ViewSonic's PortAll feature utilizes a hidden compartment with an integrated and secure MHL/HDMI port that lets you discreetly stream multimedia content from a wireless adapter or connect to other devices via an HDMI cable.
- SuperColor for Enhanced Color Accuracy
- ViewSonic's SuperColor technology helps ensure reliable color performance in both bright and dark environments without sacrificing image quality.
- LAN Control
- The integrated RJ45 connection allows you to remotely set up and manage projector content from your computer. You can also remotely turn the projector on or off and adjust the volume and other settings via an on-screen interface.
- 3D Blu-ray Ready HDMI Input
- With HDMI 1.4 and HDCP 1.4 support, the PS700W can display 3D images directly from compatible Blu-ray players. Compatible 3D glasses are required and sold separately.
UPC: 766907904215 In the Box ViewSonic PS700W 3300-Lumen WXGA Ultra-Short Throw DLP Projector Remote Control with Batteries VGA Cable Power Cord Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic PS700W 3300-Lumen WXGA Ultra-Short Throw DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic PS700W Specs | | | Display System | 0.65" DMD DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | 3300 Lumens | | Aspect Ratio | Native: 16:10 | | DLP Link 3D | Yes | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 102 kHz

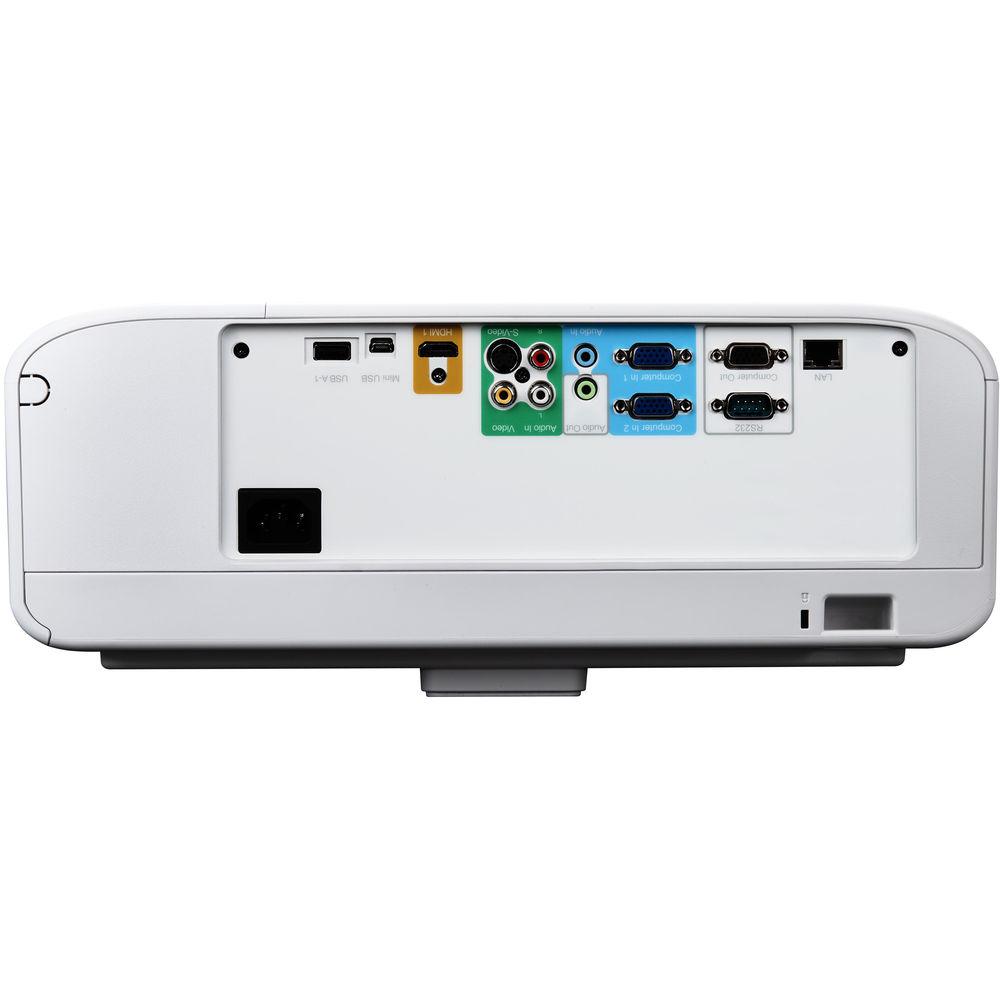

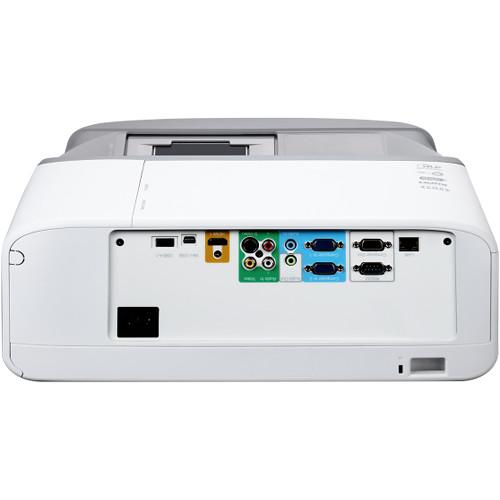

Vertical: 23 to 120 Hz | | | | Focus | Manual | | Optical Zoom | None | | Throw Distance | 3.6 - 9.6" / 9.14 - 24.38 cm | | Throw Ratio | 0.233:1 (87" @ .436 m) | | Projection Size | 87 - 120" / 220.98 - 304.80 cm | | | | Keystone Correction | Manual | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes | | Speaker Power | 20W | | | | Inputs/Outputs | 2 x HDMI (HDMI Type-A) Audio, Video Input
2 x VGA (DE-15) Video Input
1 x VGA (DE-15) Video Output
1 x S-Video (4-Pin DIN) Video Input
1 x Composite (RCA) Video Input
1 x 2RCA Audio Input
1 x 1/8" (3.5 mm) Mini Audio Input
1 x 1/8" (3.5 mm) Mini Audio Output
1 x Ethernet (RJ45) LAN
1 x RS-232 (DE-9) Control Input
2 x USB 2.0 (USB Type-A) Power Output
1 x USB 2.0 (Mini-USB) Service Input | | | | Wireless LAN / Wi-Fi | None | | | | Light Source | Lamp | | Lamp Power | 240 W | | Expected Lamp Life | Full Brightness: 3000 Hours
Low Brightness: 7500 Hours | | Security | Cable Lock Slot | | Supported Languages | Arabic
Czech
Dutch
English
Finnish
French
German
Hindi
Indonesian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 410 W
Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | 9842' / 3000 m | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 - 90% | | Dimensions (W x H x D) | 17.1 x 6.0 x 15.3" / 43.4 x 15.2 x 38.9 cm | | Weight | 13.4 lb / 6.08 kg | | | | Package Weight | 17.935 lb | | Box Dimensions (LxWxH) | 22.8 x 19.4 x 10.5" |
