User Manual for ViewSonic PS750HD 3000-Lumen Full HD Ultra-Short Throw Interactive DLP Projector Click to enlarge the picture
Contents of the user manual for the ViewSonic PS750HD 3000-Lumen Full HD Ultra-Short
- Product category: Multimedia Projectors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Multimedia Projectors
 |
User manual for the ViewSonic PS750HD 3000-Lumen Full HD Ultra-Short contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

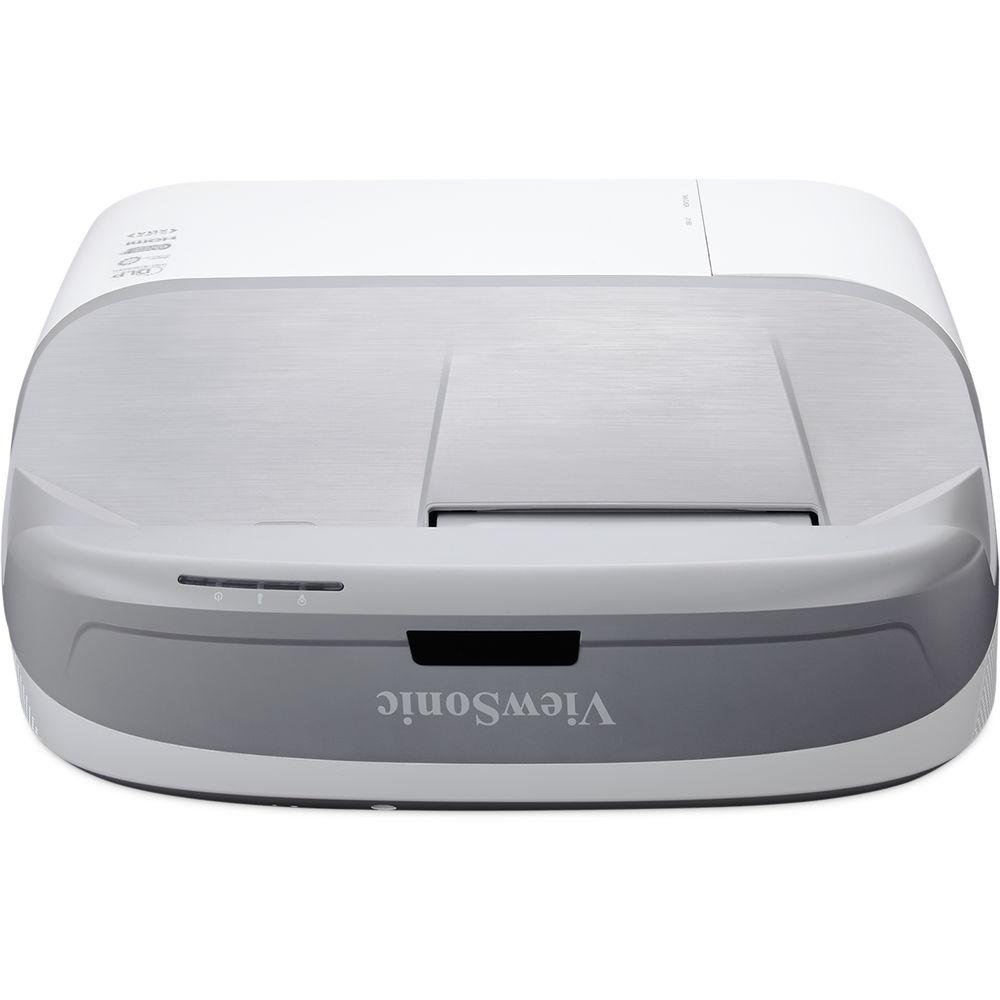

Product description Enjoy out-of-the-box interactivity and shadowless images in most installations with the ViewSonic PS750HD 3000-Lumen Full HD Ultra-Short Throw Interactive DLP Projector. It features an ultra-short 0.22:1 throw ratio, which allows it to be mounted only directly above or below your screen, wall, or whiteboard to project an image as large 120", reducing the risk of possible shadows. Its 3000 lumens of brightness, combined with its 10,000:1 dynamic contrast ratio, helps it overcome ambient light in many situations and retain detail in dark areas of the image without compromising overall brightness. The Full HD 1920 x 1080 native resolution helps ensure that text and images are clear at most viewing distances.

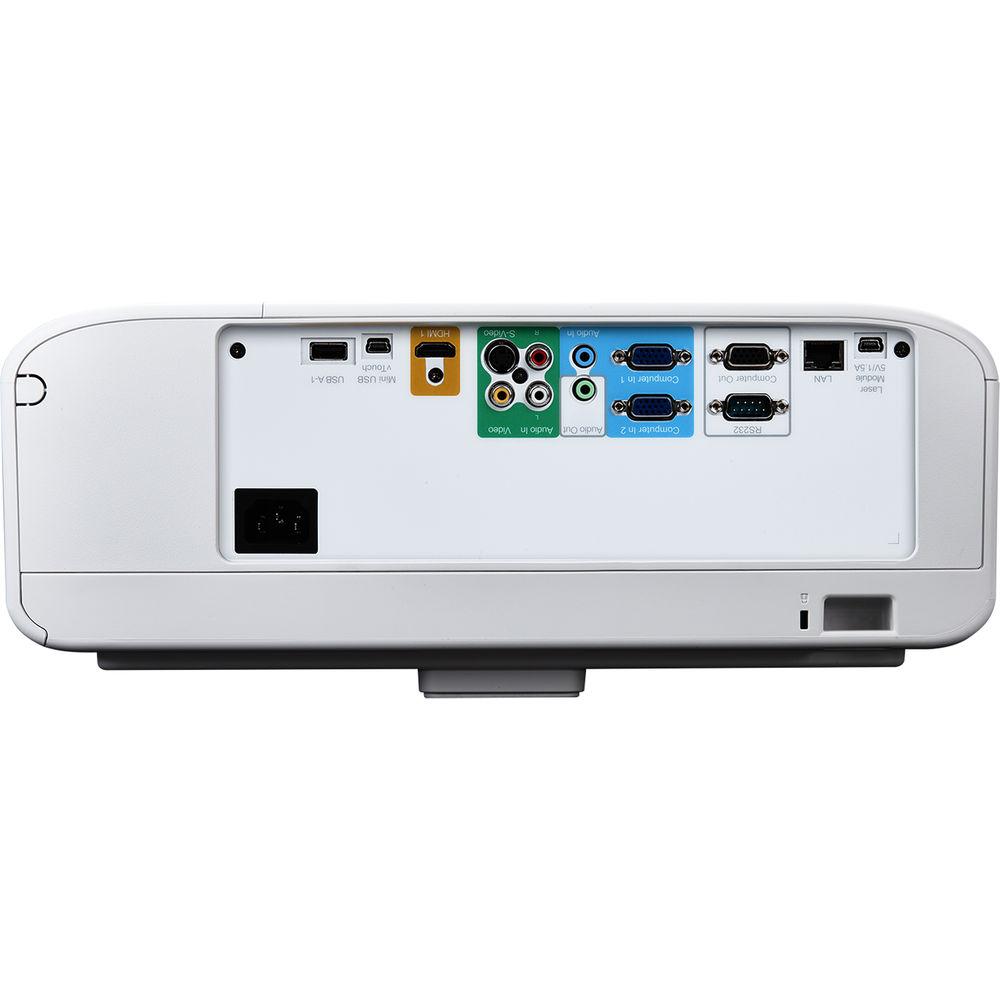

The PS750HD features S-Video, RCA composite, two VGA, and two HDMI inputs to support various sources. One HDMI input is MHL-compatible, allowing you to connect your compatible smart device directly to the projector to mirror its screen. You can output the video to another projector or display with the VGA output. Its stereo RCA and 1/8" audio inputs, 1/8" audio output, and built-in dual 10-Watt speakers allow for audio transmission, for a more immersive experience. An IR remote is included for convenient control, plus a VGA cable for virtually instant connectivity. Two interactive pens and a wall mount kit are also included. - Large Images in Small Spaces
- A short-throw lens enables large images to be projected from short distances. In addition, blinding lights in front of the presenter, distracting shadows on the projected image, and glaring hotspots on the screen are minimized because the projector's light source is closer to the projection surface.
- All-In-One Interactive Solution
- Featuring an embedded camera, an included laser-curtain module, interactive pens, and a wall mount kit, the PS750HD delivers everything needed for out-of-the-box interactivity.
- vBoard Interactive Software
- ViewSonic's vBoard software is designed for ease of use and lets you write, highlight, edit, and transform documents and images on-screen in real time.
- Network Monitoring & Control
- Your IT administrator can monitor, schedule, and manage the projector remotely, as well as receive projector status alerts, with the integrated Crestron e-Control system and RoomView Express management software. Because this projector is Crestron and AMX-certified, your IT administrator can control and monitor the projector for any size campus or enterprise.
- PortAll for Discreet Wireless Streaming
- This projector includes ViewSonic's PortAll feature—a hidden compartment with an integrated MHL/HDMI port that lets you discreetly stream multimedia content from an optional wireless dongle, or lets you connect to other devices via an HDMI cable. Additionally, an integrated micro-USB cable lets you quickly and easily power micro-USB enabled devices.
- SonicExpert Technology
- The PS750HD is designed with ViewSonic's SonicExpert technology, which is designed to incorporate an enlarged speaker chamber to deliver a full 20 Hz to 20 kHz sound range from the dual-integrated speakers.
- SuperColor for Enhanced Color Accuracy
- ViewSonic's SuperColor technology features a six-segment color wheel and dynamic lamp control capabilities, helping to provide a wide color range.

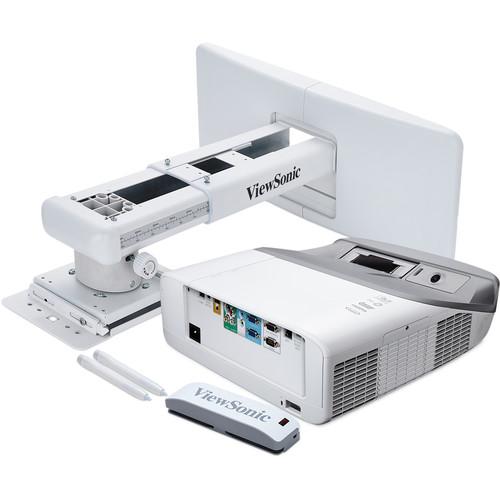

UPC: 766907912319 In the Box ViewSonic PS750HD 3000-Lumen Full HD Ultra-Short Throw Interactive DLP Projector Remote Control with Batteries VGA Cable 2 x Interactive Pens Interactive Module Interactive Software Wall Mount Power Cable Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic PS750HD 3000-Lumen Full HD Ultra-Short Throw Interactive DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic PS750HD Specs | | | Display System | 0.65" DMD DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Supported Resolutions | Minimum: VGA - 640 x 480
Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 3000 Lumens | | Aspect Ratio | Native: 16:9 | | Dynamic Contrast Ratio | 10,000:1 | | Color Wheel | 6-Segment (R/G/B/R/G/B) | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 102 kHz
Vertical: 23 to 120 Hz | | | | Focus | Manual | | Optical Zoom | None | | Throw Distance | 4 - 9" / 10.16 - 22.86 cm | | Throw Ratio | 0.22:1 | | Projection Size | 87 - 120" / 220.98 - 304.80 cm | | | | Keystone Correction | Vertical: ± 30°
Horizontal: ± 30° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 20W | | | | Wireless LAN / Wi-Fi | None | | | | Light Source | Lamp | | Lamp Power | 240 W | | Expected Lamp Life | Full Brightness: 3000 Hours
Low Brightness: 7500 Hours | | Security | Cable Lock Slot | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 410 W
Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | 9842' / 3000 m | | Operating Temperature | 32 to 86°F / 0 to 30°C | | Operating Humidity | 0 - 90% | | Dimensions (W x H x D) | 17.0 x 6.0 x 15.2" / 43.2 x 15.2 x 38.6 cm | | Weight | 13.38 lb / 6.07 kg | | | | Package Weight | 36.5 lb | | Box Dimensions (LxWxH) | 29.5 x 24.0 x 12.0" |
