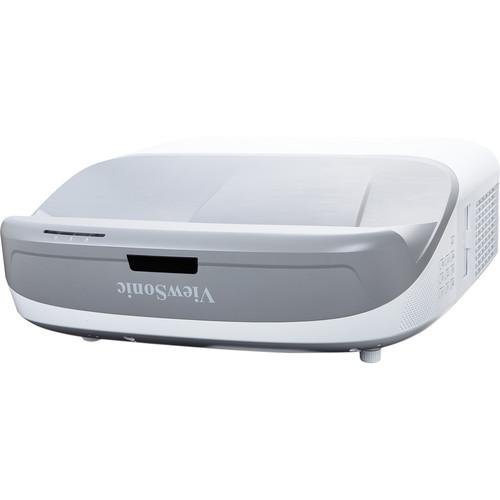

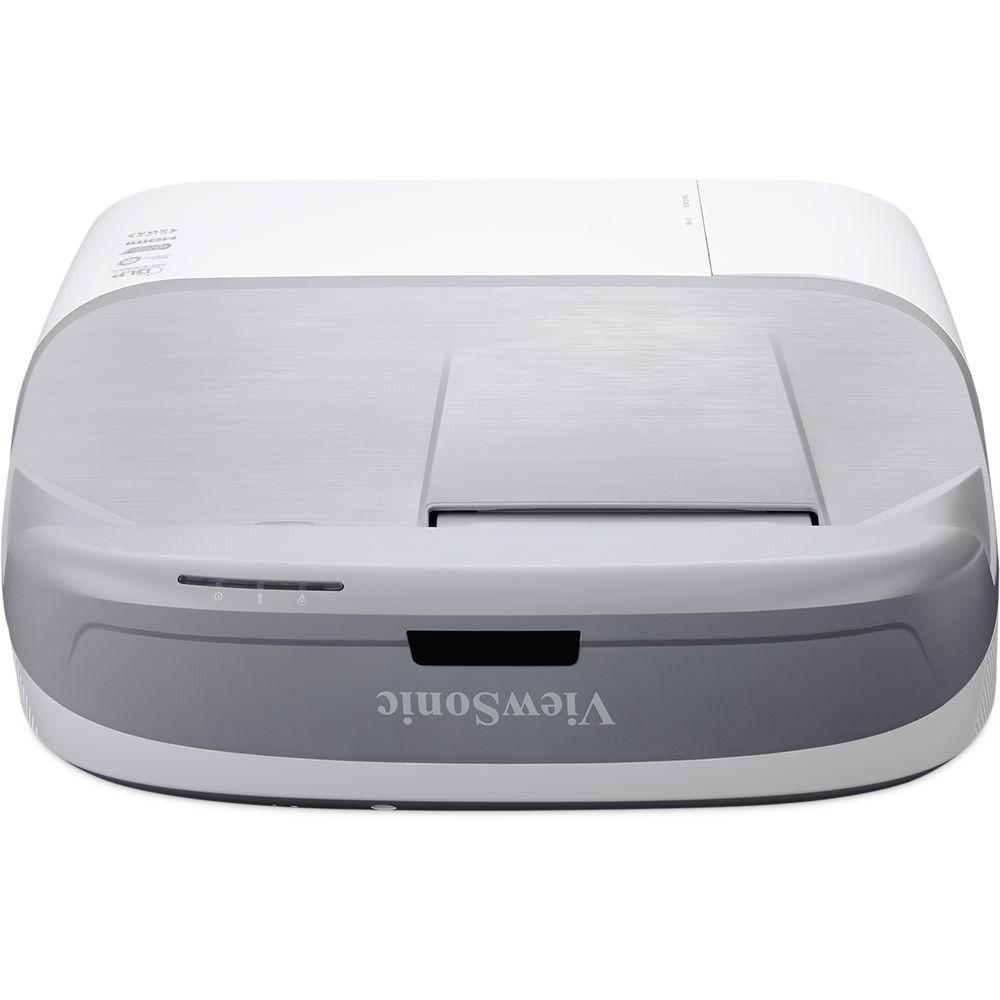

User Manual for ViewSonic PS750W 3300-Lumen WXGA Ultra-Short Throw DLP Projector Click to enlarge the picture
Contents of the user manual for the ViewSonic PS750W 3300-Lumen WXGA Ultra-Short Throw
- Product category: Multimedia Projectors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Multimedia Projectors
 |
User manual for the ViewSonic PS750W 3300-Lumen WXGA Ultra-Short Throw contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|

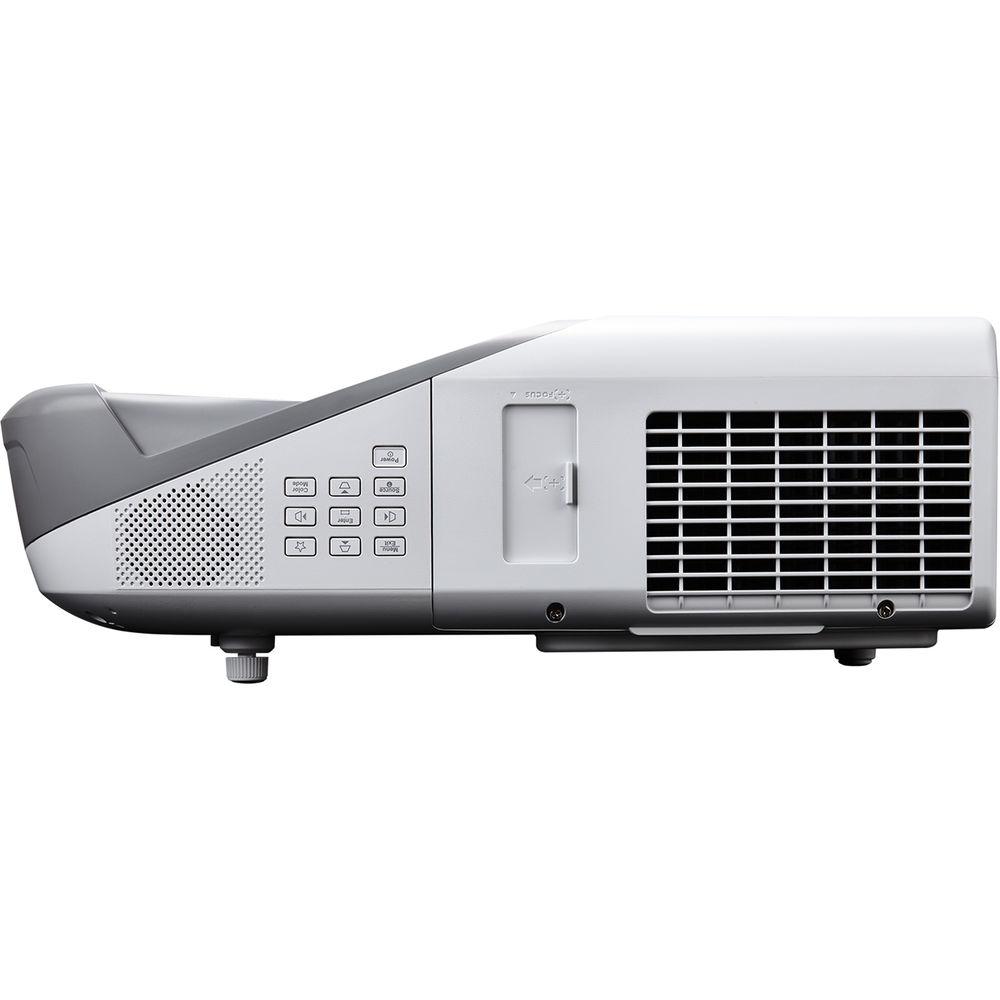

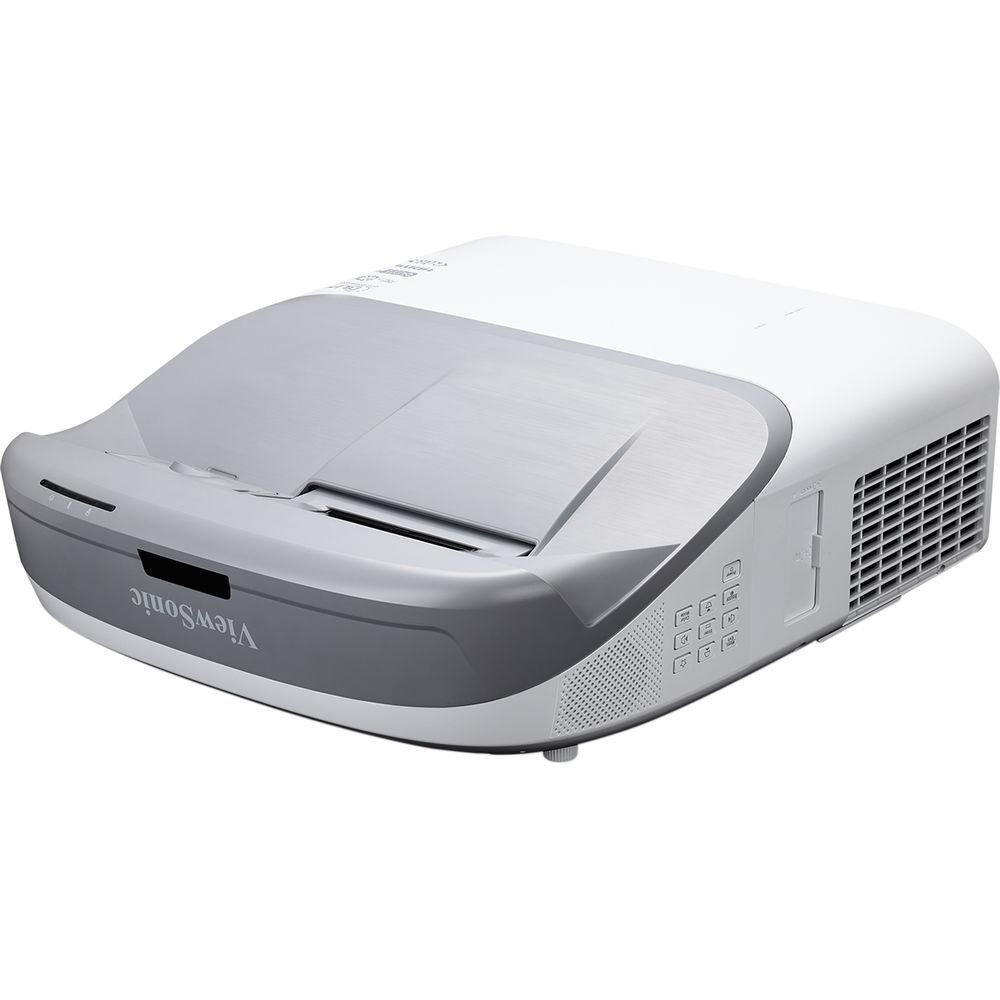

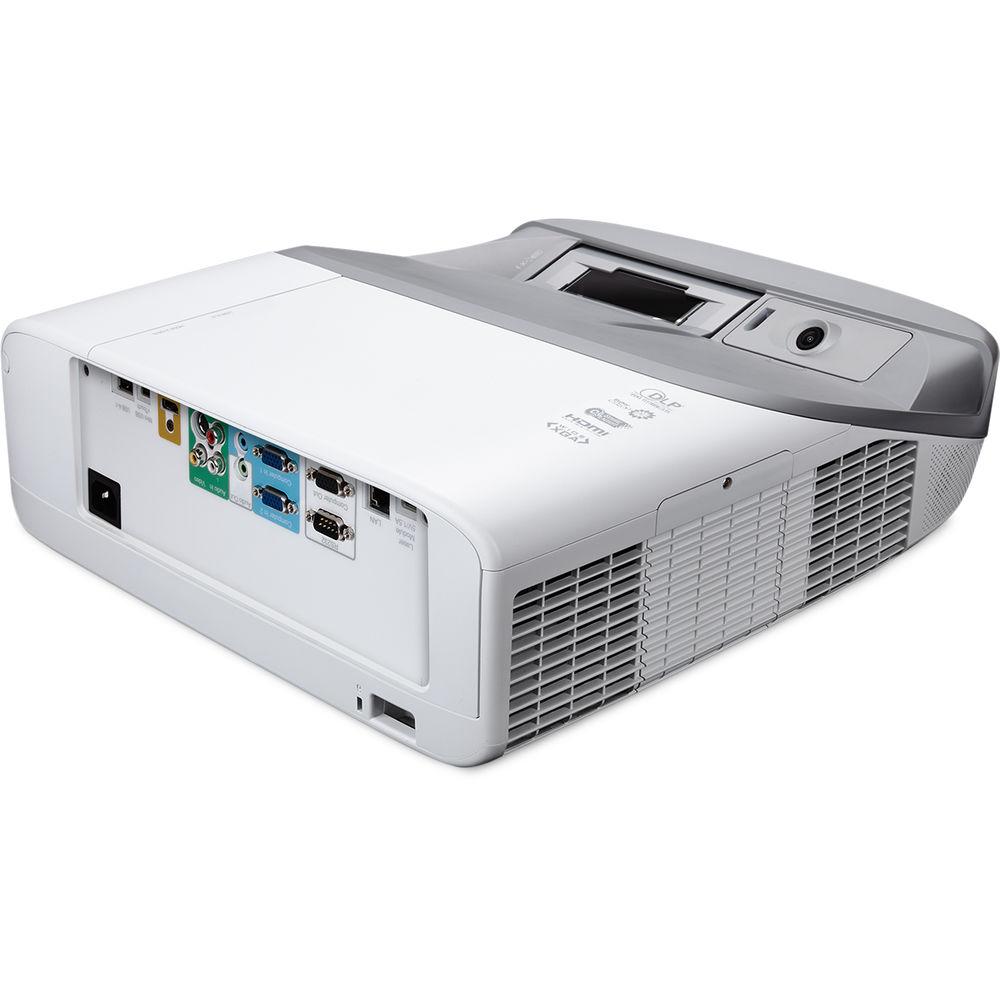

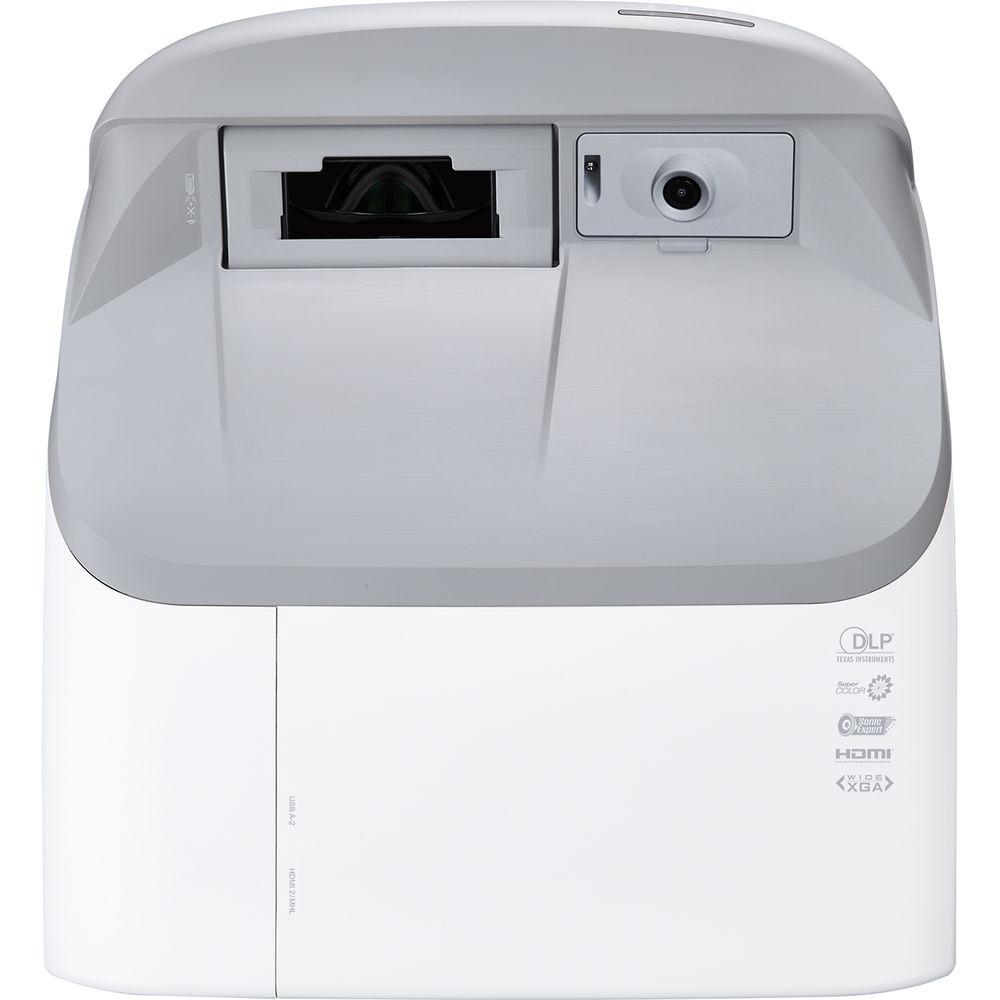

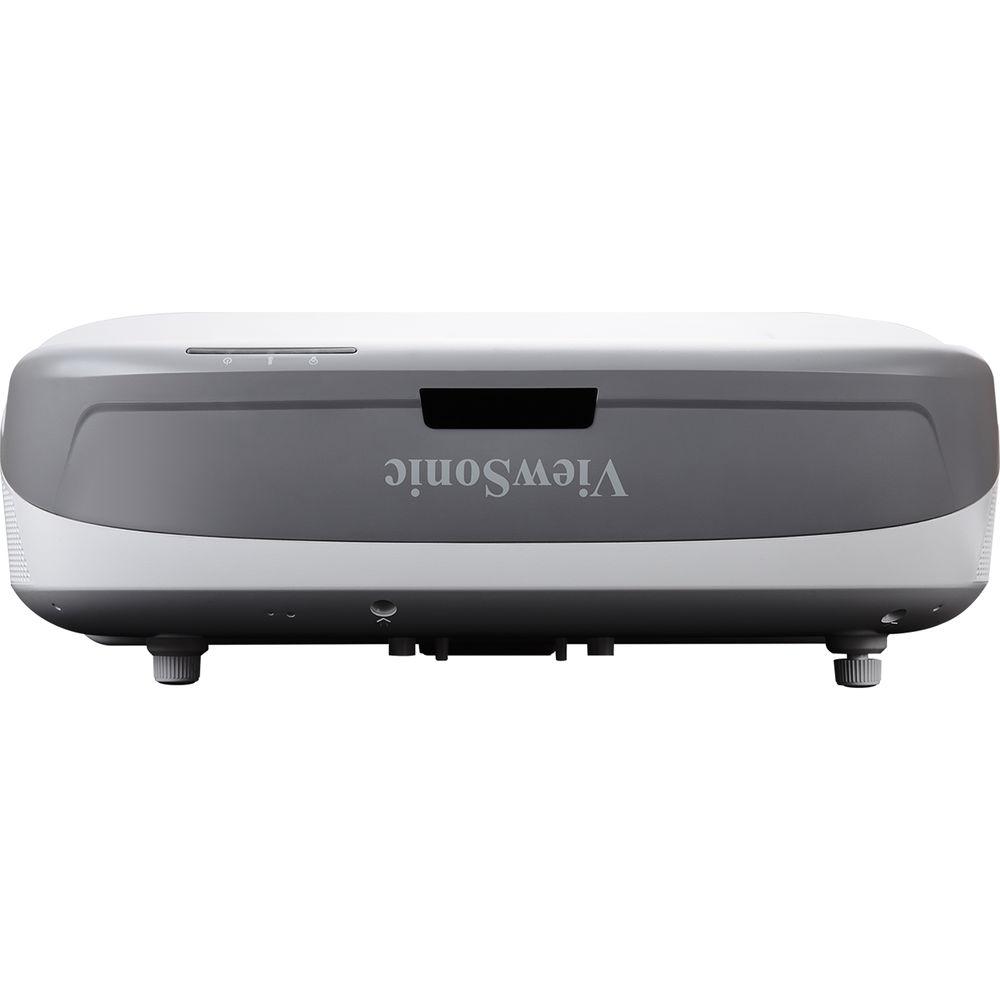

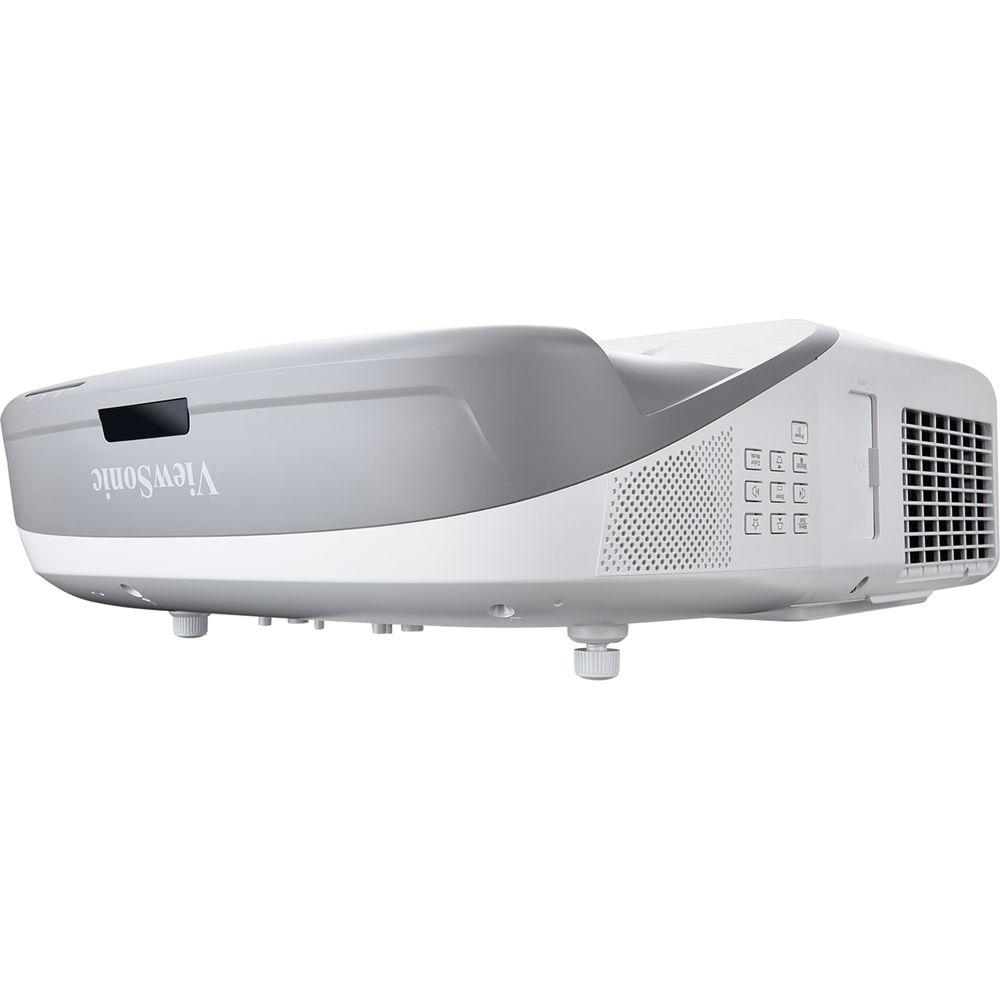

Product description Enjoy shadowless images in most installations with the ViewSonic PS750W 3300-Lumen WXGA Ultra-Short Throw DLP Projector. It features an ultra-short 0.233:1 throw ratio which allows it to be mounted only 1.43' from your screen, wall, or whiteboard and project an image as large as 87", or 1.9' from your projection surface for a 120" image, reducing the risk of possible shadows. Its 3300 lumens of brightness, combined with its 10,000:1 dynamic contrast ratio, will help it overcome ambient light in many situations and retain detail in dark areas of the image without compromising overall brightness. The 1280 x 800 native resolution will help ensure that text is clear at most viewing distances.
The PS750W features S-Video, RCA composite, and two HDMI inputs to support various sources. One HDMI input is MHL-compatible, allowing you to connect your compatible smart device directly to the projector to mirror its screen. You can output the video to another projector or display with the VGA output. Its RCA L/R and 1/8" audio inputs and output allow for audio transmission, for a more immersive experience. An IR remote is included for convenient control, plus a VGA cable and an HDMI cable for virtually instant connectivity. Two IR pens and a wall mount kit are also included. - SuperColor for Enhanced Color Accuracy
- ViewSonic's SuperColor technology features a six-segment color wheel and dynamic lamp control capabilities, helping to provide a wide color range.
- PortAll for Discreet Wireless Streaming
- This projector includes ViewSonic's PortAll feature—a hidden compartment with an integrated MHL/HDMI port that lets you discreetly stream multimedia content from an optional wireless dongle, or lets you connect to other devices via an HDMI cable. Additionally, an integrated micro-USB cable lets you quickly and easily power micro-USB enabled devices.
- SonicExpert Technology
- The PS750W is designed with ViewSonic's SonicExpert technology, which is designed to incorporate an enlarged speaker chamber to deliver a full 20 Hz to 20 kHz sound range from the dual integrated speakers.
- Network Monitoring & Control
- Your IT administrator can monitor, schedule, and manage the projector remotely, as well as receive projector status alerts, with the integrated Crestron e-Control system and RoomView Express management software. Because this projector is Crestron and AMX-certified, your IT administrator can control and monitor the projector for any size campus or enterprise.
- Additional Features
-
- vBoard interactive software
- Optional Qwizdom Oktopus software

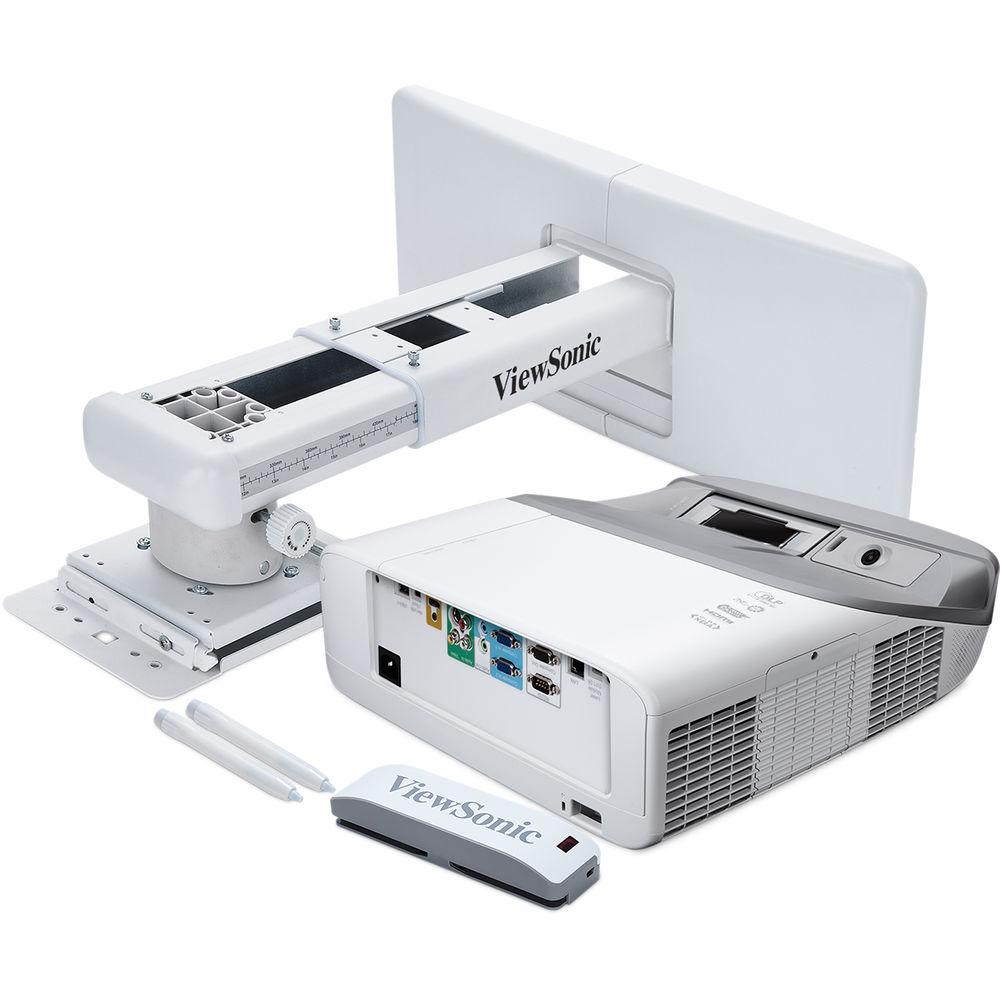

UPC: 766907889413 In the Box ViewSonic PS750W 3300-Lumen WXGA Ultra-Short Throw DLP Projector Remote Control with Batteries 2 x IR Pens VGA Cable Wall Mount Kit Laser Curtain Module Power Cable Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic PS750W 3300-Lumen WXGA Ultra-Short Throw DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic PS750W Specs | | | Display System | 1-Chip 0.65" DMD DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Max Brightness | 3300 Lumens | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 10,000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 100 kHz
Vertical: 24 to 120 Hz | | | | Focus | Manual | | Throw Distance | 1.43 - 1.9' / 0.436 - 0.579 m | | Throw Ratio | 0.233:1 (87" @ .436 m) | | Projection Size | 87.00 - 120.00" / 220.98 - 304.80 cm | | | | Keystone Correction | Horizontal: ± 30°

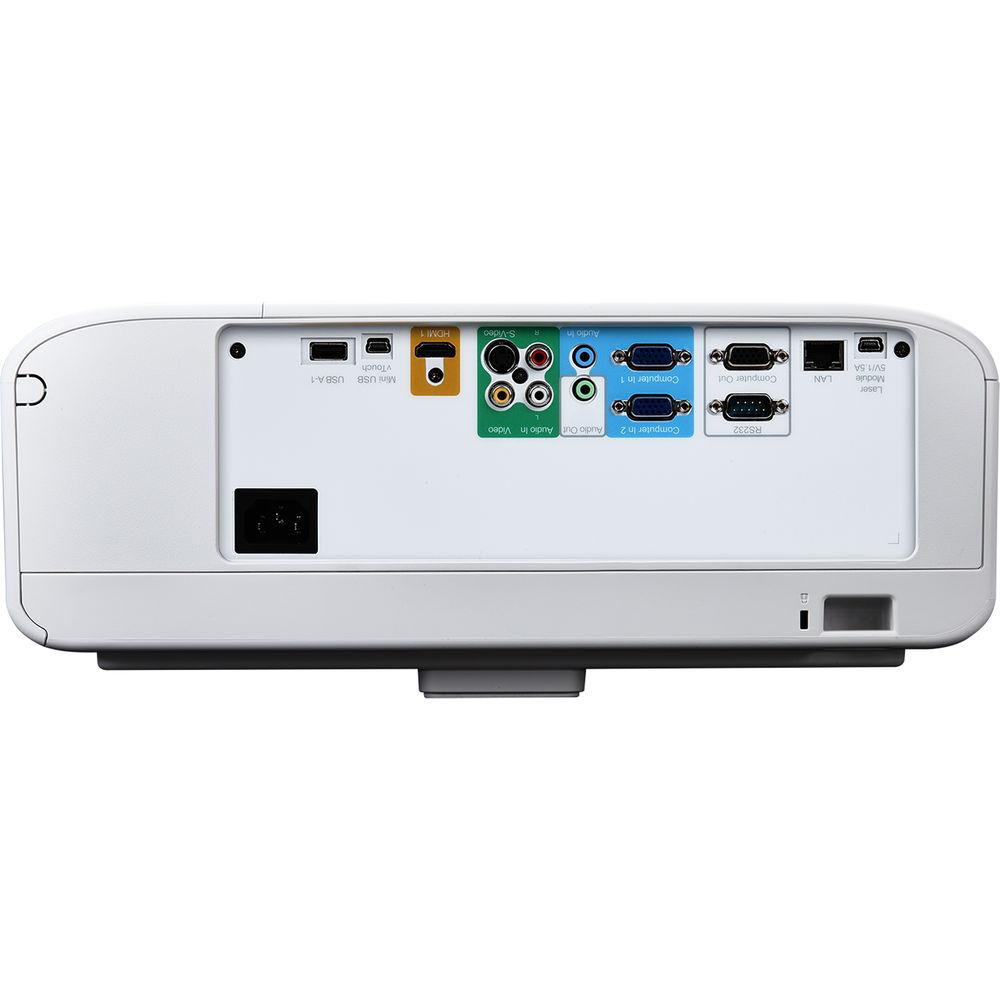

Vertical: ± 30° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 20W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
2 x VGA (DE-15) Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Composite (RCA) Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x VGA (DE-15) Video (Output)
2 x USB Power (Output)
1 x Mini-USB Service (Input)
1 x Mini-USB Power (Output)
1 x RS-232C (Unspecified Connector) Control (Input) | | | | Lamp Power | 240 W | | Expected Lamp Life | Medium Brightness: 3000 Hours
Low Brightness: 6000 Hours | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 410 W
Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | 9842' / 3000 m | | Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 10 - 90% | | Dimensions (W x H x D) | 17.1 x 6.0 x 15.3" / 434.0 x 153.0 x 388.0 mm | | Weight | 13.38 lb / 6.07 kg | | | | Package Weight | 36.5 lb | | Box Dimensions (LxWxH) | 29.3 x 24.0 x 11.8" |
