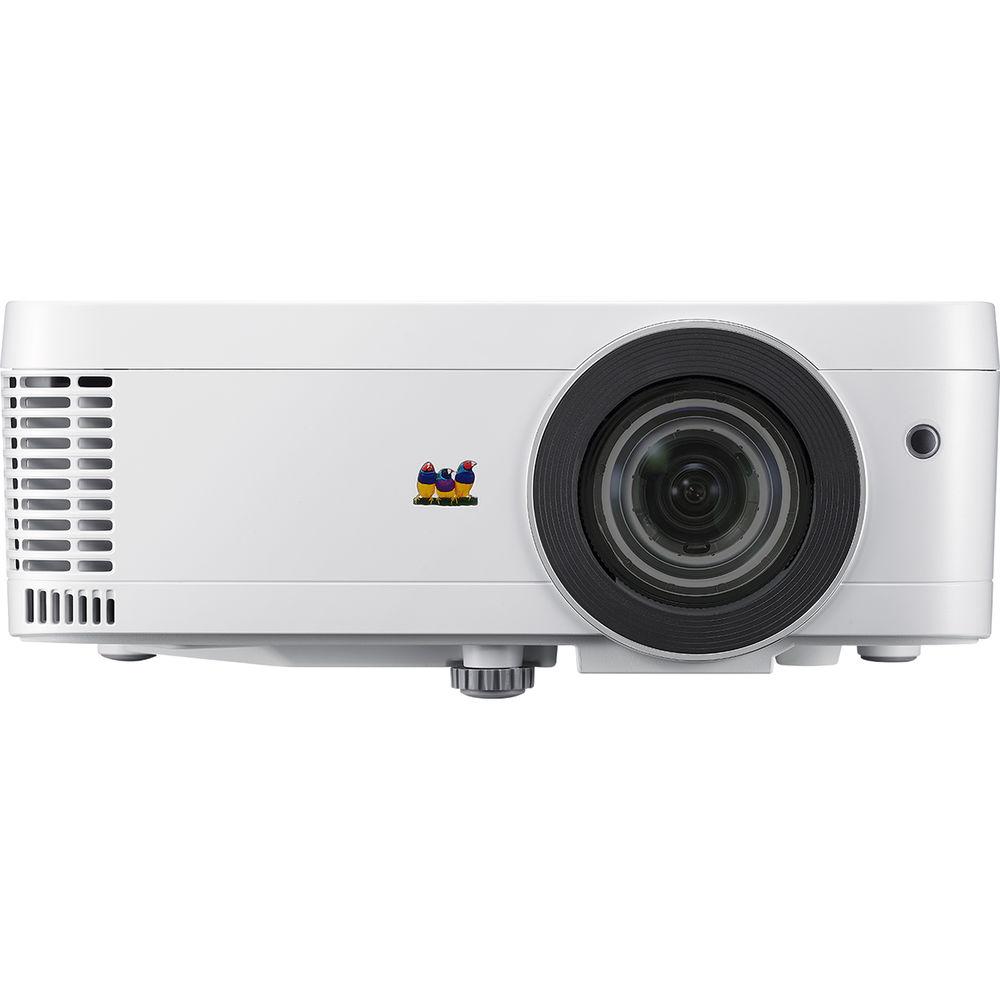

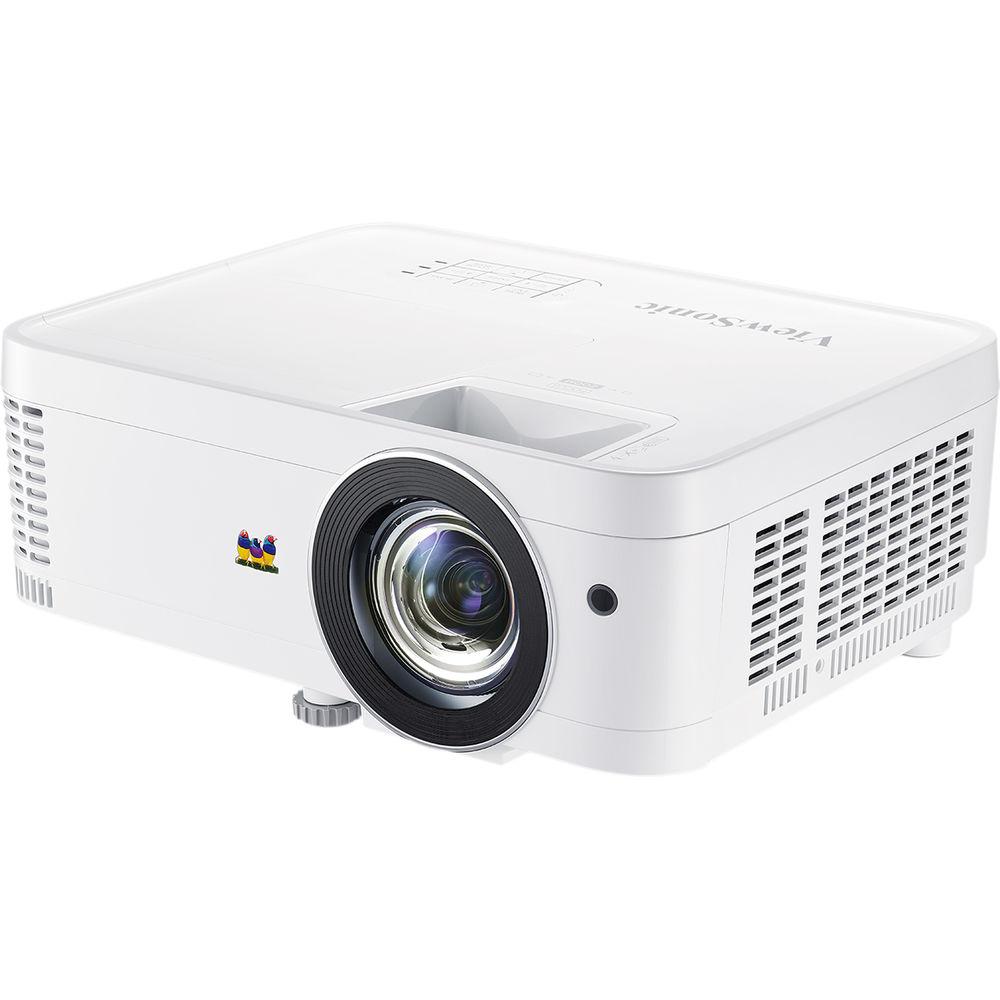

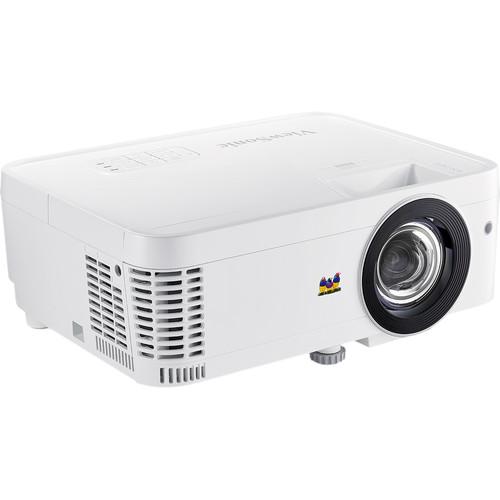

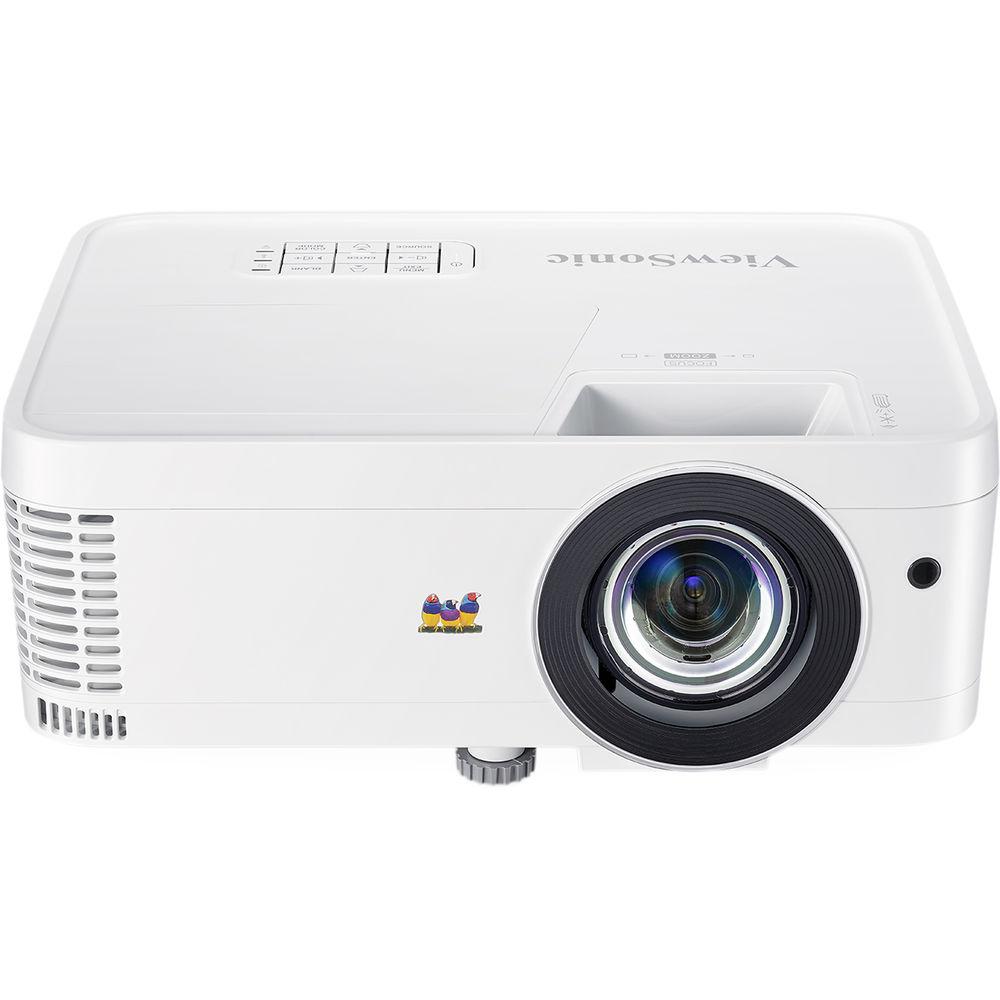

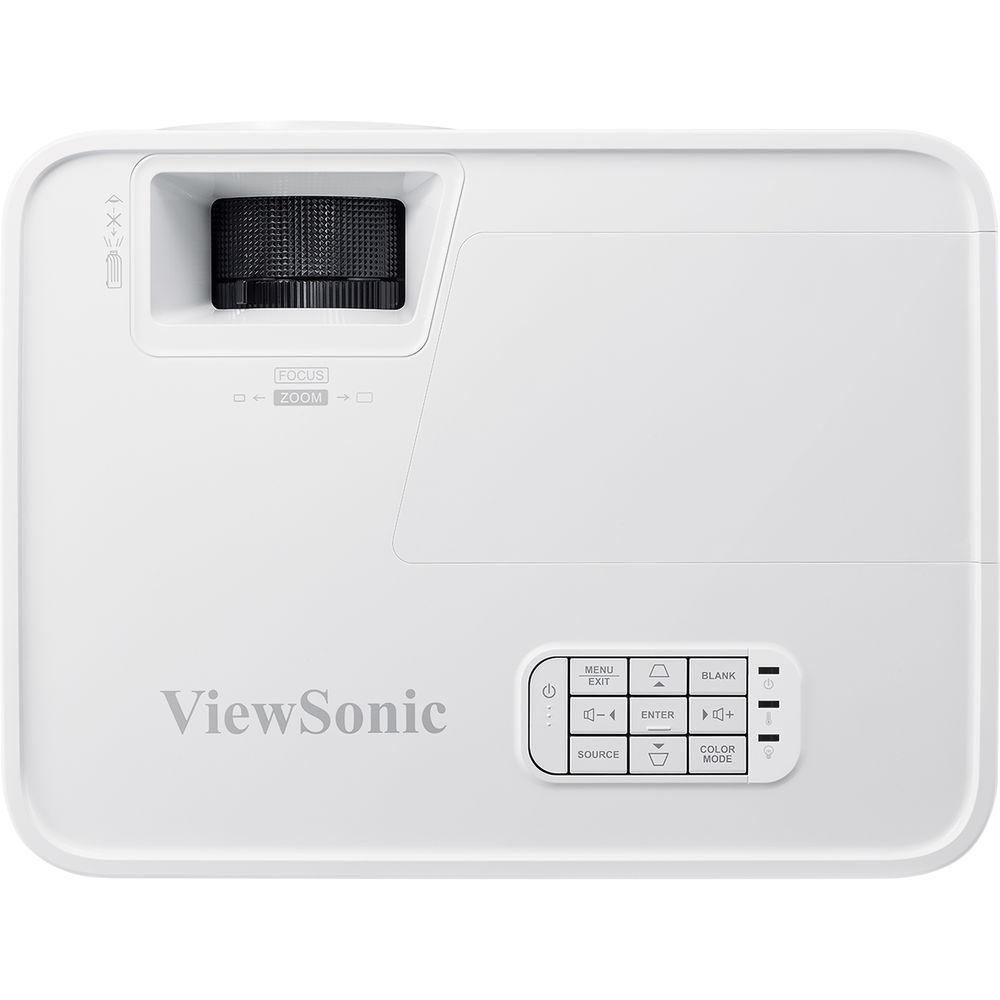

Product description Enjoy bright images in most environments with the ViewSonic PX706HD 3000-Lumen Full HD Short-Throw DLP Projector. Its 3000 lumens of brightness can overcome ambient light in many situations, while its Full HD 1920 x 1080 native resolution is suitable for displaying most HD video. With its short 0.69 to 0.83:1 throw ratio, the projector can be placed near your projection surface while producing images up to 120".
The PX706HD has two HDMI inputs for connecting digital high-definition sources such as Blu-ray players and HD cable/satellite boxes, and a VGA input for analog sources. Its HDMI inputs are 3D-capable for viewing 3D Blu-ray discs with other compatible equipment, which is available separately. You can also connect your compatible mobile device via USB Type-C. The PX706HD includes a USB Type-C cable and an IR remote control for added convenience. - Reduced Input Latency
- The PX706HD features a low 16 ms input latency to produce fast frame-by-frame action.
- 3000 Lumens of Brightness
- The PX706HD combines 3000 lumens of brightness with a 22,000:1 dynamic contrast ratio to produce clear images in most environments.
- Large Images in Small Spaces
- The short-throw lens enables the projector to be placed just a few feet from your screen or wall to project images up to 120".
- USB Type-C for Video and Power
- A USB Type-C port delivers data, audio, video, and mobile device charging over a single cable.
- SonicExpert Technology

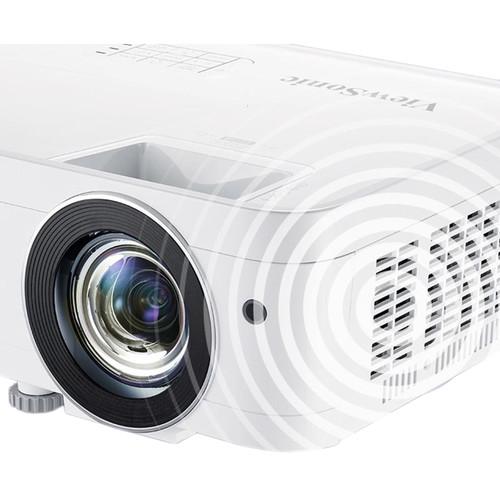

- The PX706HD is designed with ViewSonic's SonicExpert technology that incorporates a speaker chamber and an amplifier designed to deliver a full 20 Hz to 20 kHz sound range.
- Automatic Vertical Keystone Correction
- Vertical keystone correction helps eliminate crooked and distorted images for a properly proportioned picture.
- Dual 3D Blu-ray Ready HDMI Inputs
- With two HDMI ports, the PX706HD is well suited for connecting to any HDMI-enabled device, and can display 3D images directly from 3D Blu-ray players. 3D images can be viewed with the optional PGD-350 shutter glasses, or any other compatible 3D glasses.
UPC: 766907958911 In the Box ViewSonic PX706HD 3000-Lumen Full HD Short-Throw DLP Projector Remote Control 2 x AAA Batteries USB Type-C Cable Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic PX706HD 3000-Lumen Full HD Short-Throw DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic PX706HD Specs | | | Display System | 0.65" DMD DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | 3000 Lumens | | Aspect Ratio | Native: 16:9 | | Dynamic Contrast Ratio | 22,000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Frame Sequential (up to 1080p)
Side by Side (up to 1080i)
Top Bottom (up to 1080p) | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 102 kHz

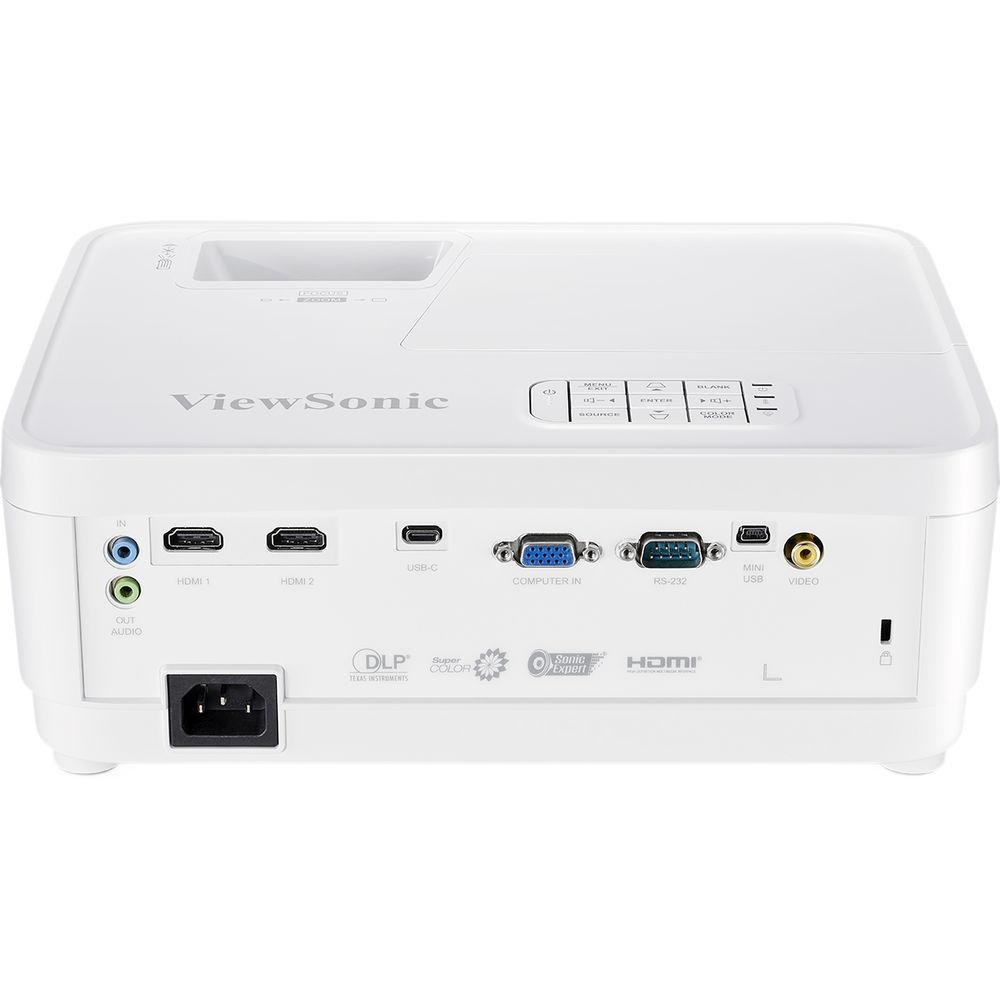

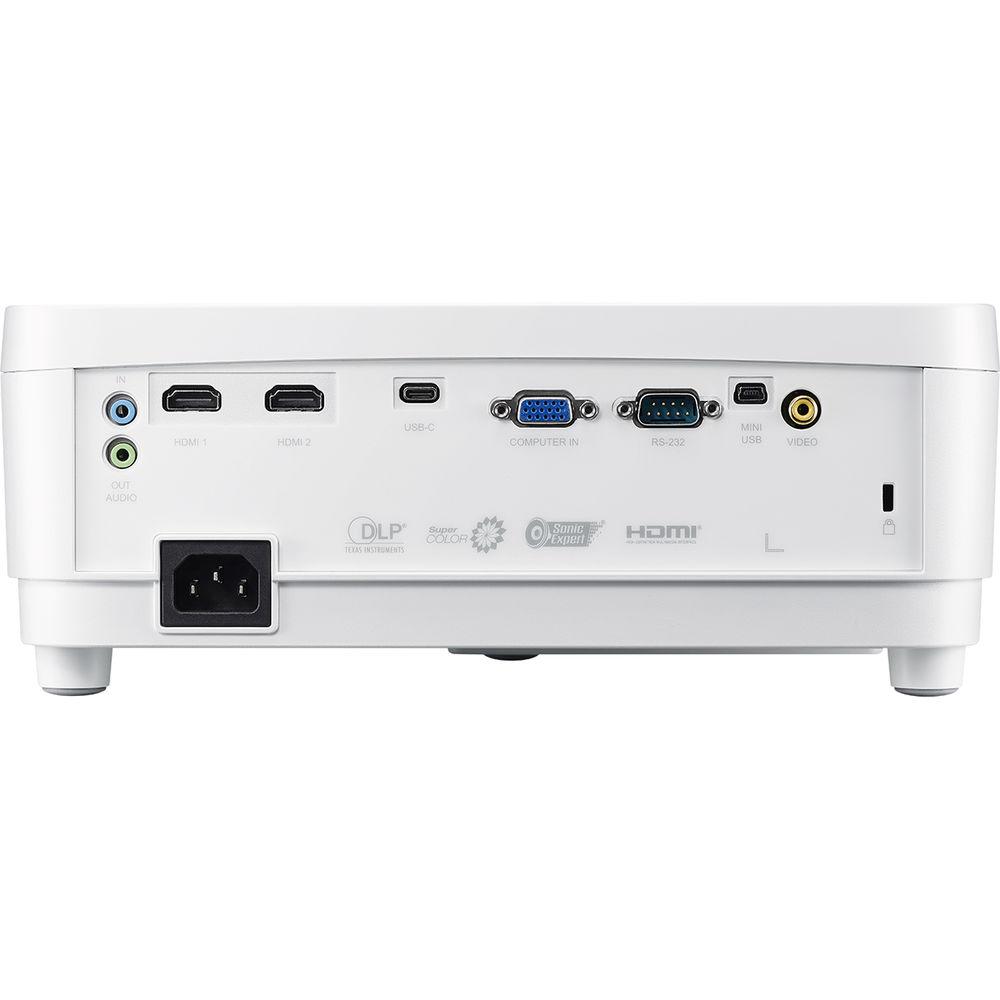

Vertical: 23 to 120 Hz | | Latency | 16 ms | | | | Focus | Manual | | Optical Zoom | Manual: 1.2x | | Throw Distance | 3 - 7.2' / 0.914 - 2.195 m | | Throw Ratio | 0.69 - 0.83:1 | | Projection Size | 60 - 120" / 152.40 - 304.80 cm | | | | Keystone Correction | Vertical: ± 20° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes | | Speaker Power | 5W | | | | Inputs/Outputs | 2 x HDMI (HDMI Type-A) Video Input
1 x USB 3.1 Gen 1 (USB Type-C) Audio, Data, Power, Video Input/Output
1 x VGA (DE-15) Video Input
1 x Composite (RCA) Video Input
1 x 1/8" (3.5 mm) Mini Audio Input
1 x 1/8" (3.5 mm) Mini Audio Output
1 x RS-232 (DE-9) Control Input
1 x USB 2.0 (Mini-USB) Service Input | | Memory Card Slot | None | | Wireless LAN / Wi-Fi | None | | | | Light Source | Lamp | | Lamp Power | 240 W | | Expected Lamp Life | Full Brightness: 4000 Hours
Low Brightness: 15,000 Hours | | Security | Cable Lock Slot
Password Protection
Security Bar | | Supported Languages | Arabic
Czech
Dutch
English
Finnish
French
German
Hindi
Indonesian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 310 W

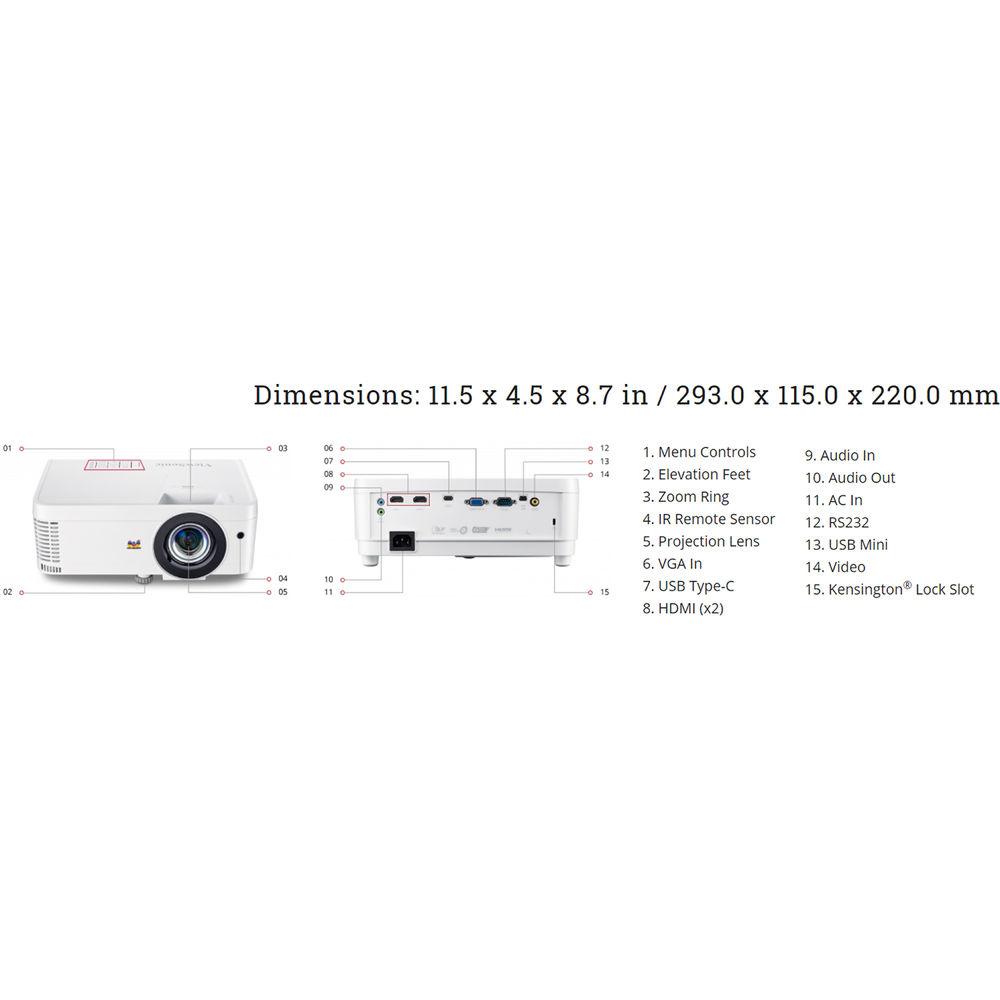

Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | 9842' / 3000 m | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 - 90% | | Dimensions (W x H x D) | 11.5 x 4.5 x 8.7" / 293.0 x 115.0 x 220.0 mm | | Weight | 5.95 lb / 2.7 kg | | | | Package Weight | 8.6 lb | | Box Dimensions (LxWxH) | 14.4 x 11.9 x 7.4" |
