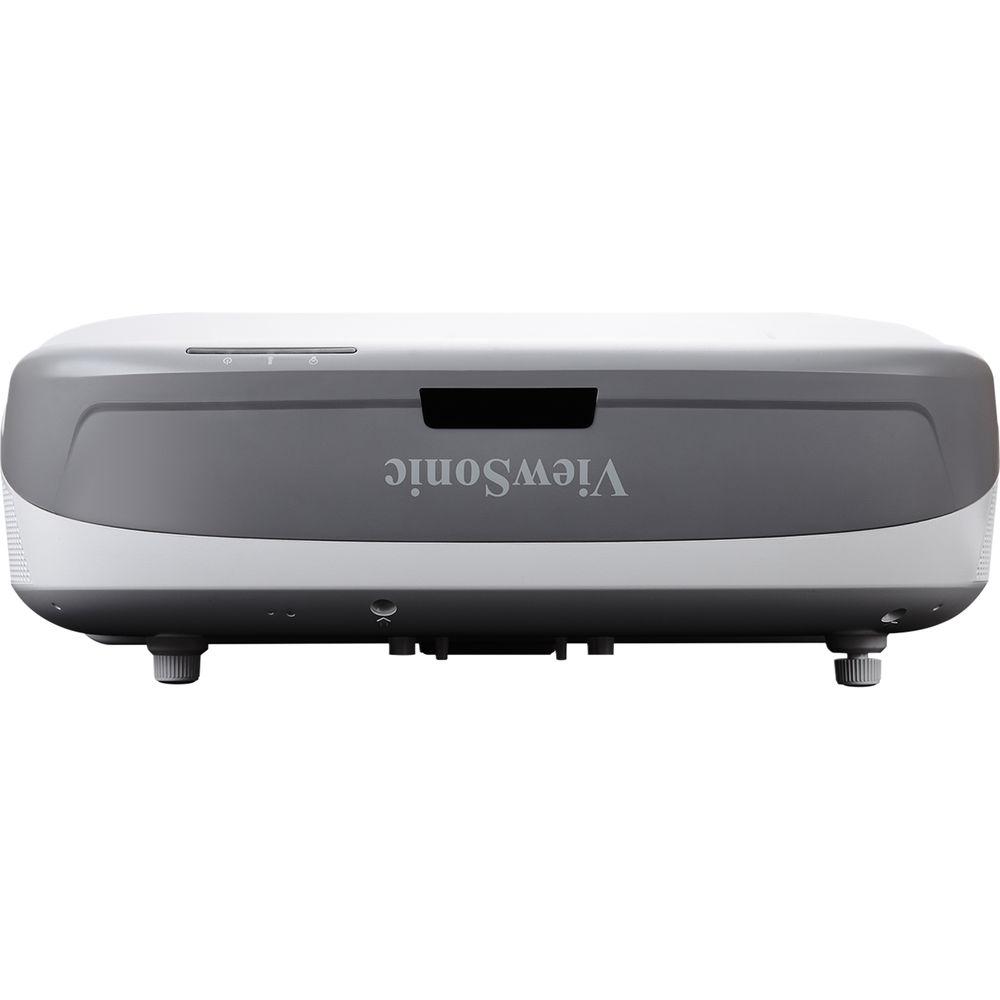

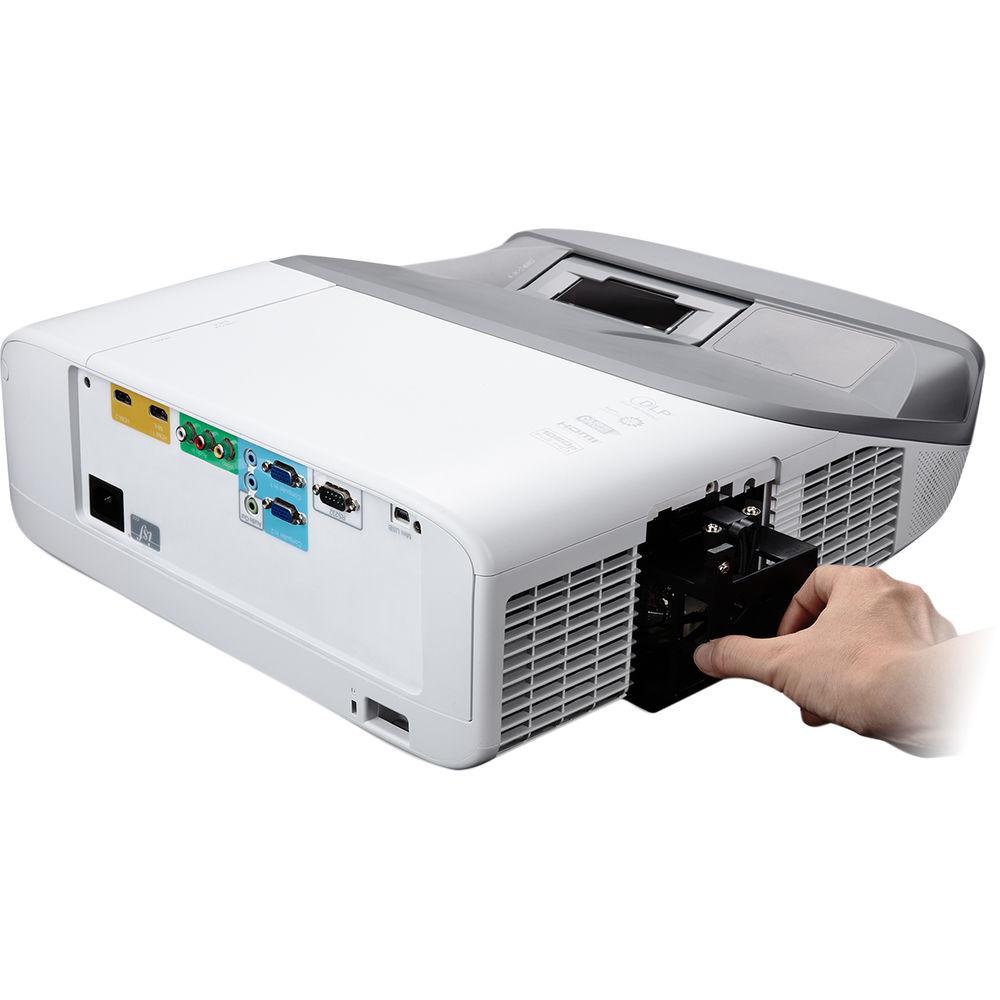

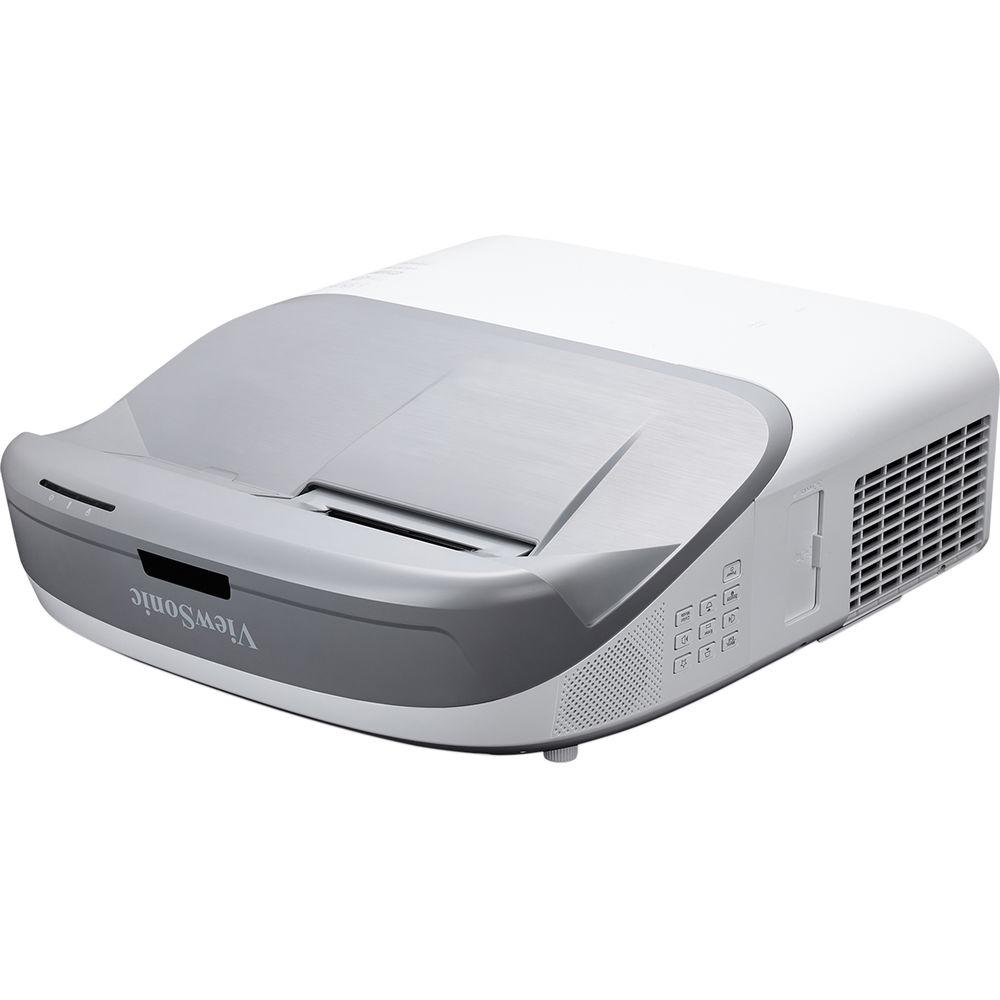

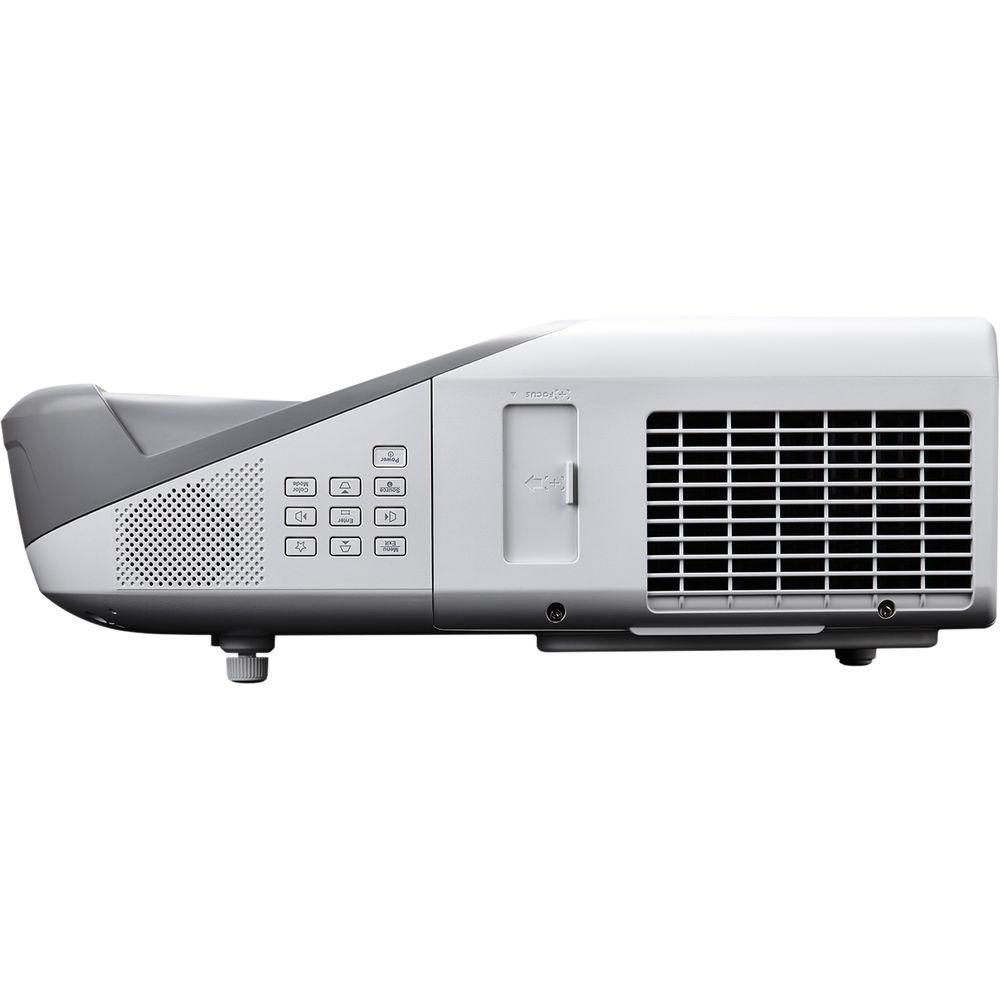

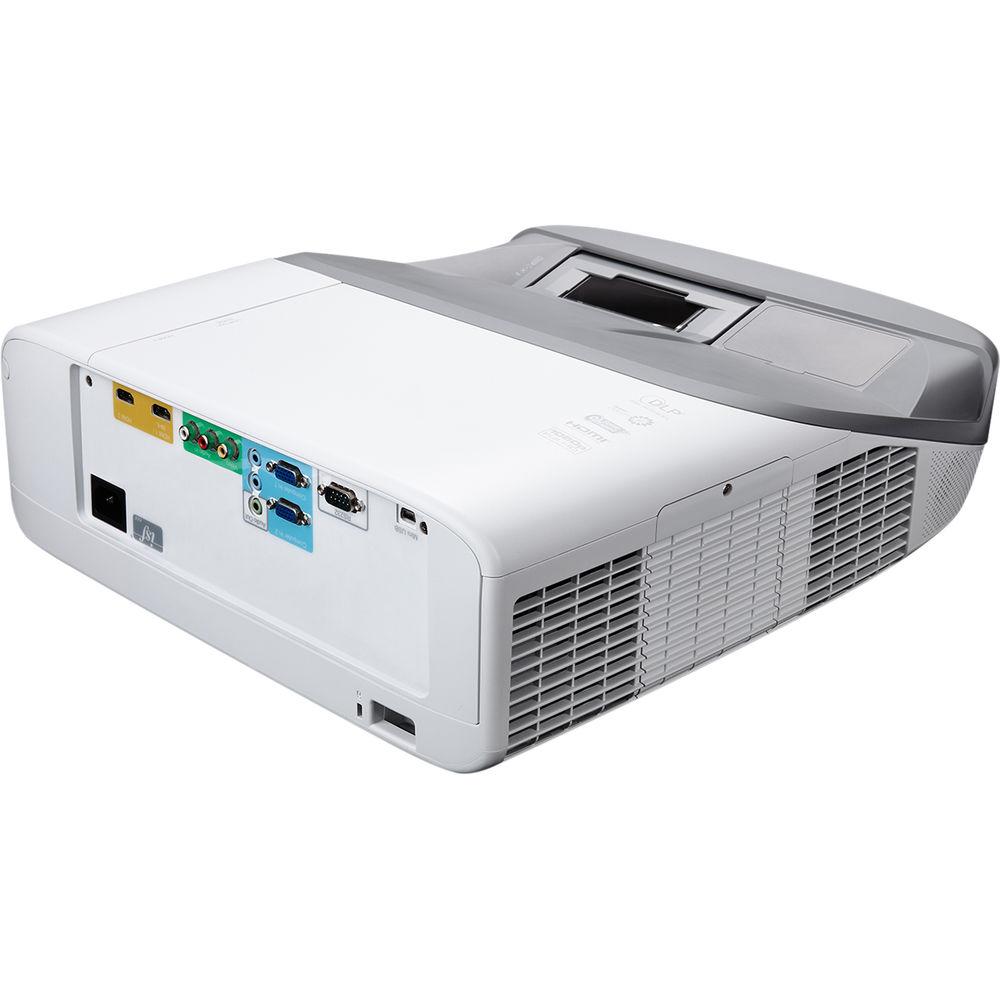

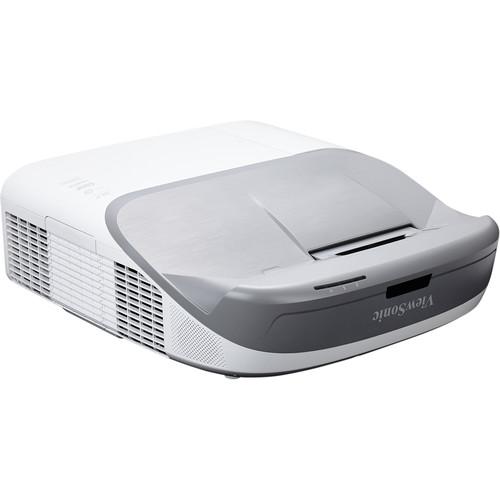

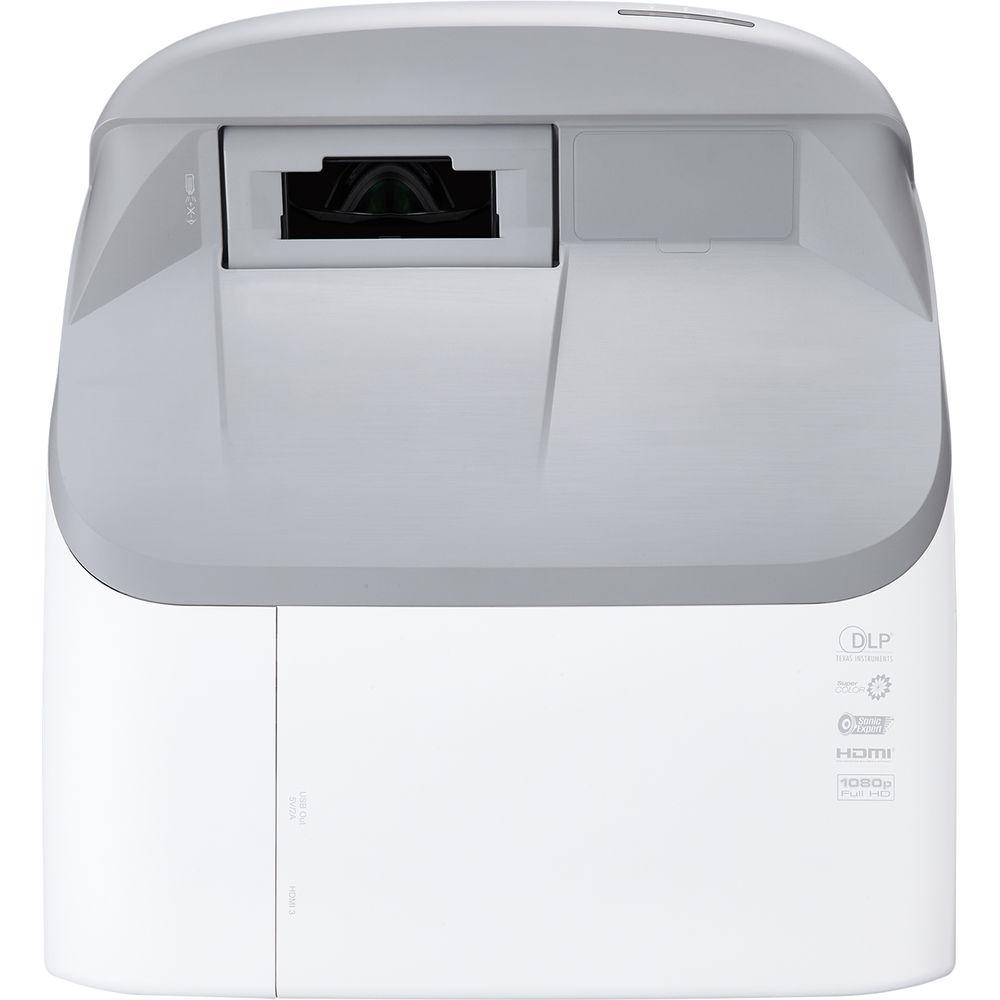

User Manual for ViewSonic PX800HD 2000-Lumen Full HD Ultra-Short-Throw DLP Projector Click to enlarge the picture
Contents of the user manual for the ViewSonic PX800HD 2000-Lumen Full HD Ultra-Short-Throw
- Product category: Multimedia Projectors ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Multimedia Projectors
 |
User manual for the ViewSonic PX800HD 2000-Lumen Full HD Ultra-Short-Throw contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|
Product description Enjoy shadowless images in most installations with the ViewSonic PX800HD 2000-Lumen Full HD Ultra-Short-Throw DLP Projector. Its 0.23:1 ultra-short-throw ratio allows it to be mounted less than a foot from your projection surface and create images up to 150", mitigating the risk of shadows cast by the presenter or passers-by. Its 2000 lumens of brightness, combined with its 100,000:1 dynamic contrast ratio, will help it overcome ambient light in dimly to moderately lit installations and retain detail in dark areas of the image without compromising overall brightness. The 1920 x 1080 Full HD native resolution will help ensure that video, images, and text are clear at most viewing distances.

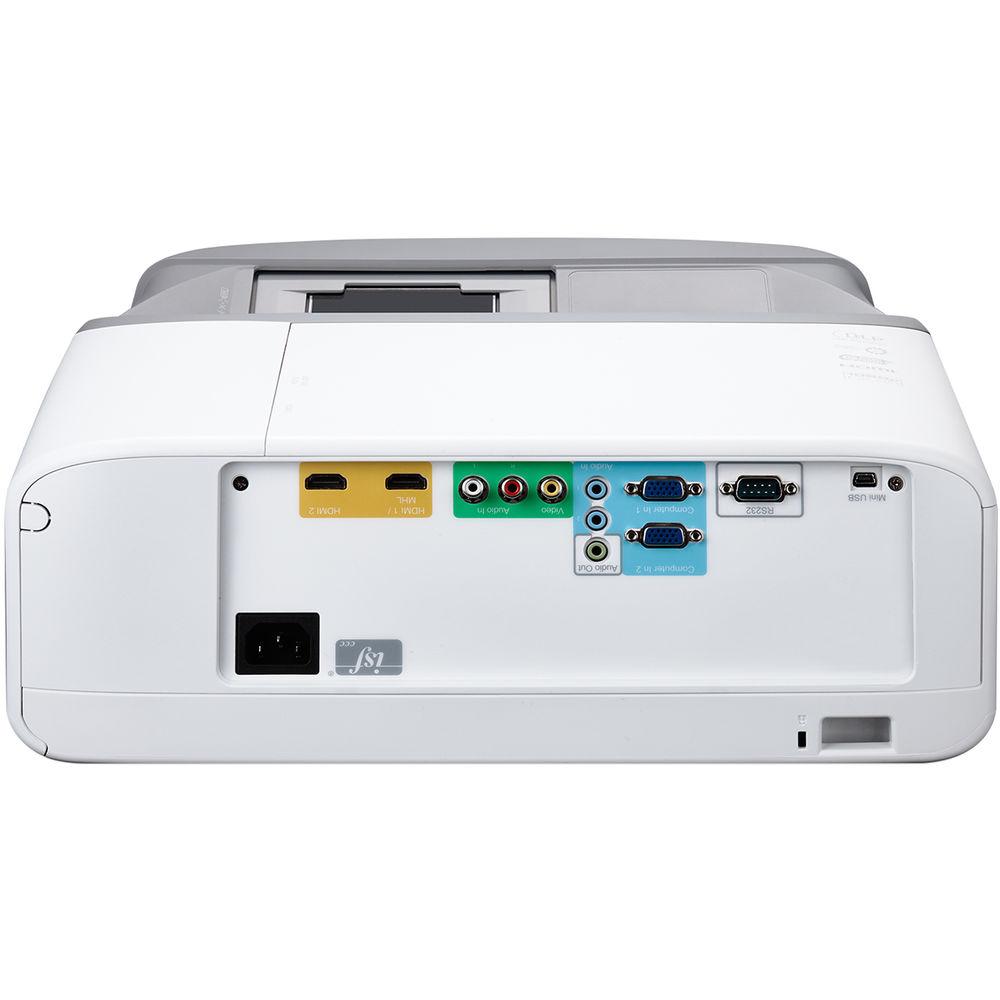

The PX800HD features RCA composite, two VGA, and three HDMI inputs to support various sources. One HDMI input is MHL-compatible, which will allow you to connect your compatible portable device directly to the projector to mirror its screen. Its analog audio inputs and output allow for audio transmission for a more immersive experience. The included IR remote control has a built-in laser pointer to help you point out important areas of your presentation. - Ultra-Short-Throw Ratio for Large Images in Small Spaces
- The ultra-short-throw lens allows for simple and flexible setup. Placing the projector just inches away from the wall will not only produce a large image, but also gives it a more discreet presence.
- SuperColor TruCinema Rec. 709
- The PX800HD's RGBRGB color wheel delivers Rec. 709 color accuracy for enhanced color reproduction.
- 2000 Lumens of Brightness
- With 2000 lumens of brightness, the PX800HD produces bright images in many environments, offering augmented performance in rooms with moderate ambient light.
- 16 ms Input Latency
- The low 16 ms input latency helps provide smooth images with minimal delay, making the PX800HD well suited for gaming.
- ISF Certified Color Calibration Tools
- ISF (Imaging Science Foundation)-certified day and night modes help deliver optimized color in both bright and dark environments.
- SonicExpert Technology
- This projector is designed with ViewSonic's SonicExpert technology which incorporates an enlarged speaker chamber and a more powerful amplifier to deliver a full 20 Hz to 20 kHz sound range. The dual integrated speakers are designed to captivate your audience with immersive sound.
- PortAll Discreet MHL/HDMI Port with Built-In Micro-USB Cable

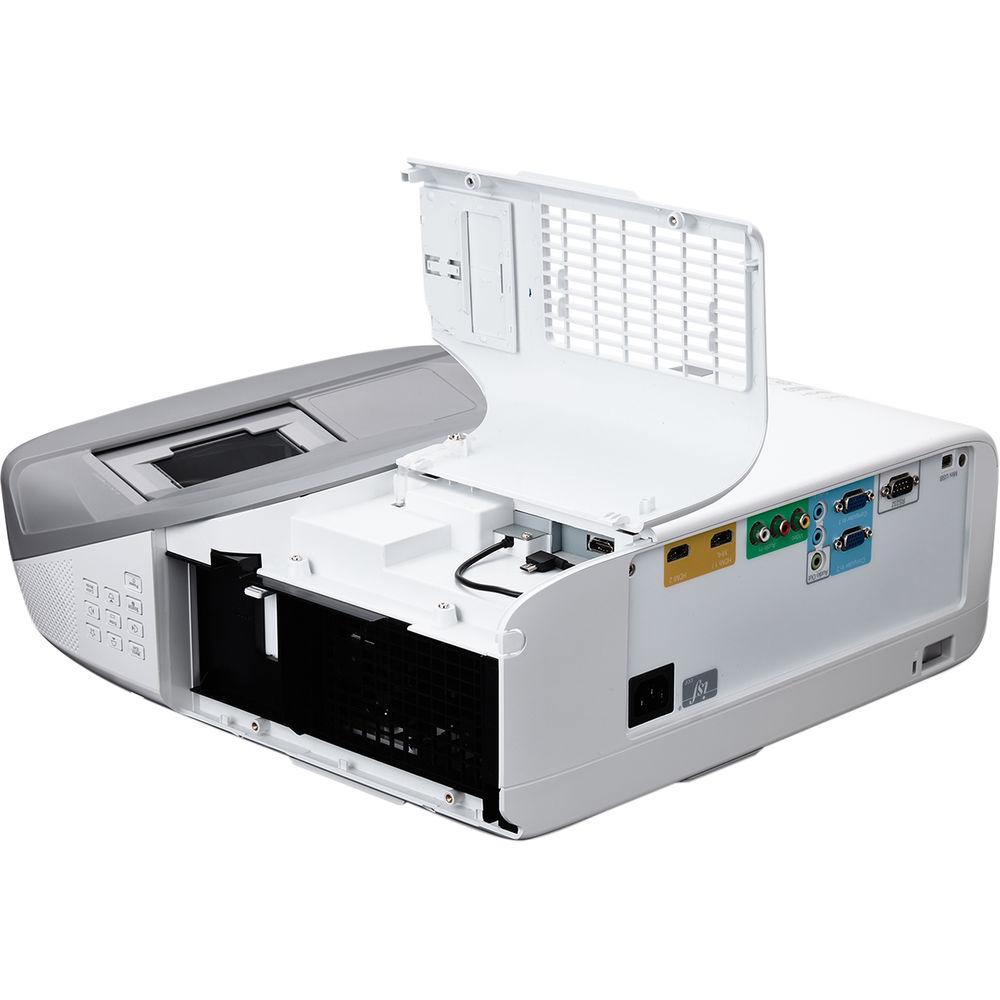

- The PX800HD includes ViewSonic's PortAll feature—a hidden compartment with an integrated and secure MHL/HDMI port that lets you discreetly stream multimedia content from a wireless adapter, or connect to other devices via an HDMI cable. Additionally, an integrated micro-USB cable lets you quickly and easily power micro-USB enabled devices.
- Full HD 1080p Resolution
- With Full HD 1080p resolution, enhanced detail, and color help create a cinema-like experience.
- Three HDMI Inputs
- Designed with three HDMI ports, the PX800HD is suitable for connecting nearly any HDMI-enabled source device, and can display 3D images directly from 3D Blu-ray players. The 3D images can be viewed with optional ViewSonic PGD-350 shutter glasses, or any other compatible 3D glasses.
UPC: 766907889611 In the Box ViewSonic PX800HD 2000-Lumen Full HD Ultra-Short-Throw DLP Projector Laser Pointer Remote with Batteries VGA Cable Power Cable Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic PX800HD 2000-Lumen Full HD Ultra-Short-Throw DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic PX800HD Specs | | | Display System | 0.65" DMD DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | 2000 Lumens | | Aspect Ratio | Native: 16:9 | | Dynamic Contrast Ratio | 100,000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Frame Packing (up to 1080p)
Side by Side (up to 1080p)
Top Bottom (up to 1080p) | | Color Wheel | 6-Segment (R/G/B/R/G/B) | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 100 kHz
Vertical: 24 to 120 Hz | | | | Focus | Manual | | Optical Zoom | None | | Throw Distance | 0.328 - 0.755' / 0.1 - 0.23 m | | Throw Ratio | 0.23:1 | | Projection Size | 70 - 150" / 177.80 - 381.00 cm | | | | Keystone Correction | Vertical: ± 30°
Horizontal: ± 30° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 20W | | | | Wireless LAN / Wi-Fi | None | | | | Light Source | Lamp | | Lamp Power | 240 W | | Expected Lamp Life | Full Brightness: 3000 Hours
Low Brightness: 6000 Hours | | Security | Cable Lock Slot
Security Bar | | Supported Languages | Arabic
Czech
Dutch
English
Finnish
French
German
Hindi
Indonesian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 450 W
Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | 9842' / 3000 m | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 - 90% | | Dimensions (W x H x D) | 17.1 x 6.0 x 15.3" / 434.0 x 153.0 x 388.0 mm | | Weight | 13.40 lb / 6.08 kg | | | | Package Weight | 18.0 lb | | Box Dimensions (LxWxH) | 22.5 x 19.5 x 11.0" |
