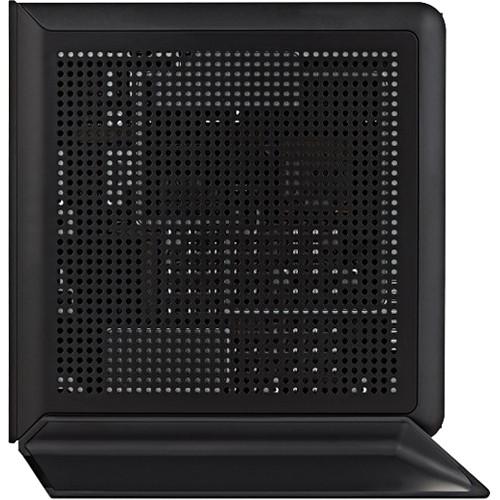

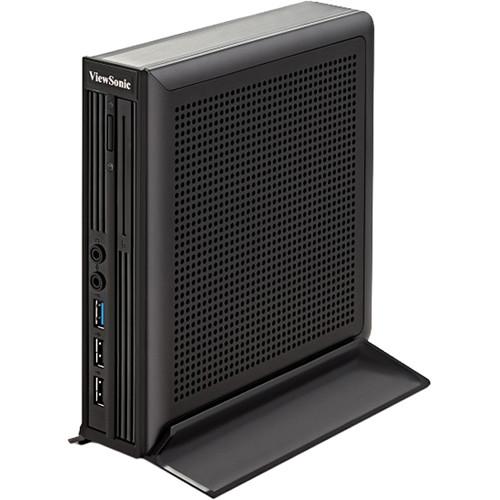

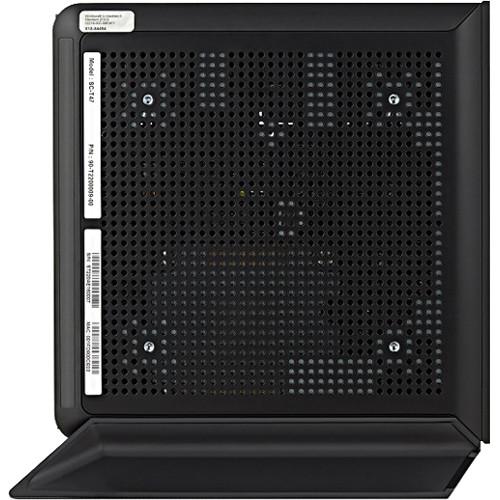

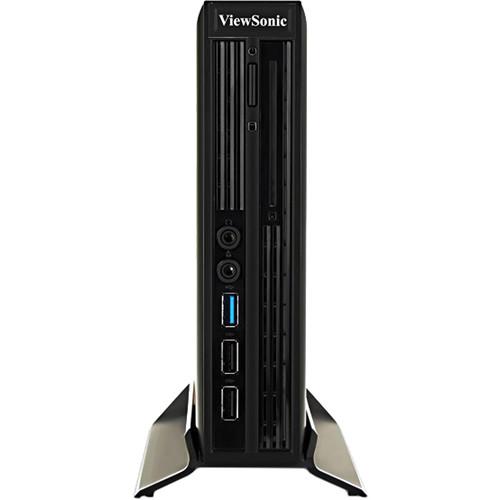

User Manual for ViewSonic SC-T47-WW1 Thin Client Click to enlarge the picture
Contents of the user manual for the ViewSonic SC-T47-WW1 Thin Client
- Product category: Terminal & Thin Clients ViewSonic
- Brand: ViewSonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewSonic Terminal & Thin Clients
 |
User manual for the ViewSonic SC-T47-WW1 Thin Client contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewSonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!
|
Product description The ViewSonic SC-T47-WW1 Thin Client supports major remote networking protocols, including Microsoft RDP with RemoteFX, Citrix HDX, and PCoIP for VMware View, making it suitable for virtualized environments. To help run local apps and graphics rendering, the SC-T47 is outfitted with an Intel Celeron J1900 quad-core processor, which operates between 2.0 and 2.42 GHz speeds, along with 4GB of DDR3 memory. For storing word docs, spreadsheets, and other files, 32GB of flash memory is on board. Windows 7 Pro is the installed operating system on this drive. Aside from storage, the Intel Celeron J1900 processor provides an integrated Intel HD Graphics chipset that delivers up to 1920 x 1200 resolutions through the SC-T47's four DVI ports.
Other notable connections include four USB 2.0 ports as well as one USB 3.0 port to access external storage drives, printers, and other useful peripherals. For wireless access, ViewSonic has equipped the SC-T47 with 802.11a/b/g/n Wi-Fi. There's also a Gigabit Ethernet port for fast and reliable network access. With a compact form-factor, the thin client can be mounted behind a VESA-compatible monitor using the included bracket. Additionally, the SC-T47 typically consumes 18W of power to keep day-to-day expenses down. - Quad Display Productivity
- With four DVI digital outputs, this discrete thin client can support up to four displays at up to 1920 x 1200 resolution and run multiple applications and full streaming video.
- Enterprise-Class Virtualization
- Whether running Citrix XenDesktop, VMware View, or Microsoft-based VDI, this client device can handle all of your VDI-based virtualization and traditional computing needs. Supported protocols include Microsoft RDP (8.0), Citrix ICA/HDX, and VMware PCoIP.
- VESA-Mountable Design

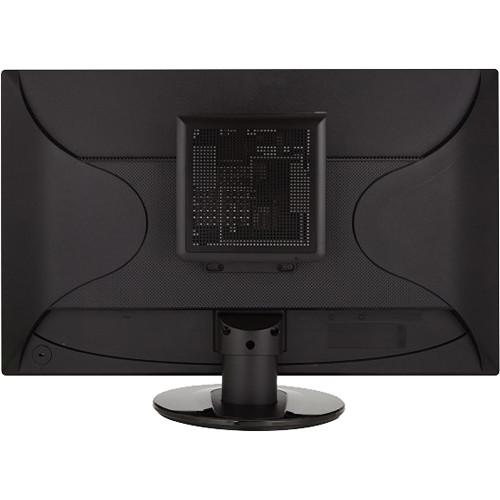

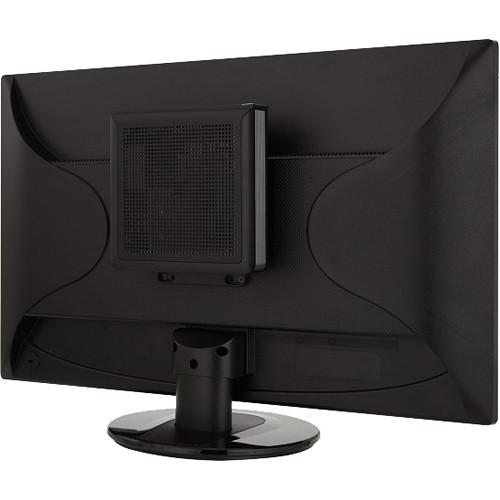

- With a sleek, compact form factor, this client device reduces clutter and streamlines the desktop. It features a unique desktop stand that can either be used in a free-standing configuration on the desk or mounted to a 100 x 100mm VESA-compatible monitor, depending on your specific needs.
UPC: 766907787115 In the Box ViewSonic SC-T47-WW1 Thin Client Power Cord Power Adapter DVI-I to VGA Adapter Stand/VESA Mounting Bracket Wizard CD Limited 3-Year Warranty Brochure PDF 1.4mbvvyqvrcy Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic SC-T47-WW1 Thin Client in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

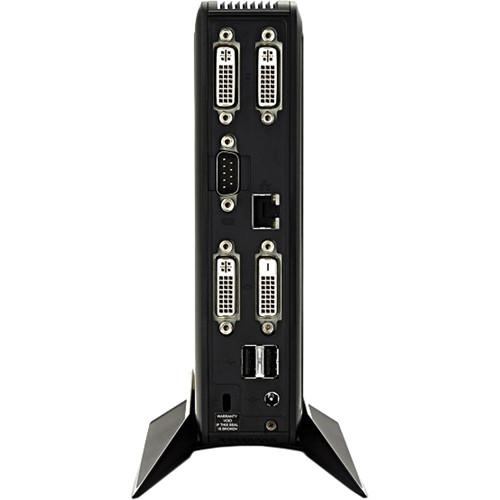

Technical parametersViewSonic SC-T47_WW_BK_US1 Specs | | | Processor | Intel Celeron J1900 Quad-Core | | Base Clock Speed | 2.0 GHz | | Maximum Boost Speed | 2.42 GHz | | Total Installed Memory | 4 GB | | Memory Type | DDR3 SDRAM | | Memory Speed | 1333 MHz | | Graphics Type | Integrated | | GPU | Intel HD Graphics | | | | Available Slots | None | | Total Installed Capacity | 32 GB | | Solid State Storage | 1 x 32 GB Integrated eMMC | | | | Ports | 4 x USB 2.0 Type-A
1 x USB 3.1 Gen 1 Type-A
1 x DE-9 Serial | | Display | 3 x DVI-I
1 x DVI-D | | Audio | 1 x 1/8" (3.5 mm) Headphone Output
1 x 1/8" (3.5 mm) Microphone Input | | | | Network | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | Wi-Fi | Wi-Fi 4 | | | | Operating System | Windows 7 Professional | | Security | Kensington Lock Slot | | Dimensions (W x H x D) | 7.9 x 7.8 x 3.8" / 200.7 x 198.1 x 96.5 mm | | Weight | 2.4 lb / 1.1 kg |
