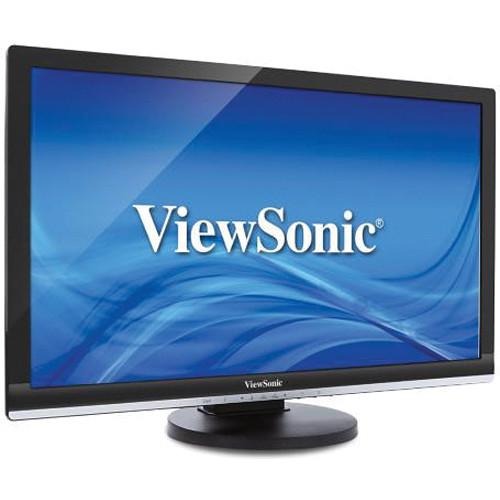

Product description Optimized for major remote networking protocols including Microsoft RDP with RemoteFX, Citrix HDX, and PCoIP for VMware View, the SD-T225 22" All-in-One Desktop Computer from ViewSonic affords users a versatile virtualization solution. Designed for business, education, healthcare, and government use, this thin client display provides a cleaner desktop with reduced cabling and clutter.

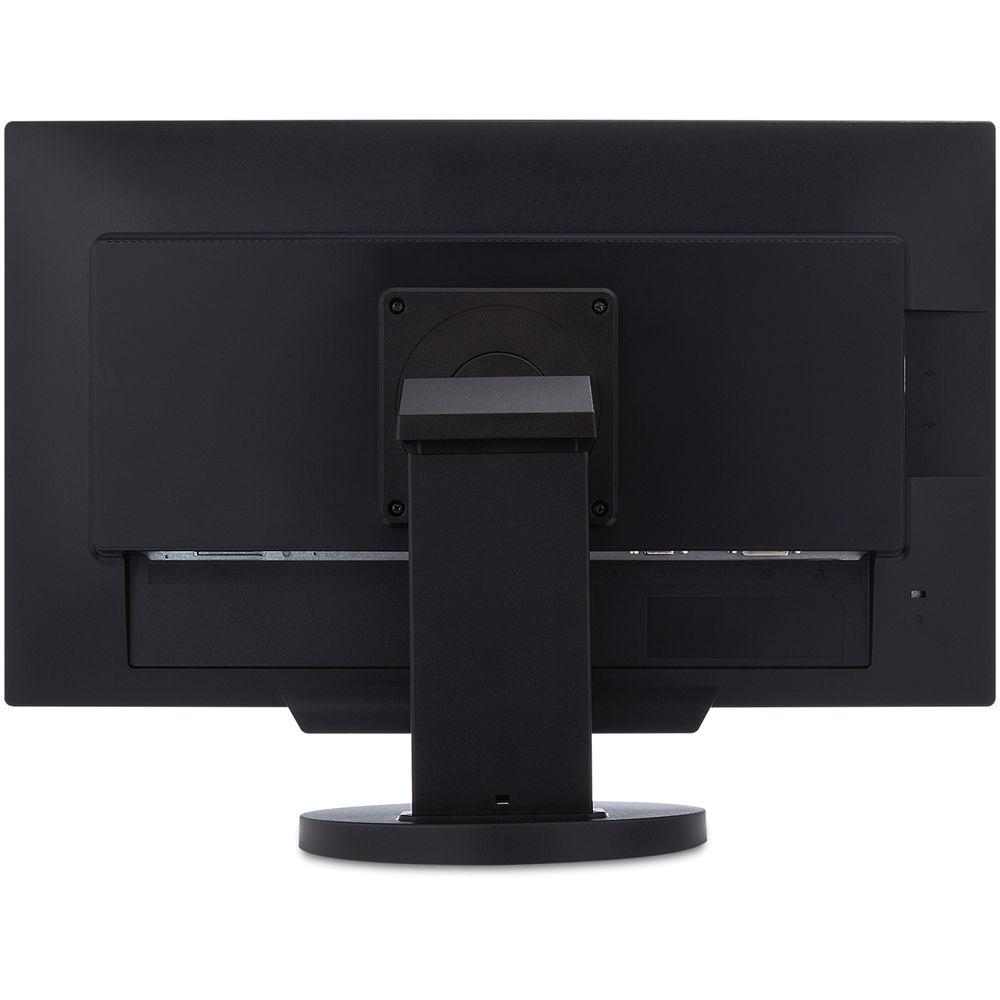

The system is powered by a 1.0 GHz TI DM8148 Cortex A8 processor, 1GB of 1066 MHz DDR3 RAM, and 4GB of eMMC storage. The 22" (21.5" viewable) TFT LCD Anti-Glare Display display has a Full HD 1920 x 1080 resolution, LED backlighting, a 250 cd/m2 brightness, a 1,000:1 typical contrast ratio, a 20,000,000:1 dynamic contrast ratio, 170°/160° viewing angles, a 5ms response time, a backlight life of up to 30,000 hours, dual 2W speakers, and a 16:9 aspect ratio. Also featured is tilting of -5 to 25°, a 340° swivel, a 90° pivot, and a height adjustment of 3.9".

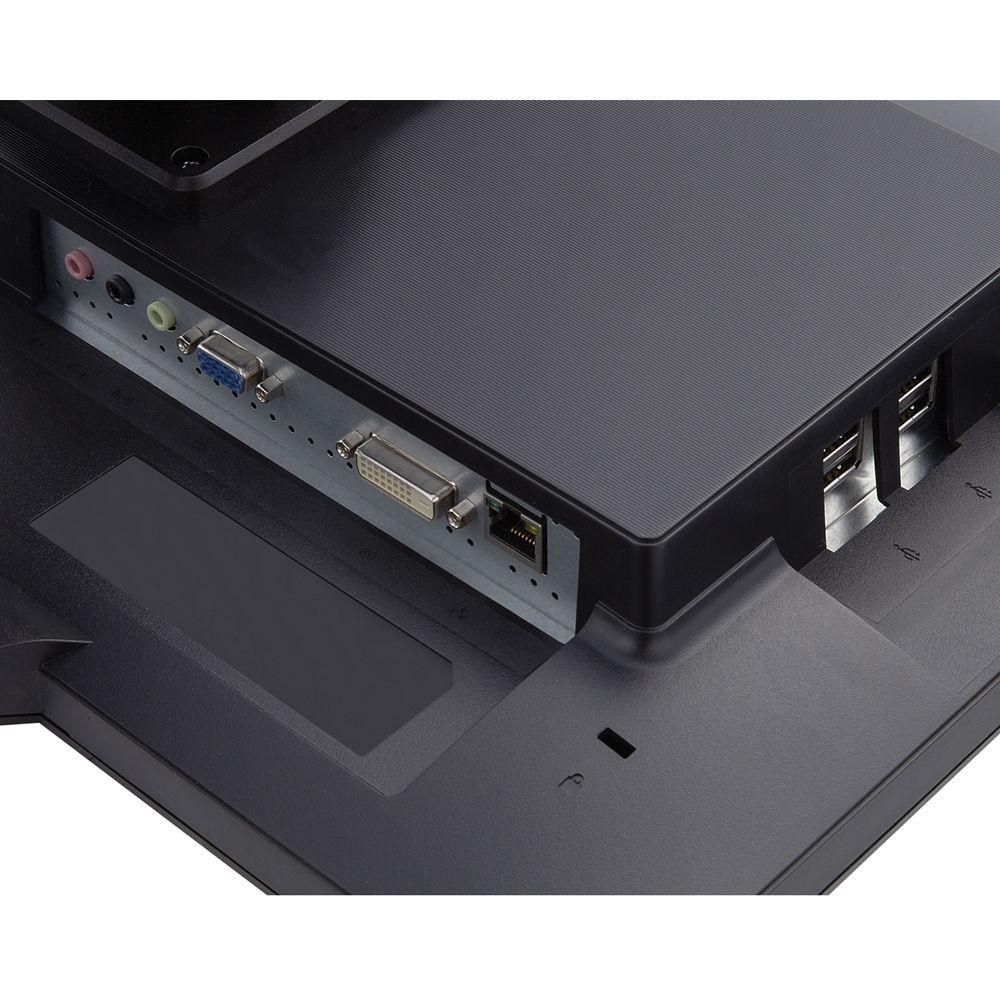

Network connectivity is achieved using a Gigabit Ethernet port and peripherals may be connected to this All-in-One using the four USB 2.0 ports. There is also a 15-pin mini VGA video input and a DVI-D video output. This system is powered using 90-240 VAC at 50-60 Hz. The SD-T225 operates using ARM Linux OS and is compatible with systems running Windows and Mac OS. Included with this All-in-One is a power cord and a VGA cable, and protection is provided by a limited 3-year parts, labor, and backlight warranty. Key Features - All-in-One integrated thin client display with PC-like functionality
- TI 1 GHz ARM Cortex-A8 CPU and ARM Linux OS
- Dual display productivity
- Ergonomic design for comfort and productivity
- Simplified and secure management
Designed For - Business: enterprise class computing
- Education: standardized testing, libraries, labs
- Healthcare: nurses' stations, HIPAA compliance
- Government: security and performance
UPC: 766907757811 In the Box ViewSonic SD-T225 22" All-in-One Desktop Computer Power Cord VGA Cable Limited 3-Year Warranty Guides & Manuals urddcxeqvzrvbe More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic SD-T225 22" All-in-One Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the ViewSonic SD-T225 22" All-in-One Desktop Computer can be downloaded in PDF format at the link stated below.
Technical parametersViewSonic SD-T225_BK_US0 Specs | | | CPU Processor | 1.0 GHz TI DM8148, Cortex A8 | | | | Chipset | None | | Resolution | 1920 x 1080p (for single display) | | | | System | 1 GB of 1066 MHz DDR3 RAM | | Storage | 4 GB of eMMC | | | | OS | Linux | | Management | ViewSonic Device Manager Pro | | Protocols | Citrix Receiver HDX 12.5.1, VMware PCoIP, RDP 7.1 with RemoteFX | | | | Ethernet | 10/100/1000 Mbps | | | | Type | Color Active Matrix TFT LCD | | Display Area | 18.8" / 47.8 cm horizontal x 10.6" / 26.9 cm vertical; 21.5" / 54.6 cm diagonal | | Resolution | 1920 x 1080 | | Brightness | 250 cd/m2 (typ.) | | Contrast Ratio | 1,000:1 (typ) | | Dynamic Contrast Ratio | 20,000,000:1 | | Viewing Angles | 170° horizontal, 160° vertical | | Response Time | 5 ms | | Backlight | LED | | Backlight Life | 30,000 hours (min) | | Panel Surface | Anti-glare, hard coating (3H) | | | | Analog | RGB Analog (0.7 / 1.0 Vp-p, 75 ohms) | | Frequency | Fh: 24~82 kHz
Fv: 50~75 Hz | | Sync | Separate Sync | | | | PC | VGA up to 1920 x 1080 non-interlaced | | Mac | Up to 1920 x 1080 | | | | USB | 4 x USB 2.0 | | Video In | 15-pin mini D-sub (VGA) | | Video Out | DVI-D | | LAN | RJ45 | | Microphone In | 3.5 mm mini jack (red) | | Headphone Out | 3.5 mm mini jack (green) | | Line In | 3.5 mm mini jack (black) | | Power | AC In | | | | Basic | Client, 2, Down, Up, 1, Power | | OSD | Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
(See user guide for complete OSD functionality) | | | | Voltage | 90-240 VAC (universal), 50-60 Hz | | Consumption | 26 W (typ) | | Optimize | 20 W (typ) | | Conserve | 18 W (typ) | | | | Tilt | Forward -5° / Back 25° | | Swivel | 340° | | Pivot | 90° | | Height Adjustment | 3.9" / 100 mm | | | | Temperature | 32 to 95°F / 0 to 35°C | | Humidity | 15-90% (non-condensing) | | | | Regulations | CB, FCC, cTUVus, CE, WEEE, RoHS Compliant, REACH Compliant | | Recycle / Disposal | Please dispose of in accordance with local, state, or federal laws | | | | Dimensions | With stand: 20.17 x 14.46 x 8.01" / 512.4 x 367.4 x 204.3 mm
Without stand: 20.17 x 11.96 x 2.1" / 512.4 x 303.8 x 53.1 mm | | Weight | With stand: 10.8 lb / 4.9 kg
Without stand: 7.2 lb / 3.3 kg | | | | Package Weight | 14.4 lb | | Box Dimensions (LxWxH) | 22.4 x 15.3 x 6.7" |
