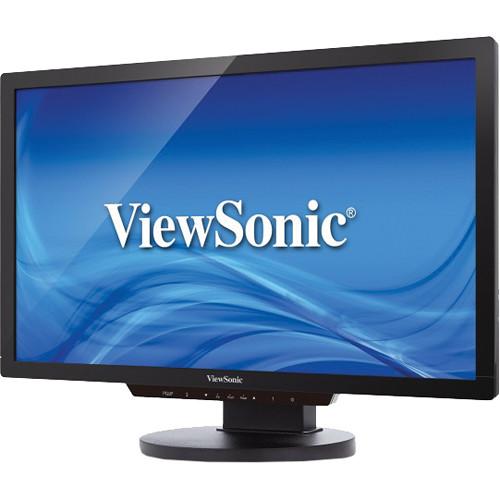

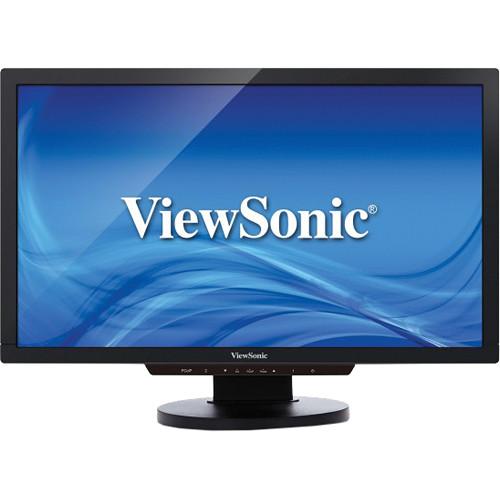

ViewSonic SD-Z226 Zero Client 21.5" Monitor

Search your instruction manual in PDF to download

User Manual for ViewSonic SD-Z226 Zero Client 21.5" Monitor

Click to enlarge the picture
ViewSonic SD-Z226 Zero Client 21.5" Monitor Contents of the user manual for the ViewSonic SD-Z226 Zero Client 21.5" Monitor
  • Product category: Smart Display Clients ViewSonic
  • Brand: ViewSonic
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for ViewSonic Smart Display Clients

ViewSonic SD-Z226 Zero Client 21.5" Monitor ViewSonic SD-Z226 Zero Client 21.5" Monitor ViewSonic SD-Z226 Zero Client 21.5" Monitor ViewSonic SD-Z226 Zero Client 21.5" Monitor ViewSonic SD-Z226 Zero Client 21.5" Monitor ViewSonic SD-Z226 Zero Client 21.5" Monitor
User manual for the ViewSonic SD-Z226 Zero Client 21.5" Monitor contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any ViewSonic product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official ViewSonic user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a ViewSonic product will considerably shorten its lifespan!



Product description

The ViewSonic SD-Z226 Zero Client 21.5" Monitor is powered with a Teradici Tera2321 processor with hardware accelerated PCoIP support. The SD-Z226 zero client is a suitable solution for companies seeking a seamless desktop experience, with ultra-high security and reliability in VMware Horizon, VMware Horizon DaaS, Amazon WorkSpaces, and Remote Workstation environments. The SD-Z226 is a zero client and features no local memory or moving parts for energy savings and reliability. VMware Horizon certification ensures performance and compatibility in your network. With the additional DVI output, flexible support is provided for dual monitor productivity. In addition, full ergonomic functionality includes tilt, swivel, pivot, and 3.9" height adjustment. The eco-friendly design with LED display consumes up to 80% less energy than standard PCs.
    Features
    • Teradici Tera2321 CPU with 512MB of RAM
    • Hardware accelerated PCoIP optimized for VMware
    • PCoIP Management Console provides web-based global control
    • Full connectivity supports video out (DVI-I) for dual monitor productivity, 4 x USB 2.0 ports, microphone, headphone, and RJ45 Gigabit Ethernet
    • Ergonomic design includes tilt, swivel, pivot, and 3.9" height adjustment
    • No moving parts
    Teradici Processor
  • ViewSonic's SD-Z226 is equipped with the Teradici Tera2321 processor that is designed for VMware-based virtualization. This processor delivers up to 5-times faster performance and supports graphic-intensive 2D/3D applications for a rich multimedia experience at full frame rates over gigabit Ethernet.
    Simplified and Secure Management
  • The Teradici PCoIP Management Console provides for centralized deployment and management. With web-based access, administrators will be able to configure, update, manage, and even remotely control the power state for all PCoIP-based zero clients throughout the network.
    Dual Display Productivity
  • With its DVI-I digital output, the SD-Z226 integrated zero client monitor provides for dual display productivity when connected to a secondary 1080p display.
    Ergonomic Design

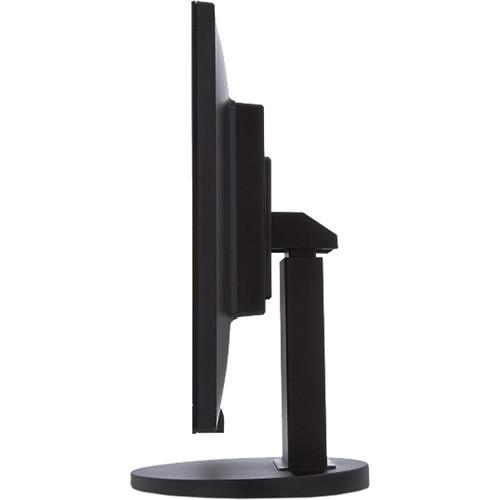

  • ViewSonic displays are designed to provide a range of adjustment for increased productivity and comfort. They can help reduce eyestrain and physical fatigue with 340-degree swivel, 90-degree pivot, -5 to 25-degree tilt, and 3.9" height adjustment options.
    Flexibility for Your Peripherals

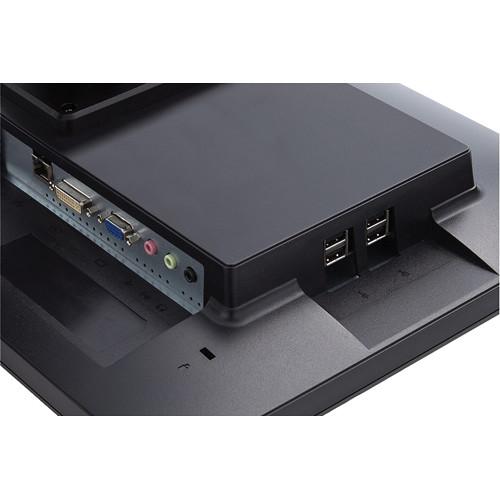

  • For connecting today's components, the SD-Z226 includes a DVI-I video output port, microphone jack, headphone jack, and 4 USB 2.0 ports for your peripherals along with a RJ45 Gigabit Ethernet for networking.
    Dynamic Contrast Ratio
  • Dynamic contrast ratio detects the brightness of an image and automatically adjusts the backlight to maximize the monitor's color range and contrast. Dynamic contrast ratio technology enables the accurate reproduction of images, producing vibrant and rich visual effects.
    Dual Integrated Stereo Speakers
  • The ViewSonic SD-Z226 has two integrated 2W stereo speakers for delivering multimedia performance with stereo sound.
    VESA-mountable Design

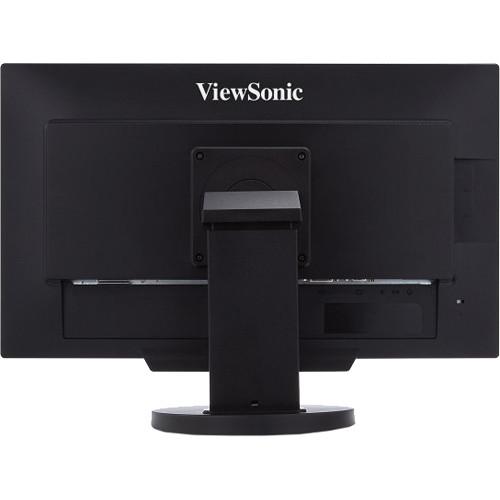

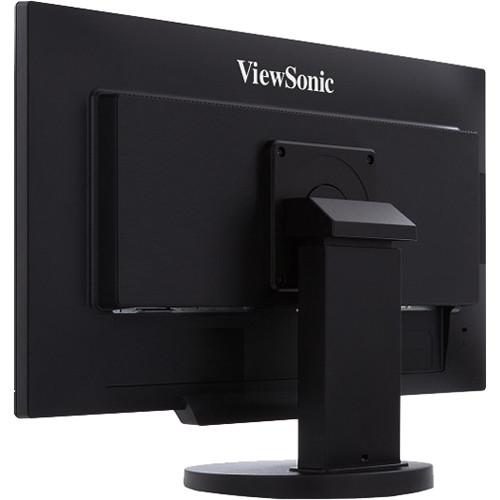

  • The ViewSonic SD-Z226 features a 100 x 100mm VESA-mountable design that allows you to mount the display on a monitor stand or on a wall, depending on your specific needs. You can easily unscrew the base, and then mount the display on its new optional stand or wall mount.
UPC: 766907770919 In the Box ViewSonic SD-Z226 Zero Client 21.5" Monitor
  • Power Cord
  • VGA Cable
  • Wizard CD
  • Limited 3-Year Warranty
  • Manual PDF 295.4kb Table of Contents




    Upload User Manual

    Have you got an user manual for the ViewSonic SD-Z226 Zero Client 21.5" Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: pdf, docx, jpg)

    0%


    Technical parameters

    ViewSonic SD-Z226_BK_US1 Specs

    Processor Manufacturer Teradici
    Processor Type Tera2321
    Standard Memory 512 MB
    Memory Technology DDR3 SDRAM 1066 MHz
    Screen Size 21.5" / 54.6 cm
    18.8" / 47.8 cm horizontal x 10.6" / 26.9 cm vertical
    Brightness 250 cd/m² (typical)
    Contrast Ratio 20,000,000:1 dynamic
    1,000:1 typical
    Viewing Angle 170º horizontal, 160º vertical
    Response Time 5 ms typical
    Colors Supported Not available from manufacture
    Resolution 1920 x 1080
    Display Screen Type Wide-color TFT Active Matrix LED
    Backlight 30,000 hours (minimum)
    Panel Surface Anti-glare, hard-coating (3H)
    Other Specifications RGB analog (0.7 / 1.0 Vp-p, 75 ohms)
    Frequency Horizontal: 24 to 82 kHz
    Frequency Vertical: 50 to 75 Hz
    Sync Separate Sync
    Ethernet Technology Gigabit Ethernet
    Video In 1 x 15-pin mini D-sub (VGA)
    Video Out 1 x DVI-I
    Image Performance: 50 Mpps
    Number of USB 2.0 Ports 4
    Network (RJ-45) 1 x 10/100/1000
    Audio Ports 1 x 3.5 mm microphone
    1 x 3.5 mm headphone
    1 x 3.5 mm line-in
    Sound Integrated 2 x 2-watt speakers
    VMware Support PCoIP for VMware
    Power Voltage: 90 to 264 VAC (universal), 50 to 60 Hz
    Consumption: 24 W typical
    Ergonomics Tilt: Forward 5º / Back 25º
    Height: 0 to 3.9" (0 to 100 mm)
    Swivel: ±170º
    Pivot: 0 to 90º
    Security Kensington lock slot
    VESA Compatibility 100 x 100 mm
    Form Factor All-in-One
    Regulations FCC, CB, CE, cTUVus, WEEE, RoHS Compliant, REACH Compliant
    Environmental Temperature: 32 to 95°F / 0 to 35°C
    Humidity: 15 to 90% (non-condensing)
    Dimensions (WxHxD) With Stand: 20.2 x 14.5 x 8.0" / 512.4 x 367.4 x 204.3 mm
    Without Stand: 20.2 x 12.4 x 2.1" / 512.4 x 315.0 x 53.3 mm
    Weight With Stand:10.8 lb / 4.9 kg
    Without Stand: 7.4 lb / 3.4 kg
    Package Weight 14.2 lb
    Box Dimensions (LxWxH) 22.2 x 15.0 x 6.7"
