Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Designed for use in a variety of settings including retail, POS, and commercial environments, the TD1711 17" 5:4 Touchscreen LCD Monitor from ViewSonic features a resistive touchscreen display that makes it easy to interact with whatever is being displayed on the screen. This display supports a 1280 x 1024 resolution in a 5:4 aspect ratio with a 1000:1 contrast ratio, a 250 cd/m² brightness rating, a 5 ms response time, and support for up to 16.7 million colors. Setup is simple as the TS1711 comes equipped with VGA, HDMI, and RS232 inputs, making it compatible with a variety of devices. Furthermore, this ViewSonic touchscreen monitor comes equipped with dual 1W speakers and a Kensington lock slot to secure the display. - Resistive Touch Technology
- With resistive touch technology, this monitor features a robust, pressure-sensing touchscreen that is resistant to dust and water, making it ideal for use in retail, POS, and commercial environments. Because non-conductive inputs can be used, this display is also fully functional in gloved environments and compatible with styluses.
- MEGA Dynamic Contrast Ratio
- A superior MEGA dynamic contrast ratio better defines the relationship between the darkest and brightest colors, ensuring that this monitor delivers an incredibly immersive experience with accurate, rich, and vibrant images.
- Control Multiple Devices
- The RS232 connection offers local control for set-top boxes and other RS232 connected devices, directly with the display's remote controller. HDMI CEC functionality offers local control of DVD players, sound systems, and other HDMI connected devices, directly with the display's remote controller.
- Dual Integrated Speakers
- Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.
- VESA-Compatible Mount

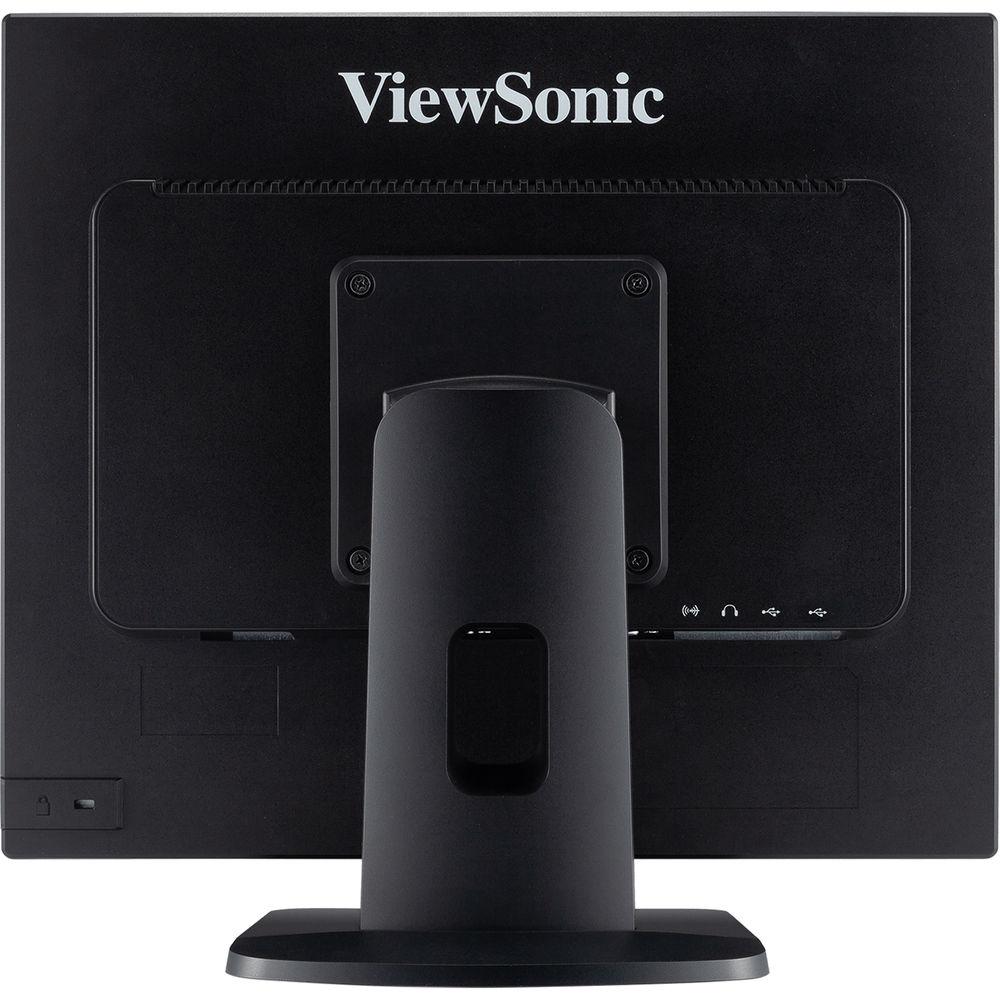

- Mount the monitor as you see fit using its convenient VESA-compatible mount design.

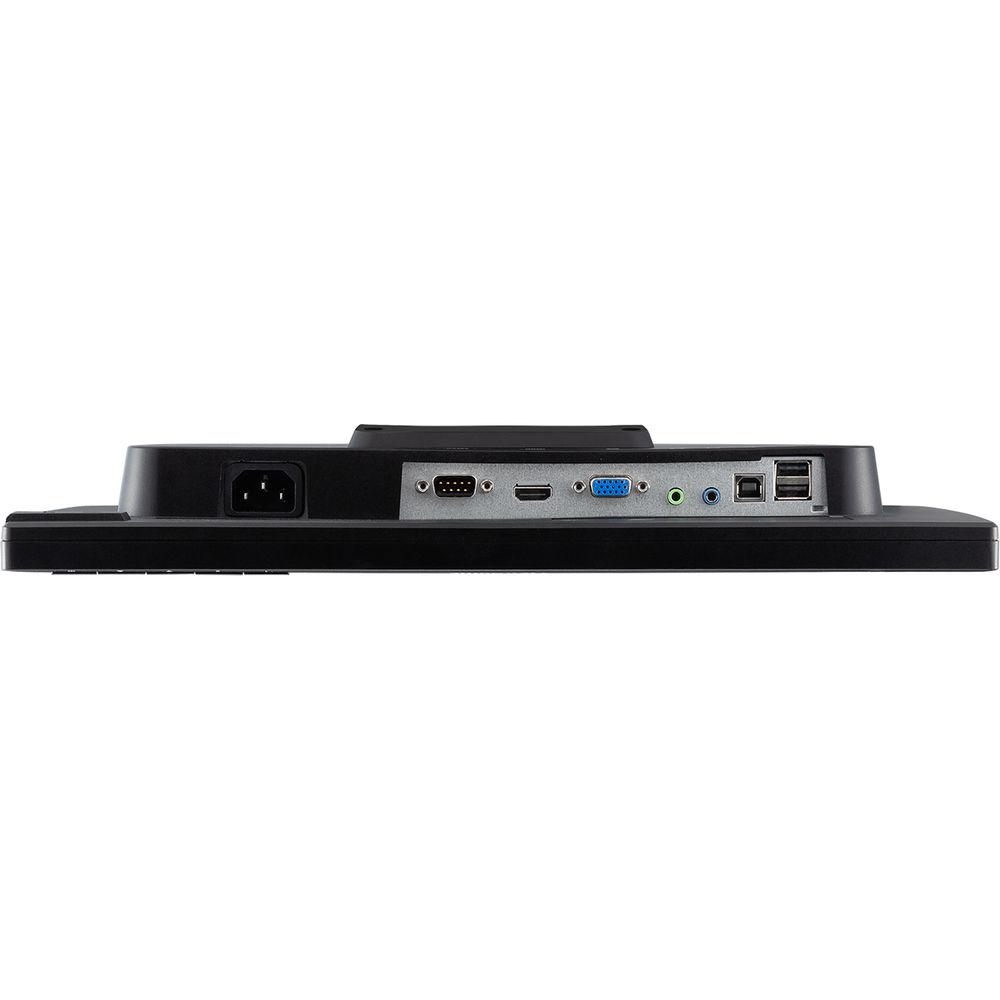

UPC: 766907979817 In the Box ViewSonic TD1711 17" 5:4 Touchscreen LCD Monitor Power Cable VGA Cable USB Cable Audio Cable Limited 3-Year Warranty User Manual PDF 1.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewSonic TD1711 17" 5:4 Touchscreen LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewSonic TD1711 Specs | | | Size | 17" | | Panel Type | TN LCD | | Touchscreen | Yes | | Resolution | 1280 x 1024 | | Aspect Ratio | 5:4 | | Pixels Per Inch (ppi) | 96 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Adaptive Sync Technology | None | | Horizontal Frequency | 24 to 82 kHz | | Vertical Frequency | 50 to 75 Hz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 2 x USB Type-A (USB 2.0)
1 x USB Type-B (USB 2.0)
1 x 3.5 mm Input
1 x 3.5 mm Output
1 x VGA
1 x HDMI 1.4
1 x RS232 Input | | Built-In Speakers | Yes, 2 x 1 W | | | | Power Consumption | 11.4 W (Eco)
12.6 W (Typical)
17 W (Maximum)

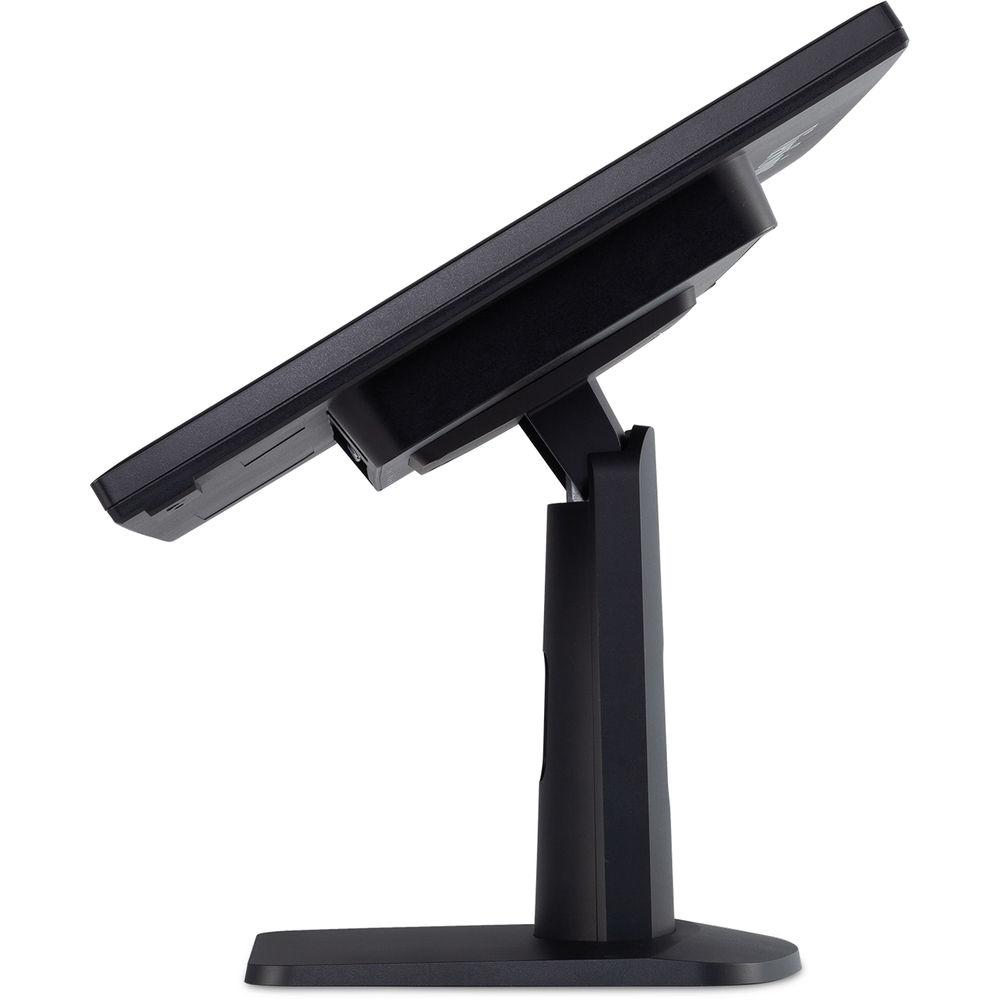

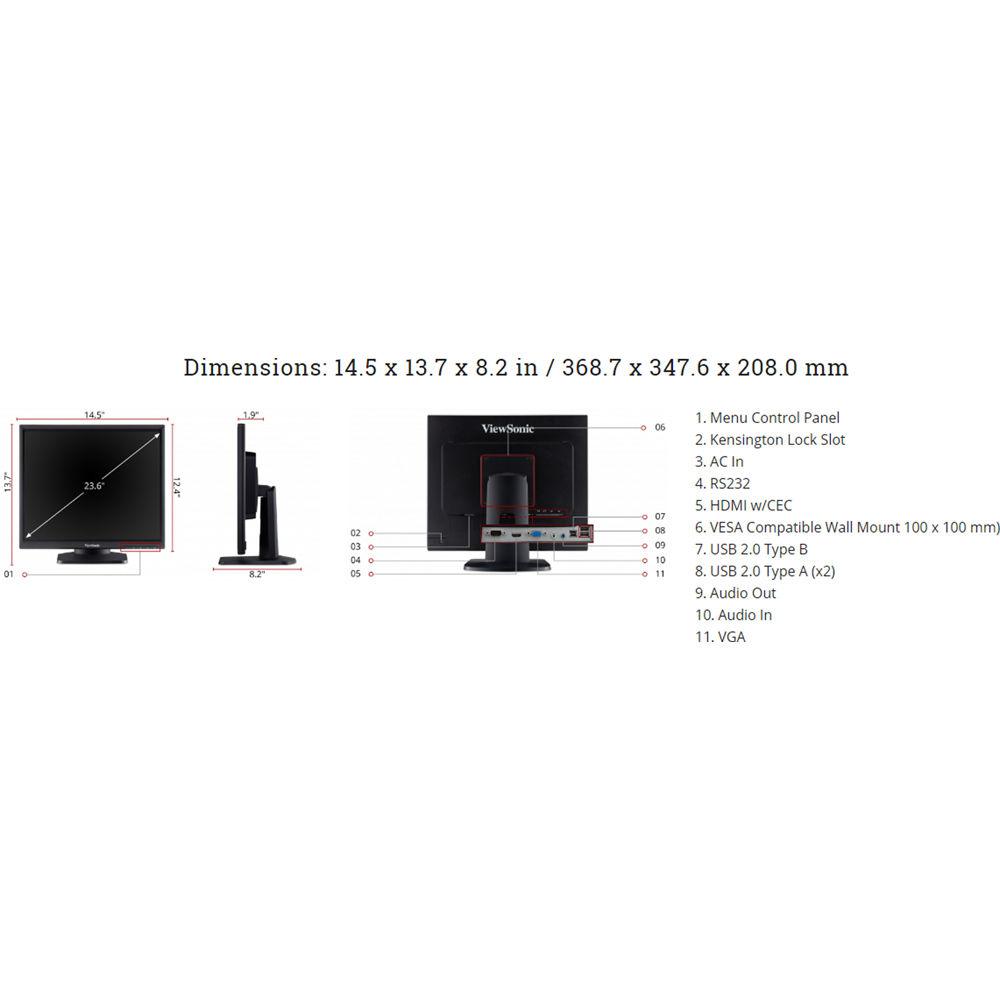

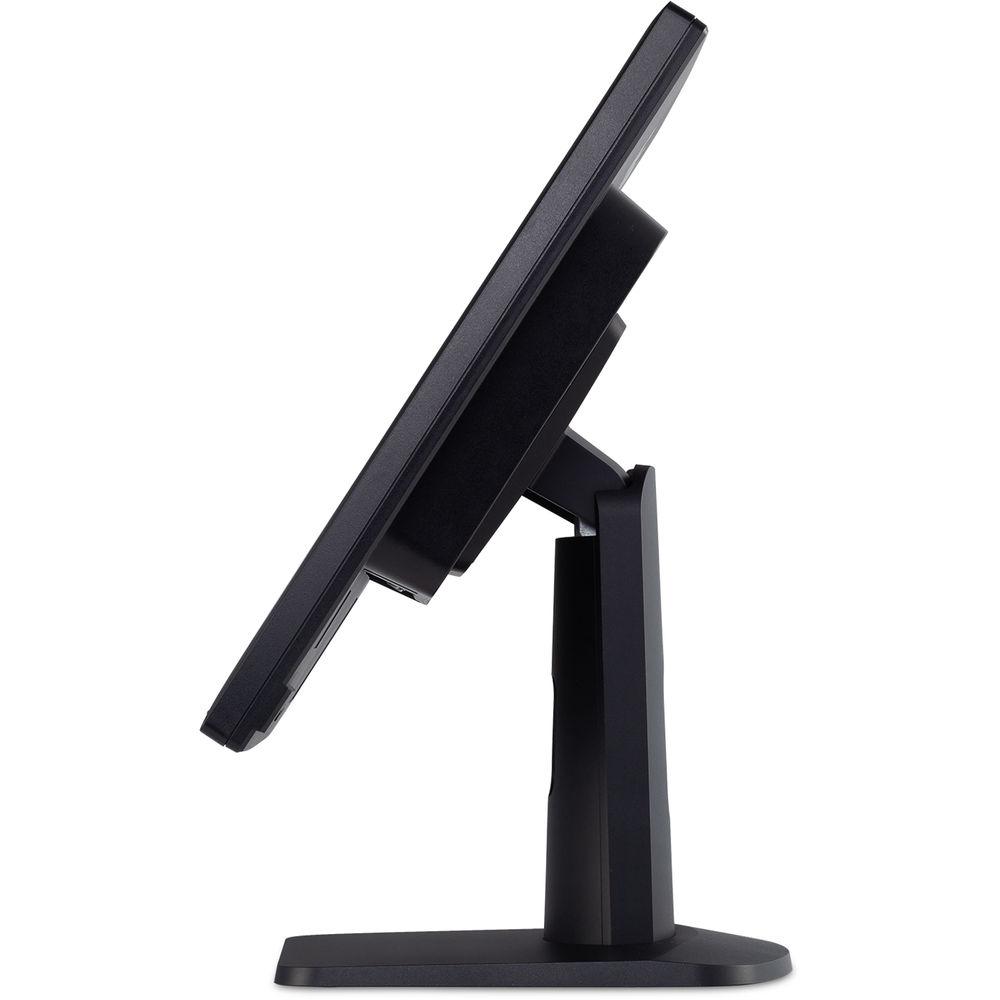

0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 90% | | Certifications | ENERGY STAR, EPEAT Silver, FCC, TUV, as per Manufacturer | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | -5 to 90° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 14.5 x 13.7 x 8.2" / 36.8 x 34.8 x 20.8 cm (With Stand)
14.5 x 12.4 x 1.9" / 36.8 x 31.5 x 4.8 cm (Without Stand) | | Weight | 8.6 lb / 3.90 kg (With Stand)
6.0 lb / 2.72 kg (Without Stand) | | | | Package Weight | 11.6 lb | | Box Dimensions (LxWxH) | 17.65 x 17.65 x 6.5" |
